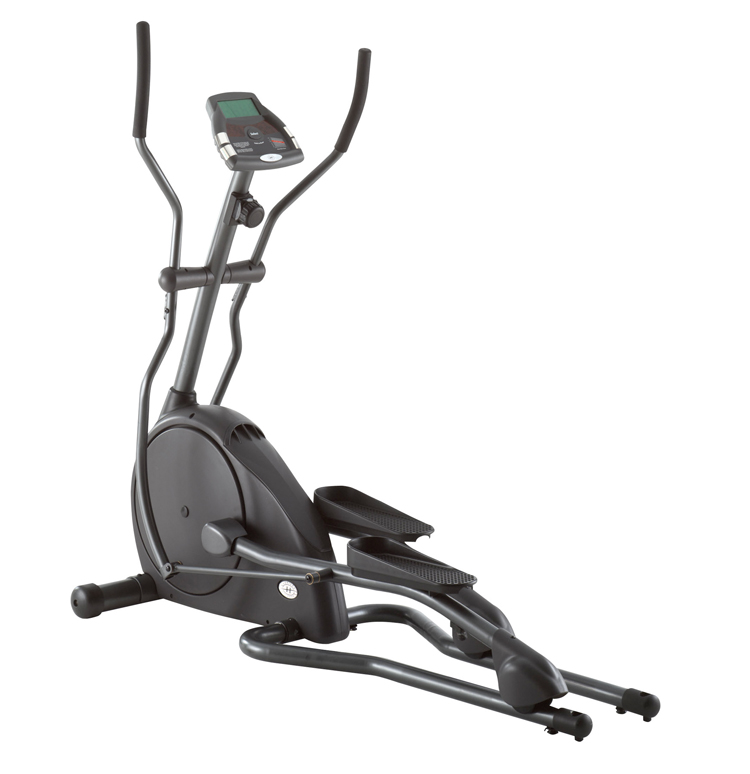

Horizon Fitness - Endurance 200 - 2003

Repair Parts for Horizon Fitness Endurance 200 EP28

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: Endurance 200

Version: 2003

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700009 000014-00 L05 Transport Wheel Yes Model Compatibility List $9.57 / Each

8
Q 700033 000130-F Q01 Side Cover;Right Yes Model Compatibility List $49.71 / Each

9
Q 700051 000203-C Q15 Boot;Console Mast No Model Compatibility List $3.54 / Each

7
700132 000485-00 F09 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
F 700135 000491-B F08 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
G 700191 000609-A G21 Foam Grip;Handlebar;31.8x28x3.0tx500L No Model Compatibility List $9.57 / Each

4
N 700263 000815-A N/A Water Bottle No Model Compatibility List $3.82 / Each

1
Q 700385 001188-B Q06 Cover;Roller Wheel Yes Model Compatibility List $12.77 / Each

8,9
E 700409 001272-A E10 Spacer,Pedal Arm No Model Compatibility List $2.00 / Each

2,8,9,3,4,5,6
L 700432 001360-00 L02 Sleeve;Mobile Wheel Yes Model Compatibility List $3.82 / Each

8,3
Q 700455 001412-A Q17 End Cap;Crank Cover No Model Compatibility List $1.77 / Each
Out Of Stock 		8,9
Q 700532 001544-BB Q03 Crank Cover;Round Disk No Model Compatibility List $29.67 / Each

8,9
R 701042 003413-00 R37 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
701154 004072-A2 R09 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
R 701165 004081-A2 R08 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

E 701176 004102-00 E18 Needle Bearing; HK1616 No Model Compatibility List $9.57 / Each

8
701221 004189-A R10 Drive Belt;Poly-V;410-J8 Yes Model Compatibility List $57.49 / Each

15,10
L 701270 004331-AB L08 Screw,oval head; M6x1.0Px25L No Model Compatibility List $2.00 / Each

2
701300 004364-00 P05 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

Q 701326 004379-00 Q32 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701390 004447-AB S12 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

L 701583 004615-00 L06 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

701586 004617-00 Q30 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701588 004618-00 Q33 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
Q 701633 004654-00 Q31 SCREW;RND;Diam.4X15L;SM;PH;;BZN;;POT No Model Compatibility List $3.69 / Each

2
Q 701635 004660-A Q44 Screw;Oval Tapping;5x15L No Model Compatibility List $2.00 / Each

701642 004676-00 S05 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
R 701650 004691-A R13 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
701675 004708-Z S13 Screw;Oval Hex Socket;M5x0.8Px16L No Model Compatibility List $1.85 / Each

2
701690 004719-00 C07 Bolt;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
701699 004724-00 F10 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

H 701713 004730-00 H10 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $2.00 / Each

E 701714 004731-00 E21 SCREW;BH;M8X1.25PX95L;;HS;;;; No Model Compatibility List $3.33 / Each

2
701731 004757-00 G10 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

701781 004796-00 L04 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
G 701830 004849-00 G14 Set Screw;M8x1.25Px10L No Model Compatibility List $2.00 / Each

2
701848 004865-00 J06 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701869 004891-00 R16 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

R 701870 004892-00 R18 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
701893 004925-00 S16 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

701897 004926-00 H08 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

S 701904 004931-00 S18 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

C 701906 004932-Z C05 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
E 701912 004941-00 E16 Nut;Nylon;M10x1.5P Yes Model Compatibility List $2.00 / Each

701927 004964-00 R11 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

701934 004972-00 F07 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

701939 004975-00 L03 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

E 701982 005017-AC E14 Washer;Spring;10.2x18.4x2.5T;Black No Model Compatibility List $2.00 / Each

2,4,5,6
G 701988 005026-00 G20 Washer;Flat;25.5x35.0x1.0T No Model Compatibility List $2.00 / Each

2
R 701991 005029-00 R28 Washer;Flat;20.2X35X1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702018 005053-00 G22 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
J 702020 005055-00 J08 Washer;Flat;16.2x28.7x1.5T No Model Compatibility List $2.00 / Each

2
702040 005070-00 S19 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702076 005109-00 E69 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
G 702078 005110-00 G12 Washer;Flat;8.2x35x2.0T;Black Zinc Yes Model Compatibility List $9.99 / Each

2,4,5,6
E 702109 005138-A E15 Washer;Flat;10.2x25x1.5T;Chromed No Model Compatibility List $2.00 / Each

702135 005163-00 C06 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
G 702163 005200-A G23 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

N 702166 005206-BB N/A Washer;Teflon;10.4x24.75x1.5T No Model Compatibility List $4.00 / Each

2
702178 005220-00 R29 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

702180 005222-00 E13 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
G 702184 005227-Z G19 Washer;Wavy;26x34x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702193 005239-00 R51 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

J 702237 005362-00 J09 C-Clip;External;S-16 No Model Compatibility List $1.59 / Each

702240 005365-00 R34 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702241 005366-00 G15 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

702254 005386-00 N/A Wrench;Open;17mm No Model Compatibility List $4.00 / Each

2
702263 005411-Z N/A Wrench;L-Type;4mm No Model Compatibility List $4.00 / Each

702264 005412-00 N/A Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

702483 007964-00 Q25 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
E 702496 008062-A E52 Washer;Teflon No Model Compatibility List $4.00 / Each

2
P 702511 008393-00 P04 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

G 702607 008969-D G09 Bushing;Inner Yes Model Compatibility List $1.90 / Each

8
R 702901 013178-Z R01 Pedal Axle Set No Model Compatibility List $136.03 / Each
Out Of Stock 		8,9
A 702907 013194-Z AE3 Pivot Tube Set No Model Compatibility List $57.49 / Each

1
R 702908 013196-Z R06 Drive Axle Set;Flywheel Yes Model Compatibility List $228.83 / Each

8,10
E 702911 013209-Z E03 Roller Wheel Set Yes Model Compatibility List $57.49 / Each

8
A 703570 015523-BE AJ1 Crank Set;Left/Right Yes Model Compatibility List $57.49 / Each

8
G 725256 103296 G11 Bushing No Model Compatibility List $9.57 / Each

8
725259 103299 H04 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
H 976932 004926-00 H08 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Heart Rate Sensor Wire Herness (Used) 1006247 002274-A Heart Rate Sensor Wire Herness (Used) Yes Model Compatibility List $17.99 / Each
Out Of Stock 		4,47
View Drawing
