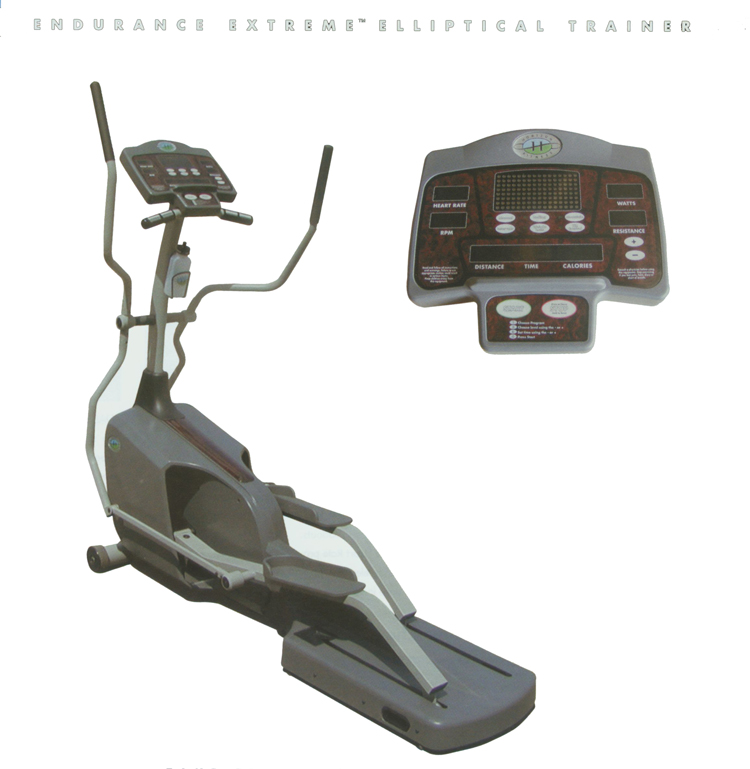

Horizon Fitness - Endurance Ext. - 2002

Repair Parts for Horizon Fitness Endurance Ext. EP22

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: Endurance Ext.

Version: 2002

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700011 000015-B L04 Transport Wheel Yes Model Compatibility List $11.44 / Each
Out Of Stock 		8
700132 000485-00 H53 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
H 700135 000491-B H54 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
G 700191 000609-A G08 Foam Grip;Handlebar;31.8x28x3.0tx500L No Model Compatibility List $9.57 / Each

4
n 700257 000798-A n/a Water Bottle Holder Yes Model Compatibility List $13.34 / Each

1
C 700304 000920-00 C52 End Cap;Handlebar Yes Model Compatibility List $4.50 / Each

1
L 700353 001114-00 L03 Sleeve;Wheel Axle No Model Compatibility List $3.82 / Each

8,3
P 700722 002028-D P02 Console Cable Yes Model Compatibility List $57.49 / Each

7,4,5,6
P 700770 002231-B P01 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
P 700901 002703-A P07 Zero Switch Cable; 100 OMRON + 2.5-2P No Model Compatibility List $9.57 / Each

4,5,6
R 701042 003413-00 R37 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8

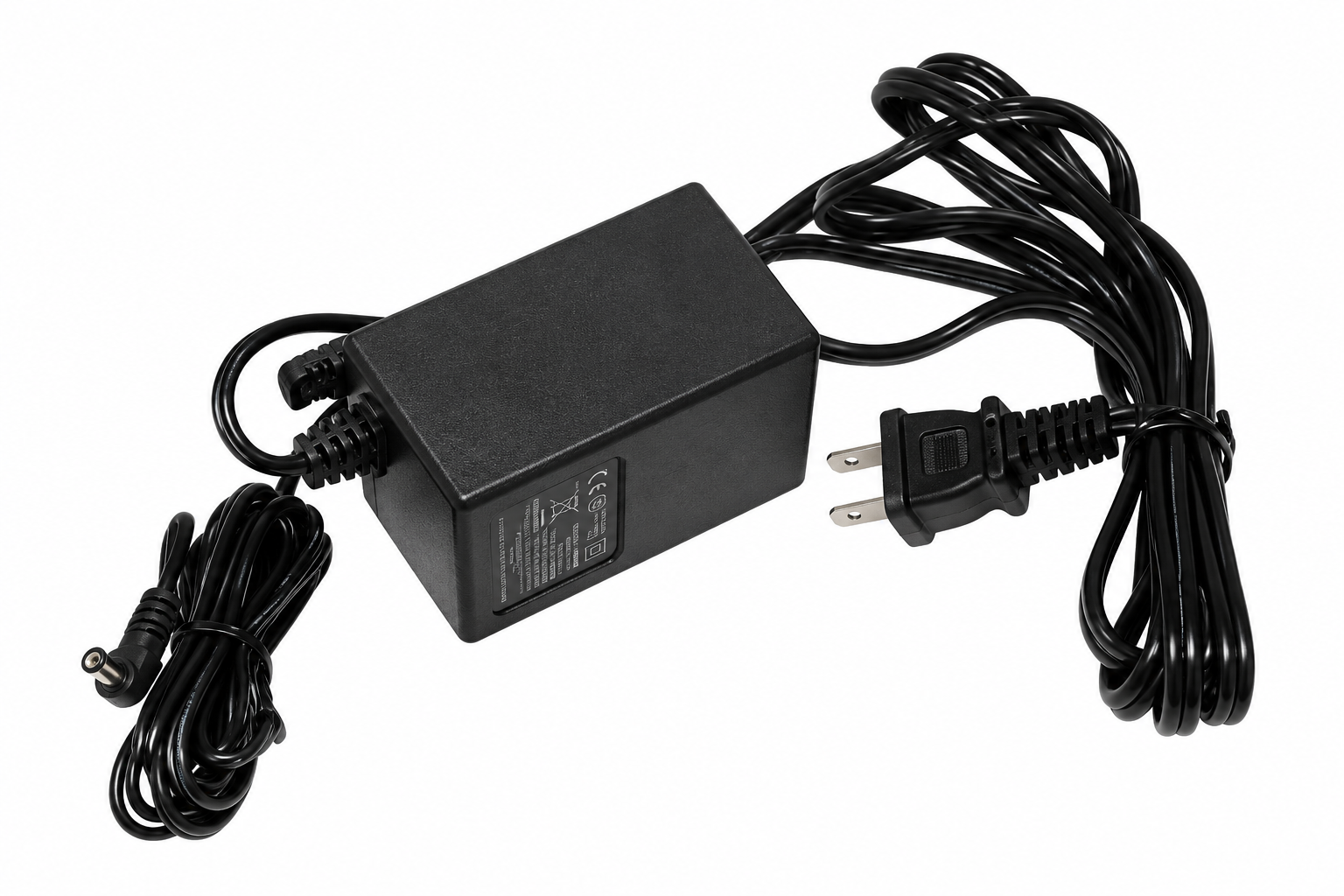

701050 003478-A2 P09 Power Adapter;120V 7.5/1.0 A Yes Model Compatibility List $80.29 / Each

6
701129 003954-F S19 Tension Cable No Model Compatibility List $8.42 / Each

4,5,6
R 701154 004072-A2 R09 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
701156 004074-A4 G35 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
R 701165 004081-A2 R08 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

J 701176 004102-00 J51 Needle Bearing; HK1616 No Model Compatibility List $9.57 / Each

8
R 701202 004157-00 R10 Drive Belt;Poly-V;430-J8 Yes Model Compatibility List $57.49 / Each

23
701300 004364-00 P05 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701305 004366-AB H51 Screw;Phillip;BH;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
701390 004447-AB S13 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

G 701418 004468-00 G51 Screw;Hex Socket;Round;M6x1.0Px25L;;Zn-B No Model Compatibility List $1.79 / Each

701586 004617-00 N05 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701613 004632-00 Q51 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

G 701639 004672-00 G31 Screw;M8x1.25Px42L No Model Compatibility List $2.00 / Each

2
E 701710 004728-00 E56 Screw;Oval Hex Socket;M8x1.25Px40L No Model Compatibility List $2.00 / Each

2
M 701728 004751-00 M52 Screw;Hex Socket;BH;M8x1.25Px13L;Adhere No Model Compatibility List $2.00 / Each

2
701781 004796-00 L52 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
G 701830 004849-00 G07 Set Screw;M8x1.25Px10L No Model Compatibility List $2.00 / Each

2
701858 004880-00 P51 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701893 004925-00 G52 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

701897 004926-00 H56 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

S 701904 004931-00 S11 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

R 701927 004964-00 R11 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

701934 004972-00 H52 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

702008 005045-00 M51 Washer;Flat;8.2x22x3.0T No Model Compatibility List $2.00 / Each

J 702020 005055-00 J54 Washer;Flat;16.2x28.7x1.5T No Model Compatibility List $2.00 / Each

2
L 702072 005103-Z L54 Washer;Flat;5/16x30.0x1.5T No Model Compatibility List $1.90 / Each

2
702076 005109-00 E58 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
R 702180 005222-00 R22 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
R 702193 005239-00 R51 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

J 702237 005362-00 J53 C-Clip;External;S-16 No Model Compatibility List $1.59 / Each

702238 005363-00 G27 C-Clip;External;S-17 No Model Compatibility List $1.79 / Each

Q 702240 005365-00 Q14 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

n 702254 005386-00 n/a Wrench;Open;17mm No Model Compatibility List $4.00 / Each

2
702259 005395-00 n/a Wrench;T-Type;5mm No Model Compatibility List $10.01 / Each

702263 005411-Z n/a Wrench;L-Type;4mm No Model Compatibility List $4.00 / Each

n 702264 005412-00 n/a Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

702483 007964-00 Q13 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
G 702495 008061-A G33 Washer;Flat;17.2x36x1.0t No Model Compatibility List $2.00 / Each

2
P 702511 008393-00 P04 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

G 702607 008969-D G30 Bushing;Inner Yes Model Compatibility List $1.90 / Each

8
A 702900 013176-Z AG5 Hanblebar Support;With Bearings No Model Compatibility List $101.53 / Each

8,3
R 702901 013178-Z R01 Pedal Axle Set No Model Compatibility List $136.03 / Each
Out Of Stock 		8,9
725259 103299 G26 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Console Mast Boot - Used 1019620 000187-B 0 1 Console Mast Boot - Used Yes Model Compatibility List $25.99 / Each
Out Of Stock 		9
Endcap Deadshaft Handlebar (Used) 1019609 000986-BC G19 2 Endcap Deadshaft Handlebar (Used) Yes Model Compatibility List $11.69 / Each

9
Accent Plate, wood grain (Used) 1019597 001365-00 Q04 1 Accent Plate, wood grain (Used) Yes Model Compatibility List $10.39 / Each

9
Resistance Motor, Servo, Assembly - Used 1019633 013148-Z S25 1 Resistance Motor, Servo, Assembly - Used Yes Model Compatibility List $103.99 / Each

10
P 1004184 003478-A2 P09 AC Adapter Power Supply Cord Yes Model Compatibility List $38.99 / Each
Out Of Stock 		6
G 936823 004074-A4 G35 Stepper Step Sealed Bearing (New) Yes Model Compatibility List $32.99 / Each

8
H 976932 004926-00 H56 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each
