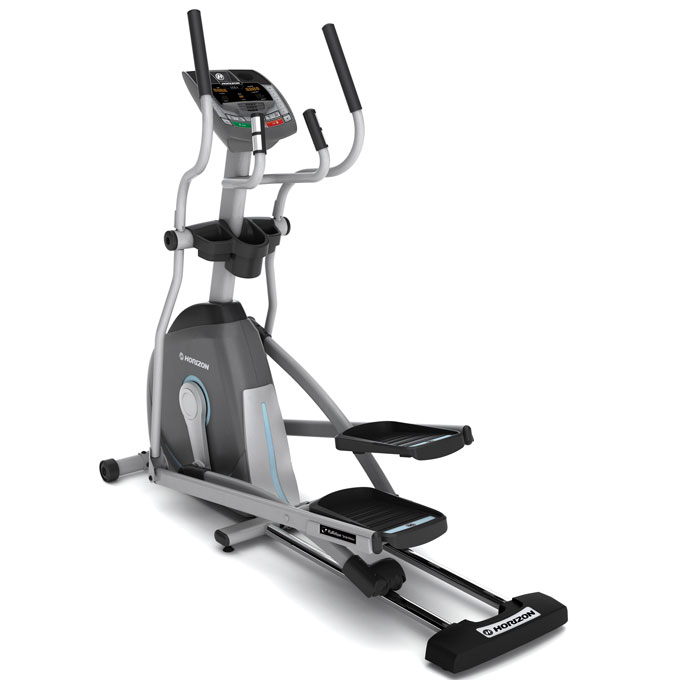

Horizon Fitness - EX58 - 2010

Repair Parts for Horizon Fitness EX58 EP513

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: EX58

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700318 000940-A C12 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

Q 700319 000945-AA Q22 End Cap;Handlebar;O31.8;Black No Model Compatibility List $1.90 / Each

9,4,5,6,11
G 700323 000960-AA G09 End Cap;Upper Vertical Handlebar Yes Model Compatibility List $3.89 / Each

9,11
700570 001679-00 P06 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

R 701042 003413-00 R03 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
701156 004074-A4 E12 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
E 701159 004077-A2 E17 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

R 701209 004165-00 R06 Drive Belt;Poly-V;490-J8 Yes Model Compatibility List $54.73 / Each

Z 701318 004374-00 Z27 Screw;Phillip;BH;M5x0.8Px10L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

701597 004621-00 Q20 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
701613 004632-00 L06 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

701643 004677-00 R07 Bolt;Eye Hook;1/4"-20UNCX50L(25L);ZN-BL No Model Compatibility List $10.01 / Each

2
D 701681 004714-AB D10 Screw;Hex Socket;BH;M6x1.0Px15L;Zinc No Model Compatibility List $1.59 / Each

2
Z 701706 004727-00 Z01 Screw;Hex Socket;BH;M8x1.25Px30L No Model Compatibility List $1.59 / Each

2
Z 701744 004767-AB Z18 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.57 / Each

2
L 701745 004768-00 L05 Screw;Oval;Hex Socket;BH;M8X1.25PX15L No Model Compatibility List $1.79 / Each

2
G 701827 004847-AB G10 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
R 701874 004901-00 R08 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

701897 004926-00 Z21 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

R 701904 004931-00 R09 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

701939 004975-00 L07 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701952 004988-00 R11 Key;Round;Dual-End;6x6x14L No Model Compatibility List $1.90 / Each

9
701964 005005-00 Z19 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

Z 702005 005043-00 Z25 Washer;Flat;8.2x20x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

702076 005109-00 L04 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Z 702086 005118-00 Z20 Washer;Flat;8.4x17.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

702107 005136-A Z15 Washer;Flat;8.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
702135 005163-00 Z03 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
702161 005198-00 Z22 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
702217 005330-00 Q19 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

C 702237 005362-00 C10 C-Clip;External;S-16 No Model Compatibility List $1.59 / Each

702241 005366-00 R13 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

P 702299 005811-00 P07 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

702829 011173-00 R15 Nut;Hex;M25x1.5P;Black No Model Compatibility List $4.00 / Each

2,4,5,6
Z 703964 020013-00 Z26 Screw;BH;M4X0.7PX12L;CT;PH;;BAN;; No Model Compatibility List $2.00 / Each

2
B 704016 020105-AC B16 Screw;Hex Socket;Round;M10x1.5Px15L;Adhe No Model Compatibility List $2.57 / Each

704073 020185-00 M44 Screw;Phillip;BH;Tapped;4x10L No Model Compatibility List $1.59 / Each

J 704153 020347-A J03 Screw;TRH;4X8L;SM;PH;;;;POT No Model Compatibility List $0.83 / Each

Z 704210 020482-00 Z16 Washer;Flat;16.0X25.0X1.5T No Model Compatibility List $1.59 / Each

2
Q 704273 022177-A Q18 Bracket;Side Cover;2 Hole Plate No Model Compatibility List $2.47 / Each

R 705019 029510-EX R02 Drive Axle Set;6.5Kg Eddy Brake Mechanism Yes Model Compatibility List $172.46 / Each

8,10
G 705375 049000-AA G08 Foam Grip;Upper Handlebar;31.8x3.0tx300L No Model Compatibility List $3.82 / Each

11
705485 049287-00 R17 Washer;Flat;12.5x20.0x2.0t; No Model Compatibility List $2.00 / Each

705700 055204-A D08 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

E 705963 057062-A E19 Bushing;Pedal Arm No Model Compatibility List $4.00 / Each

8,9,3
706236 060370-A R12 Washer;Spring;14.2x24x1.0T No Model Compatibility List $2.00 / Each

2
706342 061237-AA H05 Cap;Rear Stabilizer No Model Compatibility List $3.82 / Each

D 706705 064736-AA D09 End-Cap;Guide Rail;PP;BL;EP136-B26B Yes Model Compatibility List $8.97 / Each

9
P 707733 1000094715 P01 Power Adapter;100-240V;12V/2A No Model Compatibility List $76.65 / Each

4,5,6
D 707760 1000094876 D11 Leveler Foot;Base;PVC;3/8-16UNC;BLACK;TM616 Yes Model Compatibility List $6.42 / Each

708156 1000100823 Q10 Bushing;Plastic;Round;BL Yes Model Compatibility List $6.49 / Each

8,9
Q 708159 1000100845 Q07 Roller Wheel Cover;Left Yes Model Compatibility List $12.99 / Each

8,9
Q 708160 1000100846 Q09 End Cap;Pedal Arm No Model Compatibility List $2.47 / Each

8,9,3
Q 708161 1000100847 Q05 Cover;Pedal Arm Yes Model Compatibility List $9.09 / Each

3,8,9
Q 708163 1000100851 Q08 Roller Wheel Cover;Right Yes Model Compatibility List $12.93 / Each

8,9
C 708206 1000101188 C09 Water Bottle Holder;Black;EP524-1US No Model Compatibility List $24.39 / Each

4,5,6
Q 708207 1000101190 Q21 Cover;Rear Stabilizer;Queen;Black No Model Compatibility List $22.44 / Each

9,4,5,6
C 708251 1000101531 C08 Pulse Sensor Set Yes Model Compatibility List $33.93 / Each

11
708252 1000101533 P04 Power Wire;DC;600mm Yes Model Compatibility List $10.01 / Each

4,5,6
P 708253 1000101534 P03 Speed Sensor Wire Yes Model Compatibility List $12.99 / Each

P 708259 1000101658 P02 Console Cable;Down;1200mm(CKM254301-8P+SM- Yes Model Compatibility List $29.99 / Each

4,5,6,7
2 708409 1000102698 2 Console Mast Set No Model Compatibility List $380.35 / Each

7
G 708419 1000102774 G11 Screw;Settle;M4x0.7Px8L No Model Compatibility List $2.00 / Each

2
H 708433 1000102806 H10 Swivel Axle;Link Arm No Model Compatibility List $8.01 / Each

8,3
Owners Manual 708496 1000102983 Kit Owners Manual No Model Compatibility List $8.87 / Each

1
Q 708508 1000103023 Q23 End Cap;Pedal Arm Yes Model Compatibility List $6.49 / Each

3,8,9
3 708510 1000103033 3 Guide Rail Set No Model Compatibility List $299.83 / Each

9
4 708511 1000103036 4 Pedal Arm Set;Left No Model Compatibility List $339.33 / Each

8,9,3
5 708512 1000103039 5 Pedal Arm Set;Right No Model Compatibility List $314.18 / Each

8,9,3
6 708513 1000103042 6 Upper Handlebar Set;Left No Model Compatibility List $81.25 / Each

11
8 708514 1000103045 8 Lower Handlebar Set;Left No Model Compatibility List $112.16 / Each

11
9 708515 1000103047 9 Lower Handlebar Set;Right No Model Compatibility List $112.16 / Each

11
L 708517 1000103052 L01 Stabilizer Set;Front No Model Compatibility List $84.92 / Each

1
Q 708518 1000103054 Q01 Side Cover;Left No Model Compatibility List $77.56 / Each

9
Q 708519 1000103055 Q02 Side Cover;Right No Model Compatibility List $77.56 / Each

9
V 708520 1000103072 V03 Decorative Sticker;Stabilizer Cover;EP52 No Model Compatibility List $1.90 / Each

9
V 708521 1000103074 V05 Decorative Sticker;Round;Side Cover No Model Compatibility List $3.82 / Each

9
V 708522 1000103075 V06 Decorative Sticker;Lune;Side Cover No Model Compatibility List $1.90 / Each

9
V 708523 1000103076 V07 Decorative Sticker;Long;Side Cover;Side No Model Compatibility List $1.90 / Each

9
V 708578 1000103614 V13 Decorative Sticker;Pedal;EP524-1US No Model Compatibility List $3.82 / Each

8,9
7 708590 1000103896 7 Upper Handlebar Set;Right No Model Compatibility List $81.25 / Each

11
E 708695 1000104893 E23 Bearing;Ball;6003ZZ;17X35X10T;;SL;;; No Model Compatibility List $9.57 / Each

8
708696 1000104894 R05 Bearing;Ball;6005ZZ;25X47X12T;;SL;;; No Model Compatibility List $11.49 / Each

8
E 708729 1000105109 E18 Bearing;Ball;6302ZZ;15X42X13T;;SL;;; No Model Compatibility List $13.39 / Each

8
Z 708772 1000105761 Z28 Washer;Outside Sawtooth;Lock;8.4x15.0 No Model Compatibility List $2.00 / Each

2
Q 708775 1000105795 Q13 Link Arm accent piece;mold;french grey(C No Model Compatibility List $1.77 / Each

3,4,5,6
Q 708776 1000105798 Q11 Crank Cover;mold;french grey No Model Compatibility List $9.57 / Each

8,9
Q 708777 1000105799 Q14 Crank Cover;Small;mold;french grey No Model Compatibility List $1.90 / Each

8,9
Q 708778 1000105801 Q03 Upper Side Cover;Front;french grey(Cool G No Model Compatibility List $12.79 / Each

9
Q 708779 1000105802 Q04 Upper Side Cover;Rear;mold;french grey(C No Model Compatibility List $1.77 / Each

9
Q 708780 1000105803 Q12 Side Cover; Rear cover ;mold;french grey No Model Compatibility List $12.87 / Each

9
E 708785 1000106037 E08 Crank Pin Sleeve Set No Model Compatibility List $57.49 / Each

8,3,12,13,14
V 708938 1000107430 V04 Decoration Decal;Link Arm accent piece;E No Model Compatibility List $3.82 / Each

7,3,4,5,6
K 708979 1000107852 Kit Hardware pack No Model Compatibility List $62.24 / Each

4,5,6
1 708995 1000108119 16 Pedal Axle Set No Model Compatibility List $142.84 / Each

8,9
709055 1000108777 E15 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $2.00 / Each

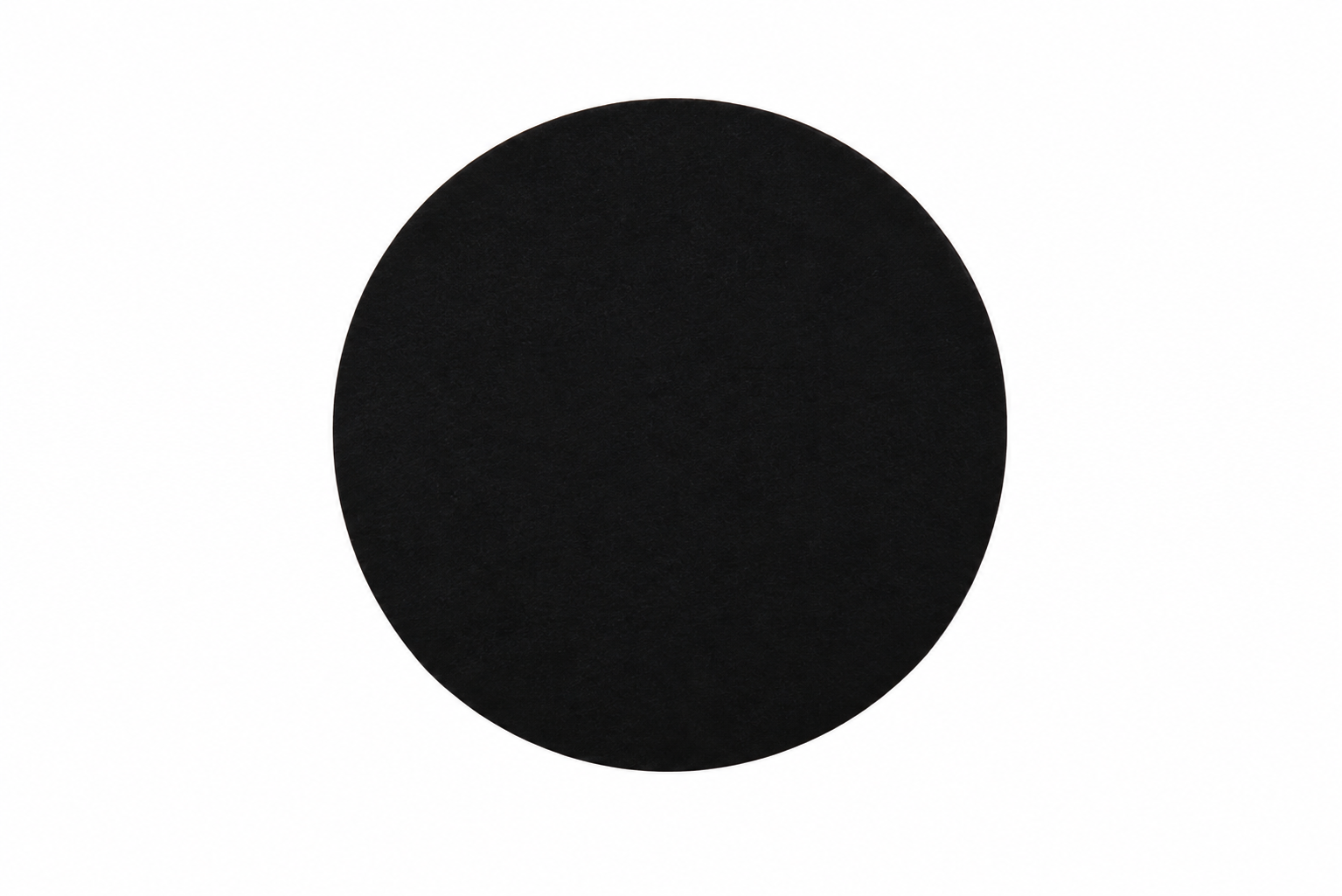

V 709096 1000109511 V27 Round Sticker;Side Cover;Pantone Cool Gray No Model Compatibility List $1.90 / Each

9
H 709152 1000110505 H06 Screw;Anti-slippery;TRHW;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
Q 709199 1000110919 Q24 SCREW;BH;(10.4);4X15L;SM;PH;BAN;POT No Model Compatibility List $1.59 / Each

2
E 709333 1000113282 E13 Screw;cylinder;M8x1.25Px45L-16L;MT;CRMO; No Model Compatibility List $10.01 / Each

2
H 709365 1000113436 H09 Screw;FH;4x15L;TC;PH;CST;BAN No Model Compatibility List $1.85 / Each

E 709413 1000114156 E20 Washer;Wave;17.2x22.5x0.5t;65Mn;BAN No Model Compatibility List $1.59 / Each

E 709468 1000200416 E22 Shim;Crank Sleeve No Model Compatibility List $2.00 / Each

8,3
709500 1000200749 Q16 Pedal;Right Yes Model Compatibility List $43.00 / Each

8,9
Q 709501 1000200750 Q15 Pedal;Left No Model Compatibility List $43.00 / Each

8,9
R 710011 1000205914 R18 Nut;HXF;M14X1.5P;G4.8;BZN;; No Model Compatibility List $1.85 / Each

2
R 710012 1000205915 R10 Nut;HXF;M14X1.5P;G4.8;WZN;; No Model Compatibility List $2.00 / Each

2
A 710324 1000209338 AJ1 Crank Set No Model Compatibility List $76.91 / Each

8
Z 710407 1000210105 Z04 SCREW;SH;M10X1.5PX25L;NYLOK;MT;HS;CRMO;B No Model Compatibility List $1.56 / Each

2
1 710722 1000212646 17 MOVING WHEEL SET;-;S-EP534;-; Yes Model Compatibility List $189.00 / Each

8
M 710763 1000213379 M40 Resistance Motor Yes Model Compatibility List $180.67 / Each

H 713201 1000300189 H07 Bearing;Dry;-;-;Sheng Ge Ban No Model Compatibility List $6.68 / Each

1 713849 1000308901 10 Link Arm Set;Semi-Assy;left;;;S-EP534;; No Model Compatibility List $191.62 / Each
Out Of Stock 		3
1 713850 1000308902 11 Link Arm Set;Semi-Assy;right;;;S-EP534;; No Model Compatibility List $191.62 / Each

3
D 720052 1000368347 D05 Accent Plate Set;Semi-Assy;;;;EP595-1US; Yes Model Compatibility List $70.25 / Each

3,4,5,6
M 725184 102450 M41 Steel Cable;ECB;160L No Model Compatibility List $9.75 / Each

4,5,6
725259 103299 G13 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Screw; Hex Socket; BH; M8x1.25Px15L 725507 072210 E10 Screw; Hex Socket; BH; M8x1.25Px15L No Model Compatibility List $1.59 / Each

Screw;Hex Socket;BH;M8x1.25Px20L 725508 072211 E14 Screw;Hex Socket;BH;M8x1.25Px20L No Model Compatibility List $1.59 / Each

Crank Puller;30mm 725742 075513 KIT Crank Puller;30mm No Model Compatibility List $57.49 / Each

725754 075972 L02 Bushing;Move Wheel;BLACK;EP188 Yes Model Compatibility List $6.68 / Each

Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

726975 086331 Z15 Washer;Wavy;17.2X22.5X0.3T No Model Compatibility List $1.59 / Each

Cover;Lower Vertical Handlebar Rotating Axle 728346 094112 B35 Cover;Lower Vertical Handlebar Rotating Axle Yes Model Compatibility List $7.99 / Each

729052 Order Parts Separately AE08 Frame Assembly No Model Compatibility List $0.00 / Each
Out Of Stock
729120 Part of Kit 10 AH1 Lower Handlebar Set;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729123 Part of Kit 11 AH2 Upper Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729135 Part of Kit 17 Q06 Transmission Axle;42CrMo;EP217 No Model Compatibility List $0.00 / Each
Out Of Stock
729136 Part of Kit 18 R04 Axle,TRANSIMISSION;42CRMO;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock
729152 Part of Kit 3 AD1 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729165 Part of Kit 4 AE1 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729172 Part of Kit 5 AE2 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729191 Part of Kit 6 AG3 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729194 Part of Kit 7 AG4 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729197 Part of Kit 8 AG1 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729201 Part of Kit 9 AG2 Upper Handlebar Set;Right;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
D 000089 1000094876 D11 1 Leveling Foot Leveler Yes Model Compatibility List $19.99 / Each

R 1003253 004165-00 R06 1 Belt Drive 8 Ribbed Yes Model Compatibility List $32.99 / Each

Q 1028445 1000200750 Q15 1 Foot Pad Left (Used) No Model Compatibility List $19.99 / Each

8,9
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

P 1033013 1000101658 P02 Console Wire Harness Yes Model Compatibility List $22.50 / Each

4,5,6,7
Q 1037610 1000100845 Q07 Left pulley cover Yes Model Compatibility List $12.04 / Each

8,9
E 936823 004074-A4 E12 Stepper Step Sealed Bearing (New) Yes Model Compatibility List $32.99 / Each

8
Q 1038033 1000100823 Q10 Sleeve With Brash Bushing (Used) Yes Model Compatibility List $9.99 / Each

8,9
Z 976932 004926-00 Z21 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q19 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Z 986204 004374-00 Z27 Button Head Phillip Screw (New) No Model Compatibility List $12.99 / Each
Out Of Stock
Q 957090 004621-00 Q20 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
