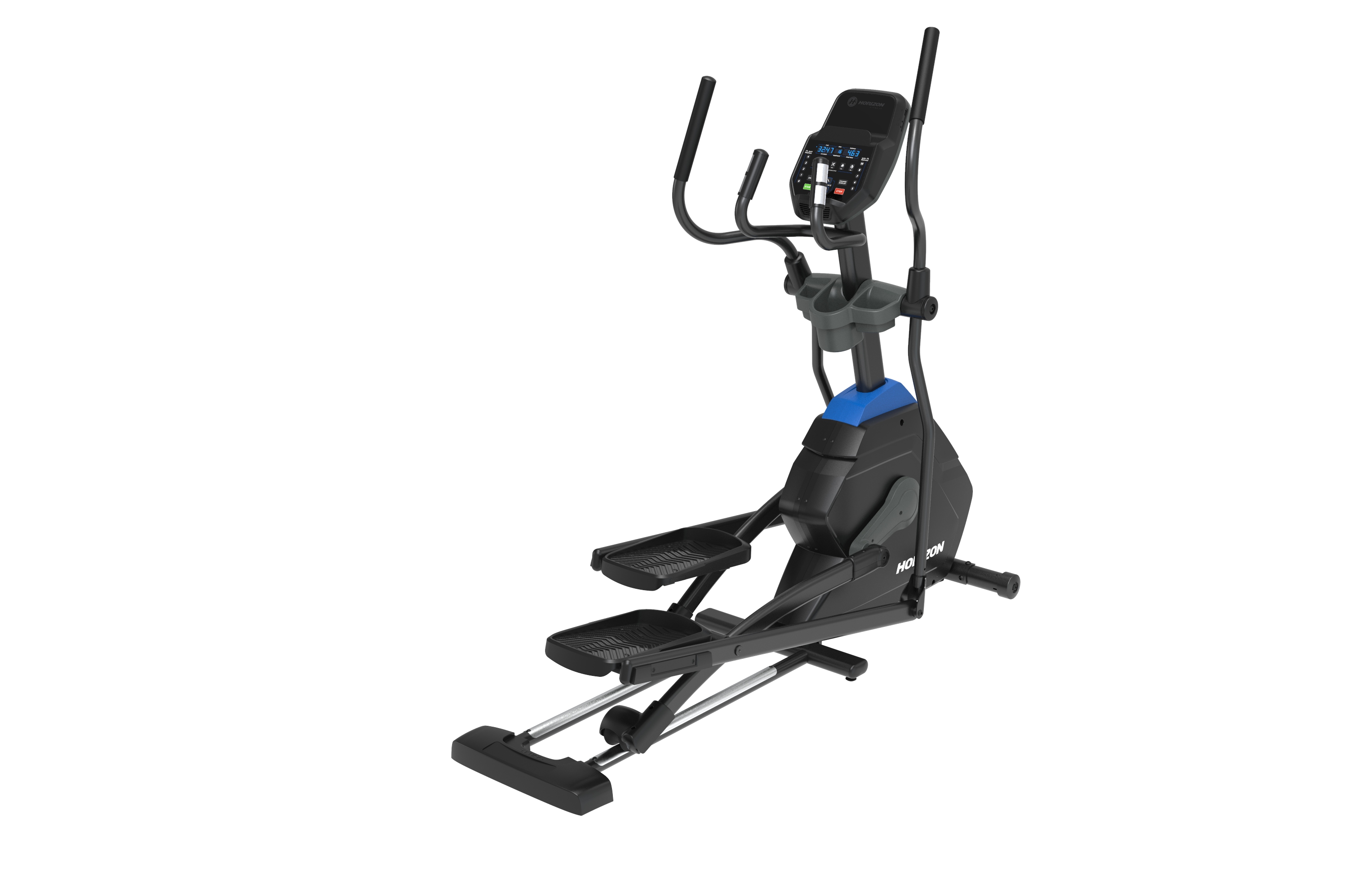

Repair Parts for Horizon Fitness EX59-04 - EP295 - 2021 PEP295, PEP295B
Brand: Horizon Fitness
Category: Suspension
Type: Elliptical
Model Name: EX59-04 - EP295 - 2021
Serial Number Prefix: PEP295, PEP295B
Version: 2021-2025
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
XImage | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
---|---|---|---|---|---|---|---|---|---|
700302 | 000906-B | G09 | Cap;Handlebar;;PVC;BL/Black C;36;EP03; | Yes | Model Compatibility List | $4.39 / Each |
|||
700318 | 000940-A | C06 | End Cap;Pulse Grip Handlebar | Yes | Model Compatibility List | $7.10 / Each |
|||
![]() |
700390 | 001193-00 | H13 | End-Cap;Seat Pad;20x40x1.6t;RB06 | No | Model Compatibility List | $1.51 / Each |
||
700570 | 001679-00 | P13 | Tie Strap;Adhesive;Nylon;66;HC-101;W | No | Model Compatibility List | $2.81 / Each |
|||
700893 | 002671-A | KIT | Audio Wire;Three-D Earphone | Yes | Model Compatibility List | $9.99 / Each |
|||
![]() |
701318 | 004374-00 | S03 | Screw;Phillip;BH;M5x0.8Px10L;Gap;;Zn-BL | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701541 | 004569-00 | F12 | Screw;Plain;Hex Socket;M5X0.8PX15L | No | Model Compatibility List | $2.00 / Each |
||
701579 | 004613-00 | N84 | Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B | No | Model Compatibility List | $2.00 / Each |
|||
701585 | 004616-00 | L10 | Screw;Umbrella Cross Tapped;4x12L | No | Model Compatibility List | $2.00 / Each |
|||
701586 | 004617-00 | Q11 | Screw;Console Case;Oval Tapping;4x15L | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
701599 | 004623-00 | B30 | Screw;Phillip;BH;Tapped;4x12L;BED;Gap; | No | Model Compatibility List | $2.00 / Each |
||
701692 | 004720-00 | Z04 | Screw;BH;M8X1.25PX20L;;HS;;BZN;; | No | Model Compatibility List | $2.00 / Each |
|||
701699 | 004724-00 | D53 | Bolt;M8x1.25Px15L | Yes | Model Compatibility List | $2.00 / Each |
|||
![]() |
701711 | 004728-AE | G03 | SCREW;BH;M8X1.25PX40L;;HS;;;;BP | Yes | Model Compatibility List | $3.69 / Each |
||
![]() |
701744 | 004767-AB | Z18 | Screw;Hex Socket;BH;M8x1.25Px70L | No | Model Compatibility List | $2.57 / Each |
||
![]() |
701827 | 004847-AB | G10 | Set Screw;M10X1.5PX12L | Yes | Model Compatibility List | $6.99 / Each |
||
![]() |
701874 | 004901-00 | R08 | Nut;Hex;M12x1.75P;Zn-BL | No | Model Compatibility List | $4.00 / Each |
||
![]() |
701893 | 004925-00 | B57 | Nut;Nylon;M6x1.0P;Zinc | No | Model Compatibility List | $2.00 / Each |
||
701897 | 004926-00 | D34 | Nut;Nylon;M8x1.25P | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
701904 | 004931-00 | S06 | Nut;Locking;Nylon;1/4"--20UNC | No | Model Compatibility List | $1.59 / Each |
||
![]() |
701913 | 004942-00 | E15 | Nut;Nylon;M10x1.5P;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
701952 | 004988-00 | R05 | Key;Round;Dual-End;6x6x14L | No | Model Compatibility List | $1.90 / Each |
|||
![]() |
701978 | 005015-00 | Z05 | Washer;Spring;SW8 8.2X13.5X2.0T | Yes | Model Compatibility List | $2.00 / Each |
||
![]() |
702005 | 005043-00 | E12 | Washer;Flat;8.2x20x1.5T;Black Zinc | No | Model Compatibility List | $1.59 / Each |
||
702018 | 005053-00 | G18 | Washer;Flat;8.2x27.0x2.0T | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
702028 | 005060-00 | B24 | Washer;Flat;12.0X23.0X2.5T | No | Model Compatibility List | $1.79 / Each |
||
![]() |
702037 | 005067-00 | J04 | Washer;Flat;10.2X15.0X1.5T;Black Zinc | No | Model Compatibility List | $1.59 / Each |
||
702092 | 005125-00 | R02 | Washer;Flat;10.2x20x1.0T | No | Model Compatibility List | $2.00 / Each |
|||
702107 | 005136-A | E09 | Washer;Flat;8.5x20.0x1.0T | No | Model Compatibility List | $1.59 / Each |
|||
![]() |
702163 | 005200-A | G19 | Washer;Teflon;18.2X30.0X1.0T | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702181 | 005225-00 | G25 | WASHER;WW;?X18.6X?X24.6X0.3T;;; | No | Model Compatibility List | $2.00 / Each |
||
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes | Model Compatibility List | $1.59 / Each |
|||
![]() |
702241 | 005366-00 | T11 | C-Clip;External;S-25 | No | Model Compatibility List | $1.59 / Each |
||
![]() |
702299 | 005811-00 | N58 | Cable Tie;Nylon;Black;160L | No | Model Compatibility List | $1.51 / Each |
||
702300 | 005812-00 | H11 | Cable Tie;Nylon;200L;BL;KSS;CV-200MB | No | Model Compatibility List | $2.29 / Each |
|||
![]() |
702512 | 008394-00 | S05 | Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 | No | Model Compatibility List | $1.51 / Each |
||
![]() |
703964 | 020013-00 | Z27 | Screw;BH;M4X0.7PX12L;CT;PH;;BAN;; | No | Model Compatibility List | $2.00 / Each |
||
![]() |
703997 | 020082-00 | B33 | Screw;Hex Socket;M10X1.5X20;Zn-BL | No | Model Compatibility List | $1.79 / Each |
||
![]() |
704016 | 020105-AC | B23 | Screw;Hex Socket;Round;M10x1.5Px15L;Adhe | No | Model Compatibility List | $2.57 / Each |
||
704073 | 020185-00 | E11 | Screw;Phillip;BH;Tapped;4x10L | No | Model Compatibility List | $1.59 / Each |
|||
![]() |
704174 | 020423-A | Z16 | Washer;Lock;M10.2X19X2T | No | Model Compatibility List | $2.00 / Each |
||
![]() |
704203 | 020478-00 | L09 | Washer;Flat;10.2x20.0x2.0T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
![]() |
704210 | 020482-00 | F12 | Washer;Flat;16.0X25.0X1.5T | No | Model Compatibility List | $1.59 / Each |
||
![]() |
704273 | 022177-A | Q07 | Bracket;Side Cover;2 Hole Plate | No | Model Compatibility List | $2.47 / Each |
||
705023 | 029867-00 | M43 | Cable Tie;Nylon;;300L;White | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
705259 | 039400-BA | B34 | Transport Wheel;Nylon | Yes | Model Compatibility List | $9.57 / Each |
||
706342 | 061237-AA | H07 | Cap;Rear Stabilizer | No | Model Compatibility List | $3.82 / Each |
|||
706700 | 064674-A | U12 | Washer;Flat;6.2x13.0x1.0t;Black Zinc; | No | Model Compatibility List | $1.85 / Each |
|||
![]() |
706705 | 064736-AA | F14 | End-Cap;Guide Rail;PP;BL;EP136-B26B | Yes | Model Compatibility List | $8.97 / Each |
||
![]() |
707361 | 1000092318 | B34 | Front Leveler | Yes | Model Compatibility List | $12.43 / Each |
||
![]() |
708160 | 1000100846 | Q09 | End Cap;Pedal Arm | No | Model Compatibility List | $2.47 / Each |
||
708252 | 1000101533 | Not Shown | Power Wire;DC;600mm | Yes | Model Compatibility List | $10.01 / Each |
|||
![]() |
708253 | 1000101534 | P16 | Speed Sensor Wire | Yes | Model Compatibility List | $12.99 / Each |
||
708258 | 1000101657 | Not Shown | Console Cable;Upper;200mm(CKM254301-8P+SM-8Y) | No | Model Compatibility List | $9.57 / Each |
|||
![]() |
708259 | 1000101658 | P10 | Console Cable;Down;1200mm(CKM254301-8P+SM- | Yes | Model Compatibility List | $29.99 / Each |
||
![]() |
708433 | 1000102806 | H10 | Swivel Axle;Link Arm | No | Model Compatibility List | $8.01 / Each |
||
![]() |
708508 | 1000103023 | H12 | End Cap;Pedal Arm | Yes | Model Compatibility List | $6.49 / Each |
||
708696 | 1000104894 | R05 | Bearing;Ball;6005ZZ;25X47X12T;;SL;;; | No | Model Compatibility List | $11.49 / Each |
|||
![]() |
708947 | 1000107516 | Not Shown | Elliptical Guide | No | Model Compatibility List | $6.68 / Each |
||
![]() |
709092 | 1000109370 | S02 | Steel Resistance Cable Rope;ECB; 160L;L1+L2=65 | Yes | Model Compatibility List | $16.89 / Each |
||
![]() |
709135 | 1000110274 | Z14 | Washer;Flat;20.2x27.2x1.5T;SPHC;BAN | No | Model Compatibility List | $1.59 / Each |
||
![]() |
709413 | 1000114156 | E20 | Washer;Wave;17.2x22.5x0.5t;65Mn;BAN | No | Model Compatibility List | $1.59 / Each |
||
709552 | 1000201251 | Z17 | Ring;Rubber;26.2x16.20x11.50 | No | Model Compatibility List | $4.00 / Each |
|||
![]() |
709553 | 1000201279 | AJ1 | Crank Set | No | Model Compatibility List | $57.49 / Each |
||
![]() |
709791 | 1000203217 | Z13 | Washer;;Wavy;20.7X29.1X0.5T;;-;BAN;; | No | Model Compatibility List | $1.59 / Each |
||
709904 | 1000204290 | R07 | SCREW;EB;1/4"-20UNCX55L;12;-;-;-;BZN; | Yes | Model Compatibility List | $7.79 / Each |
|||
![]() |
709992 | 1000205707 | N29 | Ground Wire;Pulse;200L | No | Model Compatibility List | $3.82 / Each |
||
![]() |
710051 | 1000206466 | R04 | Flywheel;6.5KG | No | Model Compatibility List | $259.00 / Each |
||
![]() |
710064 | 1000206552 | R06 | Drive Belt;Poly-V;490-J10 | Yes | Model Compatibility List | $57.49 / Each |
||
![]() |
710067 | 1000206624 | J05 | Screw;SH;M10X1.5PX55L | No | Model Compatibility List | $4.00 / Each |
||
710283 | 1000208275 | N26 | Screw;BH;M5x5L;-;PH;-;WZN;-;-; | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
710763 | 1000213379 | S09 | Resistance Motor | Yes | Model Compatibility List | $180.67 / Each |
||
![]() |
711704 | 1000222889 | Q07 | Cover;Roller;left;ABS+20%PC;Q520-7-3 MAT | No | Model Compatibility List | $11.99 / Each |
||
712062 | 1000226201 | E13 | SCREW;SH;M10x1.5Px45L-16L;MT;G10.9;CRMO; | No | Model Compatibility List | $2.00 / Each |
|||
712111 | 1000226784 | E22 | SHIM;CRANK SLEEVE;-;SPHC;-;EP558; | No | Model Compatibility List | $3.82 / Each |
|||
712874 | 1000231159 | P12 | ADAPTER;US;100-240V/50-60HZ;12V/2A;2.0M; | Yes | Model Compatibility List | $80.29 / Each |
|||
![]() |
713469 | 1000303833 | N13 | Fixing Plate;Earphone Jack;;PP;EP576 | No | Model Compatibility List | $1.90 / Each |
||
![]() |
715957 | 1000329468 | N31 | USB&EUP Wire;;;;;24AWG;350mm;XHS-13Yx2;A | No | Model Compatibility List | $10.63 / Each |
||
![]() |
716545 | 1000337327 | N73 | Pulse CON;;UP2;;;2468 24AWG;250;XHS-2Y(y | No | Model Compatibility List | $3.43 / Each |
||
![]() |
720052 | 1000368347 | D06 | Accent Plate Set;Semi-Assy;;;;EP595-1US; | Yes | Model Compatibility List | $70.25 / Each |
||
720372 | 1000372070 | N45 | PLUG SET;Semi-Assy;;;;EP595-1US;;? | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
722523 | 1000393376 | N30 | PCB Module;;;SOO1604;;;;USB&Aud? | No | Model Compatibility List | $12.58 / Each |
||
723644 | 1000411317 | N76 | Speaker;;3W/8?;250mm;XHS2.54-2P;???; | No | Model Compatibility List | $6.73 / Each |
|||
![]() |
724433 | 1000419629 | N01 | Console Down Cover;;;ABS;Q520-7-3;;EP716 | No | Model Compatibility List | $37.15 / Each |
||
![]() |
724681 | 1000423171 | C08 | Pulse Sensor Set;;;;;2468 24AWG 2C;650mm | No | Model Compatibility List | $11.80 / Each |
||
![]() |
724693 | 1000423860 | AE03 | Crank sleeve set;Semi-Assy;;;;;EP716-1US | No | Model Compatibility List | $23.63 / Each |
||
![]() |
724694 | 1000423861 | AE04 | Roller Set;Semi-Assy;;;;;EP716-1US; | No | Model Compatibility List | $60.81 / Each |
||
724705 | 1000423874 | 1 | Belt pulley set;Semi-Assy;;;;;EP716-1US; | No | Model Compatibility List | $128.41 / Each |
|||
![]() |
726236 | 080875 | P21 | Screw;Phillip;Big Umbrella;Tapped;;4x10 | No | Model Compatibility List | $2.00 / Each |
||
![]() |
1028444 | 1000101530 | M40 | Motor Resistance (Used) | No | Model Compatibility List | $89.00 / Each Out Of Stock |
||
![]() |
1035628 | 039400-BA | 0 | 1 | Transport Wheel (Used) | Yes | Model Compatibility List | $5.00 / Each |
|
![]() |
1033013 | 1000101658 | Console Wire Harness | Yes | Model Compatibility List | $22.50 / Each |
|||
![]() |
731600 | 1000106875 | V15 | Warning Sticker;overlay;remove protectiv D/C, NO REPL: Part will show as orderable until stock is depleted. | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
731664 | 022463-00 | B35 | Screw;TRH;4X15L;SM;PH;;;;POT | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
732164 | 1000096184 | Not Shown | STOP interleaf;TM604 | No | Model Compatibility List | $1.02 / Each |
||
![]() |
732473 | 020205-AB | N36 | Screw;Round;3X8L;SM;PH;;BZN;;POT | No | Model Compatibility List | $1.28 / Each |
||
![]() |
732489 | 1000462388 | V23 | Direction Label;;;Black Word/White Base; | No | Model Compatibility List | $0.98 / Each |
||
![]() |
732490 | 1000462389 | V24 | Direction Label;;;Black Word/Red Base;;R | No | Model Compatibility List | $0.98 / Each |
||
![]() |
733612 | 1000466877 | 2 | Console set;Semi-Assy;;;;;EP295;Service | No | Model Compatibility List | $517.44 / Each |
||
![]() |
733613 | 1000466876 | 3 | Link Arm Set;Semi-Assy;left;;;;EP295;Ser | No | Model Compatibility List | $208.20 / Each |
||
![]() |
733614 | 1000466875 | 4 | Link Arm Set;Semi-Assy;right;;;;EP295;Se | No | Model Compatibility List | $208.20 / Each |
||
![]() |
733615 | 1000460928 | AC1 | Console Mast Set;;;painting;DM362;;EP295 | No | Model Compatibility List | $184.20 / Each |
||
![]() |
733616 | 1000466866 | AE01 | Pedal Arm set;Semi-Assy;left;;;;EP295;Se | No | Model Compatibility List | $106.00 / Each |
||
![]() |
733617 | 1000466867 | AE02 | Pedal Arm set;Semi-Assy;right;;;;EP295;S | No | Model Compatibility List | $108.72 / Each |
||
![]() |
733618 | 1000466870 | AG01 | Arm Rest Set;Semi-Assy;left down;;;;EP29 | No | Model Compatibility List | $91.56 / Each |
||
![]() |
733619 | 1000466871 | AG02 | Arm Rest Set;Semi-Assy;right down;;;;EP2 | No | Model Compatibility List | $91.56 / Each |
||
![]() |
733620 | 1000466868 | AG03 | Arm Rest Set;Semi-Assy;left up;;;;EP295; | No | Model Compatibility List | $28.90 / Each |
||
![]() |
733621 | 1000466869 | AG04 | Arm Rest Set;Semi-Assy;right up;;;;EP295 | No | Model Compatibility List | $28.90 / Each |
||
![]() |
733622 | 1000459688 | AG5 | Hand Arm Set;;;painting;DM362;;EP295-1US | No | Model Compatibility List | $9.22 / Each |
||
![]() |
733623 | 1000423873 | AR01 | Belt pulley set;Semi-Assy;;;;;EP716-1US; | No | Model Compatibility List | $186.32 / Each |
||
![]() |
733624 | 1000462676 | AZ1 | Hardware Set;Blister;;;EP295-1US;; | No | Model Compatibility List | $42.28 / Each |
||
![]() |
733625 | 1000462501 | C09 | Kettle Rack;;;ABS/PA757K;Q758-3-1;;EP295 | No | Model Compatibility List | $52.02 / Each |
||
![]() |
733626 | 1000459544 | D05 | Ornament;Guide Rail2;;AL-6063;R19.1x2.3t | No | Model Compatibility List | $24.64 / Each |
||
![]() |
733627 | 020314-A | D10 | SCREW;BH;M6X1.0PX50L-10L;;HS;;CHM;;P-T | No | Model Compatibility List | $1.22 / Each |
||
![]() |
733628 | 1000462504 | N03 | Console Faceplate;;;HIPS;Q520-7-3;;EP295 | No | Model Compatibility List | $12.16 / Each |
||
![]() |
733629 | 1000460687 | N37 | (Up)Control panel;;;HBPB;S1.08;;EX59-4;P | No | Model Compatibility List | $275.90 / Each |
||
![]() |
733630 | 1000460673 | N61 | Manipulate Overlay;;Down;;;EP295-1US | No | Model Compatibility List | $11.16 / Each |
||
![]() |
733631 | 1000458992 | N62 | Membrane Keypad;Membrane;;111.5x204.1;EX | No | Model Compatibility List | $24.84 / Each |
||
![]() |
733632 | 1000462505 | N64 | Manipulate Overlay;;UP;;;EP295-1US | No | Model Compatibility List | $7.92 / Each |
||
![]() |
733633 | 1000460671 | Q01 | Side Cover;Frame;left;ABS/PA757;Q520-7-3 | No | Model Compatibility List | $100.90 / Each |
||
![]() |
733634 | 1000460672 | Q02 | Side Cover;Frame;right;ABS/PA757;Q520-7- | No | Model Compatibility List | $100.90 / Each |
||
![]() |
733635 | 1000462502 | Q05 | Cover;Pedal Arm;;ABS/PA757K;Q520-7-3;;EP | No | Model Compatibility List | $4.40 / Each |
||
![]() |
733636 | 1000460936 | Q11 | Cover;Crank;Outer;ABS/PA757;Q758-3-1;;EP | No | Model Compatibility List | $36.20 / Each |
||
![]() |
733637 | 1000460667 | Q15 | Pedal;;left;PP-MT1600;Q520-7-3;;; | No | Model Compatibility List | $18.04 / Each |
||
![]() |
733638 | 1000465482 | Q21 | Cover;Stabilizer;back;;Q520-7-3;;; | No | Model Compatibility List | $32.34 / Each |
||
![]() |
733639 | 1000465096 | V13 | Decal;Console Overlay;synthetic paper;;; | No | Model Compatibility List | $5.92 / Each |
||
![]() |
733640 | 1000466864 | AB01 | Frame Set;Semi-Assy;;;;;EP295;Service pa | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733641 | 1000466865 | AD01 | Guide rail set;Semi-Assy;;;;;EP295;Servi | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733642 | 1000460669 | Q03 | Superstructure;Frame;up;HIPS;P300C;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733643 | 1000460670 | Q04 | Superstructure;Frame;Rear-Up;HIPS;P300C; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733644 | 1000465090 | V01 | Decorated Label;Rear Stabilizer Cover;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733645 | 1000465091 | V02 | POP Sticker;Pedal;;;;Left;English/French | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733646 | 1000465092 | V03 | POP Sticker;Pedal;;;;Right;English/Frenc | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733647 | 1000462680 | V04 | Decorated Label;Link Arm accent piece;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733648 | 1000462681 | V05 | LOGO Label;Side Cover;;;;;;EP295 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733649 | 1000465093 | V06 | POP Sticker;Cover;;;;Left-Up;English/Fre | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733650 | 1000465094 | V07 | POP Sticker;;;;;Right-Up;English/French; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733651 | 1000465097 | V09 | POP Sticker;Console;;;;;English/French;E | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733652 | 1000460674 | V15 | Manual;Assembly/Manipulate;;EN/FR/ES;;EP | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
733653 | 1000466157 | V27 | Aperture Label;;??;Black;;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
733654 | 1000227272 | D04 | FOAM;SINGLESIDE;30x1.5Tx650L;55+-5 Deg., | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
733655 | 019381-00 | N33 | POWER GND WIRE;400 16AWG**DISC NOT STOCK | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
976932 | 004926-00 | Nylon Lock Nut M8x1.25P (New) | No | Model Compatibility List | $12.99 / Each |
|||
![]() |
957398 | 005330-00 | Gear Rower Retainer Clip (New) | Yes | Model Compatibility List | $11.99 / Each |
|||
![]() |
986316 | 004616-00 | Umbrella Cross Tapped Screw 4x12L (New) | No | Model Compatibility List | $12.00 / Each Out Of Stock |
|||
![]() |
986204 | 004374-00 | Button Head Phillip Screw (New) | No | Model Compatibility List | $12.99 / Each Out Of Stock |
|||
![]() |
917260 | 004942-00 | Black Nylon Nut (New) | No | Model Compatibility List | $12.99 / Each |
|||
|
