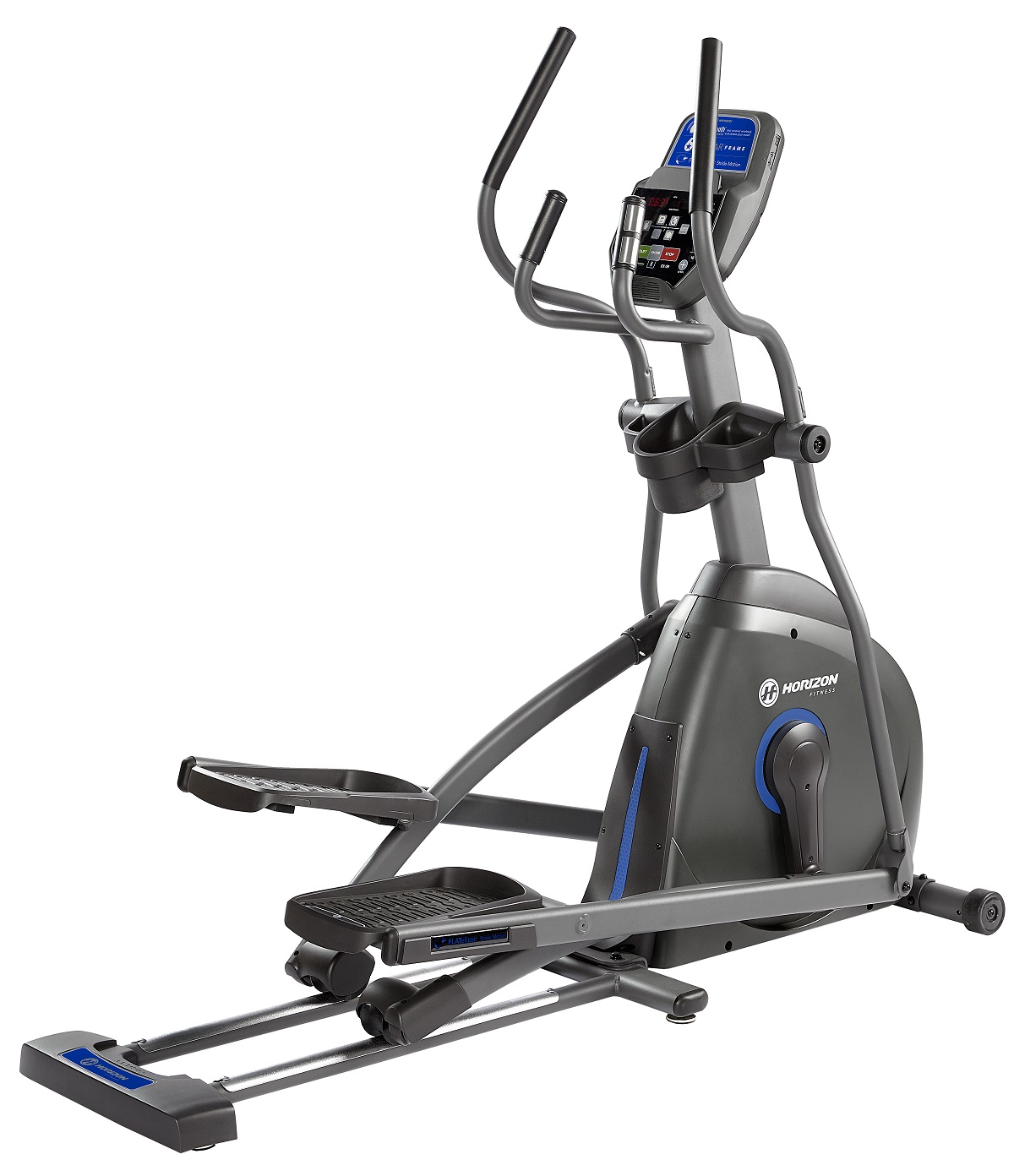

Repair Parts for Horizon Fitness EX59-3 - EP716 - EP283 - 2018 EP716, EP283
Brand: Horizon Fitness
Category: Residential
Type: Elliptical
Model Name: EX59-3 - EP716 - EP283 - 2018
Serial Number Prefix: EP716, EP283
Version: 2018
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
XImage | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
---|---|---|---|---|---|---|---|---|---|
700302 | 000906-B | G09 | Cap;Handlebar;;PVC;BL/Black C;36;EP03; | Yes | Model Compatibility List | $4.39 / Each |
|||
700318 | 000940-A | C06 | End Cap;Pulse Grip Handlebar | Yes | Model Compatibility List | $7.10 / Each |
|||
![]() |
700390 | 001193-00 | H13 | End-Cap;Seat Pad;20x40x1.6t;RB06 | No | Model Compatibility List | $1.51 / Each |
||
700570 | 001679-00 | P13 | Tie Strap;Adhesive;Nylon;66;HC-101;W | No | Model Compatibility List | $2.81 / Each |
|||
700893 | 002671-A | KIT | Audio Wire;Three-D Earphone | Yes | Model Compatibility List | $9.99 / Each |
|||
![]() |
701318 | 004374-00 | S03 | Screw;Phillip;BH;M5x0.8Px10L;Gap;;Zn-BL | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701373 | 004421-AB | H05 | Screw;Sink Cross;M5x0.8Px12L;Adhere; | No | Model Compatibility List | $1.59 / Each |
||
701578 | 004612-AB | P22 | Screw;Phillip;Round;M3x0.5Px8L;Zn+3 | No | Model Compatibility List | $2.00 / Each |
|||
701586 | 004617-00 | Q11 | Screw;Console Case;Oval Tapping;4x15L | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
701599 | 004623-00 | B30 | Screw;Phillip;BH;Tapped;4x12L;BED;Gap; | No | Model Compatibility List | $2.00 / Each |
||
701616 | 004636-A | L06 | Screw;Phillip;BH;4x15L | No | Model Compatibility List | $1.46 / Each |
|||
![]() |
701681 | 004714-AB | D08 | Screw;Hex Socket;BH;M6x1.0Px15L;Zinc | No | Model Compatibility List | $1.59 / Each |
||
701699 | 004724-00 | D53 | Bolt;M8x1.25Px15L | Yes | Model Compatibility List | $2.00 / Each |
|||
![]() |
701706 | 004727-00 | Z01 | Screw;Hex Socket;BH;M8x1.25Px30L | No | Model Compatibility List | $1.59 / Each |
||
![]() |
701711 | 004728-AE | G03 | SCREW;BH;M8X1.25PX40L;;HS;;;;BP | Yes | Model Compatibility List | $3.69 / Each |
||
![]() |
701740 | 004763-00 | E12 | Screw;Hex Socket;BH;M8x1.25Px16L;Adhere | Yes | Model Compatibility List | $2.00 / Each |
||
![]() |
701744 | 004767-AB | Z18 | Screw;Hex Socket;BH;M8x1.25Px70L | No | Model Compatibility List | $2.57 / Each |
||
![]() |
701827 | 004847-AB | G10 | Set Screw;M10X1.5PX12L | Yes | Model Compatibility List | $6.99 / Each |
||
![]() |
701874 | 004901-00 | R08 | Nut;Hex;M12x1.75P;Zn-BL | No | Model Compatibility List | $4.00 / Each |
||
![]() |
701899 | 004926-AE | Z21 | NUT;NLK;M8X1.25P;;BZN;; | No | Model Compatibility List | $2.57 / Each |
||
![]() |
701904 | 004931-00 | S06 | Nut;Locking;Nylon;1/4"--20UNC | No | Model Compatibility List | $1.59 / Each |
||
701934 | 004972-00 | F05 | Insert Nut;Brass;ALS7-616-150(0.02-0.15) | No | Model Compatibility List | $1.90 / Each |
|||
701964 | 005005-00 | H04 | Washer;Spring;Lock;8.2x15.4x2.0t | No | Model Compatibility List | $1.59 / Each |
|||
![]() |
701984 | 005020-AB | Z08 | Washer;;SPL;10.2X18.4X2.5T;;BAN; | No | Model Compatibility List | $1.59 / Each |
||
![]() |
702005 | 005043-00 | E12 | Washer;Flat;8.2x20x1.5T;Black Zinc | No | Model Compatibility List | $1.59 / Each |
||
702018 | 005053-00 | G18 | Washer;Flat;8.2x27.0x2.0T | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
702028 | 005060-00 | B24 | Washer;Flat;12.0X23.0X2.5T | No | Model Compatibility List | $1.79 / Each |
||
![]() |
702037 | 005067-00 | J04 | Washer;Flat;10.2X15.0X1.5T;Black Zinc | No | Model Compatibility List | $1.59 / Each |
||
![]() |
702074 | 005106-00 | Z03 | Washer;Flat;10.2x20.0x1.5T;Black Zinc | No | Model Compatibility List | $1.59 / Each |
||
702076 | 005109-00 | Z06 | Washer;Flat;8.5x25x1.5T;Black Zinc | No | Model Compatibility List | $1.59 / Each |
|||
702092 | 005125-00 | R02 | Washer;Flat;10.2x20x1.0T | No | Model Compatibility List | $2.00 / Each |
|||
702107 | 005136-A | E09 | Washer;Flat;8.5x20.0x1.0T | No | Model Compatibility List | $1.59 / Each |
|||
702135 | 005163-00 | Z07 | Washer;Arc;8.4x17x1.0T | No | Model Compatibility List | $2.57 / Each |
|||
![]() |
702163 | 005200-A | G19 | Washer;Teflon;18.2X30.0X1.0T | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702181 | 005225-00 | G25 | WASHER;WW;?X18.6X?X24.6X0.3T;;; | No | Model Compatibility List | $2.00 / Each |
||
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes | Model Compatibility List | $1.59 / Each |
|||
![]() |
702241 | 005366-00 | T11 | C-Clip;External;S-25 | No | Model Compatibility List | $1.59 / Each |
||
![]() |
702299 | 005811-00 | N58 | Cable Tie;Nylon;Black;160L | No | Model Compatibility List | $1.51 / Each |
||
702300 | 005812-00 | H11 | Cable Tie;Nylon;200L;BL;KSS;CV-200MB | No | Model Compatibility List | $2.29 / Each |
|||
![]() |
702512 | 008394-00 | S05 | Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 | No | Model Compatibility List | $1.51 / Each |
||
![]() |
703964 | 020013-00 | Z27 | Screw;BH;M4X0.7PX12L;CT;PH;;BAN;; | No | Model Compatibility List | $2.00 / Each |
||
![]() |
704016 | 020105-AC | B23 | Screw;Hex Socket;Round;M10x1.5Px15L;Adhe | No | Model Compatibility List | $2.57 / Each |
||
![]() |
704072 | 020184-00 | N40 | Screw;Phillip;BH;Tapped;3x12L;Black Zinc | No | Model Compatibility List | $1.59 / Each |
||
704073 | 020185-00 | E11 | Screw;Phillip;BH;Tapped;4x10L | No | Model Compatibility List | $1.59 / Each |
|||
![]() |
704210 | 020482-00 | F12 | Washer;Flat;16.0X25.0X1.5T | No | Model Compatibility List | $1.59 / Each |
||
![]() |
704273 | 022177-A | Q07 | Bracket;Side Cover;2 Hole Plate | No | Model Compatibility List | $2.47 / Each |
||
705023 | 029867-00 | M43 | Cable Tie;Nylon;;300L;White | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
705324 | 040840-A | R14 | Washer;Flat;6.2X30.0X1.5T | No | Model Compatibility List | $1.59 / Each |
||
705485 | 049287-00 | R17 | Washer;Flat;12.5x20.0x2.0t; | No | Model Compatibility List | $2.00 / Each |
|||
705700 | 055204-A | D51 | Screw;SelfTapping;4x10L | No | Model Compatibility List | $2.00 / Each |
|||
706342 | 061237-AA | H07 | Cap;Rear Stabilizer | No | Model Compatibility List | $3.82 / Each |
|||
![]() |
706705 | 064736-AA | F14 | End-Cap;Guide Rail;PP;BL;EP136-B26B | Yes | Model Compatibility List | $8.97 / Each |
||
![]() |
706757 | 065397-A | C12 | Cable Tie;Nylon | No | Model Compatibility List | $1.40 / Each |
||
![]() |
707101 | 1000090321 | Q05 | Screw;BH;4X15L;TC;PH;G8.8;BAN;;POT | No | Model Compatibility List | $1.85 / Each |
||
![]() |
707361 | 1000092318 | B34 | Front Leveler | Yes | Model Compatibility List | $12.43 / Each |
||
![]() |
708160 | 1000100846 | Q09 | End Cap;Pedal Arm | No | Model Compatibility List | $2.47 / Each |
||
![]() |
708161 | 1000100847 | E09 | Cover;Pedal Arm | Yes | Model Compatibility List | $9.09 / Each |
||
708252 | 1000101533 | Not Shown | Power Wire;DC;600mm | Yes | Model Compatibility List | $10.01 / Each |
|||
![]() |
708253 | 1000101534 | P16 | Speed Sensor Wire | Yes | Model Compatibility List | $12.99 / Each |
||
708258 | 1000101657 | Not Shown | Console Cable;Upper;200mm(CKM254301-8P+SM-8Y) | No | Model Compatibility List | $9.57 / Each |
|||
![]() |
708259 | 1000101658 | P10 | Console Cable;Down;1200mm(CKM254301-8P+SM- | Yes | Model Compatibility List | $29.99 / Each |
||
![]() |
708433 | 1000102806 | H10 | Swivel Axle;Link Arm | No | Model Compatibility List | $8.01 / Each |
||
![]() |
708508 | 1000103023 | H12 | End Cap;Pedal Arm | Yes | Model Compatibility List | $6.49 / Each |
||
708696 | 1000104894 | R05 | Bearing;Ball;6005ZZ;25X47X12T;;SL;;; | No | Model Compatibility List | $11.49 / Each |
|||
![]() |
709092 | 1000109370 | S02 | Steel Resistance Cable Rope;ECB; 160L;L1+L2=65 | Yes | Model Compatibility List | $16.89 / Each |
||
![]() |
709135 | 1000110274 | Z14 | Washer;Flat;20.2x27.2x1.5T;SPHC;BAN | No | Model Compatibility List | $1.59 / Each |
||
![]() |
709199 | 1000110919 | Q20 | SCREW;BH;(10.4);4X15L;SM;PH;BAN;POT | No | Model Compatibility List | $1.59 / Each |
||
![]() |
709365 | 1000113436 | P18 | Screw;FH;4x15L;TC;PH;CST;BAN | No | Model Compatibility List | $1.85 / Each |
||
![]() |
709413 | 1000114156 | E20 | Washer;Wave;17.2x22.5x0.5t;65Mn;BAN | No | Model Compatibility List | $1.59 / Each |
||
709500 | 1000200749 | Q16 | Pedal;Right | Yes | Model Compatibility List | $43.00 / Each |
|||
![]() |
709501 | 1000200750 | Q15 | Pedal;Left | No | Model Compatibility List | $43.00 / Each |
||
709552 | 1000201251 | Z17 | Ring;Rubber;26.2x16.20x11.50 | No | Model Compatibility List | $4.00 / Each |
|||
![]() |
709553 | 1000201279 | AJ1 | Crank Set | No | Model Compatibility List | $57.49 / Each |
||
![]() |
709791 | 1000203217 | Z13 | Washer;;Wavy;20.7X29.1X0.5T;;-;BAN;; | No | Model Compatibility List | $1.59 / Each |
||
709904 | 1000204290 | R07 | SCREW;EB;1/4"-20UNCX55L;12;-;-;-;BZN; | Yes | Model Compatibility List | $7.79 / Each |
|||
![]() |
709955 | 1000205115 | Not Shown | WRENCH;OPEN-TYPE; | No | Model Compatibility List | $6.50 / Each |
||
![]() |
709992 | 1000205707 | N29 | Ground Wire;Pulse;200L | No | Model Compatibility List | $3.82 / Each |
||
![]() |
710051 | 1000206466 | R04 | Flywheel;6.5KG | No | Model Compatibility List | $259.00 / Each |
||
![]() |
710064 | 1000206552 | R06 | Drive Belt;Poly-V;490-J10 | Yes | Model Compatibility List | $57.49 / Each |
||
![]() |
710067 | 1000206624 | J05 | Screw;SH;M10X1.5PX55L | No | Model Compatibility List | $4.00 / Each |
||
![]() |
710068 | 1000206625 | G32 | NUT;-;M10X1.5P;G10;BAN;; | Yes | Model Compatibility List | $1.59 / Each |
||
![]() |
710072 | 1000206655 | R15 | Key;Round;Signal-End;6X6X20L;-;-;; | No | Model Compatibility List | $1.51 / Each |
||
710283 | 1000208275 | N26 | Screw;BH;M5x5L;-;PH;-;WZN;-;-; | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
710408 | 1000210145 | Z04 | SCREW;HH;M10X1.5PX20L;ADHERE;ZN-BL | No | Model Compatibility List | $1.85 / Each |
||
![]() |
710763 | 1000213379 | S09 | Resistance Motor | Yes | Model Compatibility List | $180.67 / Each |
||
711231 | 1000217975 | R13 | SCREW;BH;M6X1.0PX15L;MT;HS;G8.8;BAN;BP; | No | Model Compatibility List | $1.59 / Each |
|||
![]() |
711704 | 1000222889 | Q07 | Cover;Roller;left;ABS+20%PC;Q520-7-3 MAT | No | Model Compatibility List | $11.99 / Each |
||
![]() |
711707 | 1000222910 | Q08 | Cover;Roller;right;ABS+20%PC;Q520-7-3 MA | No | Model Compatibility List | $6.73 / Each |
||
712062 | 1000226201 | E13 | SCREW;SH;M10x1.5Px45L-16L;MT;G10.9;CRMO; | No | Model Compatibility List | $2.00 / Each |
|||
712111 | 1000226784 | E22 | SHIM;CRANK SLEEVE;-;SPHC;-;EP558; | No | Model Compatibility List | $3.82 / Each |
|||
![]() |
712293 | 1000228194 | R06 | Eensor Magent;Diam.15x7T;1900GAUSS | No | Model Compatibility List | $12.04 / Each |
||
712874 | 1000231159 | P12 | ADAPTER;US;100-240V/50-60HZ;12V/2A;2.0M; | Yes | Model Compatibility List | $80.29 / Each |
|||
713148 | 1000233270 | H05 | Screw;Phillip;Flat Head;M5X0.8PX12L;Cutt | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
713469 | 1000303833 | N13 | Fixing Plate;Earphone Jack;;PP;EP576 | No | Model Compatibility List | $1.90 / Each |
||
![]() |
713702 | 1000306710 | Not Shown | hardware set;Blister;;EP534 | No | Model Compatibility List | $55.74 / Each |
||
![]() |
715957 | 1000329468 | N31 | USB&EUP Wire;;;;;24AWG;350mm;XHS-13Yx2;A | No | Model Compatibility List | $10.63 / Each |
||
![]() |
716545 | 1000337327 | N73 | Pulse CON;;UP2;;;2468 24AWG;250;XHS-2Y(y | No | Model Compatibility List | $3.43 / Each |
||
![]() |
718992 | 1000355000 | Q21 | Cover;STABILIZER TUBE;back;ABS/PA757K;75 | No | Model Compatibility List | $21.27 / Each |
||
![]() |
719726 | 1000364326 | C09 | Kettle Rack;;;ABS/PA757K;75140;;EP548C-1 | No | Model Compatibility List | $13.49 / Each |
||
![]() |
720052 | 1000368347 | D06 | Accent Plate Set;Semi-Assy;;;;EP595-1US; | Yes | Model Compatibility List | $70.25 / Each |
||
![]() |
720603 | 1000373937 | N11 | PLUG SET;Semi-Assy;;;;TM700-1US;; | No | Model Compatibility List | $2.29 / Each |
||
![]() |
722523 | 1000393376 | N30 | PCB Module;;;SOO1604;;;;USB&Aud? | No | Model Compatibility List | $12.58 / Each |
||
723644 | 1000411317 | N76 | Speaker;;3W/8?;250mm;XHS2.54-2P;???; | No | Model Compatibility List | $6.73 / Each |
|||
![]() |
724411 | 1000419219 | N37 | Control Board;Console;;HBPB;S1.13;;EX59- | No | Model Compatibility List | $375.70 / Each |
||
![]() |
724412 | 1000419236 | N62 | Membrane Keypad;;;;EX59-3; | No | Model Compatibility List | $41.60 / Each |
||
![]() |
724427 | 1000419611 | 2 | Console set;Semi-Assy;;;;;EP716-1US; | No | Model Compatibility List | $522.18 / Each |
||
724428 | 1000419612 | 5 | Console set;Semi-Assy;;;;;EP716-1US;RoHS | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724430 | 1000419614 | AB1 | Frame Welding Set;;;painting;DS023;;EP71 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
724431 | 1000419615 | AC1 | Console Mast Set;;;painting;DS023;;EP716 | No | Model Compatibility List | $141.93 / Each |
||
![]() |
724432 | 1000419623 | AG5 | Hand Arm Set;;;painting;DS023;;EP716-1US | No | Model Compatibility List | $19.60 / Each |
||
![]() |
724433 | 1000419629 | N01 | Console Down Cover;;;ABS;Q520-7-3;;EP716 | No | Model Compatibility List | $37.15 / Each |
||
![]() |
724434 | 1000419631 | N02 | Console Uipper Cover;;;ABS;Q758-3-1;;EP7 | No | Model Compatibility List | $20.25 / Each |
||
![]() |
724435 | 1000419632 | N03 | Console Faceplate;;;ABS;Q758-3-1;;EP716- | No | Model Compatibility List | $8.42 / Each |
||
![]() |
724437 | 1000419654 | Q18 | Accent Plate;;Outer;ABS/PA757;Q520-7-3;; | No | Model Compatibility List | $6.73 / Each |
||
724438 | 1000419656 | Q03 | Superstructure;Frame;up;ABS/PA757K;Q520- | No | Model Compatibility List | $8.42 / Each |
|||
![]() |
724439 | 1000419657 | Q04 | Superstructure;Frame;Rear-Up;ABS/PA757K; | No | Model Compatibility List | $2.18 / Each |
||
![]() |
724440 | 1000419658 | Q01 | Side Cover;;left;ABS/PA757K;Q758-3-1;;EP | No | Model Compatibility List | $74.33 / Each |
||
![]() |
724441 | 1000419659 | Q02 | Side Cover;;right;ABS/PA757K;Q758-3-1;;E | No | Model Compatibility List | $74.33 / Each |
||
![]() |
724442 | 1000419660 | Q12 | Side Cover;;Rear-Up;ABS/PA757K;Q520-7-3; | No | Model Compatibility List | $8.42 / Each |
||
![]() |
724443 | 1000419661 | Q11 | Cover;Crank;Outer;ABS/PA757K;Q520-7-3;;E | No | Model Compatibility List | $10.11 / Each |
||
![]() |
724444 | 1000419666 | N61 | Manipulate Overlay;;Down;;;EP716-1US | No | Model Compatibility List | $15.18 / Each |
||
![]() |
724445 | 1000419667 | V02 | Console Sticker;Overlay POP;;;;Up;;EP716 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
724446 | 1000419668 | V04 | Decorated Label;Link Arm accent piece;;; | No | Model Compatibility List | $3.02 / Each |
||
![]() |
724447 | 1000419669 | V05 | Decorated Label;Side Cover;;;;;;EP716-1U | No | Model Compatibility List | $5.04 / Each |
||
![]() |
724448 | 1000419670 | V07 | Decorated Label;Side Cover;;;;Rear;;EP71 | No | Model Compatibility List | $3.02 / Each |
||
![]() |
724454 | 1000420146 | V13 | Decorated Label;Pedal Distance;;;;;;EP71 | No | Model Compatibility List | $3.02 / Each |
||
![]() |
724455 | 1000420148 | V03 | Decorated Label;Stabilizer Cover;;;;;;EP | No | Model Compatibility List | $3.02 / Each |
||
![]() |
724456 | 1000420149 | N64 | Manipulate Overlay;;UP;;;EP716-1US | No | Model Compatibility List | $5.04 / Each |
||
![]() |
724681 | 1000423171 | C08 | Pulse Sensor Set;;;;;2468 24AWG 2C;650mm | No | Model Compatibility List | $11.80 / Each |
||
![]() |
724691 | 1000423858 | AD01 | Guide rail set;Semi-Assy;;;;;EP716-1US; | No | Model Compatibility List | $114.89 / Each |
||
![]() |
724692 | 1000423859 | AE01 | Pedal Arm set;Semi-Assy;left;;;;EP716-1U | No | Model Compatibility List | $206.70 / Each Out Of Stock |
||
![]() |
724693 | 1000423860 | AE03 | Crank sleeve set;Semi-Assy;;;;;EP716-1US | No | Model Compatibility List | $23.63 / Each |
||
![]() |
724694 | 1000423861 | AE04 | Roller Set;Semi-Assy;;;;;EP716-1US; | No | Model Compatibility List | $60.81 / Each |
||
![]() |
724695 | 1000423862 | AE02 | Pedal Arm set;Semi-Assy;right;;;;EP716-1 | No | Model Compatibility List | $189.00 / Each |
||
![]() |
724696 | 1000423863 | AG03 | Arm Rest Set;Semi-Assy;;;;;EP716-1US; | No | Model Compatibility List | $32.08 / Each |
||
![]() |
724697 | 1000423865 | AG04 | Arm Rest Set;Semi-Assy;;;;;EP716-1US; | No | Model Compatibility List | $32.08 / Each |
||
![]() |
724698 | 1000423866 | AG01 | Arm Rest Set;Semi-Assy;left down;;;;EP71 | No | Model Compatibility List | $156.00 / Each |
||
![]() |
724699 | 1000423867 | AG02 | Arm Rest Set;Semi-Assy;right down;;;;EP7 | No | Model Compatibility List | $157.40 / Each |
||
![]() |
724700 | 1000423868 | 3 | Link Arm Set;Semi-Assy;left;;;;EP716-1US | No | Model Compatibility List | $285.45 / Each |
||
724701 | 1000423869 | AH01 | Link Arm Set;Semi-Assy;left;;;;EP716-1US | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
724702 | 1000423870 | 4 | Link Arm Set;Semi-Assy;right;;;;EP716-1U | Yes | Model Compatibility List | $285.45 / Each |
||
724703 | 1000423871 | AH02 | Link Arm Set;Semi-Assy;;;;;EP716-1US; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
724704 | 1000423872 | AL01 | Stabilizer set;Semi-Assy;;;;;EP716-1US; | No | Model Compatibility List | $23.63 / Each |
|||
724705 | 1000423874 | 1 | Belt pulley set;Semi-Assy;;;;;EP716-1US; | No | Model Compatibility List | $128.41 / Each |
|||
![]() |
725446 | 071342 | Z37 | Wrench;Hex;L-Type;#5mmx140L; | No | Model Compatibility List | $0.60 / Each |
||
![]() |
725507 | 072210 | E10 | Screw; Hex Socket; BH; M8x1.25Px15L | No | Model Compatibility List | $1.59 / Each |
||
![]() |
725508 | 072211 | E14 | Screw;Hex Socket;BH;M8x1.25Px20L | No | Model Compatibility List | $1.59 / Each |
||
725754 | 075972 | L02 | Bushing;Move Wheel;BLACK;EP188 | Yes | Model Compatibility List | $6.68 / Each |
|||
725869 | 077441 | C10 | Sticker;Warning;Console set;38x54;EP197 | No | Model Compatibility List | $1.77 / Each |
|||
![]() |
725922 | 078380 | L03 | Transport Wheel Set; | Yes | Model Compatibility List | $6.60 / Each |
||
![]() |
728346 | 094112 | B35 | Cover;Lower Vertical Handlebar Rotating Axle | Yes | Model Compatibility List | $7.99 / Each |
||
![]() |
1028444 | 1000101530 | M40 | Motor Resistance (Used) | No | Model Compatibility List | $89.00 / Each Out Of Stock |
||
![]() |
1028445 | 1000200750 | 0 | 1 | Foot Pad Left (Used) | No | Model Compatibility List | $19.99 / Each |
|
![]() |
1010997 | 078380 | 0 | 1 | Transport Wheel | Yes | Model Compatibility List | $15.99 / Each |
|
![]() |
1033013 | 1000101658 | Console Wire Harness | Yes | Model Compatibility List | $22.50 / Each |
|||
![]() |
731600 | 1000106875 | V15 | Warning Sticker;overlay;remove protectiv D/C, NO REPL: Part will show as orderable until stock is depleted. | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
733374 | 1000101696 | D06 | Guide Rail Ornament;Nickel;EP520-1US | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
733623 | 1000423873 | AR01 | Belt pulley set;Semi-Assy;;;;;EP716-1US; | No | Model Compatibility List | $186.32 / Each |
||
733654 | 1000227272 | D04 | FOAM;SINGLESIDE;30x1.5Tx650L;55+-5 Deg., | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
733655 | 019381-00 | N33 | POWER GND WIRE;400 16AWG**DISC NOT STOCK | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
734888 | 1000454761 | AE01 | Pedal Arm set;Semi-Assy;left;;;;EP283-1U | No | Model Compatibility List | $109.30 / Each |
||
![]() |
734889 | 0000086506 | Not Shown | Wrench;Hex;L-Type;#8mmx147L; | No | Model Compatibility List | $1.94 / Each |
||
![]() |
734890 | 1000448440 | AB1 | Frame Welding Set;;;painting;DS023;;EP28 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734891 | 1000454764 | AH02 | Link Arm Set;;right;;Pressure with beari | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734892 | 1000454763 | AH01 | Link Arm Set;;left;;Pressure with bearin | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734893 | 1000423875 | 2 | Console set;Semi-Assy;;;;;EP716-1US; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
734894 | 005404-00 | Not Shown | Screwdriver;Phillip;4.5x50L | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
735199 | 1000419665 | Not Shown | Manual;Assembly/Manipulate;;EN/FR/ES;080 | No | Model Compatibility List | $7.90 / Each |
||
![]() |
957398 | 005330-00 | Gear Rower Retainer Clip (New) | Yes | Model Compatibility List | $11.99 / Each |
|||
![]() |
986204 | 004374-00 | Button Head Phillip Screw (New) | No | Model Compatibility List | $12.99 / Each Out Of Stock |
|||
|
