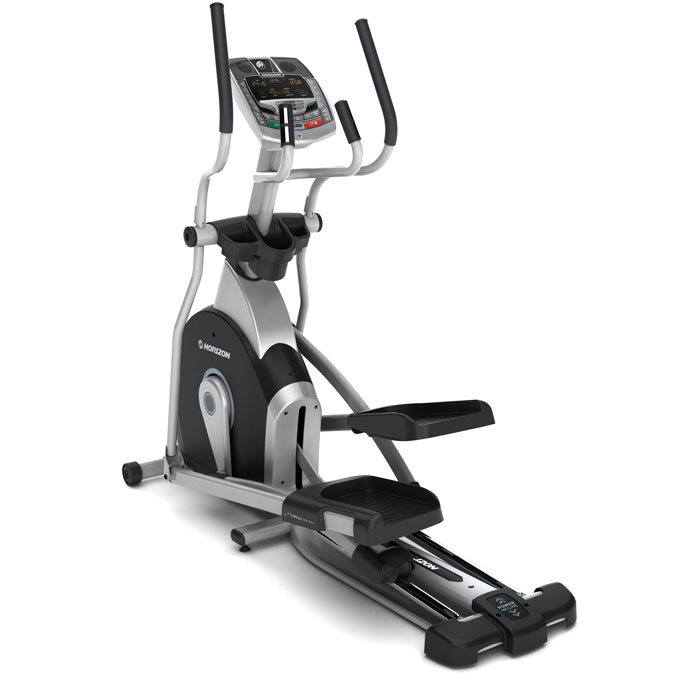

Horizon Fitness - EX78 - 2010

Repair Parts for Horizon Fitness EX78 EP516

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: EX78

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700318 000940-A C09 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

Q 700319 000945-AA Q22 End Cap;Handlebar;O31.8;Black No Model Compatibility List $1.90 / Each

9,4,5,6,11
G 700323 000960-AA G09 End Cap;Upper Vertical Handlebar Yes Model Compatibility List $3.89 / Each

9,11
700570 001679-00 - Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

701013 003326-00 P06 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

R 701042 003413-00 R02 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
R 701209 004165-00 R06 Drive Belt;Poly-V;490-J8 Yes Model Compatibility List $54.73 / Each

701288 004356-00 Z29 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

M 701294 004359-00 M33 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

701300 004364-00 H05 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

Z 701316 004372-00 Z30 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

Z 701446 004488-AC Z04 Screw;Hex Socket;Round;M8x1.25Px55L No Model Compatibility List $1.79 / Each

E 701506 004541-AC E13 Screw;Hex Socket;Round;M8x1.25Px45L;Chromed No Model Compatibility List $3.64 / Each

701561 004592-00 B20 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

701597 004621-00 S03 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
701613 004632-00 Z28 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

R 701650 004691-A R07 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
D 701681 004714-AB D08 Screw;Hex Socket;BH;M6x1.0Px15L;Zinc No Model Compatibility List $1.59 / Each

2
L 701698 004723-00 L05 Screw;Oval;Hex Socket;M8x1.25Px3/4L No Model Compatibility List $2.00 / Each

2
Z 701706 004727-00 Z01 Screw;Hex Socket;BH;M8x1.25Px30L No Model Compatibility List $1.59 / Each

2
Z 701744 004767-AB Z21 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.57 / Each

2
Z 701749 004773-00 Z09 Screw;Hex Socket;BH;M8x1.25Px35L No Model Compatibility List $1.59 / Each

2
G 701827 004847-AB G10 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
701848 004865-00 J03 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

B 701864 004887-00 B22 Nut;Hex;3/8-16UNC No Model Compatibility List $2.00 / Each

R 701874 004901-00 R08 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

701897 004926-00 Z24 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

R 701904 004931-00 R09 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

701952 004988-00 R11 Key;Round;Dual-End;6x6x14L No Model Compatibility List $1.90 / Each

9
701964 005005-00 Z22 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

Z 702005 005043-00 Z27 Washer;Flat;8.2x20x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

702076 005109-00 L04 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Z 702086 005118-00 Z23 Washer;Flat;8.4x17.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

702107 005136-A Z18 Washer;Flat;8.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
702135 005163-00 Z03 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
702160 005196-00 B12 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

702161 005198-00 Z25 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
702217 005330-00 Q17 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

F 702237 005362-00 F11 C-Clip;External;S-16 No Model Compatibility List $1.59 / Each

702241 005366-00 R13 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

D 702299 005811-00 D13 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

702404 006644-BX V16 Sticker;Instructon;R; No Model Compatibility List $1.90 / Each

1
R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

702829 011173-00 R15 Nut;Hex;M25x1.5P;Black No Model Compatibility List $4.00 / Each

2,4,5,6
P 703918 019353-A P10 Connecting Cable;Socket/Breaker No Model Compatibility List $1.51 / Each

4,5,6
R 703949 019905-CX R04 Generator Set;8Kg No Model Compatibility List $172.46 / Each

8
B 704016 020105-AC B16 Screw;Hex Socket;Round;M10x1.5Px15L;Adhe No Model Compatibility List $2.57 / Each

P 704072 020184-00 P04 Screw;Phillip;BH;Tapped;3x12L;Black Zinc No Model Compatibility List $1.59 / Each

704073 020185-00 P17 Screw;Phillip;BH;Tapped;4x10L No Model Compatibility List $1.59 / Each

E 704076 020190-A E11 Screw;Phillip;BH;Tapped;4x0.7Px10L No Model Compatibility List $1.85 / Each

2
Z 704210 020482-00 Z19 Washer;Flat;16.0X25.0X1.5T No Model Compatibility List $1.59 / Each

2
Q 704273 022177-A Q15 Bracket;Side Cover;2 Hole Plate No Model Compatibility List $2.47 / Each

705323 040839-00 Z10 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.59 / Each

705485 049287-00 R17 Washer;Flat;12.5x20.0x2.0t; No Model Compatibility List $2.00 / Each

V 706142 059542-AX V05 Sticker;Warning No Model Compatibility List $1.77 / Each

1
706235 060369-A R10 Nut;Hex;M14X1.5PX8L No Model Compatibility List $0.96 / Each

2
706236 060370-A R12 Washer;Spring;14.2x24x1.0T No Model Compatibility List $2.00 / Each

2
K 706426 062257-A K03 Screw;;M10X1.5PX14L;;HS;CRMO;;;SP No Model Compatibility List $3.64 / Each

2
P 706549 063270-A P07 Circuit Breaker;3A/125V Yes Model Compatibility List $27.30 / Each

F 706705 064736-AA F14 End-Cap;Guide Rail;PP;BL;EP136-B26B Yes Model Compatibility List $8.97 / Each

9
F 707760 1000094876 F10 Leveler Foot;Base;PVC;3/8-16UNC;BLACK;TM616 Yes Model Compatibility List $6.42 / Each

707911 1000096854 P12 Power Cord;USA;16AWG;Long2M Yes Model Compatibility List $57.49 / Each

M 708120 1000099802 M31 Motor Control Board;AC;100V~240V;H102S101 Yes Model Compatibility List $383.27 / Each

4,5,6,7,10
Q 708159 1000100845 Q07 Roller Wheel Cover;Left Yes Model Compatibility List $12.99 / Each

8,9
Q 708160 1000100846 Q09 End Cap;Pedal Arm No Model Compatibility List $2.47 / Each

8,9,3
Q 708161 1000100847 Q05 Cover;Pedal Arm Yes Model Compatibility List $9.09 / Each

3,8,9
Q 708163 1000100851 Q08 Roller Wheel Cover;Right Yes Model Compatibility List $12.93 / Each

8,9
A 708182 1000100946 AJ1 Crank Set Yes Model Compatibility List $191.62 / Each

8
C 708206 1000101188 C06 Water Bottle Holder;Black;EP524-1US No Model Compatibility List $24.39 / Each

4,5,6
M 708244 1000101466 M30 Elevation Motor;AC;110V; JM14-028 175mm;99;JM14 Yes Model Compatibility List $256.78 / Each

N 708251 1000101531 N71 Pulse Sensor Set Yes Model Compatibility List $33.93 / Each

11
P 708253 1000101534 P03 Speed Sensor Wire Yes Model Compatibility List $12.99 / Each

P 708259 1000101658 P02 Console Cable;Down;1200mm(CKM254301-8P+SM- Yes Model Compatibility List $29.99 / Each

4,5,6,7
P 708260 1000101659 P11 ECB Motor Wire;CKM254301-8P+CKM254301-9 Yes Model Compatibility List $15.59 / Each

4,5,6,10
P 708261 1000101660 P05 Power Socket Set No Model Compatibility List $6.68 / Each

4,5,6
P 708262 1000101661 P08 Power Wire;Control Board;700L;16AWG;Black No Model Compatibility List $3.82 / Each

7,4,5,6
P 708263 1000101662 P09 Power Wire;Control Board;700L;16AWG;White No Model Compatibility List $3.82 / Each

7,4,5,6
708264 1000101671 AF1 Rear Stabilizer Frame Set;Semi-Assy;EP520-1US No Model Compatibility List $258.47 / Each

3
A 708265 1000101679 AC1 Console Mast Set;Semi-Assy;EP520-1US No Model Compatibility List $363.64 / Each

7
A 708267 1000101685 AD1 Guide Rail Set;Semi-Assy;EP520-1US No Model Compatibility List $274.64 / Each

9
A 708268 1000101697 AK1 Elevation Linkage Set;Painting;MM314;EP52 No Model Compatibility List $40.07 / Each

3,10
Q 708269 1000101714 Q03 Console Mast Cover; Main No Model Compatibility List $20.62 / Each

7,9
708270 1000101716 Q11 Boot;Console Mast No Model Compatibility List $1.90 / Each

7
708271 1000101717 Q12 Rear Stabilizer Cover;Front;ABS;MM314;EP52 No Model Compatibility List $20.93 / Each

9
V 708272 1000101722 V01 Label;Frame Cover;Queen;EP520-1US No Model Compatibility List $3.82 / Each

9,3
A 708273 1000101732 AZ1 Hardware Pack No Model Compatibility List $71.71 / Each

4,5,6
708299 1000101881 V13 Carton;NO-ROHS;EP516-1US No Model Compatibility List $59.41 / Each

1
708414 1000102735 N69 CON Wire;hand pulse;250mm(SM-2A+XHS2.5-2 No Model Compatibility List $1.90 / Each

4,5,6,12,13,14
G 708419 1000102774 G11 Screw;Settle;M4x0.7Px8L No Model Compatibility List $2.00 / Each

2
H 708433 1000102806 H10 Swivel Axle;Link Arm No Model Compatibility List $8.01 / Each

8,3
V 708496 1000102983 V21 Owners Manual No Model Compatibility List $8.87 / Each

1
Q 708498 1000102990 Q13 Crank Cover;Large;PaintingMM314;EP518-1US No Model Compatibility List $13.86 / Each

8,9
Q 708499 1000102991 Q14 Crank Cover;Small;Painting MM314;EP518-1 No Model Compatibility List $1.90 / Each

8,9
V 708500 1000102992 V03 Cover;Decoration Decal(Round);EP51 No Model Compatibility List $1.90 / Each

7,9,3
V 708501 1000102993 V04 Crank Small Cover;POLY Decal(Round);EP51 No Model Compatibility List $3.54 / Each

7,8,9,3
Q 708503 1000103004 Q04 Console Mast Cover;Front No Model Compatibility List $9.57 / Each

7,9
Q 708504 1000103011 Q01 Side Cover;Left No Model Compatibility List $78.94 / Each

9
Q 708505 1000103017 Q18 Rear Stabilizer Decorative Cover;ABS;MM314;EP516-1US No Model Compatibility List $65.34 / Each

9
Q 708506 1000103018 Q19 Rear Stabilizer Rear Cover No Model Compatibility List $15.55 / Each

9
V 708507 1000103019 V02 Cover;Stabilizer;Decal;EP516-1US No Model Compatibility List $8.87 / Each

7,9,3
H 708508 1000103023 H12 End Cap;Pedal Arm Yes Model Compatibility List $6.49 / Each

3,8,9
A 708511 1000103036 AE1 Pedal Arm Set;Left No Model Compatibility List $339.33 / Each

8,9,3
A 708512 1000103039 AE2 Pedal Arm Set;Right No Model Compatibility List $314.18 / Each

8,9,3
A 708513 1000103042 AG3 Upper Handlebar Set;Left No Model Compatibility List $81.25 / Each

11
A 708514 1000103045 AG1 Lower Handlebar Set;Left No Model Compatibility List $112.16 / Each

11
A 708515 1000103047 AG2 Lower Handlebar Set;Right No Model Compatibility List $112.16 / Each

11
L 708517 1000103052 L01 Stabilizer Set;Front No Model Compatibility List $84.92 / Each

1
Q 708534 1000103207 Q02 Side Cover;Right No Model Compatibility List $78.94 / Each

9
A 708590 1000103896 AG4 Upper Handlebar Set;Right No Model Compatibility List $81.25 / Each

11
708696 1000104894 R05 Bearing;Ball;6005ZZ;25X47X12T;;SL;;; No Model Compatibility List $11.49 / Each

8
708773 1000105769 D14 Ribbon;White;760L No Model Compatibility List $2.47 / Each

1
E 708785 1000106037 E08 Crank Pin Sleeve Set No Model Compatibility List $57.49 / Each

8,3,12,13,14
A 708810 1000106120 AD3 Fixing Plate;Leveler No Model Compatibility List $14.27 / Each

3
V 708947 1000107516 V24 Elliptical Guide No Model Compatibility List $6.68 / Each

1
V 708953 1000107582 V09 POP;Decal Sticker;EP516 No Model Compatibility List $1.77 / Each

7,3,12,13,14
R 708995 1000108119 R01 Pedal Axle Set No Model Compatibility List $142.84 / Each

8,9
709055 1000108777 E15 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $2.00 / Each

V 709096 1000109511 V19 Round Sticker;Side Cover;Pantone Cool Gray No Model Compatibility List $1.90 / Each

9
R 709201 1000110978 R18 Nut;HXF;levogyrate;M14x1.5Px10L;G10;NKL;Reverse Threaded No Model Compatibility List $2.00 / Each

7,2,12,13,14
H 709596 1000201568 H07 Plastic Cover;L;R;-;UPPER TRANSLUCENT YE No Model Compatibility List $115.00 / Each

9
H 709597 1000201569 H08 Plastic Cover;R;R;;UPPER TRANSLUCENT YEL No Model Compatibility List $115.00 / Each

9
R 710011 1000205914 R18 Nut;HXF;M14X1.5P;G4.8;BZN;; No Model Compatibility List $1.85 / Each

2
R 710012 1000205915 R10 Nut;HXF;M14X1.5P;G4.8;WZN;; No Model Compatibility List $2.00 / Each

2
A 710375 1000209800 AJ1 Crank Set No Model Compatibility List $208.29 / Each

8
Q 710722 1000212646 Q06 MOVING WHEEL SET;-;S-EP534;-; Yes Model Compatibility List $189.00 / Each

8
S 710763 1000213379 S01 Resistance Motor Yes Model Compatibility List $180.67 / Each

H 713201 1000300189 H06 Bearing;Dry;-;-;Sheng Ge Ban No Model Compatibility List $6.68 / Each

A 713858 1000308932 AH1 Link Arm Set;Semi-Assy;left;;;S-EP546B;; No Model Compatibility List $344.94 / Each

3
A 713859 1000308934 AH2 Link Arm Set;Semi-Assy;right;;;S-EP546B; No Model Compatibility List $344.94 / Each

3
D 720052 1000368347 D09 Accent Plate Set;Semi-Assy;;;;EP595-1US; Yes Model Compatibility List $70.25 / Each

3,4,5,6
S 725184 102450 S02 Steel Cable;ECB;160L No Model Compatibility List $9.75 / Each

4,5,6
Screw; Hex Socket; BH; M8x1.25Px15L 725507 072210 E10 Screw; Hex Socket; BH; M8x1.25Px15L No Model Compatibility List $1.59 / Each

Screw;Hex Socket;BH;M8x1.25Px20L 725508 072211 E14 Screw;Hex Socket;BH;M8x1.25Px20L No Model Compatibility List $1.59 / Each

Crank Puller;30mm 725742 075513 KIT Crank Puller;30mm No Model Compatibility List $57.49 / Each

725754 075972 L02 Bushing;Move Wheel;BLACK;EP188 Yes Model Compatibility List $6.68 / Each

725869 077441 C10 Sticker;Warning;Console set;38x54;EP197 No Model Compatibility List $1.77 / Each

Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

726975 086331 Z15 Washer;Wavy;17.2X22.5X0.3T No Model Compatibility List $1.59 / Each

Cover;Lower Vertical Handlebar Rotating Axle 728346 094112 B35 Cover;Lower Vertical Handlebar Rotating Axle Yes Model Compatibility List $7.99 / Each

F 000089 1000094876 F10 1 Leveling Foot Leveler Yes Model Compatibility List $19.99 / Each

P 1001381 003326-00 P06 1 Power Switch Yes Model Compatibility List $29.99 / Each

R 1003253 004165-00 R06 1 Belt Drive 8 Ribbed Yes Model Compatibility List $32.99 / Each

Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

P 1000573 003326-00 P06 Power Entry Switch On/Off Yes Model Compatibility List $20.99 / Each

P 1033013 1000101658 P02 Console Wire Harness Yes Model Compatibility List $22.50 / Each

4,5,6,7
B 701972 005010-00 B21 Spring Lock Washer 10.75x17.2x2.16T (New) No Model Compatibility List $12.99 / Each

P 1034434 003326-00 P06 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P06 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

Q 1037610 1000100845 Q07 Left pulley cover Yes Model Compatibility List $12.04 / Each

8,9
Z 976932 004926-00 Z24 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q17 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

S 957090 004621-00 S03 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
