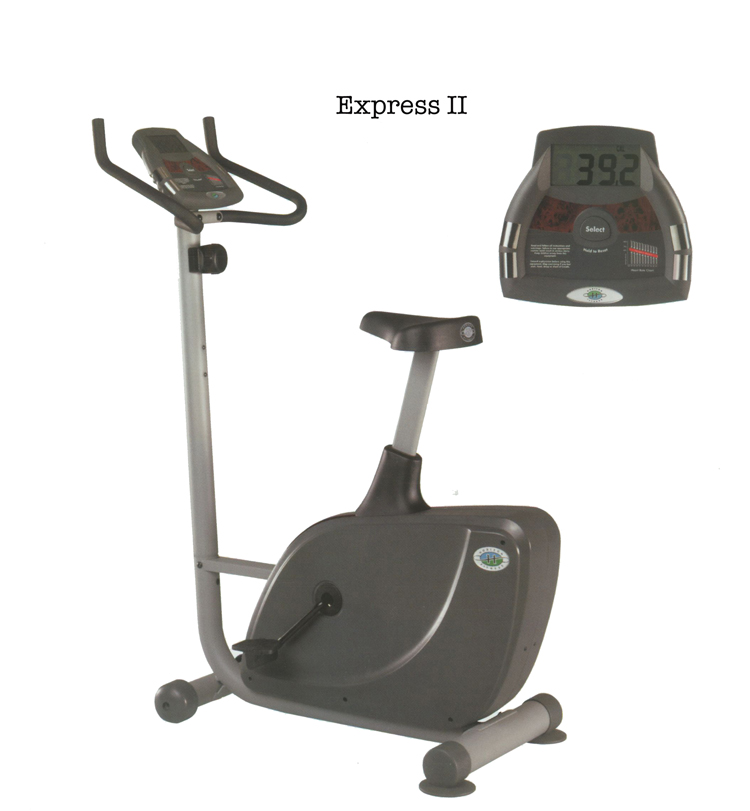

Horizon Fitness - Express II - 2002

Repair Parts for Horizon Fitness Express II FC11

Brand: Horizon Fitness

Category: Upright

Type: Stationary Bikes

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FC11

Model Name: Express II

Version: 2002

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

15875.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
700257	000798-A	n/a		Water Bottle Holder	Yes	Model Compatibility List	$13.34 / Each	1
700299	000893-B	G03		End Cap;Handlebar	No	Model Compatibility List	$1.90 / Each	9,11
700537	001558-00	Q06		Crank Cover	No	Model Compatibility List	$1.90 / Each	8,9
700597	001722-AA	D03		Seat Bottom; LOGO LS-B36	No	Model Compatibility List	$29.56 / Each	12,13,14
701042	003413-00	T06		Magnet;Crank Wheel;15x7t	No	Model Compatibility List	$4.00 / Each	8
701112	003879-00	T05		Ball Bearing Set;Crank Wheel	No	Model Compatibility List	$25.00 / Each	8
701154	004072-A2	R08		Ball Bearing;Flywheel;6002ZZ	No	Model Compatibility List	$11.60 / Each	8
701158	004075-A3	U03		Ball Bearing; 6202ZZ(BR6202ZZ)	No	Model Compatibility List	$9.57 / Each	8
701170	004090-00	R07		Bearing;One-way; HFL2026	No	Model Compatibility List	$27.82 / Each	8
701228	004202-00	R03		Drive Belt;Poly-V;460-J5	No	Model Compatibility List	$50.67 / Each	15
701300	004364-00	U07		Screw;Oval Head;M5x0.8Px12L	No	Model Compatibility List	$2.00 / Each
701588	004618-00	Q08		Screw;Oval Tapping;4x20L	No	Model Compatibility List	$2.00 / Each	2,12,13,14
701699	004724-00	C03		Bolt;M8x1.25Px15L	Yes	Model Compatibility List	$2.00 / Each
701716	004735-00	G04		Screw;Oval Hex Socket;M8x1.25Px45L-15L	No	Model Compatibility List	$2.00 / Each	2
701781	004796-00	J03		Bol;M8x1.25Px20L	Yes	Model Compatibility List	$2.00 / Each	1
701897	004926-00	D05		Nut;Nylon;M8x1.25P	No	Model Compatibility List	$2.00 / Each
701904	004931-00	S12		Nut;Locking;Nylon;1/4"--20UNC	No	Model Compatibility List	$1.59 / Each
701964	005005-00	D04		Washer;Spring;Lock;8.2x15.4x2.0t	No	Model Compatibility List	$1.59 / Each
701987	005025-00	T04		Washer;Flat;25.5x38.0x1.5t;Black Zinc	No	Model Compatibility List	$2.00 / Each
702040	005070-00	L04		Washer;Flat;6.5x14x1.0T;Black Zinc	No	Model Compatibility List	$2.00 / Each	2,4,5,6
702135	005163-00	G05		Washer;Arc;8.4x17x1.0T	No	Model Compatibility List	$2.57 / Each	2
702236	005361-00	R13		C-Clip;External;S-15	No	Model Compatibility List	$2.00 / Each	2
702240	005365-00	B20		C-Clip;External;S-20	No	Model Compatibility List	$1.79 / Each
702483	007964-00	S03		Connecting Plate;Side Cover	Yes	Model Compatibility List	$1.90 / Each	9,3
702931	013387-Z	AU1		Tension Wheel Set	No	Model Compatibility List	$44.72 / Each	8
703757	016008-Z	T03		Pedal Axle	No	Model Compatibility List	$37.83 / Each	8,9
705700	055204-A	Q07		Screw;SelfTapping;4x10L	No	Model Compatibility List	$2.00 / Each
725538	072810	T02		Pedal and Strap Set	No	Model Compatibility List	$57.49 / Each
1000469	004202-00	R03	1	Poly V Motor Drive Belt 5 Ribs	No	Model Compatibility List	$39.99 / Each	15
976932	004926-00	D05		Nylon Lock Nut M8x1.25P (New)	No	Model Compatibility List	$12.99 / Each

View Drawing
