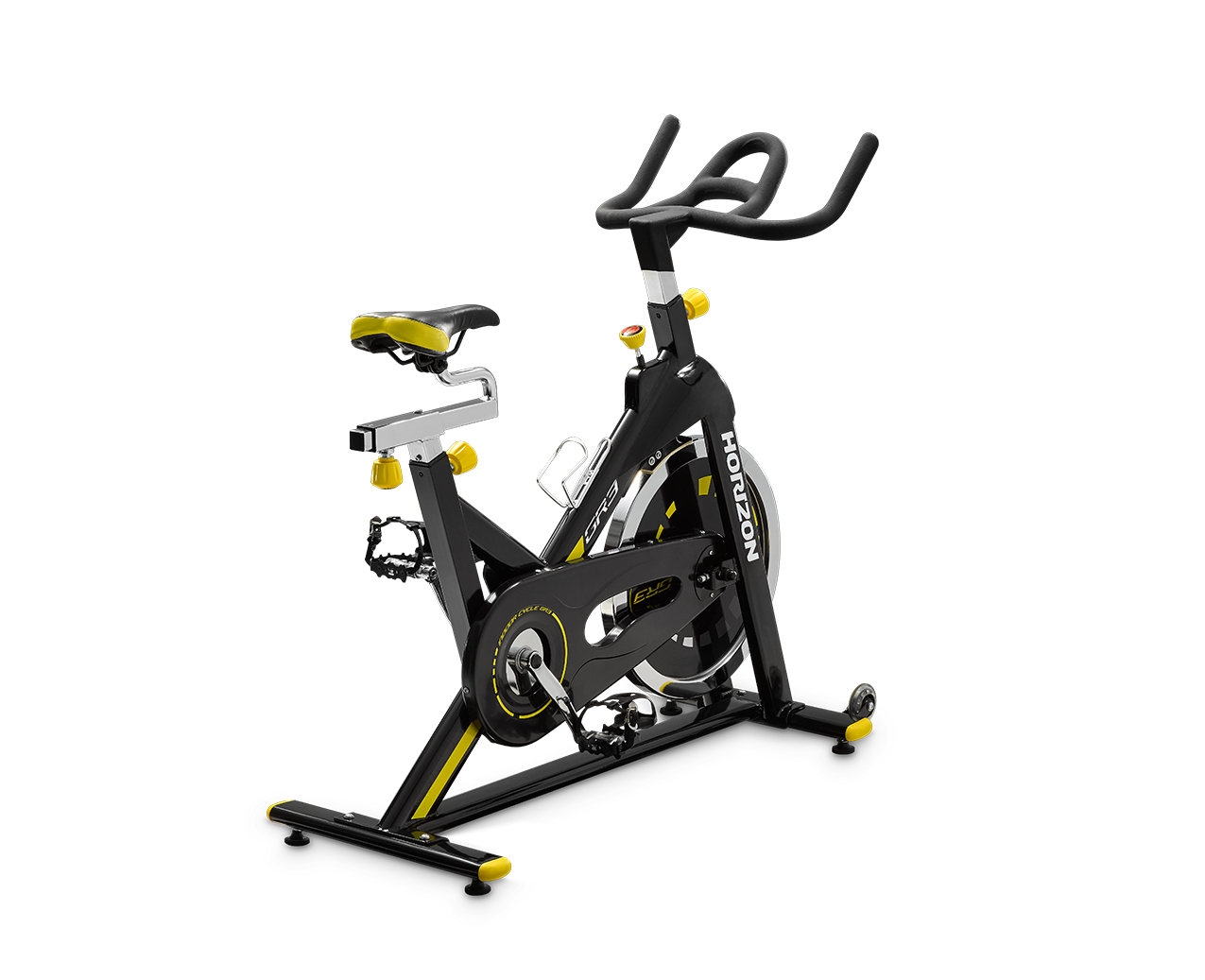

Horizon Fitness - GR3 Indoor Cycle - FC060 - 2019 - 2018-2025

Repair Parts for Horizon Fitness GR3 Indoor Cycle - FC060 - 2019 FC060

Brand: Horizon Fitness

Category: Indoor Cycle

Type: Stationary Bikes

Model Name: GR3 Indoor Cycle - FC060 - 2019

Serial Number Prefix: FC060

Version: 2018-2025

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Sleeve;Plastic 709879 1000204237 3 Sleeve;Plastic No Model Compatibility List $3.82 / Each

1
Bolt;Allen;M5x12L 709881 1000204239 26 Bolt;Allen;M5x12L No Model Compatibility List $2.00 / Each

1
Water Bottle 709883 1000204242 59 Water Bottle No Model Compatibility List $10.01 / Each

1
Brake Pad 709884 1000204244 13 Brake Pad No Model Compatibility List $38.32 / Each

1
End Cap;Seat Post 709886 1000204248 25 End Cap;Seat Post No Model Compatibility List $1.90 / Each

1
Sleeve 709887 1000204249 24 Sleeve No Model Compatibility List $3.82 / Each

1
PEDAL ( R ) 709888 1000204253 40R PEDAL ( R ) No Model Compatibility List $53.22 / Each

1
PEDAL ( L ) 709889 1000204254 40L PEDAL ( L ) No Model Compatibility List $53.22 / Each

1
Inner Chain Guard 709890 1000204257 37 Inner Chain Guard No Model Compatibility List $19.14 / Each

1
Chain 709892 1000204259 52 Chain No Model Compatibility List $19.06 / Each

1
SELF-TAPPING SCREW 709893 1000204261 20 SELF-TAPPING SCREW No Model Compatibility List $1.85 / Each

1
Bolt;BB;M8x25L 709894 1000204263 31-1 Bolt;BB;M8x25L No Model Compatibility List $2.00 / Each

1
Outer Chain Guard 709895 1000204264 51 Outer Chain Guard No Model Compatibility List $16.87 / Each

1
Bottom Bracket 709897 1000204266 47 Bottom Bracket No Model Compatibility List $39.03 / Each

1
Chain Guard Spacer 709898 1000204267 53 Chain Guard Spacer No Model Compatibility List $1.90 / Each

1
Washer;16.0x8.5x1.6t 709900 1000204269 51 Washer;16.0x8.5x1.6t No Model Compatibility List $1.79 / Each

1
Bolt;Allen;M8x16L 709901 1000204271 54 Bolt;Allen;M8x16L No Model Compatibility List $2.00 / Each

1
Nut;Cap;M6 711373 1000220505 63 Nut;Cap;M6 No Model Compatibility List $2.00 / Each

1
Nut;Square;M8 711375 1000220507 11 Nut;Square;M8 No Model Compatibility List $2.00 / Each

1
Nut;Allen;M6 711395 1000220531 62 Nut;Allen;M6 No Model Compatibility List $2.00 / Each

1
Spring;Helical Compression 711397 1000220533 10 Spring;Helical Compression No Model Compatibility List $1.90 / Each

1
Brake Pad Set 711462 1000220825 A-13 Brake Pad Set No Model Compatibility List $29.77 / Each

1
Brake Pad Assembly 714992 1000320653 A-12 Brake Pad Assembly No Model Compatibility List $57.49 / Each

1
Spacer 717382 1000344660 64 Spacer No Model Compatibility List $2.39 / Each

1
Handlebar 732133 1000412745 10 Handlebar No Model Compatibility List $156.86 / Each

1
SEAT POST 732134 1000204246 11 SEAT POST No Model Compatibility List $42.58 / Each

1
SEAT SLIDER 732135 1000204247 12 SEAT SLIDER No Model Compatibility List $42.58 / Each

1
Saddle 732136 1000412746 15 Saddle No Model Compatibility List $48.46 / Each

1
END CAP 732137 1000204251 16 END CAP No Model Compatibility List $1.84 / Each

1
Flywheel Assembly 732138 1000413286 17 Flywheel Assembly No Model Compatibility List $555.16 / Each

1
Chain Wheel - CP 732139 1000412747 19 Chain Wheel - CP No Model Compatibility List $41.16 / Each

1
Crank - CP 732140 1000412748 20 Crank - CP No Model Compatibility List $25.14 / Each

1
ST5.5 SELF-TAPPING SCREW 732141 1000222333 22 ST5.5 SELF-TAPPING SCREW No Model Compatibility List $2.64 / Each

1
CRANK CAP 732142 1000204260 24 CRANK CAP No Model Compatibility List $1.22 / Each

1
SELF-TAPPING SCREW 732143 1000204262 26 SELF-TAPPING SCREW No Model Compatibility List $1.48 / Each

1
Allen Bolt 732144 1000412751 29 Allen Bolt No Model Compatibility List $2.84 / Each

1
Adjustable Knob 732145 1000413103 3 Adjustable Knob No Model Compatibility List $9.12 / Each

1
Front Stabilizer 732146 1000412752 33 Front Stabilizer No Model Compatibility List $72.50 / Each

1
Rear Stabilizer 732147 1000412756 35 Rear Stabilizer No Model Compatibility List $45.94 / Each

1
Chain guard cover 732148 1000412758 36 Chain guard cover No Model Compatibility List $7.30 / Each

1
Console set 732149 1000436896 37 Console set No Model Compatibility List $352.26 / Each

1
ALLEN NUT 732150 1000204240 5 ALLEN NUT No Model Compatibility List $1.42 / Each

1
bottlecage 732151 1000427218 6 bottlecage No Model Compatibility List $8.76 / Each

1
Tension Control 732152 1000413104 8 Tension Control No Model Compatibility List $26.16 / Each

1
hardware kits 732153 1000430425 Not Shown hardware kits No Model Compatibility List $15.42 / Each

1
owner-s manual(English, Spanish, French) 732154 1000436895 Not Shown owner-s manual(English, Spanish, French) No Model Compatibility List $17.74 / Each

1
Shipping label 1 732155 1000436897 Not Shown Shipping label 1 No Model Compatibility List $2.84 / Each

1
Service label 732156 1000436899 Not Shown Service label No Model Compatibility List $3.72 / Each

1
Shipping label 2 732157 1000436898 Not Shown Shipping label 2 No Model Compatibility List $2.44 / Each

1
WARNING LABEL 732158 1000436998 Not Shown WARNING LABEL No Model Compatibility List $3.72 / Each

1
Bearing of hub set 732159 1000432293 Not Shown Bearing of hub set No Model Compatibility List $0.00 / Each
Out Of Stock 		1
View Drawing
