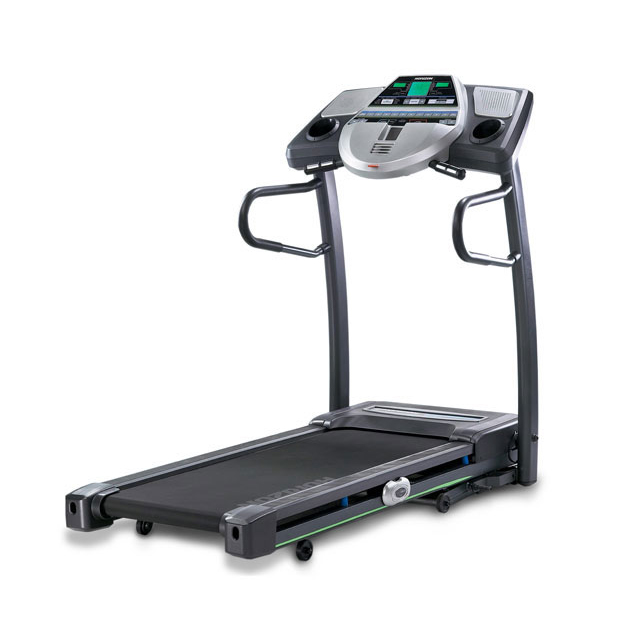

Horizon Fitness - GS1040T - 2009

Repair Parts for Horizon Fitness GS1040T TM604

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: GS1040T

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700245 000767-D B57 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

B 700246 000768-D B46 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

700318 000940-A N27 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

Q 700321 000955-BC Q09 End Cap;Base Frame;Front Yes Model Compatibility List $3.82 / Each

9,3
700402 001251-F B28 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

H 700410 001278-B H62 Spacer Ring Yes Model Compatibility List $2.00 / Each

2,3,4,5,6
H 700418 001299-B H05 Cover;Elevation Frame;PVC No Model Compatibility List $9.57 / Each

9,3,10
G 700533 001552-AC G06 Cover;Handlebar No Model Compatibility List $1.90 / Each

9,11
700570 001679-00 N29 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

700746 002124-B P05 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

700755 002169-A P11 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
700773 002248-D P06 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
700893 002671-A N20 Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

701013 003326-00 P07 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

701020 003346-00 P08 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

701026 003363-00 P04 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
701203 004158-00 R03 Drive Belt;Poly-V;200-J8 Yes Model Compatibility List $57.49 / Each

23
P 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $2.00 / Each

P 701364 004415-Z P14 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
701375 004425-B B31 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

701454 004502-00 M41 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

M 701476 004523-00 M39 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

R 701478 004525-00 R09 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $7.20 / Each

H 701534 004565-00 H06 Screw;Hex Socket;Sink;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
B 701544 004571-00 B26 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $2.00 / Each

M 701559 004590-Z M20 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.79 / Each

2,10
M 701562 004595-00 M16 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
701581 004614-AB B49 Screw;Phillip;Umbrella;Tapped;3x10L;Black No Model Compatibility List $2.00 / Each

2,4,5,6
N 701589 004619-00 N32 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701590 004619-AB N31 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701613 004632-00 N22 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

701699 004724-00 H25 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

Z 701841 004859-00 Z09 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $2.00 / Each

701849 004867-A B66 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
701858 004880-00 P15 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701862 004884-00 H38 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 M40 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M22 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

B 701912 004941-00 B63 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

701964 005005-00 M09 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

Z 702011 005047-00 Z07 Washer;Flat;8.2x20x1.8T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702030 005062-00 H24 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

702040 005070-00 M10 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
M 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

702084 005117-00 M38 Washer;Flat;8.2x16.0x2.0T No Model Compatibility List $2.00 / Each

2
702121 005146-A M18 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702135 005163-00 Z12 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
702160 005196-00 H23 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

H 702171 005212-A H28 Washer;Teflon;12.2x18x1.0T No Model Compatibility List $2.00 / Each

2
702186 005229-00 H20 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

702217 005330-00 Q17 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

H 702292 005493-A H30 Spring;Ext;60MN;Zinc No Model Compatibility List $2.00 / Each

2
702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

702556 008625-C H19 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $2.00 / Each

Z 702798 010680-00 Z08 Washer;Spring;Support Tube;M8X1.25PX16L No Model Compatibility List $2.00 / Each

2,3
703438 014669-B AR1 Front Roller Set Yes Model Compatibility List $191.62 / Each

8
704033 020121-A R04 Bolt;Rear Roller;Hex Socket;M8x1.25Px70L;Chromed Yes Model Compatibility List $4.00 / Each

7,2,8,12,13,14
704068 020179-00 M60 Screw;Phillip;BH;Tapped;4x12L;Flat End No Model Compatibility List $1.59 / Each

704079 020196-A N35 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

N 704082 020203-A N23 Screw;Phillip;BH;Tapped;4x40L; No Model Compatibility List $4.00 / Each

2
N 704087 020210-00 N34 Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
N 704152 020346-A N30 Screw;Phillip;Big BH;Tapped;4x6L No Model Compatibility List $2.00 / Each

B 704215 020487-ZA B62 Washer;Flat;10.5x18x2.5T No Model Compatibility List $2.00 / Each

N 705018 029437-00 N36 Screw;Phillip;BH;Tapped;3x10L;Zn+3(Whit No Model Compatibility List $2.00 / Each

2
705040 032669-IF M03 Motor Control Board;Digital;2.25/2.5HP Yes Model Compatibility List $499.00 / Each

48
M 705182 039043-00 M11 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $331.29 / Each

28
L 705259 039400-BA L06 Transport Wheel;Nylon Yes Model Compatibility List $9.57 / Each

N 705285 040613-B N66 Ground Wire;250 No Model Compatibility List $1.90 / Each

4,5,6
705313 040816-A N33 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

N 705826 056320-AA N10 Cup Holder Yes Model Compatibility List $8.87 / Each

1
705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
B 705954 056905-A B22 Stopper;Side Rail No Model Compatibility List $1.79 / Each

9
H 706178 059929-B H18 Screw;Special;M8X1.25PX9L-D10X11.2L;;HE;45#;BOX No Model Compatibility List $2.00 / Each

706219 060295-DA KIT Digital Speed Sensor No Model Compatibility List $35.52 / Each

1
Z 706838 066044-A Z21 Washer;Flat;20.2x27.0x2.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
A 707200 1000091167 AH2 Tube;Support;Painting;DM436;TM604 No Model Compatibility List $104.65 / Each

3
H 707342 1000092174 H26 Hook;Painting;DM436;TM604 No Model Compatibility List $34.92 / Each

1
709031 1000108437 AR2 Roller Set;Rear;TM116 Yes Model Compatibility List $191.62 / Each

M 709140 1000110344 M01 Drive Motor Set;Digital Yes Model Compatibility List $778.00 / Each

1
V 724958 100268 V08 Sticker;Speaker Cover;L;;TM604-1US No Model Compatibility List $3.54 / Each

9
V 724959 100269 V12 Sticker;Overlay;L;TM604-1US No Model Compatibility List $3.54 / Each

1
V 724960 100270 V14 Sticker;Overlay;R;TM604-1US No Model Compatibility List $3.54 / Each

1
V 724961 100271 V02 Decal;Motor Cover;TM604-1US No Model Compatibility List $8.87 / Each

7,9,3,10
V 724962 100272 V06 Sticker;Motor ;TM604-1US No Model Compatibility List $3.54 / Each

10
V 724963 100273 V07 Sticker;Cover;L/Rear;TM604-1US No Model Compatibility List $1.77 / Each

9
R 724964 100274 R02 Running Belt;Black;495x2820x1.6t;TM607-1US No Model Compatibility List $287.46 / Each

15,4,5,6
V 724966 100316 V01 Decal;Motor Cover No Model Compatibility List $3.72 / Each

7,9,3,10
B 724975 100471 B41 Air Shock;90KG(125L);;TM604-1US No Model Compatibility List $40.82 / Each

1
N 724980 100542 N18 Foam;F;MP3 shelf;TM604-1US No Model Compatibility List $1.77 / Each

1
N 724983 100597 N71 Manipulate;Overlay;TM604 No Model Compatibility List $35.46 / Each

1
N 724984 100598 N72 Membrane Switch;Two;TM604 No Model Compatibility List $35.46 / Each

4,5,6
A 725002 100863 AG2 HANDLEBAR SET L/R No Model Compatibility List $93.47 / Each

11
A 725003 100866 AN2 CONSOLE CASE SET No Model Compatibility List $169.60 / Each

7
725004 100869 Q10 LEFT SIDERAIL SET No Model Compatibility List $59.51 / Each

9
Q 725005 100870 Q11 RIGHT SIDERAIL SET No Model Compatibility List $59.51 / Each

9
N 725073 101522 N05 Console Shell,Top No Model Compatibility List $81.12 / Each

7
N 725074 101523 N06 Console Shell,Bottom No Model Compatibility List $87.52 / Each

7
725190 102531 N08 Cooling Fan;TM604-N33 Yes Model Compatibility List $26.81 / Each

H 725262 103389 H16 CON Plate;Console Mast;Painting;DM436;5T No Model Compatibility List $15.65 / Each

7,3
End Cap, Support Tube 725355 070422 F05 End Cap, Support Tube No Model Compatibility List $3.82 / Each

725367 070670 P11 Speaker Board; Adaptor;AC100-240V;12V/1. Yes Model Compatibility List $64.04 / Each

Speaker Cover; Left 725486 071837 N14 Speaker Cover; Left No Model Compatibility List $12.87 / Each

Speaker Cover; Right 725487 071838 N15 Speaker Cover; Right No Model Compatibility List $12.87 / Each

Console Cable 725706 074975 P03 Console Cable No Model Compatibility List $57.49 / Each

725756 075998 P01 Power Wire;Control Board;;;500;16AWG+150 Yes Model Compatibility List $10.71 / Each

Cover;Fan;Front 725763 076092 N40 Cover;Fan;Front No Model Compatibility List $10.32 / Each

Cover;Fan;Rear 725764 076093 N41 Cover;Fan;Rear Yes Model Compatibility List $10.32 / Each

Motor Cover; Bottom 725870 077449 Q02 Motor Cover; Bottom No Model Compatibility List $27.59 / Each

725961 078561 Q22 Tape;Foam;One Sided;8x16x50;Black No Model Compatibility List $3.54 / Each

726143 080186 Z10 Screw;M8x120L;;Adhere;; No Model Compatibility List $4.00 / Each

726507 082459 Q01 Motor Cover;Upper;Gray Yes Model Compatibility List $86.14 / Each

Cover;LB;ABS;ABS 726798 084891 Q06 Cover;LB;ABS;ABS No Model Compatibility List $13.10 / Each

Pulse Sensor Set 727115 087233 N32 Pulse Sensor Set Yes Model Compatibility List $35.23 / Each

Wire;Safety Switch;9216+2.5-2P;480L 727117 087235 N65 Wire;Safety Switch;9216+2.5-2P;480L Yes Model Compatibility List $12.17 / Each

Connector Wire;Keyboard;300L(4P-4mmX2) 727121 087240 N64 Connector Wire;Keyboard;300L(4P-4mmX2) No Model Compatibility List $3.54 / Each

Connector Wire;PCB300mm(5P-4mmX2) 727122 0000087241 N75 Connector Wire;PCB300mm(5P-4mmX2) No Model Compatibility List $3.82 / Each

Safety Key Set 727154 087474 N24 Safety Key Set Yes Model Compatibility List $40.14 / Each

Mounting Bracket;Safety Key 727155 087475 N25 Mounting Bracket;Safety Key Yes Model Compatibility List $10.39 / Each

Running Deck;;1220x682x18t;TM604 728599 095572 B27 Running Deck;;1220x682x18t;TM604 No Model Compatibility List $249.13 / Each

Gel Cell-GS1040T 728601 095576 B48 Gel Cell-GS1040T No Model Compatibility List $51.95 / Each

Elevation Rack Set;Painting;DM436;TM604 728603 095599 AH1 Elevation Rack Set;Painting;DM436;TM604 No Model Compatibility List $112.76 / Each

Screw;Special;M8X1.25PX33L-8L; 728606 095610 H21 Screw;Special;M8X1.25PX33L-8L; No Model Compatibility List $4.00 / Each

Screw;Special;Fixing;12x34L 728607 095611 H22 Screw;Special;Fixing;12x34L No Model Compatibility List $4.00 / Each

Faceplate 728608 095616 N11 Faceplate No Model Compatibility List $67.50 / Each

Manual;Operation Instruction;TM604 728610 095623 V31 Manual;Operation Instruction;TM604 No Model Compatibility List $8.87 / Each

Hardware Kit;Semi-Assy;TM604 728611 095628 AZ1 Hardware Kit;Semi-Assy;TM604 No Model Compatibility List $68.04 / Each

Fixing Axle;Console;;S20C 728612 095629 B30 Fixing Axle;Console;;S20C No Model Compatibility List $21.50 / Each

Fan;;ABS;;TM604 728633 095766 N19 Fan;;ABS;;TM604 No Model Compatibility List $8.87 / Each

Overlay;Manipulate;1;GS1040T;noRoHS 728750 096729 N61 Overlay;Manipulate;1;GS1040T;noRoHS No Model Compatibility List $35.46 / Each

Membrane Switch;GS1040T;noRoHS 728751 096730 N62 Membrane Switch;GS1040T;noRoHS No Model Compatibility List $35.46 / Each

Console Cable;Upper 728752 096733 Not shown Console Cable;Upper No Model Compatibility List $28.73 / Each

Amp Control Board;VFD 3W H101 728753 096744 N67 Amp Control Board;VFD 3W H101 Yes Model Compatibility List $55.20 / Each

728756 096830 N62 Speaker;3W;XHS-2Y;680mm Yes Model Compatibility List $15.11 / Each

728757 096831 N73 Speaker;3W;XHS-2Y;400mm No Model Compatibility List $11.08 / Each

Foam;MP3 shelf;TM604-1US 728789 097392 N17 Foam;MP3 shelf;TM604-1US No Model Compatibility List $1.77 / Each

immobility shelf;Motor;Painting;;TM604 728796 097449 M05 immobility shelf;Motor;Painting;;TM604 No Model Compatibility List $29.59 / Each

728797 097451 AC1 Extrawork;;Console Mast Set;;L;TM604-1US No Model Compatibility List $219.86 / Each

728798 097452 AC2 Extrawork;Console Mast Set;;R;TM604-1US No Model Compatibility List $203.58 / Each

Decal for Elastomer 728848 097948 V03 Decal for Elastomer No Model Compatibility List $3.54 / Each

Audio In Set 728946 099121 N67 Audio In Set Yes Model Compatibility List $6.42 / Each

728947 099122 N68 Audio Out Set No Model Compatibility List $3.82 / Each

Display Console - Used Only 1002444 SUH-t157b-1 Display Console - Used Only No Model Compatibility List $206.70 / Each
Out Of Stock 		7
P 1020937 002124-B P05 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

M 039043-00 039043-00 M11 1 Incline Elevation Motor Yes Model Compatibility List $336.70 / Each

28
M 1000110344 1000110344 M01 1 DC Drive Motor Yes Model Compatibility List $778.70 / Each

1
P 1001381 003326-00 P07 1 Power Switch Yes Model Compatibility List $29.99 / Each

Front Drive Pulley Roller 1000018 016110-Z Front Drive Pulley Roller Yes Model Compatibility List $69.00 / Each

8
A 1000696 1000108437 AR2 Rear Idler Roller Yes Model Compatibility List $59.99 / Each

P 1000573 003326-00 P07 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

A 1000697 1000108437 AR2 Rear Idler Roller Yes Model Compatibility List $219.99 / Each

P 1002652 003346-00 P08 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1002658 003363-00 P04 Power Entry Module Yes Model Compatibility List $5.99 / Each

9,4,5,6
Rear Idler Roller 1001050 1000108449 Rear Idler Roller Yes Model Compatibility List $69.99 / Each
Out Of Stock 		1
M 1003520 032669-IF M03 Lower Controller Board Yes Model Compatibility List $169.00 / Each

48
M 1002738 039043-00 M11 Incline Lift Elevation Motor Yes Model Compatibility List $79.99 / Each

28
P 1001433 002248-D P06 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
L 1035628 039400-BA L06 1 Transport Wheel (Used) Yes Model Compatibility List $5.00 / Each

Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

Magnetic Safety Key Lanyard 1002560 087474 Magnetic Safety Key Lanyard Yes Model Compatibility List $31.99 / Each
P 1001765 002169-A P11 Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
Power Entry Assembly Switch Filter Inlet 1008480 stwch-ent-480 Power Entry Assembly Switch Filter Inlet Yes Model Compatibility List $24.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

P 1034434 003326-00 P07 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P07 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

P 1009798 003346-00 P08 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

B 911951 004571-00 B26 Deck screw M8X1.25PX28L (New) No Model Compatibility List $13.99 / Each

M 976932 004926-00 M40 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q17 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
