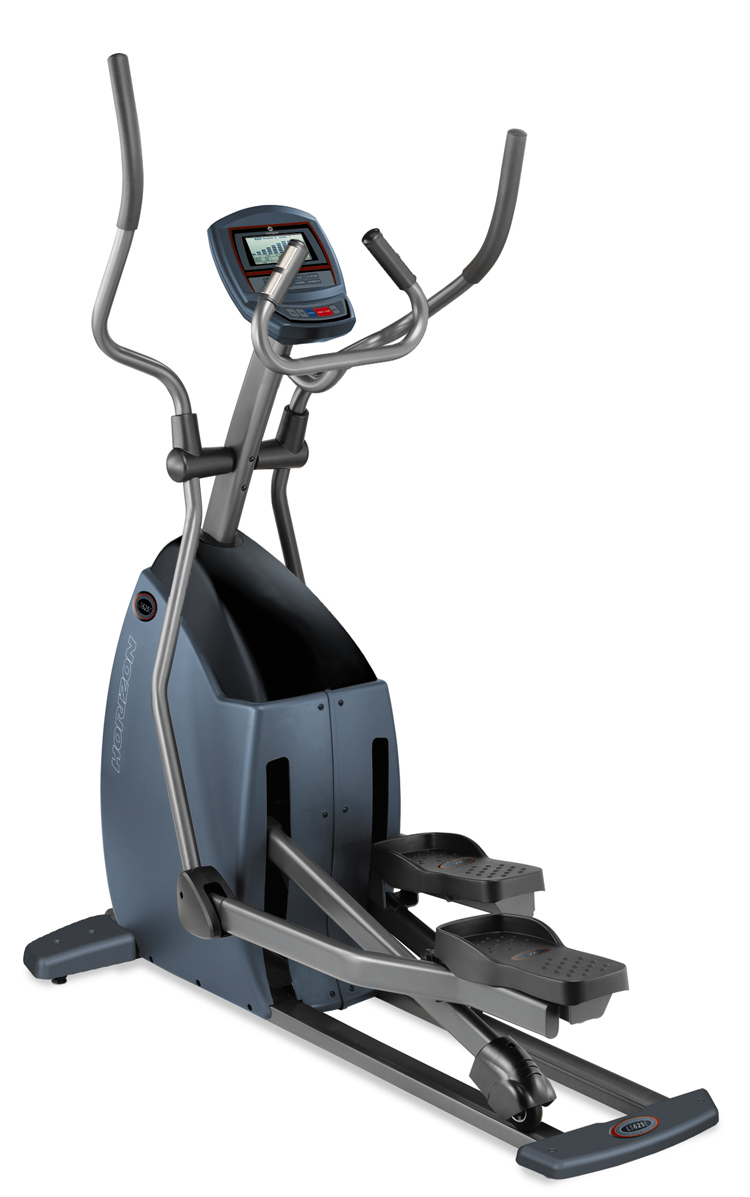

Horizon Fitness - LS625E - 2007

Repair Parts for Horizon Fitness LS625E EP132C

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: LS625E

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700014 000021-B L04 Mobile Wheel;Rear Deck Yes Model Compatibility List $11.62 / Each

G 700065 000241-EA G20 Cover;Handlebar;Front Left or Rear Right Yes Model Compatibility List $8.40 / Each

9,11
G 700066 000242-DA G21 Cover;Handlebar;Front Right or Rear Left Yes Model Compatibility List $8.40 / Each

9,11
G 700067 000247-BA G10 Cover;Lower Handlebar;Left No Model Compatibility List $3.82 / Each

9,11
G 700068 000248-BA G11 Cover;Lower Handlebar;Right No Model Compatibility List $3.82 / Each

9,11
Q 700127 000476-BA Q11 Cover;Roller Wheel Yes Model Compatibility List $9.57 / Each

8,9
700132 000485-00 L07 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
L 700135 000491-B L06 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
G 700202 000631-AA G14 Foam Grip;Handlebar;31.8X3.0TX329.5L No Model Compatibility List $3.82 / Each

11
700318 000940-A C15 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

P 700770 002231-B P06 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
R 701042 003413-00 R16 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
P 701049 003443-C P02 Pulse Sensor Set;600MM No Model Compatibility List $38.32 / Each

12,13,14
E 701089 003709-00 E19 C-Clip;S-8 No Model Compatibility List $2.00 / Each

2
R 701128 003949-EX R05 Drive Axle Set;6.5Kg No Model Compatibility List $172.46 / Each

8,10
Q 701143 004029-B Q08 Foot Pad Yes Model Compatibility List $40.25 / Each

9,3,12,13,14
R 701165 004081-A2 R12 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

701215 004177-A R15 Drive Belt;Poly-V;390-J8 Yes Model Compatibility List $57.49 / Each

N 701266 004327-00 N13 Screw;Round Phillips;M5x0.8Px12L No Model Compatibility List $1.66 / Each

2
701288 004356-00 Q17 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

Z 701294 004359-00 Z10 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

701300 004364-00 Q30 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701308 004369-00 C13 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

Z 701557 004586-AB Z08 Screw;Hex Socket;M8X1.25PX15L;Chromed Yes Model Compatibility List $2.00 / Each

701577 004612-00 P07 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

701613 004632-00 S03 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

R 701650 004691-A R09 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
701699 004724-00 G17 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

E 701713 004730-00 E22 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $2.00 / Each

E 701728 004751-00 E21 Screw;Hex Socket;BH;M8x1.25Px13L;Adhere No Model Compatibility List $2.00 / Each

2
L 701732 004758-00 L10 Screw;Hex Socket;BH;M10x1.5Px50L(Tooth20) No Model Compatibility List $2.00 / Each

2
701748 004771-00 Z06 Screw;Oval;Hex Socket;M8x1.25Px60L No Model Compatibility List $2.00 / Each

2
Z 701779 004795-00 Z01 Screw;Hex Socket;BH;M10x1.5Px20L;Adhere No Model Compatibility List $2.00 / Each

2
G 701827 004847-AB G15 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
B 701864 004887-00 B21 Nut;Hex;3/8-16UNC No Model Compatibility List $2.00 / Each

R 701874 004901-00 R08 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

701893 004925-00 E11 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

701897 004926-00 Z11 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

R 701904 004931-00 R11 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

701908 004934-00 L08 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

E 701913 004942-00 E15 Nut;Nylon;M10x1.5P;Black Zinc No Model Compatibility List $2.00 / Each

701927 004964-00 R13 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

701934 004972-00 L11 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

L 701941 004976-00 L09 Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $1.90 / Each

2
701964 005005-00 E26 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

Z 701982 005017-AC Z02 Washer;Spring;10.2x18.4x2.5T;Black No Model Compatibility List $2.00 / Each

2,4,5,6
C 701991 005029-00 C09 Washer;Flat;20.2X35X1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702018 005053-00 G18 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
J 702020 005055-00 J04 Washer;Flat;16.2x28.7x1.5T No Model Compatibility List $2.00 / Each

2
R 702021 005056-00 R17 Washer;Flat;13.2X26.0X2.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
702074 005106-00 Z03 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

Z 702078 005110-00 Z30 Washer;Flat;8.2x35x2.0T;Black Zinc Yes Model Compatibility List $9.99 / Each

2,4,5,6
702092 005125-00 L05 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

702107 005136-A E24 Washer;Flat;8.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
702161 005198-00 Z05 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
G 702163 005200-A G19 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

E 702166 005206-BB E13 Washer;Teflon;10.4x24.75x1.5T No Model Compatibility List $4.00 / Each

2
Z 702173 005215-AB Z15 Washer;Split Teflon;15.9x28.4x1.5T Yes Model Compatibility List $2.00 / Each

2
702178 005220-00 C10 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

702180 005222-00 J03 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
E 702191 005237-00 E20 Washer;Lock;10.5x25.0x1.0tT No Model Compatibility List $2.00 / Each

2
702193 005239-00 R14 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

702217 005330-00 B23 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

R 702240 005365-00 R07 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

K 702253 005382-00 KIT Wrench;Open;13x15 No Model Compatibility List $5.90 / Each

702262 005408-A KIT Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

K 702264 005412-00 KIT Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

K 702272 005427-A KIT Wrench;Hex;L-Type;M6x80L No Model Compatibility List $4.00 / Each

G 702298 005505-00 G13 Screw;M4x7Px20L No Model Compatibility List $1.90 / Each

2
702483 007964-00 B24 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
R 702512 008394-00 R10 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

Z 702597 008886-E Z09 Swivel Axle;Pedal Arm Yes Model Compatibility List $3.82 / Each

8,9,3
702625 009053-D Z07 Inner Bushing;Pedal Arm No Model Compatibility List $3.82 / Each

8,9,3
P 702778 009659-B P01 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

3
R 702890 013111-Z R02 Pedal Axle Set Yes Model Compatibility List $96.82 / Each

8,9
E 702898 013124-Z E09 Roller Wheel Set Yes Model Compatibility List $60.22 / Each

1
A 703566 015455-AB AE3 Pedal Arm - Right; SILVER GRAY COLOR No Model Compatibility List $124.77 / Each

8,9,3
Q 703863 018800-AC Q05 Console Mast Boot Yes Model Compatibility List $9.99 / Each

7
E 703946 019849-00 E14 Washer;Flat;Teflon;35.0x45.0x1.0T No Model Compatibility List $2.00 / Each

2
Z 703976 020042-00 Z04 Screw;Phillip;BH;M4x0.7Px8L No Model Compatibility List $2.00 / Each

A 704684 025259-AB AG5 Swivel Bracket;Lower Handlebar No Model Compatibility List $28.29 / Each

2,3,4,5,6,11
A 704966 026806-B AJ1 crank set;-;-;welding;EP109 Yes Model Compatibility List $57.49 / Each

8
705186 039067-Z AC1 Console Mast; EP132C No Model Compatibility List $338.05 / Each

7
A 705187 039068-ZR AG1 Upper Handlebar - Right; EP132C No Model Compatibility List $81.35 / Each

11
705188 039070-ZL AG4 Lower Handlebar - Left; EP132C No Model Compatibility List $147.99 / Each

11
705189 039070-ZR AG3 Lower Handlebar - Right; EP132C No Model Compatibility List $147.99 / Each

11
A 705190 039072-ZL AH2 Lower Link Arm - Left; EP132C No Model Compatibility List $217.62 / Each

3
705191 039072-ZR AH1 Lower Link Arm - Right; EP132C No Model Compatibility List $217.62 / Each

3
A 705192 039074-Z AH3 Pivot Block Set; EP132C No Model Compatibility List $62.32 / Each

8
A 705193 039075-Z AL1 Front Stabilizer Set; EP132C No Model Compatibility List $104.55 / Each

1
K 705194 039077-AX KIT Hardware Pack No Model Compatibility List $41.94 / Each

4,5,6
Q 705196 039084-BB Q03 Top Cap; ABS BLACK No Model Compatibility List $37.26 / Each

9,4,5,6
Q 705199 039085-BB Q16 Top Cap;Front No Model Compatibility List $3.82 / Each

9
Q 705200 039086-AD Q25 Cover;Front Stabilizer;Left No Model Compatibility List $9.10 / Each

9
Q 705201 039087-AD Q26 Cover;Front Stabilizer;Right No Model Compatibility List $9.10 / Each

9
Q 705202 039088-AAX Q27 Cover;Rear Stabilizer No Model Compatibility List $12.77 / Each

9
V 705203 039090-AX V03 Decal, Side Cover; LS625E No Model Compatibility List $3.54 / Each

7,9,3
V 705204 039095-AX V17 Decal, Footpad (Horizon Logo); . No Model Compatibility List $3.54 / Each

7,9,3,12,13,14
V 705205 039096-AX V18 Decal, Rear Stabilizer; LS625E No Model Compatibility List $3.54 / Each

7,3
V 705206 039097-A V19 Decal,Side Cover,Horizon; . No Model Compatibility List $1.77 / Each

7,9,3
A 706193 060158-Z AE2 Pivot Tube Set Yes Model Compatibility List $57.49 / Each

8,3
K 706551 063276-A KIT Water Bottle No Model Compatibility List $11.73 / Each

1
P 706866 066414-A P10 Connecting Cable;Console Cable to Adapter No Model Compatibility List $3.82 / Each

7,4,5,6
Q 706887 066632-AAX Q01 Side Cover - Bottom Left; ABS DARK BLUE 7547C No Model Compatibility List $127.74 / Each

9
Q 706888 066633-AAX Q02 Side Cover - Bottom Right; ABS DARL BLUE 7547C No Model Compatibility List $118.30 / Each

9
P 708692 1000104762 P05 AC Adapter;6V/1A No Model Compatibility List $76.65 / Each

4,5,6
725259 103299 H12 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Steel Rope;400L+66L 726621 083556 M06 Steel Rope;400L+66L Yes Model Compatibility List $14.74 / Each

Bushing;Pivot Block Set 727576 090075 E20 Bushing;Pivot Block Set Yes Model Compatibility List $8.50 / Each

R 1000628 004177-A R15 Poly V Drive Belt 8 Ribs Yes Model Compatibility List $39.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

Z 976932 004926-00 Z11 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

B 957398 005330-00 B23 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

E 917260 004942-00 E15 Black Nylon Nut (New) No Model Compatibility List $12.99 / Each

Open Key Wrench 13x15 (New) 972262 005382-00  Open Key Wrench 13x15 (New) Yes Model Compatibility List $17.99 / Each

View Drawing
