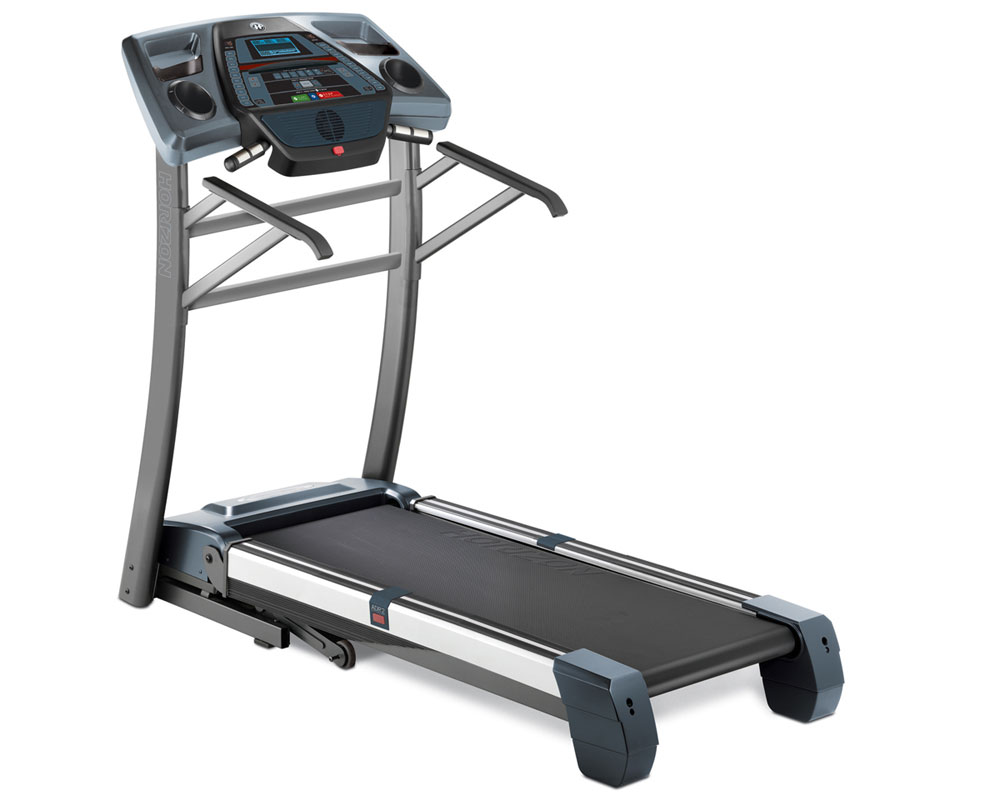

Horizon Fitness - LS925T - 2007

Repair Parts for Horizon Fitness LS925T TM210

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: LS925T

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
D 700019 000032-CC D08 Wheel;Fold Frame No Model Compatibility List $3.82 / Each

8,3
700021 000037-CA B22 Transport Wheel;Frame Yes Model Compatibility List $6.42 / Each

3,8
K 700023 000038-C K22 Wheel;Base Frame Stabilizer Yes Model Compatibility List $3.82 / Each

700132 000485-00 K12 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
K 700135 000491-B K11 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
B 700245 000767-D B57 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

B 700246 000768-D B58 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

700402 001251-F B12 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

700700 001952-00 KIT Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
700746 002124-B P05 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

700755 002169-A P35 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
700773 002248-D P08 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
P 700850 002513-B P15 Power Cable;Control Board;1000L;16AWG;Black No Model Compatibility List $0.03 / Each

7,4,5,6
P 700851 002514-B P16 Power Cable;Control Board;1000L;16AWG;White No Model Compatibility List $1.90 / Each

7,4,5,6
701013 003326-00 P01 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

701020 003346-00 P02 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

701026 003363-00 P07 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
M 701033 003386-A M28 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
701308 004369-00 Z10 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

701328 004381-00 P33 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

P 701364 004415-Z P34 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
701375 004425-B B13 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

701432 004480-Z M34 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $7.20 / Each

R 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

701530 004562-00 B11 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
M 701559 004590-Z M20 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.79 / Each

2,10
M 701562 004595-00 M16 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
701579 004613-00 B61 Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B No Model Compatibility List $2.00 / Each

701588 004618-00 Q29 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
701590 004619-AB KIT Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701591 004620-00 N22 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701605 004627-00 B73 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

N 701615 004635-A N20 Screw;Oval Tapping;3x7L No Model Compatibility List $2.00 / Each

Z 701719 004739-AB Z11 Screw;BH;M8X1.25PX65L-20L;;HS;;;;BP;P-T No Model Compatibility List $1.79 / Each

2
701742 004764-00 K24 Screw;Hex Socket;BH;M8x1.25Px25L;Adhere No Model Compatibility List $2.00 / Each

701759 004780-AB B67 Screw;Hex Socket;BH;M10x1.5Px25L;Adhere; No Model Compatibility List $1.85 / Each

2

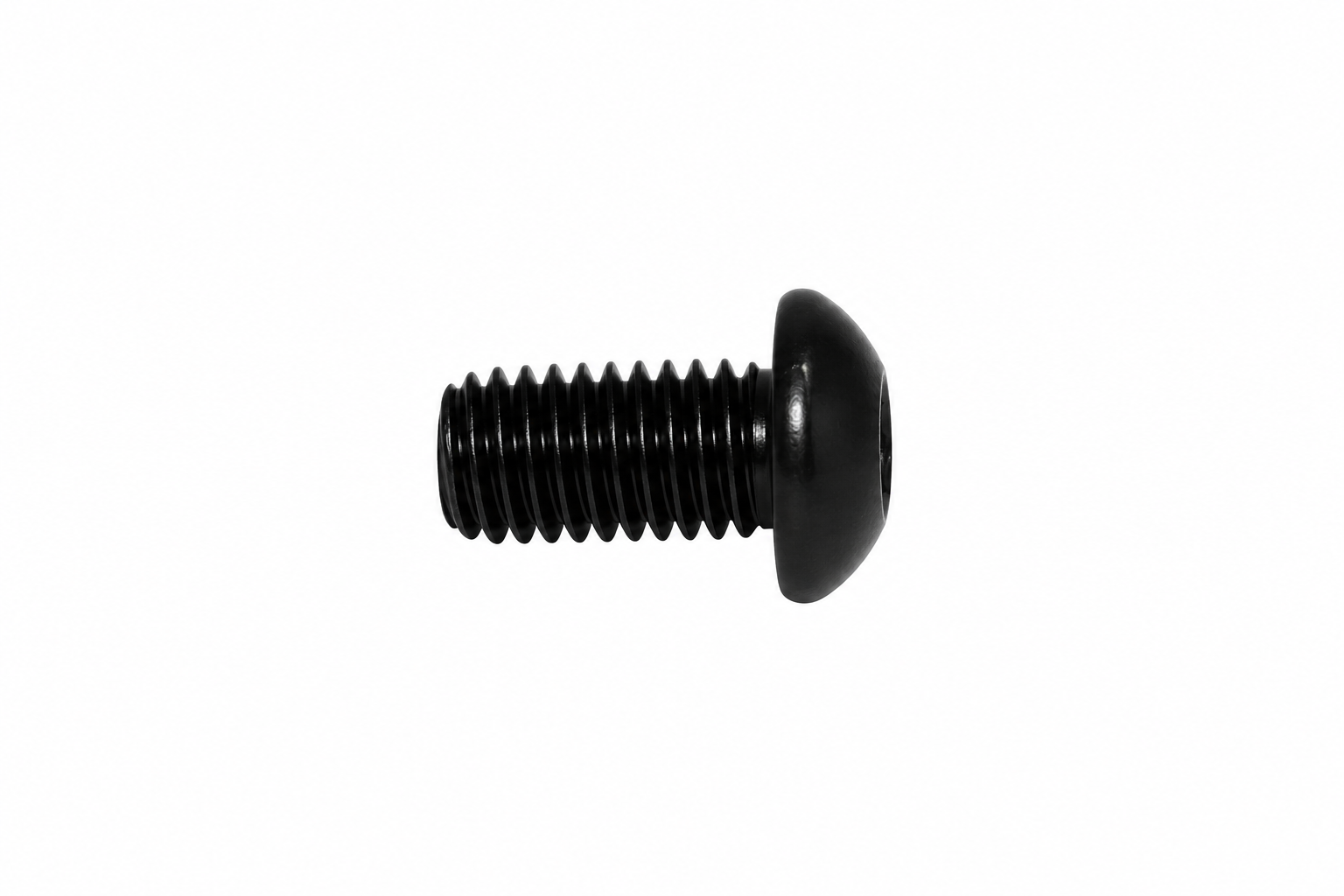

K 701779 004795-00 K19 Screw;Hex Socket;BH;M10x1.5Px20L;Adhere No Model Compatibility List $2.00 / Each

2
701781 004796-00 Z05 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
Q 701846 004863-00 Q31 Screw;5x13L No Model Compatibility List $1.66 / Each

2
701847 004864-00 K21 Screw;4x12L No Model Compatibility List $2.00 / Each

701848 004865-00 Q30 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701862 004884-00 R10 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

701866 004889-00 P31 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 M40 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M22 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

B 701912 004941-00 B76 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

701934 004972-00 K16 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

701939 004975-00 B59 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701964 005005-00 M09 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

702008 005045-00 B70 Washer;Flat;8.2x22x3.0T No Model Compatibility List $2.00 / Each

B 702009 005046-00 B78 Washer;Flat;8.4x15.5x2.0T No Model Compatibility List $1.79 / Each

2
702033 005065-00 B68 Washer;Flat;10x30x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

Z 702034 005065-A Z25 Washer (Washer J, Step3, Qty-8) No Model Compatibility List $2.00 / Each

Z 702051 005079-00 Z21 Washer;Flat;5.2X12X1.0T;Black Zinc No Model Compatibility List $2.00 / Each

M 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

702084 005117-00 M38 Washer;Flat;8.2x16.0x2.0T No Model Compatibility List $2.00 / Each

2
702092 005125-00 B21 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

702121 005146-A M18 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702135 005163-00 Z07 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
702153 005189-00 K17 Washer;Teflon;10.5x25x1.0T No Model Compatibility List $2.00 / Each

2
K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

702262 005408-A KIT Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

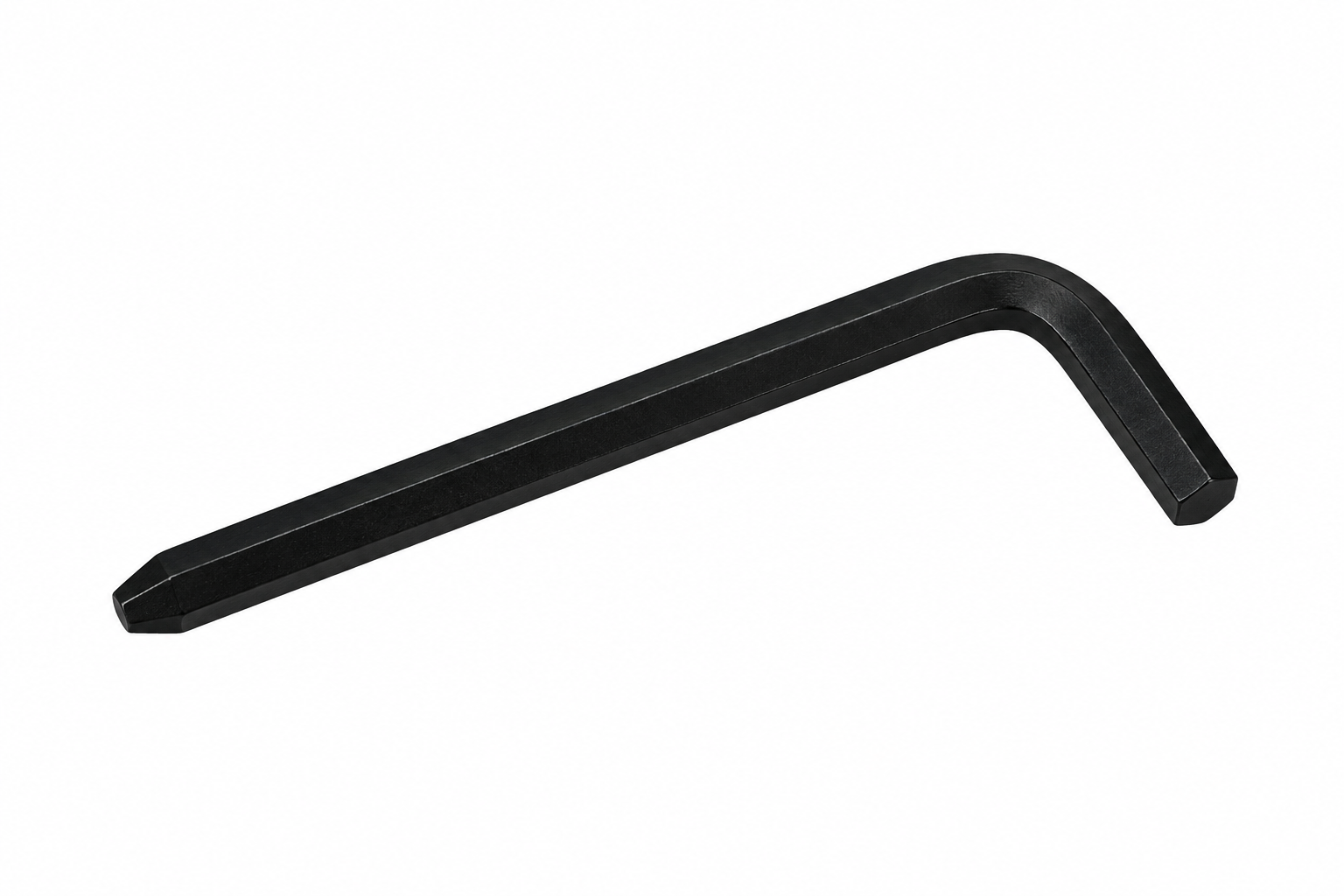

K 702264 005412-00 KIT Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

B 702455 007526-D B37 Belt Guide No Model Compatibility List $9.57 / Each

15
702791 009801-DB AR1 Front Roller Set Yes Model Compatibility List $191.62 / Each

8
Z 702798 010680-00 Z09 Washer;Spring;Support Tube;M8X1.25PX16L No Model Compatibility List $2.00 / Each

2,3
703881 018951-A B77 Elastomer;Front/Rear;Black Yes Model Compatibility List $13.91 / Each

Z 703968 020019-00 Z24 Screw;Phillip;BH;M6x1.0Px16L No Model Compatibility List $2.00 / Each

2
704033 020121-A R04 Bolt;Rear Roller;Hex Socket;M8x1.25Px70L;Chromed Yes Model Compatibility List $4.00 / Each

7,2,8,12,13,14
704068 020179-00 M60 Screw;Phillip;BH;Tapped;4x12L;Flat End No Model Compatibility List $1.59 / Each

B 704197 020468-A B75 Washer;Flat;8.2x14x1.0T No Model Compatibility List $2.00 / Each

705041 032671-HF M41 Motor Control Board;Digital Drive;1.75/2.0HP Yes Model Compatibility List $453.52 / Each

48
705264 039454-00 M03 Elevation Motor Set; JM14-017 110V/120mm Yes Model Compatibility List $378.53 / Each

10
K 705285 040613-B KIT Ground Wire;250 No Model Compatibility List $1.90 / Each

4,5,6
705323 040839-00 K25 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.59 / Each

R 705456 049245-B R02 Running Belt; 495*2800*1.6T Yes Model Compatibility List $249.13 / Each

15
B 705488 049292-A B71 Washer;Flat;Teflon;8.1x20x1.0t; No Model Compatibility List $2.00 / Each

B 705491 049297-A B66 Spring;Foot Lock Latch No Model Compatibility List $4.00 / Each

2,9,3
M 705516 049816-B M04 Fix Plate;Motor Control Board D/C, NO REPL: Part will show as orderable until stock is depleted No Model Compatibility List $3.82 / Each

7,3,10
B 705529 050233-A B62 Washer No Model Compatibility List $1.85 / Each

2
B 705530 050235-BX B63 Sleeve;Frame No Model Compatibility List $3.82 / Each

3
705563 050470-AX B41 Air Shock Yes Model Compatibility List $42.56 / Each

1
705575 051608-B AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

8
M 705591 051802-AB M05 Bracket;Drive Motor No Model Compatibility List $14.79 / Each

2,3,4,5,6,10
Z 705699 055203-A Z04 Screw;Umbrella Hex Socket;M8x1.25Px115L No Model Compatibility List $4.00 / Each

2
705700 055204-A B38 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

N 705805 056284-AB N07 Tray;Console;Left No Model Compatibility List $10.35 / Each

7
N 705806 056285-AB N08 Tray;Console;Right No Model Compatibility List $10.35 / Each

7
N 705808 056286-AC N12 Fan Cover No Model Compatibility List $8.42 / Each

8,9
N 705826 056320-AA N10 Cup Holder Yes Model Compatibility List $8.87 / Each

1
N 705831 056327-AA N09 Reading Rack No Model Compatibility List $3.82 / Each

4,5,6
N 705843 056351-BA N11 Faceplate Only No Model Compatibility List $39.39 / Each

3,4,5,6
705849 056361-AC N06 Console Shell;Rear No Model Compatibility List $120.54 / Each

7
705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
Q 705866 056391-BB Q03 End cap, Rail - Left Yes Model Compatibility List $16.89 / Each

9
Q 705871 056398-BB Q04 End cap, Rail - Right Yes Model Compatibility List $16.89 / Each

9
Q 705874 056404-BD Q07 Cap, Front of Left Side Rail D/C, NO REPL: Part will show as orderable until stock is depleted No Model Compatibility List $3.82 / Each

9
Q 705876 056405-BD Q08 Cap, Front of Right Side Rail D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $3.82 / Each

9
Q 705884 056422-AB Q15 Accent Strip;Side Rail;Left No Model Compatibility List $10.87 / Each

9,4,5,6
Q 705886 056426-AB Q17 Accent Strip;Side Rail;Right No Model Compatibility List $10.87 / Each

9,4,5,6
Q 705889 056432-AC Q13 ADR Piece,Center of Side Rail No Model Compatibility List $25.04 / Each

9
Q 705890 056433-AA Q10 Decal;Motor Cover No Model Compatibility List $19.71 / Each

7,9,3,10
Q 705891 056434-AA Q11 Cover,Side Rail No Model Compatibility List $3.54 / Each

9
K 705894 056438-A KIT Reed Switch No Model Compatibility List $10.82 / Each

4,5,6
P 705898 056450-A P03 Console Cable;Mast;1700L Yes Model Compatibility List $57.49 / Each

7,4,5,6
N 705918 056532-A N64 Pulse Sensor Set;600 Yes Model Compatibility List $38.32 / Each

12,13,14
K 705951 056860-BX KIT Owners Manual No Model Compatibility List $8.87 / Each

1
N 705969 057743-BBX N60 Upper Control Board No Model Compatibility List $438.67 / Each

7
705975 057919-A KIT Hardware Pack No Model Compatibility List $23.84 / Each

4,5,6
A 706007 058107-AA AG2 Handlebar Set;Right No Model Compatibility List $60.37 / Each

11
V 706171 059814-AX V01 Decal;Console;Horizon Logo No Model Compatibility List $8.87 / Each

7,3
B 706173 059873-A B27 Running Deck;600x1190Lx25.4T No Model Compatibility List $249.13 / Each

3
K 706218 060295-CA KIT Digital Speed Sensor Yes Model Compatibility List $42.02 / Each

1
V 706537 063213-AX V02 Decal, Motor Cover No Model Compatibility List $3.54 / Each

7,9,3,10

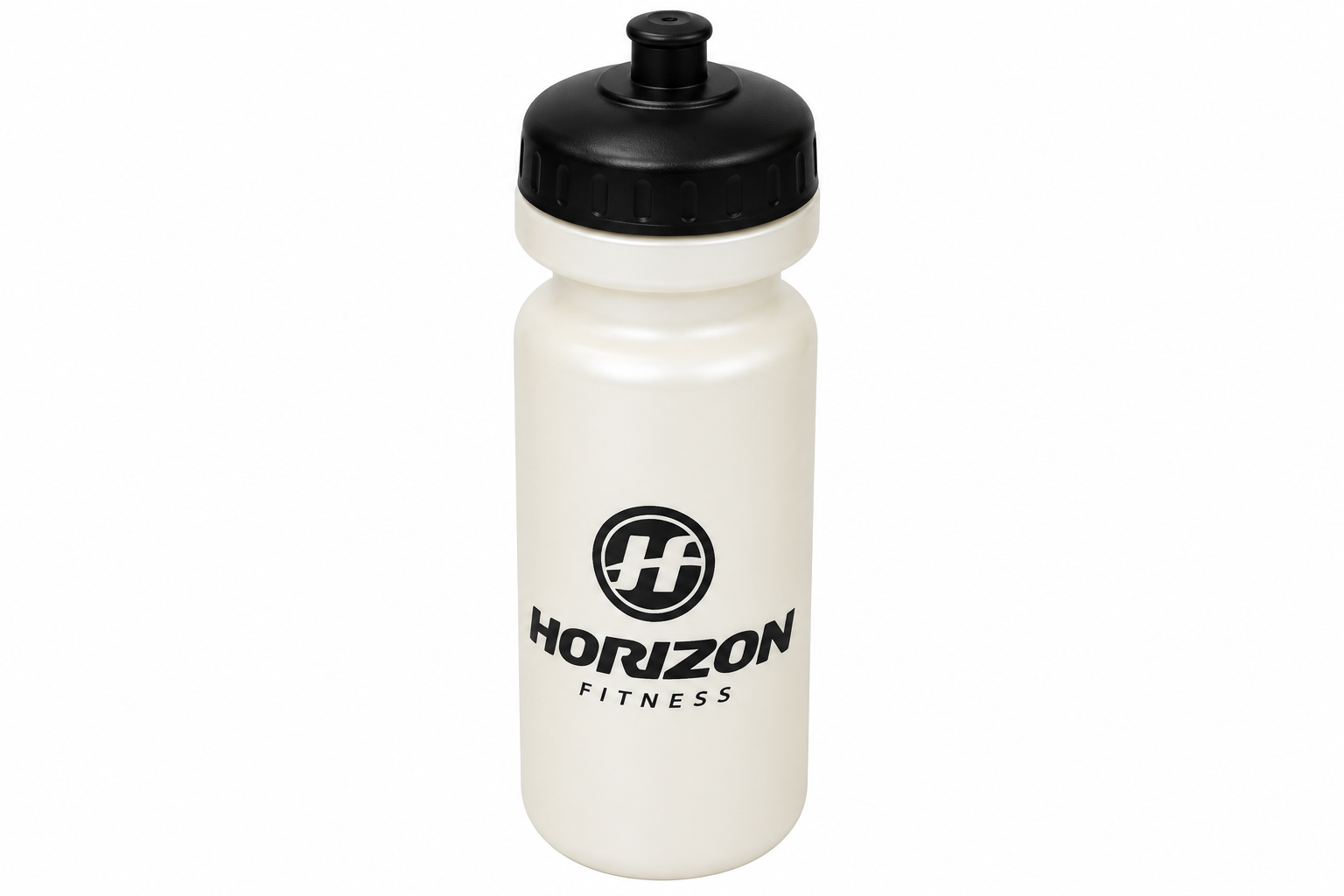

K 706551 063276-A KIT Water Bottle No Model Compatibility List $11.73 / Each

1
A 706569 063536-AA AG4 Armrest No Model Compatibility List $41.63 / Each

3
A 706573 063557-Z AN1 Console Frame Set No Model Compatibility List $134.37 / Each

7,3
706701 064703-AA AC3 Console Crossbar No Model Compatibility List $35.23 / Each

7
Q 706953 067539-Z Q14 Texture Strip for Side Rail No Model Compatibility List $11.73 / Each

9
K 707457 1000092805 KIT Silicon Oil;40ml No Model Compatibility List $32.49 / Each

709055 1000108777 Z15 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $2.00 / Each

709102 1000109577 R03 Drive Belt;Poly-V;170-J8 Yes Model Compatibility List $60.22 / Each

15,10
709111 1000109776 B64 Screw;RND;M6x1.0Px8L;HS;CHM;BP;G8.8 No Model Compatibility List $2.47 / Each

2
709278 1000111822 M01 Motor set;Semi-Assy;;BLACK C;2.25HP/90V; Yes Model Compatibility List $648.70 / Each
4,5,6,10
725823 076800 AG5 Support Tube - Left No Model Compatibility List $216.89 / Each

Console Cable; Upper; 450L(2.5-12P+5557 SERIES) 725951 078539 KIT Console Cable; Upper; 450L(2.5-12P+5557 SERIES) Yes Model Compatibility List $28.73 / Each

Safety Key Set 726500 082397 AN3 Safety Key Set Yes Model Compatibility List $42.74 / Each

P 1020937 002124-B P05 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

1000201-R 1.0AT-MCBC 0 1 Hydra Fitness Exchange Motor Control Board Controller JC01-002 032671-HF Works W Horizon AFG Smooth Treadmill (Used) No Model Compatibility List $197.73 / Each
Out Of Stock 		1
Johnson Horizon AFG Vision Fitness Treadmill Silicon Lubricant Lube 1000092805 1006790 13.0AT-SLL 0 12 Johnson Horizon AFG Vision Fitness Treadmill Silicon Lubricant Lube 1000092805 No Model Compatibility List $32.49 / Each

1
AFG Horizon Tempo Vision Fitness Treadmill Leveling Foot Leveler 000485-00 1.5 1003847 14.0AE-LFL1.5 0 51 AFG Horizon Tempo Vision Fitness Treadmill Leveling Foot Leveler 000485-00 1.5" (Used) No Model Compatibility List $8.44 / Each

1
DC Drive Motor Johnson 1000111822 JM05-015 0 1 DC Drive Motor Johnson Yes Model Compatibility List $674.57 / Each

1
B 1026014 018951-A B77 1 Spring Deck (Used) Yes Model Compatibility List $7.40 / Each

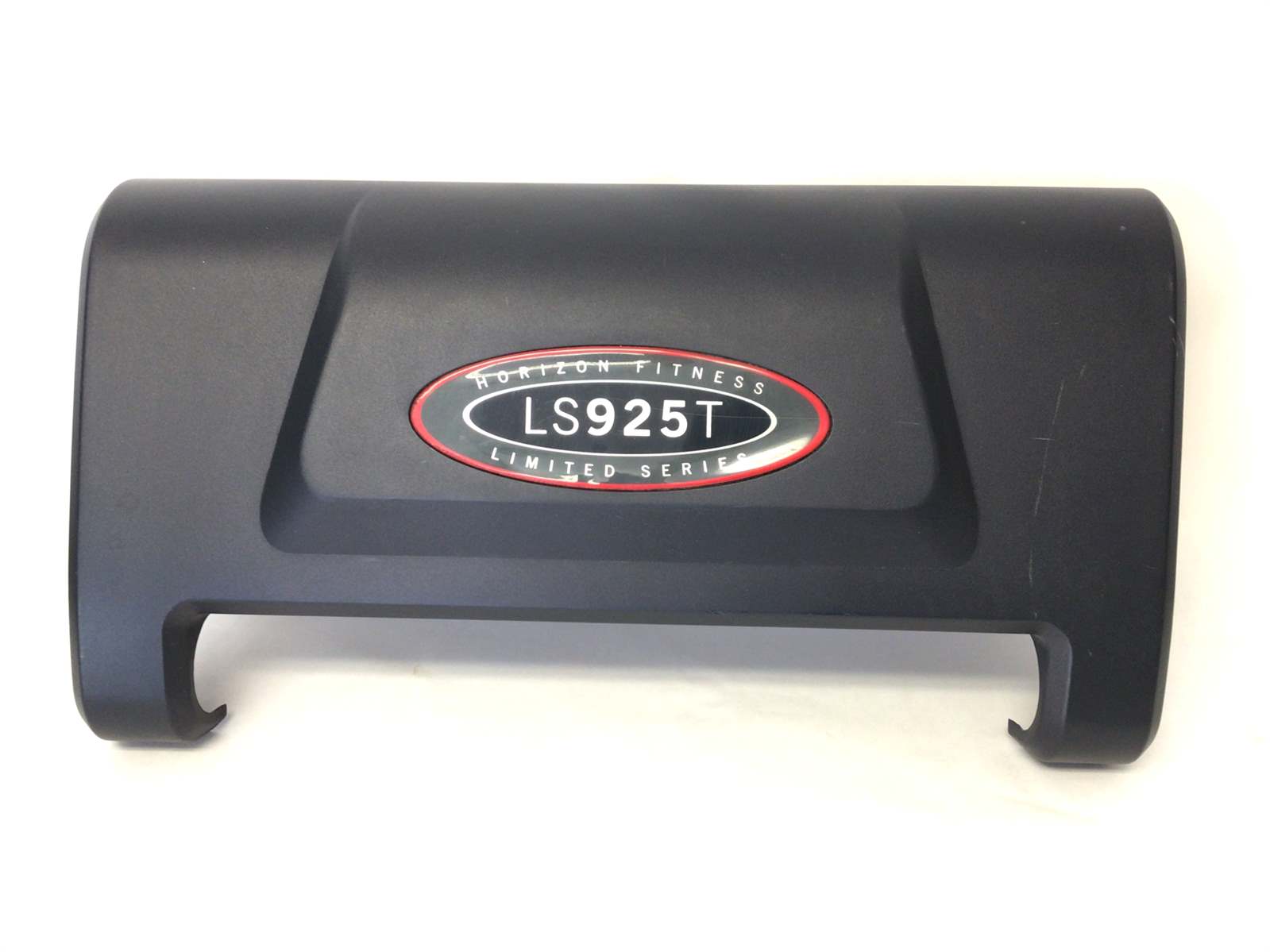

Cover, Motor (Used) 1026029 056265-AC Q01 1 Cover, Motor (Used) No Model Compatibility List $64.99 / Each
Out Of Stock 		44,46
P 1001381 003326-00 P01 1 Power Switch Yes Model Compatibility List $29.99 / Each

Belt Drive 1002356 1000109551 0 1 Belt Drive Yes Model Compatibility List $31.99 / Each

TV Power Extended Wire 1850(VHR-2NX2) TM50 (Used) 1029470 0000085207 P06 1 TV Power Extended Wire 1850(VHR-2NX2) TM50 (Used) Yes Model Compatibility List $10.00 / Each

M 1029909 004480-Z M34 Screw (Used) Yes Model Compatibility List $5.00 / Each

1000329 082397 0 Used Horizon Advanced Fitness Group Treadmill Magnetic Safety Key 0 Yes Model Compatibility List $21.99 / Each

1
Front Drive Pulley Roller 1000018 016110-Z Front Drive Pulley Roller Yes Model Compatibility List $69.00 / Each

8
M 1000188 1000111822 M01 DC Drive Motor Yes Model Compatibility List $189.00 / Each
4,5,6,10
M 1000201 032671-HF M41 Motor Control Board Controller Yes Model Compatibility List $169.00 / Each
48
P 1000573 003326-00 P01 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

P 1002652 003346-00 P02 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1002658 003363-00 P07 Power Entry Module Yes Model Compatibility List $5.99 / Each

9,4,5,6
Rear Idler Roller 1001050 1000108449 Rear Idler Roller Yes Model Compatibility List $69.99 / Each
Out Of Stock 		1
M 1002678 1000111822 M01 2.0HP DC Drive Motor Yes Model Compatibility List $125.99 / Each
4,5,6,10
Optical RPM Disc 1003522 003660-00 Optical RPM Disc Yes Model Compatibility List $12.99 / Each
Out Of Stock
P 1001433 002248-D P08 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

M 1001115 1000111822 M01 DC Drive Motor Yes Model Compatibility List $499.00 / Each
4,5,6,10
M 1003635-R 032671-HF M41 Lower Control Board Motor Controller Yes Model Compatibility List $169.00 / Each
48
P 1001765 002169-A P35 Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
Power Entry Assembly Switch Filter Inlet 1008480 stwch-ent-480 Power Entry Assembly Switch Filter Inlet Yes Model Compatibility List $24.99 / Each

DC Drive Motor (New) 1000608 1000106039 DC Drive Motor (New) Yes Model Compatibility List $289.00 / Each
Out Of Stock
jht170L8r 1000109551 Motor Drive Belt (New) Yes Model Compatibility List $66.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

Motor Control Board Lower Controller KO-L4L6-HFVV JC22-001 Motor Control Board Lower Controller Yes Model Compatibility List $268.65 / Each

DC Drive Motor TO-RME3-JC6E JM05-015 T101 DC Drive Motor Yes Model Compatibility List $134.10 / Each
Out Of Stock
R hori170J8 1000109577 R03 Drive Motor Belt (New) Yes Model Compatibility List $66.99 / Each

15,10
Rear Roller Tensioner Bolt 1004610 004496-00  Rear Roller Tensioner Bolt Yes Model Compatibility List $5.99 / Each

M A1-0NN9-NPTB 032671-HF M41 Lower Control Board Motor Controller LPCA Digital Drive 1.75 2.0 HP (New) Yes Model Compatibility List $259.99 / Each
48
P 1034434 003326-00 P01 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P01 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

R 1037418 049245-B R02 Running belt Yes Model Compatibility List $157.69 / Each

15
P 1009798 003346-00 P02 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

N 911968 004620-00 N22 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

M 976932 004926-00 M40 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
