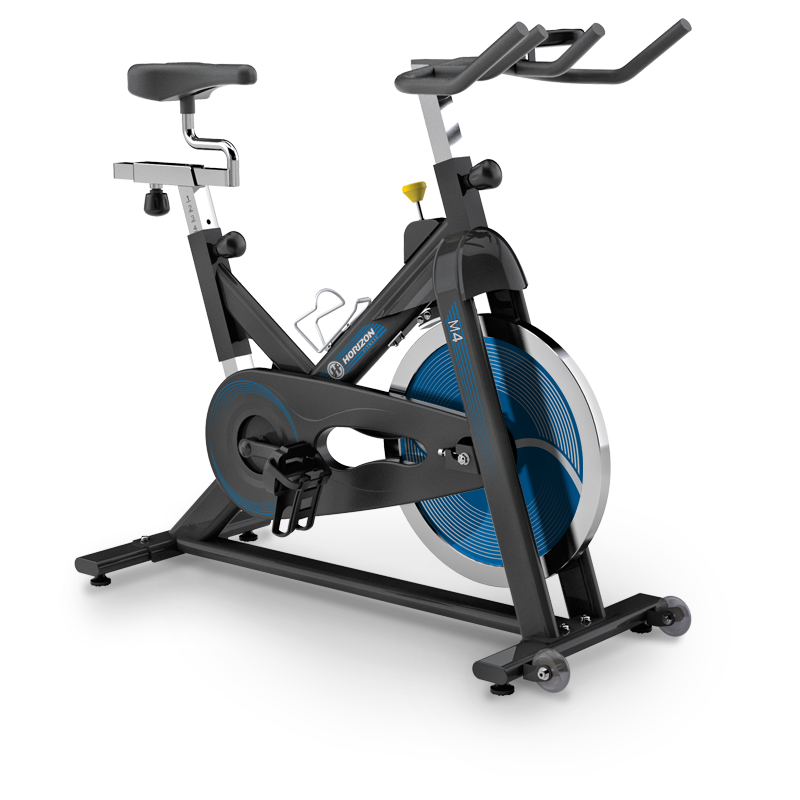

Horizon Fitness - M4 - 2012

Repair Parts for Horizon Fitness M4 FC009

Brand: Horizon Fitness

Category: Indoor Cycle

Type: Stationary Bikes

Model Name: M4

Version: 2012

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
2 709879 1000204237 2 Sleeve;Plastic No Model Compatibility List $3.82 / Each

3 709880 1000204238 3 Adjustment Knob No Model Compatibility List $6.73 / Each

1
2 709881 1000204239 20 Bolt;Allen;M5x12L No Model Compatibility List $2.00 / Each

6 709882 1000204241 6 Water Bottle Holder No Model Compatibility List $9.80 / Each

1
7 709883 1000204242 7 Water Bottle No Model Compatibility List $10.01 / Each

1 709884 1000204244 13 Brake Pad No Model Compatibility List $38.32 / Each

A 709885 1000204245 A-03 Handlebar Set No Model Compatibility List $167.80 / Each

11
2 709886 1000204248 24 End Cap;Seat Post No Model Compatibility List $1.90 / Each

6 709887 1000204249 60 Sleeve No Model Compatibility List $3.82 / Each

3 709890 1000204257 37 Inner Chain Guard No Model Compatibility List $19.14 / Each

1 709891 1000204258 14 Screw;Self Tapping;4.2x25L No Model Compatibility List $2.00 / Each

2,12,13,14
5 709892 1000204259 52 Chain No Model Compatibility List $19.06 / Each

3 709894 1000204263 35 Bolt;BB;M8x25L No Model Compatibility List $2.00 / Each

5 709895 1000204264 51 Outer Chain Guard No Model Compatibility List $16.87 / Each

1 709896 1000204265 17 Washer;11.0x5.0x1t No Model Compatibility List $1.79 / Each

2
5 709898 1000204267 53 Chain Guard Spacer No Model Compatibility List $1.90 / Each

A 709899 1000204268 A-07 Stabilizer Set;Front No Model Compatibility List $96.12 / Each

1
4 709900 1000204269 47 Washer;16.0x8.5x1.6t No Model Compatibility List $1.79 / Each

4 709901 1000204271 48 Bolt;Allen;M8x16L No Model Compatibility List $2.00 / Each

A 709902 1000204272 A-08 Stabilizer Set;Rear No Model Compatibility List $61.52 / Each

1
1 711373 1000220505 10 Nut;Cap;M6 No Model Compatibility List $2.00 / Each

1 711374 1000220506 18 Screw;Round;M5x30L No Model Compatibility List $2.00 / Each

2
5 711375 1000220507 56 Nut;Square;M8 No Model Compatibility List $2.00 / Each

A 711376 1000220508 A-05 Flywheel Set No Model Compatibility List $574.91 / Each

8
5 711377 1000220509 58 Magnet No Model Compatibility List $2.00 / Each

8
4 711379 1000220511 43 Washer No Model Compatibility List $1.85 / Each

2
A 711380 1000220512 A-09 Console / Computer Set No Model Compatibility List $72.46 / Each
Out Of Stock 		7
5 711381 1000220515 50 Front Chain Guard No Model Compatibility List $3.82 / Each

9,3
A 711382 1000220516 A-10 Seat Post Set No Model Compatibility List $104.34 / Each

12,13,14
5 711383 1000220517 57 End Cap;Seat Post No Model Compatibility List $1.90 / Each

9,12,13,14
4 711385 1000220519 46 Nut;Lock;M6 No Model Compatibility List $2.00 / Each

2
3 711386 1000220522 30 Nut;Flange No Model Compatibility List $4.00 / Each

2
5 711387 1000220523 59 End Cap No Model Compatibility List $1.77 / Each

9
A 711388 1000220524 A-06 Crank Axle Set No Model Compatibility List $177.97 / Each

8
4 711389 1000220525 41 Leveler Feet No Model Compatibility List $3.82 / Each

9,3
4 711390 1000220526 44 Transport Wheel No Model Compatibility List $3.54 / Each

8
4 711391 1000220527 4 Bolt;Allen;M8x40L No Model Compatibility List $1.85 / Each

2
5 711392 1000220528 5 Nut;Allen;M8x8L No Model Compatibility List $2.00 / Each

2
A 711393 1000220529 A-02 Tension Knob Set No Model Compatibility List $49.19 / Each

1
9 711395 1000220531 9 Nut;Allen;M6 No Model Compatibility List $2.00 / Each

1 711396 1000220532 16 Rubber Absorber No Model Compatibility List $3.82 / Each

1
5 711397 1000220533 55 Spring;Helical Compression No Model Compatibility List $1.90 / Each

2 711399 1000220535 23 Seat Post No Model Compatibility List $79.48 / Each
Out Of Stock 		12,13,14
2 711400 1000220536 25 Seat Pad No Model Compatibility List $47.89 / Each

12,13,14
2 711401 1000220537 27 Sprocket No Model Compatibility List $19.97 / Each

1
2 711402 1000220538 28 Lock Ring No Model Compatibility List $3.54 / Each

1
3 711403 1000220540 34 Crank End Cap No Model Compatibility List $1.90 / Each

8,9
4 711404 1000220542 45 End Cap;Stabilizer No Model Compatibility List $9.57 / Each

9
1 711406 1000220546 12 Console / Computer Clamp No Model Compatibility List $3.82 / Each

7,4,5,6
A 711407 1000220547 A-12 Pedal Set No Model Compatibility List $134.13 / Each

8,9
A 711462 1000220825 A-13 Brake Pad Set No Model Compatibility List $29.77 / Each

4 711595 1000222066 42 Bolt;Allen;M6x40L No Model Compatibility List $1.85 / Each

2
3 711596 1000222068 36 Screw;Self Tapped;M5x16L No Model Compatibility List $2.00 / Each

2
3 711597 1000222069 38 Screw;Self Tapped;4.8x12L No Model Compatibility List $2.00 / Each

2
4 711598 1000222070 40 Screw;Self Tapped;4.8x8L No Model Compatibility List $2.00 / Each

2
N 712329 1000228448 Not Shown Lubrication;Silicon No Model Compatibility List $12.04 / Each

1
V 713775 1000308249 V01 side cover decal No Model Compatibility List $5.72 / Each

7,9,3
6 716550 1000337339 61 Self-tapping screw No Model Compatibility List $2.00 / Each

2,12,13,14
6 716551 1000337341 62 Sensor Fixer No Model Compatibility List $3.82 / Each

1
N 722127 1000387813 Not Shown Hardware kit No Model Compatibility List $14.85 / Each

1
5 722838 1000398855 54 Crank-L No Model Compatibility List $17.73 / Each

8
728974 Discontinued Not Shown Owner-s Manual No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729052 Order Parts Separately A-11 Frame Assembly No Model Compatibility List $0.00 / Each
Out Of Stock
729206 Part of Kit A02 8 handlebar pole welding set No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729207 Part of Kit A03 21 Handlebar No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729209 Part of Kit A05 29 Flywheel No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729210 Part of Kit A06 33 handlebar welding set No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729214 Part of Kit A07 39 Front Stabilizer No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729215 Part of Kit A08 49 Rear Stabilizer No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729216 Part of Kit A09 11 Computer No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729217 Part of Kit A10 22 flywheel set No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729219 Part of Kit A12 31R crank axle welding set No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729220 Part of Kit A13 15 flywheel set No Model Compatibility List $0.00 / Each
Out Of Stock 		8
