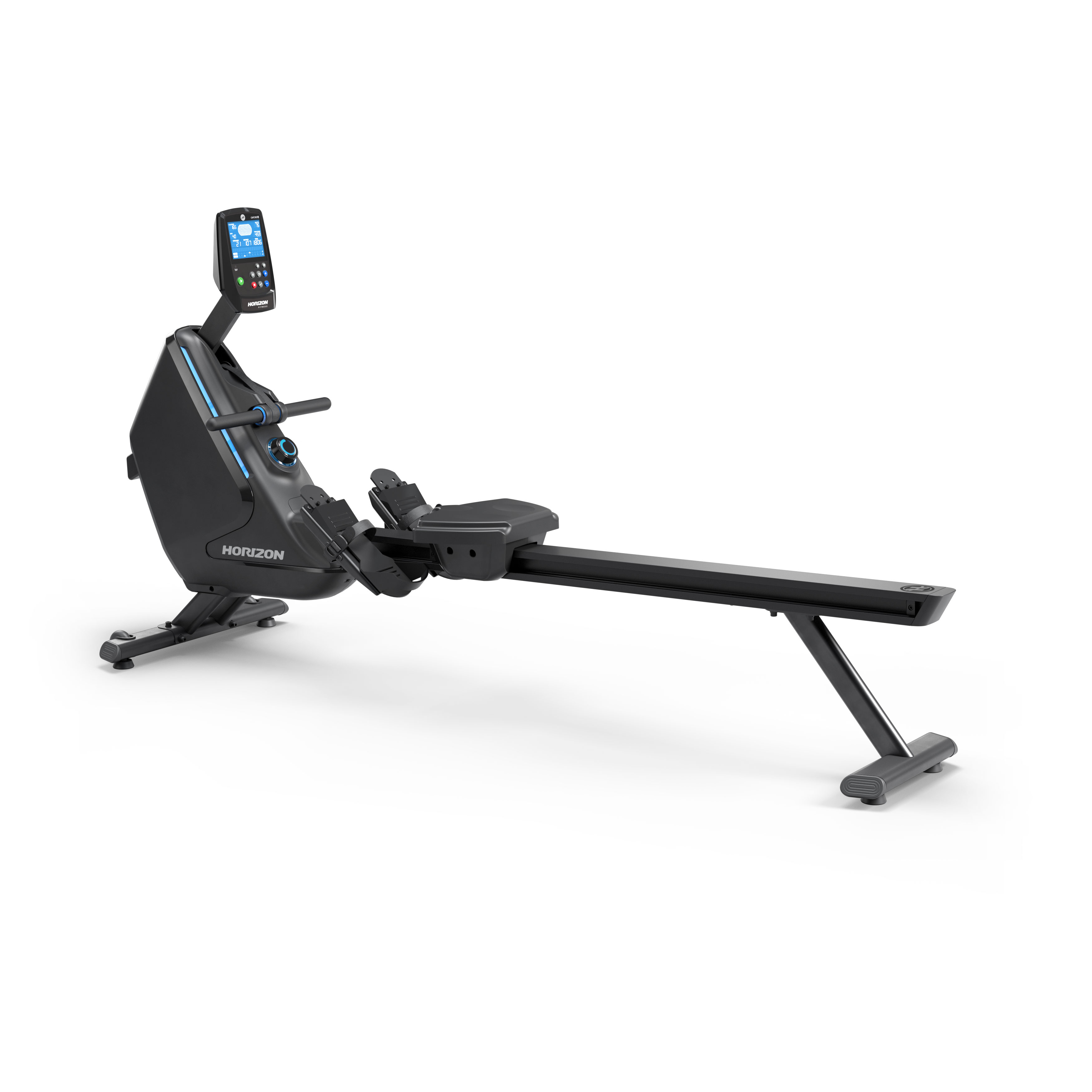

Repair Parts for Horizon Fitness Oxford 6 - AR53 - 2018 AR53
Brand: Horizon Fitness
Category: Rowing
Type: Rowers
Model Name: Oxford 6 - AR53 - 2018
Serial Number Prefix: AR53
Version: 2018-2022
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
XImage | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
---|---|---|---|---|---|---|---|---|---|
![]() |
700395 | 001227-00 | I09 | Fixing Base;Spring;POM;AR01 | No | Model Compatibility List | $8.42 / Each |
||
700397 | 001233-C | T06 | Fixing Base;Pedal;Nylon;AR06 | No | Model Compatibility List | $7.07 / Each |
|||
![]() |
700442 | 001393-B | T05 | Foot Pad Rubber; Heel | No | Model Compatibility List | $18.72 / Each |
||
![]() |
701281 | 004350-00 | P10 | Screw;Phillip;BH;M3x0.5Px6L | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701316 | 004372-00 | N15 | Screw;Phillip;BH;M5x0.8Px12L;Gap | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701354 | 004404-00 | P22 | Screw;Phillip;BH;M4x0.7Px8L;;Zn-BL | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701380 | 004433-AB | D09 | Screw;Plain;PH;M4X0.7PX10L | No | Model Compatibility List | $1.66 / Each |
||
![]() |
701395 | 004450-00 | S60 | Screw;Hex Socket;Round;M5x0.8Px6L;;Zn-BL | No | Model Compatibility List | $0.23 / Each |
||
![]() |
701406 | 004460-00 | Z10 | Screw;Round;Hex Socket;M6X1.0PX20L | No | Model Compatibility List | $1.66 / Each |
||
![]() |
701408 | 004462-00 | H07 | Screw;Round;Hex Socket;M6x1.0Px15L;Chromed | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701426 | 004475-00 | M11 | SCREW;SH;M8X1.25PX15L;;HS;;BZN;; | No | Model Compatibility List | $0.52 / Each |
||
701440 | 004483-00 | R08 | Screw;Round Hex Socket;M8x1.25Px25L | No | Model Compatibility List | $1.79 / Each |
|||
![]() |
701444 | 004486-00 | R04 | Screw;Round;Hex Socket;M8X1.25PX85L | Yes | Model Compatibility List | $9.80 / Each |
||
![]() |
701446 | 004488-AC | Z04 | Screw;Hex Socket;Round;M8x1.25Px55L | No | Model Compatibility List | $1.79 / Each |
||
![]() |
701456 | 004505-00 | R29 | Screw;Hex Socket;Round;3/16x3/8L;;Zn-BL | No | Model Compatibility List | $1.66 / Each |
||
![]() |
701574 | 004608-00 | P06 | Screw;Phillip;BH;Tapped;3x10L | No | Model Compatibility List | $2.00 / Each |
||
701597 | 004621-00 | Q09 | Screw;Phillip;BH;Tapped;4x15L;Gap | No | Model Compatibility List | $1.59 / Each |
|||
![]() |
701599 | 004623-00 | B30 | Screw;Phillip;BH;Tapped;4x12L;BED;Gap; | No | Model Compatibility List | $2.00 / Each |
||
701616 | 004636-A | L06 | Screw;Phillip;BH;4x15L | No | Model Compatibility List | $1.46 / Each |
|||
701680 | 004714-00 | Z10 | SCREW;BH;M6X1.0PX15L;;HS;;BZN;; | No | Model Compatibility List | $1.85 / Each |
|||
701754 | 004777-00 | L07 | SCREW;BH;M8X1.25PX45L-19L;;HS;;;;P-T | No | Model Compatibility List | $3.69 / Each |
|||
701862 | 004884-00 | D47 | Nut;Hex;M8X1.25P | No | Model Compatibility List | $1.79 / Each |
|||
![]() |
701872 | 004899-00 | S62 | Nut;Hex;3/8-26UNCX9T | No | Model Compatibility List | $1.66 / Each |
||
![]() |
701891 | 004924-00 | T10 | Nut;Nylon;M5x0.8P;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
701897 | 004926-00 | D34 | Nut;Nylon;M8x1.25P | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
701904 | 004931-00 | S06 | Nut;Locking;Nylon;1/4"--20UNC | No | Model Compatibility List | $1.59 / Each |
||
![]() |
701912 | 004941-00 | L08 | Nut;Nylon;M10x1.5P | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701973 | 005011-00 | R41 | Washer;Spring;SW3/16-; | No | Model Compatibility List | $1.66 / Each |
||
![]() |
702086 | 005118-00 | Z25 | Washer;Flat;8.4x17.0x1.0T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
702105 | 005134-00 | B60 | Washer;Flat;8.2x14.0x1.5T;BAN; | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
702196 | 005245-A | J31 | Washer;Lock;16.2x31.5x1.5T | No | Model Compatibility List | $1.79 / Each |
||
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes | Model Compatibility List | $1.59 / Each |
|||
![]() |
702281 | 005465-00 | R05 | Spring;Recoil (constant force);;SUS304;; | No | Model Compatibility List | $22.28 / Each |
||
![]() |
702507 | 008311-00 | I10 | Cover;Spring;;SPC;1.5t;Zinc Plate;AR01; | No | Model Compatibility List | $3.35 / Each |
||
![]() |
702512 | 008394-00 | S05 | Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 | No | Model Compatibility List | $1.51 / Each |
||
![]() |
703976 | 020042-00 | Z03 | Screw;Phillip;BH;M4x0.7Px8L | No | Model Compatibility List | $2.00 / Each |
||
![]() |
704107 | 020256-00 | U08 | Screw;Oval Hex Socket;M5x.8Px10L;Black Zinc | No | Model Compatibility List | $4.00 / Each |
||
![]() |
704273 | 022177-A | Q07 | Bracket;Side Cover;2 Hole Plate | No | Model Compatibility List | $2.47 / Each |
||
![]() |
704979 | 028275-AA | B21 | Adjustable Leveler | Yes | Model Compatibility List | $1.90 / Each |
||
705104 | 035882-A | Z08 | SCREW;SH;M8X1.25PX75L-30L ;;HS;;BZN;;P-T | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
705313 | 040816-A | P19 | Screw;Phillip;BH;Tapped;3x8L; | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
705921 | 056539-AX | R03 | Drive Axle Set | No | Model Compatibility List | $172.46 / Each |
||
708252 | 1000101533 | Not Shown | Power Wire;DC;600mm | Yes | Model Compatibility List | $10.01 / Each |
|||
709904 | 1000204290 | R07 | SCREW;EB;1/4"-20UNCX55L;12;-;-;-;BZN; | Yes | Model Compatibility List | $7.79 / Each |
|||
![]() |
710763 | 1000213379 | S09 | Resistance Motor | Yes | Model Compatibility List | $180.67 / Each |
||
712874 | 1000231159 | P12 | ADAPTER;US;100-240V/50-60HZ;12V/2A;2.0M; | Yes | Model Compatibility List | $80.29 / Each |
|||
![]() |
714293 | 1000313185 | H63 | Screw;Socket Head;M10X1.5PX45L(25L);;Hex | No | Model Compatibility List | $3.64 / Each |
||
![]() |
718892 | 1000354060 | H08 | Rubber Plate;Stopper;;NBR;Q520-7-3 MATTE | No | Model Compatibility List | $6.73 / Each |
||
![]() |
719775 | 1000365378 | P20 | Polar Fixed Seat;;;ABS/PA757K;;;EP580-2K | No | Model Compatibility List | $2.29 / Each |
||
722276 | 1000390442 | R02 | Housing;FIX;;SS41;White Zinc;AR11; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
726413 | 0000081709 | L01 | Transport Wheel;Nylon | Yes | Model Compatibility List | $17.24 / Each |
||
![]() |
726621 | 083556 | M06 | Steel Rope;400L+66L | Yes | Model Compatibility List | $14.74 / Each |
||
728448 | 094924 | P13 | KSS HC-0R | No | Model Compatibility List | $1.90 / Each |
|||
729011 | Order Kit | AT101 | Pedal Axle | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
1020604 | 004483-00 | Front Roller Screw M8-1.25"x25mm | No | Model Compatibility List | $11.99 / Each |
|||
![]() |
731338 | 070248 | P54 | SCREW;SH;M4X0.7PX8L;;HS;;BZN;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
732075 | 1000426731 | 2 | Handlebar Set;Semi-Assy;mid;;;;AR53;sale | No | Model Compatibility List | $75.54 / Each |
||
![]() |
732076 | 1000412095 | AC1 | Console Mast Set;;;painting;;Black Matte | No | Model Compatibility List | $35.08 / Each |
||
![]() |
732077 | 1000426734 | AD01 | Seat Roller Set;Semi-Assy;;;;;AR52;sale | No | Model Compatibility List | $148.22 / Each |
||
![]() |
732078 | 1000409246 | AH1 | Rack Set;;;painting;;Black Matte;AR52; | No | Model Compatibility List | $35.80 / Each |
||
![]() |
732079 | 1000426735 | AJ01 | Stabilizer set;Semi-Assy;;;;;AR52;sale s | No | Model Compatibility List | $43.20 / Each |
||
![]() |
732081 | 1000412402 | AR01 | Pull Belt;Transimission Set;;??;25x2050L | No | Model Compatibility List | $34.98 / Each |
||
![]() |
732082 | 1000426737 | AR01 | Belt pulley set;Semi-Assy;;;Assembly;;AR | No | Model Compatibility List | $399.42 / Each |
||
![]() |
732083 | 1000409287 | AT1 | Pedal Set;;;painting;;Black Matte;AR52; | No | Model Compatibility List | $112.74 / Each |
||
![]() |
732084 | 1000409257 | B20 | Fixing Plate;Reed;;AL;;ADZ;AR52; | No | Model Compatibility List | $3.72 / Each |
||
![]() |
732085 | 1000423762 | C09 | Spacing Sleeve;Transmission;Inner;20#;Ch | No | Model Compatibility List | $9.12 / Each |
||
![]() |
732086 | 1000423763 | C10 | Spacing Sleeve;Transmission;Inner;20#;Ch | No | Model Compatibility List | $12.68 / Each |
||
![]() |
732087 | 1000423764 | C11 | Spacing Sleeve;Transmission;Inner;20#;Ch | No | Model Compatibility List | $9.00 / Each |
||
![]() |
732088 | 1000412391 | G05 | Accent Block;Handlebar;;TPU;Q520-7-3;;AR | No | Model Compatibility List | $6.54 / Each |
||
![]() |
732089 | 004842-Z | G06 | Screw;Settle;M6x1.0Px8.0L;BED; | No | Model Compatibility List | $0.60 / Each |
||
![]() |
732090 | 1000409241 | H07 | Fixing Plate;FEET FRAME;;painting;;Black | No | Model Compatibility List | $6.70 / Each |
||
![]() |
732091 | 1000409237 | H09 | Sleeve;Swivel Axle;Diam.14.0x24L;20#;BED | No | Model Compatibility List | $7.90 / Each |
||
![]() |
732092 | 1000414659 | H11 | End Cap;STABILIZER TUBE;left;TPU;;;AR52; | No | Model Compatibility List | $7.34 / Each |
||
![]() |
732093 | 1000414660 | H12 | End Cap;STABILIZER TUBE;right;TPU;;;AR52 | No | Model Compatibility List | $7.34 / Each |
||
![]() |
732095 | 005015-ZAB | H18 | Washer;Spring;8.2x13.5x2.0t;Black Zinc | No | Model Compatibility List | $1.28 / Each |
||
![]() |
732096 | 1000412288 | H19 | Fixing Plate;Guide Rail;;painting;;Black | No | Model Compatibility List | $8.92 / Each |
||
![]() |
732098 | 1000348589 | N02 | Console Down Cover;Console;;ABS/PA757;Pa | No | Model Compatibility List | $9.08 / Each |
||
![]() |
732099 | 1000348588 | N03 | Battery Cover;Console;;ABS/PA757;Pantone | No | Model Compatibility List | $2.58 / Each |
||
![]() |
732102 | 1000426590 | Not Shown | POP Sticker;;70x200mm;;PC;;English; | No | Model Compatibility List | $6.08 / Each |
||
![]() |
732103 | 1000413756 | Not Shown | hardware set;Assembly;;;AR52;; | No | Model Compatibility List | $52.62 / Each |
||
![]() |
732106 | 1000409269 | Q03 | Cover;Frame;Front-Up;ABS/PA757;Q520-7-3; | No | Model Compatibility List | $8.06 / Each |
||
![]() |
732109 | 1000414835 | Q06 | Cover;Consoel Mast;;ABS;Q520-7-3;;AR52; | No | Model Compatibility List | $3.38 / Each |
||
![]() |
732110 | 1000409243 | Q12 | Cap;Guide Rail;;ABS/PA757;Q520-7-3;;AR52 | No | Model Compatibility List | $9.02 / Each |
||
![]() |
732111 | 1000409226 | Q15 | Cover;Slippery Base;;ABS;Q520-7-3;;AR52; | No | Model Compatibility List | $9.22 / Each |
||
![]() |
732112 | 1000412106 | Q20 | Foot Pad;Frame;left;PP;;;AR52; | No | Model Compatibility List | $6.54 / Each |
||
![]() |
732113 | 1000412107 | Q21 | Foot Pad;Frame;right;PP;;;AR52; | No | Model Compatibility List | $6.54 / Each |
||
![]() |
732114 | 1000412100 | R03 | Spacing Sleeve;Transmission;Inner;20#;Ch | No | Model Compatibility List | $14.10 / Each |
||
![]() |
732115 | 1000409212 | R09 | Roller;Transmission;;PA66+15%??;Pantone | No | Model Compatibility List | $16.02 / Each |
||
![]() |
732116 | 1000423777 | R18 | Belt;POLY-V;;260-J8;AR52; | No | Model Compatibility List | $43.90 / Each |
||
![]() |
732117 | 004454-AH | R28 | SCREW;SH;M5X0.8PX15L;;HS;;BAN;; | No | Model Compatibility List | $1.28 / Each |
||
![]() |
732122 | 1000429720 | T07 | Pedal Strap;w/ Belt;L/R;;;;PVC;AR52/AR53 | No | Model Compatibility List | $8.02 / Each |
||
![]() |
732123 | 1000413755 | T08 | Fixing Plate;Foot Pad;;ABS/PA757;;;AR52; | No | Model Compatibility List | $4.40 / Each |
||
![]() |
732124 | 1000409328 | V03 | Decal;AL Rail;Diam.60;;;;;AR52; | No | Model Compatibility List | $5.58 / Each |
||
![]() |
732125 | 1000412189 | V05 | Adjustable Indication Decal;;Diam.50;;;; | No | Model Compatibility List | $3.72 / Each |
||
![]() |
732126 | 1000416170 | V09 | Warning Label;;;;;;;AR52; | No | Model Compatibility List | $8.52 / Each |
||
![]() |
732127 | 1000426733 | AG01 | Handlebar Set;Semi-Assy;;;Foam;assembly; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
732129 | 1000412191 | Not Shown | Manual;Assembly/Manipulate;;;;AR52 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
732130 | 005134-Z | C06 | Washer;Flat;8.2x14x1.5T | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
732131 | 004884-AB | C07 | NUT;NLK;M8X1.25P;;BAN;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
732132 | 005118-Z | Z03 | Washer;Flat;8.4x17.0x1.0t;Black Zinc; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
732237 | 004924-Z | Q08 | NUT LK M5 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734749 | 1000409335 | 1 | Console set;Semi-Assy;;;;;AR53; | No | Model Compatibility List | $696.22 / Each |
||
![]() |
734750 | 1000465377 | 3 | Others set;Semi-Assy;;;Control Button;;A | No | Model Compatibility List | $106.82 / Each |
||
![]() |
734751 | 1000429854 | AQ01 | Cover set;Semi-Assy;front;;;;AR53;sale s | No | Model Compatibility List | $60.34 / Each |
||
![]() |
734752 | 1000412395 | D06 | Seat Pad;Middle;PU;Black;;AR53; | No | Model Compatibility List | $67.74 / Each |
||
![]() |
734753 | 1000409340 | H15 | Slide Rail-Extrawork;Guide Rail;back;Ano | No | Model Compatibility List | $565.20 / Each |
||
![]() |
734754 | 1000409217 | N01 | Console Cover-Exreawork;;up;Print;;AR53; | No | Model Compatibility List | $15.72 / Each |
||
![]() |
734755 | 1000409337 | N04 | Rubber Key-Exreawork;console;;Screen pri | No | Model Compatibility List | $26.76 / Each |
||
![]() |
734756 | 1000409336 | N61 | Overlay;;;AR53;;192.2x132.3; | No | Model Compatibility List | $9.22 / Each |
||
![]() |
734757 | 1000411432 | N62 | Connected Wire;;;;;24AWG;1300;14C+shield | No | Model Compatibility List | $42.38 / Each |
||
![]() |
734758 | 1000409377 | P01 | Speed Sensor Wire;;;Black;;24AWG;500;2C; | No | Model Compatibility List | $8.52 / Each |
||
![]() |
734759 | 1000411433 | P12 | Connect Wire;;;;;24AWG;250;Polar;CWB:SM- | No | Model Compatibility List | $6.26 / Each |
||
![]() |
734760 | 1000412436 | P13 | Control Board;;;A;;;Oxford5-02;Encoder B | No | Model Compatibility List | $48.98 / Each |
||
![]() |
734761 | 1000412131 | P14 | Pulse Sensor Set;;Down;Black;;24AWG;1300 | No | Model Compatibility List | $97.24 / Each |
||
![]() |
734762 | 1000414844 | Q02 | Cover;Frame;left;ABS/PA757;;;AR53;Q520-7 | No | Model Compatibility List | $65.00 / Each |
||
![]() |
734763 | 1000414845 | Q04 | Cover;Frame;right;ABS/PA757;;;AR53;Q520- | No | Model Compatibility List | $65.20 / Each |
||
![]() |
734764 | 1000412438 | Q05 | Cover;;back;ABS/PA757;Q520-7-3;;AR53; | No | Model Compatibility List | $7.34 / Each |
||
![]() |
734765 | 1000412397 | S02 | Lampstand;;;;;;AR53;ABS-758; T225-1-3; | No | Model Compatibility List | $7.00 / Each |
||
![]() |
734766 | 1000412398 | S03 | Cover;Remote Button;;ABS PA757S;Q520-7-3 | No | Model Compatibility List | $5.94 / Each |
||
![]() |
734767 | 1000409178 | AB1 | Frame Welding Set;;;painting;;Black Matt | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734768 | 1000401827 | N60 | (Up)Control panel;;;;;;Oxford5-02;Progra | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734769 | 1000414889 | Q13 | Fixing Base;Strip;;ABS/PA757;Q520-7-3;;A | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734770 | 1000414975 | Q14 | Butt Plate;Strip;Inner;PC;WHITE;;AR53; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
734771 | 1000415050 | D08 | Screw;Special-Round Head;M10X1.5PX45L;Ma | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
734772 | 1000409224 | D12 | Spacer;Cylinder;;20#;Black Annodized;AR5 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
734773 | 1000459643 | D13 | Seat Roller Set;Semi-Assy;;;41.6;;AR52- | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![]() |
734774 | 1000428840 | 1 | Console set;Semi-Assy;;;;;AR53;sale serv | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
976932 | 004926-00 | Nylon Lock Nut M8x1.25P (New) | No | Model Compatibility List | $12.99 / Each |
|||
![]() |
957398 | 005330-00 | Gear Rower Retainer Clip (New) | Yes | Model Compatibility List | $11.99 / Each |
|||
![]() |
911958 | 004608-00 | Rower Button Head Phillip Screw 3x10L (New) | No | Model Compatibility List | $12.99 / Each |
|||
![]() |
957090 | 004621-00 | Rower Self Tapping Screw (New) | No | Model Compatibility List | $11.99 / Each |
|||
|
