Horizon Fitness - Peak Trainer - HT5.0 - EP031 - 2019 - 2018-2022

Repair Parts for Horizon Fitness Peak Trainer - HT5.0 - EP031 - 2019 EP031

Brand: Horizon Fitness

Category: Stepper

Type: Stepper

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

EP031

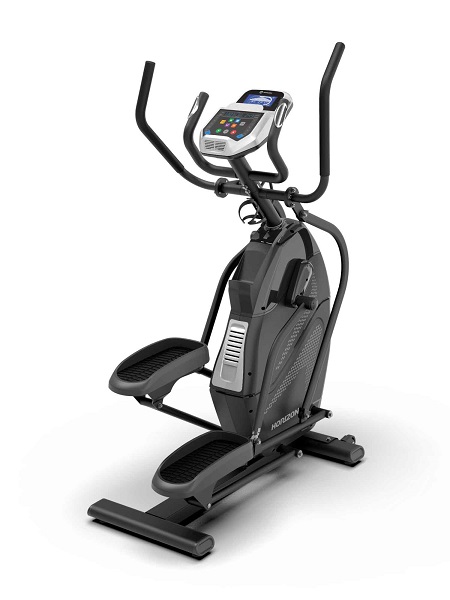

Model Name: Peak Trainer - HT5.0 - EP031 - 2019

Serial Number Prefix: EP031

Version: 2018-2022

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

diag_163_Parts List.pdf

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
701156	004074-A4	24	Bearing;Ball;6003ZZ;17x35x10T;TPI;	Yes	Model Compatibility List	$17.58 / Each	1
707676	1000094211	87	Washer;Nylon;6.0x19.1.5t	No	Model Compatibility List	$1.85 / Each	1
707679	1000094216	79	Nut;Anti Loose;M6x1x6T	No	Model Compatibility List	$1.85 / Each	1
707684	1000094231	78	Nut;Hex;M6x1.0x6t	No	Model Compatibility List	$1.85 / Each	1
707686	1000094237	77	Bolt;Hex;M6x65L	No	Model Compatibility List	$1.85 / Each	1
707690	1000094279	20	Bolt;Hex;M6x1.0x15L	No	Model Compatibility List	$2.00 / Each	1
707691	1000094280	21	Nut;Anti Loose;M6x1.0x6t	No	Model Compatibility List	$2.00 / Each	1
707712	1000094406	93	Screw;Cross;4.2x1.4x15L	No	Model Compatibility List	$1.85 / Each	1
707915	1000096885	19	C-Ring S-17 (1T)	No	Model Compatibility List	$1.90 / Each	1
707917	1000096911	61	Washer;Flat;23.0x17.2x1.5t	No	Model Compatibility List	$2.00 / Each	1
707918	1000096913	57	Washer;Wave;22.0x17x0.3t	No	Model Compatibility List	$2.00 / Each	1
707919	1000096940	13	Washer;Flat;16.0x8.5x1.2t	No	Model Compatibility List	$2.00 / Each	1
707921	1000096954	59	Magnet	No	Model Compatibility List	$2.00 / Each	1
710297	1000208645	84	Spring;1.0x55L	No	Model Compatibility List	$1.85 / Each	1
711443	1000220790	35	Spacer Ring	No	Model Compatibility List	$2.00 / Each	1
711445	1000220797	99	Pin;Side Cover Connecting;6.0x26.5x7.7	No	Model Compatibility List	$2.00 / Each	1
711468	1000220833	54	Headphone Cable	No	Model Compatibility List	$12.56 / Each	1
718335	1000350641	9	bolt M81.2540L	No	Model Compatibility List	$2.00 / Each	1
718339	1000350647	98	round bolt	No	Model Compatibility List	$1.90 / Each	1
718346	1000350654	11	curved washer	No	Model Compatibility List	$1.77 / Each	1
718351	1000350660	101	mushroom cap	No	Model Compatibility List	$2.29 / Each	1
718359	1000350669	117	tension cable	No	Model Compatibility List	$8.87 / Each	1
718416	1000350765	103	anti-loosen nut	No	Model Compatibility List	$1.90 / Each	1
718732	1000352978	95	screw	No	Model Compatibility List	$1.85 / Each	1
733747	1000439278	100	Pedal pad	No	Model Compatibility List	$29.00 / Each	1
733748	1000439198	101	bolt	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733749	1000439288	102	Fixing axle	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733750	1000439203	103	Bolt	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733751	1000439277	104	Bushing	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733752	1000439289	105	Short axle	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733753	1000094305	106	C ring	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733754	1000094306	107	waved washer	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733755	1000439257	108	fixed axle sleeve	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733756	1000233970	109	flat washer	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733757	1000439239	11	Crank welding set	No	Model Compatibility List	$53.94 / Each	1
733758	1000439256	110	Swing shaft sleeve	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733759	1000439205	111	Screw	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733760	1000439199	112	Screw	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733761	1000439263	113	Upper computer cable	No	Model Compatibility List	$23.32 / Each	1
733762	1000439264	114	Lower computer cable	No	Model Compatibility List	$24.54 / Each	1
733763	1000439232	115	Sensor cable	No	Model Compatibility List	$8.02 / Each	1
733764	1000439262	118	Motor	No	Model Compatibility List	$112.26 / Each	1
733765	1000439265	119	Adaptor	No	Model Compatibility List	$142.90 / Each	1
733766	1000439195	12	Hex bolt	No	Model Compatibility List	$3.44 / Each	1
733767	1000390058	121	Handle pulse(black)	No	Model Compatibility List	$8.10 / Each	1
733768	1000439317	123	Handle pulse cable	No	Model Compatibility List	$7.90 / Each	1
733769	1000439266	125	Power cable	No	Model Compatibility List	$8.16 / Each	1
733770	1000439229	126	Sensor bracket	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733771	1000439197	127	Bolt	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733772	1000439290	128	Fixing axle(2)	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733773	1000439316	129	Axle cover	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733774	1000439211	13	Flat washer	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733775	1000439217	130	Nut	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733776	1000439213	131	Flat washer	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733777	1000439255	133	Screw rod	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733778	1000439189	134	Bushing D38D35.232	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733779	1000439215	135	Flat washer	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733780	1000439216	136	Waved washer	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733781	1000233956	14	spring washer	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733782	1000222641	15	SCREW CAP	No	Model Compatibility List	$1.28 / Each	1
733783	1000439191	16	Hex bolt	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733784	1000439208	18	Allen bolt	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733785	1000439202	19	Bolt M5	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733786	1000439259	20	computer	No	Model Compatibility List	$1114.58 / Each	1
733787	1000439286	21L	Front chain cover(L)	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733788	1000439287	21R	Front chain cover(R)	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733789	1000439279	22L	Left chain cover	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733790	1000439280	22R	Right chain cover	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733791	1000439283	23	Upper decorative cover	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733792	1000439285	24	Storage box	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733793	1000439282	25	Rear cover	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733794	1000439281	26	Protective ring for chain cover	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733795	1000439220	28	Buffer	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733796	1000439254	29	Buffer	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733797	1000439318	30	Water bottle holder	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733798	1000439224	34	Bearing	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733799	1000439192	35	Hex bolt	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733800	1000439194	37	Hex nut	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733801	1000439223	39	Bearing	No	Model Compatibility List	$13.80 / Each	1
733802	1000439284	40	Crank cover	No	Model Compatibility List	$8.76 / Each	1
733803	1000439270	41	Fixed nut	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733804	1000439267	42	Sleeve	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733805	1000439206	43	Allen bolt	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733806	1000439210	44	Flat washer	No	Model Compatibility List	$1.82 / Each	1
733807	1000439201	45	Bolt	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733808	1000439209	46	Allen bolt	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733809	1000439218	47	Hex bolt	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733810	1000439268	48	Spacer ring	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733811	1000439212	49	Flat washer	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733812	1000094281	50	bearing	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733813	1000439231	51	Fish eye bearing	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733814	1000439276	52	Bushing	No	Model Compatibility List	$3.72 / Each	1
733815	1000439193	53	Hex bolt	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733816	1000439219	54	Hex nut	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733817	1000439269	55	Sleeve(2)	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733818	1000439230	57	Buffer	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733819	1000439190	58	Hex bolt	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733820	1000439221	62	Belt	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733821	1000439222	63	Belt	No	Model Compatibility List	$27.58 / Each	1
733822	1000439275	68	C type flat key	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733823	1000439196	70	Hex bolt	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733824	1000439274	71	freewheel	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733825	1000439272	73	Bushing tube	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733826	1000439244	75	Fixing bracket for magnet	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733827	1000208524	77	FLAT WASHER	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733828	1000439200	83	Bolt	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733829	1000439226	84	Foam	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733830	1000439227	86	Foam	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733831	1000439207	87	Allen bolt	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733832	1000439260	88	Inner sensor	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733833	1000439261	89	Sensor connecting cable	No	Model Compatibility List	$8.76 / Each	1
733834	1000439258	91	Oval tube cap	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733835	1000439187	92	Adjustable round wheel	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733836	1000439204	93	Screw	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733837	1000439188	95	Wheel	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733838	1000096874	96	Bushing	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733839	1000439214	97	Flat washer	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733840	1000096916	98	Waved washer	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733841	1000439228	99	Pedal	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733842	1000439944	A02	Console Mast Set	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733843	1000439945	A03	Left movable handlebar post set	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733844	1000439946	A04	Right movable handlebar post set	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733845	1000439947	A05	Crank Set	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733846	1000439948	A06	Supporting tube for movable handlebar se	No	Model Compatibility List	$145.16 / Each	1
733847	1000439949	A07	Stabilizer set	No	Model Compatibility List	$341.10 / Each	1
733848	1000439950	A08	magnet fixing hold set	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733849	1000439953	A11	idler set	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733850	1000439954	A12	crank axle set	No	Model Compatibility List	$99.72 / Each	1
733851	1000439955	A13	Transmission unit (1)	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733852	1000439956	A14	Transmission unit(2)	No	Model Compatibility List	$209.16 / Each	1
733853	1000439959	A17	Swing head fixed base welding set(L)	No	Model Compatibility List	$57.60 / Each	1
733854	1000439960	A18	Swing head fixed base welding set(R)	No	Model Compatibility List	$57.60 / Each	1
733855	1000439961	A19	Crank extended rod set	No	Model Compatibility List	$218.22 / Each	1
733856	1000439962	A20	Supporting tube set for pedal	No	Model Compatibility List	$150.48 / Each	1
733857	1000439963	A21	Bracket set for left pedal	No	Model Compatibility List	$119.96 / Each	1
733858	1000439964	A22	Bracket set for right pedal	No	Model Compatibility List	$119.96 / Each	1
733859	1000439965	A23	Left fixing bracket set for pedal	No	Model Compatibility List	$210.10 / Each	1
733860	1000439966	A24	Right fixing bracket set for pedal	No	Model Compatibility List	$210.34 / Each	1
733861	1000439253	Not Shown	Hardware Kit	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733862	1000439295	Not Shown	user manual	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733863	1000439298	Not Shown	English information card	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733864	1000439299	Not Shown	Unplug warning label	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733865	1000439300	Not Shown	Sticker 1 for right chain cover	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733866	1000439301	Not Shown	Sticker 2 for right chain cover	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733867	1000439302	Not Shown	Sticker 1 for left chain cover	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733868	1000439303	Not Shown	Sticker 2 for left chain cover	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733869	1000439304	Not Shown	Sticker 3 for chain covers	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733870	1000439305	Not Shown	Pinch warning label	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733871	1000439307	Not Shown	console warning label	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733872	1000439308	Not Shown	Unplug warning label sheet	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733873	1000439309	Not Shown	console pop lable	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733874	1000439310	Not Shown	Frame bottom bar POP label	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733875	1000439311	Not Shown	Rear stabilizer POP label	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733876	1000439312	Not Shown	Storage box POP label	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733877	1000439233	1	Main frame	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733878	1000439236	2	Front stabilizer	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733879	1000439235	3	handle post welding set	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733880	1000439240	5	Extended rod for crank	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733881	1000439247	6	Supporting tube for movable handlebar	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733882	1000439248	8	Supporting tube for pedal	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733883	1000439234	31	Fixing plate of idle wheel	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733884	1000439241	59	Crank axle	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733885	1000439242	60	Drive axle(1)	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733886	1000439243	61	Drive axle(2)	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733887	1000439225	64	Belt wheel	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733888	1000439271	67	Fan wheel	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733889	1000439273	72	Flywheel	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733890	1000439245	10L	Swing head fixed base welding(L)	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733891	1000439246	10R	Swing head fixed base welding(R)	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733892	1000439237	4L	Left movable handlebar post	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733893	1000439238	4R	right movable handlebar post	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733894	1000439249	7L	Bracket for left pedal	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733895	1000439250	7R	Bracket for right pedal	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733896	1000439251	9L	Left fixing bracket for pedal	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733897	1000439252	9R	Right fixing bracket for pedal	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733898	1000439943	A01	Console Set	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733899	1000439951	A09	frame set	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733900	1000439952	A10	Chain cover set	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733901	1000439957	A15	cable set	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733902	1000439958	A16	Belt set	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733903	1000439291	Not Shown	Upper Carton	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733904	1000439292	Not Shown	Lower Carton	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733905	1000439293	Not Shown	Registration card	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733906	1000439294	Not Shown	Brochure	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733907	1000439306	Not Shown	Barcode label	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733908	1000439313	Not Shown	EN label	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
733909	1000096903	74	#6003ZZ bearing	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
936823	004074-A4		Stepper Step Sealed Bearing (New)	Yes	Model Compatibility List	$32.99 / Each	1

Catalog Number: 701156

Part Name: Bearing;Ball;6003ZZ;17x35x10T;TPI;

Price: $17.58 / each

Catalog Number: 707676

Part Name: Washer;Nylon;6.0x19.1.5t

Price: $1.85 / each

Catalog Number: 707679

Part Name: Nut;Anti Loose;M6x1x6T

Price: $1.85 / each

Catalog Number: 707684

Part Name: Nut;Hex;M6x1.0x6t

Price: $1.85 / each

Catalog Number: 707686

Part Name: Bolt;Hex;M6x65L

Price: $1.85 / each

Catalog Number: 707690

Part Name: Bolt;Hex;M6x1.0x15L

Price: $2.00 / each

Catalog Number: 707691

Part Name: Nut;Anti Loose;M6x1.0x6t

Price: $2.00 / each

Catalog Number: 707712

Part Name: Screw;Cross;4.2x1.4x15L

Price: $1.85 / each

Catalog Number: 707915

Part Name: C-Ring S-17 (1T)

Price: $1.90 / each

Catalog Number: 707917

Part Name: Washer;Flat;23.0x17.2x1.5t

Price: $2.00 / each

Catalog Number: 707918

Part Name: Washer;Wave;22.0x17x0.3t

Price: $2.00 / each

Catalog Number: 707919

Part Name: Washer;Flat;16.0x8.5x1.2t

Price: $2.00 / each

Catalog Number: 707921

Part Name: Magnet

Price: $2.00 / each

Catalog Number: 710297

Part Name: Spring;1.0x55L

Price: $1.85 / each

Catalog Number: 711443

Part Name: Spacer Ring

Price: $2.00 / each

Catalog Number: 711445

Part Name: Pin;Side Cover Connecting;6.0x26.5x7.7

Price: $2.00 / each

Catalog Number: 711468

Part Name: Headphone Cable

Price: $12.56 / each

Catalog Number: 718335

Part Name: bolt M8*1.25*40L

Price: $2.00 / each

Catalog Number: 718339

Part Name: round bolt

Price: $1.90 / each

Catalog Number: 718346

Part Name: curved washer

Price: $1.77 / each

Catalog Number: 718351

Part Name: mushroom cap

Price: $2.29 / each

Catalog Number: 718359

Part Name: tension cable

Price: $8.87 / each

Catalog Number: 718416

Part Name: anti-loosen nut

Price: $1.90 / each

Catalog Number: 718732

Part Name: screw

Price: $1.85 / each

Catalog Number: 733747

Part Name: Pedal pad

Price: $29.00 / each

Catalog Number: 733748

Part Name: bolt

Price: $0.00 / each

Out Of Stock

Catalog Number: 733749

Part Name: Fixing axle

Price: $0.00 / each

Out Of Stock

Catalog Number: 733750

Part Name: Bolt

Price: $0.00 / each

Out Of Stock

Catalog Number: 733751

Part Name: Bushing

Price: $0.00 / each

Out Of Stock

Catalog Number: 733752

Part Name: Short axle

Price: $0.00 / each

Out Of Stock

Catalog Number: 733753

Part Name: C ring

Price: $0.00 / each

Out Of Stock

Catalog Number: 733754

Part Name: waved washer

Price: $0.00 / each

Out Of Stock

Catalog Number: 733755

Part Name: fixed axle sleeve

Price: $0.00 / each

Out Of Stock

Catalog Number: 733756

Part Name: flat washer

Price: $0.00 / each

Out Of Stock

Catalog Number: 733757

Part Name: Crank welding set

Price: $53.94 / each

Catalog Number: 733758

Part Name: Swing shaft sleeve

Price: $0.00 / each

Out Of Stock

Catalog Number: 733759

Part Name: Screw

Price: $0.00 / each

Out Of Stock

Catalog Number: 733760

Part Name: Screw

Price: $0.00 / each

Out Of Stock

Catalog Number: 733761

Part Name: Upper computer cable

Price: $23.32 / each

Catalog Number: 733762

Part Name: Lower computer cable

Price: $24.54 / each

Catalog Number: 733763

Part Name: Sensor cable

Price: $8.02 / each

Catalog Number: 733764

Part Name: Motor

Price: $112.26 / each

Catalog Number: 733765

Part Name: Adaptor

Price: $142.90 / each

Catalog Number: 733766

Part Name: Hex bolt

Price: $3.44 / each

Catalog Number: 733767

Part Name: Handle pulse(black)

Price: $8.10 / each

Catalog Number: 733768

Part Name: Handle pulse cable

Price: $7.90 / each

Catalog Number: 733769

Part Name: Power cable

Price: $8.16 / each

Catalog Number: 733770

Part Name: Sensor bracket

Price: $0.00 / each

Out Of Stock

Catalog Number: 733771

Part Name: Bolt

Price: $0.00 / each

Out Of Stock

Catalog Number: 733772

Part Name: Fixing axle(2)

Price: $0.00 / each

Out Of Stock

Catalog Number: 733773

Part Name: Axle cover

Price: $0.00 / each

Out Of Stock

Catalog Number: 733774

Part Name: Flat washer

Price: $0.00 / each

Out Of Stock

Catalog Number: 733775

Part Name: Nut

Price: $0.00 / each

Out Of Stock

Catalog Number: 733776

Part Name: Flat washer

Price: $0.00 / each

Out Of Stock

Catalog Number: 733777

Part Name: Screw rod

Price: $0.00 / each

Out Of Stock

Catalog Number: 733778

Part Name: Bushing D38*D35.2*32

Price: $0.00 / each

Out Of Stock

Catalog Number: 733779

Part Name: Flat washer

Price: $0.00 / each

Out Of Stock

Catalog Number: 733780

Part Name: Waved washer

Price: $0.00 / each

Out Of Stock

Catalog Number: 733781

Part Name: spring washer

Price: $0.00 / each

Out Of Stock

Catalog Number: 733782

Part Name: SCREW CAP

Price: $1.28 / each

Catalog Number: 733783

Part Name: Hex bolt

Price: $0.00 / each

Out Of Stock

Catalog Number: 733784

Part Name: Allen bolt

Price: $0.00 / each

Out Of Stock

Catalog Number: 733785

Part Name: Bolt M5

Price: $0.00 / each

Out Of Stock

Catalog Number: 733786

Part Name: computer

Price: $1114.58 / each

Catalog Number: 733787

Part Name: Front chain cover(L)

Price: $0.00 / each

Out Of Stock

Catalog Number: 733788

Part Name: Front chain cover(R)

Price: $0.00 / each

Out Of Stock

Catalog Number: 733789

Part Name: Left chain cover

Price: $0.00 / each

Out Of Stock

Catalog Number: 733790

Part Name: Right chain cover

Price: $0.00 / each

Out Of Stock

Catalog Number: 733791

Part Name: Upper decorative cover

Price: $0.00 / each

Out Of Stock

Catalog Number: 733792

Part Name: Storage box

Price: $0.00 / each

Out Of Stock

Catalog Number: 733793

Part Name: Rear cover

Price: $0.00 / each

Out Of Stock

Catalog Number: 733794

Part Name: Protective ring for chain cover

Price: $0.00 / each

Out Of Stock

Catalog Number: 733795

Part Name: Buffer

Price: $0.00 / each

Out Of Stock

Catalog Number: 733796

Part Name: Buffer

Price: $0.00 / each

Out Of Stock

Catalog Number: 733797

Part Name: Water bottle holder

Price: $0.00 / each

Out Of Stock

Catalog Number: 733798

Part Name: Bearing

Price: $0.00 / each

Out Of Stock

Catalog Number: 733799

Part Name: Hex bolt

Price: $0.00 / each

Out Of Stock

Catalog Number: 733800

Part Name: Hex nut

Price: $0.00 / each

Out Of Stock

Catalog Number: 733801

Part Name: Bearing

Price: $13.80 / each

Catalog Number: 733802

Part Name: Crank cover

Price: $8.76 / each

Catalog Number: 733803

Part Name: Fixed nut

Price: $0.00 / each

Out Of Stock

Catalog Number: 733804

Part Name: Sleeve

Price: $0.00 / each

Out Of Stock

Catalog Number: 733805

Part Name: Allen bolt

Price: $0.00 / each

Out Of Stock

Catalog Number: 733806

Part Name: Flat washer

Price: $1.82 / each

Catalog Number: 733807

Part Name: Bolt

Price: $0.00 / each

Out Of Stock

Catalog Number: 733808

Part Name: Allen bolt

Price: $0.00 / each

Out Of Stock

Catalog Number: 733809

Part Name: Hex bolt

Price: $0.00 / each

Out Of Stock

Catalog Number: 733810

Part Name: Spacer ring

Price: $0.00 / each

Out Of Stock

Catalog Number: 733811

Part Name: Flat washer

Price: $0.00 / each

Out Of Stock

Catalog Number: 733812

Part Name: bearing

Price: $0.00 / each

Out Of Stock

Catalog Number: 733813

Part Name: Fish eye bearing

Price: $0.00 / each

Out Of Stock

Catalog Number: 733814

Part Name: Bushing

Price: $3.72 / each

Catalog Number: 733815

Part Name: Hex bolt

Price: $0.00 / each

Out Of Stock

Catalog Number: 733816

Part Name: Hex nut

Price: $0.00 / each

Out Of Stock

Catalog Number: 733817

Part Name: Sleeve(2)

Price: $0.00 / each

Out Of Stock

Catalog Number: 733818

Part Name: Buffer

Price: $0.00 / each

Out Of Stock

Catalog Number: 733819

Part Name: Hex bolt

Price: $0.00 / each

Out Of Stock

Catalog Number: 733820

Part Name: Belt

Price: $0.00 / each

Out Of Stock

Catalog Number: 733821

Part Name: Belt

Price: $27.58 / each

Catalog Number: 733822

Part Name: C type flat key

Price: $0.00 / each

Out Of Stock

Catalog Number: 733823

Part Name: Hex bolt

Price: $0.00 / each

Out Of Stock

Catalog Number: 733824

Part Name: freewheel

Price: $0.00 / each

Out Of Stock

Catalog Number: 733825

Part Name: Bushing tube

Price: $0.00 / each

Out Of Stock

Catalog Number: 733826

Part Name: Fixing bracket for magnet

Price: $0.00 / each

Out Of Stock

Catalog Number: 733827

Part Name: FLAT WASHER

Price: $0.00 / each

Out Of Stock

Catalog Number: 733828

Part Name: Bolt

Price: $0.00 / each

Out Of Stock

Catalog Number: 733829

Part Name: Foam

Price: $0.00 / each

Out Of Stock

Catalog Number: 733830

Part Name: Foam

Price: $0.00 / each

Out Of Stock

Catalog Number: 733831

Part Name: Allen bolt

Price: $0.00 / each

Out Of Stock

Catalog Number: 733832

Part Name: Inner sensor

Price: $0.00 / each

Out Of Stock

Catalog Number: 733833

Part Name: Sensor connecting cable

Price: $8.76 / each

Catalog Number: 733834

Part Name: Oval tube cap

Price: $0.00 / each

Out Of Stock

Catalog Number: 733835

Part Name: Adjustable round wheel

Price: $0.00 / each

Out Of Stock

Catalog Number: 733836

Part Name: Screw

Price: $0.00 / each

Out Of Stock

Catalog Number: 733837

Part Name: Wheel

Price: $0.00 / each

Out Of Stock

Catalog Number: 733838

Part Name: Bushing

Price: $0.00 / each

Out Of Stock

Catalog Number: 733839

Part Name: Flat washer

Price: $0.00 / each

Out Of Stock

Catalog Number: 733840

Part Name: Waved washer

Price: $0.00 / each

Out Of Stock

Catalog Number: 733841

Part Name: Pedal

Price: $0.00 / each

Out Of Stock

Catalog Number: 733842

Part Name: Console Mast Set

Price: $0.00 / each

Out Of Stock

Catalog Number: 733843

Part Name: Left movable handlebar post set

Price: $0.00 / each

Out Of Stock

Catalog Number: 733844

Part Name: Right movable handlebar post set

Price: $0.00 / each

Out Of Stock

Catalog Number: 733845

Part Name: Crank Set

Price: $0.00 / each

Out Of Stock

Catalog Number: 733846

Part Name: Supporting tube for movable handlebar se

Price: $145.16 / each

Catalog Number: 733847

Part Name: Stabilizer set

Price: $341.10 / each

Catalog Number: 733848

Part Name: magnet fixing hold set

Price: $0.00 / each

Out Of Stock

Catalog Number: 733849

Part Name: idler set

Price: $0.00 / each

Out Of Stock

Catalog Number: 733850

Part Name: crank axle set

Price: $99.72 / each

Catalog Number: 733851

Part Name: Transmission unit (1)

Price: $0.00 / each

Out Of Stock

Catalog Number: 733852

Part Name: Transmission unit(2)

Price: $209.16 / each

Catalog Number: 733853

Part Name: Swing head fixed base welding set(L)

Price: $57.60 / each

Catalog Number: 733854

Part Name: Swing head fixed base welding set(R)

Price: $57.60 / each

Catalog Number: 733855

Part Name: Crank extended rod set

Price: $218.22 / each

Catalog Number: 733856

Part Name: Supporting tube set for pedal

Price: $150.48 / each

Catalog Number: 733857

Part Name: Bracket set for left pedal

Price: $119.96 / each

Catalog Number: 733858

Part Name: Bracket set for right pedal

Price: $119.96 / each

Catalog Number: 733859

Part Name: Left fixing bracket set for pedal

Price: $210.10 / each

Catalog Number: 733860

Part Name: Right fixing bracket set for pedal

Price: $210.34 / each

Catalog Number: 733861

Part Name: Hardware Kit

Price: $0.00 / each

Out Of Stock

Catalog Number: 733862

Part Name: user manual

Price: $0.00 / each

Out Of Stock

Catalog Number: 733863

Part Name: English information card

Price: $0.00 / each

Out Of Stock

Catalog Number: 733864

Part Name: Unplug warning label

Price: $0.00 / each

Out Of Stock

Catalog Number: 733865

Part Name: Sticker 1 for right chain cover

Price: $0.00 / each

Out Of Stock

Catalog Number: 733866

Part Name: Sticker 2 for right chain cover

Price: $0.00 / each

Out Of Stock

Catalog Number: 733867

Part Name: Sticker 1 for left chain cover

Price: $0.00 / each

Out Of Stock

Catalog Number: 733868

Part Name: Sticker 2 for left chain cover

Price: $0.00 / each

Out Of Stock

Catalog Number: 733869

Part Name: Sticker 3 for chain covers

Price: $0.00 / each

Out Of Stock

Catalog Number: 733870

Part Name: Pinch warning label

Price: $0.00 / each

Out Of Stock

Catalog Number: 733871

Part Name: console warning label

Price: $0.00 / each

Out Of Stock

Catalog Number: 733872

Part Name: Unplug warning label sheet

Price: $0.00 / each

Out Of Stock

Catalog Number: 733873

Part Name: console pop lable

Price: $0.00 / each

Out Of Stock

Catalog Number: 733874

Part Name: Frame bottom bar POP label

Price: $0.00 / each

Out Of Stock

Catalog Number: 733875

Part Name: Rear stabilizer POP label

Price: $0.00 / each

Out Of Stock

Catalog Number: 733876

Part Name: Storage box POP label

Price: $0.00 / each

Out Of Stock

Catalog Number: 733877

Part Name: Main frame

Price: $0.00 / each

Out Of Stock

Catalog Number: 733878

Part Name: Front stabilizer

Price: $0.00 / each

Out Of Stock

Catalog Number: 733879

Part Name: handle post welding set

Price: $0.00 / each

Out Of Stock

Catalog Number: 733880

Part Name: Extended rod for crank

Price: $0.00 / each

Out Of Stock

Catalog Number: 733881

Part Name: Supporting tube for movable handlebar

Price: $0.00 / each

Out Of Stock

Catalog Number: 733882

Part Name: Supporting tube for pedal

Price: $0.00 / each

Out Of Stock

Catalog Number: 733883

Part Name: Fixing plate of idle wheel

Price: $0.00 / each

Out Of Stock

Catalog Number: 733884

Part Name: Crank axle

Price: $0.00 / each

Out Of Stock

Catalog Number: 733885

Part Name: Drive axle(1)

Price: $0.00 / each

Out Of Stock

Catalog Number: 733886

Part Name: Drive axle(2)

Price: $0.00 / each

Out Of Stock

Catalog Number: 733887

Part Name: Belt wheel

Price: $0.00 / each

Out Of Stock

Catalog Number: 733888

Part Name: Fan wheel

Price: $0.00 / each

Out Of Stock

Catalog Number: 733889

Part Name: Flywheel

Price: $0.00 / each

Out Of Stock

Catalog Number: 733890

Part Name: Swing head fixed base welding(L)

Price: $0.00 / each

Out Of Stock

Catalog Number: 733891

Part Name: Swing head fixed base welding(R)

Price: $0.00 / each

Out Of Stock

Catalog Number: 733892

Part Name: Left movable handlebar post

Price: $0.00 / each

Out Of Stock

Catalog Number: 733893

Part Name: right movable handlebar post

Price: $0.00 / each

Out Of Stock

Catalog Number: 733894

Part Name: Bracket for left pedal

Price: $0.00 / each

Out Of Stock

Catalog Number: 733895

Part Name: Bracket for right pedal

Price: $0.00 / each

Out Of Stock

Catalog Number: 733896

Part Name: Left fixing bracket for pedal

Price: $0.00 / each

Out Of Stock

Catalog Number: 733897

Part Name: Right fixing bracket for pedal

Price: $0.00 / each

Out Of Stock

Catalog Number: 733898

Part Name: Console Set

Price: $0.00 / each

Out Of Stock

Catalog Number: 733899

Part Name: frame set

Price: $0.00 / each

Out Of Stock

Catalog Number: 733900

Part Name: Chain cover set

Price: $0.00 / each

Out Of Stock

Catalog Number: 733901

Part Name: cable set

Price: $0.00 / each

Out Of Stock

Catalog Number: 733902

Part Name: Belt set

Price: $0.00 / each

Out Of Stock

Catalog Number: 733903

Part Name: Upper Carton

Price: $0.00 / each

Out Of Stock

Catalog Number: 733904

Part Name: Lower Carton

Price: $0.00 / each

Out Of Stock

Catalog Number: 733905

Part Name: Registration card

Price: $0.00 / each

Out Of Stock

Catalog Number: 733906

Part Name: Brochure

Price: $0.00 / each

Out Of Stock

Catalog Number: 733907

Part Name: Barcode label

Price: $0.00 / each

Out Of Stock

Catalog Number: 733908

Part Name: EN label

Price: $0.00 / each

Out Of Stock

Catalog Number: 733909

Part Name: #6003ZZ bearing

Price: $0.00 / each

Out Of Stock

View Drawing

Chat with us

Horizon Fitness - Peak Trainer - HT5.0 - EP031 - 2019 - 2018-2022

Exploded Diagrams

general Info

Customer Service

About us

Address
