Brand: Horizon Fitness
Category: Traditional
Type: Elliptical

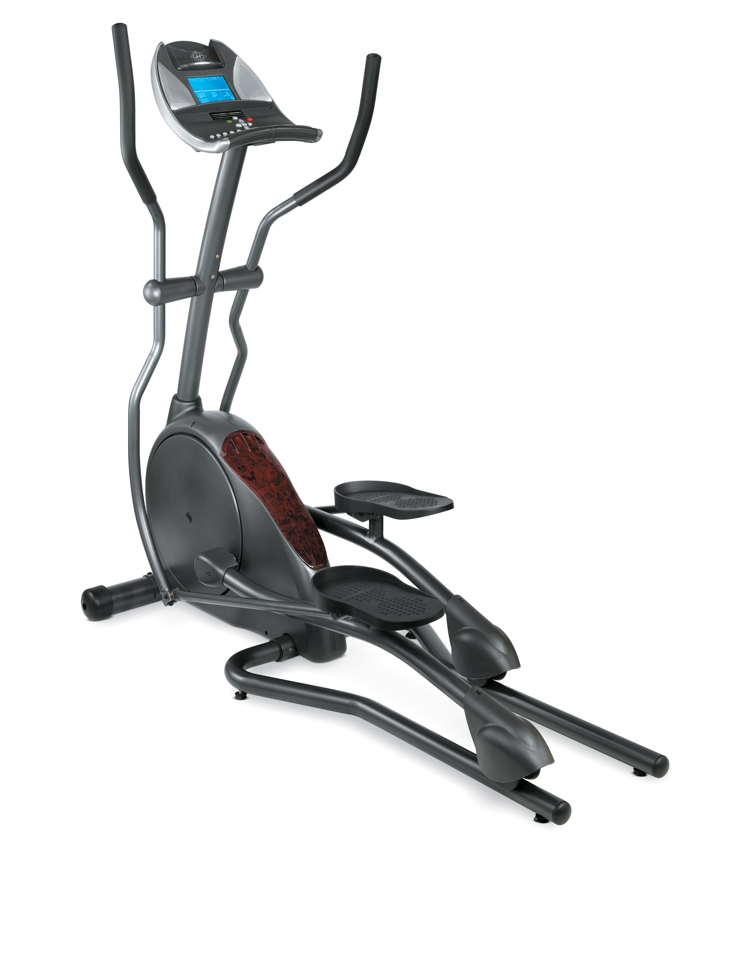

Model Name: SMEXE
Version: 2005
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
XImage | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
---|---|---|---|---|---|---|---|---|---|
![]() |
700009 | 000014-00 | L05 | Transport Wheel | Yes | Model Compatibility List | $9.57 / Each |
||
![]() |
700033 | 000130-F | Q01 | Side Cover;Right | Yes | Model Compatibility List | $49.71 / Each |
||
![]() |
700051 | 000203-C | Q15 | Boot;Console Mast | No | Model Compatibility List | $3.54 / Each |
||
700132 | 000485-00 | F09 | Leveler;Rubber;W3/8-16UNC | Yes | Model Compatibility List | $9.09 / Each |
|||
![]() |
700135 | 000491-B | F08 | Wing Nut;Leveler;W3/8-16UNC;BED BL SPC | No | Model Compatibility List | $2.47 / Each |
||
![]() |
700191 | 000609-A | G21 | Foam Grip;Handlebar;31.8x28x3.0tx500L | No | Model Compatibility List | $9.57 / Each |
||
![]() |
700366 | 001138-B | E56 | Cover;Pedal Arm;Right | Yes | Model Compatibility List | $3.82 / Each |
||
![]() |
700368 | 001139-B | E57 | Cover;Pedal Arm;Left D/C, NO REPL: Part will show as orderable until stock is depleted | No | Model Compatibility List | $7.72 / Each |
||
![]() |
700376 | 001161-C | Q19 | Plate;Power Socket | Yes | Model Compatibility List | $5.00 / Each |
||
![]() |
700385 | 001188-B | E62 | Cover;Roller Wheel | Yes | Model Compatibility List | $12.77 / Each |
||
![]() |
700432 | 001360-00 | L02 | Sleeve;Mobile Wheel | Yes | Model Compatibility List | $3.82 / Each |
||
![]() |
700455 | 001412-A | Q17 | End Cap;Crank Cover | No | Model Compatibility List | $1.77 / Each Out Of Stock |
||
![]() |
700532 | 001544-BB | Q03 | Crank Cover;Round Disk | No | Model Compatibility List | $29.67 / Each |
||
![]() |
700770 | 002231-B | P01 | Speed Sensor Wire;2 Prong;280mm | Yes | Model Compatibility List | $9.57 / Each |
||
700893 | 002671-A | KIT | Audio Wire;Three-D Earphone | Yes | Model Compatibility List | $9.99 / Each |
|||
![]() |
700901 | 002703-A | P07 | Zero Switch Cable; 100 OMRON + 2.5-2P | No | Model Compatibility List | $9.57 / Each |
||
![]() |
701008 | 003307-00 | KIT | Chest Strap;Polar;T34/T41 | No | Model Compatibility List | $76.65 / Each |
||
![]() |
701042 | 003413-00 | R37 | Magnet;Crank Wheel;15x7t | No | Model Compatibility List | $4.00 / Each |
||
![]() |
701051 | 003486-A2 | P09 | Power Adapter;14.5Volts;2M 120V/60Hz 14.5V/1A | No | Model Compatibility List | $76.65 / Each |
||
![]() |
701127 | 003948-D | R03 | Flywheel Set w/ ECB Set; 8.0KG | No | Model Compatibility List | $182.26 / Each |
||
![]() |
701154 | 004072-A2 | E25 | Ball Bearing;Flywheel;6002ZZ | No | Model Compatibility List | $11.60 / Each |
||
![]() |
701159 | 004077-A2 | R08 | Ball Bearing;6004ZZ;20X42X12T;;SKF;;; | No | Model Compatibility List | $20.05 / Each |
||
![]() |
701176 | 004102-00 | E18 | Needle Bearing; HK1616 | No | Model Compatibility List | $9.57 / Each |
||
![]() |
701221 | 004189-A | R10 | Drive Belt;Poly-V;410-J8 | Yes | Model Compatibility List | $57.49 / Each |
||
![]() |
701270 | 004331-AB | L08 | Screw,oval head; M6x1.0Px25L | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701294 | 004359-00 | Q42 | Screw;Phillip;BH;M4x0.7Px10L;Gap; | No | Model Compatibility List | $1.79 / Each |
||
701300 | 004364-00 | Z13 | Screw;Oval Head;M5x0.8Px12L | No | Model Compatibility List | $2.00 / Each |
|||
701308 | 004369-00 | N54 | Screw;Phillip;BH;M5x0.8Px15L;BED; | No | Model Compatibility List | $2.00 / Each |
|||
701577 | 004612-00 | S55 | Screw;Phillip;BH;Tapped;3x8L | No | Model Compatibility List | $2.00 / Each |
|||
701586 | 004617-00 | Q30 | Screw;Console Case;Oval Tapping;4x15L | No | Model Compatibility List | $2.00 / Each |
|||
701588 | 004618-00 | Z09 | Screw;Oval Tapping;4x20L | No | Model Compatibility List | $2.00 / Each |
|||
701591 | 004620-00 | S04 | Screw;Self Tapping;4x12L | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
701613 | 004632-00 | E64 | Screw;Phillip;BH;Tapped;4x16L | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701633 | 004654-00 | Z12 | SCREW;RND;Diam.4X15L;SM;PH;;BZN;;POT | No | Model Compatibility List | $3.69 / Each |
||
![]() |
701635 | 004660-A | Q44 | Screw;Oval Tapping;5x15L | No | Model Compatibility List | $2.00 / Each |
||
701699 | 004724-00 | Z10 | Bolt;M8x1.25Px15L | Yes | Model Compatibility List | $2.00 / Each |
|||
![]() |
701714 | 004731-00 | E21 | SCREW;BH;M8X1.25PX95L;;HS;;;; | No | Model Compatibility List | $3.33 / Each |
||
701731 | 004757-00 | Z04 | Screw;Oval;Hex Socket;M8x1.25Px12L | No | Model Compatibility List | $2.00 / Each |
|||
701737 | 004762-00 | Z01 | Screw;Hex Socket;BH;M8x1.25Px70L | No | Model Compatibility List | $2.00 / Each |
|||
701781 | 004796-00 | Z15 | Bol;M8x1.25Px20L | Yes | Model Compatibility List | $2.00 / Each |
|||
![]() |
701830 | 004849-00 | Z11 | Set Screw;M8x1.25Px10L | No | Model Compatibility List | $2.00 / Each |
||
701848 | 004865-00 | J06 | Screw;Self Tapping;4x10L | No | Model Compatibility List | $2.00 / Each |
|||
701858 | 004880-00 | P51 | Nut;Zero Switch Cable;M3x0.5Px3H | No | Model Compatibility List | $2.00 / Each |
|||
701869 | 004891-00 | R16 | Nut;Hex;3/8-26UNCX9H | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
701870 | 004892-00 | R18 | Nut;Hex;3/8-26UNCX4H | No | Model Compatibility List | $2.00 / Each |
||
701897 | 004926-00 | H08 | Nut;Nylon;M8x1.25P | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
701904 | 004931-00 | R15 | Nut;Locking;Nylon;1/4"--20UNC | No | Model Compatibility List | $1.59 / Each |
||
![]() |
701906 | 004932-Z | Z02 | Nut;Nylon;M8x1.25P | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701912 | 004941-00 | Z07 | Nut;Nylon;M10x1.5P | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701927 | 004964-00 | R11 | Nut;Hex;Flange;M10x1.25P;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
701934 | 004972-00 | F05 | Insert Nut;Brass;ALS7-616-150(0.02-0.15) | No | Model Compatibility List | $1.90 / Each |
|||
![]() |
701937 | 004973-00 | C11 | Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) | No | Model Compatibility List | $1.90 / Each |
||
701939 | 004975-00 | L03 | Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) | No | Model Compatibility List | $1.90 / Each |
|||
![]() |
701988 | 005026-00 | G20 | Washer;Flat;25.5x35.0x1.0T | No | Model Compatibility List | $2.00 / Each |
||
702018 | 005053-00 | G22 | Washer;Flat;8.2x27.0x2.0T | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
702020 | 005055-00 | E67 | Washer;Flat;16.2x28.7x1.5T | No | Model Compatibility List | $2.00 / Each |
||
702040 | 005070-00 | L10 | Washer;Flat;6.5x14x1.0T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
702063 | 005091-00 | Q43 | Washer;Flat;4.2X10.0X1.2T;BAN | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702066 | 005094-00 | S54 | Washer;Flat;3.2x8.0x1.0T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
702076 | 005109-00 | E69 | Washer;Flat;8.5x25x1.5T;Black Zinc | No | Model Compatibility List | $1.59 / Each |
|||
![]() |
702078 | 005110-00 | G12 | Washer;Flat;8.2x35x2.0T;Black Zinc | Yes | Model Compatibility List | $9.99 / Each |
||
702135 | 005163-00 | Z03 | Washer;Arc;8.4x17x1.0T | No | Model Compatibility List | $2.57 / Each |
|||
![]() |
702141 | 005171-A | E63 | Washer;Arc;4.2x15x1.0T | No | Model Compatibility List | $1.85 / Each |
||
702161 | 005198-00 | H07 | Washer;Teflon;15.9x28.4x1.0T | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
702163 | 005200-A | G23 | Washer;Teflon;18.2X30.0X1.0T | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702166 | 005206-BB | Z06 | Washer;Teflon;10.4x24.75x1.5T | No | Model Compatibility List | $4.00 / Each |
||
![]() |
702180 | 005222-00 | E13 | Washer;Wavy;16.7x22.5x0.3T | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702184 | 005227-Z | G19 | Washer;Wavy;26x34x0.3T | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702186 | 005229-00 | Z08 | Washer;Wavy;20.5x29.0x1.5T;Nylon | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702193 | 005239-00 | R51 | Washer;Lock;10.0x20.0x1.0T | No | Model Compatibility List | $2.00 / Each |
||
702217 | 005330-00 | Q26 | Tinnamen Nut | Yes | Model Compatibility List | $1.59 / Each |
|||
![]() |
702236 | 005361-00 | E54 | C-Clip;External;S-15 | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702237 | 005362-00 | E68 | C-Clip;External;S-16 | No | Model Compatibility List | $1.59 / Each |
||
![]() |
702240 | 005365-00 | R34 | C-Clip;External;S-20 | No | Model Compatibility List | $1.79 / Each |
||
![]() |
702241 | 005366-00 | G15 | C-Clip;External;S-25 | No | Model Compatibility List | $1.59 / Each |
||
![]() |
702483 | 007964-00 | Q25 | Connecting Plate;Side Cover | Yes | Model Compatibility List | $1.90 / Each |
||
![]() |
702511 | 008393-00 | P04 | Bracket;Speed Sensor | No | Model Compatibility List | $1.90 / Each |
||
![]() |
702512 | 008394-00 | R14 | Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 | No | Model Compatibility List | $1.51 / Each |
||
![]() |
702571 | 008692-D | G09 | Inner Bushing;Lower Link Arm | No | Model Compatibility List | $1.90 / Each |
||
![]() |
702907 | 013194-Z | AE3 | Pivot Tube Set | No | Model Compatibility List | $57.49 / Each |
||
![]() |

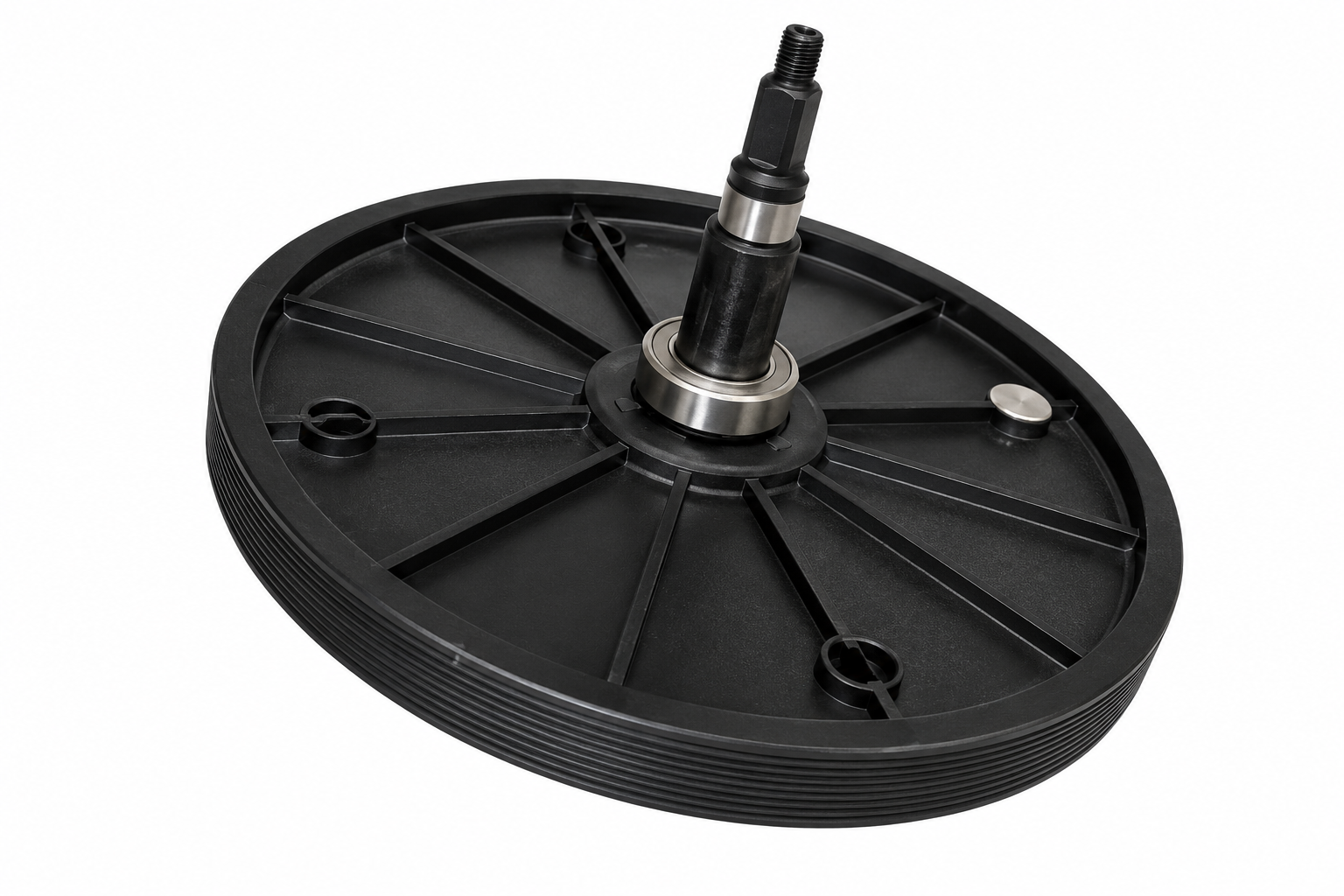

702909 | 013200-Z | R01 R02 | Pedal Axle Set | No | Model Compatibility List | $157.64 / Each |
||
![]() |
702911 | 013209-Z | E03 | Roller Wheel Set | Yes | Model Compatibility List | $57.49 / Each |
||
![]() |
702912 | 013224-Z | KIT | DC Motor Set w/ Zero Switch Cable; | No | Model Compatibility List | $172.46 / Each |
||
![]() |
702914 | 013237-ZL | AH2 | Lower Link Arm Set;Left D/C, NO REPL: Part will show as orderable until stock is depleted. | No | Model Compatibility List | $99.24 / Each |
||
![]() |
702915 | 013237-ZR | AH1 | Lower Link Arm Set;Right | No | Model Compatibility List | $99.24 / Each |
||
![]() |
703570 | 015523-BE | AJ1 | Crank Set;Left/Right | Yes | Model Compatibility List | $57.49 / Each |
||
![]() |
703582 | 015589-AA | E42 | Connecting Plate;Footpad;Platinum | Yes | Model Compatibility List | $9.57 / Each |
||
![]() |
704233 | 020700-00 | E04 | Pin;Thread;Cross;M4x12L; D/C, NO REPL: Part will show as orderable until stock is depleted. | No | Model Compatibility List | $1.77 / Each |
||
705700 | 055204-A | L06 | Screw;SelfTapping;4x10L | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
725255 | 103295 | E32 | Bushing;Pedal Arm Axle;31.8x3.0tx329mm | No | Model Compatibility List | $20.12 / Each |
||
![]() |
725256 | 103296 | G11 | Bushing | No | Model Compatibility List | $9.57 / Each |
||
725259 | 103299 | H09 | Bushing;Pedal Arm | No | Model Compatibility List | $10.01 / Each |
|||
![]() |
729396 | ZMS2000030 | KIT | Crank puller;22mm | No | Model Compatibility List | $38.32 / Each |
||
![]() |
911968 | 004620-00 | S04 | Self Tapping Screw 4X12L (New) | No | Model Compatibility List | $12.99 / Each |
||
![]() |
976932 | 004926-00 | H08 | Nylon Lock Nut M8x1.25P (New) | No | Model Compatibility List | $12.99 / Each |
||
![]() |
957398 | 005330-00 | Q26 | Gear Rower Retainer Clip (New) | Yes | Model Compatibility List | $11.99 / Each |
||
![]() |
971749 | 003307-00 | KIT | Rate Chest Strap (New) | No | Model Compatibility List | $194.99 / Each |
||
|
