Horizon Fitness - T101-04 - 2013

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700248 000773-AA B46 Elastomer;Running Deck;B;30x44L;;TM140 No Model Compatibility List $19.14 / Each

700291 000877-B M06 Rubber Pad;Motor;Anti-Shake Yes Model Compatibility List $2.18 / Each

H 700327 000977-00 H14 Sleeve;Outer No Model Compatibility List $3.82 / Each

700893 002671-A N51 Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

P 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $2.00 / Each

P 701363 004415-00 P13 Screw;FH;M3X0.5PX10L;;PH;;ZN;; No Model Compatibility List $2.00 / Each

701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

R 701478 004525-00 R05 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $7.20 / Each

B 701544 004571-00 B28 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $2.00 / Each

701561 004592-00 M14 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

P 701574 004608-00 P16 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $2.00 / Each

701579 004613-00 N39 Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B No Model Compatibility List $2.00 / Each

N 701583 004615-00 N36 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

701588 004618-00 C16 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
701590 004619-AB N37 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

Z 701599 004623-00 Z03 Screw;Phillip;BH;Tapped;4x12L;BED;Gap; No Model Compatibility List $2.00 / Each

N 701614 004633-00 N35 Screw;Phillip;BH;Tapped;5x10L;;Zn-BL No Model Compatibility List $1.85 / Each

2
K 701735 004759-00 K11 Screw;Hex Socket;BH;M10x1.5Px45L(Tooth15 No Model Compatibility List $2.00 / Each

H 701749 004773-00 H27 Screw;Hex Socket;BH;M8x1.25Px35L No Model Compatibility List $1.59 / Each

2
701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $2.00 / Each

701848 004865-00 P06 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 H32 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M17 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

M 701912 004941-00 M18 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

701934 004972-00 K15 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

701939 004975-00 B39 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701964 005005-00 M09 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

702092 005125-00 B22 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

M 702136 005165-00 M16 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

702145 005177-00 P18 Washer;Tooth;5.3X10.0X0.6T;BAN No Model Compatibility List $2.00 / Each

H 702152 005188-00 H30 Washer;Teflon;8.0X15.0X1.0T No Model Compatibility List $2.00 / Each

702160 005196-00 H07 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

702325 006078-00 V18 Decal;Grounding;TM08 No Model Compatibility List $1.90 / Each

P 703918 019353-A P10 Connecting Cable;Socket/Breaker No Model Compatibility List $1.51 / Each

4,5,6
P 703928 019458-A P04 MCB POWER CABLE(R) No Model Compatibility List $1.90 / Each

H 704129 020297-00 H22 Screw;BH;M8X1.25PX45L;;HS;;BZN;;BP No Model Compatibility List $2.00 / Each

2
M 704203 020478-00 M33 Washer;Flat;10.2x20.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

B 705259 039400-BA B25 Transport Wheel;Nylon Yes Model Compatibility List $9.57 / Each

N 705286 040614-A N69 Ground Wire;250 Yes Model Compatibility List $3.82 / Each

705313 040816-A N33 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

K 705382 049024-BA K14 Flat;;;50C;TM196-K12B Yes Model Compatibility List $6.42 / Each

705893 056437-00 N90 Absorptive Plate;Zinc;15x25 No Model Compatibility List $1.90 / Each

P 706239 060478-C P01 Bracket;Speed Sensor No Model Compatibility List $3.82 / Each

2,3,4,5,6
P 706351 061302-A P03 PowerSocket,,80,750,100+200,250 180?,16A No Model Compatibility List $19.14 / Each

4,5,6
707096 1000090314 Z02 SCREW;SH;M8X1.25PX20L;;HS;G8.8;BAN;;BP No Model Compatibility List $2.00 / Each

2
P 707102 1000090322 P11 SCREW BH M5X15 CHM No Model Compatibility List $2.00 / Each

2
K 707367 1000092332 K13 End Cap;Elevation Frame No Model Compatibility List $3.82 / Each

9,3,10
H 707758 1000094874 H19 Connecting Axle;Elevation Shock No Model Compatibility List $3.82 / Each

707759 1000094875 H20 Spring No Model Compatibility List $4.00 / Each

K 707760 1000094876 K50 Leveler Foot;Base;PVC;3/8-16UNC;BLACK;TM616 Yes Model Compatibility List $6.42 / Each

A 707768 1000094931 AH4 Lock Latch Set;Galvanization;TM616 No Model Compatibility List $10.01 / Each

707769 1000094932 H21 C Clip;Combined With 6mm Axle No Model Compatibility List $1.90 / Each

2,8
N 707863 1000096517 N55 Speaker;3W8;XHS-2Y;400MM Yes Model Compatibility List $25.04 / Each

1
707911 1000096854 P33 Power Cord;USA;16AWG;Long2M Yes Model Compatibility List $57.49 / Each

H 707990 1000097464 H24 Single Foam;One-Sided;27x20x1.5t;Black No Model Compatibility List $1.90 / Each

H 708088 1000099273 H23 Decal;Insert Tube;protected piece No Model Compatibility List $1.90 / Each

N 708240 1000101409 N75 CTL Board;Earphone;SOO0806A No Model Compatibility List $9.57 / Each

1
708243 1000101465 M02 Incline Motor;AC Elevation;110V;80mm;225;JM14 Yes Model Compatibility List $249.13 / Each

28
B 708446 1000102862 B24 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $2.00 / Each

A 708634 1000104595 AN4 Reed Switch Yes Model Compatibility List $24.69 / Each

4,5,6
N 708728 1000105102 N53 Trumpet;3W8?[;XHS-2Y;300MM No Model Compatibility List $11.49 / Each

709055 1000108777 B26 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $2.00 / Each

M 709205 1000111068 M01 Motor Control Board;1.5-2HP/110V Yes Model Compatibility List $401.52 / Each

M 709405 1000114107 M15 Screw;Hex;M10x55L-14L;BED No Model Compatibility List $2.00 / Each

Q 709411 1000114149 Q02 Cover;Motor;Down;;PP;TM639-1US No Model Compatibility List $37.39 / Each

P 709474 1000200540 P08 Speed Sensor Wire;1000mm(CKM 25430101-03) Yes Model Compatibility List $28.73 / Each

709817 1000203515 V31 WARNING LABEL;POWER CORE;;;;; No Model Compatibility List $1.77 / Each

R 709878 1000204234 R04 Screw;Round;M8X1.25PX80L-75L;MT;HS; Yes Model Compatibility List $11.41 / Each

P 710007 1000205896 P05 WIRE;CTRL BOARD PWR;;BLACK;;250LOCK150L; No Model Compatibility List $3.82 / Each

4,5,6
N 710158 1000207014 N43 SAFETY KEY SET;-;TM641;-; Yes Model Compatibility List $40.14 / Each

710421 1000210190 V06 Warning Label;OVERLAY;WHITE WORD/BLACK B No Model Compatibility List $1.33 / Each

711070 1000216278 P14 Static/Ground Wire;Deck;;;TM639-1US; No Model Compatibility List $3.82 / Each

B 711097 1000216462 B48 Fixing Bumper CBLACKTM616-1US Yes Model Compatibility List $14.77 / Each

V 711169 1000217183 V11 WARNING LABEL;#;WHITE WORD/BLACK#TM660; No Model Compatibility List $1.40 / Each

V 711170 1000217184 V29 WARNING LABEL;#;WHITE WORD/BLACK#TM660; No Model Compatibility List $1.40 / Each

B 711282 1000219455 B41 AIR STICK;DAMPING;45KG;STROKE 235; No Model Compatibility List $28.73 / Each

4,5,6,12,13,14
N 712026 1000225256 N06 SAFETY KEY;FIXING BASE;TM444 No Model Compatibility List $2.00 / Each

9,3
N 712195 1000227404 N47 CONTROL BOARD;;3W;HEPD No Model Compatibility List $9.57 / Each

7
R 712198 1000227461 R03 Belt;POLY-V;Flexonic;8PJ 430;Print Logo; Yes Model Compatibility List $57.49 / Each

15
B 712392 1000228690 B42 SCREW;BH;M8X1.25PX30L;;;HS;G12.9;BZN; No Model Compatibility List $2.00 / Each

M 712393 1000228691 M80 NUT;NLK;M8X1.25P;G12;BZN;; No Model Compatibility List $2.00 / Each

N 712898 1000231347 Not Shown MANUAL;TM SAFETY DIRECTION;EN/FR/SP;TM63 No Model Compatibility List $9.57 / Each

9
H 713032 1000232619 H04 SUPPORT LOCK,INSERT TUBE,BLACK,PP,TM439 No Model Compatibility List $1.90 / Each

713095 1000233055 AH1 ELEVATION RACK SET;;;;;PAINTING;DM362 MA No Model Compatibility List $65.13 / Each

4,5,6,10
N 713096 1000233057 N08 Fixing Plate;Fan;-;painting;DM362;TM683 No Model Compatibility List $9.57 / Each

8,3
713105 1000233126 B27 Finished treadmill deck;;675x1220x18T;NA No Model Compatibility List $249.13 / Each

3
713106 1000233127 C15 Cap;Console Mast;-;-;Black Yes Model Compatibility List $1.90 / Each

9
C 713107 1000233128 C14 END CAP;;;;;BL;HANDLEBAR;;TM683-1US; No Model Compatibility List $1.90 / Each

9,11
H 713131 1000233222 H08 Insert Tube Set;-;-;painting;DM362;TM683 No Model Compatibility List $9.57 / Each

3
A 713132 1000233223 AH3 SLEEVE SET;PAINTING;DM362 MATTE;TM683 No Model Compatibility List $11.49 / Each

3
3 713133 1000233224 3 Sleeve Set;Semi-Assy;;;;TM683;; No Model Compatibility List $28.73 / Each

3
N 713205 1000300235 N61 Documentation;Overlay;Assembly;UP;Englis No Model Compatibility List $38.32 / Each

3
N 713216 1000300271 N63 Documentation;Overlay;Assembly;Left;-;T1 No Model Compatibility List $19.14 / Each

3
N 713217 1000300272 N64 Documentation;Overlay;Assembly;Right;-;T No Model Compatibility List $19.14 / Each

3
N 713218 1000300273 N65 Documentation;Overlay;Assembly;M/L;-;Key No Model Compatibility List $19.14 / Each

9,3
N 713221 1000300283 N60 (Up)Control panel;DC;DC;HCPE;S101_08;;T1 No Model Compatibility List $301.13 / Each

7,4,5,6
1 713249 1000300451 1 Console mast set;Semi-Assy;left;TM684;- No Model Compatibility List $191.62 / Each

7
2 713250 1000300452 2 Console mast set;Semi-Assy;right;TM684;- No Model Compatibility List $191.62 / Each

7

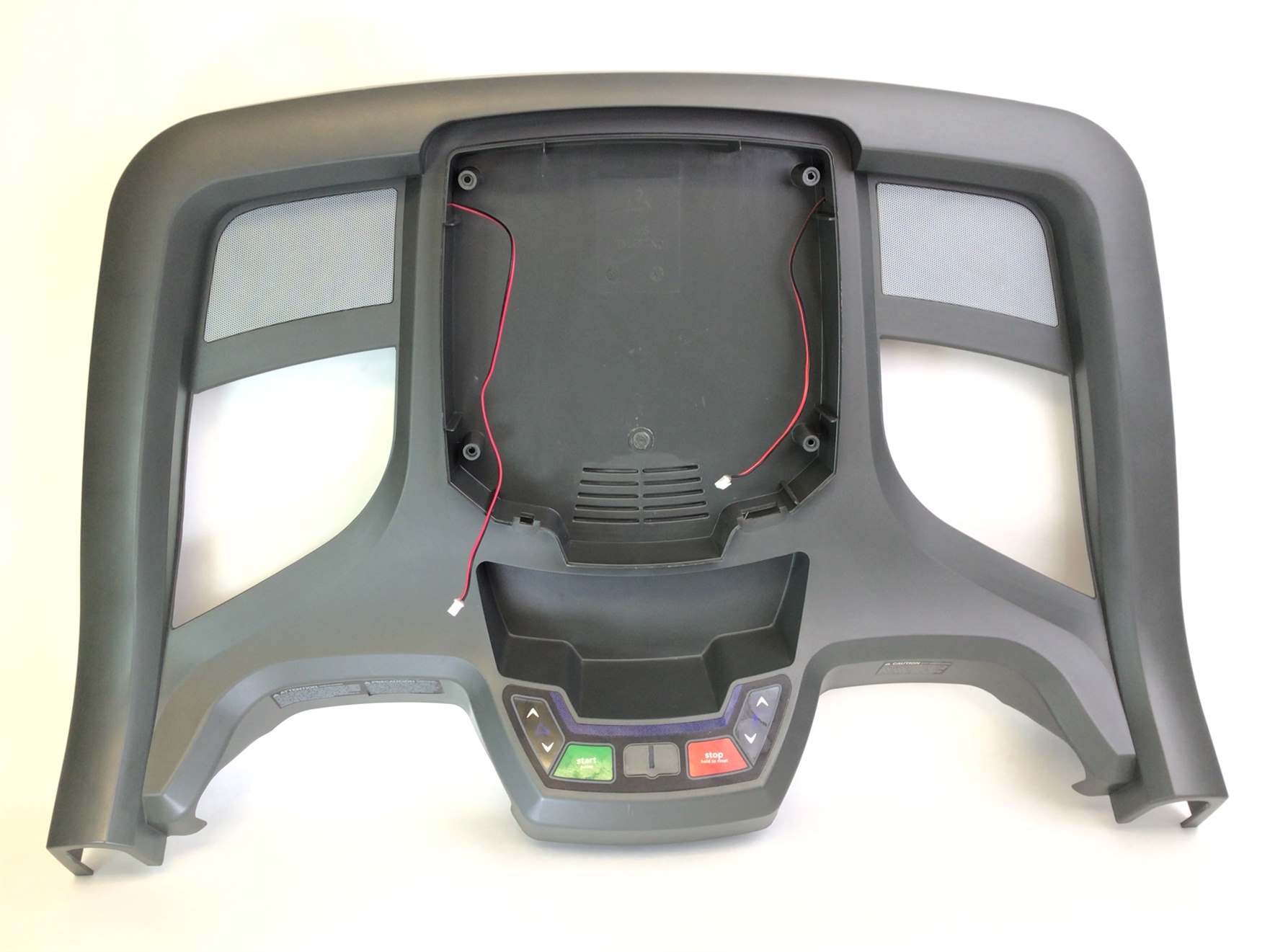

N 713251 1000300463 N01 Console Base Casing;-;-;HIPS;- No Model Compatibility List $65.13 / Each

30
N 713252 1000300465 N15 Kettle;-;left;cup holder tray Yes Model Compatibility List $12.17 / Each

9
N 713253 1000300466 N16 Kettle;-;Cup Holder Right Yes Model Compatibility List $12.17 / Each

9
N 713254 1000300470 N02 Console Faceplate;-;-;HIPS;MM314;TM684 No Model Compatibility List $57.49 / Each

7,3,4,5,6
N 713255 1000300471 N04 Loudspeaker Cover;-;L;Metal Net;MM314;TM No Model Compatibility List $19.14 / Each

9,3
N 713256 1000300472 N05 Loudspeaker Cover;-;Rt;Metal Net;MM314;T No Model Compatibility List $19.14 / Each

9,3
A 713257 1000300474 AN1 Console Base Frame Set;-;-;painting;DS02 No Model Compatibility List $88.14 / Each

7,3
A 713258 1000300482 AR1 Roller Set;Front;;Texture;TM684 No Model Compatibility List $191.62 / Each

1
N 713260 1000300492 Not Shown Hardware Set;Semi-Assy;;;;TM684;; No Model Compatibility List $20.05 / Each
Out Of Stock
1
N 713262 1000300497 N56 Key wire;-;-;500L;XHS2.5-6P No Model Compatibility List $3.82 / Each

4
713263 1000300504 AB1 Frame Set;-;-;painting;DM362;Sandy;TM684 No Model Compatibility List $0.00 / Each
Out Of Stock
3
713267 1000300563 V54 Bar Code Label;;;;;;;TM684 No Model Compatibility List $0.00 / Each
Out Of Stock
1
N 713283 1000300638 N03 Console Down Cover;-;-;PP;Q758-3-1;TM684 No Model Compatibility List $3.82 / Each

7,9
P 713288 1000300763 P32 Console connected wire;-;UP2;Black;600L; Yes Model Compatibility List $16.07 / Each

4
V 713291 1000300790 V24 Warning Label;-;-;PET;-;English/French/S No Model Compatibility List $1.90 / Each

1
713293 1000300792 V20 Warning Label;;TM453;;PET;;English/Frenc No Model Compatibility List $2.29 / Each

713296 1000300797 6 Motor Cover Set;-;-;TM684;- No Model Compatibility List $0.00 / Each
Out Of Stock
9,10
Q 713297 1000300798 Q01 Motor Cover-Exreawork;-;-;Screen print;T No Model Compatibility List $42.15 / Each

9,10
713300 1000300812 V08 Warning Label;Hook;;;PET;;;TM616; No Model Compatibility List $0.00 / Each
Out Of Stock
B 713351 1000301864 B58 Cushion;-;-;Conduct Rubber;BL/Black C;TM No Model Compatibility List $1.90 / Each

713396 1000302146 V05 Spec Label;ETL;;;;;;TM684 No Model Compatibility List $0.00 / Each
Out Of Stock
1
R 713445 1000303302 R02 Treadmill Belt;495x2910x1.4T;Black;Diamo No Model Compatibility List $230.67 / Each

15,4,5,6
Q 713446 1000303311 Q07 Side Rail-Extrawork;-;right;Screen print No Model Compatibility List $32.55 / Each

9
713447 1000303312 Q06 Side Rail-Extrawork;-;left;Screen print; No Model Compatibility List $32.55 / Each

9
B 713468 1000303759 B57 Cap;Square Tube;-;PP;BL/Black C;25.0x50. No Model Compatibility List $1.90 / Each

9,3,4,5,6
P 713473 1000303934 P30 Console;-;Middle;1150L;SM-9Ax2 Yes Model Compatibility List $18.67 / Each

4
713476 1000303986 V25 Cable Tie;;KSS TCV-155;171.5mm;Nylon;Bla No Model Compatibility List $0.00 / Each
Out Of Stock
2,4,5,6
P 713522 1000304484 P02 Power Switch;Single Pole;W/ Light;125V;- No Model Compatibility List $9.57 / Each

4,5,6
N 713537 1000304795 N50 LOGO Label;;Diam.30;AL; No Model Compatibility List $3.82 / Each

1
Q 713621 1000305836 Q08 Spec Label;Side Rail;;Left No Model Compatibility List $1.90 / Each

9
Q 713622 1000305841 Q09 Direction Label;Side Rail;;Right No Model Compatibility List $1.90 / Each

9
Z 713665 1000306257 Z01 Screw;Round Head;M8X1.25PX60L-30L;;Hex S No Model Compatibility List $2.00 / Each

N 713695 1000306605 N59 VF;;;130L 2.0_3Px2 No Model Compatibility List $3.82 / Each

1
N 713760 1000307577 N58 POWER AMPLIFIER-AUDIO WIRE;;;;;;;; No Model Compatibility List $3.82 / Each

4,5,6
V 713797 1000308345 V15 POP Sticker;Kettle;T101-04;;;Left;; No Model Compatibility List $3.82 / Each

12,13,14
V 713798 1000308346 V16 POP Sticker;Kettle;T101-04;;;Right;; No Model Compatibility List $3.82 / Each

12,13,14
V 713799 1000308347 V17 POP Sticker;Motor Cover;T101-04;;;;; No Model Compatibility List $3.82 / Each

9,10,12,13,14
5 713871 1000309086 5 Console Set;;;;TM684;; Yes Model Compatibility List $766.56 / Each

7
4 713872 1000309087 4 Motor Set;;;;TM684;; No Model Compatibility List $454.19 / Each

10
P 714862 1000318763 P09 BIBO Filter;Power;16A;;BF1101-16A-02;120V/250 Yes Model Compatibility List $55.56 / Each

717420 1000344947 B19 Bearing;Dry;;18/12x10x5.5;Siao Yang; No Model Compatibility List $6.68 / Each

H 718570 1000351528 H06 Screw;Special;M8x1.25Px11L-D10x13.2L;;;4 No Model Compatibility List $1.85 / Each

N 720172 1000369074 N49 Exchanged Board;Keypad;;SOO1301;;;T101S; No Model Compatibility List $11.88 / Each

7
N 720190 1000369187 N62 Manipulate Overlay;;Down;English;One pie No Model Compatibility List $38.32 / Each

1
725190 102531 N31 Cooling Fan;TM604-N33 Yes Model Compatibility List $26.81 / Each

Screw;Phillip;Big Umbrella;Tapped;;4x10 726236 080875 P21 Screw;Phillip;Big Umbrella;Tapped;;4x10 No Model Compatibility List $2.00 / Each

Cap;Support Base;Rear;TM367 728326 094040 H13 Cap;Support Base;Rear;TM367 No Model Compatibility List $2.47 / Each

Earphone Jack;ABS;PA757S 728770 097076 N10 Earphone Jack;ABS;PA757S No Model Compatibility List $1.90 / Each

Pulse Sensor Set;800mm;31.8+2.5-2P JIND 728889 098282 N39 Pulse Sensor Set;800mm;31.8+2.5-2P JIND Yes Model Compatibility List $31.33 / Each

Connected Wire;IPOD-PCB;180mm(XHS-6Y)x2 728909 098803 N57 Connected Wire;IPOD-PCB;180mm(XHS-6Y)x2 No Model Compatibility List $9.57 / Each

Roller Set;Rear;TM603-1US 728961 099695 AR2 Roller Set;Rear;TM603-1US Yes Model Compatibility List $191.62 / Each

K 000089 1000094876 K50 1 Leveling Foot Leveler Yes Model Compatibility List $19.99 / Each

A 013226 1000300482 AR1 1 Front Drive Roller with Pulley No Model Compatibility List $211.89 / Each

1
DC Drive Motor Johnson 1000111822 JM05-015 0 1 DC Drive Motor Johnson Yes Model Compatibility List $674.57 / Each

1
Spring Deck (Used) 1026014 018951-A B48 1 Spring Deck (Used) Yes Model Compatibility List $7.40 / Each

N 1026994 1000300463 N01 1 Housing Console (Used) No Model Compatibility List $49.99 / Each
Out Of Stock
30
Roller Rear 1002632 099695 0 1 Roller Rear Yes Model Compatibility List $167.99 / Each

26
M 1003455 1000111068 M01 1 Controller Motor Yes Model Compatibility List $299.99 / Each

Safety Key 1003681 1000110297 0 1 Safety Key Yes Model Compatibility List $18.98 / Each

N 1003689 1000207014 N43 1 Safety Key Yes Model Compatibility List $31.99 / Each

Magnetic Safety Key 1003532 1000110297 Magnetic Safety Key Yes Model Compatibility List $31.99 / Each
B 1035628 039400-BA B25 1 Transport Wheel (Used) Yes Model Compatibility List $5.00 / Each

M 1001366 1000101465 M02 Incline Motor Elevation Yes Model Compatibility List $89.00 / Each

28
DC Drive Motor (New) 1000608 1000106039 DC Drive Motor (New) Yes Model Compatibility List $289.00 / Each
Out Of Stock
DC Drive Motor TO-RME3-JC6E JM05-015 T101 DC Drive Motor Yes Model Compatibility List $134.10 / Each
Out Of Stock
Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

B 911951 004571-00 B28 Deck screw M8X1.25PX28L (New) No Model Compatibility List $13.99 / Each

H 976932 004926-00 H32 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

P 911958 004608-00 P16 Rower Button Head Phillip Screw 3x10L (New) No Model Compatibility List $12.99 / Each

View Drawing
