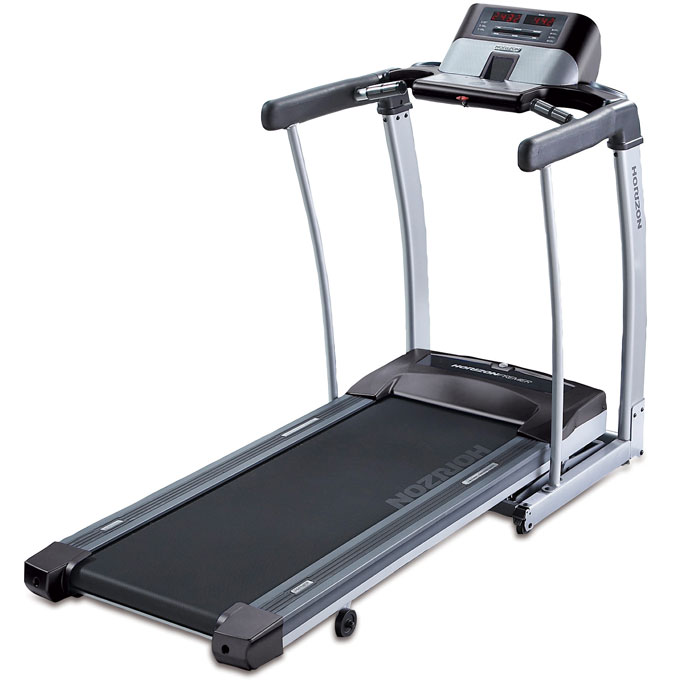

Horizon Fitness - T1201 - 2009

Repair Parts for Horizon Fitness T1201 TM371

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: T1201

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700014 000021-B B38 Mobile Wheel;Rear Deck Yes Model Compatibility List $11.62 / Each

700021 000037-CA B79 Transport Wheel;Frame Yes Model Compatibility List $6.42 / Each

3,8
K 700023 000038-C K22 Wheel;Base Frame Stabilizer Yes Model Compatibility List $3.82 / Each

700152 000522-D K16 Leveler Yes Model Compatibility List $11.60 / Each

700211 000682-A B44 Foam Tape;Double Sided;150x30x3t No Model Compatibility List $1.90 / Each

1
700239 000760-E B36 Elastomer;White Yes Model Compatibility List $17.34 / Each

1
B 700241 000762-G B37 Elastomer;Blue Yes Model Compatibility List $15.31 / Each

1
700318 000940-A G29 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

700402 001251-F B39 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

700570 001679-00 Z02 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

700755 002169-A P11 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
700773 002248-D P10 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
700893 002671-A N69 Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

701013 003326-00 P04 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

701020 003346-00 P05 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

701026 003363-00 P09 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
701044 003415-00 R10 Magnet;Front Roller;10X3T No Model Compatibility List $1.90 / Each

8
701300 004364-00 P29 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

P 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $2.00 / Each

P 701364 004415-Z P13 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
701375 004425-B B58 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

K 701384 004439-A K26 Screw;Phillip;Sink;M4x0.7Px40L No Model Compatibility List $2.00 / Each

701440 004483-00 R08 Screw;Round Hex Socket;M8x1.25Px25L No Model Compatibility List $1.79 / Each

701451 004496-00 R04 Screw;Hex Socket;Round;M10x1.5Px90L Yes Model Compatibility List $11.80 / Each

701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

701530 004562-00 B52 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
701558 004589-00 M10 Screw;Hex;W3/8x47L/Tooth14L Yes Model Compatibility List $2.18 / Each

B 701562 004595-00 B31 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
701570 004603-ZA M14 Screw;Hex;W3/8x60L;Tooth18L Yes Model Compatibility List $4.00 / Each

2
N 701574 004608-00 N23 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $2.00 / Each

701577 004612-00 B57 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

701579 004613-00 N26 Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B No Model Compatibility List $2.00 / Each

701590 004619-AB N30 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701591 004620-00 M24 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

N 701598 004622-00 N17 Screw;Phillip;BH;Tapped;4x8L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

701613 004632-00 Z10 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

K 701700 004724-AC K20 Screw;Hex Socket;BH;M8x1.25Px15L;Cr No Model Compatibility List $2.00 / Each

2
701717 004737-00 R09 Screw;BH;M8x1.25Px55L-20L No Model Compatibility List $2.00 / Each

2
K 701732 004758-00 K23 Screw;Hex Socket;BH;M10x1.5Px50L(Tooth20) No Model Compatibility List $2.00 / Each

2
701781 004796-00 Z09 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
Z 701841 004859-00 Z11 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701849 004867-A Q22 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
701858 004880-00 N11 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701861 004883-00 M23 Nut;Hex;M6x1.0P No Model Compatibility List $2.00 / Each

701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701893 004925-00 B73 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

701897 004926-00 R05 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M12 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

B 701918 004949-00 B55 Nut;Mobile Wheel;Nylon;3/8--16UNC;BED; No Model Compatibility List $2.00 / Each

2,8
701964 005005-00 Z07 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

702007 005044-00 R07 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

702016 005051-00 M30 Washer;Flat;8x16x1.4T No Model Compatibility List $2.00 / Each

2
702030 005062-00 B78 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

702066 005094-00 N21 Washer;Flat;3.2x8.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

702074 005106-00 R06 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

B 702091 005122-Z B74 Washer;Flat;6.5x19x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702121 005146-A M13 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

Z 702136 005165-00 Z06 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

702160 005196-00 B72 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

702217 005330-00 Q13 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

Z 702258 005394-00 Z13 Wrench;T-Type;8mm No Model Compatibility List $10.01 / Each

702259 005395-00 Z26 Wrench;T-Type;5mm No Model Compatibility List $10.01 / Each

702262 005408-A Z04 Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

702266 005421-00 Z24 Wrench;L-Type;5mm No Model Compatibility List $9.28 / Each

2
702275 005438-00 K27 Spring;Foot Lock Latch;16x2.0x50Lx12N Yes Model Compatibility List $2.00 / Each

2,9,3
702447 007387-E B08 Fixing Plate;Motor Control Board No Model Compatibility List $14.04 / Each

7,3,10
702450 007490-C B41 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

702556 008625-C B75 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $2.00 / Each

K 702561 008641-C K19 Bolt;M5x1.25Px12L-6L No Model Compatibility List $2.00 / Each

2
702787 009717-B B77 Sleeve;;;;22.2x1.0tx22L;;;;TM27 No Model Compatibility List $3.82 / Each

3
702810 010941-00 P16 Cable Tie;;1400mm; No Model Compatibility List $138.40 / Each

2,4,5,6
703397 014122-AA AR1 Front Roller Set Yes Model Compatibility List $191.62 / Each

26
703441 014682-B AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

26
703502 015046-AC P21 Fix Plate;Power Socket Yes Model Compatibility List $12.48 / Each

3,4,5,6
B 703505 015053-AJ B45 Side Rail Fixing Board No Model Compatibility List $1.77 / Each

9
703800 016990-A K21 Wheel Lock - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $23.24 / Each
8
703878 018905-AA Q35 Foam Tape;One Sided;20x5x150L No Model Compatibility List $1.90 / Each

1
703952 019968-A R03 Drive Belt;Poly-V;210-J8 Yes Model Compatibility List $60.22 / Each

23
M 703999 020085-00 M26 Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad No Model Compatibility List $1.79 / Each

2
Z 704074 020186-00 Z12 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.79 / Each

N 704087 020210-00 N38 Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
705040 032669-IF M03 Motor Control Board;Digital;2.25/2.5HP Yes Model Compatibility List $499.00 / Each

48
705076 035692-00 M28 Screw;Hex;M6x1.0Px30L No Model Compatibility List $4.00 / Each

2
M 705182 039043-00 M02 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $331.29 / Each

28
705323 040839-00 Z08 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.59 / Each

705700 055204-A Q23 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

B 705759 056048-AA B59 Screw;Phillip;Umbrella;Big;;M5x0.8Px12L; No Model Compatibility List $1.66 / Each

2
705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
706219 060295-DA KIT Digital Speed Sensor No Model Compatibility List $35.52 / Each

1
706312 061162-AC K18 Screw;Hex Socket;Sink;M8x1.25Px40L No Model Compatibility List $4.00 / Each

2
N 707314 1000091952 N65 Connect Wire;VFD-IPod;600mm500mm;TM371 No Model Compatibility List $8.87 / Each

4,5,6
Q 707315 1000091960 Q01 MOTOR COVER ONLY No Model Compatibility List $96.56 / Each

9,10
Q 707316 1000091961 Q06 Cover;L/B;painting;DM363;TM371B No Model Compatibility List $20.44 / Each

9
Q 707317 1000091962 Q07 Cover;R/B;painting;DM363;TM371B No Model Compatibility List $20.44 / Each

9
N 707318 1000091965 N02 Console Cover;D;painting;ABS;DM363;TM371 No Model Compatibility List $42.48 / Each

7,9
N 707319 1000091966 N06 Cover;Console;B;ABS;painting;DM363;TM371 No Model Compatibility List $29.48 / Each

7,9
N 707320 1000091967 N07 Console plate;ABS;painting;DM363;TM371B No Model Compatibility List $34.29 / Each

7,3
C 707356 1000092302 C01 Console Mast Set;L;Exrta-Work;Net Print; No Model Compatibility List $420.13 / Each

7
C 707357 1000092303 C02 Console Mast Set;R;Exrta-Work;Net Print; No Model Compatibility List $421.72 / Each

7
V 707358 1000092304 V01 STICKER LOGO; MOTOR COVER No Model Compatibility List $1.77 / Each

9,10
V 707359 1000092307 V04 Decal;IPOD No Model Compatibility List $1.77 / Each

7,3
V 707360 1000092308 V33 Instruction Manual;TM371-1US No Model Compatibility List $11.96 / Each

1
N 707379 1000092359 N74 UCB;T1201;H103S101 Yes Model Compatibility List $598.86 / Each

1
707387 1000092443 Q10 ACCENT PLATE No Model Compatibility List $48.07 / Each

3,4,5,6
K 707487 1000092935 KIT Wire, Audio Out to Speaker Board;300mm Yes Model Compatibility List $3.54 / Each

4,5,6
707502 1000093055 P07 Console Cable;2450L Yes Model Compatibility List $63.99 / Each

4,5,6,7
P 707503 1000093056 P03 Power Wire;VFD;2600L(VH-2Y+EL-2Y) Yes Model Compatibility List $24.39 / Each

4,5,6
707513 1000093080 AB2 ELEVATION RACK SET No Model Compatibility List $300.87 / Each

4,5,6,10
A 707514 1000093081 AG4 RIGHT HANDLEBAR SET Yes Model Compatibility List $214.32 / Each

11
A 707515 1000093082 AG3 LEFT HANDLEBAR SET Yes Model Compatibility List $214.32 / Each

11
Q 707516 1000093083 Q02 Side Rail Set;Left No Model Compatibility List $125.63 / Each

9
N 707536 1000093262 N62 Overlay;Manipulate;2(Keypad);TM371 No Model Compatibility List $95.81 / Each

9,12,13,14
K 707564 1000093420 K25 Hook;Rack;;SPC;;;;TM140;TM140-L17A No Model Compatibility List $39.70 / Each

4,5,6
707774 1000094962 Q14 Motor Cover;Lower No Model Compatibility List $41.73 / Each

9,10
Q 707856 1000096497 Q02x RIGHT SIDE RAIL SET No Model Compatibility List $125.63 / Each

9
709331 1000113141 M01 Drive Motor Set;Digital;2.75HP Yes Model Compatibility List $574.91 / Each

28
712638 1000230001 B76 Snap Ring;External;S-10; No Model Compatibility List $1.79 / Each

K 725047 101371 K13 Tape;Foam;25x150x2.0t;;BL;Single No Model Compatibility List $1.90 / Each

1
N 725169 102373 N03 Bottle Holder;L;painting;DM505;TM363 Yes Model Compatibility List $20.96 / Each

1
725170 102374 N04 Bottle Holder;R;painting;DM505;TM363 Yes Model Compatibility List $20.93 / Each

1
N 725171 102375 N05 cover;metal net;trumpet;painting;LM445; No Model Compatibility List $63.02 / Each

9,3
N 725174 102380 N09 Bracket for reed switch No Model Compatibility List $2.00 / Each

2,3,4,5,6
G 725175 102382 G06 Cover;left;Arm Rest;R;ABS;Black;TM364 No Model Compatibility List $11.18 / Each

9,3,4,5,6
G 725176 102383 G07 Cover;right;Arm Rest;R;ABS;Black;TM364 Yes Model Compatibility List $13.78 / Each

3,4,5,6,9
G 725177 102384 G08 Cover;left;Arm Rest;L;ABS;Black;TM364 No Model Compatibility List $11.18 / Each

9,3,4,5,6
G 725178 102385 G09 Cover;right;Arm Rest;L;ABS;Black;TM364 Yes Model Compatibility List $12.77 / Each

3,4,5,6,9
R 725179 102392 R02 Running Belt;B;495x3048x1.6t;pSHORIZON No Model Compatibility List $287.46 / Each

15
N 725219 103003 N08 skidproof cushion;IPOD;TM363-N08 No Model Compatibility List $1.77 / Each

3
K 725221 103010 KIT Hardware Pack - T1201 No Model Compatibility List $62.53 / Each

4,5,6
B 725242 103234 B18 Air Shock;QDY1000N;TM364 No Model Compatibility List $63.02 / Each

1
725263 103403 K28 Rear Carriage Roller; Nylon+30%G;TM369 Yes Model Compatibility List $15.29 / Each

Audio Input or Output Board 725328 069977 N78 Audio Input or Output Board Yes Model Compatibility List $30.89 / Each

725367 070670 P11 Speaker Board; Adaptor;AC100-240V;12V/1. Yes Model Compatibility List $64.04 / Each

Ipod spacer 725568 073164 N39 Ipod spacer No Model Compatibility List $1.90 / Each

Insert Boot; IPOD 725624 074262 N40 Insert Boot; IPOD Yes Model Compatibility List $3.82 / Each

Foam Holder; Ipod Nano 725675 074681 N40 Foam Holder; Ipod Nano Yes Model Compatibility List $7.00 / Each

725732 075208 M05 Motor FIX plate;;Painting;;TM284; No Model Compatibility List $22.67 / Each

725756 075998 P01 Power Wire;Control Board;;;500;16AWG+150 Yes Model Compatibility List $10.71 / Each

Sticker;Audio Out 725857 077115 V05 Sticker;Audio Out No Model Compatibility List $1.90 / Each

Grounding Wire;Pulse;;150L; 725942 078500 N68 Grounding Wire;Pulse;;150L; No Model Compatibility List $1.90 / Each

Foam Holder;Ipod Mini 725978 078843 N40 Foam Holder;Ipod Mini Yes Model Compatibility List $7.00 / Each

Foam Holder;IPOD;20/30/60/80gb 725979 078844 N40 Foam Holder;IPOD;20/30/60/80gb Yes Model Compatibility List $7.00 / Each

Screw;BH;3X6L;SM;PH;;BAN;;POT 726040 079416 N31 Screw;BH;3X6L;SM;PH;;BAN;;POT No Model Compatibility List $2.00 / Each

Foam Holder MP3 Player Universal 726374 081448 N40 Foam Holder MP3 Player Universal Yes Model Compatibility List $16.69 / Each

Wire;Audio In to Audio Out 727107 087222 N76 Wire;Audio In to Audio Out Yes Model Compatibility List $3.82 / Each

Console Cable;Upper;700(25430101-08+SM-8Y);TM38 727111 087228 P03 Console Cable;Upper;700(25430101-08+SM-8Y);TM38 Yes Model Compatibility List $25.06 / Each

Wire;Safety Switch;9216+2.5-2P;480L 727117 087235 N65 Wire;Safety Switch;9216+2.5-2P;480L Yes Model Compatibility List $12.17 / Each

Safety Key Set 727154 087474 N24 Safety Key Set Yes Model Compatibility List $40.14 / Each
727856 091584 N58 Board, Audio Input Yes Model Compatibility List $10.92 / Each

Arm Rest Support Set;Welding;;TM364 728195 093584 AG1 Arm Rest Support Set;Welding;;TM364 No Model Compatibility List $112.11 / Each

728202 093597 AN2 Console Base Set;Painting;LM445;TM363 No Model Compatibility List $220.61 / Each

Nut;Hex;M2x1.6t;GB/T6170; 728410 094600 N31 Nut;Hex;M2x1.6t;GB/T6170; No Model Compatibility List $1.85 / Each

CTL Board;KeyBoard;T1101&E1101 728446 094898 KIT CTL Board;KeyBoard;T1101&E1101 No Model Compatibility List $9.57 / Each

Connect Wire;Key250(XHS-10Yx2) 728466 094988 N71 Connect Wire;Key250(XHS-10Yx2) No Model Compatibility List $9.57 / Each

Connect Wire;IPOD-PCB;250(XHS-6Yx2) 728467 094989 N79 Connect Wire;IPOD-PCB;250(XHS-6Yx2) No Model Compatibility List $3.82 / Each

Amp Control Board;VFD 3W H101 728753 096744 N67 Amp Control Board;VFD 3W H101 Yes Model Compatibility List $55.20 / Each

728773 097220 AB3 Supt Plate;Folding;Painting;TM363 No Model Compatibility List $154.49 / Each

Running Deck;;Silicon;;1340*608*18T;TM36 728776 097246 B07 Running Deck;;Silicon;;1340*608*18T;TM36 No Model Compatibility List $249.13 / Each

Control Board;IPOD;H103;SOO-C135B 728782 097357 KIT Control Board;IPOD;H103;SOO-C135B Yes Model Compatibility List $64.40 / Each

Decal;Console;Horizon Logo 728829 097875 N12 Decal;Console;Horizon Logo No Model Compatibility List $12.56 / Each

Connect Wire;VFD;200mm(XHS-4Y+XHS-3Y) 728844 097935 N79 Connect Wire;VFD;200mm(XHS-4Y+XHS-3Y) No Model Compatibility List $3.82 / Each

Trumpet;Voice Box;3W;XHS-2Y;250MM 728851 098034 N66 Trumpet;Voice Box;3W;XHS-2Y;250MM No Model Compatibility List $19.58 / Each

Screw;Phillip;Round;M2x0.4Px12.0L 728954 099614 N34 Screw;Phillip;Round;M2x0.4Px12.0L No Model Compatibility List $1.85 / Each

Sensor;Grip Pulse;400 D/C, NO REPL: Part will show as orderable until stock is depleted. 728962 099738 N37 Sensor;Grip Pulse;400 D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $20.23 / Each

Connect Wire;GripPulse;SM-2A; 24AWG;600 728963 099740 N72 Connect Wire;GripPulse;SM-2A; 24AWG;600 No Model Compatibility List $3.82 / Each

P 1020937 002124-B P08 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

Red Deck Cushion Isolator (Used) 1021191 000760-E-Red B30 2 Red Deck Cushion Isolator (Used) Yes Model Compatibility List $12.99 / Each

3
A 014122-AA 014122-AA AR1 1 Front Drive Pulley Roller Yes Model Compatibility List $206.70 / Each

26
A 014682-B 014682-B AR2 1 Rear Idler Roller Yes Model Compatibility List $194.99 / Each

26
M 039043-00 039043-00 M02 1 Incline Elevation Motor Yes Model Compatibility List $336.70 / Each

28
M 1000113141 1000113141 M01 1 Digital DC Drive Motor Yes Model Compatibility List $648.70 / Each

28
P 1001381 003326-00 P04 1 Power Switch Yes Model Compatibility List $29.99 / Each

P 1000573 003326-00 P04 Power Entry Switch On/Off Yes Model Compatibility List $20.99 / Each

A 1002114 014122-AA AR1 Front Roller Yes Model Compatibility List $49.99 / Each

26
P 1002652 003346-00 P05 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1002658 003363-00 P09 Power Entry Module Yes Model Compatibility List $19.99 / Each

9,4,5,6
K 1003512 000522-D K16 Foot Leveler Yes Model Compatibility List $15.99 / Each

M 1003520 032669-IF M03 Lower Controller Board Yes Model Compatibility List $169.00 / Each
Out Of Stock 		48
M 1002738 039043-00 M02 Incline Lift Elevation Motor Yes Model Compatibility List $79.99 / Each

28
A 1001527 014682-B AR2 Rear Idler Roller Yes Model Compatibility List $60.99 / Each

26
A 1003104 014122-AA AR1 Front Drive Pulley Roller Yes Model Compatibility List $69.00 / Each

26
M 1003098 1000113141 M01 DC Drive Motor Yes Model Compatibility List $199.00 / Each
28
M 1001201 1000113141 M01 DC Drive Motor Yes Model Compatibility List $289.00 / Each
28
P 1001433 002248-D P10 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

A 1003106 014682-B AR2 Rear Idler Roller Yes Model Compatibility List $79.99 / Each

26
R 1001202 019968-A R03 Motor Drive Belt Yes Model Compatibility List $46.99 / Each

23
Magnetic Safety Key Lanyard 1002560 087474 Magnetic Safety Key Lanyard Yes Model Compatibility List $31.99 / Each
M 1001828 1000113141 M01 DC Drive Motor Yes Model Compatibility List $289.00 / Each
28
P 1001765 002169-A P11 Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
Side Leveling Foot Leveler 1012357 MB0304044D Side Leveling Foot Leveler Yes Model Compatibility List $15.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

R 1020604 004483-00 R08 Front Roller Screw M8-1.25"x25mm No Model Compatibility List $11.99 / Each

Rear Roller Tensioner Bolt 1004610 004496-00  Rear Roller Tensioner Bolt Yes Model Compatibility List $5.99 / Each

P 1034434 003326-00 P04 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P04 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

P 1009798 003346-00 P05 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

M 911968 004620-00 M24 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

R 976932 004926-00 R05 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q13 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

N 911958 004608-00 N23 Rower Button Head Phillip Screw 3x10L (New) No Model Compatibility List $12.99 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
