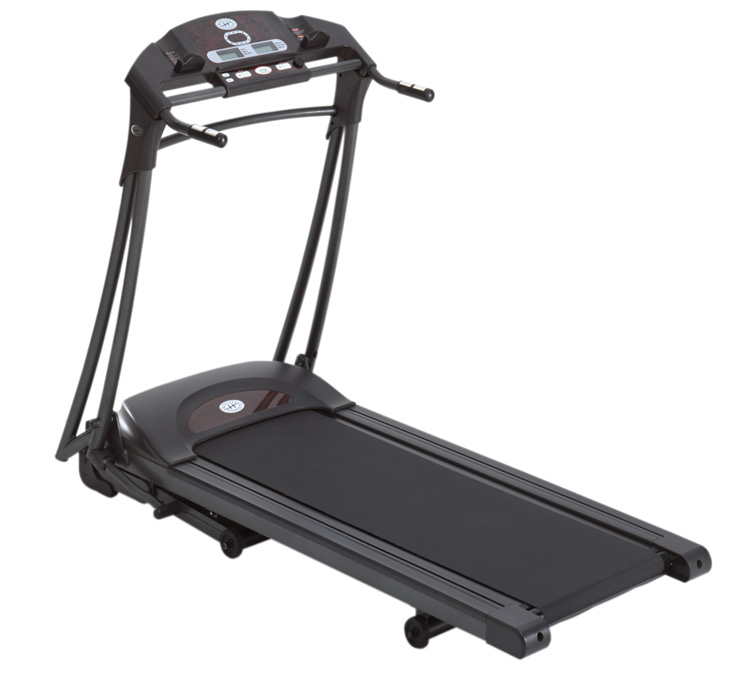

Horizon Fitness - T20 - 2004

Repair Parts for Horizon Fitness T20 TM102

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: T20

Version: 2004

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700002 - KIT Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock 		2
700014 000021-B L06 Mobile Wheel;Rear Deck Yes Model Compatibility List $11.62 / Each

Q 700096 000350-DA Q01 Motor Cover;Upper D/C, NO REPL: Part will show as orderable until stock is depleted Yes Model Compatibility List $76.70 / Each

9,10
Q 700103 000387-EB Q06 End Cap;Side Rail;Left Yes Model Compatibility List $17.24 / Each

9
Q 700104 000388-DB Q07 End Cap;Side Rail;Right Yes Model Compatibility List $13.34 / Each

9
700211 000682-A M21 Foam Tape;Double Sided;150x30x3t No Model Compatibility List $1.90 / Each

1
700318 000940-A N29 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

700402 001251-F L10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

N 700433 001363-B N09 Stopper;Water Bottle Holder - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $3.64 / Each
Out Of Stock 		1
N 700484 001478-BB N08 Cover;Console Back Yes Model Compatibility List $16.93 / Each

7,9,4,5,6
C 700518 001522-B C28 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

Q 700555 001599-CB Q24 Safety Sleeve No Model Compatibility List $1.77 / Each

9,3
700700 001952-00 N10 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
N 700702 001956-C N11 Reed Switch Yes Model Compatibility List $21.27 / Each

4,5,6
P 700716 002020-C P06 Console Cable;2600(2.50-12P) x2 Yes Model Compatibility List $38.32 / Each

7,4,5,6
700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

700755 002169-A P07 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
700847 002508-A P09 Power Wire;Control Board;550;16AWG;Black No Model Compatibility List $1.90 / Each

7,4,5,6
N 700943 002882-A N06 Overlay-Console Face Yes Model Compatibility List $35.46 / Each

7,4,5,6
N 700980 003137-A N04 Membrane Key;17KEY Yes Model Compatibility List $19.14 / Each

9
K 701008 003307-00 KIT Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

701026 003363-00 P11 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
M 701033 003386-A M17 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
701044 003415-00 R10 Magnet;Front Roller;10X3T No Model Compatibility List $1.90 / Each

8
N 701047 003432-B N32 Pulse Sensor Set;Single;750 Yes Model Compatibility List $21.27 / Each

12,13,14
C 701185 004123-A C11 Bearing;Dry;Sleeve;Support Tube; LFB 1625 No Model Compatibility List $3.82 / Each

8,3
R 701238 004249-DB R02 Running Belt;495x2785x1.6t;Black Yes Model Compatibility List $260.99 / Each

1
B 701250 004294-FA B31 Running Deck;608x1220Lx18t No Model Compatibility List $249.13 / Each

3
701300 004364-00 P29 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701308 004369-00 B35 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

701328 004381-00 P17 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

P 701364 004415-Z P13 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
701375 004425-B L11 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

M 701434 004481-Z M46 Screw;Hex Socket;Round;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
701440 004483-00 R08 Screw;Round Hex Socket;M8x1.25Px25L No Model Compatibility List $1.79 / Each

R 701444 004486-00 R04 Screw;Round;Hex Socket;M8X1.25PX85L Yes Model Compatibility List $9.80 / Each

R 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

H 701529 004561-00 H32 Screw;Plain Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701530 004562-00 B37 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
701540 004568-Z B36 Screw;Hex Socket;Sink;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
701558 004589-00 M10 Screw;Hex;W3/8x47L/Tooth14L Yes Model Compatibility List $2.18 / Each

M 701559 004590-Z M14 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.79 / Each

2,10
701577 004612-00 N12 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

701586 004617-00 M24 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701591 004620-00 Q12 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701613 004632-00 Q21 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

N 701710 004728-00 N58 Screw;Oval Hex Socket;M8x1.25Px40L No Model Compatibility List $2.00 / Each

2
701716 004735-00 H44 Screw;Oval Hex Socket;M8x1.25Px45L-15L No Model Compatibility List $2.00 / Each

2
C 701718 004739-00 C26 Bolt;M8x1.25Px65L(20L) No Model Compatibility List $2.00 / Each

2
701742 004764-00 H42 Screw;Hex Socket;BH;M8x1.25Px25L;Adhere No Model Compatibility List $2.00 / Each

701848 004865-00 Q09 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701862 004884-00 M47 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 N56 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M12 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

C 701916 004945-00 C23 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

C 702020 005055-00 C25 Washer;Flat;16.2x28.7x1.5T No Model Compatibility List $2.00 / Each

2
C 702021 005056-00 C24 Washer;Flat;13.2X26.0X2.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
702030 005062-00 H47 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

702121 005146-A H21 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702160 005196-00 H27 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

B 702197 005249-A B57 Elastomer;Front;Blue(80) Yes Model Compatibility List $15.31 / Each

1
B 702198 005250-A B58 Elastomer;Middle;Red(55) Yes Model Compatibility List $15.31 / Each

1
702217 005330-00 N15 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

H 702235 005360-00 H24 C-Clip;External;S-14 No Model Compatibility List $3.82 / Each

2
K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

702259 005395-00 KIT Wrench;T-Type;5mm No Model Compatibility List $10.01 / Each

702260 005400-Z KIT Wrench;Multi-Hole;13,14,15mm - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $4.00 / Each

2
H 702283 005475-D H30 Spring;Foot Lock Latch;SUS304 No Model Compatibility List $4.00 / Each

2,9,3
702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

B 702455 007526-D B34 Belt Guide No Model Compatibility List $9.57 / Each

15
H 702460 007584-D H33 Elevation Frame;Left Yes Model Compatibility List $15.37 / Each

3,10
H 702461 007585-D H34 Elevation Frame;Right Yes Model Compatibility List $8.87 / Each

3,10
702483 007964-00 N14 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
H 702550 008599-F H39 Sleeve;Connecting Rod;SS41;12x8x29.6L No Model Compatibility List $3.54 / Each

3
B 702552 008609-00 B41 Bolt;Air Shock;M8X1.25P S45C No Model Compatibility List $10.01 / Each

2
702556 008625-C B44 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $2.00 / Each

M 702851 012798-00 M02 Elevation Motor;110V Yes Model Compatibility List $249.13 / Each

10
M 703352 013674-DG M03 Motor Control Board;Everything Yes Model Compatibility List $584.82 / Each

7,10
A 703469 014823-A AC12 Support Tube;Crossbar No Model Compatibility List $69.63 / Each

3
703494 015014-AD M05 Motor Bracket No Model Compatibility List $14.90 / Each

2,3,4,5,6,10
M 703769 016139-Z M01 Drive Motor Set;2.0HP/90V Yes Model Compatibility List $383.27 / Each

10
A 703785 016488-Z AN2 Safety Key Set Yes Model Compatibility List $40.14 / Each

9
K 704087 020210-00 KIT Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
705141 038132-BBX N37 Heart Rate Receiver Yes Model Compatibility List $54.39 / Each

12,13,14
705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
K 707457 1000092805 KIT Silicon Oil;40ml No Model Compatibility List $32.49 / Each

709034 1000108449 AR2 Roller Set;Rear;TM59 Yes Model Compatibility List $191.62 / Each

1
709102 1000109577 R03 Drive Belt;Poly-V;170-J8 Yes Model Compatibility List $60.22 / Each

15,10
Front Drive Roller - Used 1014565 016110-Z # 1 Front Drive Roller - Used Yes Model Compatibility List $115.70 / Each

8
Shock Cylinder (Used Only 1014561 009555-A B28 1 Shock Cylinder (Used Only Yes Model Compatibility List $37.70 / Each

3
Frame Plug Cap (Used) 1016694 000779-C # 2 Frame Plug Cap (Used) Yes Model Compatibility List $12.99 / Each

9
Right Side Frame Cover (Used) 1016701 016554-ZR1 1 Right Side Frame Cover (Used) Yes Model Compatibility List $19.49 / Each

9
Left Side Frame Cover (Used) 1016700 016554-ZL1 1 Left Side Frame Cover (Used) Yes Model Compatibility List $19.49 / Each

9
P 1020937 002124-B P08 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

R 004249-DB 004249-DB R02 1 Walking Running Belt OEM Yes Model Compatibility List $245.70 / Each

1
Cover Bottom Motor (Used) 1024720 000339-GB Q04 1 Cover Bottom Motor (Used) No Model Compatibility List $38.99 / Each

1
P 1001381 003326-00 P02 1 Power Switch Yes Model Compatibility List $29.99 / Each

Belt Drive 1002356 1000109551 0 1 Belt Drive Yes Model Compatibility List $31.99 / Each

Crossbar (Used) 1028772 SP0003029A AC12 Crossbar (Used) No Model Compatibility List $39.00 / Each

1
Front Drive Pulley Roller 1000018 016110-Z Front Drive Pulley Roller Yes Model Compatibility List $69.00 / Each

8
P 1000573 003326-00 P02 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

A 1002096 1000108449 AR2 Rear Idler Roller Yes Model Compatibility List $69.99 / Each
Out Of Stock 		1
P 1002652 003346-00 P04 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1002658 003363-00 P11 Power Entry Module Yes Model Compatibility List $5.99 / Each

9,4,5,6
A 1001050 1000108449 AR2 Rear Idler Roller Yes Model Compatibility List $69.99 / Each
Out Of Stock 		1
M 1002266 013674-DG M03 Lower Motor Controller Board + Choke Yes Model Compatibility List $179.00 / Each
7,10
P 1001433 002248-D P14 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

M 1001314 013674-DG M03 Lower Control Board Motor Controller + Choke Yes Model Compatibility List $604.99 / Each

7,10
P 1001765 002169-A P07 Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
M 701972 005010-00 M13 Spring Lock Washer 10.75x17.2x2.16T (New) No Model Compatibility List $12.99 / Each

jht170L8r 1000109551 Motor Drive Belt (New) Yes Model Compatibility List $66.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

R 1020604 004483-00 R08 Front Roller Screw M8-1.25"x25mm No Model Compatibility List $11.99 / Each

R hori170J8 1000109577 R03 Drive Motor Belt (New) Yes Model Compatibility List $66.99 / Each

15,10
P 1034434 003326-00 P02 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P02 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

P 1009798 003346-00 P04 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

Q 911968 004620-00 Q12 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

N 976932 004926-00 N56 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

N 957398 005330-00 N15 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

K 971749 003307-00 KIT Rate Chest Strap (New) No Model Compatibility List $194.99 / Each

Red Middle Elastomer (Used) 1038162 005250-a Red Middle Elastomer (Used) Yes Model Compatibility List $7.50 / Each

1
R 1037590 004249-DB R02 OEM Walking Runing Belt Treadbelt 1.5mm-19.5-110 Inch (Used) Yes Model Compatibility List $89.00 / Each

1
Front Drive Roller (New) 013864 016110-Z Front Drive Roller (New) Yes Model Compatibility List $230.99 / Each

8
