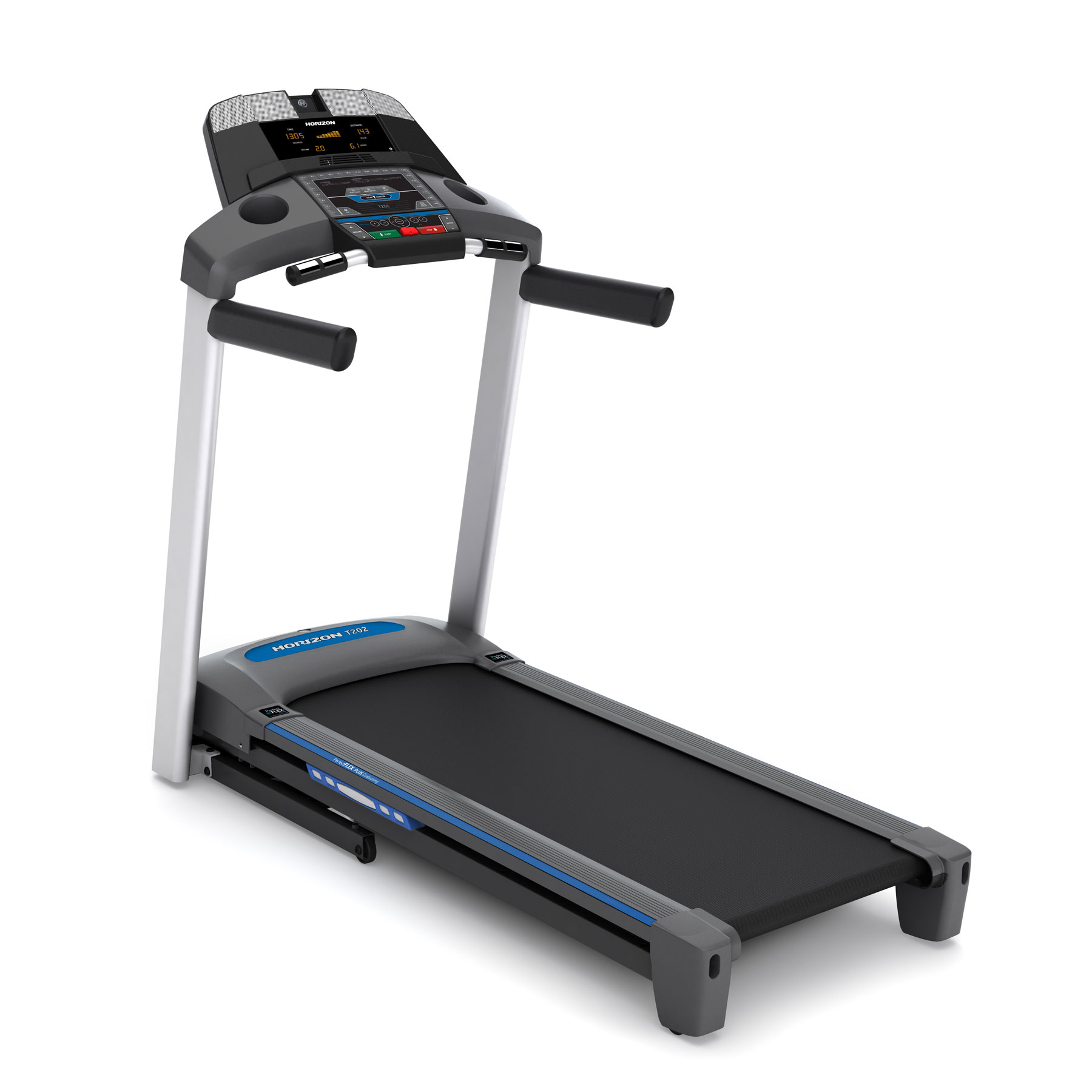

Horizon Fitness - T202 - 2011

Repair Parts for Horizon Fitness T202 TM643

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: T202

Version: 2011

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
Roller Rear 1002632 099695 0 1 Roller Rear Yes Model Compatibility List $115.00 / Each

26
Motor Drive Belt 1003163 004168-00 Motor Drive Belt Yes Model Compatibility List $10.19 / Each

15,10
Power Entry Circuit Breaker 1003694 003347-00 Power Entry Circuit Breaker Yes Model Compatibility List $9.99 / Each

Circuit Breaker QMB-152-11C3N-3BA (New) 1009784 003347-00 Circuit Breaker QMB-152-11C3N-3BA (New) Yes Model Compatibility List $28.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

2 709522 1000201005 2 Console Mast Set;Left;TM640-1US;;; No Model Compatibility List $131.20 / Each

7
3 709523 1000201006 3 Console Mast Set;Right;TM640-1US;;; No Model Compatibility List $131.20 / Each

7
4 709434 1000114410 4 Lock Latch Set;Semi-Assy;TM643-1US Yes Model Compatibility List $41.91 / Each

1
709408 1000114124 5 Base Frame Set;Semi-Assy;TM639-1US No Model Compatibility List $154.57 / Each

3
6 709140 1000110344 6 Drive Motor Set;Digital Yes Model Compatibility List $778.00 / Each

1
6 1000110344 1000110344 6 1 DC Drive Motor Yes Model Compatibility List $778.70 / Each

1
7 709435 1000114414 7 Console Set;Semi-Assy;TM643-1US No Model Compatibility List $870.12 / Each

7
728977 N/A 8 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock 		8,,1,,1
9 709436 1000114417 9 Console Frame Set No Model Compatibility List $93.89 / Each

7,3
728982 Not Orderable AB1 Main Frame Set;-;PAINTING;MM330 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock
729152 Part of Kit 3 AC2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock

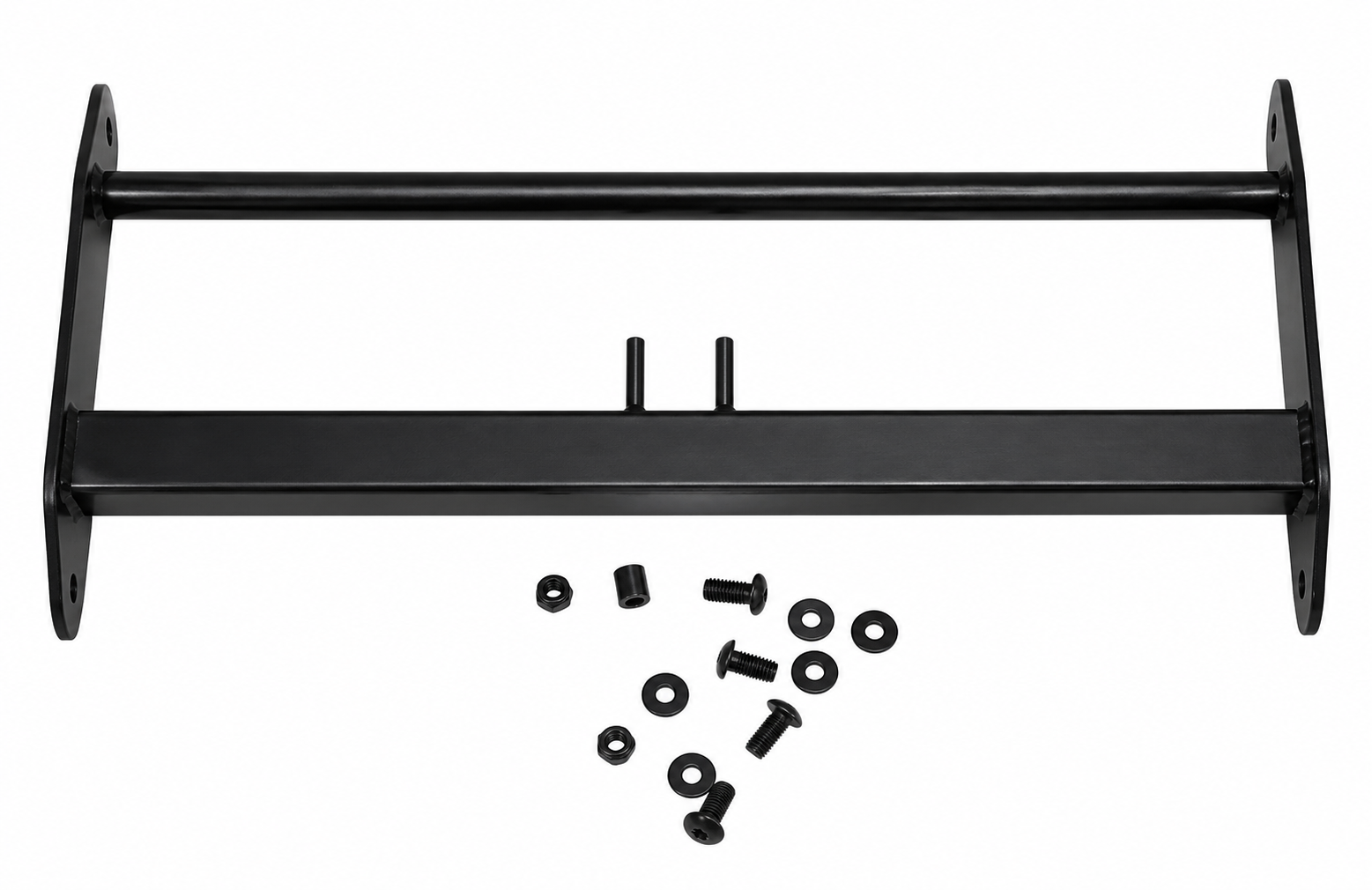

A 709990 1000205569 AH1 Elevation Frame Set No Model Compatibility List $147.29 / Each

3,10
A 709083 1000109292 AH2 Insert Tube Set;zincification;TM622 Yes Model Compatibility List $17.06 / Each

729165 Part of Kit 4 AH3 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
A 707768 1000094931 AH4 Lock Latch Set;Galvanization;TM616 No Model Compatibility List $10.01 / Each

729172 Part of Kit 5 AK1 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729201 Part of Kit 9 AN1 Upper Handlebar Set;Right;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
A 708316 1000101990 AN4 Reed Switch No Model Compatibility List $7.99 / Each

4,5,6
703438 014669-B AR1 Front Roller Set Yes Model Compatibility List $191.62 / Each

8
Roller Set;Rear;TM603-1US 728961 099695 AR2 Roller Set;Rear;TM603-1US Yes Model Compatibility List $115.00 / Each

B 708212 1000101237 B21 Elastomer;Decorative;Front;TPR;Blue/301C Yes Model Compatibility List $20.51 / Each

1

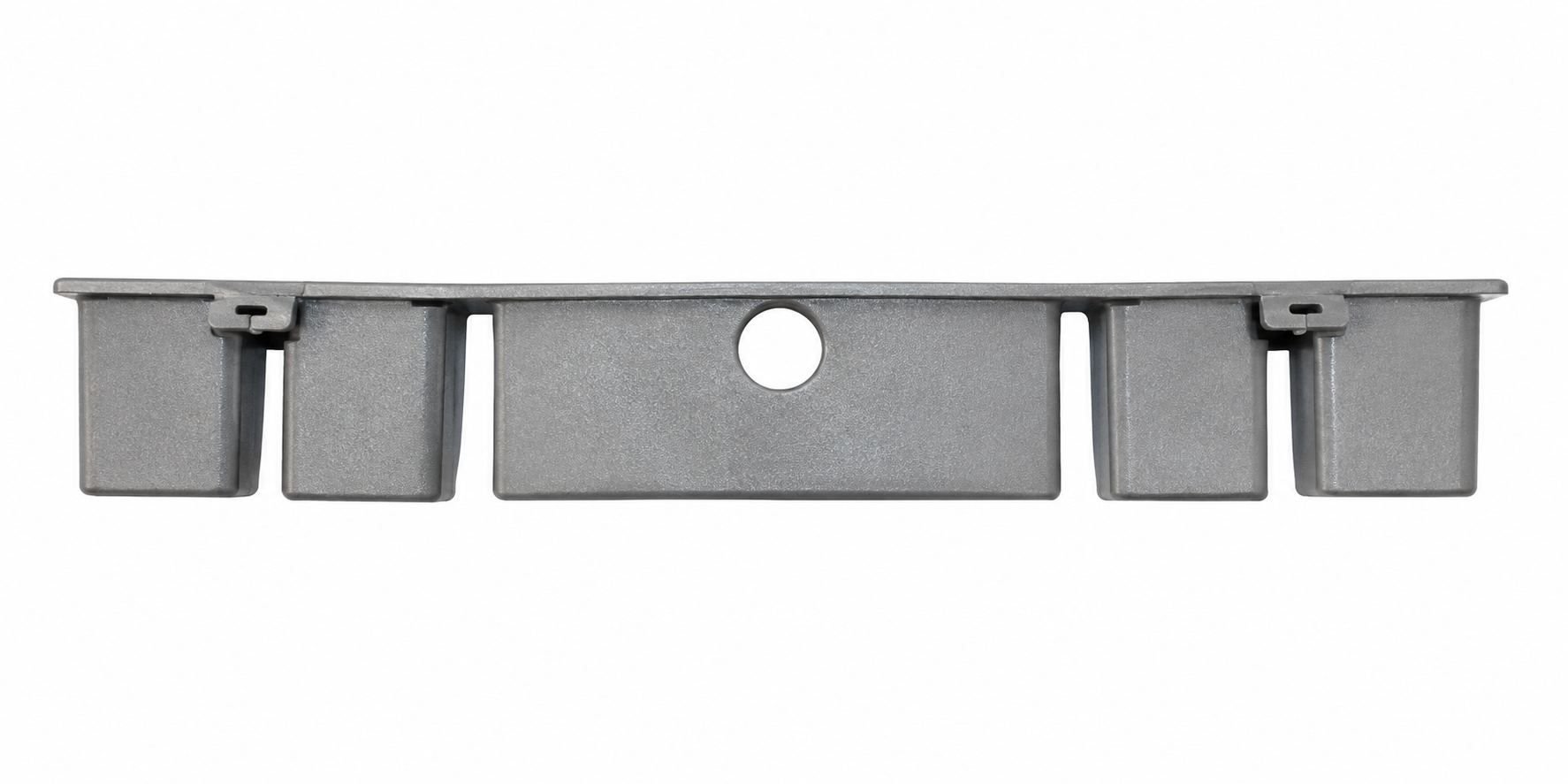

B 708228 1000101310 B22 Elastomer;Decorative;Long; Inside;422C;;TM622 No Model Compatibility List $1.90 / Each

1
B 705259 039400-BA B25 Transport Wheel;Nylon Yes Model Compatibility List $9.57 / Each

B 1035628 039400-BA B25 1 Transport Wheel (Used) Yes Model Compatibility List $5.00 / Each

B 708615 1000104173 B27 Running Deck;675x1220x18T Yes Model Compatibility List $260.99 / Each

B 701544 004571-00 B28 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $2.00 / Each

B 911951 004571-00 B28 Deck screw M8X1.25PX28L (New) No Model Compatibility List $13.99 / Each

701375 004425-B B31 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

705700 055204-A B32 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

700402 001251-F B35 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

701939 004975-00 B39 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

B 709874 1000204184 B39 Screw;HH;M10X1.5PX45L-15L; No Model Compatibility List $4.00 / Each

2
B 709404 1000114104 B41 Air Shock;55KG(journey245L)Damping ;TM63 Yes Model Compatibility List $61.93 / Each

B 701706 004727-00 B42 Screw;Hex Socket;BH;M8x1.25Px30L No Model Compatibility List $1.59 / Each

2
B 700245 000767-D B46 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

B 700246 000768-D B47 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

703881 018951-A B48 Elastomer;Front/Rear;Black Yes Model Compatibility List $13.91 / Each

B 1026014 018951-A B48 1 Spring Deck (Used) Yes Model Compatibility List $3.00 / Each

C 710322 1000209336 C08 Fixing Plate;Console Mast;Left No Model Compatibility List $40.72 / Each

7,3
C 710323 1000209337 C09 Fixing Plate;Console Mast;Right No Model Compatibility List $40.72 / Each

7,3
C 709524 1000201012 C13 Foam;Console Mast;40.0X80.0;TM640-1US;ARM No Model Compatibility List $11.26 / Each

7,3
C 708215 1000101247 C14 End Cap;Handlebar;Black Yes Model Compatibility List $11.62 / Each

4,5,6,9,11
C 708563 1000103438 C17 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.57 / Each

Screw;Hex Socket;BH;M8x1.25x45L;Tooth15L 726042 079425 D45 Screw;Hex Socket;BH;M8x1.25x45L;Tooth15L Yes Model Compatibility List $2.00 / Each

Screw; Hex Socket; BH; M8x1.25Px15L 725507 072210 E10 Screw; Hex Socket; BH; M8x1.25Px15L No Model Compatibility List $1.59 / Each

H 706178 059929-B H06 Screw;Special;M8X1.25PX9L-D10X11.2L;;HE;45#;BOX No Model Compatibility List $2.00 / Each

702160 005196-00 H07 Washer;Teflon;10.5x20.0x1.0T Yes Model Compatibility List $1.59 / Each

702092 005125-00 H09 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

Cap;Support Base;Rear;TM367 728326 094040 H13 Cap;Support Base;Rear;TM367 No Model Compatibility List $2.47 / Each

H 700327 000977-00 H14 Sleeve;Outer No Model Compatibility List $3.82 / Each

H 705488 049292-A H17 Washer;Flat;Teflon;8.1x20x1.0t; No Model Compatibility List $2.00 / Each

H 707758 1000094874 H19 Connecting Axle;Elevation Shock No Model Compatibility List $3.82 / Each

707759 1000094875 H20 Spring No Model Compatibility List $4.00 / Each

707769 1000094932 H21 C Clip;Combined With 6mm Axle No Model Compatibility List $1.90 / Each

2,8
H 708088 1000099273 H23 Decal;Insert Tube;protected piece No Model Compatibility List $1.90 / Each

H 707990 1000097464 H24 Single Foam;One-Sided;27x20x1.5t;Black No Model Compatibility List $1.90 / Each

K 705382 049024-BA K09 Flat;;;50C;TM196-K12B Yes Model Compatibility List $6.42 / Each

K 701735 004759-00 K11 Screw;Hex Socket;BH;M10x1.5Px45L(Tooth15 No Model Compatibility List $2.00 / Each

K 701912 004941-00 K12 Nut;Nylon;M10x1.5P Yes Model Compatibility List $2.00 / Each

K 709409 1000114138 K13 Cap;Oblique;TM639-1US No Model Compatibility List $1.77 / Each

Transport Wheel 725586 073633 K15 Transport Wheel Yes Model Compatibility List $3.82 / Each

K 707760 1000094876 K50 Leveler Foot;Base;PVC;3/8-16UNC;BLACK;TM616 Yes Model Compatibility List $6.42 / Each

K 000089 1000094876 K50 1 Leveling Foot Leveler Yes Model Compatibility List $19.99 / Each

K 709539 1000201120 KIT Manual;Assembly Guide No Model Compatibility List $12.53 / Each

3

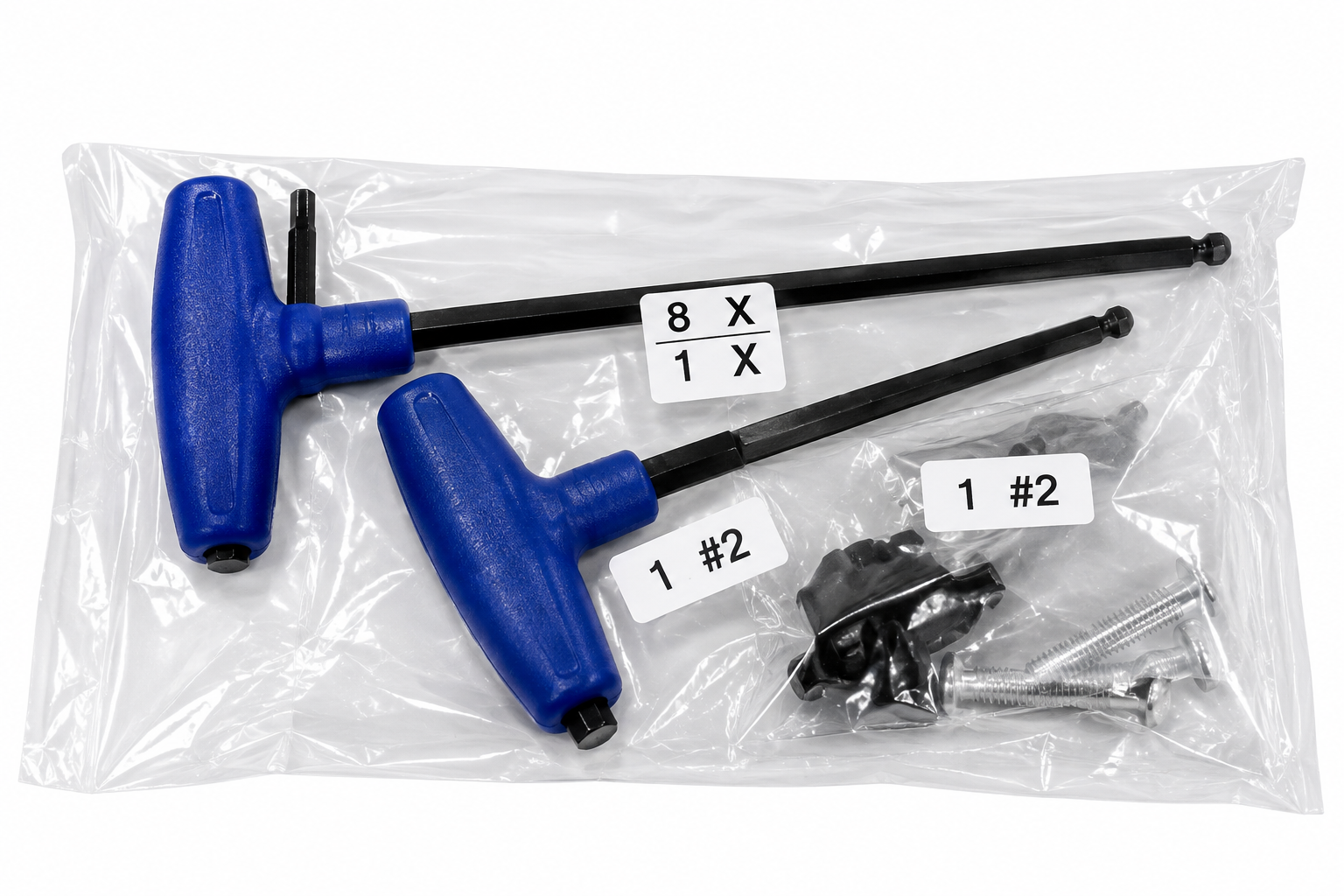

K 709803 1000203370 KIT Hardware Pack No Model Compatibility List $56.39 / Each

4,5,6
K 721965 1000386873 KIT Manual;TM safety direction;;EN/FR/ES;MAT No Model Compatibility List $7.64 / Each

708243 1000101465 M02 Incline Motor;AC Elevation;110V;80mm;225;JM14 Yes Model Compatibility List $249.13 / Each

28
M 1001366 1000101465 M02 Incline Motor Elevation Yes Model Compatibility List $89.00 / Each
28
M 709254 1000111476 M03 Motor Control Board;110V Yes Model Compatibility List $648.70 / Each

M 1003695 1000111476 M03 1 Controller Motor Yes Model Compatibility List $499.00 / Each

M 1003382 1000111476 M03 Lower Motor Controller Board Yes Model Compatibility List $169.00 / Each
729191 Part of Kit 6 M04 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
M 710213 1000207607 M05 Motor Bracket Set No Model Compatibility List $69.55 / Each

2,3,4,5,6,10
705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

M 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

M 701478 004525-00 M11 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $7.20 / Each

701561 004592-00 M14 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

M 705469 049262-00 M15 Screw;Hex;3/8-16UNCX55L-14L;;HE;;;;P-T No Model Compatibility List $4.00 / Each

701908 004934-00 M17 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

M 702136 005165-00 M18 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

M 704203 020478-00 M33 Washer;Flat;10.2x20.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

M 702118 005145-A M38 Washer;Flat;8.2x19.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

Speed Sensor 726503 082406 M38 Speed Sensor Yes Model Compatibility List $31.10 / Each

N 708344 1000102179 N01 Console Base Plastic;ABS;75140;TM622 No Model Compatibility List $75.76 / Each

7,9,3
N 708345 1000102180 N02 Console Overlay;ABS;Blacke;TM622 No Model Compatibility List $57.49 / Each

7,4,5,6
N 708346 1000102181 N03 Console Back Cover;ABS;BLACK;TM622 No Model Compatibility List $37.88 / Each

7,9,4,5,6
700318 000940-A N06 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $12.99 / Each

N 708347 1000102182 N07 Speaker;Cover;Left;Metal Net;MM314;TM622 No Model Compatibility List $12.38 / Each

9,3
N 708348 1000102183 N08 Speaker;Cover;Right;Metal Net;MM314;TM622 No Model Compatibility List $12.38 / Each

9,3
Earphone Jack;ABS;PA757S 728770 097076 N10 Earphone Jack;ABS;PA757S No Model Compatibility List $1.90 / Each

N 705176 039032-A N15 Ground Wire;Heart Rate Board;200 No Model Compatibility List $1.90 / Each

4,5,6,12,13,14
N 701606 004627-AB N21 Screw;Phillip;BH;Tapped;5x12L;BED;Gap; No Model Compatibility List $2.00 / Each

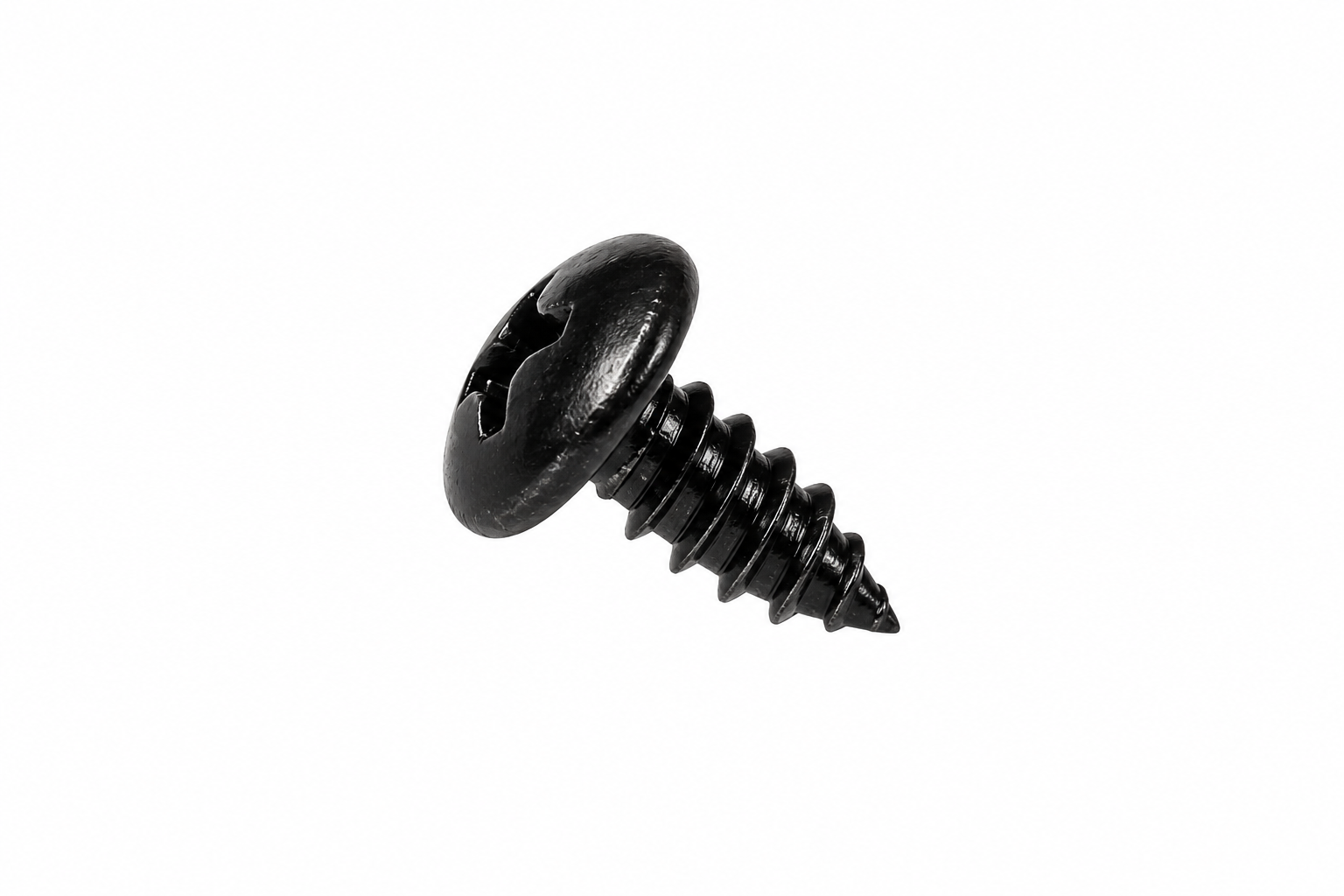

N 701094 003721-00 N22 Screw;Phillip;BH;Tapped;3x6L;Zn+3(White No Model Compatibility List $2.00 / Each

2
N 701599 004623-00 N32 Screw;Phillip;BH;Tapped;4x12L;BED;Gap; No Model Compatibility List $2.00 / Each

725190 102531 N34 Cooling Fan;TM604-N33 Yes Model Compatibility List $26.81 / Each

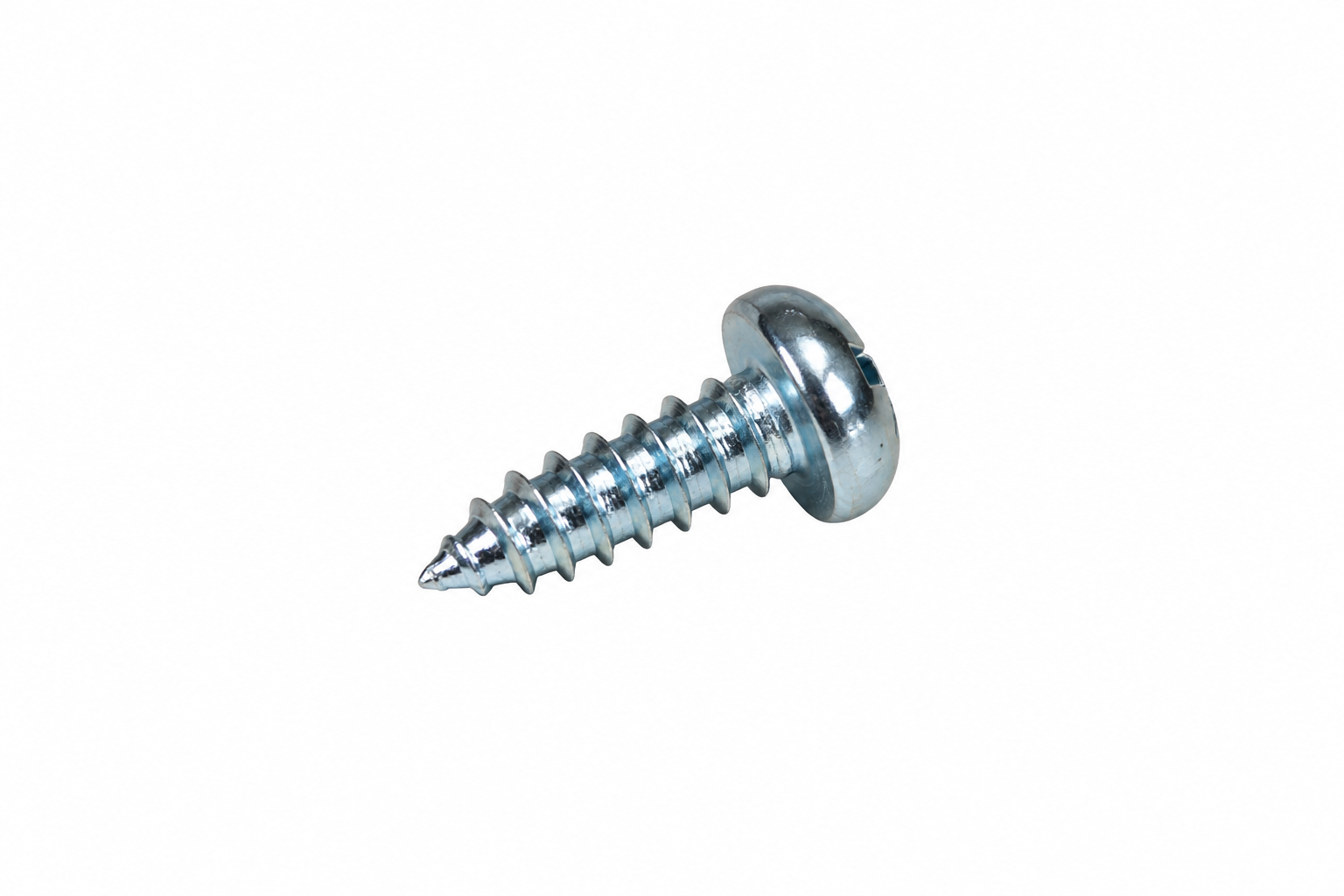

N 705018 029437-00 N36 Screw;Phillip;BH;Tapped;3x10L;Zn+3(Whit No Model Compatibility List $2.00 / Each

2
Pulse Sensor Set;800mm;31.8+2.5-2P JIND 728889 098282 N39 Pulse Sensor Set;800mm;31.8+2.5-2P JIND Yes Model Compatibility List $31.33 / Each

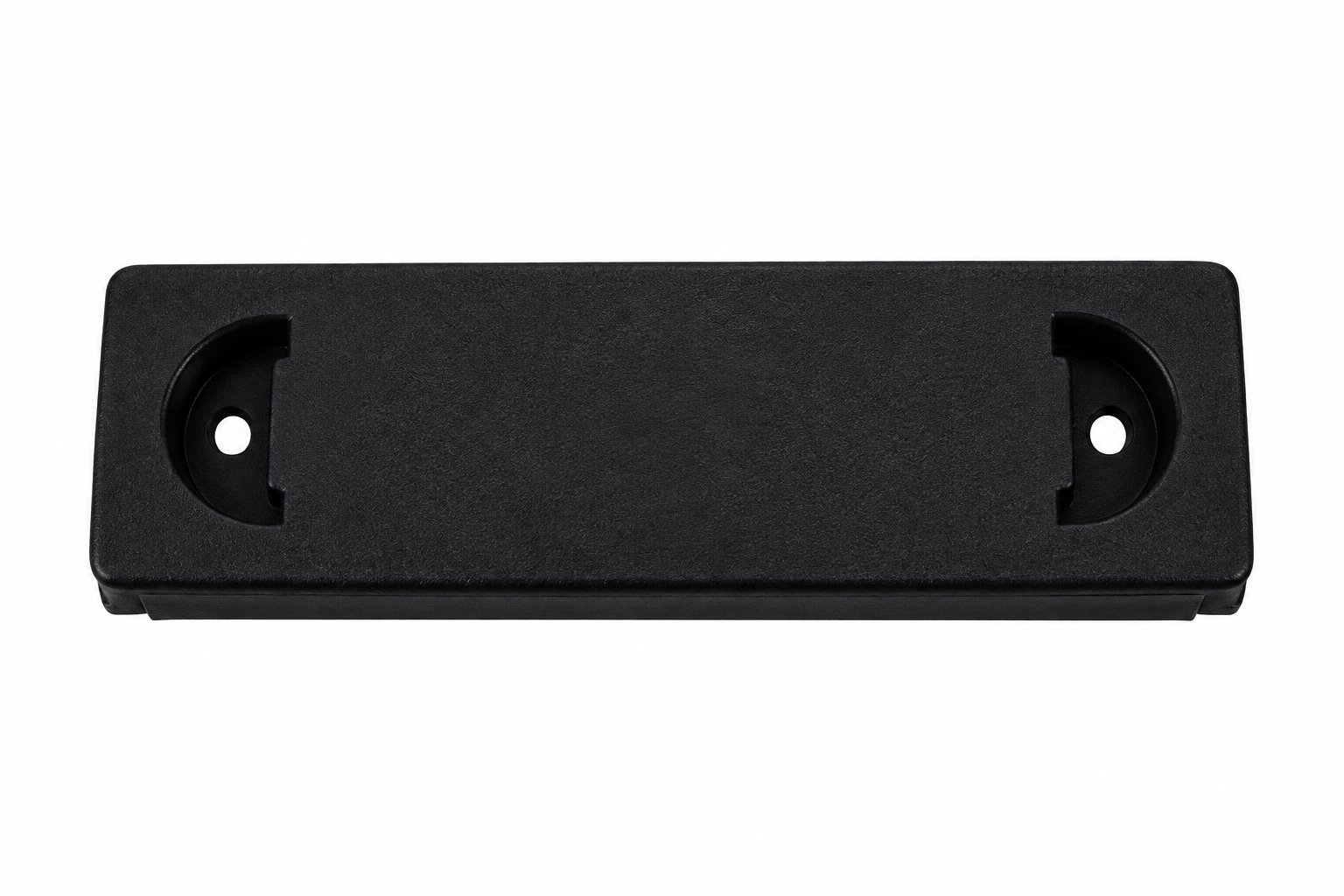

Insert Boot; IPOD 725624 074262 N40 Insert Boot; IPOD Yes Model Compatibility List $3.82 / Each

708726 1000105094 N43 Safety Key Set Yes Model Compatibility List $28.99 / Each

N 1003468 1000105094 N43 Magnetic Safety Key Lanyard Yes Model Compatibility List $28.99 / Each

N 1003604 1000105094 N43 Magnetic Safety Key Lanyard Yes Model Compatibility List $15.99 / Each

701595 004620-AF N50 Screw;Umbrella Cross Tapped;4x12L;Gap No Model Compatibility List $2.00 / Each

N 708916 1000107208 N54 IPOD Seat;ABS;light black ;TM623 No Model Compatibility List $1.90 / Each

4,5,6,12,13,14
N 709379 1000113888 N60 Upper Control Board;T202;HDS101PD No Model Compatibility List $537.13 / Each

7
N 709490 1000200654 N61 Overlay1;ENGLISH;T202 No Model Compatibility List $38.32 / Each

1
N 709467 1000200392 N62 Overlay;N62;ENGLISH;T202;TM643-N62INCLU No Model Compatibility List $95.81 / Each

1
N 709489 1000200652 N63 Overlay;Bottom;ENGLISH;T203;; No Model Compatibility List $38.32 / Each
Out Of Stock 		1
700893 002671-A N73 Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

N 710033 1000206090 N80 Control Board;Third IPOD;SOO0802B No Model Compatibility List $63.62 / Each

7
N 709104 1000109614 N81 CTL Board;5W VFD;SOO0819;HAPD No Model Compatibility List $57.54 / Each

1

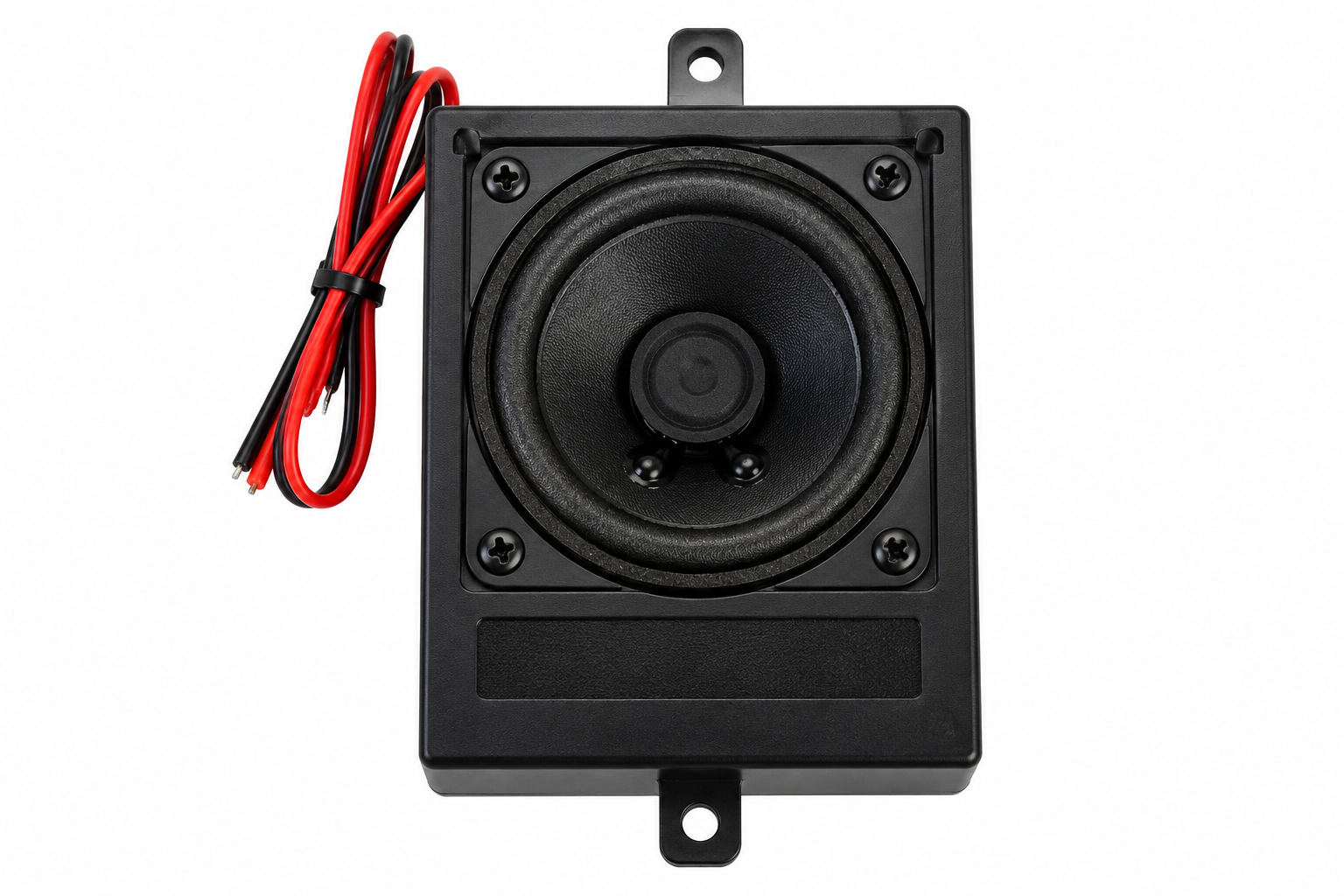

N 707863 1000096517 N83 Speaker;3W8;XHS-2Y;400MM Yes Model Compatibility List $25.04 / Each

1
707862 1000096516 N85 Speaker;3W8;XHS-2Y;250MM No Model Compatibility List $17.24 / Each

708959 1000107812 N86 Ground Wire;300L+350L+200L16AWG No Model Compatibility List $3.82 / Each

4,5,6
705893 056437-00 N90 Absorptive Plate;Zinc;15x25 No Model Compatibility List $1.90 / Each

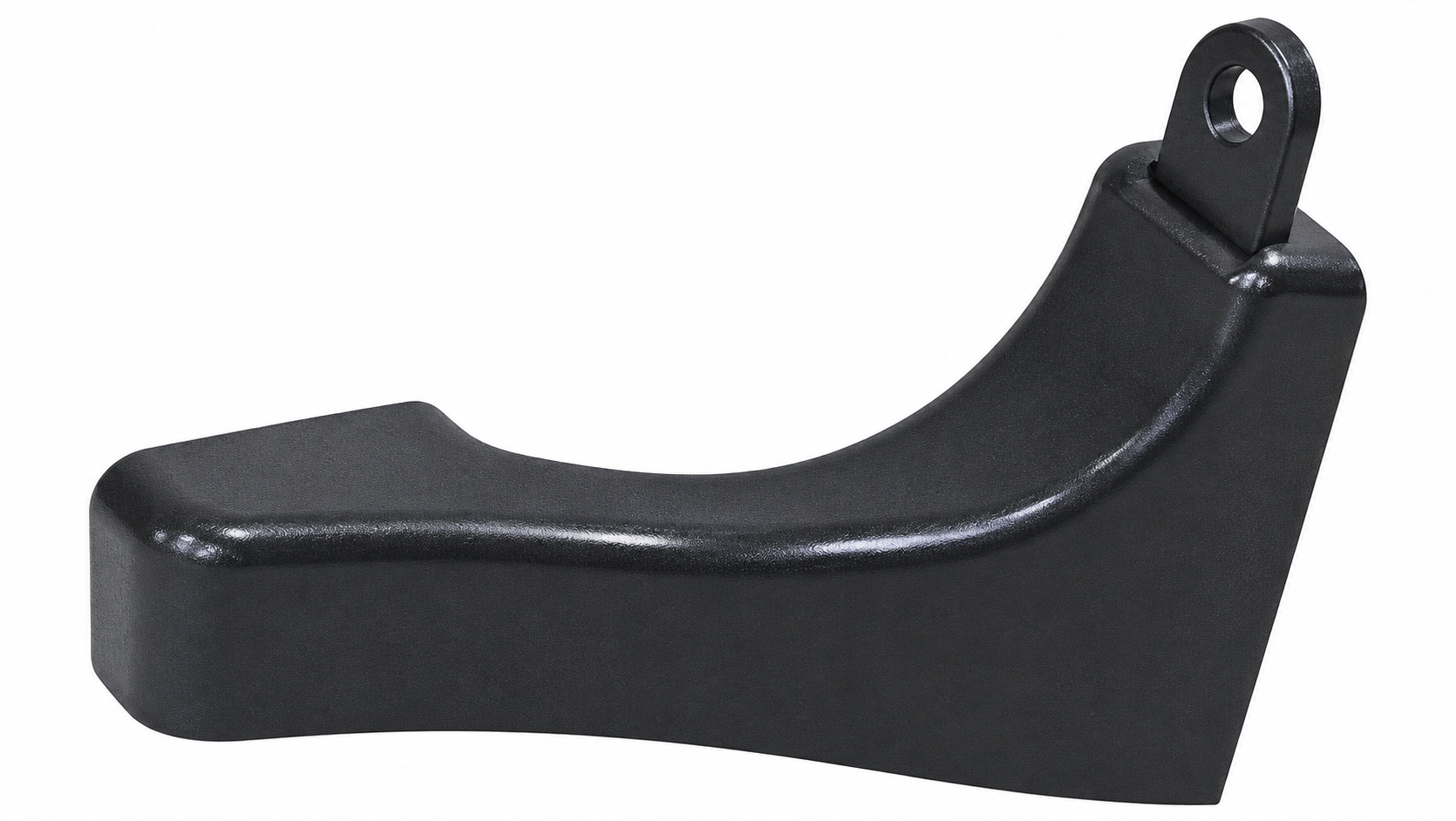

N 708294 1000101856 N91 Wind Shield;Left;ABS;Black Yes Model Compatibility List $14.00 / Each

9

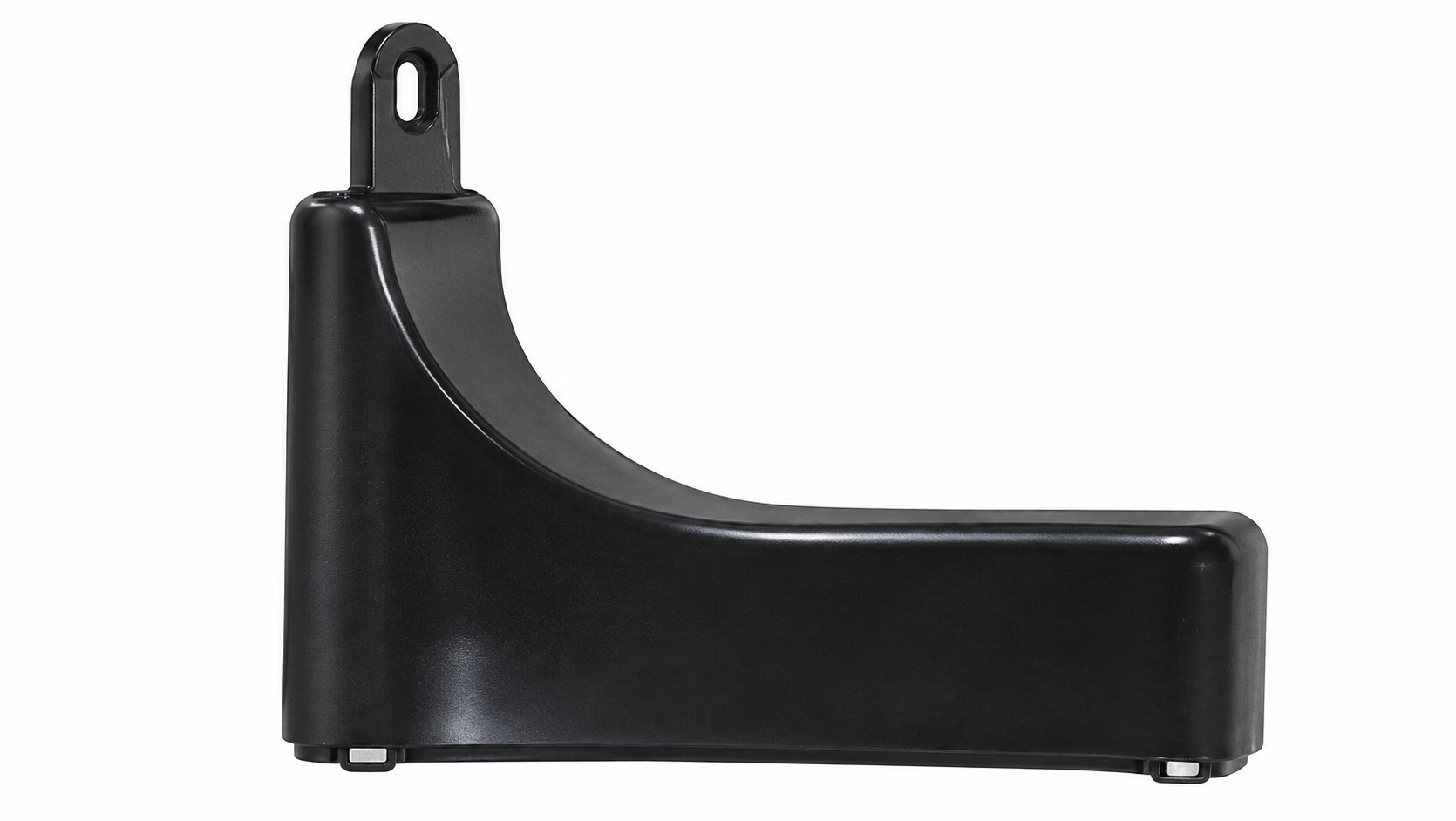

N 708295 1000101857 N92 Wind Shield;Right;ABS;Black Yes Model Compatibility List $7.10 / Each

3,9
N 708571 1000103575 N93 IPOD skidproof Decal;TM623 No Model Compatibility List $1.90 / Each

7,3
N 708583 1000103660 N94 Cover;Safety Key;TM622 No Model Compatibility List $3.54 / Each

9
N 707457 1000092805 Not shown Silicon Oil;40ml No Model Compatibility List $32.49 / Each

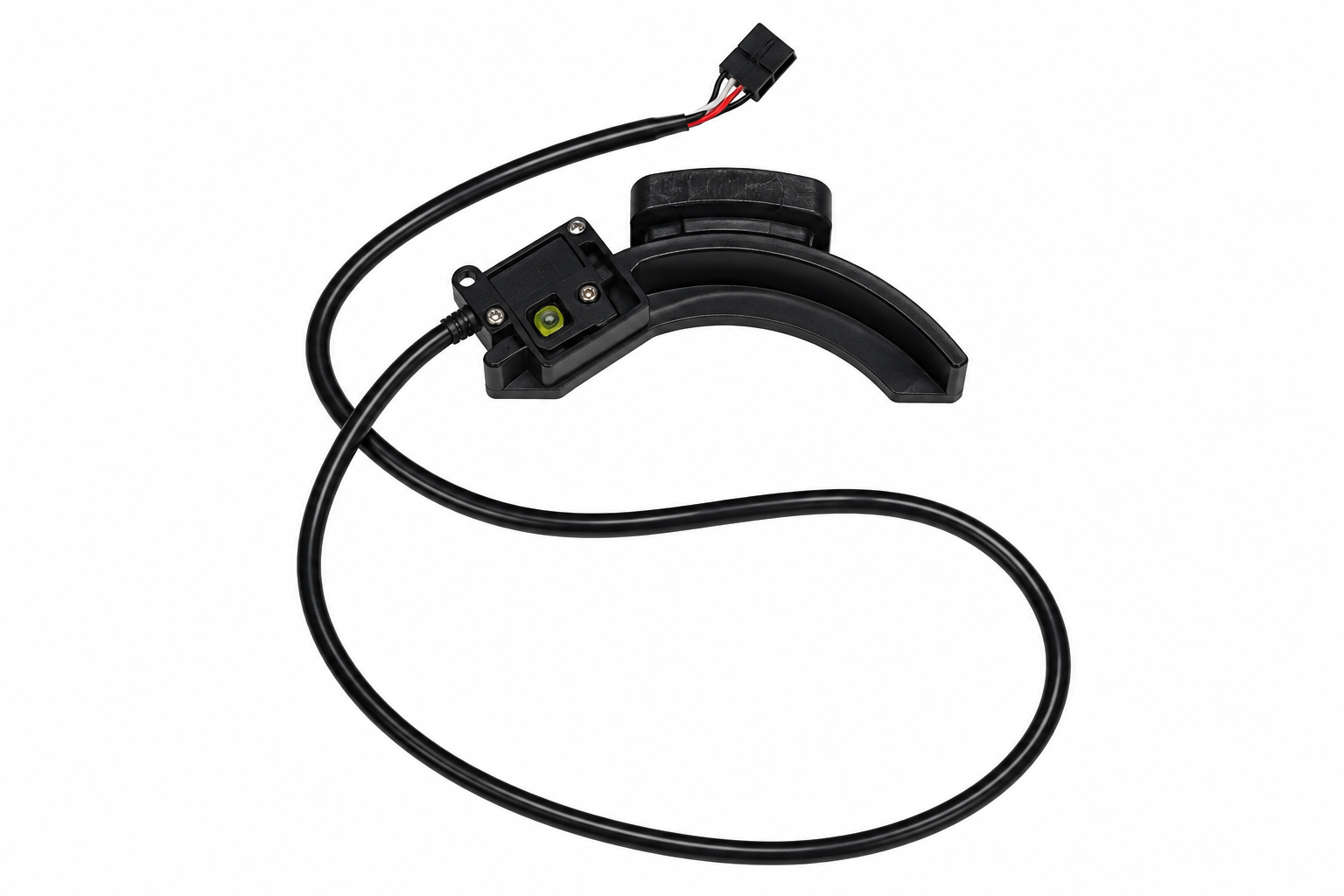

Speed feedback system;Motor controller2. 726233 080869 Not Shown Speed feedback system;Motor controller2. No Model Compatibility List $28.99 / Each

P 705308 040695-A P02 Power Switch Yes Model Compatibility List $9.99 / Each

P 040695-A 040695-A P02 1 Power Switch on Off Yes Model Compatibility List $9.99 / Each

P 1000730 040695-A P02 1 Power Switch Yes Model Compatibility List $9.99 / Each

P 1001368 040695-A P02 Power Switch On Off Yes Model Compatibility List $19.99 / Each

701016 003337-00 P04 Circuit Breaker;15A/125V Yes Model Compatibility List $28.73 / Each

4,5,6
P 709009 1000108203 P05 Wire;Console connection;450L(CKM254301-8 No Model Compatibility List $38.32 / Each

P 702299 005811-00 P08 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

700746 002124-B P09 Connecting Cable;Socket/Breaker;60;16AWG Black Yes Model Compatibility List $3.82 / Each

P 1020937 002124-B P09 1 Power Entry Socket Input Module Yes Model Compatibility List $25.99 / Each

711070 1000216278 P10 Static/Ground Wire;Deck;;;TM639-1US; No Model Compatibility List $3.82 / Each

P 707762 1000094883 P11 Power Cord;16AWG;2M;TM616-P05A Yes Model Compatibility List $57.49 / Each

P 1006085 1000094883 P11 1 Power Supply Cord Yes Model Compatibility List $47.99 / Each

P 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $2.00 / Each

702145 005177-00 P18 Washer;Tooth;5.3X10.0X0.6T;BAN No Model Compatibility List $2.00 / Each

701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

Screw;Phillip;Big Umbrella;Tapped;;4x10 726236 080875 P21 Screw;Phillip;Big Umbrella;Tapped;;4x10 No Model Compatibility List $2.00 / Each

700570 001679-00 P25 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

P 702806 010866-00 P26 Bushing;Strain Relief;Nylon66;SR-7R3;BL; Yes Model Compatibility List $4.37 / Each

P 708310 1000101981 P30 Wire;PCB connection;1800L(CKM254301-8P+S Yes Model Compatibility List $42.22 / Each

4,5,6
Q 708334 1000102124 Q01 Motor Cover;Upper Yes Model Compatibility List $48.93 / Each

9,10

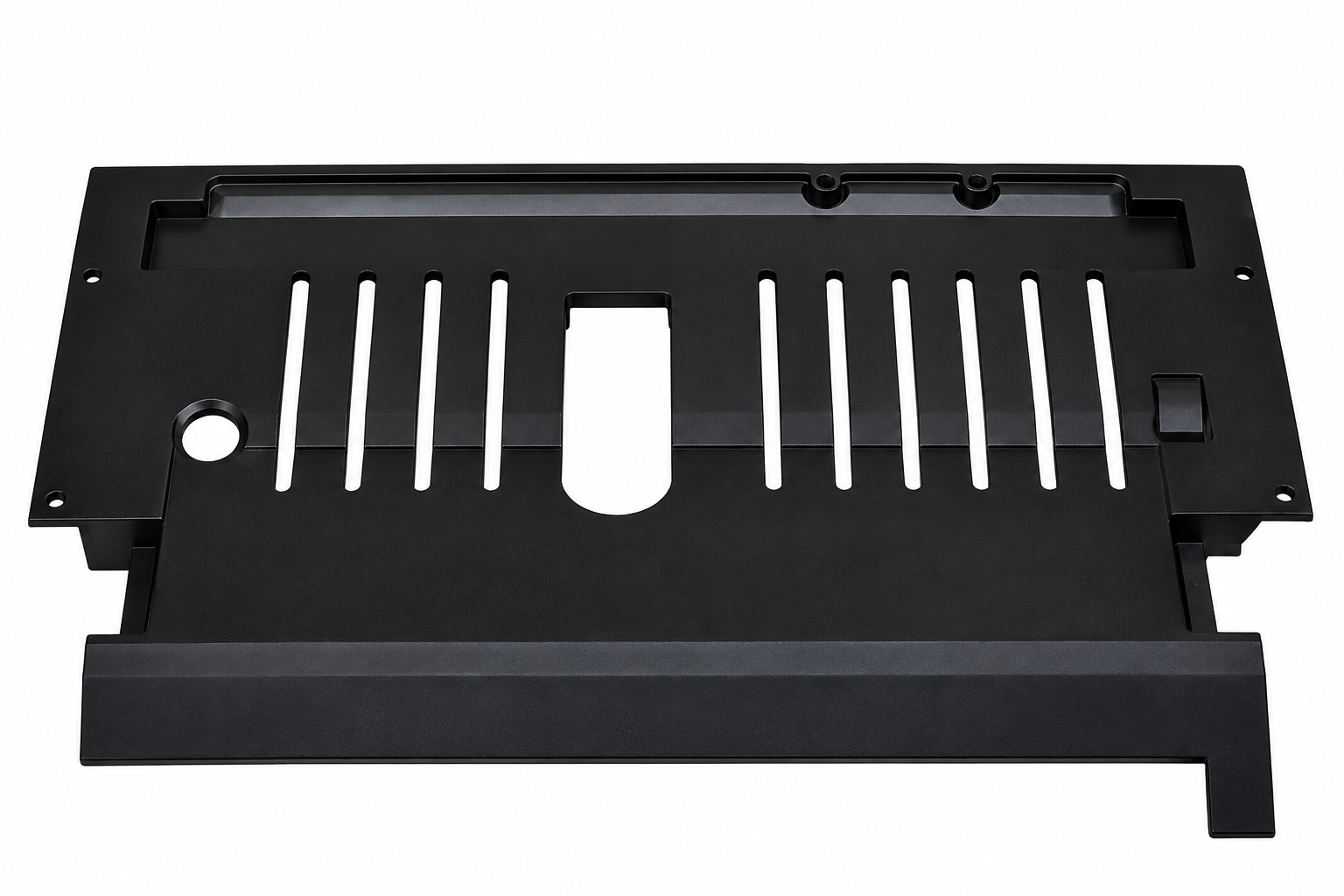

Q 708945 1000107490 Q02 Motor Cover;Lower No Model Compatibility List $31.93 / Each

9,10
Q 712963 1000231815 Q03 SIDE RAIL ;RIGHT;TM622;TOOLING SHARING W Yes Model Compatibility List $76.65 / Each

9
Q 708632 1000104507 Q04 Rear Roller Cover;Left Yes Model Compatibility List $15.55 / Each

8,9
Q 708633 1000104508 Q05 Rear Roller Cover;Right Yes Model Compatibility List $10.35 / Each

8,9
Q 708337 1000102129 Q06 Cover;Side Rail;Right Yes Model Compatibility List $3.82 / Each

9

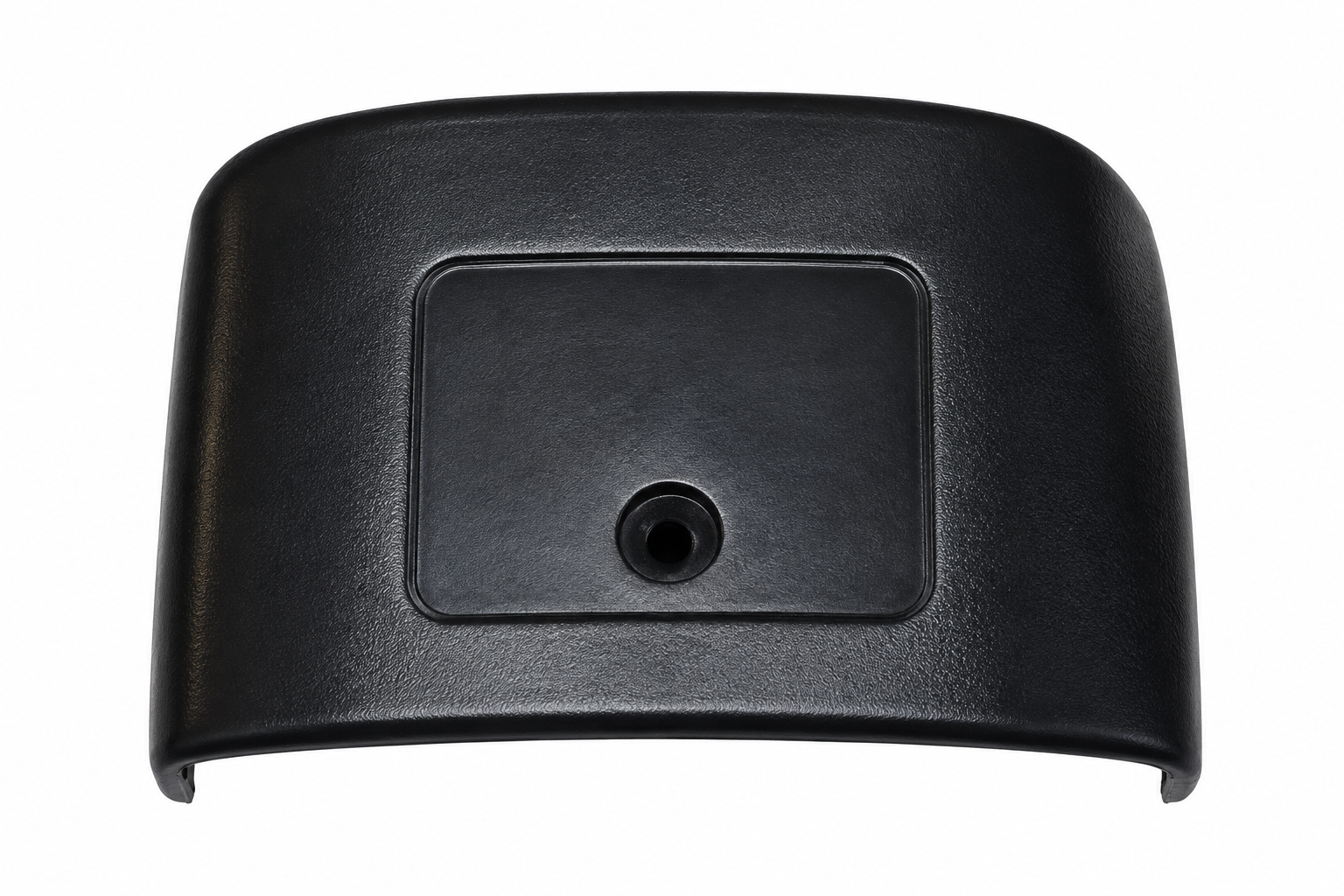

Q 708336 1000102128 Q07 Cover;Side Rail;Left Yes Model Compatibility List $3.82 / Each

9
Q 712962 1000231814 Q08 SIDE RAIL ;LEFT;75140;TM622;TOOLING SHAR Yes Model Compatibility List $76.65 / Each

9
701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $2.00 / Each

Q 705470 049263-A Q31 Screw;Phillip;BH;Tapped;4x20L; No Model Compatibility List $2.00 / Each

701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

701849 004867-A Q33 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
Q 704155 020352-A Q34 Screw;Phillip;Sink;Tapped;4x34L; No Model Compatibility List $2.00 / Each

R 708397 1000102642 R02 Running Belt;Black;508x2930x1.4t No Model Compatibility List $249.13 / Each

15,4,5,6
709100 1000109550 R03 Drive Belt;Poly-V;190-J8 Yes Model Compatibility List $26.00 / Each

23
R 1002833 1000109550 R03 Motor Drive Belt Yes Model Compatibility List $9.99 / Each

23
R 1002332 1000109550 R03 Flexonic Pulley Drive Belt Yes Model Compatibility List $26.00 / Each

23
R 709878 1000204234 R04 Screw;Round;M8X1.25PX80L-75L;MT;HS; Yes Model Compatibility List $11.41 / Each

R 704011 020101-00 R05 Screw;Hex Socket;Round;M8x1.25Px55L;Black Zinc No Model Compatibility List $2.00 / Each

701897 004926-00 R06 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

R 976932 004926-00 R06 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

V 709798 1000203311 V01 Sticker;Motor Upper Cover;TM643 No Model Compatibility List $9.57 / Each
Out Of Stock 		9,10
V 709799 1000203312 V03 Sticker;Side Rail Cover;TM643 No Model Compatibility List $3.82 / Each

9
V 709746 1000202517 V04 Spec Label;Cap;Left No Model Compatibility List $1.90 / Each

9
V 709741 1000202511 V06 Spec Label;POP;OVERLAY;;L;TM644; No Model Compatibility List $1.90 / Each

12,13,14
V 709796 1000203308 V07 POP Sticker;CONSOLE OVERLAY;R;TM643 No Model Compatibility List $1.90 / Each

7,12,13,14
702325 006078-00 V18 Decal;Grounding;TM08 No Model Compatibility List $1.90 / Each

V 708991 1000108054 V20 Sticker;Warning;One No Model Compatibility List $1.77 / Each

1
V 705707 055269-AX V22 Decal;Faceplate No Model Compatibility List $3.82 / Each

V 709797 1000203310 V24 Sticker;POP;Motor Cover No Model Compatibility List $1.90 / Each

9,10,12,13,14
V 708930 1000107358 V25 Warning Sticker;Console Overlay No Model Compatibility List $1.90 / Each

7
Z 709764 1000202758 Z01 Screw;FH;M6X1.0PX10L;MT;HS;G8.8;BAN; No Model Compatibility List $2.00 / Each

Z 701729 004754-00 Z02 Screw;Hex Socket;BH;M8x1.25Px20L;BED No Model Compatibility List $1.79 / Each

701964 005005-00 Z03 Washer;Spring;Lock;8.2x15.4x2.0t Yes Model Compatibility List $1.59 / Each

Z 704175 020425-00 Z04 Washer;Flat;8.4x15.5x1.6T Yes Model Compatibility List $2.00 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
