Horizon Fitness - T401 - 2009

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700245 000767-D B46 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

B 700246 000768-D B47 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

700318 000940-A N16 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

Q 700321 000955-BC Q09 End Cap;Base Frame;Front Yes Model Compatibility List $3.82 / Each

9,3
700402 001251-F B311 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

H 700410 001278-B H62 Spacer Ring Yes Model Compatibility List $2.00 / Each

2,3,4,5,6
H 700418 001299-B H08 Cover;Elevation Frame;PVC No Model Compatibility List $9.57 / Each

9,3,10
700570 001679-00 P11 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

700700 001952-00 KIT Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
700746 002124-B P13 Connecting Cable;Socket/Breaker;60;16AWG Black Yes Model Compatibility List $3.82 / Each

700755 002169-A P31 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
700773 002248-D P06 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
700847 002508-A P07 Power Wire;Control Board;550;16AWG;Black No Model Compatibility List $1.90 / Each

7,4,5,6
700848 002509-A P08 Power Wire;Control Board;550;16AWG;White Yes Model Compatibility List $1.90 / Each

7,4,5,6
701013 003326-00 P01 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

701020 003346-00 P12 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

701026 003363-00 P02 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
P 701364 004415-Z P14 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
701375 004425-B B31 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

M 701476 004523-00 M13 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

R 701478 004525-00 R05 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $7.20 / Each

H 701534 004565-00 H06 Screw;Hex Socket;Sink;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
B 701544 004571-00 B28 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $2.00 / Each

M 701559 004590-Z M20 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.79 / Each

2,10
M 701562 004595-00 M14 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
701581 004614-AB B49 Screw;Phillip;Umbrella;Tapped;3x10L;Black No Model Compatibility List $2.00 / Each

2,4,5,6
N 701589 004619-00 N32 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

N 701602 004626-00 Not Shown Screw;Phillip;BH;Tapped;4x10L;BED; No Model Compatibility List $2.00 / Each

701605 004627-00 B60 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

701613 004632-00 B37 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

701699 004724-00 Z09 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $2.00 / Each

701858 004880-00 P15 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 M12 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M22 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

K 701912 004941-00 K14 Nut;Nylon;M10x1.5P Yes Model Compatibility List $2.00 / Each

701964 005005-00 B43 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

Z 702011 005047-00 Z07 Washer;Flat;8.2x20x1.8T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702030 005062-00 M21 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

M 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

702160 005196-00 H23 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

H 702171 005212-A H28 Washer;Teflon;12.2x18x1.0T No Model Compatibility List $2.00 / Each

2
702186 005229-00 H20 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

702217 005330-00 Q17 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

Z 702257 005393-00 Z01 Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

Z 702268 005423-00 Z02 Wrench-L-Type;5mmx70L No Model Compatibility List $2.00 / Each

2
H 702292 005493-A H30 Spring;Ext;60MN;Zinc No Model Compatibility List $2.00 / Each

2
702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

702556 008625-C H19 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $2.00 / Each

B 702762 009562-AX B41 Air Shock;85-90KG(125L) Yes Model Compatibility List $34.27 / Each

1
703439 014670-E AR1 Front Roller Set No Model Compatibility List $126.26 / Each

8
703771 016172-Z M01 Drive Motor Set;Digital-1.75HP Yes Model Compatibility List $450.00 / Each

10

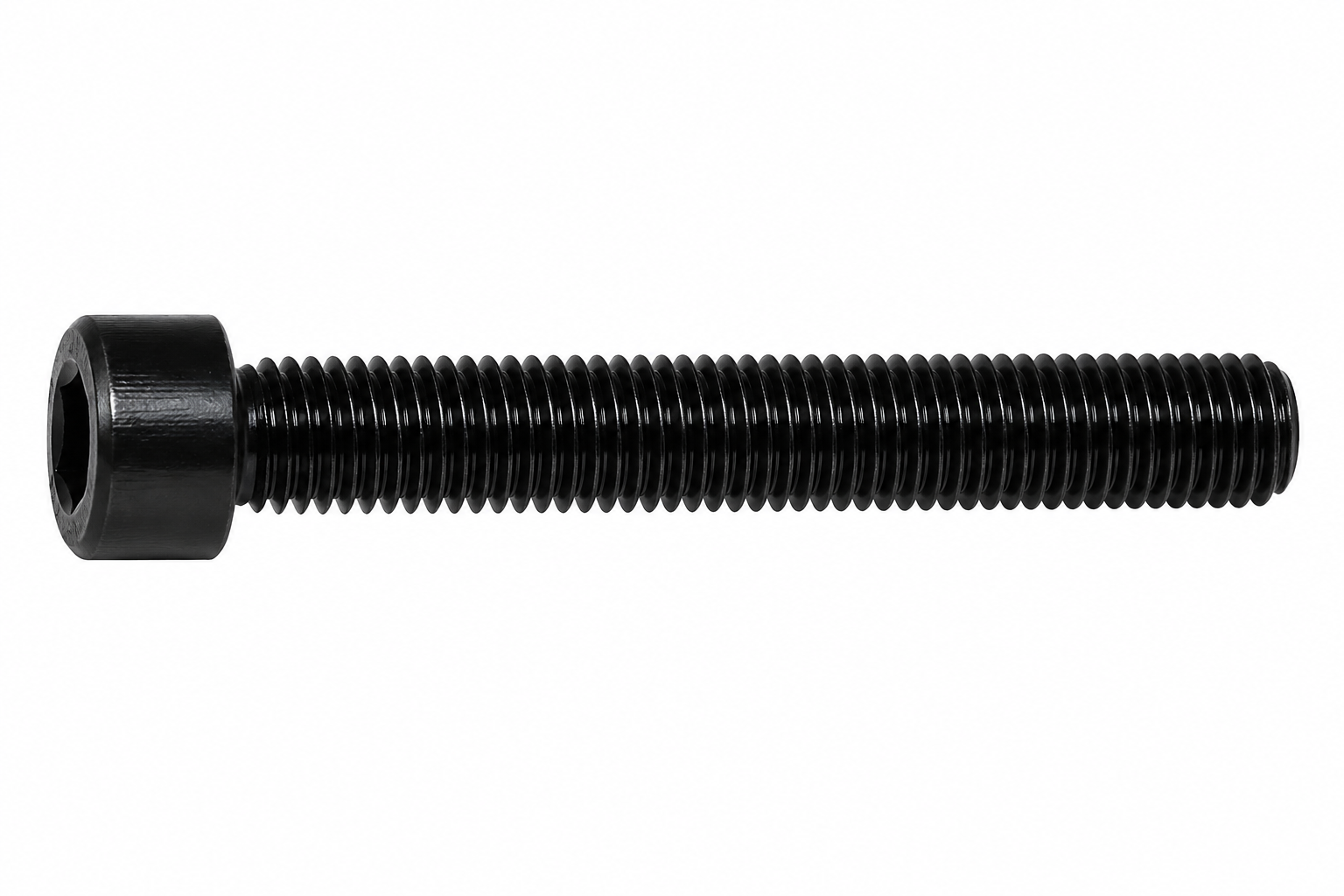

704033 020121-A R06 Bolt;Rear Roller;Hex Socket;M8x1.25Px70L;Chromed Yes Model Compatibility List $4.00 / Each

7,2,8,12,13,14
704068 020179-00 M60 Screw;Phillip;BH;Tapped;4x12L;Flat End No Model Compatibility List $1.59 / Each

704079 020196-A N35 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

N 704087 020210-00 N34 Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
R 704175 020425-00 R07 Washer;Flat;8.4x15.5x1.6T No Model Compatibility List $2.00 / Each

704229 020668-00 Z04 Wrench;Hex;L-Type;#10mmx170L; No Model Compatibility List $4.00 / Each

705041 032671-HF M03 Motor Control Board;Digital Drive;1.75/2.0HP Yes Model Compatibility List $453.52 / Each

48
M 705182 039043-00 M02 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $331.29 / Each

28
K 705259 039400-BA K13 Transport Wheel;Nylon Yes Model Compatibility List $9.57 / Each

Q 705470 049263-A Q31 Screw;Phillip;BH;Tapped;4x20L; No Model Compatibility List $2.00 / Each

B 705514 049800-B B57 Belt Guide Yes Model Compatibility List $1.90 / Each

15

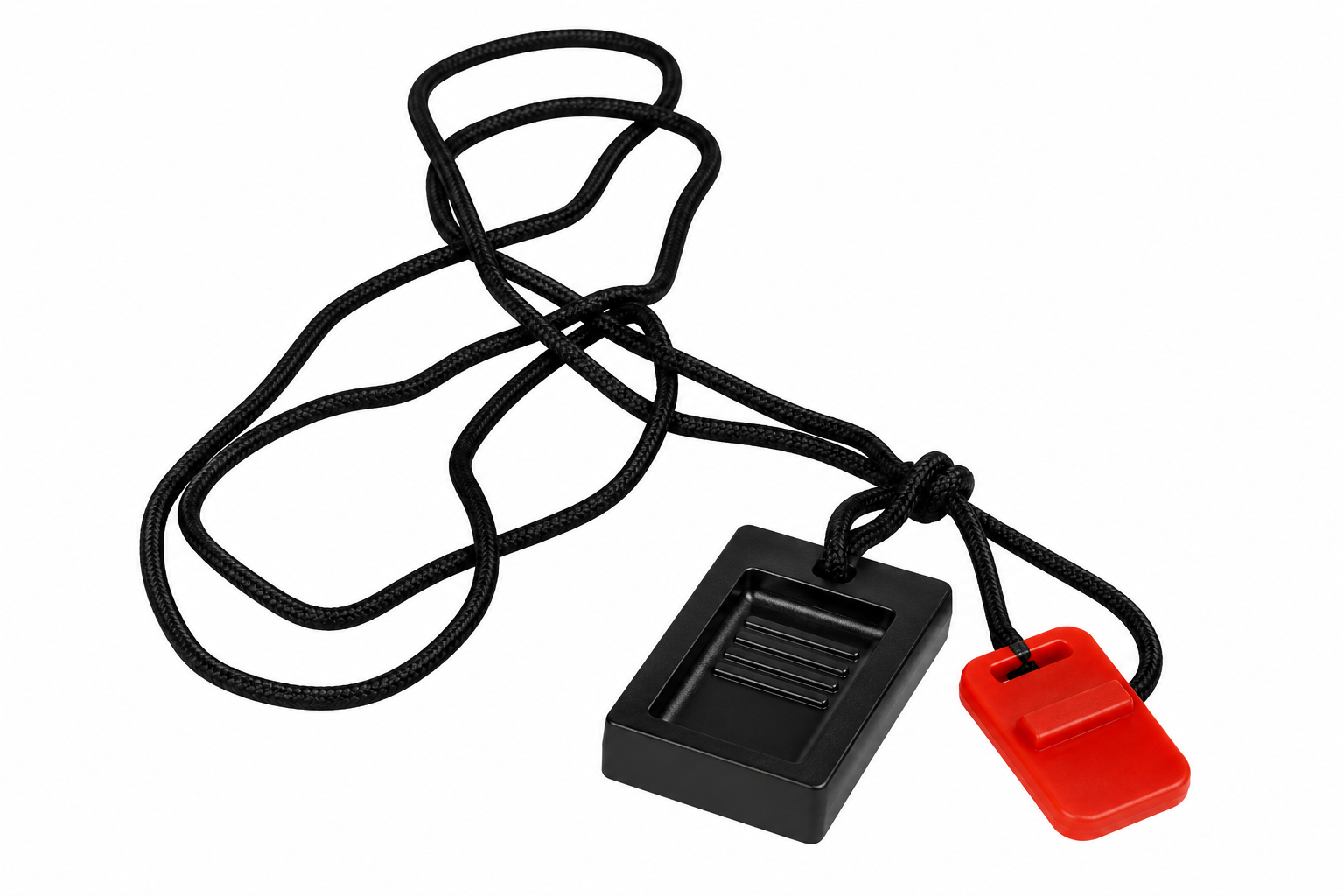

A 705566 051345-A AN3 Safety Key Set Yes Model Compatibility List $37.91 / Each

1
705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14

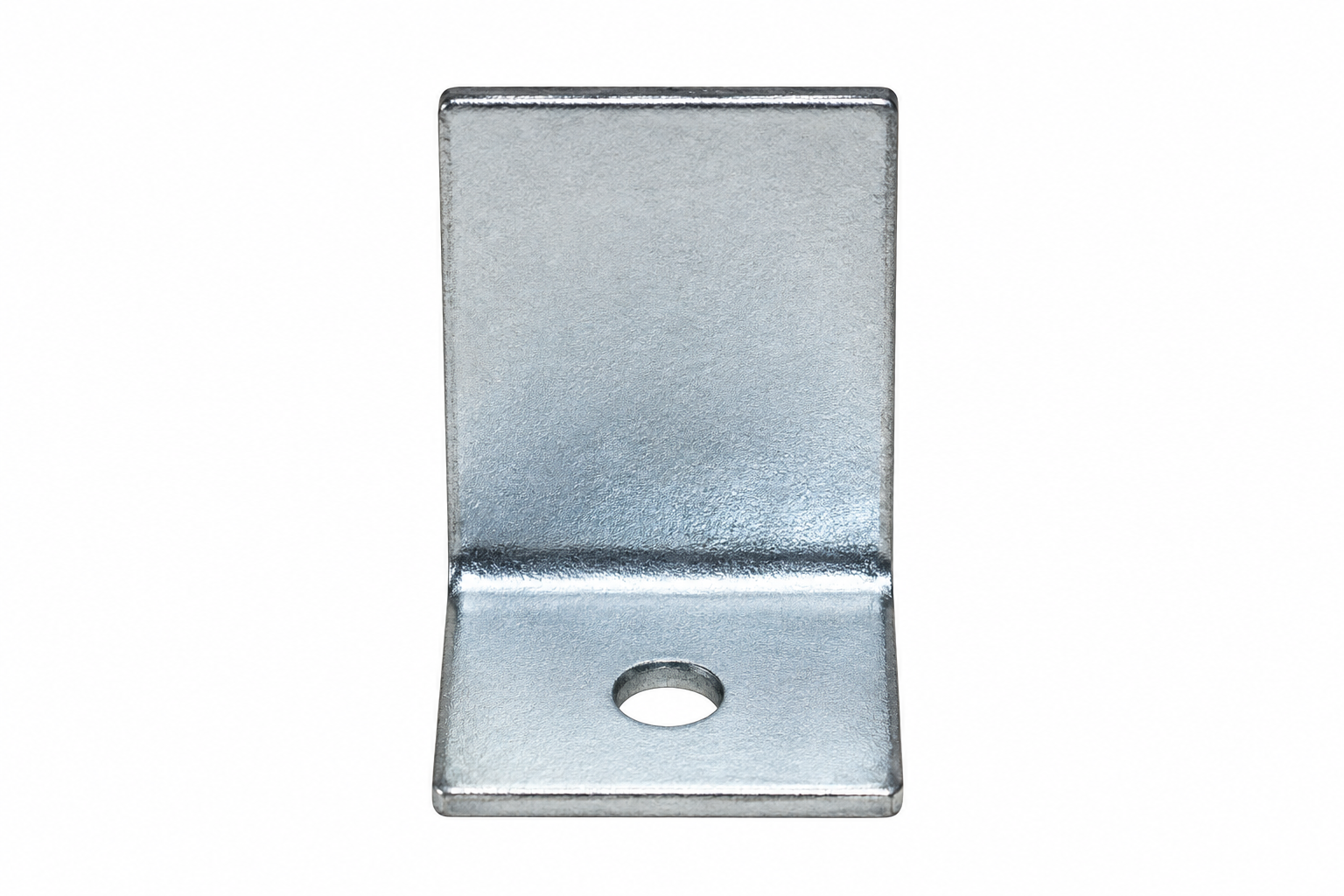

B 705954 056905-A B36 Stopper;Side Rail No Model Compatibility List $1.79 / Each

9
H 706178 059929-B H18 Screw;Special;M8X1.25PX9L-D10X11.2L;;HE;45#;BOX No Model Compatibility List $2.00 / Each

K 706218 060295-CA KIT Digital Speed Sensor Yes Model Compatibility List $42.02 / Each

1
N 706286 060781-A N64 Ground Wire;Grip Pulse;300mm Yes Model Compatibility List $3.54 / Each

4,5,6,12,13,14,11
P 706800 065712-A P18 Screw;;Umbrella Cross;M5x0.8Px25L; No Model Compatibility List $1.85 / Each

Z 706838 066044-A Z21 Washer;Flat;20.2x27.0x2.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
P 707386 1000092427 P03 Line;console;1500(2.5-9p+2.5-12p)black;t No Model Compatibility List $34.97 / Each

7,4,5,6
709102 1000109577 R04 Drive Belt;Poly-V;170-J8 Yes Model Compatibility List $60.22 / Each

15,10
712373 1000228623 H16 CON Plate;Console Mast;Painting;TM603-1U No Model Compatibility List $49.84 / Each

7,3
Q 724955 100214 Q07 Cover;R/Rear;Grey/DS024;TM603-1US No Model Compatibility List $12.19 / Each

9
Q 724956 100215 Q06 Cover;L/Rear;Grey/DS024;TM603-1US No Model Compatibility List $12.19 / Each

9
Q 724957 100216 Q01 MOTOR UPPER COVER ONLY No Model Compatibility List $67.70 / Each

9,10
N 725105 101752 N09 Console Bottom Cover;Charcoal DS024 No Model Compatibility List $67.50 / Each

7,9
N 725111 101763 N14 Cover;Console;Rear;Charcoal DS024;TM108 No Model Compatibility List $9.46 / Each

7,9
V 725182 102445 V07 Sticker;Overlay;L;TM603 No Model Compatibility List $3.54 / Each

1
V 725183 102446 V08 Sticker;Overlay;R;TM603 No Model Compatibility List $3.54 / Each

1
A 725193 102552 AN2 CONSOLE CASE SET No Model Compatibility List $124.67 / Each

7
Motor Cover; Bottom 725870 077449 Q02 Motor Cover; Bottom No Model Compatibility List $27.59 / Each

725961 078561 Q22 Tape;Foam;One Sided;8x16x50;Black No Model Compatibility List $3.54 / Each

Washer;Flat8.4X15.5X1.6T 726801 084906 M07 Washer;Flat8.4X15.5X1.6T No Model Compatibility List $1.85 / Each

UCB;T401;H103S103noRoHS/// D/C, NO REPL: Part will show as orderable until stock is depleted. 728425 094763 N60 UCB;T401;H103S103noRoHS/// D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $172.48 / Each

Screw;Special;M8X1.25PX33L-8L; 728606 095610 H21 Screw;Special;M8X1.25PX33L-8L; No Model Compatibility List $4.00 / Each

Screw;Special;Fixing;12x34L 728607 095611 H22 Screw;Special;Fixing;12x34L No Model Compatibility List $4.00 / Each

Running Belt;495x2590x1.4t;TM603 728609 095620 R03 Running Belt;495x2590x1.4t;TM603 No Model Compatibility List $249.13 / Each

Fixing Axle;Console;;S20C 728612 095629 B30 Fixing Axle;Console;;S20C No Model Compatibility List $21.50 / Each

Console Mast Set;L;Painting;DM337 728625 095684 AC1 Console Mast Set;L;Painting;DM337 No Model Compatibility List $211.22 / Each

728627 095688 AC2 Console Mast Set;R;Painting;DM337 No Model Compatibility List $211.22 / Each

Elevation Rack Set;Painting;TM603-1US 728628 095691 AH1 Elevation Rack Set;Painting;TM603-1US No Model Compatibility List $111.25 / Each

Decal;Motor Cover;POP;UP;TM603-1US 728630 095738 V01 Decal;Motor Cover;POP;UP;TM603-1US No Model Compatibility List $8.87 / Each

Decal;End Cap;L;NO ROHS;;TM603-1US 728631 095742 V03 Decal;End Cap;L;NO ROHS;;TM603-1US No Model Compatibility List $1.77 / Each

Owner-s Manual 728632 095746 V20 Owner-s Manual No Model Compatibility List $8.87 / Each

Hardware Set;Semi-Assy;TM603-1US 728749 096545 KIT Hardware Set;Semi-Assy;TM603-1US No Model Compatibility List $64.35 / Each

Overlay;Manipulate1;TM603;TM603-N61A 728758 096839 N61 Overlay;Manipulate1;TM603;TM603-N61A No Model Compatibility List $57.49 / Each

Overlay;Manipulate2(key);TM603 728759 096840 N62 Overlay;Manipulate2(key);TM603 No Model Compatibility List $38.32 / Each

Running Deck;682x1140x18T;TM602-1US 728806 097651 B27 Running Deck;682x1140x18T;TM602-1US No Model Compatibility List $249.13 / Each

Pulse Sensor Set;800mm;31.8+2.5-2P JIND 728889 098282 N39 Pulse Sensor Set;800mm;31.8+2.5-2P JIND Yes Model Compatibility List $31.33 / Each

Wire Console ;520(2.5-9p+2.5-9p)black;T 728945 099113 P04 Wire Console ;520(2.5-9p+2.5-9p)black;T No Model Compatibility List $16.09 / Each

Morot Fix Rack;Painting;DM337;TM603 728959 099682 M05 Morot Fix Rack;Painting;DM337;TM603 No Model Compatibility List $35.88 / Each

Console Cover;U;Charcoal DS024;TM603-1US 728960 099692 N08 Console Cover;U;Charcoal DS024;TM603-1US No Model Compatibility List $57.17 / Each

Roller Set;Rear;TM603-1US 728961 099695 AR2 Roller Set;Rear;TM603-1US Yes Model Compatibility List $191.62 / Each

Tube;Support;Painting;;TM603-1US 728965 099953 AH2 Tube;Support;Painting;;TM603-1US No Model Compatibility List $113.59 / Each

Magnetic Safety Key (Used) 1017639 013871-A # 1 Magnetic Safety Key (Used) Yes Model Compatibility List $38.99 / Each

1
P 1020937 002124-B P13 1 Power Entry Socket Input Module Yes Model Compatibility List $25.99 / Each

Magnetic Safety Key Lanyard (Used) 013699 013871-A 0 1 Magnetic Safety Key Lanyard (Used) No Model Compatibility List $35.09 / Each

1
DC Drive Motor Johnson 016172-Z JM05-017 0 1 DC Drive Motor Johnson No Model Compatibility List $388.70 / Each

1
M 039043-00 039043-00 M02 1 Incline Elevation Motor Yes Model Compatibility List $336.70 / Each

28
P 1001381 003326-00 P01 1 Power Switch Yes Model Compatibility List $29.99 / Each

Belt Drive 1002025 1000109551 0 1 Belt Drive Yes Model Compatibility List $37.99 / Each

Belt Drive 1002356 1000109551 0 1 Belt Drive Yes Model Compatibility List $31.99 / Each

Roller Rear 1002632 099695 0 1 Roller Rear Yes Model Compatibility List $167.99 / Each

26
DC Drive Motor With Bracket 1000574 016172-Z 1000093557 DC Drive Motor With Bracket Yes Model Compatibility List $149.99 / Each
Out Of Stock
A 1000694 014670-E AR1 Front Drive Roller Yes Model Compatibility List $31.19 / Each

8
M 1000201 032671-HF M03 Motor Control Board Controller Yes Model Compatibility List $169.00 / Each
Out Of Stock
48
A 1000695 014670-E AR1 Front Drive Roller No Model Compatibility List $99.00 / Each

8
P 1000573 003326-00 P01 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

P 1002652 003346-00 P12 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1002658 003363-00 P02 Power Entry Module Yes Model Compatibility List $5.99 / Each

9,4,5,6
M 1002738 039043-00 M02 Incline Lift Elevation Motor Yes Model Compatibility List $79.99 / Each

28
P 1001433 002248-D P06 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
K 1035628 039400-BA K13 1 Transport Wheel (Used) Yes Model Compatibility List $5.00 / Each

Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

DC Drive Motor 1001114 016172-Z DC Drive Motor No Model Compatibility List $460.00 / Each
Out Of Stock
P 1001765 002169-A P31 Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
jht170L8r 1000109551 Motor Drive Belt (New) Yes Model Compatibility List $66.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

R hori170J8 1000109577 R04 Drive Motor Belt (New) Yes Model Compatibility List $66.99 / Each

15,10
M A1-0NN9-NPTB 032671-HF M03 Lower Control Board Motor Controller LPCA Digital Drive 1.75 2.0 HP (New) Yes Model Compatibility List $259.99 / Each
Out Of Stock
48
P 1034434 003326-00 P01 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P01 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

P 1009798 003346-00 P12 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

B 911951 004571-00 B28 Deck screw M8X1.25PX28L (New) No Model Compatibility List $13.99 / Each

M 976932 004926-00 M12 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q17 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each
