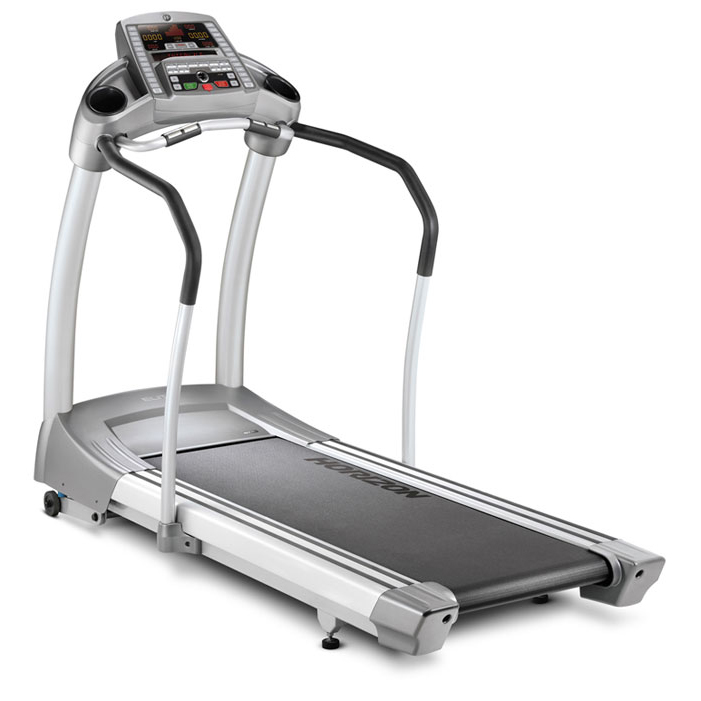

Horizon Fitness - T6 - 2007

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700002 - N01 Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock
2
700013 000020-C2 H18 Wheel;;;Nylon;74;;;;TM08 Yes Model Compatibility List $3.82 / Each

8
700211 000682-A M21 Foam Tape;Double Sided;150x30x3t No Model Compatibility List $1.90 / Each

1
700239 000760-E B29 Elastomer;White Yes Model Compatibility List $17.34 / Each

1
B 700241 000762-G B33 Elastomer;Blue Yes Model Compatibility List $15.31 / Each

1
700270 000826-00 H07 Bushings;Elevation Frame Yes Model Compatibility List $5.80 / Each

3
700402 001251-F B141 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

700414 001285-B2 R11 Bushing;TM42-B76B2 No Model Compatibility List $9.57 / Each

8
B 700522 001527-E B46 Stopper Bolt;Back Pad;GM07 No Model Compatibility List $3.64 / Each

2,4,5,6,12,13,14
700570 001679-00 KIT Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

700700 001952-00 N24 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
P 700726 002044-A P02 Console Cable, MCB to Mast Bottom; 500mm Yes Model Compatibility List $28.73 / Each

7,4,5,6
700740 002103-A P06 Console Cable;Mast;1200 (JST-12P+JST-12P) Yes Model Compatibility List $38.32 / Each

7,4,5,6
700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
N 701008 003307-00 N72 Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

701013 003326-00 P07 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

P 701021 003347-00 P09 Circuit Breaker;Current;ZE-700 20A/250V; Yes Model Compatibility List $28.73 / Each

M 701033 003386-A M17 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
701044 003415-00 R10 Magnet;Front Roller;10X3T No Model Compatibility List $1.90 / Each

8
701203 004158-00 R03 Drive Belt;Poly-V;200-J8 Yes Model Compatibility List $57.49 / Each

23
701288 004356-00 P29 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

701328 004381-00 P17 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

P 701364 004415-Z P13 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
R 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
701451 004496-00 R04 Screw;Hex Socket;Round;M10x1.5Px90L Yes Model Compatibility List $11.80 / Each

701454 004502-00 M35 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

R 701476 004523-00 R08 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

701540 004568-Z B51 Screw;Hex Socket;Sink;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
701560 004591-00 H10 Screw;Hex;3/8-16UNCx75L/Tooth20L; No Model Compatibility List $4.00 / Each

2
701577 004612-00 P15 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

701590 004619-AB M24 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701591 004620-00 N17 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701600 004624-00 Q17 Screw;Umbrella Cross Tapped;4x20L;Gap; No Model Compatibility List $2.00 / Each

701613 004632-00 Z11 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

Z 701708 004727-AC Z07 Screw;Umbrella Hex Scoket;M8x1.25Px30L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701779 004795-00 Z09 Screw;Hex Socket;BH;M10x1.5Px20L;Adhere No Model Compatibility List $2.00 / Each

2
B 701851 004870-00 B142 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

701861 004883-00 M23 Nut;Hex;M6x1.0P No Model Compatibility List $2.00 / Each

H 701864 004887-00 H16 Nut;Hex;3/8-16UNC No Model Compatibility List $2.00 / Each

701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 R05 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701900 004928-00 H15 Nut;Nylon;M12x1.75P No Model Compatibility List $4.00 / Each

701908 004934-00 M12 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

H 701912 004941-00 H20 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

B 701921 004953-00 B50 Nut;Nylon;M10X1.5P No Model Compatibility List $3.69 / Each

2
701939 004975-00 G04 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

B 701943 004978-00 B44 Insert Nut;Hex;NHS-1015-4.0(M10x1.5P) No Model Compatibility List $1.66 / Each

701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701968 005007-00 H11 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

701970 005009-AB Z23 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

702007 005044-00 R07 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

702013 005048-00 Z22 Washer;Flat;8.2x15.0x1.2T No Model Compatibility List $2.00 / Each

702025 005058-00 H13 Washer;Flat;12x26x2.0T No Model Compatibility List $2.00 / Each

702030 005062-00 H19 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

702033 005065-00 H14 Washer;Flat;10x30x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

N 702065 005093-00 N80 Washer;Flat;3.5x8.0x1.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
702074 005106-00 R06 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

702217 005330-00 B49 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

K 702258 005394-00 KIT Wrench;T-Type;8mm No Model Compatibility List $10.01 / Each

702262 005408-A KIT Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

702266 005421-00 KIT Wrench;L-Type;5mm No Model Compatibility List $9.28 / Each

2
702447 007387-E B08 Fixing Plate;Motor Control Board No Model Compatibility List $14.04 / Each

7,3,10
702831 011179-00 H17 Washer;Teflon;M12x30Px1T No Model Compatibility List $4.00 / Each

2
M 702854 012804-00 M02 Elevation Motor;110V No Model Compatibility List $249.13 / Each

1
703355 013701-AA M03 Motor Control Board;2.75HP;Digital Yes Model Compatibility List $401.52 / Each

28,48
703397 014122-AA AR1 Front Roller Set Yes Model Compatibility List $191.62 / Each

26
703441 014682-B AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

26
703878 018905-AA Q35 Foam Tape;One Sided;20x5x150L No Model Compatibility List $1.90 / Each

1
703916 019316-A N23 Safety Key Reed Switch Yes Model Compatibility List $9.57 / Each

4,5,6
703919 019354-A P08 Connecting Cable;Breaker/Switch;Black;120mm No Model Compatibility List $9.57 / Each

703920 019370-A E57 Power Cord;14 Guage/15 Amp Yes Model Compatibility List $57.49 / Each

B 703957 019996-B B31 Running Deck;606x1350x25t;Silicon No Model Compatibility List $249.13 / Each

3
703994 020077-00 H09 Screw;Hex Socket;Round;M12X1.75PX60L(30L) No Model Compatibility List $4.00 / Each

2
M 703999 020085-00 M30 Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad No Model Compatibility List $1.79 / Each

2
M 704058 020152-00 M10 Screw;HH;3/8-16UNCX50L-14L;;HE;;;;P-T No Model Compatibility List $4.00 / Each

M 704063 020160-Z M28 Screw;HH;M6X1.0PX25L;;HE;;;; No Model Compatibility List $2.00 / Each

2
Z 704074 020186-00 Z17 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.79 / Each

N 704087 020210-00 N16 Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
704212 020484-00 Z21 Washer;Arc;8.4x17x1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
705181 039042-A N32 Pulse Sensor Set Yes Model Compatibility List $18.28 / Each

12,13,14
P 705279 040427-A P04 Power Cable, Switch to MCB; Black 14AWG No Model Compatibility List $3.82 / Each

P 705280 040428-A P05 Power Cable, Switch to MCB; White 14AWG No Model Compatibility List $3.82 / Each

N 705285 040613-B N38 Ground Wire;250 No Model Compatibility List $1.90 / Each

4,5,6
P 705309 040700-A P03 Power Socket Yes Model Compatibility List $11.73 / Each

4,5,6
Q 705361 048948-AA Q09 Insert, Non-slip, Side Rails, L/R; 1260x18x2.0t No Model Compatibility List $9.57 / Each

9
B 705370 048980-AA B42 Foot Pad;B;TM197-B42A Yes Model Compatibility List $21.40 / Each

3,9,12,13,14
N 705415 049108-CA N03 Control Dial Assembly; No Model Compatibility List $38.32 / Each

7,3
N 705686 055148-BA N06 Cover;Control Dial No Model Compatibility List $9.57 / Each

7,9
V 705703 055251-AX V04 Decal;Control Dial No Model Compatibility List $1.90 / Each

7,3
V 705707 055269-AX V03 Decal;Faceplate No Model Compatibility List $3.82 / Each

705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
N 706133 059482-AAX N60 Upper Control Board Yes Model Compatibility List $851.84 / Each

7
K 706150 059585-AX KIT Polar Receiver; No Model Compatibility List $109.56 / Each

1
706219 060295-DA KIT Digital Speed Sensor No Model Compatibility List $35.52 / Each

1
C 706406 061844-AX C17 Decal;Aluminum;Motor Cover No Model Compatibility List $10.53 / Each

7,9,3,10
N 706576 063587-A N63 Membrane, Elevation, L; No Model Compatibility List $38.32 / Each

10
N 706577 063588-A N64 Membrane, Speed, R; No Model Compatibility List $38.32 / Each

1
N 706578 063589-B N65 Membrane, 3 Key; No Model Compatibility List $17.73 / Each

9
N 706579 063590-A N66 Membrane, Programs; No Model Compatibility List $38.32 / Each

1
N 706580 063591-A N20 Display Screen Cover; No Model Compatibility List $10.87 / Each

9
N 706581 063608-AA N02 Console Shell, Bottom; No Model Compatibility List $90.04 / Each

7
N 706582 063609-AAX N18 Reading Rack; No Model Compatibility List $8.87 / Each

4,5,6
Q 706583 063611-BA Q07 Foam Grip;Handlebar No Model Compatibility List $16.56 / Each

11
Q 706584 063615-BA Q11 Sleeve;Handle Bar;NBR;TM250-Q11C No Model Compatibility List $15.34 / Each

3,11
Q 706585 063616-AA Q08 Cushion, Console Shell; No Model Compatibility List $8.87 / Each

7,3
Q 706586 063617-BA Q15 Sleeve;Handle Bar;R;NBR;TM250-Q15C No Model Compatibility List $15.34 / Each

3,11
706587 063618-AA Q14 Cup Holder;Right Yes Model Compatibility List $9.57 / Each

1
Q 706588 063619-AA Q13 Cup Holder;Left Yes Model Compatibility List $8.87 / Each

1
K 706589 063627-BX KIT Owner-s Manual; No Model Compatibility List $3.54 / Each

1
K 706590 063639-A KIT Hardware Pack No Model Compatibility List $24.83 / Each

4,5,6
706591 063646-AAX Q05 End Cap, Rear, L; Yes Model Compatibility List $32.89 / Each

9
706592 063647-AAX Q06 End Cap, Rear, R; Yes Model Compatibility List $32.89 / Each

9
N 706593 063694-A N13 Screw; 4x50L No Model Compatibility List $1.85 / Each

2
706606 063800-AA AC1 Support Tube, L; No Model Compatibility List $153.32 / Each

3
706607 063801-AA AC2 Support Tube, R; No Model Compatibility List $153.32 / Each

3
N 706682 064362-BAX N67 Faceplate Only; No Model Compatibility List $32.89 / Each

3,4,5,6
N 706683 064367-AX N62 Overlay, Display and Speed Keys; No Model Compatibility List $38.32 / Each

9
N 706684 064368-AX N61 Overlay, Programs; No Model Compatibility List $19.14 / Each

1
706692 064603-Z M01 MOTOR SET;TM197 No Model Compatibility List $832.60 / Each

10
R 706722 064985-A R02 Running Belt; Yes Model Compatibility List $479.10 / Each

15
B 706723 064990-AA B48 Connecting Plate;Socket/Breaker/Switch Yes Model Compatibility List $11.49 / Each

3,4,5,6
V 706804 065739-AX V67 Sticker;Warning;Console;POP;L;TM250-V67A No Model Compatibility List $3.54 / Each

7,12,13,14
C 706819 065856-AA C16 Accent Plate; No Model Compatibility List $3.54 / Each

3,4,5,6
A 706905 067117-Z AN2 Console Frame Set; No Model Compatibility List $276.07 / Each

7,3
A 706906 067119-Z AH1 Elevation Frame Set; No Model Compatibility List $196.87 / Each

3,10
A 706907 067121-ZL AG2 Handlebar Set;Left No Model Compatibility List $149.92 / Each

11
706908 067121-ZR AG1 Handlebar Set;Right No Model Compatibility List $149.92 / Each

11
K 707457 1000092805 KIT Silicon Oil;40ml No Model Compatibility List $32.49 / Each

R 708390 1000102607 R02 Running Belt;Livestrong Logo No Model Compatibility List $479.10 / Each

15
Safety Key Set 726500 082397 AN3 Safety Key Set Yes Model Compatibility List $42.74 / Each

Red Deck Cushion Isolator (Used) 1021191 000760-E-Red B30 2 Red Deck Cushion Isolator (Used) Yes Model Compatibility List $12.99 / Each

3
Cover Motor (Used) 1024584 063644-AAX Q01 1 Cover Motor (Used) No Model Compatibility List $77.99 / Each

1
M 012804-00 012804-00 M02 1 Smooth AFG Treadmill Incline Elevation Motor No Model Compatibility List $246.99 / Each

1
A 014122-AA 014122-AA AR1 1 Front Drive Pulley Roller Yes Model Compatibility List $206.70 / Each

26
A 014682-B 014682-B AR2 1 Rear Idler Roller Yes Model Compatibility List $194.99 / Each

26
P 1001381 003326-00 P07 1 Power Switch Yes Model Compatibility List $29.99 / Each

P 1000573 003326-00 P07 Power Entry Switch On/Off Yes Model Compatibility List $20.99 / Each

A 1002114 014122-AA AR1 Front Roller Yes Model Compatibility List $49.99 / Each

26
A 1001527 014682-B AR2 Rear Idler Roller Yes Model Compatibility List $60.99 / Each

26
A 1003104 014122-AA AR1 Front Drive Pulley Roller Yes Model Compatibility List $69.00 / Each

26
P 1001433 002248-D P14 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
A 1003106 014682-B AR2 Rear Idler Roller Yes Model Compatibility List $79.99 / Each

26
P 1003694 003347-00 P09 Power Entry Circuit Breaker Yes Model Compatibility List $9.99 / Each

P 1036808 019354-A P08 Power harness wire Yes Model Compatibility List $5.00 / Each

M 701972 005010-00 M13 Spring Lock Washer 10.75x17.2x2.16T (New) No Model Compatibility List $12.99 / Each

P 1009784 003347-00 P09 Circuit Breaker QMB-152-11C3N-3BA (New) Yes Model Compatibility List $28.99 / Each

Rear Roller Tensioner Bolt 1004610 004496-00  Rear Roller Tensioner Bolt Yes Model Compatibility List $5.99 / Each

P 1034434 003326-00 P07 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P07 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

N 911968 004620-00 N17 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

R 976932 004926-00 R05 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

B 957398 005330-00 B49 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

N 971749 003307-00 N72 Rate Chest Strap (New) No Model Compatibility List $194.99 / Each

View Drawing
