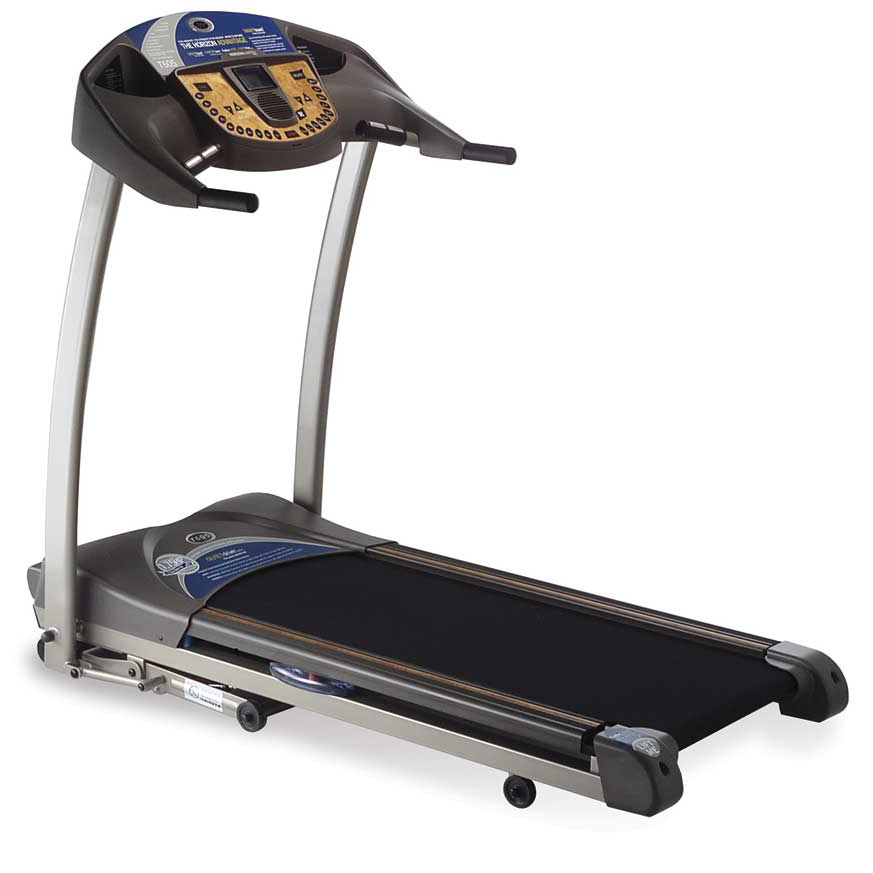

Horizon Fitness - T605 - 2005

Repair Parts for Horizon Fitness T605 TM120

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: T605

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700021 000037-CA L06 Transport Wheel;Frame Yes Model Compatibility List $6.42 / Each

3,8
N 700204 000636-A N16 Foam Grip;Handlebar;31.8x3tx140L No Model Compatibility List $1.90 / Each

11
B 700245 000767-D B57 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

B 700246 000768-D B58 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

700318 000940-A N17 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

700402 001251-F L10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

H 700418 001299-B H05 Cover;Elevation Frame;PVC No Model Compatibility List $9.57 / Each

9,3,10
Q 700431 001357-EB Q08 End Cap;Foot Rail;Right No Model Compatibility List $13.44 / Each
Out Of Stock 		9,3
N 700704 001963-A N13 Console Safety Key Reed Switch;250L(2.5-2P) E192542 Yes Model Compatibility List $14.22 / Each

4,5,6
K 700741 002108-C KIT Console Cable;Mast;1500L(5557 SERIES+2.5-12P) Yes Model Compatibility List $40.92 / Each

4,5,6,7
700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

700755 002169-A P07 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
P 700850 002513-B P09 Power Cable;Control Board;1000L;16AWG;Black No Model Compatibility List $0.03 / Each

7,4,5,6
P 700851 002514-B P10 Power Cable;Control Board;1000L;16AWG;White No Model Compatibility List $1.90 / Each

7,4,5,6
N 700958 002976-A N04 Overlay-Console; 0.25MM PC No Model Compatibility List $19.14 / Each

7
N 700991 003182-B N06 Membrane Key;Speed/Elevation;28 Key No Model Compatibility List $38.32 / Each

9,10
701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

701026 003363-00 P11 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
M 701033 003386-A M17 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
N 701047 003432-B N26 Pulse Sensor Set;Single;750 Yes Model Compatibility List $21.27 / Each

12,13,14
R 701243 004263-A R02 Running Belt;458X2590X1.6t;Black No Model Compatibility List $249.13 / Each

1
B 701255 004311-C B27 Running Deck;682X1140X18T No Model Compatibility List $249.13 / Each

3
701300 004364-00 P29 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701328 004381-00 P17 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

P 701364 004415-Z P15 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
701375 004425-B L11 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

R 701401 004454-00 R08 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

701432 004480-Z M45 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $7.20 / Each

R 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

M 701476 004523-00 M46 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

701530 004562-00 B36 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
H 701534 004565-00 H50 Screw;Hex Socket;Sink;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
M 701559 004590-Z M14 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.79 / Each

2,10
M 701562 004595-00 M10 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
701590 004619-AB N19 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701591 004620-00 N15 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701612 004631-00 Q31 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

N 701621 004640-A N58 Screw;Umbrella Cross Tapped;4X35L No Model Compatibility List $2.00 / Each

2
701699 004724-00 N55 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701848 004865-00 Q30 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701858 004880-00 P16 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701866 004889-00 M44 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701867 004889-Z Q33 Nut, hex head; M5x0.8P No Model Compatibility List $0.00 / Each
Out Of Stock 		2
R 701876 004903-Z R10 Nut;Hex;M5x0.8Px4H No Model Compatibility List $2.00 / Each

2
701897 004926-00 M08 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M12 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

H 701912 004941-00 H48 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

C 701916 004945-00 C23 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701970 005009-AB H23 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

H 701997 005035-00 H20 Washer;Flat;8.2x18x1.4T No Model Compatibility List $2.00 / Each

702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

C 702021 005056-00 C25 Washer;Flat;13.2X26.0X2.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
702030 005062-00 L07 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

H 702114 005141-A H25 Washer;Flat;12.5x19x1.5T No Model Compatibility List $1.85 / Each

2
702121 005146-A H21 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702135 005163-00 Z01 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
702160 005196-00 H27 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

C 702169 005210-A C26 Washer;Teflon;20.3x25x1.0T No Model Compatibility List $2.00 / Each

2
Z 702170 005211-A Z11 WASHER;FLT;Diam.12.1XDiam.20.0X1.0T;;; No Model Compatibility List $1.85 / Each

2
H 702171 005212-A H24 Washer;Teflon;12.2x18x1.0T No Model Compatibility List $2.00 / Each

2
702180 005222-00 H22 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702217 005330-00 Q17 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

H 702283 005475-D H30 Spring;Foot Lock Latch;SUS304 No Model Compatibility List $4.00 / Each

2,9,3
V 702327 006089-A V03 Decal;Console Logo No Model Compatibility List $3.82 / Each

7,3
702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

702556 008625-C H19 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $2.00 / Each

H 702558 008628-B H14 Bolt;Special;Support Tube Base;M8x1.25Px54L No Model Compatibility List $4.00 / Each

2,3
B 702761 009561-AX B56 Air Shock;100KG(125L) Yes Model Compatibility List $35.98 / Each

1
M 702854 012804-00 M02 Elevation Motor;110V No Model Compatibility List $249.13 / Each

1
703439 014670-E AR1 Front Roller Set No Model Compatibility List $126.26 / Each

8
A 703486 014949-BC AH1 Elevation Frame Set No Model Compatibility List $131.66 / Each

3,10
703770 016167-Z N33 Safety Key Set Yes Model Compatibility List $40.14 / Each

1
703771 016172-Z M01 Drive Motor Set;Digital-1.75HP Yes Model Compatibility List $450.00 / Each

10
A 703776 016318-Z AN2 Console Frame Set No Model Compatibility List $205.04 / Each

7,3
704033 020121-A R04 Bolt;Rear Roller;Hex Socket;M8x1.25Px70L;Chromed Yes Model Compatibility List $4.00 / Each

7,2,8,12,13,14
K 704087 020210-00 KIT Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
705041 032671-HF M03 Motor Control Board;Digital Drive;1.75/2.0HP Yes Model Compatibility List $453.52 / Each

48
705141 038132-BBX N37 Heart Rate Receiver Yes Model Compatibility List $54.39 / Each

12,13,14
705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
K 706218 060295-CA KIT Digital Speed Sensor Yes Model Compatibility List $42.02 / Each

1
K 707457 1000092805 KIT Silicon Oil;40ml No Model Compatibility List $32.49 / Each

M 707591 1000093557 M05 Drive Motor Bracket Yes Model Compatibility List $25.97 / Each

2,3,4,5,6,10
709031 1000108437 AR2 Roller Set;Rear;TM116 Yes Model Compatibility List $191.62 / Each

709102 1000109577 R03 Drive Belt;Poly-V;170-J8 Yes Model Compatibility List $60.22 / Each

15,10
Cushion;Air - D/C, NO REPL Part will show as orderable until stock is depleted 725935 078439 B18 Cushion;Air - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $17.71 / Each
Out Of Stock
Console Cable; Upper; 450L(2.5-12P+5557 SERIES) 725951 078539 KIT Console Cable; Upper; 450L(2.5-12P+5557 SERIES) Yes Model Compatibility List $28.73 / Each

Display Console - Used Only 1005519 SUH-T062 Display Console - Used Only No Model Compatibility List $245.70 / Each
Out Of Stock 		7
P 1020937 002124-B P08 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

M 012804-00 012804-00 M02 1 Smooth AFG Treadmill Incline Elevation Motor No Model Compatibility List $246.99 / Each

1
DC Drive Motor Johnson 016172-Z JM05-017 0 1 DC Drive Motor Johnson No Model Compatibility List $388.70 / Each

1
P 1001381 003326-00 P02 1 Power Switch Yes Model Compatibility List $29.99 / Each

Belt Drive 1002356 1000109551 0 1 Belt Drive Yes Model Compatibility List $31.99 / Each

M 1029909 004480-Z M45 Screw (Used) Yes Model Compatibility List $5.00 / Each

DC Drive Motor With Bracket 1000574 016172-Z 1000093557 DC Drive Motor With Bracket Yes Model Compatibility List $149.99 / Each
Out Of Stock
A 1000694 014670-E AR1 Front Drive Roller Yes Model Compatibility List $51.99 / Each

8
M 1000201 032671-HF M03 Motor Control Board Controller Yes Model Compatibility List $169.00 / Each
Out Of Stock 		48
A 1000695 014670-E AR1 Front Drive Roller No Model Compatibility List $99.00 / Each

8
A 1000696 1000108437 AR2 Rear Idler Roller Yes Model Compatibility List $59.99 / Each

P 1000573 003326-00 P02 Power Entry Switch On/Off Yes Model Compatibility List $20.99 / Each

A 1000697 1000108437 AR2 Rear Idler Roller Yes Model Compatibility List $219.99 / Each

P 1002652 003346-00 P04 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1002658 003363-00 P11 Power Entry Module Yes Model Compatibility List $19.99 / Each

9,4,5,6
P 1001433 002248-D P14 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

DC Drive Motor 1001114 016172-Z DC Drive Motor No Model Compatibility List $460.00 / Each
Out Of Stock
N 1002538 016167-Z N33 Safety Key Set Yes Model Compatibility List $26.99 / Each

1
P 1001765 002169-A P07 Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
Z 701972 005010-00 Z03 Spring Lock Washer 10.75x17.2x2.16T (New) No Model Compatibility List $12.99 / Each

jht170L8r 1000109551 Motor Drive Belt (New) Yes Model Compatibility List $66.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

R hori170J8 1000109577 R03 Drive Motor Belt (New) Yes Model Compatibility List $66.99 / Each

15,10
M A1-0NN9-NPTB 032671-HF M03 Lower Control Board Motor Controller LPCA Digital Drive 1.75 2.0 HP (New) Yes Model Compatibility List $259.99 / Each
Out Of Stock 		48
P 1034434 003326-00 P02 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P02 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

P 1009798 003346-00 P04 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

N 911968 004620-00 N15 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

M 976932 004926-00 M08 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q17 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each
