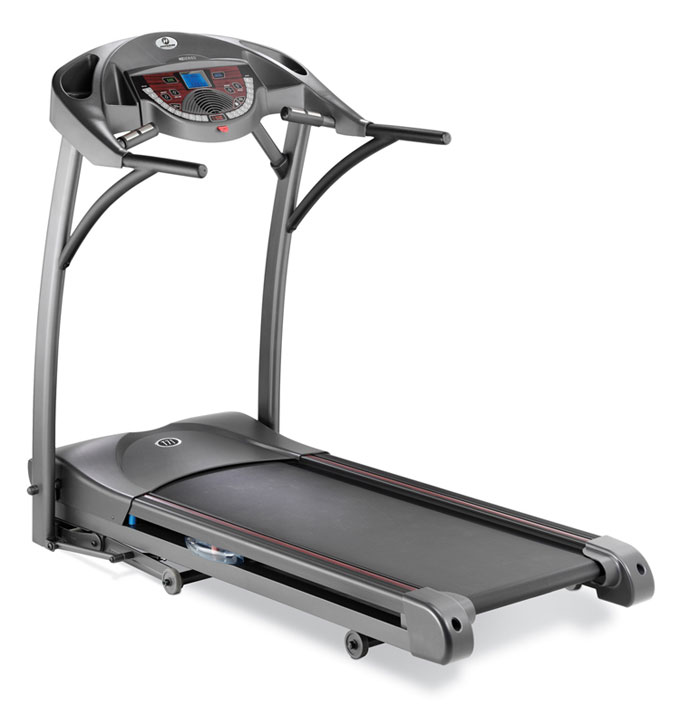

Horizon Fitness - T71 - 2007

Repair Parts for Horizon Fitness T71 TM204

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: T71

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700002 - X01 Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock 		2
700021 000037-CA L06 Transport Wheel;Frame Yes Model Compatibility List $6.42 / Each

3,8
700097 000357-CA Q02 Motor Cover;Bottom No Model Compatibility List $50.36 / Each

9,10
Q 700099 000362-CA Q01 Motor Cover;Upper Yes Model Compatibility List $72.44 / Each

9,10
Q 700120 000445-BA Q21 Cover;Strengthen Tube Yes Model Compatibility List $3.54 / Each

9,3
B 700245 000767-D B57 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

B 700246 000768-D B58 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

700318 000940-A N30 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

N 700343 001055-DA N01 Console Shell;Charcoal Gray No Model Compatibility List $84.86 / Each

7
700402 001251-F L10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

C 700416 001294-B C24 End Cap;Support Tube Base;AF002(1/2) 19 - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $2.00 / Each

9,3
H 700418 001299-B H05 Cover;Elevation Frame;PVC No Model Compatibility List $9.57 / Each

9,3,10
N 700420 001315-DA N02 Faceplate No Model Compatibility List $16.56 / Each

3,4,5,6
Q 700430 001357-EA Q08 End Cap;Foot Rail;Right No Model Compatibility List $9.57 / Each
Out Of Stock 		9,3
700570 001679-00 KIT Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

N 700704 001963-A N13 Console Safety Key Reed Switch;250L(2.5-2P) E192542 Yes Model Compatibility List $14.22 / Each

4,5,6
P 700741 002108-C P30 Console Cable;Mast;1500L(5557 SERIES+2.5-12P) Yes Model Compatibility List $40.92 / Each

4,5,6,7
700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

700755 002169-A P07 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
P 700850 002513-B P09 Power Cable;Control Board;1000L;16AWG;Black No Model Compatibility List $0.03 / Each

7,4,5,6
P 700851 002514-B P10 Power Cable;Control Board;1000L;16AWG;White No Model Compatibility List $1.90 / Each

7,4,5,6
701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

701026 003363-00 P11 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
M 701033 003386-A M17 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
N 701047 003432-B N26 Pulse Sensor Set;Single;750 Yes Model Compatibility List $21.27 / Each

12,13,14
R 701243 004263-A R02 Running Belt;458X2590X1.6t;Black No Model Compatibility List $249.13 / Each

1
B 701255 004311-C B27 Running Deck;682X1140X18T No Model Compatibility List $249.13 / Each

3
701288 004356-00 Z06 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

701328 004381-00 P17 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

P 701364 004415-Z P13 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
701375 004425-B L11 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

R 701401 004454-00 R08 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

701432 004480-Z M45 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $7.20 / Each

R 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

M 701476 004523-00 M46 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

701530 004562-00 B36 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
H 701534 004565-00 H50 Screw;Hex Socket;Sink;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
M 701559 004590-Z M14 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.79 / Each

2,10
M 701562 004595-00 M10 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
701581 004614-AB N59 Screw;Phillip;Umbrella;Tapped;3x10L;Black No Model Compatibility List $2.00 / Each

2,4,5,6
701588 004618-00 L14 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
701590 004619-AB N19 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701591 004620-00 Q30 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

Z 701678 004713-00 Z08 Screw;M6x1.0Px10L No Model Compatibility List $2.00 / Each

2
701699 004724-00 N55 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701781 004796-00 Z12 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
701847 004864-00 B39 Screw;4x12L No Model Compatibility List $2.00 / Each

701849 004867-A Q31 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
701858 004880-00 P16 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

R 701876 004903-Z R10 Nut;Hex;M5x0.8Px4H No Model Compatibility List $2.00 / Each

2
701897 004926-00 M08 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M12 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

L 701912 004941-00 L08 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

C 701916 004945-00 C23 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
701939 004975-00 B59 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701970 005009-AB H23 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

C 702021 005056-00 C25 Washer;Flat;13.2X26.0X2.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
702030 005062-00 L07 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

B 702063 005091-00 B40 Washer;Flat;4.2X10.0X1.2T;BAN No Model Compatibility List $2.00 / Each

H 702114 005141-A H25 Washer;Flat;12.5x19x1.5T No Model Compatibility List $1.85 / Each

2
702121 005146-A M13 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

H 702130 005157-00 H20 WASHER;FLT;Diam.8.2XDiam.20.0X1.4T;;BAN; No Model Compatibility List $1.85 / Each

2
702135 005163-00 Z01 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
Z 702138 005169-00 Z14 Washer;Arc;8.4x20.0x1.5T No Model Compatibility List $2.00 / Each

2
702160 005196-00 H27 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

C 702169 005210-A C26 Washer;Teflon;20.3x25x1.0T No Model Compatibility List $2.00 / Each

2
H 702171 005212-A H24 Washer;Teflon;12.2x18x1.0T No Model Compatibility List $2.00 / Each

2
H 702189 005232-A H22 Washer;Wavy;12.7x18x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702217 005330-00 Q17 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

702263 005411-Z KIT Wrench;L-Type;4mm No Model Compatibility List $4.00 / Each

K 702264 005412-00 KIT Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

H 702283 005475-D H30 Spring;Foot Lock Latch;SUS304 No Model Compatibility List $4.00 / Each

2,9,3
702446 007384-E B25 Fixing Plate;Motor Control Board No Model Compatibility List $9.59 / Each

7,3,10
702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

702556 008625-C H19 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $2.00 / Each

H 702558 008628-B H14 Bolt;Special;Support Tube Base;M8x1.25Px54L No Model Compatibility List $4.00 / Each

2,3
B 702762 009562-AX B56 Air Shock;85-90KG(125L) Yes Model Compatibility List $34.27 / Each

1
Z 702798 010680-00 Z03 Washer;Spring;Support Tube;M8X1.25PX16L No Model Compatibility List $2.00 / Each

2,3
K 703391 014103-A KIT Hardware Pack No Model Compatibility List $26.03 / Each

4,5,6
703439 014670-E AR1 Front Roller Set No Model Compatibility List $126.26 / Each

8
C 703473 014857-AA C28 Strengthen Tube;Right Mast Yes Model Compatibility List $52.05 / Each

3
C 703477 014893-AA C27 Strengthen Tube;Left Mast Yes Model Compatibility List $52.05 / Each

3
A 703485 014949-BA AH1 Elevation Frame Set No Model Compatibility List $131.66 / Each

3,10
A 703488 014961-BA AH2 Fold Frame No Model Compatibility List $152.59 / Each

3
A 703492 015006-AA AH3 Linkage Arm;Console Mast;Lower No Model Compatibility List $62.22 / Each

7,3
703770 016167-Z N33 Safety Key Set Yes Model Compatibility List $40.14 / Each

1
703771 016172-Z M01 Drive Motor Set;Digital-1.75HP Yes Model Compatibility List $450.00 / Each

10
704033 020121-A R04 Bolt;Rear Roller;Hex Socket;M8x1.25Px70L;Chromed Yes Model Compatibility List $4.00 / Each

7,2,8,12,13,14
N 704082 020203-A N58 Screw;Phillip;BH;Tapped;4x40L; No Model Compatibility List $4.00 / Each

2
H 704215 020487-ZA H21 Washer;Flat;10.5x18x2.5T No Model Compatibility List $2.00 / Each

K 705013 029150-AA KIT Tape;Foam;Double Sided;50.0X200.0X2.0T No Model Compatibility List $1.77 / Each

1
705041 032671-HF M03 Motor Control Board;Digital Drive;1.75/2.0HP Yes Model Compatibility List $453.52 / Each

48
705141 038132-BBX KIT Heart Rate Receiver Yes Model Compatibility List $54.39 / Each

12,13,14
M 705182 039043-00 M02 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $331.29 / Each

28
N 705281 040457-ABX N60 Upper Control Board; No Model Compatibility List $344.40 / Each

7
V 705332 048128-AX V02 Decal, Logo, Motor Cover; No Model Compatibility List $10.43 / Each

7,9,3,10
V 705335 048146-AX V07 Decal, POP, Console No Model Compatibility List $11.93 / Each

7,3,12,13,14
V 705337 048160-AX V22 Decal, Programs; No Model Compatibility List $3.54 / Each

7,3
V 705338 048161-A V23 Decal, Instructions; No Model Compatibility List $3.54 / Each

7,3
K 705340 048184-AX KIT Owner-s Manual; No Model Compatibility List $3.82 / Each

1
A 705342 048795-AA AG1 L Handlebar Extension; 15LBS No Model Compatibility List $57.38 / Each

11
N 705694 055185-A N06 Membrane Key; MX-T5 BIG(TM65-N91A) No Model Compatibility List $36.48 / Each

9
705731 055449-AA AC1 Console Mast Set;Left No Model Compatibility List $208.16 / Each

7
A 705732 055450-AA AC2 Console Mast Set;Right No Model Compatibility List $208.16 / Each

7
705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
M 706218 060295-CA M48 Digital Speed Sensor Yes Model Compatibility List $42.02 / Each

1
Q 706352 061330-Z Q03 Side Rail Set (w/decal); No Model Compatibility List $38.40 / Each

7,9,3
706364 061387-Z AN2 Console Frame Set; No Model Compatibility List $187.38 / Each

7,3
K 707457 1000092805 KIT Silicon Oil;40ml No Model Compatibility List $32.49 / Each

M 707591 1000093557 M05 Drive Motor Bracket Yes Model Compatibility List $25.97 / Each

2,3,4,5,6,10
H 708619 1000104244 H31 Foot Lock Latch No Model Compatibility List $24.62 / Each

9,3
709031 1000108437 AR2 Roller Set;Rear;TM116 Yes Model Compatibility List $191.62 / Each

709102 1000109577 R03 Drive Belt;Poly-V;170-J8 Yes Model Compatibility List $60.22 / Each

15,10
Cushion;Air - D/C, NO REPL Part will show as orderable until stock is depleted 725935 078439 B18 Cushion;Air - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $17.71 / Each
Out Of Stock
Console Cable; Upper; 450L(2.5-12P+5557 SERIES) 725951 078539 KIT Console Cable; Upper; 450L(2.5-12P+5557 SERIES) Yes Model Compatibility List $28.73 / Each

P 1020937 002124-B P08 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

DC Drive Motor Johnson 016172-Z JM05-017 0 1 DC Drive Motor Johnson No Model Compatibility List $388.70 / Each

1
M 039043-00 039043-00 M02 1 Incline Elevation Motor Yes Model Compatibility List $336.70 / Each

28
P 1001381 003326-00 P02 1 Power Switch Yes Model Compatibility List $29.99 / Each

Belt Drive 1002356 1000109551 0 1 Belt Drive Yes Model Compatibility List $31.99 / Each

M 1029909 004480-Z M45 Screw (Used) Yes Model Compatibility List $5.00 / Each

DC Drive Motor With Bracket 1000574 016172-Z 1000093557 DC Drive Motor With Bracket Yes Model Compatibility List $149.99 / Each
Out Of Stock
A 1000694 014670-E AR1 Front Drive Roller Yes Model Compatibility List $51.99 / Each

8
M 1000201 032671-HF M03 Motor Control Board Controller Yes Model Compatibility List $169.00 / Each
Out Of Stock 		48
A 1000695 014670-E AR1 Front Drive Roller No Model Compatibility List $99.00 / Each

8
A 1000696 1000108437 AR2 Rear Idler Roller Yes Model Compatibility List $59.99 / Each

P 1000573 003326-00 P02 Power Entry Switch On/Off Yes Model Compatibility List $20.99 / Each

A 1000697 1000108437 AR2 Rear Idler Roller Yes Model Compatibility List $219.99 / Each

P 1002652 003346-00 P04 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1002658 003363-00 P11 Power Entry Module Yes Model Compatibility List $19.99 / Each

9,4,5,6
M 1002738 039043-00 M02 Incline Lift Elevation Motor Yes Model Compatibility List $79.99 / Each

28
P 1001433 002248-D P14 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

DC Drive Motor 1001114 016172-Z DC Drive Motor No Model Compatibility List $460.00 / Each
Out Of Stock
N 1002538 016167-Z N33 Safety Key Set Yes Model Compatibility List $26.99 / Each

1
P 1001765 002169-A P07 Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
jht170L8r 1000109551 Motor Drive Belt (New) Yes Model Compatibility List $66.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

R hori170J8 1000109577 R03 Drive Motor Belt (New) Yes Model Compatibility List $66.99 / Each

15,10
M A1-0NN9-NPTB 032671-HF M03 Lower Control Board Motor Controller LPCA Digital Drive 1.75 2.0 HP (New) Yes Model Compatibility List $259.99 / Each
Out Of Stock 		48
P 1034434 003326-00 P02 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P02 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

P 1009798 003346-00 P04 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

Q 911968 004620-00 Q30 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

M 976932 004926-00 M08 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q17 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
