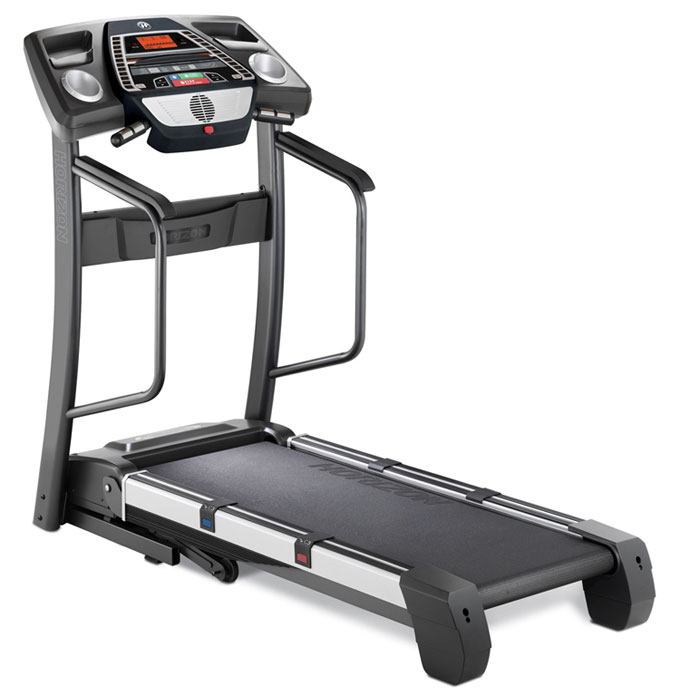

Horizon Fitness - T74 - 2007

Repair Parts for Horizon Fitness T74 TM252

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: T74

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
D 700019 000032-CC D08 Wheel;Fold Frame No Model Compatibility List $3.82 / Each

8,3
700021 000037-CA B22 Transport Wheel;Frame Yes Model Compatibility List $6.42 / Each

3,8
K 700023 000038-C K22 Wheel;Base Frame Stabilizer Yes Model Compatibility List $3.82 / Each

700132 000485-00 K12 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
K 700135 000491-B K11 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
B 700245 000767-D B57 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

B 700246 000768-D B58 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

700402 001251-F B12 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

700746 002124-B P05 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

700755 002169-A P35 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
700773 002248-D P08 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
P 700855 002546-D2 P06 AC Wires - Switch, Fan, MCB; No Model Compatibility List $72.41 / Each

8,4,5,6
701013 003326-00 P01 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

701020 003346-00 P02 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

701026 003363-00 P07 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
M 701033 003386-A M28 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
701308 004369-00 Z10 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

701328 004381-00 P33 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

P 701364 004415-Z P34 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
701375 004425-B B13 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

701432 004480-Z M34 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $7.20 / Each

R 701444 004486-00 R04 Screw;Round;Hex Socket;M8X1.25PX85L Yes Model Compatibility List $9.80 / Each

R 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

M 701476 004523-00 M38 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

701530 004562-00 B11 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
M 701559 004590-Z M20 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.79 / Each

2,10
M 701562 004595-00 M16 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
701579 004613-00 Q32 Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B No Model Compatibility List $2.00 / Each

701588 004618-00 Q30 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
701591 004620-00 N22 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701605 004627-00 B73 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

N 701615 004635-A N20 Screw;Oval Tapping;3x7L No Model Compatibility List $2.00 / Each

D 701697 004722-00 D13 Screw;M8X1.25PX19L No Model Compatibility List $1.66 / Each

2
Z 701719 004739-AB Z19 Screw;BH;M8X1.25PX65L-20L;;HS;;;;BP;P-T No Model Compatibility List $1.79 / Each

2
701742 004764-00 K24 Screw;Hex Socket;BH;M8x1.25Px25L;Adhere No Model Compatibility List $2.00 / Each

D 701747 004769-ZA D11 Screw;Hex Socket;BH;M8x1.25Px35L(Tooth15) No Model Compatibility List $1.85 / Each

2
701759 004780-AB B67 Screw;Hex Socket;BH;M10x1.5Px25L;Adhere; No Model Compatibility List $1.85 / Each

2
K 701779 004795-00 K19 Screw;Hex Socket;BH;M10x1.5Px20L;Adhere No Model Compatibility List $2.00 / Each

2
701781 004796-00 Z05 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
Q 701846 004863-00 Q33 Screw;5x13L No Model Compatibility List $1.66 / Each

2
701847 004864-00 K21 Screw;4x12L No Model Compatibility List $2.00 / Each

701848 004865-00 Q29 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701862 004884-00 R10 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

701866 004889-00 P31 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 M40 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M22 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

B 701912 004941-00 B76 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

D 701921 004953-00 D14 Nut;Nylon;M10X1.5P No Model Compatibility List $3.69 / Each

2
701934 004972-00 K16 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

701939 004975-00 B59 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701964 005005-00 M09 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

702008 005045-00 B70 Washer;Flat;8.2x22x3.0T No Model Compatibility List $2.00 / Each

B 702009 005046-00 B78 Washer;Flat;8.4x15.5x2.0T No Model Compatibility List $1.79 / Each

2
702033 005065-00 B68 Washer;Flat;10x30x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702040 005070-00 M10 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702051 005079-00 Z21 Washer;Flat;5.2X12X1.0T;Black Zinc No Model Compatibility List $2.00 / Each

M 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

702092 005125-00 B21 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

702121 005146-A M18 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702135 005163-00 Z07 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
702153 005189-00 K17 Washer;Teflon;10.5x25x1.0T No Model Compatibility List $2.00 / Each

2
K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

702262 005408-A KIT Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

702263 005411-Z KIT Wrench;L-Type;4mm No Model Compatibility List $4.00 / Each

K 702264 005412-00 KIT Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

B 702455 007526-D B37 Belt Guide No Model Compatibility List $9.57 / Each

15
Z 702798 010680-00 Z09 Washer;Spring;Support Tube;M8X1.25PX16L No Model Compatibility List $2.00 / Each

2,3
K 703378 013920-C Kit Polar Receiver No Model Compatibility List $104.44 / Each

1
703442 014683-B AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

26
703881 018951-A B77 Elastomer;Front/Rear;Black Yes Model Compatibility List $13.91 / Each

H 704056 020147-00 H13 Screw; M8X1.25PX40L No Model Compatibility List $1.85 / Each

2
704068 020179-00 M60 Screw;Phillip;BH;Tapped;4x12L;Flat End No Model Compatibility List $1.59 / Each

704079 020196-A N23 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

M 704192 020465-A M24 Washer;Flat;10.2x25x2.0T No Model Compatibility List $2.00 / Each

B 704197 020468-A B75 Washer;Flat;8.2x14x1.0T No Model Compatibility List $2.00 / Each

705264 039454-00 M03 Elevation Motor Set; JM14-017 110V/120mm Yes Model Compatibility List $378.53 / Each

10
K 705285 040613-B KIT Ground Wire;250 No Model Compatibility List $1.90 / Each

4,5,6
705323 040839-00 K25 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.59 / Each

B 705488 049292-A B71 Washer;Flat;Teflon;8.1x20x1.0t; No Model Compatibility List $2.00 / Each

B 705491 049297-A B66 Spring;Foot Lock Latch No Model Compatibility List $4.00 / Each

2,9,3
M 705516 049816-B M04 Fix Plate;Motor Control Board D/C, NO REPL: Part will show as orderable until stock is depleted No Model Compatibility List $3.82 / Each

7,3,10
B 705529 050233-A B62 Washer No Model Compatibility List $1.85 / Each

2
B 705530 050235-BX B63 Sleeve;Frame No Model Compatibility List $3.82 / Each

3
705563 050470-AX B41 Air Shock Yes Model Compatibility List $42.56 / Each

1
A 705585 051787-AC AD1 Fold Frame; No Model Compatibility List $189.20 / Each

3
Z 705699 055203-A Z04 Screw;Umbrella Hex Socket;M8x1.25Px115L No Model Compatibility List $4.00 / Each

2
705700 055204-A B38 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

N 705805 056284-AB N07 Tray;Console;Left No Model Compatibility List $10.35 / Each

7
N 705806 056285-AB N08 Tray;Console;Right No Model Compatibility List $10.35 / Each

7
N 705807 056286-AB N12 Fan Insert; No Model Compatibility List $41.78 / Each

8
N 705827 056320-AB N13 Cup Holder No Model Compatibility List $10.87 / Each

1
N 705831 056327-AA N09 Reading Rack No Model Compatibility List $3.82 / Each

4,5,6
Z 705832 056328-AA Z19 Accessory Tray; No Model Compatibility List $76.65 / Each

4,5,6
N 705846 056355-BB N11 Faceplate No Model Compatibility List $48.23 / Each

3,4,5,6
N 705848 056361-AB N06 Console Shell;Rear No Model Compatibility List $98.59 / Each

7
N 705856 056371-AA N10 Rubber Key; No Model Compatibility List $38.32 / Each

9
705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
Q 705865 056391-BA Q04 End Cap;Rear Roller;Right No Model Compatibility List $30.76 / Each

8,9
Q 705867 056392-BA Q03 End Cap;Rear Roller;Left No Model Compatibility List $30.76 / Each

8,9
Q 705875 056404-BE Q07 Cap, Front Side Rail - Left; D/C, NO REPL: Part will show as orderable until stock is depleted No Model Compatibility List $3.82 / Each

9
Q 705877 056405-BE Q08 Cap, Front Side Rail - Right; D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $3.54 / Each

9
Q 705884 056422-AB Q15 Accent Strip;Side Rail;Left No Model Compatibility List $10.87 / Each

9,4,5,6
Q 705886 056426-AB Q17 Accent Strip;Side Rail;Right No Model Compatibility List $10.87 / Each

9,4,5,6
Q 705890 056433-AA Q10 Decal;Motor Cover No Model Compatibility List $19.71 / Each

7,9,3,10
Q 705892 056434-AB Q16 Cushion Strip;Side Rail No Model Compatibility List $15.34 / Each

9,3
K 705894 056438-A KIT Reed Switch No Model Compatibility List $10.82 / Each

4,5,6
P 705898 056450-A P04 Console Cable;Mast;1700L Yes Model Compatibility List $57.49 / Each

7,4,5,6
N 705910 056487-AX N61 Overlay; No Model Compatibility List $38.32 / Each

1
N 705914 056521-A N62 Membrane Keys; MX-T5 BIG(TM65-N91A) No Model Compatibility List $38.32 / Each

9
N 705918 056532-A N64 Pulse Sensor Set;600 Yes Model Compatibility List $38.32 / Each

12,13,14
R 705923 056545-B R02 Running Belt; 495X2848X3.1T No Model Compatibility List $479.10 / Each

15
K 705978 057926-A KIT Hardware Pack No Model Compatibility List $37.21 / Each

4,5,6
A 705991 058020-A AR1 Front Roller Set No Model Compatibility List $191.62 / Each

8
706003 058088-AA AG4 Support Tube - Right; No Model Compatibility List $174.82 / Each

3
A 706004 058089-AA AG05 Crossbar; No Model Compatibility List $49.19 / Each

1
A 706008 058112-AA AG1 Handlebar - L/R; No Model Compatibility List $60.37 / Each

11
M 706013 058158-AB M05 Bracket;Drive Motor No Model Compatibility List $28.52 / Each

2,3,4,5,6,10
V 706171 059814-AX V01 Decal;Console;Horizon Logo No Model Compatibility List $8.87 / Each

7,3
B 706173 059873-A B27 Running Deck;600x1190Lx25.4T No Model Compatibility List $249.13 / Each

3
706219 060295-DA Not Shown Digital Speed Sensor No Model Compatibility List $35.52 / Each

1
V 706536 063211-AX V02 Decal, Logo,Motor Cover; No Model Compatibility List $17.47 / Each

7,9,3,10
K 706551 063276-A KIT Water Bottle No Model Compatibility List $11.73 / Each

1
A 706570 063537-AA AG2 Armrest; No Model Compatibility List $98.59 / Each

3
Q 706842 066161-AA Q06 Side Rail - L/R; D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $50.36 / Each

9
G 706854 066277-A G10 Screw;BH;5X15L;SM;PH;;BZN;;POT No Model Compatibility List $2.00 / Each

2
P 706871 066460-A P09 Fan for Motor Control Board; No Model Compatibility List $82.81 / Each

7,8,10
N 706899 066984-BAX N60 Upper Control Board; No Model Compatibility List $402.22 / Each

7
M 706926 067266-AA M41 Motor Control Board No Model Compatibility List $383.27 / Each

7,10
Q 706966 067653-ZS Q14 Texture Strip, Side Rail; No Model Compatibility List $8.87 / Each

9
709055 1000108777 Z15 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $2.00 / Each

R 709101 1000109551 R03 Drive Belt;Poly-V;180-J8 Yes Model Compatibility List $60.22 / Each

709111 1000109776 B64 Screw;RND;M6x1.0Px8L;HS;CHM;BP;G8.8 No Model Compatibility List $2.47 / Each

2
709331 1000113141 M01 Drive Motor Set;Digital;2.75HP Yes Model Compatibility List $574.91 / Each

28
Console Cable; Upper; 450L(2.5-12P+5557 SERIES) 725951 078539 KIT Console Cable; Upper; 450L(2.5-12P+5557 SERIES) Yes Model Compatibility List $28.73 / Each

Safety Key Set 726500 082397 AN3 Safety Key Set Yes Model Compatibility List $42.74 / Each

P 1020937 002124-B P05 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

A 014683-B 014683-B AR2 1 Rear Idler Roller Yes Model Compatibility List $207.99 / Each

26
M 1000113141 1000113141 M01 1 Digital DC Drive Motor Yes Model Compatibility List $648.70 / Each

28
B 1026014 018951-A B77 1 Spring Deck (Used) Yes Model Compatibility List $7.40 / Each

P 1001381 003326-00 P01 1 Power Switch Yes Model Compatibility List $29.99 / Each

R 1002356 1000109551 R03 1 Belt Drive Yes Model Compatibility List $31.99 / Each

M 1029909 004480-Z M34 Screw (Used) Yes Model Compatibility List $5.00 / Each

P 1000573 003326-00 P01 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

P 1002652 003346-00 P02 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1002658 003363-00 P07 Power Entry Module Yes Model Compatibility List $5.99 / Each

9,4,5,6
A 1002835 014683-B AR2 Rear Idler Roller Yes Model Compatibility List $69.99 / Each

26
M 1003098 1000113141 M01 DC Drive Motor Yes Model Compatibility List $199.00 / Each
28
M 1001201 1000113141 M01 DC Drive Motor Yes Model Compatibility List $289.00 / Each
28
P 1001433 002248-D P08 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

M 1001828 1000113141 M01 DC Drive Motor Yes Model Compatibility List $289.00 / Each

28
P 1001765 002169-A P35 Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
jht170L8r 1000109551 R03 Motor Drive Belt (New) Yes Model Compatibility List $66.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

P 1034434 003326-00 P01 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P01 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

P 1009798 003346-00 P02 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

N 911968 004620-00 N22 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

M 976932 004926-00 M40 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
