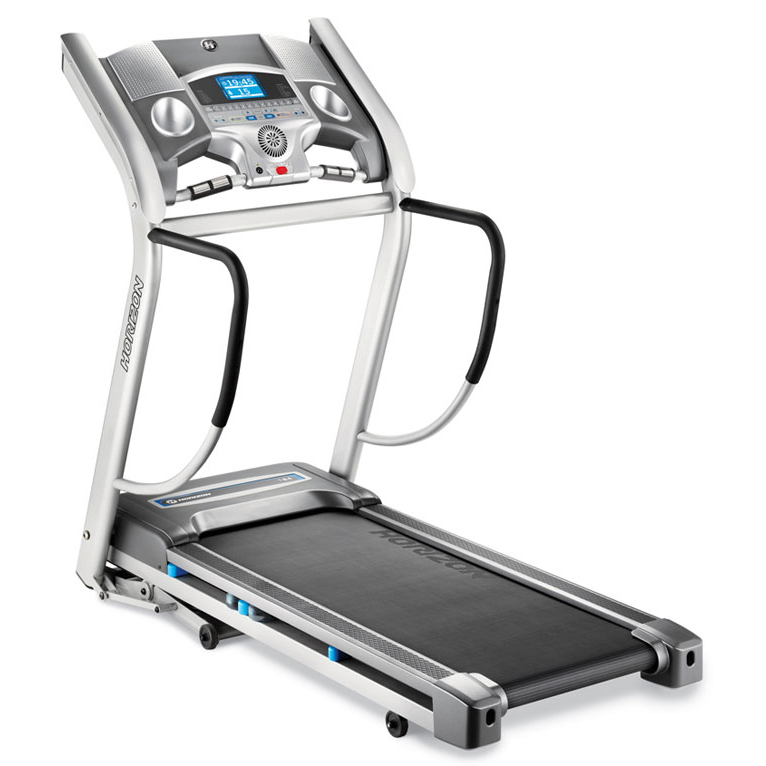

Horizon Fitness - T84 - 2008

Repair Parts for Horizon Fitness T84 TM299

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: T84

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700022 000037-CC L06 Wheel;Nylon No Model Compatibility List $3.82 / Each

8
B 700245 000767-D B57 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

B 700246 000768-D B58 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

Q 700321 000955-BC Q09 End Cap;Base Frame;Front Yes Model Compatibility List $3.82 / Each

9,3
700402 001251-F L10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

H 700418 001299-B H05 Cover;Elevation Frame;PVC No Model Compatibility List $9.57 / Each

9,3,10
G 700533 001552-AC G03 Cover;Handlebar No Model Compatibility List $1.90 / Each

9,11
700700 001952-00 N76 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
K 700717 002021-A KIT ESD Board Yes Model Compatibility List $49.89 / Each

1
700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
700893 002671-A N69 Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

N 701008 003307-00 N77 Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

P 701021 003347-00 P04 Circuit Breaker;Current;ZE-700 20A/250V; Yes Model Compatibility List $28.73 / Each

M 701033 003386-A M28 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
701203 004158-00 R03 Drive Belt;Poly-V;200-J8 Yes Model Compatibility List $57.49 / Each

23
P 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $2.00 / Each

P 701364 004415-Z P13 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
701375 004425-B L11 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

R 701401 004454-00 R08 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

701432 004480-Z M45 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $7.20 / Each

R 701444 004486-00 R04 Screw;Round;Hex Socket;M8X1.25PX85L Yes Model Compatibility List $9.80 / Each

701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

M 701476 004523-00 M46 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

R 701478 004525-00 R09 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $7.20 / Each

701530 004562-00 B36 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
H 701534 004565-00 H50 Screw;Hex Socket;Sink;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
M 701562 004595-00 M16 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
701581 004614-AB N59 Screw;Phillip;Umbrella;Tapped;3x10L;Black No Model Compatibility List $2.00 / Each

2,4,5,6
701586 004617-00 B15 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701590 004619-AB N19 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701591 004620-00 N34 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

Z 701683 004714-AD Z13 Screw;Hex Socket;BH;M6x1.0Px15L;Adhere No Model Compatibility List $2.00 / Each

2
701699 004724-00 Z25 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

B 701710 004728-00 B20 Screw;Oval Hex Socket;M8x1.25Px40L No Model Compatibility List $2.00 / Each

2
701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $2.00 / Each

701848 004865-00 N37 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701849 004867-A Q31 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
701858 004880-00 P16 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

R 701876 004903-Z R10 Nut;Hex;M5x0.8Px4H No Model Compatibility List $2.00 / Each

2
701897 004926-00 M40 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M22 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

L 701912 004941-00 L08 Nut;Nylon;M10x1.5P Yes Model Compatibility List $2.00 / Each

701939 004975-00 B59 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701964 005005-00 M09 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701970 005009-AB Z08 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

Z 702011 005047-00 Z07 Washer;Flat;8.2x20x1.8T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702030 005062-00 L07 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

702040 005070-00 M10 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702063 005091-00 B40 Washer;Flat;4.2X10.0X1.2T;BAN No Model Compatibility List $2.00 / Each

M 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

702084 005117-00 M38 Washer;Flat;8.2x16.0x2.0T No Model Compatibility List $2.00 / Each

2
Z 702119 005145-AC Z22 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

702121 005146-A M18 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

H 702130 005157-00 H22 WASHER;FLT;Diam.8.2XDiam.20.0X1.4T;;BAN; No Model Compatibility List $1.85 / Each

2
702160 005196-00 H27 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

702161 005198-00 H29 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
H 702171 005212-A H28 Washer;Teflon;12.2x18x1.0T No Model Compatibility List $2.00 / Each

2
702180 005222-00 H33 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702186 005229-00 H20 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

702217 005330-00 Q17 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

702446 007384-E B25 Fixing Plate;Motor Control Board No Model Compatibility List $9.59 / Each

7,3,10
702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

702556 008625-C H19 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $2.00 / Each

H 702558 008628-B H14 Bolt;Special;Support Tube Base;M8x1.25Px54L No Model Compatibility List $4.00 / Each

2,3
B 702761 009561-AX B56 Air Shock;100KG(125L) Yes Model Compatibility List $35.98 / Each

1
J 702846 012324-00 J2 Audio Input Board-T83,84 No Model Compatibility List $3.54 / Each

1
703355 013701-AA M03 Motor Control Board;2.75HP;Digital Yes Model Compatibility List $401.52 / Each

28,48
703438 014669-B AR1 Front Roller Set Yes Model Compatibility List $191.62 / Each

8
703442 014683-B AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

26
N 703915 019304-A N63 Amp Control Board No Model Compatibility List $55.54 / Each

7,4,5,6
703916 019316-A N70 Safety Key Reed Switch Yes Model Compatibility List $9.57 / Each

4,5,6
703919 019354-A P08 Connecting Cable;Breaker/Switch;Black;120mm No Model Compatibility List $9.57 / Each

703920 019370-A P07 Power Cord;14 Guage/15 Amp Yes Model Compatibility List $57.49 / Each

703938 019749-A P11 Power Socket;100,600,60(14AWG) Yes Model Compatibility List $9.57 / Each

4,5,6
B 704064 020162-A B21 Screw;Hex Head;M10X1.5PX40L-15L No Model Compatibility List $4.00 / Each

2
704068 020179-00 M60 Screw;Phillip;BH;Tapped;4x12L;Flat End No Model Compatibility List $1.59 / Each

H 704215 020487-ZA H21 Washer;Flat;10.5x18x2.5T No Model Compatibility List $2.00 / Each

N 704605 024271-A N73 Polar Receiver No Model Compatibility List $43.45 / Each

1
M 705182 039043-00 M02 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $331.29 / Each

28
B 705271 039664-00 B35 Screw;Phillip;Round;3x8L;Zn+3(White); No Model Compatibility List $1.85 / Each

2
N 705306 040689-B N66 Pulse Sensor Set;Single No Model Compatibility List $38.32 / Each

12,13,14
705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
V 706171 059814-AX V07 Decal;Console;Horizon Logo No Model Compatibility List $8.87 / Each

7,3
K 706218 060295-CA KIT Digital Speed Sensor Yes Model Compatibility List $42.02 / Each

1
706479 062625-A P05 Console Cable;Mast;1500L;2.5-12P+JST-12P;Black Yes Model Compatibility List $57.49 / Each

7,4,5,6
Z 706838 066044-A Z21 Washer;Flat;20.2x27.0x2.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
A 707196 1000091161 AC3 Crossbar No Model Compatibility List $78.99 / Each

1
A 707197 1000091162 AH1 Elevation Frame Set No Model Compatibility List $126.18 / Each

3,10
709300 1000112728 M01 Drive Motor Set;Digital;3.0HP Yes Model Compatibility List $974.91 / Each

10
End Cap, Support Tube 725355 070422 F05 End Cap, Support Tube No Model Compatibility List $3.82 / Each

725367 070670 P11 Speaker Board; Adaptor;AC100-240V;12V/1. Yes Model Compatibility List $64.04 / Each

Cable, IPOD 725371 070675 N71 Cable, IPOD No Model Compatibility List $9.46 / Each

725481 071830 H18 Swivel Axle No Model Compatibility List $15.76 / Each

Spring; Foot Lock Latch 725500 072019 H30 Spring; Foot Lock Latch No Model Compatibility List $4.00 / Each

Power Wire;Control Board;T84;TM299 725572 073403 KIT Power Wire;Control Board;T84;TM299 No Model Compatibility List $14.90 / Each

Connect Wire;Speaker;;;1600L;HX4500+3.96 725734 075250 P10 Connect Wire;Speaker;;;1600L;HX4500+3.96 No Model Compatibility List $20.44 / Each

Air Cell 725789 076593 B31 Air Cell No Model Compatibility List $14.17 / Each

Shim;;Front;;; 725790 076594 B29 Shim;;Front;;; No Model Compatibility List $3.54 / Each

Fix Axle;Console 725791 076595 B32 Fix Axle;Console No Model Compatibility List $3.54 / Each

Cover;Console;Front 725793 076621 N01 Cover;Console;Front No Model Compatibility List $64.19 / Each

Cover;Console;Rear 725794 076623 N02 Cover;Console;Rear No Model Compatibility List $76.88 / Each

Cover;Speaker;Left 725795 076626 N04 Cover;Speaker;Left No Model Compatibility List $8.87 / Each

Cover;Speaker;Right 725796 076628 N05 Cover;Speaker;Right No Model Compatibility List $8.87 / Each

725797 076633 N08 Cover;Console Frame;Right No Model Compatibility List $15.44 / Each

BottleHolder;L;Painting; 725798 076635 N14 BottleHolder;L;Painting; No Model Compatibility List $10.32 / Each

BottleHolder;R;Painting; 725799 076636 N15 BottleHolder;R;Painting; No Model Compatibility List $10.32 / Each
Out Of Stock
725800 076647 R02 Running Belt;2850Lx505Wx2.2T No Model Compatibility List $249.13 / Each

Cover;Motor;Upper 725820 076795 Q01 Cover;Motor;Upper No Model Compatibility List $64.19 / Each

End Cap;Left 725821 076797 Q06 End Cap;Left No Model Compatibility List $16.69 / Each

End Cap;Right. D/C, NO REPL: Part will show as orderable until stock is depleted. 725822 076798 Q07 End Cap;Right. D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $16.69 / Each

725827 076825 AC1 Extrawork;ConsoleMastSet;L; No Model Compatibility List $205.06 / Each

725828 076829 AC2 Extrawork;ConsoleMastSet;R; No Model Compatibility List $205.06 / Each

Motor Fix Rack;;Painting; 725829 076839 M05 Motor Fix Rack;;Painting; No Model Compatibility List $31.72 / Each

Manual;Manipulate; 725830 076847 V43 Manual;Manipulate; No Model Compatibility List $8.87 / Each

Sticker;Audio In 725856 077114 V04 Sticker;Audio In No Model Compatibility List $1.77 / Each

Sticker;Audio Out 725857 077115 V05 Sticker;Audio Out No Model Compatibility List $1.90 / Each

Audio Output Board-T83,84 725858 077117 J3 Audio Output Board-T83,84 No Model Compatibility List $3.54 / Each

Motor Cover; Bottom 725870 077449 Q02 Motor Cover; Bottom No Model Compatibility List $27.59 / Each

Connector Wire;650L 2.5-12P;SM-12Y 725892 077734 P06 Connector Wire;650L 2.5-12P;SM-12Y No Model Compatibility List $33.23 / Each

725961 078561 Q22 Tape;Foam;One Sided;8x16x50;Black No Model Compatibility List $3.54 / Each

Label;Console Cover; 726007 079287 V01 Label;Console Cover; No Model Compatibility List $2.55 / Each

Screw;Hex Socket;Umbrella;;;M8x1.25Px120 726010 079300 Z10 Screw;Hex Socket;Umbrella;;;M8x1.25Px120 No Model Compatibility List $4.00 / Each

Washer;Arc;8.4x17.0x1.0t;Cr; 726011 079301 Z12 Washer;Arc;8.4x17.0x1.0t;Cr; No Model Compatibility List $2.00 / Each

Sticker;Console Cover; 726022 079340 V02 Sticker;Console Cover; No Model Compatibility List $3.54 / Each

Label;Cap;L;; 726023 079342 V47 Label;Cap;L;; No Model Compatibility List $1.77 / Each

Sticker;Console ; 726024 079344 V03 Sticker;Console ; No Model Compatibility List $3.54 / Each

Fold Frame 726033 079405 AH2 Fold Frame No Model Compatibility List $120.64 / Each

Latch; Foot lock 726034 079406 H31 Latch; Foot lock No Model Compatibility List $18.54 / Each

Link Arm Set; Left 726035 079407 AH3 Link Arm Set; Left No Model Compatibility List $31.15 / Each

Link Arm Set; Right 726036 079408 AH4 Link Arm Set; Right No Model Compatibility List $40.01 / Each

Hardware Pack 726043 079444 AZ1 Hardware Pack No Model Compatibility List $34.92 / Each

Screw;Phillip;Big Umbrella;Tapped;;4x10 726236 080875 P21 Screw;Phillip;Big Umbrella;Tapped;;4x10 No Model Compatibility List $2.00 / Each

Side Rail Accent Piece;TM298 726392 081585 B14 Side Rail Accent Piece;TM298 No Model Compatibility List $1.77 / Each

726402 081639 Q20 Tape;Foam;single;2.5tx20x70;black Yes Model Compatibility List $1.90 / Each

Running Deck;;1220X682X18;;;TM298 726403 081640 B27 Running Deck;;1220X682X18;;;TM298 No Model Compatibility List $249.13 / Each

Side Rail Set 726484 082291 Q05 Side Rail Set No Model Compatibility List $62.82 / Each

Safety Key Set 726500 082397 AN3 Safety Key Set Yes Model Compatibility List $42.74 / Each

PulseReceicer;SecondReplace 726841 085570 KIT PulseReceicer;SecondReplace No Model Compatibility List $42.59 / Each

728756 096830 N62 Speaker;3W;XHS-2Y;680mm Yes Model Compatibility List $15.11 / Each

728898 098561 N69 Wire;Headphone Jack;500mm No Model Compatibility List $3.82 / Each

728899 098562 N70 Connected Wire; Earphone; PCB Yes Model Compatibility List $6.42 / Each

A 014683-B 014683-B AR2 1 Rear Idler Roller Yes Model Compatibility List $207.99 / Each

26
M 039043-00 039043-00 M02 1 Incline Elevation Motor Yes Model Compatibility List $336.70 / Each

28
M 1000112728 1000112728 M01 1 DC Drive Motor Johnson Yes Model Compatibility List $635.70 / Each

10
P 1001381 003326-00 P02 1 Power Switch Yes Model Compatibility List $29.99 / Each

M 1029909 004480-Z M45 Screw (Used) Yes Model Compatibility List $5.00 / Each

P 1000573 003326-00 P02 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

M 1000972 1000112728 M01 DC Drive Motor Yes Model Compatibility List $229.00 / Each

10
M 1002738 039043-00 M02 Incline Lift Elevation Motor Yes Model Compatibility List $79.99 / Each

28
A 1002835 014683-B AR2 Rear Idler Roller Yes Model Compatibility List $39.99 / Each

26
P 1001433 002248-D P14 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
P 1003694 003347-00 P04 Power Entry Circuit Breaker Yes Model Compatibility List $9.99 / Each

P 1036808 019354-A P08 Power harness wire Yes Model Compatibility List $5.00 / Each

P 1009784 003347-00 P04 Circuit Breaker QMB-152-11C3N-3BA (New) Yes Model Compatibility List $28.99 / Each

P 1034434 003326-00 P02 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P02 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

N 911968 004620-00 N34 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

M 976932 004926-00 M40 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q17 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

N 971749 003307-00 N77 Rate Chest Strap (New) No Model Compatibility List $194.99 / Each

Connected Wire VF Earphone 500mm (Used) 1038387 098561 Connected Wire VF Earphone 500mm (Used) Yes Model Compatibility List $5.00 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
