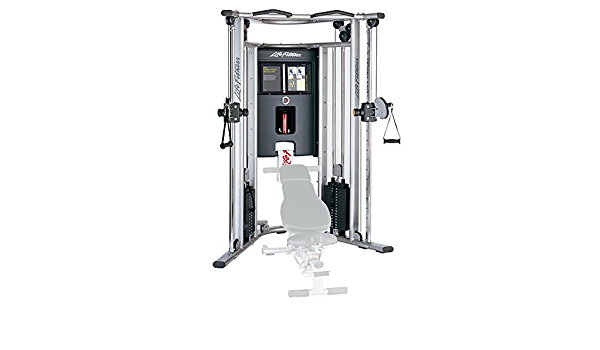

Life Fitness - G7-001

Repair Parts for Life Fitness G7-001

Brand: Life Fitness

Category: Functional Trainer

Type: Strength Systems

Model Name: G7-001

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
CUSHION, WEIGHT STACK 20000000 8264301 24 1 CUSHION, WEIGHT STACK Yes Model Compatibility List $23.99 / Each

HANDLE, STRAP FOOT 20000006 LEA7745801 8-pg14 1 HANDLE, STRAP FOOT Yes Model Compatibility List $51.68 / Each

2 20000007 LEA3249901 12-pg14 1 SPRING, COMPRESSION Yes Model Compatibility List $17.99 / Each

2
M5 X 0.8 HXS SOC CS ST BZ X 8 20000008 LEA3250002 5-pg14 1 M5 X 0.8 HXS SOC CS ST BZ X 8 Yes Model Compatibility List $10.79 / Each

3 20000009 LEA7745701 4-pg14 1 HANDLE, STRAP LONG Yes Model Compatibility List $58.80 / Each

11
3 20000012 LEA7622001 14-pg3 1 ASSY, SELECTOR PIN Yes Model Compatibility List $58.80 / Each

12,13,14
SLEEVE, QUICK CONNECT 20000023 LEA7726301 14-pg14 1 SLEEVE, QUICK CONNECT Yes Model Compatibility List $23.18 / Each

20000114 8172901 1-pg4 1 WLDMT, TOWER, LEF No Model Compatibility List $733.67 / Each

20000115 8172001 2-pg4 1 WLDMT, TOWER, RIGHT No Model Compatibility List $733.67 / Each

20000116 8178003 3-pg4 1 BTUBE, REAR TOP No Model Compatibility List $243.05 / Each

20000117 8178002 4-pg4 1 BTUBE, REAR MIDDLE No Model Compatibility List $241.18 / Each

20000118 8178004 5-pg4 1 BTUBE, REAR BOTTOM No Model Compatibility List $277.69 / Each

20000119 8176701 6-pg4 1 WLDMNT, CHIN-UP No Model Compatibility List $389.02 / Each

20000120 8312601 7-pg4 1 FOOT, EXTENSION, FLOV No Model Compatibility List $128.51 / Each

20000121 8275801 8-pg4 1 ASSY, KIOSK No Model Compatibility List $658.02 / Each

20000122 8162201 9-pg4 1 TUBE, NUMBERED SLIDE No Model Compatibility List $488.08 / Each

20000123 8613201 10-pg4 1 ASSY, ROLLER CARRIAGE LEFT No Model Compatibility List $402.97 / Each

20000124 8151301 11-pg4 1 WLDMT, SWIVEL PULLEY LEFT No Model Compatibility List $92.18 / Each

20000125 8316401 12-pg4 1 WLDMT, SWIVEL PULLEY RIGHT No Model Compatibility List $83.81 / Each

20000126 8256901 13-pg4 1 WLDMT, BRKT, U, LEF No Model Compatibility List $53.42 / Each

20000127 8257401 14-pg4 1 WLDMT, BRKT, U, RIGHT No Model Compatibility List $53.42 / Each

20000128 8244301 15-pg4 6 BRKT, KIOSK No Model Compatibility List $13.26 / Each

20000129 8315601 16-pg4 2 WLDMT, HEAD PLATE PULLEY No Model Compatibility List $26.70 / Each

20000130 8167301 17-pg4 2 SHIELD, REAR SHROUD No Model Compatibility List $528.07 / Each

20000131 8264701 18-pg4 4 ASSY, GUIDE ROD No Model Compatibility List $180.19 / Each

20000132 8262501 19-pg4 2 ASSY, TOP PLATE 15, CASTEEL, SPCL Yes Model Compatibility List $288.20 / Each

20000133 7935301 20-pg4 30 WEIGHT PLATE, 10LB, CASTEEL No Model Compatibility List $288.20 / Each

20000134 7936701 21-pg4 2 ASSY, SELECTOR PIN, 80/20 No Model Compatibility List $47.38 / Each

20000135 8264301 22-pg4 4 CUSHION, WEIGHT STACK, 65MM Yes Model Compatibility List $15.94 / Each

20000136 8265601 23-pg4 2 CABLE, BE, BE 293" No Model Compatibility List $134.74 / Each

20000137 7634401 24-pg4 4 RETAINER, CM/MJ, GUIDE ROD No Model Compatibility List $35.76 / Each

3
20000138 3232421 25-pg4 4 RING:BRE .940 5100-100 ST PP B No Model Compatibility List $3.86 / Each

1
20000139 3240502 26-pg4 4 M10 X 1.5 X 50 HXS NO CUP ST BO No Model Compatibility List $3.41 / Each

2
20000142 7662801 29-pg4 2 RING, GRIP 1.25 OD No Model Compatibility List $14.20 / Each

11
20000143 7662901 30-pg4 2 CAP; GRIP 1.25 OD No Model Compatibility List $22.20 / Each

9,11
20000144 3247701 31-pg4 8 M4 X 0.7 X 3 HZS NO CUP ST BO No Model Compatibility List $3.60 / Each

20000145 8167401 32-pg4 4 END CAP, 50 X 100 X 2.5 No Model Compatibility List $30.73 / Each

20000146 7642301 33-pg4 2 BUMPER, CM/MJ, PLUG No Model Compatibility List $8.44 / Each

1
20000147 8229001 34-pg4 4 COVER, PULLEY, FULL No Model Compatibility List $7.91 / Each

20000148 8228901 35-pg4 4 COVER, PULLEY, PARTIAL No Model Compatibility List $7.91 / Each

20000149 3256211 36-pg4 7 SCREW, M10 X 1.5 70MM ZN No Model Compatibility List $16.94 / Each

2
20000150 3264201 37-pg4 94 WASHER, M10 No Model Compatibility List $3.41 / Each

20000151 3242002 38-pg4 25 NUT, M10 X 1.5 HEX NYLOCK No Model Compatibility List $3.41 / Each

20000152 3256215 39-pg4 2 SCREW, M10 X 1.5 90MM ZN No Model Compatibility List $10.58 / Each

2
20000154 3256206 41-pg4 12 SCREW, M10 X 1.5 45MM ZN No Model Compatibility List $17.76 / Each

2
20000156 3102702 43-pg4 4 NUT, HEX 1/2-13 No Model Compatibility List $6.06 / Each

20000157 3258301 44-pg4 16 PULLEY, 88.9 OD X 10 X 25.4 No Model Compatibility List $33.53 / Each

20000158 7810801 45-pg4 7 PAD, RUBBER FOOT, 10-0101-006, BNR No Model Compatibility List $18.86 / Each

9,12,13,14
20000159 3239102 46-pg4 28 SCREW, M5 X .8 X 12 PHL PAN TT ST BZ No Model Compatibility List $3.60 / Each

20000160 3256201 47-pg4 44 SCREW, M10 X 1.5 X 1.5 20MM ZN No Model Compatibility List $9.82 / Each

2
20000161 3265001 48-pg4 12 WASHER, 10.5MM X 25MM No Model Compatibility List $8.80 / Each

2
20000162 3264901 49-pg4 12 SCREW, M10 X 1.5, SH BO No Model Compatibility List $6.96 / Each

20000163 3242201 50-pg4 22 M5-.8 X 16MM HXS SOC CS ST PH No Model Compatibility List $3.41 / Each

1
20000164 3264101 51-pg4 22 WASHER, M6 No Model Compatibility List $3.41 / Each

2
20000165 3262501 52-pg4 32 SCREW, SHOULDER, M5 X 6 X 14 No Model Compatibility List $33.29 / Each

20000166 3262701 53-pg4 32 GROMMET, 17/64 X 3/8 No Model Compatibility List $7.91 / Each

20000167 3256208 54-pg4 2 SCREW, M10 X 1.5 55MM ZN No Model Compatibility List $7.91 / Each

20000168 3256207 55-pg4 8 SCREW, M10 X 1.5 50MM ZN No Model Compatibility List $7.91 / Each

20000169 3264601 56-pg4 8 NUT, M10 X 1.5 SCK HD, SPL No Model Compatibility List $17.76 / Each

20000170 3264501 57-pg4 8 RETAINER, PULLEY No Model Compatibility List $10.58 / Each

LABEL, WEIGHT STACK STRIP 20000172 8327001 59-pg4 2 LABEL, WEIGHT STACK STRIP No Model Compatibility List $18.62 / Each

20000173 8039501 60-pg4 4 LABEL, WARNING, TRIANGLE, BNR No Model Compatibility List $3.30 / Each

1
20000174 8257501 61-pg4 2 PIN, DETENT, 5MM LOCK OUT No Model Compatibility List $33.53 / Each

20000175 8613101 62-pg4 1 ASSY, ROLLER CARRIAGE RIGHT No Model Compatibility List $380.16 / Each

20000176 8317001 2-pg5 1 LABEL, LIFE FI T 63.5MM X 381MM No Model Compatibility List $33.18 / Each

1
20000177 8220001 3-pg5 1 LABEL, ASTM WARNING SELECT-ENG No Model Compatibility List $10.58 / Each

1
20000178 8106801 4-pg5 1 LABEL, SERIAL NUMBER, LARGE, 10-0123-001, BNR No Model Compatibility List $8.40 / Each

20000209 8166901 1-pg10 1 GUIDE ROD, 19MM X 1762MM No Model Compatibility List $185.54 / Each

20000210 8264601 2-pg10 1 PLUG, GUIDE ROD No Model Compatibility List $7.91 / Each

20000211 7726201 2-pg11 1 COUPLER, QUICK CONNECT No Model Compatibility List $74.03 / Each

1
20000212 7726401 2-pg11 1 HSNG, QUICK CONNECT No Model Compatibility List $7.37 / Each

1
20000213 7726301 3-pg11 1 SLEEVE, QUICK CONNECT No Model Compatibility List $22.49 / Each

3
20000214 3250002 5-pg11 2 M5 X 0.8 HXS SOC CS ST BZ X 8 No Model Compatibility List $7.99 / Each

1
20000215 8140702 1-pg12 2 HANDLE AND STRAP ASSY 12 INCH STRAP No Model Compatibility List $37.72 / Each

20000216 8280501 2-pg13 1 BOTTLE, G7 No Model Compatibility List $41.57 / Each

20000218 8348101 4-pg13 1 MARKER, DRY ERASE No Model Compatibility List $0.00 / Each
Out Of Stock
20000219 8288601 5-pg13 1 ASSY THIGH STRAP No Model Compatibility List $51.68 / Each

20000220 8280401 6-pg13 1 TOWEL, G7 No Model Compatibility List $29.68 / Each

20000221 7944401 8-pg13 2 RING, UNIVERSAL ADAPTER No Model Compatibility List $6.96 / Each

20000223 8288701 10-pg13 1 DVD, G7 No Model Compatibility List $29.68 / Each

20000224 8352101 11-pg13 1 MANUAL, G7 No Model Compatibility List $20.52 / Each

View Drawing
