Life Fitness - 17in HDTV (LPP)

Repair Parts for Life Fitness 17in HDTV (LPP) LCD-0201-03

Brand: Life Fitness

Category: Cardio TV & Theater Attachable TV

Type: Miscellaneous Cardio

Model Name: 17in HDTV (LPP)

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
- 500304 0017-00042-1163 LTV-012 Strap: Cable-Tie: L=15"; Black S/C#09-B No Model Compatibility List $1.88 / Each

2,4,5,6
- 500306 0017-00042-1194 - Clip: Fastener: Dual Lock; Reclosalbe; Purchased No Model Compatibility List $2.33 / Each

2
- 500642 0017-00101-1974 LTV-006 Hardware: M2.5 X0.45-6G6GX006 DIN PHl PAN MS ST ZN No Model Compatibility List $1.88 / Each

1
- 500643 0017-00101-1975 LTV-001 Hardware: M5.0 X 0.80-6G6Gx 025 DIN HXS SOC CS ST No Model Compatibility List $3.13 / Each

1
- 500644 0017-00101-1976 - Hardware: M5.0 X0.80-6G6Gx045 DIN HXS SOC CS ST No Model Compatibility List $3.56 / Each

1
- 500645 0017-00101-1977 LTV-002 Hardware: M5.0 X .80-6G6Gx14 DIN HXS BUT L CS ST BO No Model Compatibility List $5.83 / Each

1
- 502692 0K71-01023-0000 LTV-003 Base: Rotating No Model Compatibility List $3.84 / Each

3
- 502693 0K71-01025-0000 LTV-010 Clamp: Remote-Upper Purchased No Model Compatibility List $3.84 / Each

4,5,6
- 502694 0K71-01026-0000 LTV-011 Clamp: Remote-Lower No Model Compatibility List $3.84 / Each

4,5,6
- 502695 0K71-01027-0000 - Coax: Coupler No Model Compatibility List $5.83 / Each

1
- 502853 0K94-01004-0000 TV-008 POWER SUPPLY: 12VDC; 6.25A No Model Compatibility List $186.82 / Each

4,5,6
- 514482 AK71-00012-0000 LTV-005 Door Assembly: Headphone Jack No Model Compatibility List $55.26 / Each

4,5,6
- 514483 AK71-00014-0000 LTV-008 Cable Assembly: Remote; with Conn Straight; Shadow No Model Compatibility List $23.63 / Each

4,5,6
- 514484 AK71-00014-0001 LTV-008 Cable Assembly: Remote; with Conn; Coiled; Shadow No Model Compatibility List $102.73 / Each

4,5,6
- 514485 AK71-00016-0000 LTV-007 KeyPad-Bezel Assembly: Remote No Model Compatibility List $138.34 / Each

9,12,13,14

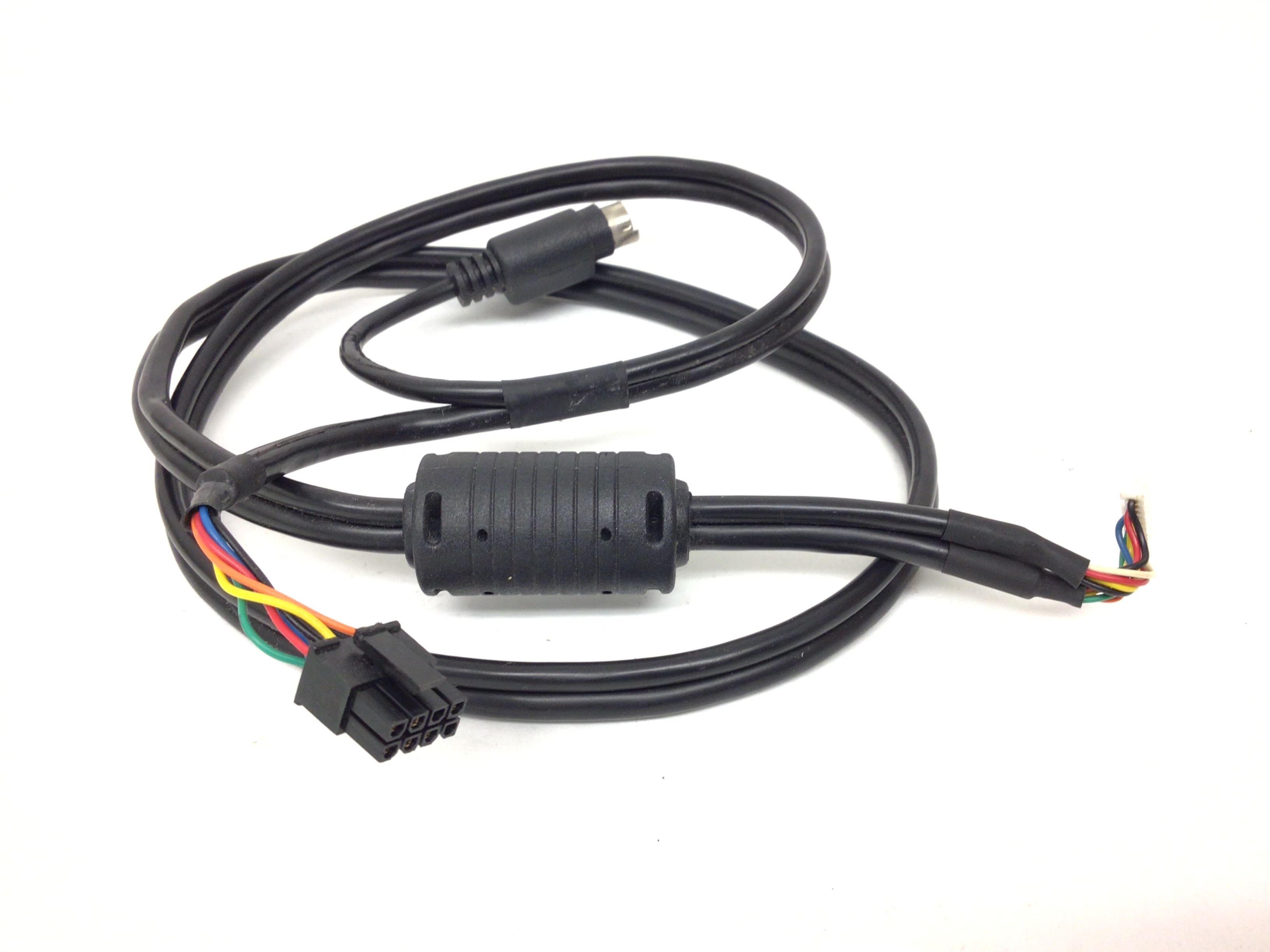

- 514486 AK71-00018-0000 - Cable-Assembly: I/R Audio Yes Model Compatibility List $31.62 / Each

4,5,6
- 514487 AK71-00019-0000 - Cable-Assembly: 36" Coax No Model Compatibility List $23.63 / Each

4,5,6
- 514488 AK71-00020-0003 - POWER SUPPLY (6.25A) W/LINE CORD 120VAC No Model Compatibility List $177.74 / Each

4,5,6
- 514490 AK71-00029-0000 - Hardware-Bag Assembly: Remote No Model Compatibility List $23.63 / Each

1
- 514492 AK71-00047-0000 - CBL-ASSY: 36" COAX; PAL/DVB-T No Model Compatibility List $30.28 / Each

1
- 517117 LCD-0201-03R - Gray 17" Attachable LCD TV - NTSC/ATSC No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6

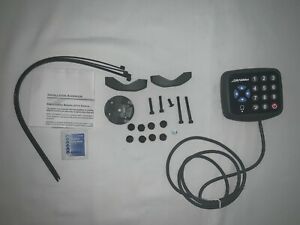

- 517226 LF-TV-REMOTE - Life Fitness External TV Remote Control Yes Model Compatibility List $161.08 / Each
4,5,6,7
- 518920 RS232 - RS232 For EZ TV Console & 17 Yes Model Compatibility List $292.12 / Each

7,4,5,6
Screw 012796 0017-00101-1972 0 1 Screw Yes Model Compatibility List $15.59 / Each

1
Hex Screw M6 012951 0017-00101-1953 0 1 Hex Screw M6 Yes Model Compatibility List $15.59 / Each

1
Flat Washer 11.5 Mm OD 013005 0017-00104-0488 0 1 Flat Washer 11.5 Mm OD No Model Compatibility List $15.59 / Each

1
View Drawing
