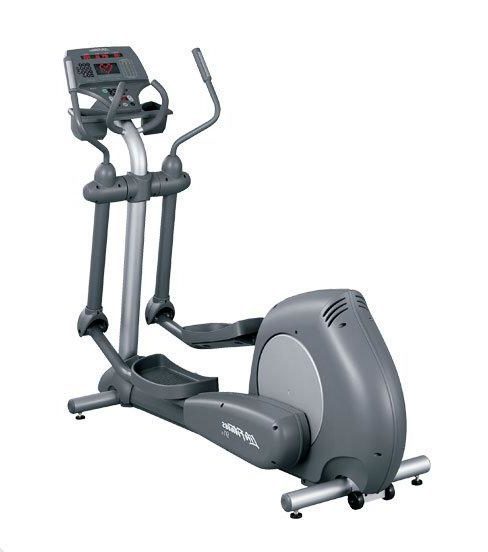

Life Fitness - 91XW

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
- 500098 0017-00008-0198 - Paint: Stealth Grey; .6OZ. Bottle B No Model Compatibility List $41.23 / Each

1
- 500099 0017-00008-0199 - Paint: Stealth Grey; 4.5OZ. Can No Model Compatibility List $71.10 / Each

1
- 500100 0017-00008-0204 MISC-004 Paint Spray Can - Arctic Silver No Model Compatibility List $77.02 / Each

1
- 500101 0017-00008-0205 MISC-005 5 oz Bottle - Arctic Silver No Model Compatibility List $54.44 / Each

1
- 500102 0017-00008-0206 MISC-006 .33oz Pen - Arctic Silver No Model Compatibility List $58.56 / Each

1
- 500126 0017-00009-0841 DS-005 Alternator Yes Model Compatibility List $343.02 / Each

8
- 500172 0017-00009-1084 - Wave Spring No Model Compatibility List $10.56 / Each

1
- 500173 0017-00009-1085 - Spherical Washer No Model Compatibility List $15.72 / Each

2
- 500176 0017-00009-1143 - Clip No Model Compatibility List $1.88 / Each

2
- 500200 0017-00021-2846 MISC-009 F-Type Panel Connector No Model Compatibility List $17.70 / Each

7
- 500210 0017-00041-0053 DS-050 Viton O-ring No Model Compatibility List $1.88 / Each

1
- 500220 0017-00042-0674 FS-042 Front Transport Wheel Yes Model Compatibility List $7.87 / Each

8
- 500221 0017-00042-0754 FS-004 Hardware: Grommet Yes Model Compatibility List $1.88 / Each

2
- 500277 0017-00042-1066 FS-041 Push-on cap Yes Model Compatibility List $4.57 / Each

9
- 500284 0017-00042-1078 HR-006 Hardware: Bushing No Model Compatibility List $1.88 / Each

8
- 500325 0017-00100-0152 DS-036 Hardware: Retaining Ring 1" No Model Compatibility List $1.88 / Each

1
- 500348 0017-00101-0314 DS-024 Hardware: Screw 0.1875" No Model Compatibility List $1.88 / Each

2
- 500349 0017-00101-0333 DM-007 Hardware: Screw 0.3125" No Model Compatibility List $1.88 / Each

1
- 500369 0017-00101-0964 DS-007 Hardware: Alternator Pivot Bolt 4.5" Yes Model Compatibility List $3.84 / Each

2,8
- 500373 0017-00101-0986 DS-088 Hardware: Bolt 0.75" No Model Compatibility List $1.88 / Each

2
- 500402 0017-00101-1242 CN-018 Hardware: Phillips Pan Screw 0.75" No Model Compatibility List $1.88 / Each

2
- 500410 0017-00101-1282 SM-011 Hardware: TORX Screw 0.375" No Model Compatibility List $1.88 / Each

2
- 500467 0017-00101-1551 DS-030 Hardware: Hex Bolt 1.25" No Model Compatibility List $1.88 / Each

2
- 500475 0017-00101-1606 DS-019 Hardware: Hex Bolt 2.5" No Model Compatibility List $1.88 / Each

1
- 500495 0017-00101-1635 FS-028 Hardware: Serrated Flange Hex Bolt 1 Yes Model Compatibility List $4.57 / Each

1
- 500499 0017-00101-1645 DS-039 Hardware: Bolt Yes Model Compatibility List $1.88 / Each

1
- 500500 0017-00101-1646 DS-048 Hardware: Bolt 4.25" No Model Compatibility List $3.84 / Each

1
- 500502 0017-00101-1650 MS-002 Hardware: Phillips Pan Screw 0.375" No Model Compatibility List $1.68 / Each

2
- 500503 0017-00101-1651 DS-013 Hardware: Intermediate Pulley Bolt 5.5" No Model Compatibility List $3.84 / Each

2,8
- 500529 0017-00101-1744 FS-001 Hardware: Phillips Pan Screw No Model Compatibility List $1.88 / Each

2
- 500744 0017-00103-0019 DS-035 Hardware: Locking Nut 1/4" ID No Model Compatibility List $1.88 / Each

2
- 500745 0017-00103-0025 LS-020 Hardware: Locking Nut 3/8" ID No Model Compatibility List $1.88 / Each

2
500752 0017-00103-0117 DS-007 Hardware: Locking Nut 1/2" ID No Model Compatibility List $1.68 / Each

2
- 500756 0017-00103-0137 DS-052 Hardware: Locking Nut 3/8" ID No Model Compatibility List $1.88 / Each

2
- 500762 0017-00103-0188 DS-009 Hardware: Flange Lock Nut 3/8" ID No Model Compatibility List $1.88 / Each

2
- 500787 0017-00103-0286 - Hardware: Locking Nut No Model Compatibility List $1.88 / Each

2
- 500830 0017-00104-0164 DS-011 Hardware: Washer 0.75" OD No Model Compatibility List $1.88 / Each

2
- 500831 0017-00104-0168 DS-033 Hardware: Flat Washer 0.5" OD No Model Compatibility List $9.78 / Each

2
- 500834 0017-00104-0192 LF-002 Hardware: Flat Washer 0.813" OD No Model Compatibility List $1.88 / Each

2
- 500880 0017-00104-0450 HR-007 Hardware: Flat Washer 0.67" OD No Model Compatibility List $1.88 / Each

2
- 500881 0017-00104-0454 DS-058 Hardware: Flat Washer 1.62" OD No Model Compatibility List $3.84 / Each

1
- 501254 0K14-01384-0000 LF-020 Plug No Model Compatibility List $1.88 / Each

1
- 501409 0K36-01059-0002 - Insulator Receiver Tube No Model Compatibility List $1.88 / Each

3
- 501724 0K53-01122-0000 DS-016 Square Key Yes Model Compatibility List $1.88 / Each

9
- 501725 0K53-01181-0000 DS-031 Hardware: Pillow Block Bearing No Model Compatibility List $77.02 / Each

1
- 501727 0K53-01447-0000 DS-012 Belt: Poly-V; 32 Yes Model Compatibility List $39.47 / Each

23
502035 0K61-01027-0000 DS-006 Flywheel: 6.75" D No Model Compatibility List $37.68 / Each

8
- 502037 0K61-01066-0000 - Spherical End Sleeve No Model Compatibility List $6.70 / Each

3
- 502039 0K61-01076-0000 DS-051 Pedal Lever Clevis Shaft Yes Model Compatibility List $19.68 / Each

1
- 502044 0K61-01259-0000 DS-056 Shaft Split Collar No Model Compatibility List $19.68 / Each

1
- 502045 0K61-01260-0000 DS-023 Crank Arm Shaft Collar Yes Model Compatibility List $21.65 / Each

8,3
- 502047 0K61-01261-0000 - Control Link Sleeve Yes Model Compatibility List $17.70 / Each

7,3
- 502059 0K61-01283-0001 - Cap Yes Model Compatibility List $8.60 / Each

9
- 502063 0K61-01284-0304 LS-010 Stabilizer Cap Yes Model Compatibility List $11.66 / Each

9
- 502068 0K61-01300-0000 LF-009 Wheel Shaft Yes Model Compatibility List $11.90 / Each

1
- 502080 0K61-01356-0000 DS-049 Hardware: Beveled Washer No Model Compatibility List $1.88 / Each

2
- 502082 0K61-01360-0002 DS-029 Crankshaft w/plate No Model Compatibility List $152.17 / Each

8
- 502084 0K61-01367-0000 - Decal No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
- 502085 0K61-01373-0003 - BRKT: ACCESS No Model Compatibility List $35.51 / Each

4,5,6
- 502091 0K61-01410-0300 - Rocker Seal No Model Compatibility List $3.07 / Each

1
- 502092 0K61-02302-0001 DS-027 Crankshaft Plate Yes Model Compatibility List $9.78 / Each

1
- 502094 0K61-02400-0001 DS-006 Intermediate Bracket No Model Compatibility List $154.14 / Each

1
- 502095 0K61-02409-0000 DS-028 Poly-V Crank Pulley No Model Compatibility List $100.76 / Each

1
- 502096 0K61-02601-0000 DS-005 Alternator Strap with Insert No Model Compatibility List $15.72 / Each

1
- 502097 0K61-03004-0000 DS-022 Arm Extension Yes Model Compatibility List $38.98 / Each

1
- 502100 0K61-03100-0002 - Crank Cover No Model Compatibility List $53.29 / Each

8,9
- 502104 0K61-04114-0000 DS-038 Roller Retainer Plate Yes Model Compatibility List $19.68 / Each

8
- 502105 0K61-04115-0002 SC-008 Adhesive Tape No Model Compatibility List $1.88 / Each

1
- 502124 0K61-06121-0006 - Extrusion Cover No Model Compatibility List $0.00 / Each
Out Of Stock
9
- 502133 0K61-06240-0002 - Front Cover Left Yes Model Compatibility List $73.87 / Each

9
- 502137 0K61-06250-0002 - Front Cover-RT Yes Model Compatibility List $73.87 / Each

9
- 502142 0K61-06300-0004 - Inside Cover Left Yes Model Compatibility List $161.28 / Each

9
- 502147 0K61-06320-0004 - Inside Cover Right No Model Compatibility List $121.19 / Each
Out Of Stock
9
- 502152 0K61-06340-0003 - Front Rocker Arm Cover Yes Model Compatibility List $27.12 / Each

3,9
- 502156 0K61-06341-0003 - Front Rocker Arm Cover Yes Model Compatibility List $17.48 / Each

9,3
- 502160 0K61-06350-0003 - Front Deadshaft Cover Yes Model Compatibility List $54.10 / Each

9
- 502164 0K61-06351-0003 - Rear Deadshaft Cover Yes Model Compatibility List $41.21 / Each

9
- 502220 0K62-01136-0002 UF-009 Bullhorn Grip 11.75" No Model Compatibility List $9.78 / Each

11
- 502254 0K63-01029-0001 - Battery Door No Model Compatibility List $5.98 / Each

1
- 504180 118E-00001-0140 CBL-001 Reed Switch SPDT Yes Model Compatibility List $23.63 / Each

4,5,6
- 511558 A084-92219-A006 - Console Board - Upper Yes Model Compatibility List $1030.18 / Each

7
- 512668 AK32-00020-0002 CBL-001 Coax Cable: 120 Yes Model Compatibility List $37.49 / Each

4,5,6
- 512684 AK32-00078-0001 CBL 2 Power Extension Cable: 120 Yes Model Compatibility List $93.71 / Each

4,5,6
- 512709 AK36-00021-0003 - Cable Assembly Yes Model Compatibility List $23.71 / Each

4,5,6
- 513615 AK61-00035-0000 FS-064 Leg Leveler Yes Model Compatibility List $39.07 / Each

1
- 513621 AK61-00051-0000 CBL-016 Bullhorn HR cables Yes Model Compatibility List $27.59 / Each

1
- 513624 AK61-00052-0002 CBL-009 Lifepulse Sensor Cable Yes Model Compatibility List $67.15 / Each

4,5,6,12,13,14
- 513630 AK61-00061-0000 DS-011 Intermediate Pulley Assembly Yes Model Compatibility List $0.00 / Each
8
- 513632 AK61-00062-0001 - Clevis Cover Yes Model Compatibility List $18.68 / Each

9
- 513634 AK61-00064-0001 DS-015 Crank Arm Yes Model Compatibility List $200.32 / Each

8,3
- 513644 AK61-00094-0003 - Rocker Arm No Model Compatibility List $302.45 / Each

3
- 513677 AK61-00127-0000 BE-001 Resistor Bracket Assembly Yes Model Compatibility List $188.47 / Each

2,3,4,5,6
- 513680 AK61-00135-0000 CBL-011 Power Control Cable Assembly Yes Model Compatibility List $104.71 / Each

7,4,5,6
- 513681 AK61-00136-0000 UF-013 Main Cable Yes Model Compatibility List $73.93 / Each

4,5,6
- 513683 AK61-00145-0001 BE-003 PCB Assembly No Model Compatibility List $289.25 / Each

1
- 513691 AK61-00157-0002 DS-026 Crankshaft Assembly No Model Compatibility List $327.59 / Each

8
- 513694 AK61-00172-0001 - Pedal Assembly: Right Yes Model Compatibility List $388.06 / Each
Out Of Stock
8,9
- 513695 AK61-00172-0002 - Pedal Assembly: Left Yes Model Compatibility List $388.06 / Each

8,9
- 513696 AK61-00175-0001 - Link Cover with Decal: Right Yes Model Compatibility List $297.20 / Each

7,9,3
- 513697 AK61-00175-0002 - Link Cover with Decal: Left Yes Model Compatibility List $297.20 / Each

3,7,9
- 513698 AK61-00176-0001 - Link Cover with Decal: Right No Model Compatibility List $189.13 / Each

7,9,3
- 513699 AK61-00176-0002 - Link Cover with Decal: Left Yes Model Compatibility List $168.44 / Each

7,9,3
- 513704 AK61-00178-0001 - Upper Arm Assembly: Right Yes Model Compatibility List $390.70 / Each

3
- 513705 AK61-00178-0002 - Upper Arm Assembly: Left Yes Model Compatibility List $390.70 / Each

3
- 513708 AK61-00181-0000 - Hardware Bag No Model Compatibility List $90.73 / Each

1
- 513709 AK61-00183-0001 - Bezel Switch with Overlay: English/Metric No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
- 513710 AK61-00190-0000 - Access Panel Assembly No Model Compatibility List $129.25 / Each

7,4,5,6
- 513722 AK61-00203-0002 - Console: English/Metric No Model Compatibility List $0.00 / Each
Out Of Stock
7
- 513742 AK61-00250-0001 DS-004 Alternator w/Flywheel Yes Model Compatibility List $353.92 / Each

8
- 513770 AK61-00500-0015 - Console Support Assembly Yes Model Compatibility List $265.12 / Each

3,7
- 513819 AK62-00186-0000 DS-034 Magnet-Standoff Assembly No Model Compatibility List $15.19 / Each

2,8
- 513991 AK63-00121-0001 - Console Case Assembly Yes Model Compatibility List $111.26 / Each

7
- 515908 GK20-00002-0005 - Heart Rate Electrode Kit Yes Model Compatibility List $107.39 / Each

3,12,13,14
- 515911 GK26-00002-0026 - Debris Brush No Model Compatibility List $0.00 / Each
Out Of Stock
1
- 515979 GK61-00002-0011 - Wheel and Cap Kit No Model Compatibility List $35.48 / Each

1
- 515984 GK61-00002-0020 LS-001 Drive Linkage Assembly Kit Yes Model Compatibility List $122.18 / Each

10
- 515996 GK61-00002-0054 - Pedal Kit No Model Compatibility List $104.70 / Each
Out Of Stock
8,9
- 515998 GK61-00002-0056 DS-010 KIT: CROSS TRAINER BELT AND PULLEY No Model Compatibility List $155.82 / Each

1
- 516034 GK63-00002-0062 - Accessory Tray Kit Yes Model Compatibility List $106.97 / Each
4,5,6
- 519116 SK40-00045-0001 - Polar HR Kit Wire Harness Yes Model Compatibility List $79.52 / Each

12,13,14
Main Drive Belt 52 Inch LF520J10 0K61-02701-0000 1 Main Drive Belt 52 Inch Yes Model Compatibility List $53.75 / Each

15
Drive Belt - Used 000145 0K61-02701-0000 1 Drive Belt - Used Yes Model Compatibility List $26.87 / Each
15
Polar Heart Rate Wire - Receiver Wire Harness (Used) 1014408 AK58-033-00 # 1 Polar Heart Rate Wire - Receiver Wire Harness (Used) Yes Model Compatibility List $33.59 / Each
Out Of Stock
4
16 Rib Main Drive Belt 52 0K53-01184-000 0K53-01184-000 16 Rib Main Drive Belt 52" No Model Compatibility List $67.19 / Each
Out Of Stock
15
- 1003976 AK61-00035-0000 - Leveling Foot Leveler Yes Model Compatibility List $23.99 / Each

1
Generator Alternator with Load Resistor 1003733 0017-00009-0841 Generator Alternator with Load Resistor Yes Model Compatibility List $160.64 / Each
8
Generator Alternator 1003743 AK63-00093-0000 Generator Alternator Yes Model Compatibility List $177.59 / Each

8
- 1004123 AK61-00178-0001 - Right Upper Link Arm Yes Model Compatibility List $159.59 / Each
Out Of Stock
3
- 1004122 AK61-00178-0002 - Life Fitness Left Upper Link Arm Yes Model Compatibility List $159.59 / Each
Out Of Stock
3
- 1004129 0K61-06351-0003 - Deadshaft Rear Cover Yes Model Compatibility List $33.59 / Each

9
- 1004128 0K61-06350-0003 - Deadshaft Front Cover Yes Model Compatibility List $38.39 / Each

9
- 1004131 AK61-00500-0015 - Bullhorn Console Support Assembly Yes Model Compatibility List $115.19 / Each
Out Of Stock
3,7
- 1004130 0K61-06340-0003 - Rocker Arm Cover Yes Model Compatibility List $19.19 / Each

3,9
- 1004127 AK32-00078-0001 - Power Extension Cable Wire Harness Yes Model Compatibility List $35.99 / Each

4,5,6
- 1000587 0017-00009-0841 - Alternator W/Resistor Yes Model Compatibility List $154.80 / Each
8
- 1002083 0K61-06300-0004 - Left Inside Link Arm Cover Yes Model Compatibility List $136.79 / Each
Out Of Stock
9
Right Inside Arm Plastic Cover 1002084 0K61-06300-0003 Right Inside Arm Plastic Cover Yes Model Compatibility List $62.39 / Each
Out Of Stock
Right Outside Arm Plastic Cover 1002085 0K61-06300-0003 Right Outside Arm Plastic Cover Yes Model Compatibility List $118.80 / Each

Left Outside Arm Plastic Cover 1002086 0K61-06300-0003 Left Outside Arm Plastic Cover Yes Model Compatibility List $118.80 / Each

- 1003034 118E-00001-0140 - RPM Speed Sensor Yes Model Compatibility List $22.79 / Each

4,5,6
- 1003149 0017-00009-0841 - Alternator Pulley Resistor Yes Model Compatibility List $239.99 / Each

8
- 1036690 AK61-00062-0001 - Rear Cover Clevis (Used) Yes Model Compatibility List $11.99 / Each

9
View Drawing
