Life Fitness - 95C Elevation (CUI)

Repair Parts for Life Fitness 95C Elevation (CUI) 95C-IFIXX-05

Brand: Life Fitness

Category: Commercial Upright Lifecycle Bike

Type: Stationary Bikes

Model Name: 95C Elevation (CUI)

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
L 012831 0K66-01041-0000 0 1 Front Stabilizer Shroud Yes Model Compatibility List $25.19 / Each

1
Tectrix Self Powered Elliptical Battery 1000183 0819-0012 Tectrix Self Powered Elliptical Battery Yes Model Compatibility List $91.19 / Each

Gray Bike Seat 1002258 AK63-00229-0003 or 0K63-01058-0001 Gray Bike Seat Yes Model Compatibility List $53.99 / Each

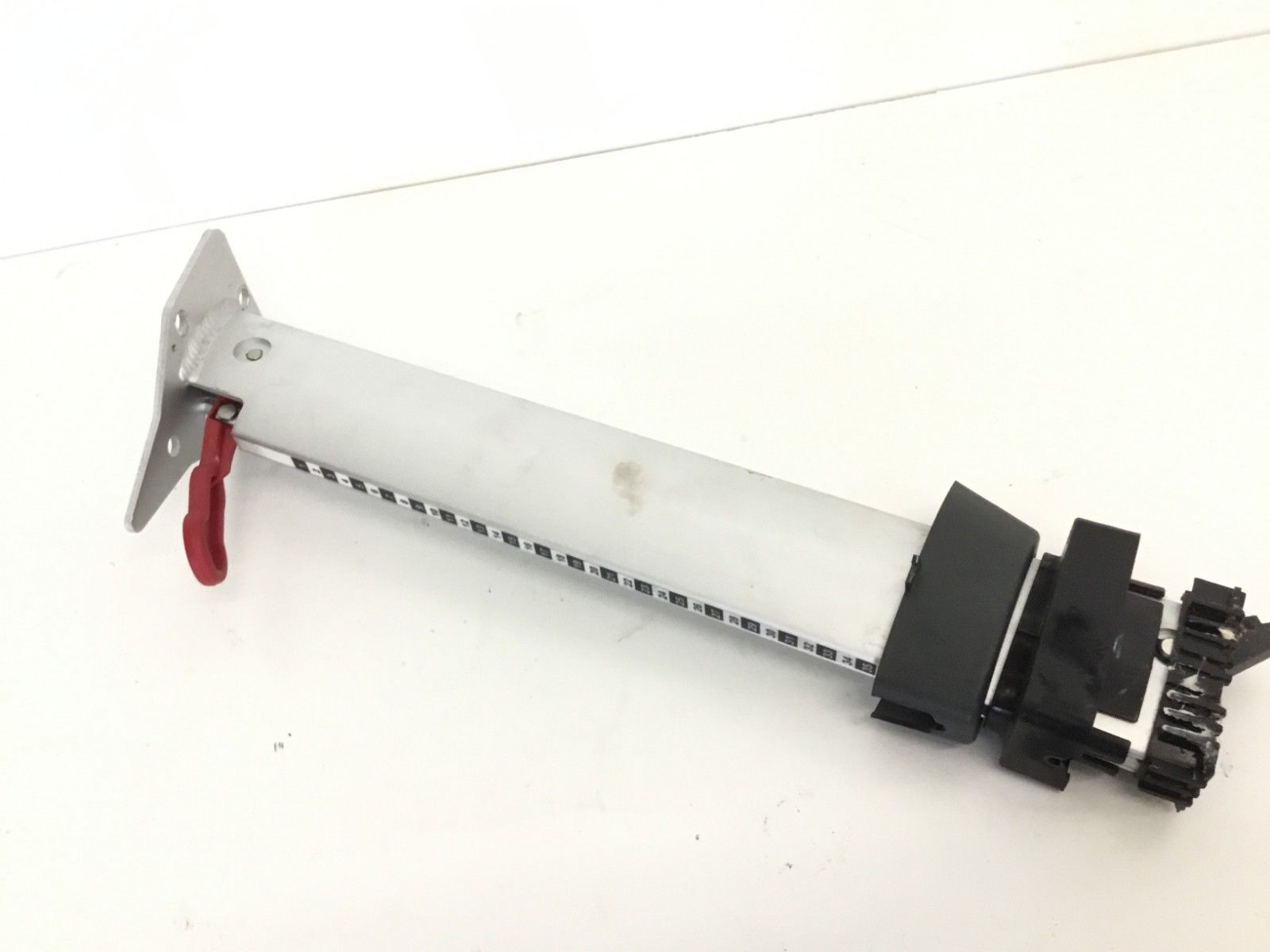

Seat Post Weldment Assembly (Used) 1004062 saetpt-4062 Seat Post Weldment Assembly (Used) Yes Model Compatibility List $59.40 / Each

1
U 500293 0017-00042-1134 - Grommet No Model Compatibility List $1.88 / Each

2
H 500514 0017-00101-1720 - Hardware: Mounting Screw 1" No Model Compatibility List $1.88 / Each

2
B 500714 0017-00101-2102 BE -104 SCR: M5 X 0.8 6G6G X 10 HEX FLG L CS ST No Model Compatibility List $1.82 / Each

1
U 500893 0017-00104-0469 BE-007 Hardware: Flat Washer 16MM OD Yes Model Compatibility List $3.23 / Each

2
B 500856 0017-00104-0330 BE-019 Hardware: Flat Washers 0.562" OD No Model Compatibility List $1.88 / Each

2
H 513904 AK63-00028-0001 BE-019 LifePulse Cable Yes Model Compatibility List $15.72 / Each

4,5,6,12,13,14
B 514258 AK66-00107-0000 BE-021 Generator/Brake Cable Yes Model Compatibility List $19.26 / Each

4,5,6
B 514289 AK66-00172-0000 BE-025 ASSY: GENERATOR/PULLEY; UNIPLATE,AP1/AP2, MFG. Yes Model Compatibility List $718.80 / Each
Out Of Stock 		8
514286 AK66-00165-0000 BE-026 NC: PULLEY ASSY: W/CLUTCH, UNIPLATE, ISO/DIN No Model Compatibility List $69.26 / Each

8
B 514333 AK67-00109-0000 BE-029 Battery cable: Upright No Model Compatibility List $14.14 / Each

3,4,5,6
B 512690 AK32-00160-0000 BE-032 Ext Power Cable with Ferrite Yes Model Compatibility List $73.34 / Each

1
B 514134 AK65-00062-0000 BE-033 Cable: Coax RG6 Base Yes Model Compatibility List $21.65 / Each

1
B 511610 A084-92363-0002 BE-034 PROGRAMMED PCB: B084-92363-0002 No Model Compatibility List $354.49 / Each

1
B 500312 0017-00042-1229 BE-035 SPACER: ROUND PLASTIC No Model Compatibility List $7.55 / Each

2,9,3,4,5,6
B 514332 AK67-00108-0000 BE-035 External Power Cable Yes Model Compatibility List $41.34 / Each

4,5,6
B 500604 0017-00101-1894 BE-102 Hardware: Idler Assembly Mounting Bolt 16MM No Model Compatibility List $1.88 / Each

2,8
B 500186 0017-00009-1323 BE-106 BELT: POLYV; 460J8, STANDARD Yes Model Compatibility List $65.05 / Each

15
B 500582 0017-00101-1838 BE-107 Hardware: Mounting Screw 19 MM Yes Model Compatibility List $1.88 / Each

2
502538 0K66-01237-0000 BE-115 Hardware: Shaft Washer Large No Model Compatibility List $5.59 / Each

2
500902 0017-00104-0498 BE-116 Hardware: Shaft Washer Small .734- OD No Model Compatibility List $1.88 / Each

2
500340 0017-00100-0257 BE-117 Retaining Ring No Model Compatibility List $1.88 / Each

1
B 500655 0017-00101-2002 BE-121 Hardware: Tension Bolt 60MM Yes Model Compatibility List $3.84 / Each

1
B 514133 AK65-00051-0001 CB-003 C-safe Network Cable 65" Yes Model Compatibility List $23.63 / Each

1
B 514257 AK66-00106-0000 CB-007 PCB to Console Cable: Recumbent No Model Compatibility List $0.00 / Each
Out Of Stock 		7,4,5,6
D 514246 AK66-00093-0001 DM-001 Left Pedal Assembly W/ Strap For IFI No Model Compatibility List $94.55 / Each

8,9
D 502517 0K66-01121-0000 DM-004 Crank Cap Yes Model Compatibility List $6.00 / Each

8,9
502482 0K66-01006-0108 DM-006 Left Crank Arm No Model Compatibility List $135.95 / Each
Out Of Stock 		8,3
D 502481 0K66-01006-0107 DM-008 Right Crank Arm No Model Compatibility List $135.95 / Each

8,3
D 500676 0017-00101-2043 DM-009 Hardware: Crank Screw 25MM No Model Compatibility List $2.44 / Each

2,8
D 514224 AK66-00047-0001 DM-011 Right Pedal W/ Strap Assembly Yes Model Compatibility List $159.00 / Each

8,9
D 514244 AK66-00092-0001 DM-011 Right Pedal Assembly W/ Strap For IFI No Model Compatibility List $94.55 / Each

8,9
B 502541 0K66-01254-0000 DM-026 BRKT: TENSIONER Yes Model Compatibility List $17.46 / Each

1
B 514290 AK66-00173-0000 DM-027 ASSY: IDLER & POST; AP1/AP2, MFG. Yes Model Compatibility List $58.61 / Each

8,12,13,14
B 500647 0017-00101-1982 DM-028 Hardware: Mounting Bolt 35MM No Model Compatibility List $1.88 / Each

2
B 502763 0K76-01068-0000 DM-029 Pulley Yes Model Compatibility List $23.14 / Each

8
B 514274 AK66-00151-0000 DM-031 HUB ASSY: CRANKSHAFT, UNIPLATE Yes Model Compatibility List $266.54 / Each

8
B 500796 0017-00103-0328 DS-011 Hardware: Nut 8 MM ID No Model Compatibility List $0.82 / Each

2
L 502490 0K66-01041-0000 FS-048 Shroud Stabilizer Front Yes Model Compatibility List $11.64 / Each

1
U 500657 0017-00101-2007 HC-025 Hardware: Mounting Bolt 16MM No Model Compatibility List $1.88 / Each

2
H 514301 AK67-00006-0000 HR-001 Handlebar Assembly No Model Compatibility List $327.55 / Each

11
H 500615 0017-00101-1920 HR-002 Hardware: Mounting Screw 16MM No Model Compatibility List $0.49 / Each

2
H 513895 AK63-00028-0001 HR-011 LifePulse Cable Yes Model Compatibility List $9.19 / Each

4,5,6,12,13,14
H 502520 0K66-01141-0000 HR-012 Insulator Plug No Model Compatibility List $2.46 / Each

1
L 500600 0017-00101-1881 LF-002 Hardware: Screw 20 MM Yes Model Compatibility List $3.90 / Each

2
L 500896 0017-00104-0479 LF-003 Hardware: Flat Washer 25.4MM OD Yes Model Compatibility List $3.23 / Each

2
L 1012465 0017-00104-0479 LF-003 Stepper Flat Washer 25.4mm (New) Yes Model Compatibility List $15.59 / Each

2
L 502492 0K66-01042-0000 LF-004 End Cap (Front and Rear) Yes Model Compatibility List $23.99 / Each

1
L 502488 0K66-01039-0000 LF-006 Wheel Yes Model Compatibility List $5.83 / Each

1
L 502489 0K66-01040-0000 LF-007 Wheel Shaft No Model Compatibility List $3.84 / Each

8
L 514200 AK66-00016-0000 LF-007 Front Stabilizer No Model Compatibility List $161.98 / Each

1
L 500003 0017-00003-0685 LF-008 6V Battery Cyclon Yes Model Compatibility List $57.25 / Each

1
L 1004125 0017-00003-0685 LF-008 Sealed Lead Rechrgeable Battery Yes Model Compatibility List $56.39 / Each
1
M 514209 AK66-00036-0000 LF-010 Bracket Assembly: Power/Coax Input Yes Model Compatibility List $66.94 / Each
Out Of Stock 		1
L 513801 AK62-00124-0000 LF-014 Leg Leveler Yes Model Compatibility List $26.46 / Each

1
M 500050 0017-00003-1051 MISC-001 POWER SUPPLY: 39VDC, 1.66A Yes Model Compatibility List $161.64 / Each
Out Of Stock 		4,5,6
M 500005 0017-00003-0691 MISC-003 Line Cord Cont 10A 250 V No Model Compatibility List $38.64 / Each

4,5,6
M 500009 0017-00003-0704 MISC-003 Line Cord 10A 125 V Yes Model Compatibility List $37.63 / Each

1
M 500026 0017-00003-0918 MISC-003 Line Cord - Australia No Model Compatibility List $30.91 / Each

4,5,6
M 500100 0017-00008-0204 MISC-004 Paint Spray Can - Arctic Silver No Model Compatibility List $77.02 / Each

1
M 500019 0017-00003-0889 MISC-005 Line Cord Cont U.K. 10A No Model Compatibility List $38.64 / Each

4,5,6
M 500101 0017-00008-0205 MISC-005 5 oz Bottle - Arctic Silver No Model Compatibility List $54.44 / Each

1
500102 0017-00008-0206 MISC-006 .33oz Pen - Arctic Silver No Model Compatibility List $58.56 / Each

1
500200 0017-00021-2846 MISC-009 F-Type Panel Connector No Model Compatibility List $17.70 / Each

7
M 514334 AK67-00122-0000 MISC-012 ASSY: HARDWARE BAG; UPRIGHT, UNIPLATE No Model Compatibility List $31.36 / Each

3
M 502501 0K66-01063-0000 MISC-013 Power Coax Bracket No Model Compatibility List $1.81 / Each

2,3,4,5,6
M 500203 0017-00021-3195 PW-016 COUPLER: CAT5E, SHIELDED, RJ45 Yes Model Compatibility List $25.79 / Each

3
L 502519 0K66-01131-0000 SA-020 Rear Stabilizer No Model Compatibility List $385.28 / Each

1
L 500601 0017-00101-1882 SA-021 Hardware: Stabilizer Mounting Screw 30MM No Model Compatibility List $1.81 / Each

2
S 502534 0K66-01193-0000 SA-029 BRACKET: FLAT CABLE CLAMP No Model Compatibility List $3.25 / Each

2,3,4,5,6
U 500658 0017-00101-2009 SA-034 Hardware: Mounting Screw 0.75" No Model Compatibility List $0.34 / Each

2
U 500337 0017-00100-0250 SA-045 E Ring No Model Compatibility List $1.88 / Each

1
U 500338 0017-00100-0253 SP-012 Retaining Ring No Model Compatibility List $1.88 / Each

1
U 500671 0017-00101-2035 TC-019 Hardware: Mounting Screw No Model Compatibility List $4.15 / Each

2
U 514329 AK67-00105-0000 UF-001 Console/Handlebar Cable - Upright Bike Yes Model Compatibility List $54.98 / Each

7,3,4,5,6,11
U 500650 0017-00101-1986 UF-002 Hardware: Mounting Screw 16MM Yes Model Compatibility List $1.81 / Each

1
U 500885 0017-00104-0460 UF-003 Hardware: Lockwasher 0.562" OD No Model Compatibility List $1.88 / Each

2
U 514307 AK67-00029-0000 UF-004 Level Control Assembly Yes Model Compatibility List $89.06 / Each

7
U 514305 AK67-00024-0000 UF-006 Console Mounting Bracket Assembly No Model Compatibility List $409.03 / Each

7,2,3,4,5,6
U 500665 0017-00101-2019 UF-007 Hardware: Mounting Screw 85MM No Model Compatibility List $2.44 / Each

2
U 500802 0017-00103-0341 UF-008 Hardware: Hex Nut 8 MM No Model Compatibility List $1.88 / Each

2
U 502584 0K67-01129-0000 UF-009 EXTRUSION: MONOCOLUMN; 95C ARC Yes Model Compatibility List $200.52 / Each

1
U 502555 0K67-01039-0000 UF-012 Upright Gasket Yes Model Compatibility List $13.63 / Each

3
U 500566 0017-00101-1796 UF-017 Hardware: Mounting Screw 19 MM Yes Model Compatibility List $4.57 / Each

2
U 502561 0K67-01051-0000 UF-022 Bottom Front Handlebar Cover No Model Compatibility List $1.67 / Each

9,11
U 502542 0K66-01267-0000 UF-027 SHIELD: SHROUD; GBC Yes Model Compatibility List $16.13 / Each

3,12,13,14
U 502577 0K67-01111-0000 UF-031 Up/Down Handle Yes Model Compatibility List $12.90 / Each

11
U 502579 0K67-01112-0000 UF-032 Hardware: Handle Pivot Pin Yes Model Compatibility List $10.40 / Each

8,11,12,13,14
U 514280 AK66-00158-0000 UF-32 WELD ASSY: NUTPLATE; MONOCOLUMN, UNIPLATE Yes Model Compatibility List $18.94 / Each

2
U 502545 0K67-01008-0000 UF-034 Up/Down Rod Yes Model Compatibility List $26.26 / Each

3
U 502549 0K67-01014-0000 UF-035 Hardware: Rod Pins Yes Model Compatibility List $5.36 / Each

3,12,13,14
U 500182 0017-00009-1285 UF-036 Ware Spring No Model Compatibility List $2.14 / Each

2
500892 0017-00104-0468 UF-037 Hardware: Washer 18 MM OD No Model Compatibility List $1.88 / Each

2
U 502574 0K67-01087-0000 UF-038 Seat Post Decal - Upright No Model Compatibility List $4.34 / Each

7,3,12,13,14
U 502570 0K67-01060-0000 UF-039 Seat Post Guide Base Yes Model Compatibility List $9.49 / Each

3,12,13,14
U 500291 0017-00042-1131 UF-041 Bumper No Model Compatibility List $1.88 / Each

1
U 514058 AK63-00229-0003 UF-042 Deluxe Seat Yes Model Compatibility List $96.79 / Each

12,13,14
U 1012463 0017-00104-0469 UF-043 Pedal Mounting Washer (Used) Yes Model Compatibility List $15.59 / Each

2
U 502573 0K67-01067-0000 UF-045 Seat Post Shroud No Model Compatibility List $13.73 / Each

12,13,14
U 500659 0017-00101-2010 UF-046 Hardware: Mounting Screw 0.3125" No Model Compatibility List $0.82 / Each

2
U 502569 0K67-01059-0001 UF-047 Seat Post Guide Cap No Model Compatibility List $9.61 / Each

9,12,13,14
U 514300 AK67-00003-0001 UF-048 Seat Post Weldment - Upright Yes Model Compatibility List $134.36 / Each

1
U 1003829 AK67-00003-0001 UF-048 Seat Post Weldment Assembly Yes Model Compatibility List $118.80 / Each
Out Of Stock 		1
U 502546 0K67-01009-0001 UF-049 Up/Down Latch Yes Model Compatibility List $21.47 / Each

1
U 502547 0K67-01010-0000 UF-050 Up/Down Spring Yes Model Compatibility List $4.57 / Each

2
U 502550 0K67-01017-0000 UF-051 Hardware: Latch Pivot Pin No Model Compatibility List $5.11 / Each

8,12,13,14
L 500660 0017-00101-2011 UF-054 Hardware: Screw 10MM No Model Compatibility List $0.82 / Each

2
L 502548 0K67-01013-0000 UF-058 Seat Post Rack No Model Compatibility List $18.56 / Each

4,5,6,12,13,14
U 502571 0K67-01061-0000 UF-101 Console Rear Middle Shroud No Model Compatibility List $8.77 / Each

7,12,13,14
U 500622 0017-00101-1940 UF-102 Hardware: Screw 14MM Yes Model Compatibility List $1.88 / Each

1
U 502557 0K67-01040-0000 UF-103 Rear Console Cover No Model Compatibility List $23.77 / Each

7,9
U 514303 AK67-00019-0000 UF-104 Console Shroud Top No Model Compatibility List $97.40 / Each

7,12,13,14
U 502567 0K67-01055-0000 UF-105 Accessory: Cupholder Yes Model Compatibility List $61.39 / Each

4,5,6
U 502559 0K67-01041-0000 UF-107 Console Shroud Bottom Yes Model Compatibility List $23.51 / Each

7,12,13,14
U 502551 0K67-01033-0000 UF-124 Left Front Shroud No Model Compatibility List $93.23 / Each

12,13,14
U 514319 AK67-00049-0000 UF-125 Right Front Shroud No Model Compatibility List $90.36 / Each

12,13,14
U 500715 0017-00101-2103 UF-131 SCR: #6 X 5/8 FLT PHL AB ST BLK No Model Compatibility List $6.35 / Each

1
U 012794 0017-00101-1796 UF-132 Life Fitness Elliptical Screw (New) Yes Model Compatibility List $15.59 / Each

2
U 1012192 0017-00101-1796 UF-132 Stepper Screw (New) Yes Model Compatibility List $15.59 / Each

2
U 514314 AK67-00033-0008 UF-133 SHROUD/DECAL; MAIN; LIFECYCLE LH NP VENT No Model Compatibility List $130.01 / Each

7,3,12,13,14
U 502553 0K67-01038-0000 UF-134 Step Shroud No Model Compatibility List $16.32 / Each

12,13,14
U 514311 AK67-00032-0008 UF-135 SHROUD/DECAL; MAIN; LIFECYCLE RH NP VENT No Model Compatibility List $130.01 / Each

7,3,12,13,14
