Life Fitness - 95X Elevation (XTM)

Repair Parts for Life Fitness 95X Elevation (XTM) 95X-ALLXX-01

Brand: Life Fitness

Category: Commercial Ellipticals

Type: Elliptical

Model Name: 95X Elevation (XTM)

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
6V Battery Cyclon 500003 0017-00003-0685 LF-008 6V Battery Cyclon Yes Model Compatibility List $57.25 / Each

1
Line Cord Cont 10A 250 V 500005 0017-00003-0691 MISC-003 Line Cord Cont 10A 250 V No Model Compatibility List $38.64 / Each

4,5,6
Line Cord 10A 125 V 500009 0017-00003-0704 MISC-003 Line Cord 10A 125 V Yes Model Compatibility List $37.63 / Each

1
Line Cord Cont U.K. 10A 500019 0017-00003-0889 MISC-005 Line Cord Cont U.K. 10A No Model Compatibility List $38.64 / Each

4,5,6
Line Cord - Australia 500026 0017-00003-0918 MISC-003 Line Cord - Australia No Model Compatibility List $30.91 / Each

4,5,6
Line Cord China 10A 250 V 500047 0017-00003-1012 MISC-007 Line Cord China 10A 250 V No Model Compatibility List $23.18 / Each

4,5,6
POWER SUPPLY: 39VDC, 1.66A 500050 0017-00003-1051 MISC-001 POWER SUPPLY: 39VDC, 1.66A Yes Model Compatibility List $161.64 / Each
Out Of Stock 		4,5,6
POWER SUPPLY: 24VDC, 5A 500066 0017-00003-1091 MISC-002 POWER SUPPLY: 24VDC, 5A Yes Model Compatibility List $308.48 / Each

4,5,6
Front Pedal Lever Bearing 500070 0017-00006-0164 LS-007 Front Pedal Lever Bearing No Model Compatibility List $7.81 / Each

3,8,9
Rear Pedal Lever Bearing 500081 0017-00006-0289 LS-017 Rear Pedal Lever Bearing No Model Compatibility List $19.68 / Each

8,9,3
Thrust Bearing 500083 0017-00006-0294 FS-016 Thrust Bearing No Model Compatibility List $6.52 / Each

12,13,14
Paint: Shadow-Gray Touch Up: .6 OZ Bottle 500103 0017-00008-0210 MISC-010 Paint: Shadow-Gray Touch Up: .6 OZ Bottle No Model Compatibility List $74.58 / Each

1
Paint: Shadow-Gray Touch Up: .6 OZ Bottle 500104 0017-00008-0211 MISC-011 Paint: Shadow-Gray Touch Up: .6 OZ Bottle No Model Compatibility List $82.96 / Each

1
Leg Leveler 500117 0017-00009-0795 FS-066 Leg Leveler Yes Model Compatibility List $15.43 / Each

1
Alternator Brush Kit 500133 0017-00009-0895 DS-002 Alternator Brush Kit Yes Model Compatibility List $100.34 / Each

1
F-Type Panel Connector 500200 0017-00021-2846 MISC-009 F-Type Panel Connector No Model Compatibility List $17.70 / Each

7
Cat-5 Receptacle 500202 0017-00021-2980 MISC-015 Cat-5 Receptacle No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
Hardware: Grommet 500221 0017-00042-0754 FS-004 Hardware: Grommet Yes Model Compatibility List $1.88 / Each

2
Hardware: Plastic Grommet 500226 0017-00042-0821 DS-009 Hardware: Plastic Grommet Yes Model Compatibility List $1.88 / Each

2,9
500297 0017-00042-1147 A31 Hardware: Nylon Grommet No Model Compatibility List $1.88 / Each

2
Hardware: Plastic Grommet 500310 0017-00042-1226 LP-007 Hardware: Plastic Grommet No Model Compatibility List $1.88 / Each

2,9
Hardware: E-Ring 1 500321 0017-00100-0107 DS-028 Hardware: E-Ring 1 Yes Model Compatibility List $5.92 / Each

1
E clip 500323 0017-00100-0148 FS-036 E clip Yes Model Compatibility List $1.88 / Each

1
Hardware: Retaining Ring 1.25" 500327 0017-00100-0178 LS-006 Hardware: Retaining Ring 1.25" Yes Model Compatibility List $4.57 / Each

1
Hardware: Sensor Mounting Screw 1 500408 0017-00101-1277 FS-025 Hardware: Sensor Mounting Screw 1" Yes Model Compatibility List $1.88 / Each

1
Hardware: Phillips Pan Screw 0.375 500502 0017-00101-1650 MS-002 Hardware: Phillips Pan Screw 0.375" No Model Compatibility List $1.68 / Each

2
Hardware: TORX Screw 19 MM 500562 0017-00101-1791 FS-001 Hardware: TORX Screw 19 MM Yes Model Compatibility List $4.57 / Each

2
Hardware: Screw 10MM 500564 0017-00101-1794 BE-006 Hardware: Screw 10MM Yes Model Compatibility List $1.88 / Each

2
Hardware: Mounting Screw 500565 0017-00101-1795 DS-010 Hardware: Mounting Screw No Model Compatibility List $1.88 / Each

2
Hardware: Mounting Screw 19 MM 500566 0017-00101-1796 UF-017 Hardware: Mounting Screw 19 MM Yes Model Compatibility List $4.57 / Each

2
Hardware: Mounting Screw 16 MM 500567 0017-00101-1797 BE-002 Hardware: Mounting Screw 16 MM Yes Model Compatibility List $4.57 / Each

2
Hardware: Mounting Screw 19 MM 500582 0017-00101-1838 BE-107 Hardware: Mounting Screw 19 MM Yes Model Compatibility List $1.88 / Each

2
Hardware: Phillips Pan Screw 10 MM 500587 0017-00101-1846 FS-009 Hardware: Phillips Pan Screw 10 MM Yes Model Compatibility List $3.23 / Each

2
Hardware: Bullhorn Cover Screw 44MM 500590 0017-00101-1854 FS-017 Hardware: Bullhorn Cover Screw 44MM Yes Model Compatibility List $7.26 / Each

2,9
Hardware: Mounting Bolt 45 MM 500594 0017-00101-1867 DM-018 Hardware: Mounting Bolt 45 MM Yes Model Compatibility List $1.88 / Each

1
Hardware: Bolt 70 MM 500607 0017-00101-1905 - Hardware: Bolt 70 MM Yes Model Compatibility List $5.92 / Each

2
Hardware: Hex Screw 20 MM 500608 0017-00101-1906 - Hardware: Hex Screw 20 MM Yes Model Compatibility List $5.92 / Each

2
Hardware: Mounting Bolt 40MM 500616 0017-00101-1925 FS-051 Hardware: Mounting Bolt 40MM Yes Model Compatibility List $1.01 / Each

1
Hardware: Pedal Mounting Screws 25MM 500618 0017-00101-1929 SA-004 Hardware: Pedal Mounting Screws 25MM Yes Model Compatibility List $1.88 / Each

1
Hardware: Front Stabilizer Mtg Bolts 25MM 500619 0017-00101-1931 SA-016 Hardware: Front Stabilizer Mtg Bolts 25MM Yes Model Compatibility List $1.88 / Each

1
Hardware: Screw 14MM 500622 0017-00101-1940 UF-102 Hardware: Screw 14MM Yes Model Compatibility List $1.88 / Each

1
Hardware: Mounting Bolts 16MM 500625 0017-00101-1948 DM-010 Hardware: Mounting Bolts 16MM No Model Compatibility List $3.84 / Each

2
Hardware: Idler Bracket Mounting Screws 100MM 500626 0017-00101-1951 TS-015 Hardware: Idler Bracket Mounting Screws 100MM Yes Model Compatibility List $3.84 / Each

1
Hardware: Mounting Screw 14MM 500627 0017-00101-1953 FR-020 Hardware: Mounting Screw 14MM Yes Model Compatibility List $1.88 / Each

1
Hardware: Hex Bolt 85MM 500629 0017-00101-1955 LS-008 Hardware: Hex Bolt 85MM Yes Model Compatibility List $2.30 / Each

1
Hardware: M10 X1.50-6G6GX 25 DIN HEX SOC CAP ST ZN 500635 0017-00101-1966 FS-050 Hardware: M10 X1.50-6G6GX 25 DIN HEX SOC CAP ST ZN No Model Compatibility List $1.81 / Each

9
Hardware: Screw 14MM 500640 0017-00101-1972 CS-003 Hardware: Screw 14MM Yes Model Compatibility List $1.88 / Each

1
Hardware: Mounting Screw 16MM 500650 0017-00101-1986 UF-002 Hardware: Mounting Screw 16MM Yes Model Compatibility List $1.81 / Each

1
Hardware: Outside Crank Cover Mounting Screw 14MM 500651 0017-00101-1988 TS-006 Hardware: Outside Crank Cover Mounting Screw 14MM No Model Compatibility List $1.81 / Each

2,8,9
Hardware: Tension Bolt 60MM 500655 0017-00101-2002 BE-121 Hardware: Tension Bolt 60MM Yes Model Compatibility List $3.84 / Each

1
Hardware: Mounting Bolt 16MM 500657 0017-00101-2007 HC-025 Hardware: Mounting Bolt 16MM No Model Compatibility List $1.88 / Each

2
SCREW: M6 X 1-6G6H X 14, DIN, HEX, BUT, L, ST, ZB 500662 0017-00101-2014 RR-010 SCREW: M6 X 1-6G6H X 14, DIN, HEX, BUT, L, ST, ZB No Model Compatibility List $1.78 / Each

2
Hardware: Pulley Set Screw 15 MM 500663 0017-00101-2015 DM-015 Hardware: Pulley Set Screw 15 MM Yes Model Compatibility List $4.50 / Each

2,8
Hardware: Rear Rocking Link Screw 38MM 500667 0017-00101-2023 LS-031 Hardware: Rear Rocking Link Screw 38MM Yes Model Compatibility List $1.16 / Each

1
Hardware: SCR: M8 X 1.25 X 50 HEX 500672 0017-00101-1904 LS-028 Hardware: SCR: M8 X 1.25 X 50 HEX No Model Compatibility List $4.50 / Each

1
Hardware: Screw 1" 500679 0017-00101-2054 HR-018 Hardware: Screw 1" Yes Model Compatibility List $1.82 / Each

1
SCR: M2.5 X 1.06 X 10MM PHL PAN PLT ST ZS 500716 0017-00101-2106 FS-047 SCR: M2.5 X 1.06 X 10MM PHL PAN PLT ST ZS No Model Compatibility List $1.78 / Each

1
SCR: M4 X 0.70-6G6G X 6 PHL PAN MS ST ZS 500717 0017-00101-2107 DS-011 SCR: M4 X 0.70-6G6G X 6 PHL PAN MS ST ZS No Model Compatibility List $0.42 / Each

1
Hardware: Mounting Nut 500798 0017-00103-0332 DS-006 Hardware: Mounting Nut Yes Model Compatibility List $3.23 / Each

2
Hardware: Hex Nut 500799 0017-00103-0333 DR-019 Hardware: Hex Nut Yes Model Compatibility List $4.57 / Each

2
Hardware: Nut 10 MM 500800 0017-00103-0334 ST-010 Hardware: Nut 10 MM No Model Compatibility List $1.88 / Each

2
Hardware: Hex Nut 8 MM 500801 0017-00103-0338 - Hardware: Hex Nut 8 MM Yes Model Compatibility List $1.88 / Each

1
Hardware: Flat Washer 0.734 500833 0017-00104-0190 LS-010 Hardware: Flat Washer 0.734" OD Yes Model Compatibility List $1.88 / Each

1
Hardware: Washer 1.06 500835 0017-00104-0193 PL-008 Hardware: Washer 1.06" OD Yes Model Compatibility List $1.88 / Each

1
Hardware: Washer 0.875 500846 0017-00104-0263 FS-053 Hardware: Washer 0.875" OD No Model Compatibility List $1.88 / Each

2
Hardware: Flat Washers 0.880 500858 0017-00104-0334 DM-022 Hardware: Flat Washers 0.880" OD Yes Model Compatibility List $1.88 / Each

1
Hardware: Washer 1.125 500874 0017-00104-0409 SA-002 Hardware: Washer 1.125" OD Yes Model Compatibility List $1.68 / Each

2
Hardware: Flat Washer 1.75" OD 500878 0017-00104-0418 LS-007 Hardware: Flat Washer 1.75" OD Yes Model Compatibility List $4.57 / Each

2
Hardware: Flat Washer 16MM OD 500893 0017-00104-0469 BE-007 Hardware: Flat Washer 16MM OD Yes Model Compatibility List $3.23 / Each

2
Hardware: Flat Washers 11.5 MM OD 500899 0017-00104-0488 MISC-012 Hardware: Flat Washers 11.5 MM OD No Model Compatibility List $1.88 / Each

1
Hardware: Washer 19 MM OD 500905 0017-00104-0510 SW-156 Hardware: Washer 19 MM OD No Model Compatibility List $1.82 / Each

2
Poly-V Pulley 501393 0K35-01186-0007 DS-023 Poly-V Pulley Yes Model Compatibility List $68.70 / Each

8
Hardware: Thrust Washer 501530 0K47-01104-0000 LS-008 Hardware: Thrust Washer Yes Model Compatibility List $5.92 / Each

2,12,13,14
Hardware: Hardened Thrust Washer 501531 0K47-01105-0000 DS-027 Hardware: Hardened Thrust Washer Yes Model Compatibility List $5.92 / Each

2,12,13,14
Square Key 501724 0K53-01122-0000 DS-016 Square Key Yes Model Compatibility List $1.88 / Each

9
Hex key 501726 0K53-01183-0000 DS-053 Hex key Yes Model Compatibility List $6.53 / Each

9
Shaft Split Collar 502044 0K61-01259-0000 DS-056 Shaft Split Collar No Model Compatibility List $19.68 / Each

1
Poly-V Crank Pulley 502095 0K61-02409-0000 DS-028 Poly-V Crank Pulley No Model Compatibility List $100.76 / Each

1
Flexonic Belt 502217 0K62-01134-0000 DS-011 Flexonic Belt Yes Model Compatibility List $35.51 / Each

23
Elastomer Split Grommet 502227 0K62-01189-0000 DS-021 Elastomer Split Grommet No Model Compatibility List $1.81 / Each

2
Gasket: Bullhorn 502231 0K62-01199-0002 CA-014 Gasket: Bullhorn No Model Compatibility List $2.65 / Each

1
Anti-Lift Track 502234 0K62-01208-0000 DS-009 Anti-Lift Track Yes Model Compatibility List $0.00 / Each
15,3,4,5,6,10
Bearing Flange 502236 0K62-01220-0000 DS-034 Bearing Flange Yes Model Compatibility List $3.84 / Each

1
1 502237 0K62-01221-0000 DS-035 1" Bearing Yes Model Compatibility List $23.63 / Each

1
Wheel 502488 0K66-01039-0000 LF-006 Wheel Yes Model Compatibility List $5.83 / Each

1
Wheel Shaft 502489 0K66-01040-0000 LF-007 Wheel Shaft No Model Compatibility List $3.84 / Each

8
Shroud Stabilizer Front 502490 0K66-01041-0000 FS-048 Shroud Stabilizer Front Yes Model Compatibility List $11.64 / Each

1
End Cap (Front and Rear) 502492 0K66-01042-0000 LF-004 End Cap (Front and Rear) Yes Model Compatibility List $23.99 / Each

1
Power Coax Bracket 502501 0K66-01063-0000 MISC-013 Power Coax Bracket No Model Compatibility List $1.81 / Each

2,3,4,5,6
Leg Leveler 502601 AK68-00214-0003 FS-047 Leg Leveler Yes Model Compatibility List $35.99 / Each

1
Shaft Collar 502613 0K69-01018-0000 FR-015 Shaft Collar Yes Model Compatibility List $24.94 / Each

1
Drive Pulley 502614 0K69-01020-0000 DS-005 Drive Pulley Yes Model Compatibility List $107.57 / Each

8,10
Hex Key: 8 X 7 X 34 502615 0K69-01021-0000 DS-006 Hex Key: 8 X 7 X 34 No Model Compatibility List $31.55 / Each

9
Hex Key: 8 X 7 X 20 502616 0K69-01023-0000 TS-023 Hex Key: 8 X 7 X 20 Yes Model Compatibility List $3.78 / Each

1
Hex Key: 8 X 7 X 16 502617 0K69-01024-0000 TS-024 Hex Key: 8 X 7 X 16 No Model Compatibility List $3.84 / Each

9
Drive Shaft 502618 0K69-01030-0000 DS-003 Drive Shaft Yes Model Compatibility List $189.73 / Each

1
Inner Crank Arm 502619 0K69-01038-0000 TS-025 Inner Crank Arm No Model Compatibility List $42.01 / Each

8,3
Timing Belt 25mm 502620 0K69-01041-0002 TS-005 Timing Belt 25mm Yes Model Compatibility List $106.80 / Each

1
Dead Shaft 502621 0K69-01062-0000 FS-033 Dead Shaft Yes Model Compatibility List $207.54 / Each

1
Hardware: Thrust Washer 47 MM OD 502622 0K69-01074-0000 FS-035 Hardware: Thrust Washer 47 MM OD Yes Model Compatibility List $6.28 / Each

1
Shaft 502623 0K69-01075-0000 LS-002 Shaft Yes Model Compatibility List $14.71 / Each

1
Front Spacer 502624 0K69-01079-0000 LS-026 Front Spacer Yes Model Compatibility List $5.83 / Each

1
Left Pedal 502625 0K69-01099-0000 LS-013 Left Pedal Yes Model Compatibility List $56.38 / Each

1
Pedal: Right; Purchased 502627 0K69-01100-0000 LS-007 Pedal: Right; Purchased Yes Model Compatibility List $56.38 / Each

1
Upper Rocker Cover 502629 0K69-01108-0000 FS-006 Upper Rocker Cover Yes Model Compatibility List $73.15 / Each

1
Lower Rocker Cover Mounting Screws 502631 0K69-01109-0000 TS-001 Lower Rocker Cover Mounting Screws Yes Model Compatibility List $74.52 / Each

1
Left Front Clevis Cover 502633 0K69-01114-0000 FS-002 Left Front Clevis Cover Yes Model Compatibility List $7.81 / Each

1
Right Front Clevis Cover 502635 0K69-01115-0000 FS-004 Right Front Clevis Cover No Model Compatibility List $7.81 / Each

9

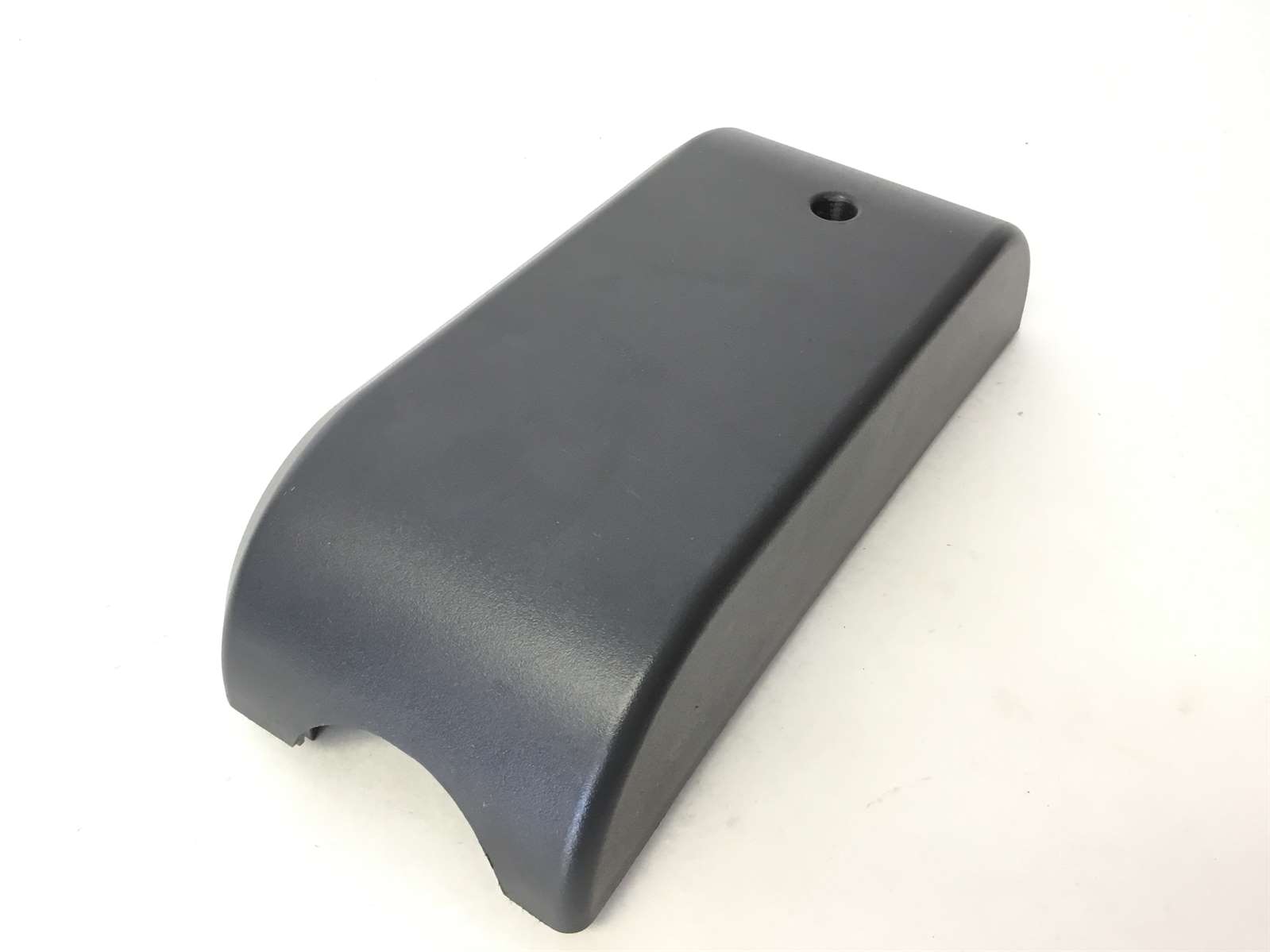

Left Rear Clevis Cover 502637 0K69-01116-0000 FS-003 Left Rear Clevis Cover Yes Model Compatibility List $7.81 / Each

1
Right Rear Clevis Cover 502639 0K69-01117-0000 FS-005 Right Rear Clevis Cover Yes Model Compatibility List $7.81 / Each

1
Right and Left Rocking Link Cover 502641 0K69-01119-0000 LS-033 Right and Left Rocking Link Cover Yes Model Compatibility List $3.84 / Each

1

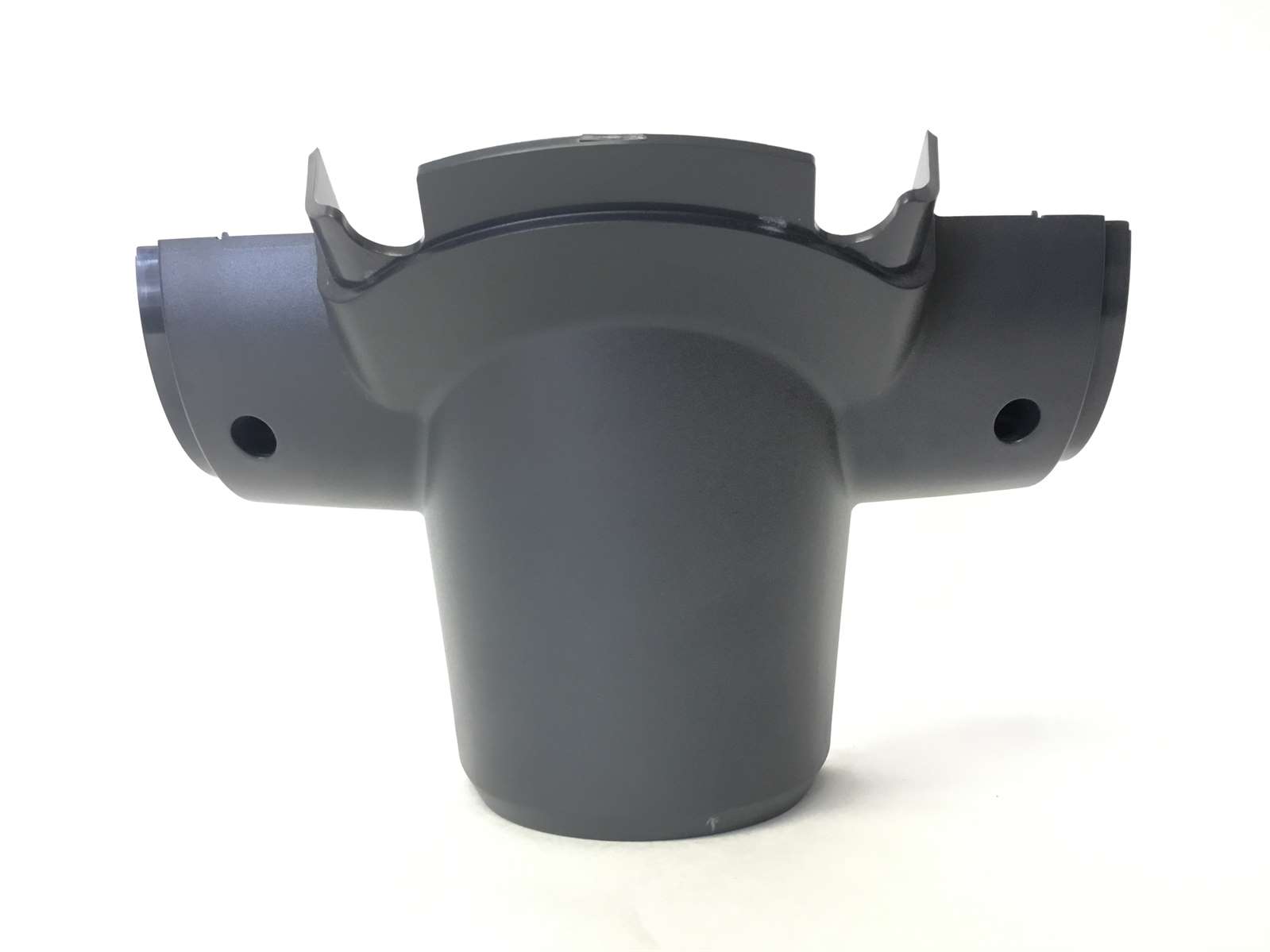

Rear Collar Dead Shaft Cover 502643 0K69-01121-0000 FS-067 Rear Collar Dead Shaft Cover Yes Model Compatibility List $87.61 / Each

1
Back Console Cover 502645 0K69-01122-0000 CA-003 Back Console Cover Yes Model Compatibility List $53.60 / Each

1
Front Collar Dead Shaft Cover 502647 0K69-01123-0000 FS-066 Front Collar Dead Shaft Cover Yes Model Compatibility List $35.87 / Each

1
Top Dead Shaft Cover 502649 0K69-01124-0000 FS-063 Top Dead Shaft Cover Yes Model Compatibility List $81.74 / Each

1
Media Tray 502651 0K69-01125-0003 FS-061 Media Tray Yes Model Compatibility List $0.00 / Each
Out Of Stock 		1
Upper Back Cover 502653 0K69-01126-0000 CN-012 Upper Back Cover No Model Compatibility List $11.38 / Each

4,5,6,9
Dead Shaft End Cap 502655 0K69-01127-0000 FS-065 Dead Shaft End Cap Yes Model Compatibility List $17.35 / Each

1

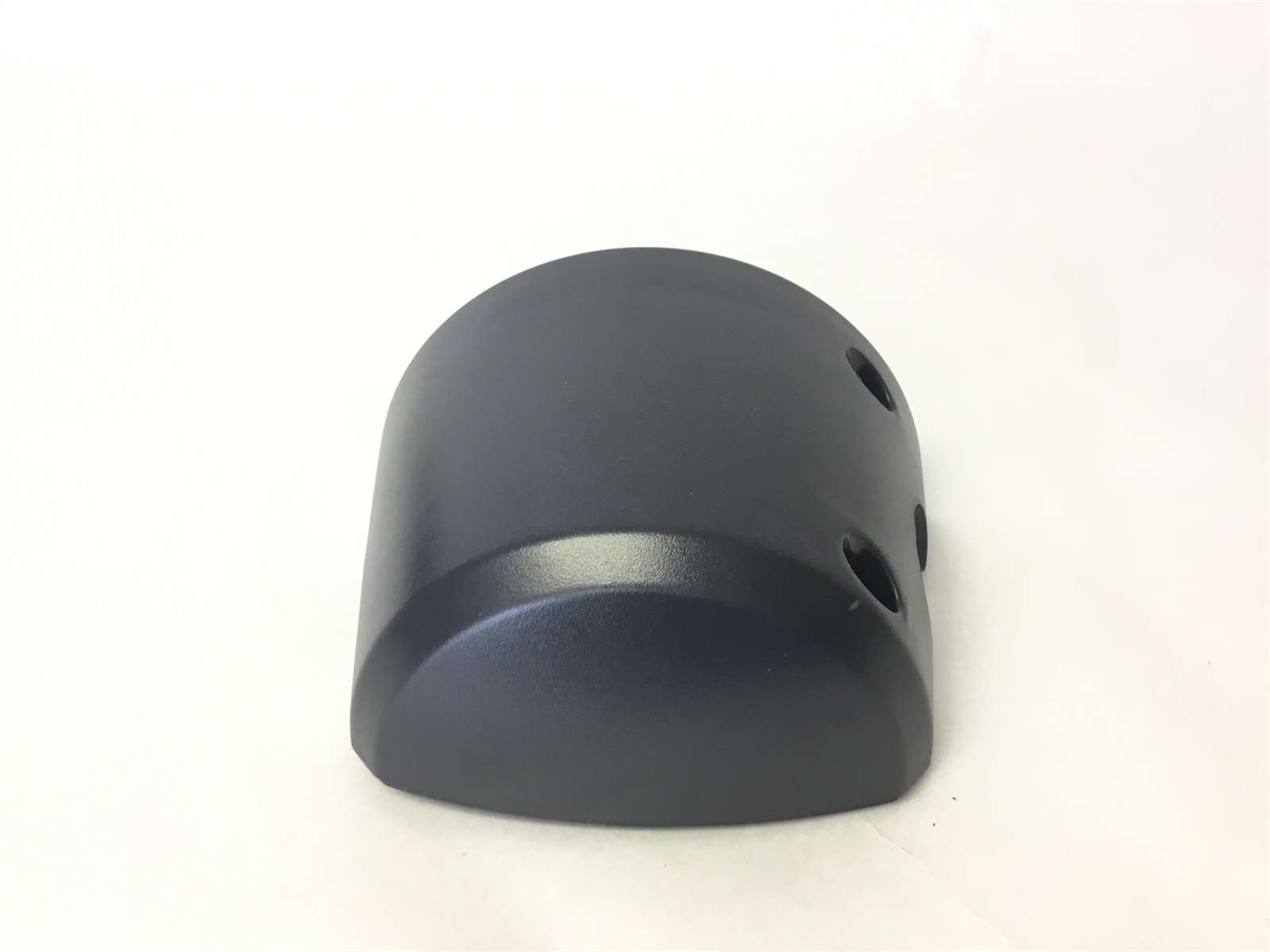

Dead Shaft End Cap 502657 0K69-01128-0000 FS-068 Dead Shaft End Cap Yes Model Compatibility List $19.69 / Each

1

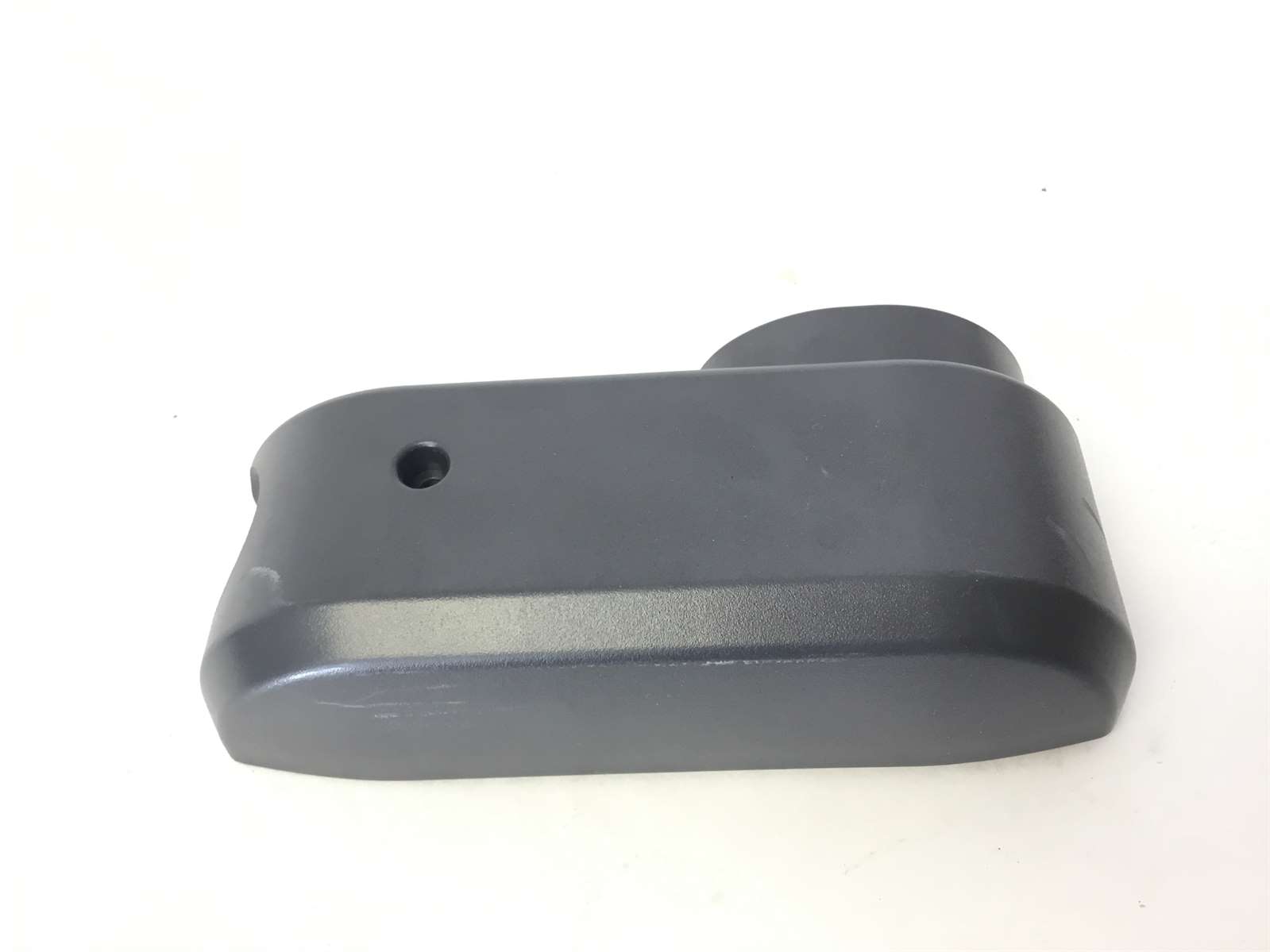

Left Top Rear Pedal Cover 502659 0K69-01130-0000 LS021 Left Top Rear Pedal Cover Yes Model Compatibility List $7.81 / Each

1
COVER: CLEVIS REAR; TOP; CHGR 502660 0K69-01130-2400 FS-007 COVER: CLEVIS REAR; TOP; CHGR No Model Compatibility List $6.50 / Each

9
Left Bottom Rear Pedal Cover 502661 0K69-01131-0000 LS022 Left Bottom Rear Pedal Cover Yes Model Compatibility List $7.81 / Each

1
Main Frame Cover 502663 0K69-01132-0000 FS-014 Main Frame Cover Yes Model Compatibility List $154.14 / Each

1

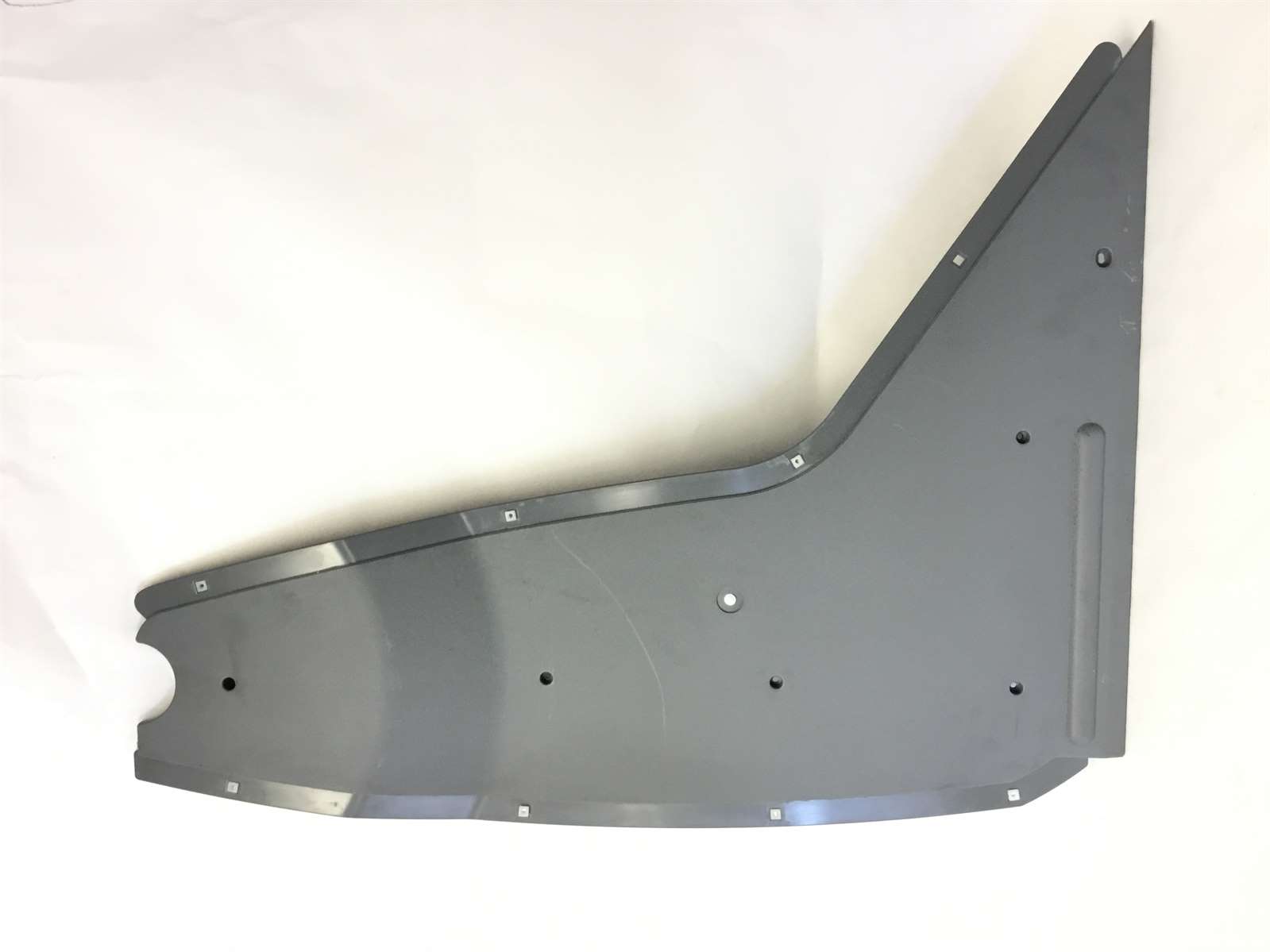

Left Tower Cover 502667 0K69-01135-0000 FS-012 Left Tower Cover Yes Model Compatibility List $67.15 / Each

1
Right Tower Cover 502669 0K69-01136-0000 FS-013 Right Tower Cover Yes Model Compatibility List $67.15 / Each

1
Shorud Stabilizer Front 502671 0K69-01139-0000 FS-038 Shorud Stabilizer Front Yes Model Compatibility List $16.62 / Each

1
Tension Pivot Bracket 502675 0K69-01174-0000 TS-003 Tension Pivot Bracket No Model Compatibility List $33.05 / Each

2,8,3,4,5,6
Hardware: Keyed Washer 502676 0K69-01175-0001 LS-027 Hardware: Keyed Washer Yes Model Compatibility List $48.95 / Each

1
Rear Spacer 502677 0K69-01178-0000 LS-025 Rear Spacer Yes Model Compatibility List $13.43 / Each

2,3,4,5,6
Hardware: Steel Thrust Washer 502678 0K69-01190-0000 LS-003 Hardware: Steel Thrust Washer No Model Compatibility List $1.97 / Each

2,12,13,14
Crank Arm 502679 0K69-01227-0000 TS-020 Crank Arm Yes Model Compatibility List $66.85 / Each

1
Hardware: Rear Mounting Bolt 502680 0K69-01231-0000 LS-004 Hardware: Rear Mounting Bolt No Model Compatibility List $7.74 / Each

2

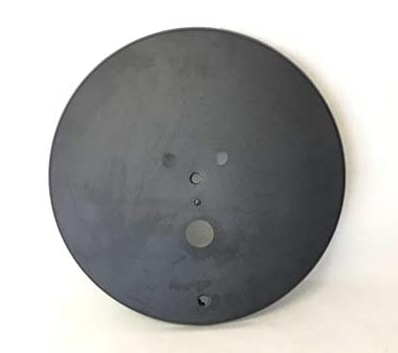

Cover: Crank; Inner; Plastic -02XX Shadow 502681 0K69-01070-0000 TS-004 Cover: Crank; Inner; Plastic -02XX Shadow Yes Model Compatibility List $35.32 / Each

1
BRG: 360 DEGREE LOCKING FLANGE 502683 0K69-01250-0000 DS-002 BRG: 360 DEGREE LOCKING FLANGE Yes Model Compatibility List $91.28 / Each

1
POWER BRICK CLIP; CHGR 502685 0K69-01255-2400 MISC-011 POWER BRICK CLIP; CHGR No Model Compatibility List $11.27 / Each

2,4,5,6
BELT: POLY-V; 360J10; 36.00 IN 502686 0K69-01256-0000 DS-007 BELT: POLY-V; 360J10; 36.00 IN Yes Model Compatibility List $36.41 / Each

15
Resistor .5 OHM 240 Watt 503956 100E-00002-0092 BE-013 Resistor .5 OHM 240 Watt Yes Model Compatibility List $38.51 / Each

1
Reed Switch SPDT 504180 118E-00001-0140 CBL-001 Reed Switch SPDT Yes Model Compatibility List $23.63 / Each

4,5,6
PROGRAMMED PCB: B084-92389-0001 511620 A084-92389-0001 BE-034 PROGRAMMED PCB: B084-92389-0001 Yes Model Compatibility List $478.80 / Each

1
Coax Cable: 120 512668 AK32-00020-0002 CBL-001 Coax Cable: 120 Yes Model Compatibility List $37.49 / Each

4,5,6
Power Extension Cable: 120 512684 AK32-00078-0001 CBL 2 Power Extension Cable: 120 Yes Model Compatibility List $93.71 / Each

4,5,6
Ext Power Cable with Ferrite 512690 AK32-00160-0000 BE-032 Ext Power Cable with Ferrite Yes Model Compatibility List $73.34 / Each

1
Bullhorn HR cables 513621 AK61-00051-0000 CBL-016 Bullhorn HR cables Yes Model Compatibility List $27.59 / Each

1
Lifepulse: User-Arm 513622 AK61-00051-0001 UF-002 Lifepulse: User-Arm Yes Model Compatibility List $44.46 / Each

3,12,13,14
Cable Assembly: User Arm 513623 AK61-00051-0002 BE-028 Cable Assembly: User Arm Yes Model Compatibility List $13.73 / Each

3,4,5,6
Lifepulse Sensor Cable 513624 AK61-00052-0002 CBL-009 Lifepulse Sensor Cable Yes Model Compatibility List $67.15 / Each

4,5,6,12,13,14
Alternator w/Flywheel 513742 AK61-00250-0001 DS-004 Alternator w/Flywheel Yes Model Compatibility List $353.92 / Each

8
Power Control Cable 513783 AK62-00092-0000 CBL-014 Power Control Cable Yes Model Compatibility List $41.42 / Each

7,4,5,6
Leg Leveler 513801 AK62-00124-0000 LF-014 Leg Leveler Yes Model Compatibility List $26.46 / Each

1
LifePulse Cable 513895 AK63-00028-0001 HR-011 LifePulse Cable Yes Model Compatibility List $9.19 / Each

4,5,6,12,13,14
C-safe Network Cable 65 514133 AK65-00051-0001 CB-003 C-safe Network Cable 65" Yes Model Compatibility List $23.63 / Each

1
Cable: Coax RG6 Base 514134 AK65-00062-0000 BE-033 Cable: Coax RG6 Base Yes Model Compatibility List $21.65 / Each

1
CBL ASSY: GROUND, ESD 514184 AK65-00103-0002 BE-012 CBL ASSY: GROUND, ESD No Model Compatibility List $6.58 / Each

1
Bracket Assembly: Power/Coax Input 514209 AK66-00036-0000 LF-010 Bracket Assembly: Power/Coax Input Yes Model Compatibility List $66.94 / Each
Out Of Stock 		1
PWR-PCB BRKT ASSY W/ SOFTWARE 514248 AK66-00100-0006 BE-009 PWR-PCB BRKT ASSY W/ SOFTWARE Yes Model Compatibility List $466.80 / Each

1
BRKT ASSY: POWER/COAX INPUT 514281 AK66-00161-0000 BE-024 BRKT ASSY: POWER/COAX INPUT No Model Compatibility List $42.65 / Each
Out Of Stock 		4,5,6
Left Idler Bracket Assembly 514388 AK69-00029-0000 TS-007 Left Idler Bracket Assembly Yes Model Compatibility List $103.49 / Each

1
Right Idler Bracket Assembly 514389 AK69-00029-0001 TS-010 Right Idler Bracket Assembly Yes Model Compatibility List $103.49 / Each

1
Pedal Lever Assembly: Left with Bearings; Mfg 514390 AK69-00037-0000 LS-005 Pedal Lever Assembly: Left with Bearings; Mfg No Model Compatibility List $414.86 / Each

8,9,3
Pedal Lever Assembly: Right with Bearings; Mfg 514392 AK69-00038-0000 LS-006 Pedal Lever Assembly: Right with Bearings; Mfg No Model Compatibility List $412.48 / Each

8,9,3
Rocker Arm (Right or Left) 514394 AK69-00045-0000 FS-018 Rocker Arm (Right or Left) Yes Model Compatibility List $336.00 / Each
1
Left Bullhorn Assembly 514396 AK69-00062-0000 CA-011 Left Bullhorn Assembly Yes Model Compatibility List $212.50 / Each

1
Right Bullhorn Assembly 514398 AK69-00068-0000 CA-013 Right Bullhorn Assembly Yes Model Compatibility List $212.50 / Each
1
ASSY: GENERATOR, MTG 514400 AK69-00127-0000 DS-008 ASSY: GENERATOR, MTG Yes Model Compatibility List $554.42 / Each

1
Console Support Bracket 514402 AK69-00081-0000 CA-005 Console Support Bracket Yes Model Compatibility List $157.96 / Each

1
Top Rear Tower Cover 514403 AK69-00083-0000 LS-021 Top Rear Tower Cover Yes Model Compatibility List $138.34 / Each

1
Left Handle Bar Assembly 514405 AK69-00085-0000 CA-008 Left Handle Bar Assembly Yes Model Compatibility List $182.89 / Each
Out Of Stock 		1
Right Handle Bar Assembly 514407 AK69-00087-0000 CA-015 Right Handle Bar Assembly Yes Model Compatibility List $182.89 / Each
Out Of Stock 		1
Frame Stiffener 514409 AK69-00089-0000 BE-012 Frame Stiffener Yes Model Compatibility List $0.00 / Each
1
Rear Stabilizer 514410 AK69-00090-0000 FS-035 Rear Stabilizer Yes Model Compatibility List $235.22 / Each

1
Outside Crank Cover w/decal (Left & Right) 514412 AK69-00096-0000 LS-023 Outside Crank Cover w/decal (Left & Right) Yes Model Compatibility List $65.16 / Each

3,7,8,9
Resistance Level Button Assembly 514417 AK69-00100-0000 FS-002 Resistance Level Button Assembly Yes Model Compatibility List $31.55 / Each

1
Top Heart Rate Sensor 514420 AK69-00101-0000 CA-021 Top Heart Rate Sensor Yes Model Compatibility List $15.31 / Each

1
Bottom Heart Rate Sensor 514422 AK69-00102-0000 CA-020 Bottom Heart Rate Sensor Yes Model Compatibility List $16.57 / Each

1
Handlebar/Console Cable 514424 AK69-00103-0000 CBL-022 Handlebar/Console Cable Yes Model Compatibility List $67.15 / Each

1
Generator/Brake to GBC Cable 514425 AK69-00104-0000 CBL-008 Generator/Brake to GBC Cable Yes Model Compatibility List $21.65 / Each

1
PBC to Console Cable 514426 AK69-00105-0000 CBL-021 PBC to Console Cable Yes Model Compatibility List $80.98 / Each

4,5,6,7
Battery cable 514427 AK69-00106-0000 BE-030 Battery cable Yes Model Compatibility List $11.76 / Each

1
Power Cable with Ground 514430 AK69-00107-0001 CBL-020 Power Cable with Ground Yes Model Compatibility List $68.62 / Each

1
Keypad Cable 514431 AK69-00108-0000 BE-026 Keypad Cable Yes Model Compatibility List $17.70 / Each

1
LifePulse Y Cable 514432 AK69-00109-0000 BE-025 LifePulse Y Cable Yes Model Compatibility List $25.62 / Each

1
LifePulse Flex Cable 514433 AK69-00110-0000 CBL-014 LifePulse Flex Cable Yes Model Compatibility List $35.51 / Each

1
Support: Monocolumn: Prep Assembly 514434 AK69-00111-0001 FS-027 Support: Monocolumn: Prep Assembly No Model Compatibility List $743.03 / Each

3
Lower Right Rocking Link Assembly 514435 AK69-00112-0000 LS-028 Lower Right Rocking Link Assembly Yes Model Compatibility List $0.00 / Each
1
LOW ROCKING LINK ASSY: RT; W/BRGS; CHGR 514436 AK69-00112-2400 LS-028 LOW ROCKING LINK ASSY: RT; W/BRGS; CHGR No Model Compatibility List $187.25 / Each

1
Lower Left Rocking Link Assembly 514437 AK69-00113-0000 LS-024 Lower Left Rocking Link Assembly Yes Model Compatibility List $0.00 / Each
1
LOW ROCKING LINK ASSY: LT; W/BRGS; CHGR 514438 AK69-00113-2400 LS-024 LOW ROCKING LINK ASSY: LT; W/BRGS; CHGR No Model Compatibility List $187.25 / Each

1
Back Cover Assembly 514439 AK69-00115-0000 CN-015 Back Cover Assembly No Model Compatibility List $74.96 / Each

9,4,5,6
Front Stabilizer 514440 AK69-00118-0000 FS-034 Front Stabilizer No Model Compatibility List $130.42 / Each

1
Left Pedal Lever Assembly 514443 AK69-00120-0000 LS-015 Left Pedal Lever Assembly Yes Model Compatibility List $453.60 / Each

1
Right Pedal Lever Assembly 514444 AK69-00121-0000 LS-023 Right Pedal Lever Assembly Yes Model Compatibility List $595.21 / Each

1
Inner Rocker Shroud Assembly 514449 AK69-00123-0000 TS-002 Inner Rocker Shroud Assembly Yes Model Compatibility List $207.12 / Each

1
Right Swoosh Cover W/ LF Bug 514451 AK69-00124-0000 FS-038 Right Swoosh Cover W/ LF Bug Yes Model Compatibility List $73.96 / Each

1
Left Swoosh Cover W/ LF Bug 514452 AK69-00124-0001 FS-041 Left Swoosh Cover W/ LF Bug Yes Model Compatibility List $73.96 / Each

1
Rear Tower Rear Cover 514457 AK69-00125-0000 FS-001 Rear Tower Rear Cover Yes Model Compatibility List $117.16 / Each

1
Hardware Bag 514459 AK69-00136-0000 MISC-016 Hardware Bag No Model Compatibility List $77.47 / Each

1
Top Heart Rate Sensor 514461 AK69-00139-0003 CA-016 Top Heart Rate Sensor Yes Model Compatibility List $11.63 / Each

1
Bottom Heart Rate Sensor 514464 AK69-00140-0003 CA-017 Bottom Heart Rate Sensor Yes Model Compatibility List $12.80 / Each

1
Weldment: Frame Stiffner 514469 AK69-00169-0000 FS-037 Weldment: Frame Stiffner No Model Compatibility List $7.02 / Each

3
Rocking Link Bracket with Weldnuts 514470 AK69-00170-0000 FS-036 Rocking Link Bracket with Weldnuts Yes Model Compatibility List $11.45 / Each

1
CABLE ASSY: CAT5E, V2, 84 INCH 514477 AK70-00092-0000 BE-034 CABLE ASSY: CAT5E, V2, 84 INCH Yes Model Compatibility List $40.01 / Each

1
PCB TO CONSOLE CABLE 514642 AK92-00033-0000 CBL-004 PCB TO CONSOLE CABLE No Model Compatibility List $107.51 / Each

4,5,6,7
CABLE ASSY, EXTENSION TO CONSOLE(CROSSTRAINER) 514647 AK92-00048-0001 CBL-003 CABLE ASSY, EXTENSION TO CONSOLE(CROSSTRAINER) No Model Compatibility List $74.72 / Each

4,5,6,7
ASSEMBLY: COVER; REMOVABLE DOOR;APOLLO 2 514651 AK92-00058-0000 CA-002 ASSEMBLY: COVER; REMOVABLE DOOR;APOLLO 2 No Model Compatibility List $55.73 / Each

9
EXTERNAL POWER WITH GROUND EXTENSION CABLE ASSEMBLY 514656 AK92-00062-0000 CBL-005 EXTERNAL POWER WITH GROUND EXTENSION CABLE ASSEMBLY No Model Compatibility List $117.04 / Each

4,5,6
CABLE ASSEMBLY: EXTERNAL POWER; CT 514660 AK92-00067-0000 CBL-009 CABLE ASSEMBLY: EXTERNAL POWER; CT No Model Compatibility List $130.93 / Each

4,5,6
PCB Circuit Board 515091 B084-92218-0000 BE-007 PCB Circuit Board Yes Model Compatibility List $241.28 / Each

1
Control Link Kit 516020 GK62-00002-0071 DS-019 Control Link Kit Yes Model Compatibility List $425.33 / Each

7
Bullhorn Heart Rate Electrode Kit 516057 GK69-00002-0001 FS-022 Bullhorn Heart Rate Electrode Kit No Model Compatibility List $89.52 / Each

3,12,13,14
Handlebar Heart Rate Kit 516058 GK69-00002-0002 HR-002 Handlebar Heart Rate Kit No Model Compatibility List $115.14 / Each

11,12,13,14
Kit: Right Rocker Casting w/ Pulleys 516059 GK69-00002-0003 TS-009 Kit: Right Rocker Casting w/ Pulleys Yes Model Compatibility List $718.80 / Each

1
Kit: Left Rocker Casting w/ Pulleys 516060 GK69-00002-0004 TS-008 Kit: Left Rocker Casting w/ Pulleys Yes Model Compatibility List $637.38 / Each

1
Kit: Bike/Cross-Trainer Domestic Line Cord LV 517116 LCBCT-DOMLX-01 MISC-008 Kit: Bike/Cross-Trainer Domestic Line Cord LV No Model Compatibility List $115.92 / Each

4,5,6
Large Retaining Ring 55mm 1014126 55retainsnap # 2 Large Retaining Ring 55mm No Model Compatibility List $20.15 / Each

2
BH Elliptical Lower Motor Control Board Controller (Seller refurbished) 012812-R BHELMCBC 0 1 BH Elliptical Lower Motor Control Board Controller (Seller refurbished) No Model Compatibility List $131.99 / Each

7
Plate Crank 1022148 0K61-02302-0001 0 1 Plate Crank Yes Model Compatibility List $12.38 / Each

1
Life Fitness Summit Trainer Elliptical Life Pulse Cable AK47-00029-0000 1012488 90X-PC 0 6 Life Fitness Summit Trainer Elliptical Life Pulse Cable AK47-00029-0000 No Model Compatibility List $23.99 / Each

1,5
Life Fitness 95X Elevation Elliptical Life Pulse Wire Harness AK69-00109-0000 012825 95X-PWH 0 8 Life Fitness 95X Elevation Elliptical Life Pulse Wire Harness AK69-00109-0000 No Model Compatibility List $37.19 / Each

1,19
Life Fitness 95X Elliptical Life Pulse Flex Wire Harness AK69-00110-0000 012827 95X-LPFWH 0 4 Life Fitness 95X Elliptical Life Pulse Flex Wire Harness AK69-00110-0000 No Model Compatibility List $45.59 / Each

1,4
Power Cord 000340 0017-00003-0704 0 1 Power Cord Yes Model Compatibility List $47.99 / Each

1
Upper Link Cover 012767 0K69-01108-0000 0 1 Upper Link Cover Yes Model Compatibility List $73.19 / Each

1
DeadShaft Rear Collar Cover 012769 0K69-01121-0000 0 1 DeadShaft Rear Collar Cover Yes Model Compatibility List $83.99 / Each

1
Display Console Back Cover 012771 0K69-01122-0000 0 1 Display Console Back Cover Yes Model Compatibility List $58.79 / Each

1
Front Deadshaft Collar Cover 012773 0K69-01123-0000 0 1 Front Deadshaft Collar Cover Yes Model Compatibility List $39.59 / Each

1
Dead Shaft Top Cover 012775 0K69-01124-0000 0 1 Dead Shaft Top Cover Yes Model Compatibility List $80.39 / Each

1
Deadshaft Media Tray Cover 012777 0K69-01125-0003 0 1 Deadshaft Media Tray Cover Yes Model Compatibility List $59.99 / Each

1
Deadshaft Media Tray Cover 012779 0K69-01125-0003 0 1 Deadshaft Media Tray Cover Yes Model Compatibility List $25.19 / Each

1
Deadshaft Cover End Cap 012781 0K69-01127-0000 0 1 Deadshaft Cover End Cap Yes Model Compatibility List $27.59 / Each

1
Deadshaft End Cap 012783 0k69-01128-0000 0 1 Deadshaft End Cap Yes Model Compatibility List $37.19 / Each

1
Power Supply Cord 012790 0017-00003-0704 0 1 Power Supply Cord Yes Model Compatibility List $24.00 / Each

1
AC Adapter Power Supply Cord 36V 012792 DTEA10521J-39LF 0 1 AC Adapter Power Supply Cord 36V No Model Compatibility List $166.80 / Each
Out Of Stock 		1
Screw 012798 0017-00101-2023 0 1 Screw Yes Model Compatibility List $15.59 / Each

1
Heart Rate Wire Harness 012802 AK61-00051-0000 0 1 Heart Rate Wire Harness Yes Model Compatibility List $38.39 / Each

1
C-Safe Network Wire Harness 65" 012804 AK65-00051-0001 0 1 C-Safe Network Wire Harness 65" Yes Model Compatibility List $34.79 / Each

1
Coax Rg6 Base Wire Harness 012806 AK65-00062-0000 0 1 Coax Rg6 Base Wire Harness Yes Model Compatibility List $32.39 / Each

1
Handlebar/Console Wire Harness 012808 AK69-00103-0000 0 1 Handlebar/Console Wire Harness Yes Model Compatibility List $69.59 / Each

1
Generator/Brake to GBC Wire Harness 012810 AK69-00104-0000 0 1 Generator/Brake to GBC Wire Harness Yes Model Compatibility List $32.39 / Each

1
Power Supply Input Wire Harness w/Ground 012821 AK69-00107-0001 0 1 Power Supply Input Wire Harness w/Ground Yes Model Compatibility List $70.79 / Each

1
Keypad Wire Harness 012823 AK69-00108-0000 0 1 Keypad Wire Harness Yes Model Compatibility List $28.79 / Each

1
Life Pulse Wire Harness 012825 AK69-00109-0000 0 1 Life Pulse Wire Harness Yes Model Compatibility List $37.19 / Each

1
Pulse Flex Wire Harness 012827 AK69-00110-0000 0 1 Pulse Flex Wire Harness Yes Model Compatibility List $45.59 / Each

1
Transport Wheel 012829 0K66-01039-0000 0 1 Transport Wheel Yes Model Compatibility List $19.19 / Each

1
Front Stabilizer Shroud 012831 0K66-01041-0000 0 1 Front Stabilizer Shroud Yes Model Compatibility List $25.19 / Each

1
Front Stabilizer End Cap 012833 0K66-01042-0000 0 1 Front Stabilizer End Cap Yes Model Compatibility List $23.99 / Each

1
Shaft Collar 012835 0K69-01018-0000 0 1 Shaft Collar Yes Model Compatibility List $35.99 / Each

1
Keyway 012849 0K69-01023-0000 0 1 Keyway Yes Model Compatibility List $17.99 / Each

1
Timing Cogged Belt 012851 0K69-01041-0002 0 1 Timing Cogged Belt Yes Model Compatibility List $106.80 / Each

1
Shaft Axle 012853 0K69-01062-0000 0 1 Shaft Axle Yes Model Compatibility List $175.19 / Each

1
Inner Crank Cover 012855 0K69-01070-0000 0 1 Inner Crank Cover Yes Model Compatibility List $47.99 / Each

1
Thrust Washer 012857 0K69-01074-0000 0 1 Thrust Washer Yes Model Compatibility List $19.19 / Each

1
Front Spacer 012859 0K69-01079-0000 0 1 Front Spacer Yes Model Compatibility List $19.19 / Each

1
Left Pedal Foot Pad 012861 0K69-01099-0000 0 1 Left Pedal Foot Pad Yes Model Compatibility List $77.99 / Each

1
Right Pedal Foot Pad 012863 0K69-01100-0000 0 1 Right Pedal Foot Pad Yes Model Compatibility List $79.19 / Each

1
Top Heart Rate Sensor 012865 AK69-00139-0003 0 1 Top Heart Rate Sensor Yes Model Compatibility List $25.19 / Each

1
Rear Tower Cover 012867 AK69-00125-0000 0 1 Rear Tower Cover Yes Model Compatibility List $106.79 / Each

1
Bottom Heart Rate Sensor 012869 AK69-00140-0003 0 1 Bottom Heart Rate Sensor Yes Model Compatibility List $27.59 / Each

1
Rocking Link Bracket with Weldnuts 012875 AK69-00170-0000 0 1 Rocking Link Bracket with Weldnuts Yes Model Compatibility List $25.19 / Each

1
Left Rocker Casting Kit with Pulleys 012877 GK69-00002-0004 0 1 Left Rocker Casting Kit with Pulleys Yes Model Compatibility List $718.80 / Each

1
Right Rocker Casting Kit with Pulleys 012879 GK69-00002-0003 0 1 Right Rocker Casting Kit with Pulleys Yes Model Compatibility List $718.80 / Each

1
Lower Link Cover 012881 0K69-01109-0000 0 1 Lower Link Cover Yes Model Compatibility List $107.99 / Each

1
Left Inside Clevis Cover 012883 0K69-01114-0000 0 1 Left Inside Clevis Cover Yes Model Compatibility List $21.59 / Each

1
Left Inside Clevis Cover 012885 0K69-01114-0000 0 1 Left Inside Clevis Cover Yes Model Compatibility List $21.59 / Each

1
Left Outside Clevis Cover 012887 0K69-01116-0000 0 1 Left Outside Clevis Cover Yes Model Compatibility List $21.59 / Each

1
Right Outside Clevis Cover 012889 0K69-01117-0000 0 1 Right Outside Clevis Cover Yes Model Compatibility List $21.59 / Each

1
Lower Rocking Link Cover 012891 0K69-01119-0000 0 1 Lower Rocking Link Cover Yes Model Compatibility List $17.99 / Each

1
Top Rear Clevis Cover 012893 0K69-01130-0000 0 1 Top Rear Clevis Cover Yes Model Compatibility List $21.59 / Each

1
Bottom Rear Clevis Cover 012895 0K69-01131-0000 0 1 Bottom Rear Clevis Cover Yes Model Compatibility List $21.59 / Each

1
Main Frame Cover 012897 0K69-01132-0000 0 1 Main Frame Cover Yes Model Compatibility List $134.39 / Each

1
Left Rear Tower Cover 012899 0K69-01135-0000 0 1 Left Rear Tower Cover Yes Model Compatibility List $69.59 / Each

1
Right Rear Tower Cover 012901 0K69-01136-0000 0 1 Right Rear Tower Cover Yes Model Compatibility List $69.59 / Each

1
Front Stabilizer Shroud 012903 0K69-01139-0000 0 1 Front Stabilizer Shroud Yes Model Compatibility List $28.79 / Each

1
Keyed Washer 012905 0K69-01175-0001 0 1 Keyed Washer Yes Model Compatibility List $55.19 / Each

1
Right Front Elbow Cover 012908 AK69-00124-0000 0 1 Right Front Elbow Cover Yes Model Compatibility List $74.39 / Each

1
Left Front Elbow Cover 012911 AK69-00124-0001 0 1 Left Front Elbow Cover Yes Model Compatibility List $74.39 / Each

1
Inner Link Cover 012912 AK69-00123-0000 0 1 Inner Link Cover Yes Model Compatibility List $173.99 / Each

1
Right Pedal Arm Assembly 012914 AK69-00121-0000 0 1 Right Pedal Arm Assembly Yes Model Compatibility List $595.19 / Each

1
Left Pedal Arm Assembly 012916 AK69-00120-0000 0 1 Left Pedal Arm Assembly Yes Model Compatibility List $356.39 / Each

1
Left Low Rocking Link Assembly 012918 AK69-00120-0000 0 1 Left Low Rocking Link Assembly Yes Model Compatibility List $127.19 / Each

1
Right Low Rocking Link Assembly 012920 AK69-00112-0000 0 1 Right Low Rocking Link Assembly Yes Model Compatibility List $127.19 / Each

1
Spacer 012922 0017-00104-0334 0 1 Spacer Yes Model Compatibility List $15.59 / Each

1
Outer Crank Arm 012924 0K69-01227-0000 0 1 Outer Crank Arm Yes Model Compatibility List $91.19 / Each

1
Pillow Block Bearing Locking Flange 012926 0K69-01250-0000 0 1 Pillow Block Bearing Locking Flange Yes Model Compatibility List $87.59 / Each

1
Rear Stabilizer 012928 AK69-00090-0000 0 1 Rear Stabilizer Yes Model Compatibility List $195.59 / Each

1
Top Heart Rate Sensor 012930 AK69-00101-0000 0 1 Top Heart Rate Sensor Yes Model Compatibility List $29.99 / Each

1
Bottom Heart Rate Sensor 012932 AK69-00102-0000 0 1 Bottom Heart Rate Sensor Yes Model Compatibility List $28.79 / Each

1
Retainer 012933 0017-00100-0148 0 1 Retainer Yes Model Compatibility List $15.59 / Each

1
Screw 012935 0017-00101-1277 0 1 Screw Yes Model Compatibility List $15.59 / Each

1
Hex Head Bolt 012937 0017-00101-1867 0 1 Hex Head Bolt Yes Model Compatibility List $15.59 / Each

1
Screw 012941 0017-00101-1925 0 1 Screw Yes Model Compatibility List $15.59 / Each

1
Screw 012943 0017-00101-1929 0 1 Screw Yes Model Compatibility List $15.59 / Each

1
Front Mounting Stabilizer Bolt 012945 0017-00101-1931 0 1 Front Mounting Stabilizer Bolt Yes Model Compatibility List $15.59 / Each

1
Screw 14mm 012947 0017-00101-1940 0 1 Screw 14mm Yes Model Compatibility List $15.59 / Each

1
Idler Bracket Screw 012949 0017-00101-1951 0 1 Idler Bracket Screw Yes Model Compatibility List $17.99 / Each

1
Hex Screw M6 012951 0017-00101-1953 0 1 Hex Screw M6 Yes Model Compatibility List $15.59 / Each

1
Hex Bolt M10 012953 0017-00101-1955 0 1 Hex Bolt M10 Yes Model Compatibility List $15.59 / Each

1
Frame Stiffener 012955 AK69-00089-0000 0 1 Frame Stiffener Yes Model Compatibility List $37.19 / Each

1
Right Handlebar Assembly 012957 AK69-00087-0000 0 1 Right Handlebar Assembly Yes Model Compatibility List $234.00 / Each
Out Of Stock 		1
Left Handlebar Assembly 012959 AK69-00085-0000 0 1 Left Handlebar Assembly Yes Model Compatibility List $234.00 / Each
Out Of Stock 		1
Top Rear Tower Cover 012961 AK69-00083-0000 0 1 Top Rear Tower Cover Yes Model Compatibility List $202.80 / Each

1
Console Supprt Bracket 012963 AK69-00081-0000 0 1 Console Supprt Bracket Yes Model Compatibility List $137.99 / Each

1
Right Bullhorn Assembly 012965 AK69-00068-0000 0 1 Right Bullhorn Assembly Yes Model Compatibility List $178.79 / Each
1
Left Bullhorn Assembly 012967 AK69-00062-0000 0 1 Left Bullhorn Assembly Yes Model Compatibility List $178.79 / Each

1
Hardware Mounting Screw 16mm 012969 0017-00101-1986 0 1 Hardware Mounting Screw 16mm Yes Model Compatibility List $15.59 / Each

1
Shear Tension Bolt 95x 012971 0017-00101-2002 0 1 Shear Tension Bolt 95x Yes Model Compatibility List $17.99 / Each

1
Hardware Screw 1 012973 0017-00101-2054 0 1 Hardware Screw 1" Yes Model Compatibility List $15.59 / Each

1
Control Link Nut 012977 0017-00103-0338 0 1 Control Link Nut Yes Model Compatibility List $15.59 / Each

1
Flat Washer 012979 0017-00104-0190 0 1 Flat Washer Yes Model Compatibility List $15.59 / Each

1
Washer 1.06 012981 0017-00104-0193 0 1 Washer 1.06" Yes Model Compatibility List $15.59 / Each

1
Step Washer 012983 0017-00104-0334 0 1 Step Washer Yes Model Compatibility List $15.59 / Each

1
Hardware: Washer 1.125 012985 0017-00104-0409 SA-002 Hardware: Washer 1.125" OD Yes Model Compatibility List $1.68 / Each

2
Front Rocker Axle 012987 0K69-01075-0000 0 1 Front Rocker Axle Yes Model Compatibility List $28.79 / Each

1
Resistance Level Button Assembly 012989 AK69-00100-0000 0 1 Resistance Level Button Assembly Yes Model Compatibility List $35.99 / Each
Out Of Stock 		1
Lower Motor Control Board Controller 012993 AK66-00100-0006 0 1 Lower Motor Control Board Controller Yes Model Compatibility List $466.80 / Each

1
Rocker Arm Assembly 012995 AK69-00045-0000 0 1 Rocker Arm Assembly Yes Model Compatibility List $268.79 / Each
1
Right Idler Bracket Assembly 012997 AK69-00029-0001 0 1 Right Idler Bracket Assembly Yes Model Compatibility List $95.99 / Each

1
Left Idler Bracket Assembly 012999 AK69-00029-0000 0 1 Left Idler Bracket Assembly Yes Model Compatibility List $95.99 / Each

1
Rear Leveling Foot Leveler with Nut 013001 AK68-00214-0003 0 1 Rear Leveling Foot Leveler with Nut Yes Model Compatibility List $65.99 / Each

1
Power Coax Input Bracket 013003 AK66-00036-0000 0 1 Power Coax Input Bracket Yes Model Compatibility List $69.59 / Each

1
Flat Washer 11.5 Mm OD 013005 0017-00104-0488 0 1 Flat Washer 11.5 Mm OD No Model Compatibility List $15.59 / Each

1
Power Wire Harness 013010 AK32-00160-0000 0 1 Power Wire Harness Yes Model Compatibility List $89.99 / Each

1
Main Shaft 013012 0K69-01030-0000 0 1 Main Shaft Yes Model Compatibility List $165.59 / Each

1
Crankshaft Assembly-Axle Pulley Bearing Race Housing Set 013060 0K69-01250-0000 0 1 Crankshaft Assembly-Axle Pulley Bearing Race Housing Set Yes Model Compatibility List $326.39 / Each
Out Of Stock 		1
Battery Cable Assembly 013425 AK69-00106-0000 0 1 Battery Cable Assembly Yes Model Compatibility List $26.39 / Each

1
Lower Motor Control Board Controller 013571 B084-92218-0000 0 1 Lower Motor Control Board Controller Yes Model Compatibility List $233.99 / Each

1
Cable Assembly CAT5E 84 013679 AK70-00092-0000 0 1 Cable Assembly CAT5E 84" Yes Model Compatibility List $59.99 / Each

1
Belt Drive Flexonic 1001625 0K62-01134-0000 0 1 Belt Drive Flexonic Yes Model Compatibility List $82.80 / Each

23
Flat Washer 1009753 014172 0 1 Flat Washer No Model Compatibility List $15.59 / Each

Stabilizer End Cap 1011709 0K68-01130-0200 0 1 Stabilizer End Cap Yes Model Compatibility List $23.99 / Each

9
Screw 1011728 0017-00101-1805 0 1 Screw Yes Model Compatibility List $15.59 / Each

2
Washer 1011730 0017-00104-0469 0 1 Washer Yes Model Compatibility List $15.59 / Each

2
Battery 6VDC (Used) 1030930 0017-00003-0685 BE-003 1 Battery 6VDC (Used) Yes Model Compatibility List $30.00 / Each

1
Adjustment, Resistance (Used) 1034214 AK69-00100-0000 0 1 Adjustment, Resistance (Used) Yes Model Compatibility List $24.00 / Each
Out Of Stock 		1
Power Control Circuit Board 1003740 B084-92218-0000 Power Control Circuit Board Yes Model Compatibility List $130.80 / Each

1
Sealed Lead Rechrgeable Battery 1004125 0017-00003-0685 Sealed Lead Rechrgeable Battery Yes Model Compatibility List $56.39 / Each

1
Power Extension Cable Wire Harness 1004127 AK32-00078-0001 Power Extension Cable Wire Harness Yes Model Compatibility List $35.99 / Each

4,5,6
Tectrix Self Powered Elliptical Battery 1000183 0819-0012 Tectrix Self Powered Elliptical Battery Yes Model Compatibility List $91.19 / Each

Pulley With Crank and Bearing and Race (Used) 1035135 0K61-02409-0000 0 1 Pulley With Crank and Bearing and Race (Used) No Model Compatibility List $142.80 / Each

1
RPM Speed Sensor 1003034 118E-00001-0140 RPM Speed Sensor Yes Model Compatibility List $22.79 / Each

4,5,6
Lead Rechargeable Battery 1001960 ‎0017-00003-0685 Lead Rechargeable Battery Yes Model Compatibility List $29.99 / Each

Console Touchscreen 1001424 15DN-ALLXN-01 or 15DN-ALLXN-02 Console Touchscreen No Model Compatibility List $838.80 / Each

Key 1036898 0K69-01024-0000 Key Yes Model Compatibility List $6.00 / Each

9
Guard Inner Link Cover 1036923 0K69-01179-0000 Guard Inner Link Cover Yes Model Compatibility List $17.99 / Each

CRANK-ASSY WELDMENT LEFT OUTER PURCH 1036924 AK69-00020-0000 CRANK-ASSY WELDMENT LEFT OUTER PURCH Yes Model Compatibility List $24.00 / Each

Bearing Top Pulley Clamp Housing 1036885 cmp-pul-85 Bearing Top Pulley Clamp Housing Yes Model Compatibility List $11.99 / Each

Belt Pulley Idler 1036910 AK69-00029-0001 Belt Pulley Idler Yes Model Compatibility List $17.99 / Each

1
Crank Pulley w Spline for Cogged Belt 1036884 ply-crn-84 Crank Pulley w Spline for Cogged Belt Yes Model Compatibility List $136.80 / Each

LXR1065-Bearing Assy, Rocker Casting, RH or LHBearing Assy, Rocker Casting 1036897 GK69-00002-0003 or GK69-00002-0004 LXR1065-Bearing Assy, Rocker Casting, RH or LHBearing Assy, Rocker Casting Yes Model Compatibility List $118.80 / Each
Out Of Stock
Elliptical Crank Arm 013261 0K69-01038-0000 Elliptical Crank Arm Yes Model Compatibility List $58.80 / Each

8,3
Heart Rate Grip Rexon 013058 grp-rt-58 Heart Rate Grip Rexon Yes Model Compatibility List $27.59 / Each
Out Of Stock
Screw 013054 srw-054 Screw Yes Model Compatibility List $15.59 / Each

Screw with Washer (New) 013031 wsh-scr-31 Screw with Washer (New) Yes Model Compatibility List $19.19 / Each

Life Fitness Elliptical Screw (New) 012794 0017-00101-1796 Life Fitness Elliptical Screw (New) Yes Model Compatibility List $15.59 / Each

2
Stepper Flat Washer 25.4mm (New) 1012465 0017-00104-0479 Stepper Flat Washer 25.4mm (New) Yes Model Compatibility List $15.59 / Each

2
Hand Grip Cap 1035461 cp-grp-61 Hand Grip Cap Yes Model Compatibility List $8.39 / Each

15 013008 15DN-ALLXA-02 15" LCD Display Console Assembly (New) No Model Compatibility List $1.20 / Each
Out Of Stock
Console 15 5P-XNZZ-RT85 85-lcd-cnsl Console 15" LCD Engage (New) No Model Compatibility List $1198.80 / Each
Out Of Stock
Generator CT9500hr 95xi 91x CLSX + Alternator w Flywheel CT 9500hr IJ-6L4X-47I6 gent-alt-16 Generator CT9500hr 95xi 91x CLSX + Alternator w Flywheel CT 9500hr Yes Model Compatibility List $117.72 / Each

Upright Stepper Elliptical Bolt (New) 1012180 0017-00101-2015 Upright Stepper Elliptical Bolt (New) Yes Model Compatibility List $15.59 / Each

2,8
Screw M8 X 1.25 X 50 1012442 0017-00101-2037 Screw M8 X 1.25 X 50 Yes Model Compatibility List $20.39 / Each

Leveling Foot Leveler (New) 1012405 0K68-01047-0000 Leveling Foot Leveler (New) No Model Compatibility List $38.39 / Each

Screw with Washer 013032 wash-srw-32 Screw with Washer Yes Model Compatibility List $15.59 / Each
Out Of Stock
Alternator Brush Assembly (New) 1012190 0017-00009-0895 Alternator Brush Assembly (New) Yes Model Compatibility List $83.99 / Each

1
Pedal Mounting Washer (Used) 1012463 0017-00104-0469 Pedal Mounting Washer (Used) Yes Model Compatibility List $15.59 / Each

2
Locking Nut (New) 1012168 0017-00103-0332 Locking Nut (New) Yes Model Compatibility List $15.59 / Each

2
Machine Key 187-B (New) 1012174 0K53-01183-0000 Machine Key 187-B (New) Yes Model Compatibility List $17.99 / Each

9
Screw M4.2-0.70X10 (New) 1012186 0017-00101-1846 Screw M4.2-0.70X10 (New) Yes Model Compatibility List $15.59 / Each

2
Stepper Screw (New) 1012192 0017-00101-1796 Stepper Screw (New) Yes Model Compatibility List $15.59 / Each

2
Stepper Screw (New) 1012429 0017-00101-1854 Stepper Screw (New) Yes Model Compatibility List $15.59 / Each

2,9
Screw M5X0.806G6GX16 (New) 1012427 0017-00101-1797 Screw M5X0.806G6GX16 (New) Yes Model Compatibility List $15.59 / Each

2
Bolt 70mm (New) 012939 0017-00101-1905 Bolt 70mm (New) Yes Model Compatibility List $12.99 / Each
1
Flexonic Alternator Drive Belt (New) flex1008J8 0K62-01134-0000 Flexonic Alternator Drive Belt (New) Yes Model Compatibility List $69.99 / Each

23
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
