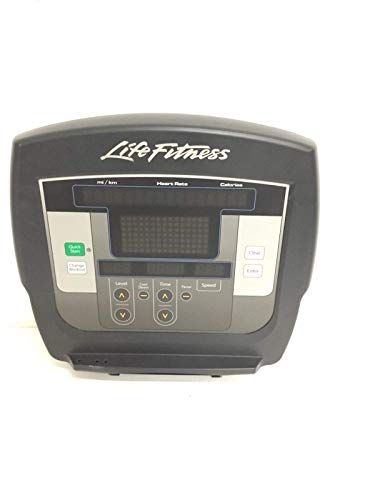

Life Fitness - Achieve Console (LEN)

Repair Parts for Life Fitness Achieve Console (LEN) LEDN-DOMXX-01

Brand: Life Fitness

Category: Commercial Consoles

Type: Miscellaneous Cardio

Model Name: Achieve Console (LEN)

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
6V Battery Cyclon 500003 0017-00003-0685 LF-008 6V Battery Cyclon Yes Model Compatibility List $57.25 / Each

1
Line Cord 10A 125 V 500009 0017-00003-0704 MISC-003 Line Cord 10A 125 V Yes Model Compatibility List $37.63 / Each

1
POWER SUPPLY: 39VDC, 1.66A 500050 0017-00003-1051 MISC-001 POWER SUPPLY: 39VDC, 1.66A Yes Model Compatibility List $161.64 / Each
Out Of Stock 		4,5,6
Front Pedal Lever Bearing 500070 0017-00006-0164 LS-007 Front Pedal Lever Bearing No Model Compatibility List $7.81 / Each

3,8,9
Rear Pedal Lever Bearing 500081 0017-00006-0289 LS-017 Rear Pedal Lever Bearing No Model Compatibility List $19.68 / Each

8,9,3
Thrust Bearing 500083 0017-00006-0294 FS-016 Thrust Bearing No Model Compatibility List $6.52 / Each

12,13,14
Paint: Shadow-Gray Touch Up: .6 OZ Bottle 500103 0017-00008-0210 MISC-010 Paint: Shadow-Gray Touch Up: .6 OZ Bottle No Model Compatibility List $74.58 / Each

1
Paint: Shadow-Gray Touch Up: .6 OZ Bottle 500104 0017-00008-0211 MISC-011 Paint: Shadow-Gray Touch Up: .6 OZ Bottle No Model Compatibility List $82.96 / Each

1
F-Type Panel Connector 500200 0017-00021-2846 MISC-009 F-Type Panel Connector No Model Compatibility List $17.70 / Each

7
Cat-5 Receptacle 500202 0017-00021-2980 MISC-015 Cat-5 Receptacle No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
E clip 500323 0017-00100-0148 FS-036 E clip Yes Model Compatibility List $1.88 / Each

1
Hardware: Sensor Mounting Screw 1 500408 0017-00101-1277 FS-025 Hardware: Sensor Mounting Screw 1" Yes Model Compatibility List $1.88 / Each

1
Hardware: Phillips Pan Screw 0.375 500502 0017-00101-1650 MS-002 Hardware: Phillips Pan Screw 0.375" No Model Compatibility List $1.68 / Each

2
Hardware: Mounting Screw 19 MM 500566 0017-00101-1796 UF-017 Hardware: Mounting Screw 19 MM Yes Model Compatibility List $4.57 / Each

2
Hardware: Mounting Bolt 45 MM 500594 0017-00101-1867 DM-018 Hardware: Mounting Bolt 45 MM Yes Model Compatibility List $1.88 / Each

1
Hardware: Bolt 70 MM 500607 0017-00101-1905 - Hardware: Bolt 70 MM Yes Model Compatibility List $5.92 / Each

2
Hardware: Mounting Bolt 40MM 500616 0017-00101-1925 FS-051 Hardware: Mounting Bolt 40MM Yes Model Compatibility List $1.01 / Each

1
Hardware: Pedal Mounting Screws 25MM 500618 0017-00101-1929 SA-004 Hardware: Pedal Mounting Screws 25MM Yes Model Compatibility List $1.88 / Each

1
Hardware: Front Stabilizer Mtg Bolts 25MM 500619 0017-00101-1931 SA-016 Hardware: Front Stabilizer Mtg Bolts 25MM Yes Model Compatibility List $1.88 / Each

1
Hardware: Phillips Pan Screw 8MM 500621 0017-00101-1938 HW-001 Hardware: Phillips Pan Screw 8MM No Model Compatibility List $3.61 / Each

2
Hardware: Screw 14MM 500622 0017-00101-1940 UF-102 Hardware: Screw 14MM Yes Model Compatibility List $1.88 / Each

1
Hardware: Mounting Bolts 16MM 500625 0017-00101-1948 DM-010 Hardware: Mounting Bolts 16MM No Model Compatibility List $3.84 / Each

2
Hardware: Idler Bracket Mounting Screws 100MM 500626 0017-00101-1951 TS-015 Hardware: Idler Bracket Mounting Screws 100MM Yes Model Compatibility List $3.84 / Each

1
Hardware: Mounting Screw 14MM 500627 0017-00101-1953 FR-020 Hardware: Mounting Screw 14MM Yes Model Compatibility List $1.88 / Each

1
Hardware: Hex Bolt 85MM 500629 0017-00101-1955 LS-008 Hardware: Hex Bolt 85MM Yes Model Compatibility List $2.30 / Each

1
Hardware: Screw 14MM 500640 0017-00101-1972 CS-003 Hardware: Screw 14MM Yes Model Compatibility List $1.88 / Each

1
Hardware: Mounting Screw 16MM 500650 0017-00101-1986 UF-002 Hardware: Mounting Screw 16MM Yes Model Compatibility List $1.81 / Each

1
Hardware: Outside Crank Cover Mounting Screw 14MM 500651 0017-00101-1988 TS-006 Hardware: Outside Crank Cover Mounting Screw 14MM No Model Compatibility List $1.81 / Each

2,8,9
Hardware: Tension Bolt 60MM 500655 0017-00101-2002 BE-121 Hardware: Tension Bolt 60MM Yes Model Compatibility List $3.84 / Each

1
Hardware: Mounting Bolt 16MM 500657 0017-00101-2007 HC-025 Hardware: Mounting Bolt 16MM No Model Compatibility List $1.88 / Each

2
Hardware: Pulley Set Screw 15 MM 500663 0017-00101-2015 DM-015 Hardware: Pulley Set Screw 15 MM Yes Model Compatibility List $4.50 / Each

2,8
Hardware: Rear Rocking Link Screw 38MM 500667 0017-00101-2023 LS-031 Hardware: Rear Rocking Link Screw 38MM Yes Model Compatibility List $1.16 / Each

1
Hardware: SCR: M8 X 1.25 X 50 HEX 500672 0017-00101-1904 LS-028 Hardware: SCR: M8 X 1.25 X 50 HEX No Model Compatibility List $4.50 / Each

1
Hardware: Screw 1" 500679 0017-00101-2054 HR-018 Hardware: Screw 1" Yes Model Compatibility List $1.82 / Each

1
Hardware: Mounting Nut 500798 0017-00103-0332 DS-006 Hardware: Mounting Nut Yes Model Compatibility List $3.23 / Each

2
Hardware: Hex Nut 500799 0017-00103-0333 DR-019 Hardware: Hex Nut Yes Model Compatibility List $4.57 / Each

2
Hardware: Nut 10 MM 500800 0017-00103-0334 ST-010 Hardware: Nut 10 MM No Model Compatibility List $1.88 / Each

2
Hardware: Hex Nut 8 MM 500801 0017-00103-0338 - Hardware: Hex Nut 8 MM Yes Model Compatibility List $1.88 / Each

1
Hardware: Flat Washer 0.734 500833 0017-00104-0190 LS-010 Hardware: Flat Washer 0.734" OD Yes Model Compatibility List $1.88 / Each

1
Hardware: Washer 1.06 500835 0017-00104-0193 PL-008 Hardware: Washer 1.06" OD Yes Model Compatibility List $1.88 / Each

1
Hardware: Flat Washers 0.880 500858 0017-00104-0334 DM-022 Hardware: Flat Washers 0.880" OD Yes Model Compatibility List $1.88 / Each

1
Hardware: Washer 1.125 500874 0017-00104-0409 SA-002 Hardware: Washer 1.125" OD Yes Model Compatibility List $1.68 / Each

2
Hardware: Washer 0.31 500883 0017-00104-0456 HW-004 Hardware: Washer 0.31" OD No Model Compatibility List $2.56 / Each

2
Hardware: Flat Washer 16MM OD 500893 0017-00104-0469 BE-007 Hardware: Flat Washer 16MM OD Yes Model Compatibility List $3.23 / Each

2
Hardware: Flat Washers 11.5 MM OD 500899 0017-00104-0488 MISC-012 Hardware: Flat Washers 11.5 MM OD No Model Compatibility List $1.88 / Each

1
501442 0K39-01044-0000 TP-002 Tape No Model Compatibility List $2.68 / Each

1
Hardware: Thrust Washer 501530 0K47-01104-0000 LS-008 Hardware: Thrust Washer Yes Model Compatibility List $5.92 / Each

2,12,13,14
Elastomer Split Grommet 502227 0K62-01189-0000 DS-021 Elastomer Split Grommet No Model Compatibility List $1.81 / Each

2
Gasket: Bullhorn 502231 0K62-01199-0002 CA-014 Gasket: Bullhorn No Model Compatibility List $2.65 / Each

1
Wheel 502488 0K66-01039-0000 LF-006 Wheel Yes Model Compatibility List $5.83 / Each

1
Wheel Shaft 502489 0K66-01040-0000 LF-007 Wheel Shaft No Model Compatibility List $3.84 / Each

8
Shroud Stabilizer Front 502490 0K66-01041-0000 FS-048 Shroud Stabilizer Front Yes Model Compatibility List $11.64 / Each

1
End Cap (Front and Rear) 502492 0K66-01042-0000 LF-004 End Cap (Front and Rear) Yes Model Compatibility List $23.99 / Each

1
Power Coax Bracket 502501 0K66-01063-0000 MISC-013 Power Coax Bracket No Model Compatibility List $1.81 / Each

2,3,4,5,6
Leg Leveler 502601 AK68-00214-0003 FS-047 Leg Leveler Yes Model Compatibility List $35.99 / Each

1
Shaft Collar 502613 0K69-01018-0000 FR-015 Shaft Collar Yes Model Compatibility List $24.94 / Each

1
Drive Pulley 502614 0K69-01020-0000 DS-005 Drive Pulley Yes Model Compatibility List $107.57 / Each

8,10
Hex Key: 8 X 7 X 34 502615 0K69-01021-0000 DS-006 Hex Key: 8 X 7 X 34 No Model Compatibility List $31.55 / Each

9
Hex Key: 8 X 7 X 20 502616 0K69-01023-0000 TS-023 Hex Key: 8 X 7 X 20 Yes Model Compatibility List $3.78 / Each

1
Hex Key: 8 X 7 X 16 502617 0K69-01024-0000 TS-024 Hex Key: 8 X 7 X 16 No Model Compatibility List $3.84 / Each

9
Drive Shaft 502618 0K69-01030-0000 DS-003 Drive Shaft Yes Model Compatibility List $189.73 / Each

1
Inner Crank Arm 502619 0K69-01038-0000 TS-025 Inner Crank Arm No Model Compatibility List $42.01 / Each

8,3
Timing Belt 25mm 502620 0K69-01041-0002 TS-005 Timing Belt 25mm Yes Model Compatibility List $106.80 / Each

1
Dead Shaft 502621 0K69-01062-0000 FS-033 Dead Shaft Yes Model Compatibility List $207.54 / Each

1
Hardware: Thrust Washer 47 MM OD 502622 0K69-01074-0000 FS-035 Hardware: Thrust Washer 47 MM OD Yes Model Compatibility List $6.28 / Each

1
Shaft 502623 0K69-01075-0000 LS-002 Shaft Yes Model Compatibility List $14.71 / Each

1
Front Spacer 502624 0K69-01079-0000 LS-026 Front Spacer Yes Model Compatibility List $5.83 / Each

1
Left Pedal 502625 0K69-01099-0000 LS-013 Left Pedal Yes Model Compatibility List $56.38 / Each

1
Upper Rocker Cover 502629 0K69-01108-0000 FS-006 Upper Rocker Cover Yes Model Compatibility List $73.15 / Each

1
Lower Rocker Cover Mounting Screws 502631 0K69-01109-0000 TS-001 Lower Rocker Cover Mounting Screws Yes Model Compatibility List $74.52 / Each

1
Left Front Clevis Cover 502633 0K69-01114-0000 FS-002 Left Front Clevis Cover Yes Model Compatibility List $7.81 / Each

1
Right Front Clevis Cover 502635 0K69-01115-0000 FS-004 Right Front Clevis Cover No Model Compatibility List $7.81 / Each

9
Left Rear Clevis Cover 502637 0K69-01116-0000 FS-003 Left Rear Clevis Cover Yes Model Compatibility List $7.81 / Each

1
Right Rear Clevis Cover 502639 0K69-01117-0000 FS-005 Right Rear Clevis Cover Yes Model Compatibility List $7.81 / Each

1
Right and Left Rocking Link Cover 502641 0K69-01119-0000 LS-033 Right and Left Rocking Link Cover Yes Model Compatibility List $3.84 / Each

1
Back Console Cover 502645 0K69-01122-0000 CA-003 Back Console Cover Yes Model Compatibility List $53.60 / Each

1
Front Collar Dead Shaft Cover 502647 0K69-01123-0000 FS-066 Front Collar Dead Shaft Cover Yes Model Compatibility List $35.87 / Each

1
Top Dead Shaft Cover 502649 0K69-01124-0000 FS-063 Top Dead Shaft Cover Yes Model Compatibility List $81.74 / Each

1
Media Tray 502651 0K69-01125-0003 FS-061 Media Tray Yes Model Compatibility List $0.00 / Each
Out Of Stock 		1
Upper Back Cover 502653 0K69-01126-0000 CN-012 Upper Back Cover No Model Compatibility List $11.38 / Each

4,5,6,9
Dead Shaft End Cap 502655 0K69-01127-0000 FS-065 Dead Shaft End Cap Yes Model Compatibility List $17.35 / Each

1
Left Top Rear Pedal Cover 502659 0K69-01130-0000 LS021 Left Top Rear Pedal Cover Yes Model Compatibility List $7.81 / Each

1
Left Bottom Rear Pedal Cover 502661 0K69-01131-0000 LS022 Left Bottom Rear Pedal Cover Yes Model Compatibility List $7.81 / Each

1
Main Frame Cover 502663 0K69-01132-0000 FS-014 Main Frame Cover Yes Model Compatibility List $154.14 / Each

1
Shorud Stabilizer Front 502671 0K69-01139-0000 FS-038 Shorud Stabilizer Front Yes Model Compatibility List $16.62 / Each

1
Tension Pivot Bracket 502675 0K69-01174-0000 TS-003 Tension Pivot Bracket No Model Compatibility List $33.05 / Each

2,8,3,4,5,6
Hardware: Keyed Washer 502676 0K69-01175-0001 LS-027 Hardware: Keyed Washer Yes Model Compatibility List $48.95 / Each

1
Rear Spacer 502677 0K69-01178-0000 LS-025 Rear Spacer Yes Model Compatibility List $13.43 / Each

2,3,4,5,6
Hardware: Steel Thrust Washer 502678 0K69-01190-0000 LS-003 Hardware: Steel Thrust Washer No Model Compatibility List $1.97 / Each

2,12,13,14
Crank Arm 502679 0K69-01227-0000 TS-020 Crank Arm Yes Model Compatibility List $66.85 / Each

1
Hardware: Rear Mounting Bolt 502680 0K69-01231-0000 LS-004 Hardware: Rear Mounting Bolt No Model Compatibility List $7.74 / Each

2
Cover: Crank; Inner; Plastic -02XX Shadow 502681 0K69-01070-0000 TS-004 Cover: Crank; Inner; Plastic -02XX Shadow Yes Model Compatibility List $35.32 / Each

1
BRG: 360 DEGREE LOCKING FLANGE 502683 0K69-01250-0000 DS-002 BRG: 360 DEGREE LOCKING FLANGE Yes Model Compatibility List $91.28 / Each

1
BELT: POLY-V; 360J10; 36.00 IN 502686 0K69-01256-0000 DS-007 BELT: POLY-V; 360J10; 36.00 IN Yes Model Compatibility List $36.41 / Each

15
CSAFE Door 502687 0K70-01008-0000 CN-002 CSAFE Door No Model Compatibility List $2.84 / Each

1
ABSpace Panel Cover 502688 0K70-01039-0000 CN-003 ABSpace Panel Cover No Model Compatibility List $29.78 / Each

7,9,4,5,6
Panel: Wired Remote Control Mount 502689 0K70-01052-0000 CN-004 Panel: Wired Remote Control Mount No Model Compatibility List $47.36 / Each

7,2,4,5,6
Tape: Foam double sided 502690 0K70-01069-0000 TP-001 Tape: Foam double sided No Model Compatibility List $1.88 / Each

1
Heart Rate Receiver 504183 118E-00001-0244 CN-015 Heart Rate Receiver No Model Compatibility List $52.28 / Each

12,13,14
PROGRAMMED PCB: B084-92350-0000 NON TREAD LF92350-A100RC 511609 A084-92350-0100 PC-001 PROGRAMMED PCB: B084-92350-0000 NON TREAD LF92350-A100RC No Model Compatibility List $571.43 / Each

1
Ext Power Cable with Ferrite 512690 AK32-00160-0000 BE-032 Ext Power Cable with Ferrite Yes Model Compatibility List $73.34 / Each

1
Bullhorn HR cables 513621 AK61-00051-0000 CBL-016 Bullhorn HR cables Yes Model Compatibility List $27.59 / Each

1
Cable Assembly: User Arm 513623 AK61-00051-0002 BE-028 Cable Assembly: User Arm Yes Model Compatibility List $13.73 / Each

3,4,5,6
C-safe Network Cable 65 514133 AK65-00051-0001 CB-003 C-safe Network Cable 65" Yes Model Compatibility List $23.63 / Each

1
Cable: Coax RG6 Base 514134 AK65-00062-0000 BE-033 Cable: Coax RG6 Base Yes Model Compatibility List $21.65 / Each

1
Cable: Ground ESD 514185 AK65-00103-0003 CBL-001 Cable: Ground ESD No Model Compatibility List $3.61 / Each

4,5,6
Bracket Assembly: Power/Coax Input 514209 AK66-00036-0000 LF-010 Bracket Assembly: Power/Coax Input Yes Model Compatibility List $66.94 / Each
Out Of Stock 		1
PWR-PCB BRKT ASSY W/ SOFTWARE 514248 AK66-00100-0006 BE-009 PWR-PCB BRKT ASSY W/ SOFTWARE Yes Model Compatibility List $466.80 / Each

1
Left Idler Bracket Assembly 514388 AK69-00029-0000 TS-007 Left Idler Bracket Assembly Yes Model Compatibility List $103.49 / Each

1
Right Idler Bracket Assembly 514389 AK69-00029-0001 TS-010 Right Idler Bracket Assembly Yes Model Compatibility List $103.49 / Each

1
Rocker Arm (Right or Left) 514394 AK69-00045-0000 FS-018 Rocker Arm (Right or Left) Yes Model Compatibility List $336.00 / Each
1
Left Bullhorn Assembly 514396 AK69-00062-0000 CA-011 Left Bullhorn Assembly Yes Model Compatibility List $212.50 / Each

1
Right Bullhorn Assembly 514398 AK69-00068-0000 CA-013 Right Bullhorn Assembly Yes Model Compatibility List $212.50 / Each
1
ASSY: GENERATOR, MTG 514400 AK69-00127-0000 DS-008 ASSY: GENERATOR, MTG Yes Model Compatibility List $554.42 / Each

1
Console Support Bracket 514402 AK69-00081-0000 CA-005 Console Support Bracket Yes Model Compatibility List $157.96 / Each

1
Top Rear Tower Cover 514403 AK69-00083-0000 LS-021 Top Rear Tower Cover Yes Model Compatibility List $138.34 / Each

1
Left Handle Bar Assembly 514405 AK69-00085-0000 CA-008 Left Handle Bar Assembly Yes Model Compatibility List $182.89 / Each
Out Of Stock 		1
Right Handle Bar Assembly 514407 AK69-00087-0000 CA-015 Right Handle Bar Assembly Yes Model Compatibility List $182.89 / Each
Out Of Stock 		1
Frame Stiffener 514409 AK69-00089-0000 BE-012 Frame Stiffener Yes Model Compatibility List $0.00 / Each
1
Rear Stabilizer 514410 AK69-00090-0000 FS-035 Rear Stabilizer Yes Model Compatibility List $235.22 / Each

1
Outside Crank Cover w/decal (Left & Right) 514412 AK69-00096-0000 LS-023 Outside Crank Cover w/decal (Left & Right) Yes Model Compatibility List $65.16 / Each

3,7,8,9
Resistance Level Button Assembly 514417 AK69-00100-0000 FS-002 Resistance Level Button Assembly Yes Model Compatibility List $31.55 / Each

1
Top Heart Rate Sensor 514420 AK69-00101-0000 CA-021 Top Heart Rate Sensor Yes Model Compatibility List $15.31 / Each

1
Bottom Heart Rate Sensor 514422 AK69-00102-0000 CA-020 Bottom Heart Rate Sensor Yes Model Compatibility List $16.57 / Each

1
Handlebar/Console Cable 514424 AK69-00103-0000 CBL-022 Handlebar/Console Cable Yes Model Compatibility List $67.15 / Each

1
Generator/Brake to GBC Cable 514425 AK69-00104-0000 CBL-008 Generator/Brake to GBC Cable Yes Model Compatibility List $21.65 / Each

1
PBC to Console Cable 514426 AK69-00105-0000 CBL-021 PBC to Console Cable Yes Model Compatibility List $80.98 / Each

4,5,6,7
Battery cable 514427 AK69-00106-0000 BE-030 Battery cable Yes Model Compatibility List $11.76 / Each

1
Power Cable with Ground 514430 AK69-00107-0001 CBL-020 Power Cable with Ground Yes Model Compatibility List $68.62 / Each

1
Keypad Cable 514431 AK69-00108-0000 BE-026 Keypad Cable Yes Model Compatibility List $17.70 / Each

1
LifePulse Y Cable 514432 AK69-00109-0000 BE-025 LifePulse Y Cable Yes Model Compatibility List $25.62 / Each

1
LifePulse Flex Cable 514433 AK69-00110-0000 CBL-014 LifePulse Flex Cable Yes Model Compatibility List $35.51 / Each

1
Support: Monocolumn: Prep Assembly 514434 AK69-00111-0001 FS-027 Support: Monocolumn: Prep Assembly No Model Compatibility List $743.03 / Each

3
Lower Right Rocking Link Assembly 514435 AK69-00112-0000 LS-028 Lower Right Rocking Link Assembly Yes Model Compatibility List $0.00 / Each
1
Lower Left Rocking Link Assembly 514437 AK69-00113-0000 LS-024 Lower Left Rocking Link Assembly Yes Model Compatibility List $0.00 / Each
1
Back Cover Assembly 514439 AK69-00115-0000 CN-015 Back Cover Assembly No Model Compatibility List $74.96 / Each

9,4,5,6
Front Stabilizer 514440 AK69-00118-0000 FS-034 Front Stabilizer No Model Compatibility List $130.42 / Each

1
Cable: Coded Polar Printed Circuit Board To MIB 514442 AK69-00119-0000 CBL-002 Cable: Coded Polar Printed Circuit Board To MIB No Model Compatibility List $4.78 / Each

7,4,5,6
Left Pedal Lever Assembly 514443 AK69-00120-0000 LS-015 Left Pedal Lever Assembly Yes Model Compatibility List $453.60 / Each

1
Right Pedal Lever Assembly 514444 AK69-00121-0000 LS-023 Right Pedal Lever Assembly Yes Model Compatibility List $595.21 / Each

1
Inner Rocker Shroud Assembly 514449 AK69-00123-0000 TS-002 Inner Rocker Shroud Assembly Yes Model Compatibility List $207.12 / Each

1
Right Swoosh Cover W/ LF Bug 514451 AK69-00124-0000 FS-038 Right Swoosh Cover W/ LF Bug Yes Model Compatibility List $73.96 / Each

1
Left Swoosh Cover W/ LF Bug 514452 AK69-00124-0001 FS-041 Left Swoosh Cover W/ LF Bug Yes Model Compatibility List $73.96 / Each

1
Hardware Bag 514459 AK69-00136-0000 MISC-016 Hardware Bag No Model Compatibility List $77.47 / Each

1
Top Heart Rate Sensor 514461 AK69-00139-0003 CA-016 Top Heart Rate Sensor Yes Model Compatibility List $11.63 / Each

1
Bottom Heart Rate Sensor 514464 AK69-00140-0003 CA-017 Bottom Heart Rate Sensor Yes Model Compatibility List $12.80 / Each

1
Rocking Link Bracket with Weldnuts 514470 AK69-00170-0000 FS-036 Rocking Link Bracket with Weldnuts Yes Model Compatibility List $11.45 / Each

1
CONS-ASSY: CONSOLE CASE/FASTENER; i/e 514472 AK70-00017-0000 CN-008 CONS-ASSY: CONSOLE CASE/FASTENER; i/e No Model Compatibility List $0.00 / Each
Out Of Stock 		7
Cable: Console; ESD 514476 AK70-00063-0000 CBL-004 Cable: Console; ESD No Model Compatibility List $44.83 / Each

7,4,5,6
PCB ASSY: GEMINI ESD PCB 515106 B084-92355-0001 PC-003 PCB ASSY: GEMINI ESD PCB No Model Compatibility List $44.27 / Each

1
Bullhorn Heart Rate Electrode Kit 516057 GK69-00002-0001 FS-022 Bullhorn Heart Rate Electrode Kit No Model Compatibility List $89.52 / Each

3,12,13,14
Handlebar Heart Rate Kit 516058 GK69-00002-0002 HR-002 Handlebar Heart Rate Kit No Model Compatibility List $115.14 / Each

11,12,13,14
Kit: Right Rocker Casting w/ Pulleys 516059 GK69-00002-0003 TS-009 Kit: Right Rocker Casting w/ Pulleys Yes Model Compatibility List $718.80 / Each

1
Kit: Left Rocker Casting w/ Pulleys 516060 GK69-00002-0004 TS-008 Kit: Left Rocker Casting w/ Pulleys Yes Model Compatibility List $637.38 / Each

1
OVERLAY/BEZEL/SWITCH ASSY.;LEDN/DOM KIT 516061 GK70-00002-0001 CN-007 OVERLAY/BEZEL/SWITCH ASSY.;LEDN/DOM KIT No Model Compatibility List $309.72 / Each

4,5,6
Kit: Bike/Cross-Trainer Domestic Line Cord LV 517116 LCBCT-DOMLX-01 MISC-008 Kit: Bike/Cross-Trainer Domestic Line Cord LV No Model Compatibility List $115.92 / Each

4,5,6
Elevation™ Series Achieve™ Console 517224 LEDN-DOMXX-01R CN-006 Elevation™ Series Achieve™ Console Yes Model Compatibility List $888.50 / Each

4,5,6,7,10
Front Stabilizer Shroud 012831 0K66-01041-0000 0 1 Front Stabilizer Shroud Yes Model Compatibility List $25.19 / Each

1
Hardware: Washer 1.125 012985 0017-00104-0409 SA-002 Hardware: Washer 1.125" OD Yes Model Compatibility List $1.68 / Each

2
Sealed Lead Rechrgeable Battery 1004125 0017-00003-0685 Sealed Lead Rechrgeable Battery Yes Model Compatibility List $56.39 / Each

1
Lead Rechargeable Battery 1001960 ‎0017-00003-0685 Lead Rechargeable Battery Yes Model Compatibility List $29.99 / Each

Life Fitness Elliptical Screw (New) 012794 0017-00101-1796 Life Fitness Elliptical Screw (New) Yes Model Compatibility List $15.59 / Each

2
Upright Stepper Elliptical Bolt (New) 1012180 0017-00101-2015 Upright Stepper Elliptical Bolt (New) Yes Model Compatibility List $15.59 / Each

2,8
Pedal Mounting Washer (Used) 1012463 0017-00104-0469 Pedal Mounting Washer (Used) Yes Model Compatibility List $15.59 / Each

2
Locking Nut (New) 1012168 0017-00103-0332 Locking Nut (New) Yes Model Compatibility List $15.59 / Each

2
Stepper Screw (New) 1012192 0017-00101-1796 Stepper Screw (New) Yes Model Compatibility List $15.59 / Each

2
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
