Life Fitness - E1-XXXX-0105

Repair Parts for Life Fitness E1-XXXX-0105 E1-XX14-0105

Brand: Life Fitness

Category: Consumer Equipment

Type: Elliptical

Model Number:

Info

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

E1-XX14-0105

Model Name: E1-XXXX-0105

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

E1-XX14-0105.PDF

VIEWS

Image	Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Notes	Available Used	Model Compatibility List	New price
	506310	3225301	CR-006		Bearing, 12MM Ball		No	Model Compatibility List	$11.84 / Each	1
	518027	REX01H5	CR-010		Magnet Rexon		No	Model Compatibility List	$4.57 / Each	8
	518028	REX01HL	MR-005		Drive Motor, Pesistande DC		Yes	Model Compatibility List	$84.92 / Each	4,5,6,10
	518030	REX01J8	MR-002		Switch, Reed, RPM Sensor		Yes	Model Compatibility List	$8.11 / Each	4,5,6
	518032	REX01QH	MR-010		Cable, Brake Harness		No	Model Compatibility List	$20.46 / Each	5
	518039	REX0HVP	ID-011		Bearing Ball 6004ZZ		No	Model Compatibility List	$13.74 / Each	1
	518044	REX0J4R	IA-003		Hardware: Washer, 20MM OD X 10MM ID X 3MM Thick		No	Model Compatibility List	$1.88 / Each	2
	518052	REX0J6P	CR-004		FLAT WASHER		No	Model Compatibility List	$1.75 / Each	2
	518053	REX0J7K	PL-002		FLAT WASHER ROHS 3/8 29/32-5/64		No	Model Compatibility List	$1.75 / Each	2
	518055	REX0J93	BR-008		Hardware: Washer, Lock Spring 1.0		Yes	Model Compatibility List	$3.23 / Each	2
	518059	REX0JAF	CS-011		Hardware: Star Washer		No	Model Compatibility List	$1.88 / Each	2
	518061	REX0JB7	ID-002		Hardware: Wave Washer; 20.5MM X 26.7MM T = 0.25MM		Yes	Model Compatibility List	$11.56 / Each	2,4,5,6
	518062	REX0JBD	UA-004		Hardware: Wave Washer; 25MM X 35MM		No	Model Compatibility List	$4.57 / Each	2
	518064	REX0JDZ	IA-002		Ring, Retaining B-35		No	Model Compatibility List	$1.81 / Each	1
	518065	REX0JE0	PL-005		Ring, Retaining B-40		Yes	Model Compatibility List	$7.58 / Each	1
	518067	REX0JEE	PL-015		Ring, Retaining A-17		Yes	Model Compatibility List	$4.57 / Each	1
	518068	REX0JEG	BR-005		Ring: C-Ring, A-20		No	Model Compatibility List	$1.88 / Each	1
	518069	REX0JEJ	CR-002		Ring, Retaining, 63/64, Snap Ring		Yes	Model Compatibility List	$5.92 / Each	1
	518074	REX0JGQ	CC-003		Crank Key		No	Model Compatibility List	$1.88 / Each	8,9
	518089	REX0K28	MR-003		Hardware: Cap Screw, M5 X 0.8-16		No	Model Compatibility List	$1.88 / Each	2,9
	518092	REX0K2W	BR-001		Hardware: Screw, SHCS Brake Mounting		No	Model Compatibility List	$4.57 / Each	2
	518106	REX0K5T	CC-008		Hardware: Screw, PHl M5 X 0.8-10		No	Model Compatibility List	$1.88 / Each	2
	518130	REX0KEH	MR-006		Hardware: Screw, Pan HD with Patch M5 X .8-16		No	Model Compatibility List	$1.88 / Each	2
	518134	REX0KMR	MR-011		Hardware: Nut, M5 X 0.8, 4MM Thick		No	Model Compatibility List	$1.88 / Each	2
	518142	REX0KR0	BT-017		Hardware: Nut, Lock M12 X 1.75-12		No	Model Compatibility List	$1.88 / Each	2
	518143	REX0KR3	CR-005		Hardware: Nut, Lock M6 X 1, 6MM Thick		No	Model Compatibility List	$1.88 / Each	2
	518145	REX0KR5	BR-016		Hardware: Nut, Nylock M10 X 1.5, 10M Thick		No	Model Compatibility List	$4.57 / Each	2
	518230	REX20W4	BR-006		Hardware: Nut, HEX M10 X 1.5-6		No	Model Compatibility List	$1.88 / Each	2
	518270	REX218N	CR-003		Pulley, Crank		Yes	Model Compatibility List	$93.12 / Each	8
	518283	REX21A6	BR-014		Hardware: Bolt, Hook Clamp		Yes	Model Compatibility List	$9.86 / Each	2
	518284	REX21A7	BR-015		Hardware: Stud, Swivel		No	Model Compatibility List	$3.84 / Each	1
	518291	REX21BJ	BR-009		Brake, Assembly Eddy Current		Yes	Model Compatibility List	$478.80 / Each	8
	518295	REX21LF	BT-018		Bracket, Brake MTG		Yes	Model Compatibility List	$50.64 / Each	3
	518296	REX21LG	BT-002		Spacer, Collar		Yes	Model Compatibility List	$11.21 / Each	2
	518302	REX21NN	UP-002		Hardware: Nut, Insert M10 X 1.5		No	Model Compatibility List	$1.88 / Each	2
	518303	REX21NP	BT-003		Hardware: Bolt, HEX HD M12 X 1.75-110mm		Yes	Model Compatibility List	$9.25 / Each	2
	518306	REX21NS	CR-001		Hardware: Bolt, HEX HD. M8 X 1.25-60MM		Yes	Model Compatibility List	$5.92 / Each	2
	518307	REX21NT	CR-012		Hardware: Bolt, HEX HD M6 X 1-20		No	Model Compatibility List	$1.88 / Each	2
	518337	REX21X8	BR-002		Spacer, Tensioner		No	Model Compatibility List	$1.88 / Each	2,3,4,5,6
	518342	REX22B3	UA-003		Hardware: Washer, .26 X 35-.8		No	Model Compatibility List	$4.57 / Each	2
	518363	REX22LR	BR-017		Ring: C-Ring, A-16		No	Model Compatibility List	$3.84 / Each	1
	518368	REX22RP	CC-002		Hardware: Nut, Nylock M8 X 1.25 X 6MM Thick		Yes	Model Compatibility List	$4.57 / Each	2
	518377	REX25ZJ	BT-014		Hardware: Cap Screw, M8 X 1.25-20		No	Model Compatibility List	$2.17 / Each	2,9
	518496	REX2BAD	PL-002		Shaft, Coupler Pedal Conn		Yes	Model Compatibility List	$21.25 / Each	8,9
	518502	REX2BKA	IA-003		Bearing, Self-Align, 2202		No	Model Compatibility List	$17.70 / Each	1
	518503	REX2BKB	PL-003		Bearing, Self-Align, 2203		Yes	Model Compatibility List	$24.42 / Each	1
	518520	REX2D1X	CS-010		Hardware: Screw, PHl PAN M5 X 0.8-6		No	Model Compatibility List	$1.88 / Each	2
	518522	REX2DVG	ID-007		Hardware: Bolt, HEX M10 X 1.5-20		No	Model Compatibility List	$1.88 / Each	2
	518529	REX2G72	-		Tray, Accessory		Yes	Model Compatibility List	$29.63 / Each	4,5,6
	518531	REX2G7S	CBL-003		Cable, Console		Yes	Model Compatibility List	$52.64 / Each Out Of Stock	4
	518549	REX2GHY	CBL-002		Cable, Cross-Trainer Base		Yes	Model Compatibility List	$33.60 / Each	4,5
	518561	REX2K86	CBL-001		Power Entry Inlet Cable, Cross-Trainer Motor-Transformer		Yes	Model Compatibility List	$25.56 / Each	4,5,6
	518566	REX2KX8	BR-004		BALL BEARING ROHS 6204ZZ		No	Model Compatibility List	$11.05 / Each	1
	518595	REX2LJZ	PL-014		Axle, Adj Link		No	Model Compatibility List	$5.83 / Each	8
	518599	REX2LL1	CD-003		Weldment, Axle Crank		No	Model Compatibility List	$56.83 / Each	3,8
	518600	REX2LL2	CC-001		Weldment, Crank Arm		Yes	Model Compatibility List	$78.94 / Each	8
	518608	REX2LNW	-		Bushing, IGUS		No	Model Compatibility List	$3.84 / Each	8
	518620	REX2LQH	CBL-005		Cable, Upper, HR Sensor To Console		Yes	Model Compatibility List	$11.99 / Each	7,4,5,6,12,13,14
	518628	REX2LRT	CC-005		Plate; Crank		Yes	Model Compatibility List	$23.99 / Each	8
	518630	REX2LUH	SC-004		Grommet, 38MM X 25MM		No	Model Compatibility List	$1.88 / Each	2
	518640	REX2MJK	CO-004		Bolt, HEX Head M10 X 1.5-85		Yes	Model Compatibility List	$8.64 / Each	2
	518648	REX2MPQ	UA-005		Hardware: Washer, 35MM OD X 10MM OD X 3MM Thick		No	Model Compatibility List	$1.88 / Each	2
	518651	REX2MX0	-		Decal: Label, X1 Accessory Tray		No	Model Compatibility List	$6.46 / Each	7,3,4,5,6
	518661	REX2NDD	PL-011		Hardware: Washer, Spacer		No	Model Compatibility List	$1.88 / Each	2,3,4,5,6
	518665	REX2NFK	ST-008		Leveler, Leg		Yes	Model Compatibility List	$11.90 / Each	1
	518679	REX2R27	CBL-004		WIRE GROUND HR		Yes	Model Compatibility List	$13.20 / Each	4,5,6
	518721	REX2S4K	US-004		Grommet Upright X1		No	Model Compatibility List	$1.81 / Each	2,3
	518722	REX2S4Q	SC-009		Axle Wheel Transport		No	Model Compatibility List	$3.28 / Each	8
	518723	REX2S4R	SC-010		Wheel Transport		No	Model Compatibility List	$2.87 / Each	8
	518724	REX2S5A	CBL-006		Wire Harness H/R Handlebar		No	Model Compatibility List	$8.62 / Each	4,5,6,11
	518737	REX2T6K	SC-002		Grommet 30MM X 70MM		No	Model Compatibility List	$1.81 / Each	2
	518739	REX2T9D	ST-009		Hardware: Nut HEX M10X1.5 Black Zinc		No	Model Compatibility List	$1.81 / Each	2,4,5,6
	518740	REX2T9E	UA-011		Hardware: Bolt HEX M10X1.5-74 Black Zinc		No	Model Compatibility List	$2.26 / Each	2,4,5,6
	518741	REX2T9F	MR-001		Belt Poly V J510 51" or 1294J		Yes	Model Compatibility List	$47.12 / Each	15
	518743	REX2T9W	PL-007		Hardware: Screw, PHl TRUSS M5X.8-8		No	Model Compatibility List	$1.81 / Each	2
	518744	REX2T9X	MS-001		Hardware: Screw, PHl PAN M5X.8-12 Clear Zinc		No	Model Compatibility List	$0.82 / Each	2
	518766	REX33N0	MR-005		SCREW, PHL 5MM*.8 X 12MM		No	Model Compatibility List	$1.75 / Each	2
	518783	REX3535	BT-010		BRKT, BELT TENSOR		Yes	Model Compatibility List	$33.40 / Each	15
	518789	REX35JA	UP-005		COVER CONSOLE MAST		No	Model Compatibility List	$7.80 / Each	7,9
	518790	REX35JK	ST010		STABILIZER ENDCAP		Yes	Model Compatibility List	$5.04 / Each	9

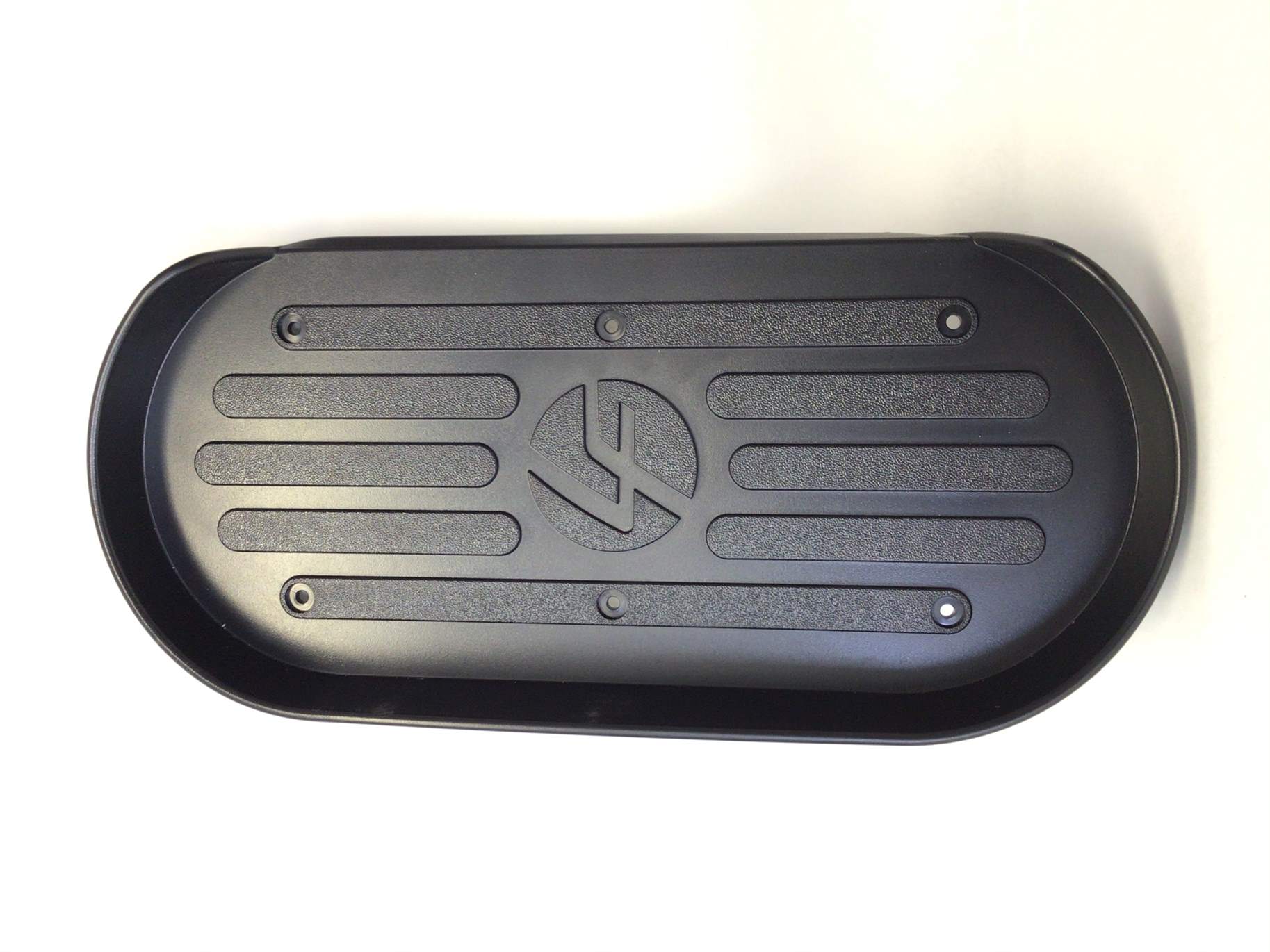

	518791	REX35JL	PL-008		PEDAL, RT X1		No	Model Compatibility List	$34.60 / Each	8,9
	518792	REX35JM	PL-017		PEDAL, LT X1		No	Model Compatibility List	$34.60 / Each	8,9
	518797	REX38GU	UP-019		CR. RE. TRUSS HD. TAPPING SCREW M4 16-16		No	Model Compatibility List	$0.00 / Each Out Of Stock	2,12,13,14
	518798	REX3E94	UA-006		GRIP, MOVING HANDLEBAR		No	Model Compatibility List	$16.61 / Each	11
	518799	REX3E95	UA-009		CAP END ROCKER PIVOT		No	Model Compatibility List	$1.75 / Each	8,9
	518800	REX3E98	CO-008		END CAP		No	Model Compatibility List	$1.75 / Each	9
	518801	REX3E9C	IA-005		END CAP, IDLER		No	Model Compatibility List	$5.78 / Each	8,9
	518802	REX3E9M	CC-006		CRANK COVER; TITANIUM		Yes	Model Compatibility List	$32.26 / Each	8,9
	518803	REX3E9U	UA-010		RIGHT ROCKER ARM ASSY, E1		No	Model Compatibility List	$220.19 / Each	3
	518804	REX3EA2	ST-007		STABILIZER ASSY, FRONT; E1		No	Model Compatibility List	$119.29 / Each	1
	518805	REX3EA4	UA-001		LEFT ROCKER ARM ASSY, E1		No	Model Compatibility List	$220.19 / Each	3
	518806	REX3EA5	PL-001		RIGHT PEDAL LEVER ASSY,E1 E3		No	Model Compatibility List	$299.51 / Each	8,9,3
	518807	REX3EA6	PL-016		LEFT PEDAL LEVER ASSY,E1 E3		No	Model Compatibility List	$299.51 / Each	8,9,3
	518808	REX3EA7	CO-009		COUPLER ASSY E1 LEFT, E3 RIGHT		No	Model Compatibility List	$196.91 / Each	1
	518809	REX3EA8	CO-001		COUPLER ASSY E1 RIGHT, E3 LEFT		No	Model Compatibility List	$196.91 / Each	1
	518810	REX3EA9	IA-001		IDLER ASSEMBLY,E1 E3		No	Model Compatibility List	$90.47 / Each	8
	518811	REX3ESK	UP-016		WLDMT, CONSOLE BRKT; TITANIUM		No	Model Compatibility List	$48.24 / Each	7
	518812	REX3ESL	UP-020		WLDMT, UPRIGHT; TITANIUM		No	Model Compatibility List	$294.64 / Each	3
	518813	REX3ESM	UP-009		GRIP, STATIONARY HBAR		No	Model Compatibility List	$10.37 / Each	11
	518815	REX3EVQ	UP-017		SCREW, HR SENSOR MTG		No	Model Compatibility List	$1.75 / Each	2,12,13,14
	518816	REX3EVR	UP-022		BOLT HEX M10X1.5-70; BLACK ZINC		No	Model Compatibility List	$2.84 / Each	2,4,5,6
	518817	REX3EVT	CS-013		SCREW, PHL PAN M5X16-12; BLACK		No	Model Compatibility List	$1.75 / Each	2,4,5,6
	518820	REX3GXY	UP-008		HEART RATE SENSOR		No	Model Compatibility List	$18.24 / Each	12,13,14

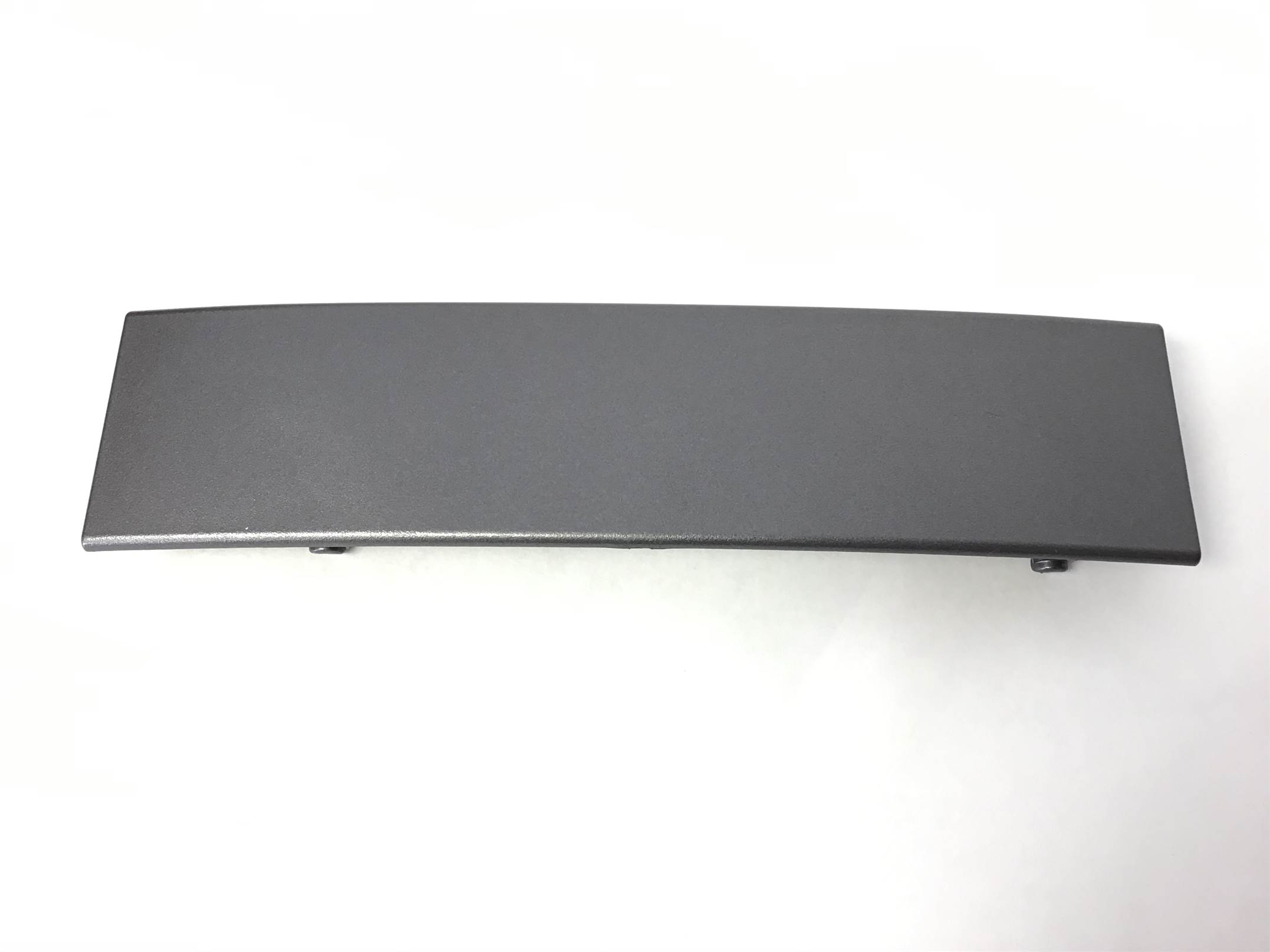

	518839	REX3HS1	UP-001		COVER UPRIGHT JUNCTION LOWER		No	Model Compatibility List	$13.36 / Each	3,9
	518894	REX3JNN	UP-018		BOLT, HEX M10X1.5-16 ; BLACK ZINC		No	Model Compatibility List	$1.78 / Each	2,4,5,6
	518895	REX3JNZ	CC-007		SCREW, PHL PAN M5X.8-8; BLACK ZINC		No	Model Compatibility List	$1.75 / Each	2,4,5,6
	518899	REX3K5K	MS-003		REAR LEFT SHROUD ASSEMBLY E1, E3		No	Model Compatibility List	$153.92 / Each	12,13,14
	518900	REX3K62	MS-002		REAR RIGHT SHROUD ASSEMBLY E1, E3		No	Model Compatibility List	$153.92 / Each	12,13,14
	1000702	7459501			Eddy ECB Magnetic Brake Chi Hua		Yes	Model Compatibility List	$130.80 / Each Out Of Stock
	1001130	REX01HL	CBL-007		Resistance Gear Servo Motor Brake		Yes	Model Compatibility List	$94.80 / Each	4,5,6,10
