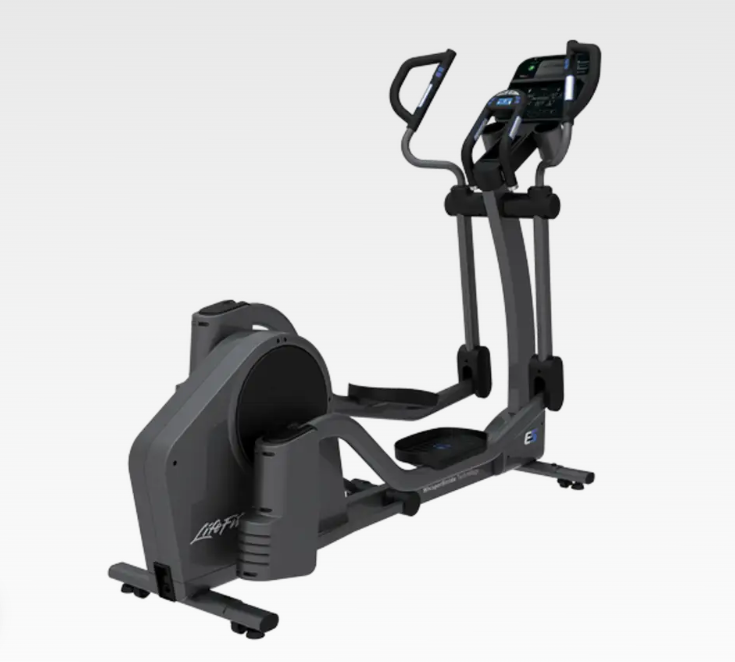

Life Fitness - E5-XXXX-0105

Repair Parts for Life Fitness E5-XXXX-0105 E5-XX00-0105

Brand: Life Fitness

Category: Consumer Equipment

Type: Elliptical

Model Name: E5-XXXX-0105

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
M 500113 0017-00008-0231 MISC-019 CHARCOAL GRAY AEROSOL No Model Compatibility List $116.50 / Each

1
M 500114 0017-00008-0232 MISC-020 CHARCOAL GRAY TOUCH UP No Model Compatibility List $28.22 / Each

1
U 506310 3225301 CR-006 Bearing, 12MM Ball No Model Compatibility List $11.84 / Each

1
C 510261 8762101 - Service Assembly, Limit Switch Right No Model Compatibility List $23.57 / Each

4,5,6
C 510262 8762201 - Service Assembly, Limit Switch Left No Model Compatibility List $23.57 / Each

4,5,6
C 510263 8762301 - Service Assembly, Upper Coupler No Model Compatibility List $111.84 / Each

1
M 510980 8974001 TR-001 ASSY, TRANSFORMER, 100-240V, 9V, 4A, DOM Yes Model Compatibility List $105.74 / Each

1
M 510981 8974101 TR-001 ASSY, TRANSFORMER, 100-240V, 9V, 4A, UK No Model Compatibility List $117.78 / Each

1
M 510982 8974201 TR-001 ASSY, TRANSFORMER, 100-240V, 9V, 4A, CONT No Model Compatibility List $105.74 / Each

1
M 510983 8974301 TR-001 ASSY, TRANSFORMER, 100-240V, 9V, 4A, AUST No Model Compatibility List $105.74 / Each

1
M 510984 8974401 TR-001 ASSY, TRANSFORMER, 100-240V, 9V, 4A, BR No Model Compatibility List $115.58 / Each

1
B 511032 9001101 BT-001 SERVICE ASSY EDDY BRAKE No Model Compatibility List $382.25 / Each

8
C 518027 REX01H5 CR-010 Magnet Rexon No Model Compatibility List $4.57 / Each

8
M 518032 REX01QH MR-010 Cable, Brake Harness No Model Compatibility List $20.46 / Each

5
P 518039 REX0HVP ID-011 Bearing Ball 6004ZZ No Model Compatibility List $13.74 / Each

1
B 518040 REX0HVY BT-011 Bearing, Ball 6204ZZ Yes Model Compatibility List $16.43 / Each

1
I 518044 REX0J4R IA-003 Hardware: Washer, 20MM OD X 10MM ID X 3MM Thick No Model Compatibility List $1.88 / Each

2
C 518050 REX0J69 CD-002 Hardware: Washer, Flat .6 X 13-1 No Model Compatibility List $1.88 / Each

2
B 518055 REX0J93 BR-008 Hardware: Washer, Lock Spring 1.0 Yes Model Compatibility List $3.23 / Each

2
M 518059 REX0JAF CS-011 Hardware: Star Washer No Model Compatibility List $1.88 / Each

2
P 518061 REX0JB7 ID-002 Hardware: Wave Washer; 20.5MM X 26.7MM T = 0.25MM Yes Model Compatibility List $11.56 / Each

2,4,5,6
U 518062 REX0JBD UA-004 Hardware: Wave Washer; 25MM X 35MM No Model Compatibility List $4.57 / Each

2
I 518064 REX0JDZ IA-002 Ring, Retaining B-35 No Model Compatibility List $1.81 / Each

1
P 518065 REX0JE0 PL-005 Ring, Retaining B-40 Yes Model Compatibility List $7.58 / Each

1
P 518067 REX0JEE PL-015 Ring, Retaining A-17 Yes Model Compatibility List $4.57 / Each

1
P 518068 REX0JEG BR-005 Ring: C-Ring, A-20 No Model Compatibility List $1.88 / Each

1
U 518069 REX0JEJ CR-002 Ring, Retaining, 63/64, Snap Ring Yes Model Compatibility List $5.92 / Each

1
C 518074 REX0JGQ CC-003 Crank Key No Model Compatibility List $1.88 / Each

8,9
C 518080 REX0JZB UA-002 Hardware: M4 X .7 HXS NO CUP ST BO No Model Compatibility List $1.88 / Each

1
C 518087 REX0K0A CS-004 Hardware: Cap Screw, M8 X 1.25-16 No Model Compatibility List $1.88 / Each

2,9
M 518089 REX0K28 MR-003 Hardware: Cap Screw, M5 X 0.8-16 No Model Compatibility List $1.88 / Each

2,9
B 518092 REX0K2W BR-001 Hardware: Screw, SHCS Brake Mounting No Model Compatibility List $4.57 / Each

2
C 518106 REX0K5T CC-008 Hardware: Screw, PHl M5 X 0.8-10 No Model Compatibility List $1.88 / Each

2
M 518130 REX0KEH MR-006 Hardware: Screw, Pan HD with Patch M5 X .8-16 No Model Compatibility List $1.88 / Each

2
M 518132 REX0KEQ MS-016 Hardware: Screw, PHl PAN M5 X 0.8-12 No Model Compatibility List $1.88 / Each

2
M 518134 REX0KMR MR-011 Hardware: Nut, M5 X 0.8, 4MM Thick No Model Compatibility List $1.88 / Each

2
B 518142 REX0KR0 BT-017 Hardware: Nut, Lock M12 X 1.75-12 No Model Compatibility List $1.88 / Each

2
C 518143 REX0KR3 CR-005 Hardware: Nut, Lock M6 X 1, 6MM Thick No Model Compatibility List $1.88 / Each

2
B 518145 REX0KR5 BR-016 Hardware: Nut, Nylock M10 X 1.5, 10M Thick No Model Compatibility List $4.57 / Each

2
M 518147 REX0LS1 MR-007 SWITCH, ROCKER, ROCKER No Model Compatibility List $6.49 / Each

4,5,6
B 518230 REX20W4 BR-006 Hardware: Nut, HEX M10 X 1.5-6 No Model Compatibility List $1.88 / Each

2
C 518270 REX218N CR-003 Pulley, Crank Yes Model Compatibility List $93.12 / Each

8
B 518283 REX21A6 BR-014 Hardware: Bolt, Hook Clamp Yes Model Compatibility List $9.86 / Each

2
B 518284 REX21A7 BR-015 Hardware: Stud, Swivel No Model Compatibility List $3.84 / Each

1
B 518291 REX21BJ BR-009 Brake, Assembly Eddy Current Yes Model Compatibility List $478.80 / Each

8
B 518295 REX21LF BT-018 Bracket, Brake MTG Yes Model Compatibility List $50.64 / Each

3
B 518296 REX21LG BT-002 Spacer, Collar Yes Model Compatibility List $11.21 / Each

2
U 518302 REX21NN UP-002 Hardware: Nut, Insert M10 X 1.5 No Model Compatibility List $1.88 / Each

2
B 518303 REX21NP BT-003 Hardware: Bolt, HEX HD M12 X 1.75-110mm Yes Model Compatibility List $9.25 / Each

2
C 518306 REX21NS CR-001 Hardware: Bolt, HEX HD. M8 X 1.25-60MM Yes Model Compatibility List $5.92 / Each

2
C 518307 REX21NT CR-012 Hardware: Bolt, HEX HD M6 X 1-20 No Model Compatibility List $1.88 / Each

2
B 518337 REX21X8 BR-002 Spacer, Tensioner No Model Compatibility List $1.88 / Each

2,3,4,5,6
U 518342 REX22B3 UA-003 Hardware: Washer, .26 X 35-.8 No Model Compatibility List $4.57 / Each

2
U 518344 REX22B7 - Hardware: Cap Screw, M8 X 1.25-40 No Model Compatibility List $4.57 / Each

2,9
B 518363 REX22LR BR-017 Ring: C-Ring, A-16 No Model Compatibility List $3.84 / Each

1
C 518368 REX22RP CC-002 Hardware: Nut, Nylock M8 X 1.25 X 6MM Thick Yes Model Compatibility List $4.57 / Each

2
U 518369 REX22RR PL-007 Hardware: Nut, Nylock M10 X 1.5-8 Yes Model Compatibility List $4.57 / Each

2
B 518377 REX25ZJ BT-014 Hardware: Cap Screw, M8 X 1.25-20 No Model Compatibility List $2.17 / Each

2,9
M 518383 REX2AC8 - Clamp: Snap Standoff No Model Compatibility List $1.88 / Each

2,4,5,6
S 518445 REX2AX2 SC-002 Wheel-Floor Roller Yes Model Compatibility List $11.99 / Each

8
S 518446 REX2AX3 SC-009 Shaft, Wheel Mounting Yes Model Compatibility List $11.99 / Each

2,8
P 518496 REX2BAD PL-002 Shaft, Coupler Pedal Conn Yes Model Compatibility List $21.25 / Each

8,9
I 518502 REX2BKA IA-003 Bearing, Self-Align, 2202 No Model Compatibility List $17.70 / Each

1
P 518503 REX2BKB PL-003 Bearing, Self-Align, 2203 Yes Model Compatibility List $24.42 / Each

1
U 518505 REX2BKD US-002 Hardware: Bolt, HEX HD M10 X 1.5-74 Yes Model Compatibility List $4.57 / Each

2
C 518520 REX2D1X CS-010 Hardware: Screw, PHl PAN M5 X 0.8-6 No Model Compatibility List $1.88 / Each

2
U 518522 REX2DVG ID-007 Hardware: Bolt, HEX M10 X 1.5-20 No Model Compatibility List $1.88 / Each

2
C 518558 REX2HWH CBL-006 Drive Motor, Resistance Stepper No Model Compatibility List $103.50 / Each

10
P 518595 REX2LJZ PL-014 Axle, Adj Link No Model Compatibility List $5.83 / Each

8
C 518599 REX2LL1 CD-003 Weldment, Axle Crank No Model Compatibility List $56.83 / Each

3,8
C 518600 REX2LL2 CC-001 Weldment, Crank Arm Yes Model Compatibility List $78.94 / Each

8
C 518605 REX2LME - Belt, Drive, Poly V, 520J No Model Compatibility List $43.76 / Each

15,10
M 518612 REX2LPA - Bracket, Power Switch No Model Compatibility List $3.84 / Each

2,3,4,5,6
C 518615 REX2LQC - Cable, Grip, User Pod To MCB No Model Compatibility List $19.68 / Each

4,5,6,11
C 518616 REX2LQD - Cable, Upright, User Pod To MCB Yes Model Compatibility List $35.99 / Each

3,4,5,6
C 518617 REX2LQE - Cable, Base, User Pod To MCB Yes Model Compatibility List $35.99 / Each

3,4,5,6
C 518621 REX2LQJ CBL-012 Cable, Grip, HR Sensor To Console No Model Compatibility List $5.83 / Each

7,4,5,6,12,13,14,11
C 518622 REX2LQK CBL-005 Speed Sensor No Model Compatibility List $7.81 / Each

1
M 518623 REX2LQL - Electrical:Inlet, AC Yes Model Compatibility List $11.99 / Each

4,5,6
C 518626 REX2LQS CBL-001 Switch, Actuator Link, Motor Control No Model Compatibility List $19.98 / Each

7,4,5,6
C 518628 REX2LRT CC-005 Plate; Crank Yes Model Compatibility List $23.99 / Each

8
S 518630 REX2LUH SC-004 Grommet, 38MM X 25MM No Model Compatibility List $1.88 / Each

2
S 518631 REX2LUJ SC-002 Grommet, 50MM X 75MM No Model Compatibility List $1.88 / Each

2
I 518645 REX2ML3 - Grommet, Idler Front No Model Compatibility List $1.88 / Each

2,8
U 518647 REX2MP4 MS-015 Felt Disc No Model Compatibility List $1.88 / Each

1
U 518648 REX2MPQ UA-005 Hardware: Washer, 35MM OD X 10MM OD X 3MM Thick No Model Compatibility List $1.88 / Each

2
M 518654 REX2NAC M R-015 Hardware: Screw, CSL PAN M5 X 0.8-12 No Model Compatibility List $1.88 / Each

2
U 518655 REX2NAD UA-009 Hardware: Screw, PHl HD M4 X 18-28 No Model Compatibility List $1.88 / Each

2
I 518656 REX2NAG IA-002 Hardware: Screw, PHl PAN M3.5 X 18-12 No Model Compatibility List $2.50 / Each

2
M 518658 REX2NAK MS-010 Hardware: Screw, CSL PAN M5 X 0.8-8 No Model Compatibility List $5.33 / Each

2
P 518659 REX2NAM - Hardware: Screw, PHl PAN M4 X 0.7-12 No Model Compatibility List $1.88 / Each

2
M 518660 REX2NAP - Hardware: Screw, PHl Pan M3 X 0.5-8 No Model Compatibility List $1.88 / Each

2
P 518661 REX2NDD PL-011 Hardware: Washer, Spacer No Model Compatibility List $1.88 / Each

2,3,4,5,6
U 518663 REX2NEK US-006 Grommet, 38MM X 25MM Yes Model Compatibility List $5.48 / Each

2
S 518665 REX2NFK ST-008 Leveler, Leg Yes Model Compatibility List $11.90 / Each

1
C 518667 REX2NG7 - Hardware: Screw, PHl PAN M3 X 0.5-10 No Model Compatibility List $1.88 / Each

2
C 518673 REX2P4Q UP-015 Hardware: Bolt, HEX M10 X 1.5-16 No Model Compatibility List $1.81 / Each

2
C 518677 REX2QB4 CO-012 MOTOR ASSEMBLY LEFT No Model Compatibility List $389.89 / Each

1
C 518678 REX2QBA CO-011 MOTOR ASSEMBLY RIGHT No Model Compatibility List $389.89 / Each

1
C 518679 REX2R27 CBL-004 WIRE GROUND HR Yes Model Compatibility List $13.20 / Each

4,5,6
S 518739 REX2T9D ST-009 Hardware: Nut HEX M10X1.5 Black Zinc No Model Compatibility List $1.81 / Each

2,4,5,6
P 518743 REX2T9W PL-007 Hardware: Screw, PHl TRUSS M5X.8-8 No Model Compatibility List $1.81 / Each

2
B 518751 REX2VYD - Cable, Internal Brake Magnet No Model Compatibility List $13.09 / Each

4,5,6,8
M 518753 REX2WYC - Electrical:Fuse Metric 5X20 S-B 3.15A 250V No Model Compatibility List $16.04 / Each

1
C 518755 REX2XST CBL-002 Cable Idler Left No Model Compatibility List $64.67 / Each

8,4,5,6
C 518756 REX2XSU CBL-015 Cable Idler Right No Model Compatibility List $64.67 / Each

8,4,5,6
U 518758 REX2ZXH UA-016 BOLT: M8X1.25-20 HEX. SOC. HD. CAP No Model Compatibility List $1.75 / Each

2,9
M 518764 REX30YR MS-011 SCREW, PHL PAN M3.5 X 18-10 No Model Compatibility List $1.75 / Each

2
M 518766 REX33N0 MR-005 SCREW, PHL 5MM*.8 X 12MM No Model Compatibility List $1.75 / Each

2
C 518767 REX33ZD CBL-008 CABLE, UPPER CONSOLE TO MCB 10D933ZD No Model Compatibility List $38.11 / Each

7,4,5,6
C 518768 REX33ZE CBL-007 CABLE, BASE, MCB TO CONSOLE 10D933ZE No Model Compatibility List $40.90 / Each

7,3,4,5,6
B 518783 REX3535 BT-010 BRKT, BELT TENSOR Yes Model Compatibility List $33.40 / Each

15
S 518790 REX35JK ST010 STABILIZER ENDCAP Yes Model Compatibility List $5.04 / Each

9
C 518793 REX35UH CBL-003 CABLE, BASE, POWER No Model Compatibility List $17.94 / Each

3,4,5,6
C 518794 REX35VJ CBL-004 CONTROLLER, MOTOR, X8 No Model Compatibility List $718.80 / Each

7,8
C 518795 REX35VM CBL-010 CABLE, UPPER, USER POD TO CONSOLE No Model Compatibility List $24.11 / Each

7,4,5,6
C 518796 REX35VN CBL-009 CABLE, GRIP, USER POD TO CONSOLE No Model Compatibility List $23.56 / Each

7,4,5,6,11
C 518802 REX3E9M CC-006 CRANK COVER; TITANIUM Yes Model Compatibility List $32.26 / Each

8,9
M 518822 REX3HL5 MS-005 SHROUD, ACTUATOR; INNER RIGHT No Model Compatibility List $48.16 / Each

4,5,6,12,13,14
M 518823 REX3HL6 MS-012 SHROUD, ACTUATOR; OUTER RIGHT No Model Compatibility List $49.32 / Each

4,5,6,12,13,14
M 518824 REX3HL7 MS-004 SHROUD, ACTUATOR; INNER LEFT No Model Compatibility List $48.16 / Each

4,5,6,12,13,14
M 518825 REX3HL8 MS-013 SHROUD, ACTUATOR; OUTER LEFT No Model Compatibility List $49.39 / Each

4,5,6,12,13,14
P 518826 REX3HLX PL-014 PEDAL, INSERT Yes Model Compatibility List $87.16 / Each

8,9
P 518827 REX3HP0 PC-005 DEAD SHAFT COVER; FRONT No Model Compatibility List $9.28 / Each

9
P 518829 REX3HP2 PC-006 DEAD SHAFT COVER; REAR No Model Compatibility List $9.28 / Each

9
I 518831 REX3HP5 IA-001 PIVOT COVER; UPPER RIGHT No Model Compatibility List $4.49 / Each

8,9
I 518832 REX3HP6 IA-007 PIVOT COVER; LOWER RIGHT No Model Compatibility List $4.33 / Each

8,9
I 518833 REX3HP7 IA-011 PIVOT COVER; UPPER LEFT No Model Compatibility List $4.49 / Each

8,9
I 518834 REX3HP8 IA-012 PIVOT COVER; LOWER LEFT No Model Compatibility List $4.33 / Each

8,9
S 518835 REX3HP9 SC-007 GASKET; STRAIN RELIEF No Model Compatibility List $2.94 / Each

1
U 518836 REX3HR4 CS-006 TOP HEART RATE SENSOR Yes Model Compatibility List $16.38 / Each

11
U 518837 REX3HR5 CS-019 BOTTOM HEART RATE SENSOR Yes Model Compatibility List $16.38 / Each

11
U 518838 REX3HRH US-005 CONSOLE MAST ASSEMBLY No Model Compatibility List $356.88 / Each

7
C 518840 REX3HS8 CBL-023 QUICK KEY BOARD No Model Compatibility List $0.00 / Each
Out Of Stock 		9
C 518841 REX3HS9 CBL-018 HR BOARD ASSEMBLY No Model Compatibility List $276.31 / Each

12,13,14
C 518842 REX3HSA CBL-012 WIRE ASSEMBLY+M72 Yes Model Compatibility List $16.62 / Each

4,5,6
C 518844 REX3HSC CBL-015 HAND PULSE HARNESS Yes Model Compatibility List $16.00 / Each

4,11
C 518845 REX3HSE CBL-019 HAND PULSE HARNESS Yes Model Compatibility List $35.47 / Each

4
C 518846 REX3HSF CBL-021 HAND PULSE HARNESS Yes Model Compatibility List $21.02 / Each

4,5,6,12,13,14
U 518847 REX3HSU UA-013 SCREW: M4X16-30 PHL PAN HD No Model Compatibility List $1.75 / Each

2
P 518854 REX3HUH PL-010 PEDAL, RIGHT Yes Model Compatibility List $39.07 / Each

8,9
C 518861 REX3HV0 CS-010 WELDMENT CONSOLE BRKT Yes Model Compatibility List $47.76 / Each

3
M 518862 REX3HVE MS-008 REAR SHROUD LT FRT No Model Compatibility List $104.76 / Each

12,13,14
M 518863 REX3HVG MS-009 REAR SHROUD RT FRONT No Model Compatibility List $105.83 / Each

12,13,14
M 518864 REX3HVH MS-006 ADJ SLIDE COVER LT No Model Compatibility List $17.23 / Each

9
M 518865 REX3HVJ MS-007 ADJ SLIDE COVER RT No Model Compatibility List $17.23 / Each

9
P 518866 REX3HVK PL-008 PIVOT GUARD No Model Compatibility List $2.16 / Each

8,9,3
M 518867 REX3HVM MR-006 COVER, POWER BRKT No Model Compatibility List $2.78 / Each

9,4,5,6
P 518868 REX3HVQ PC-001 KNUCKLE REAR No Model Compatibility List $8.74 / Each

1
P 518869 REX3HVR PC-008 KNUCKLE FRONT No Model Compatibility List $9.50 / Each

1
C 518870 REX3HVS CS-009 CUPHOLDER No Model Compatibility List $44.83 / Each

1
C 518871 REX3HVT CS-018 COVER CONSOLE MTG BOTTOM REAR No Model Compatibility List $16.31 / Each

7,9
P 518872 REX3HVU PC-003 ACCESSORY TRAY No Model Compatibility List $12.76 / Each

4,5,6
C 518873 REX3HVV CS-017 COVER CONSOLE MTG BOTTOM FRONT No Model Compatibility List $38.02 / Each

7,9
P 518874 REX3HVW PC-004 INSERT CUP HOLDER No Model Compatibility List $12.98 / Each

1
C 518875 REX3HW3 CS-005 STATIONARY HANDLEBAR ASSEM LT No Model Compatibility List $50.56 / Each

11
C 518876 REX3HW4 CS-001 STATIONARY HANDLEBAR ASSEM RT No Model Compatibility List $50.56 / Each

11
C 518877 REX3HW5 CS-003 END CAP No Model Compatibility List $16.78 / Each

9
U 518878 REX3HW6 US-003 WELDMENT CUPHOLDER No Model Compatibility List $73.58 / Each

3
S 518879 REX3HW9 SC-009 STABILIZER WELDMENT No Model Compatibility List $101.12 / Each

3
C 518883 REX3HX1 CBL-016 WIRE ASSSEMBLY No Model Compatibility List $9.41 / Each

4,5,6
C 518884 REX3HX2 CBL-017 WIRE ASSSEMBLY No Model Compatibility List $9.97 / Each

4,5,6
C 518885 REX3HX5 CO-001 INCLINE MOTOR ASSEMBLY No Model Compatibility List $587.62 / Each

10
C 518886 REX3HX6 CO-006 INCLINE MOTOR ASSEMBLY No Model Compatibility List $587.62 / Each

10
S 518887 REX3HX7 SC-001 STABILIZER ASSEMBLY No Model Compatibility List $141.61 / Each

1
I 518888 REX3HX8 IA-010 LEFT OUTER ARM ASSEMBLY No Model Compatibility List $179.76 / Each

3
I 518889 REX3HX9 IA-009 RIGHT OUTER ARM ASSEMBLY No Model Compatibility List $179.76 / Each

3
C 518890 REX3HXA CS-007 CONTROL ASSEMBLY No Model Compatibility List $424.38 / Each

7
M 518893 REX3JNL PC-002 SCREW: M3.5X18-12 TRUSS HD. TAPPING No Model Compatibility List $1.75 / Each

2,12,13,14
S 518894 REX3JNN UP-018 BOLT, HEX M10X1.5-16 ; BLACK ZINC No Model Compatibility List $1.78 / Each

2,4,5,6
C 518895 REX3JNZ CC-007 SCREW, PHL PAN M5X.8-8; BLACK ZINC No Model Compatibility List $1.75 / Each

2,4,5,6
U 518896 REX3JPU US-010 SCREW, PHL M5 X.8X12 PAN HD. TAPPING No Model Compatibility List $1.75 / Each

2,12,13,14
C 518897 REX3JPY CS-008 SCREW: M3.5X20-8 PHL PAN HD No Model Compatibility List $1.75 / Each

2
P 518898 REX3K52 PL-019 VELCRO PAD No Model Compatibility List $1.75 / Each

12,13,14
M 518906 REX3K6F MS-003 REAR LEFT SHROUD WITH LABEL No Model Compatibility List $113.72 / Each

12,13,14
M 518907 REX3K6G MS-002 REAR RIGHT SHROUD WITH LABEL No Model Compatibility List $113.72 / Each

12,13,14
U 518908 REX3K6H US-009 LEFT FRONT LOWER COVER W/BADGE No Model Compatibility List $68.51 / Each

9
U 518909 REX3K6K US-001 RIGHT FRONT LOWER COVER W/BADGE No Model Compatibility List $68.51 / Each

9
U 518910 REX3K6L UA-011 LEFT ROCKER ARM W/BEARINGS No Model Compatibility List $240.53 / Each

3
U 518911 REX3K6M UA-012 RIGHT ROCKER ARM W/BEARINGS No Model Compatibility List $240.53 / Each

3
U 518912 REX3K6N UA-001 NLA: LEFT HANDLEBAR ASSEM No Model Compatibility List $0.00 / Each
Out Of Stock 		11
P 518913 REX3K6W PL-013 LEFT PEDAL LEVER W/BEARINGS No Model Compatibility List $351.01 / Each

8,9,3
P 518914 REX3K6Z PL-012 RIGHT PEDAL LEVER W/BEARINGS No Model Compatibility List $351.01 / Each

8,9,3
U 518915 REX3KL6 UA-014 RESISTANCE BUTTON ASSEMBLY Yes Model Compatibility List $59.82 / Each

11
U 518916 REX3PA8 UA-005 ASSEMBLY: HANDLEBAR, RIGHT W/SWITCH Yes Model Compatibility List $234.44 / Each

4,5,6,11
Eddy ECB Magnetic Brake Chi Hua 1000702 7459501 Eddy ECB Magnetic Brake Chi Hua Yes Model Compatibility List $130.80 / Each
Out Of Stock
U 1011998 REX22RR UA-010 Nylock Nut (New) Yes Model Compatibility List $13.99 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
