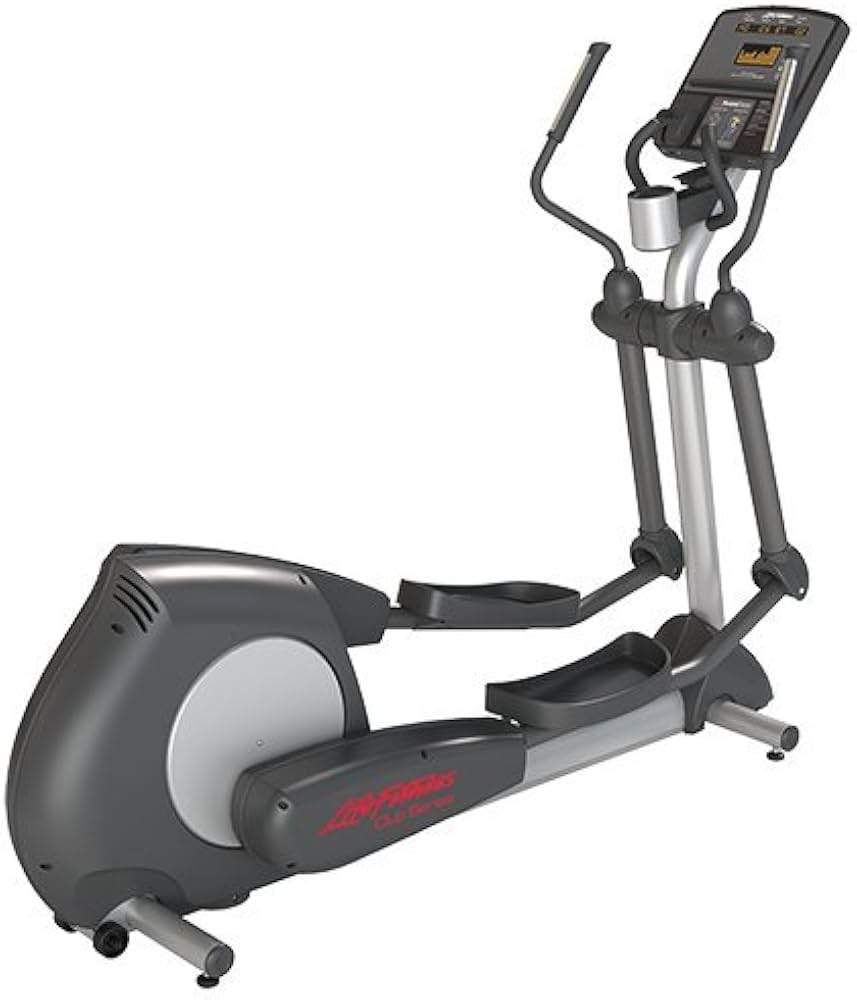

Life Fitness - INTEGRITY (CHC)

Repair Parts for Life Fitness INTEGRITY (CHC) CSXD-ALLXX-7201

Brand: Life Fitness

Category: Commercial Ellipticals

Type: Elliptical

Model Name: INTEGRITY (CHC)

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry [email protected]

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
6V Battery Cyclon 500003 0017-00003-0685 LF-008 6V Battery Cyclon Yes Model Compatibility List $57.25 / Each

1
500297 0017-00042-1147 A31 Hardware: Nylon Grommet No Model Compatibility List $1.88 / Each

2
500340 0017-00100-0257 BE-117 Retaining Ring No Model Compatibility List $1.88 / Each

1
Hardware: Phillips Pan Screw 0.375 500502 0017-00101-1650 MS-002 Hardware: Phillips Pan Screw 0.375" No Model Compatibility List $1.68 / Each

2
Hardware: Mounting Screw 19 MM 500566 0017-00101-1796 UF-017 Hardware: Mounting Screw 19 MM Yes Model Compatibility List $4.57 / Each

2
Hardware: Phillips Pan Screw 10 MM 500587 0017-00101-1846 FS-009 Hardware: Phillips Pan Screw 10 MM Yes Model Compatibility List $3.23 / Each

2
500651 0017-00101-1988 TS-006 Hardware: Outside Crank Cover Mounting Screw 14MM No Model Compatibility List $1.81 / Each

2,8,9
500652 0017-00101-1989 LL-012 Hardware: M4 6G6G X 10 DIN PHl PAN ZN No Model Compatibility List $3.84 / Each

1
Hardware: Tension Bolt 60MM 500655 0017-00101-2002 BE-121 Hardware: Tension Bolt 60MM Yes Model Compatibility List $3.84 / Each

1
500686 0017-00101-2064 TL-005 SCREW: M6 X 1 X 40, HEX HEAD, CAP No Model Compatibility List $2.03 / Each

2,9
500734 0017-00101-2138 BS-006 SCREW: M6 X 1.0 X 16, DIN, PHL, PAN, MS, ST, ZB No Model Compatibility List $1.63 / Each

2
SCREW: M8 X 1.25 6G6H X 20, UHS, HXW, CS, ST, ZB 500740 0017-00101-2150 BS-009 SCREW: M8 X 1.25 6G6H X 20, UHS, HXW, CS, ST, ZB Yes Model Compatibility List $1.78 / Each

2
500741 0017-00101-2151 LA-004 SCREW: M5 X 0.8 6G6G X 12, FLANGE, HEAD, CS, G5, No Model Compatibility List $1.92 / Each

2
500797 0017-00103-0330 - Hardware: Nut 10 MM ID No Model Compatibility List $1.88 / Each

2
Hardware: Nut 10 MM 500800 0017-00103-0334 ST-010 Hardware: Nut 10 MM No Model Compatibility List $1.88 / Each

2
500807 0017-00103-0378 TL-003 NUT: M6 X 1-6H6H, DIN, LOCKNUT, ST, BZ No Model Compatibility List $1.82 / Each

2
Hardware: Flat Washer 1.62 500881 0017-00104-0454 DS-058 Hardware: Flat Washer 1.62" OD No Model Compatibility List $3.84 / Each

1
500892 0017-00104-0468 UF-037 Hardware: Washer 18 MM OD No Model Compatibility List $1.88 / Each

2
500894 0017-00104-0470 DR-017 Hardware: Washer 20 MM OD No Model Compatibility List $1.88 / Each

2
500902 0017-00104-0498 BE-116 Hardware: Shaft Washer Small .734- OD No Model Compatibility List $1.88 / Each

2
Hardware: Thrust Washer 501530 0K47-01104-0000 LS-008 Hardware: Thrust Washer Yes Model Compatibility List $5.92 / Each

2,12,13,14
502224 0K62-01178-0000 5 Leg Leveler No Model Compatibility List $3.78 / Each

1
502538 0K66-01237-0000 BE-115 Hardware: Shaft Washer Large No Model Compatibility List $5.59 / Each

2
Shaft Collar 502613 0K69-01018-0000 FR-015 Shaft Collar Yes Model Compatibility List $24.94 / Each

1
Shaft 502623 0K69-01075-0000 LS-002 Shaft Yes Model Compatibility List $14.71 / Each

1
502678 0K69-01190-0000 LS-003 Hardware: Steel Thrust Washer No Model Compatibility List $1.97 / Each

2,12,13,14
SCREW: M10 X 1.5 X 85, SHCS 502971 1000721-0001 PD-002 SCREW: M10 X 1.5 X 85, SHCS No Model Compatibility List $2.35 / Each

2
502988 1001015-0001 RR-002 BAR: EXTENSION ARM No Model Compatibility List $10.31 / Each

3
502989 1001018-0001 CA-001 WELDMENT: CRANK ARM No Model Compatibility List $56.86 / Each

3,8
502990 1001020-5100 CA-002 COVER: CRANK ARM, ARCTIC SILVER ROBUST No Model Compatibility List $180.38 / Each

3,8,9
502991 1001020-7100 CA-002 COVER: CRANK ARM, PEARLESCENT WHITE ROBUST No Model Compatibility List $194.52 / Each

3,8,9
502992 1001020-7200 CA-002 COVER: CRANK ARM, TITANIUM ROBUST No Model Compatibility List $71.92 / Each

3,8,9
502993 1001020-7300 CA-002 COVER: CRANK ARM, METALLIC BLACK ROBUST No Model Compatibility List $189.76 / Each

3,4,5,6,8,9
502994 1001020-7400 CA-002 COVER: CRANK ARM, CHARCOAL GRAY ROBUST No Model Compatibility List $71.92 / Each

3,8,9
502995 1001022-0001 BP-008 BEARING: 62 MM X 30, BALL, INSERT No Model Compatibility List $35.42 / Each

1
502996 1001029-5100 HB-007 WELDMENT: CONSOLE MOUNT, ARCTIC SILVER ROBUST No Model Compatibility List $158.34 / Each

2,3,7
502997 1001029-5800 HB-007 WELDMENT: CONSOLE MOUNT PLANET PURPLE No Model Compatibility List $156.12 / Each

2,3,7
502998 1001029-7100 HB-007 WELDMENT: CONSOLE MOUNT, PEARLESCENT WHITE ROBUST No Model Compatibility List $142.39 / Each

2,3,7
502999 1001029-7200 HB-007 WELDMENT: CONSOLE MOUNT TITANIUM No Model Compatibility List $158.86 / Each

2,3,7
503000 1001029-7300 HB-007 WELDMENT: CONSOLE MOUNT, METALLIC BLACK ROBUST No Model Compatibility List $142.39 / Each

2,3,4,5,6,7
CUPHOLDER: LOCKING, CHARCOAL GRAY 503001 1001034-2400 CH-003 CUPHOLDER: LOCKING, CHARCOAL GRAY Yes Model Compatibility List $11.87 / Each

1
503002 1001037-0001 RR-003 COLLAR: SHAFT, SPLIT, 25mm No Model Compatibility List $0.00 / Each
Out Of Stock 		1
503004 1001040-0001 FR-005 BLOCK: LEVELER No Model Compatibility List $6.14 / Each

1
503005 1001048-5800 RA-001 ASSEMBLY: ROCKER ARM, PURPLE ROBUST No Model Compatibility List $288.95 / Each

3
503006 1001048-7400 RA-001 ASSEMBLY: ROCKER ARM, CHARCOAL GREY ROBUST No Model Compatibility List $288.41 / Each

3
503007 1001059-0700 HB-001 WELDMENT: BULLHORN, BLACK No Model Compatibility List $252.53 / Each

3,4,5,6
503008 1001096-5800 PD-008 ASSEMBLY: PEDAL LEVER, LEFT, W/HARDWARE, PURPLE ROBUST No Model Compatibility List $403.49 / Each

3,8,9
503009 1001096-7400 PD-008 ASSEMBLY: PEDAL LEVER, LEFT, W/HARDWARE, CHARCOAL GRAY ROBUST No Model Compatibility List $320.03 / Each

3,8,9
503010 1001097-5800 PD-001 ASSEMBLY: PEDAL LEVER, RIGHT, W/HARDWARE, PURPLE ROBUST No Model Compatibility List $406.80 / Each

3,8,9
503011 1001097-7400 PD-001 ASSEMBLY: PEDAL LEVER, RIGHT, W/HARDWARE, CHARCOAL GRAY ROBUST No Model Compatibility List $320.03 / Each

3,8,9
503029 1001517-0001 WD-009 POWER SUPPLY: 12 VDC, 3A No Model Compatibility List $115.92 / Each

4,5,6
503049 1001609-2400 MN-013 SHROUD: REAR, FILLER, CHARCOAL GRAY No Model Compatibility List $8.20 / Each

12,13,14
ASSEMBLY: IDLER 503052 1001619-0001 BP-007 ASSEMBLY: IDLER Yes Model Compatibility List $50.40 / Each

8
503059 1001653-0003 CBL-010 CABLE ASSY: HDMI, PANEL MOUNT, RIGHT, CROSSTRAINER No Model Compatibility List $31.09 / Each

2,4,5,6,7
CABLE: IR, CONSOLE TO PANEL, CROSSTRAINER 503063 1001671-0003 CBL-009 CABLE: IR, CONSOLE TO PANEL, CROSSTRAINER Yes Model Compatibility List $92.87 / Each

4,5,6,7
503120 1002239-0003 WDB-002 CABLE: CONSOLE TO BASE, SIGNAL, 3625MM No Model Compatibility List $23.68 / Each

3,4,5,6,7
503125 1002258-0003 WDB-001 CABLE: CONSOLE TO BASE, POWER, 3625MM No Model Compatibility List $72.22 / Each

3,4,5,6,7
503140 1002564-0001 BP-009 BELT: POLY-V, 550 J10 No Model Compatibility List $47.92 / Each

15
503141 1002566-0000 BP-005 PULLEY: OVERMOLD, SHAFT No Model Compatibility List $178.27 / Each

8
503143 1002573-2400 DS-001 SHROUD: DEADSHAFT, A, CHARCOAL GRAY No Model Compatibility List $9.60 / Each

12,13,14
503144 1002574-2400 DS-002 SHROUD: DEADSHAFT, B, CHARCOAL GRAY No Model Compatibility List $9.66 / Each

12,13,14
503145 1002575-2400 US-001 SHROUD: UPPER, RIGHT, CHARCOAL GRAY No Model Compatibility List $17.60 / Each

12,13,14
503146 1002576-2400 US-002 SHROUD: UPPER, LEFT, CHARCOAL GRAY No Model Compatibility List $17.47 / Each

12,13,14
503147 1002577-2400 US-003 SHROUD: UPPER, MIDDLE, CHARCOAL GRAY No Model Compatibility List $15.01 / Each

12,13,14
503148 1002578-2400 DS-005 SHROUD: CONSOLE, BACK, CHARCOAL GRAY No Model Compatibility List $16.37 / Each

4,5,6,7,12,13,14
503155 1002587-2400 PL-001 SHROUD: COMMUNICATION PORT, CHARCOAL GRAY No Model Compatibility List $4.12 / Each

12,13,14
503156 1002588-2400 LS-004 SHROUD: LINK, INNER, RIGHT, CHARCOAL GRAY No Model Compatibility List $35.42 / Each

12,13,14
503157 1002589-2400 LS-003 SHROUD: LINK, INNER, LEFT, CHARCOAL GRAY No Model Compatibility List $35.42 / Each

12,13,14
503158 1002592-2400 LS-002 SHROUD: LINK, OUTER, RIGHT, CHARCOAL GRAY No Model Compatibility List $39.80 / Each

12,13,14
503159 1002593-2400 LS-001 SHROUD: LINK, OUTER, LEFT, CHARCOAL GRAY No Model Compatibility List $39.80 / Each

12,13,14
503160 1002594-2400 CC-001 SHROUD: CLEVIS, FRONT, CHARCOAL GRAY No Model Compatibility List $6.56 / Each

12,13,14
503161 1002595-2400 CC-002 SHROUD: CLEVIS, BACK, CHARCOAL GRAY No Model Compatibility List $6.56 / Each

4,5,6,12,13,14
503162 1002599-0001 CA-004 KEY: 7 X 8 No Model Compatibility List $1.63 / Each

9
PCB ASSEMBLY: RESISTANCE CONTROL 503226 1003117-0011 CP-004 PCB ASSEMBLY: RESISTANCE CONTROL Yes Model Compatibility List $598.80 / Each

7,10
503242 1003359-7401 HB-005 ASSEMBLY: HANDLEBAR, SIMPLE, LEFT, CHARCOAL GRAY ROBUST No Model Compatibility List $237.30 / Each

11
503243 1003360-7401 HB-006 ASSEMBLY: HANDLEBAR, SIMPLE, RIGHT, CHARCOAL GRAY ROBUST No Model Compatibility List $237.30 / Each

11
503244 1003361-7401 HB-003 ASSEMBLY: HANDLEBAR, FEATURED, LEFT, CHARCOAL GRAY ROBUST No Model Compatibility List $310.68 / Each

11
503245 1003362-7401 HB-004 ASSEMBLY: HANDLEBAR, FEATURED, RIGHT, CHARCOAL GRAY ROBUST No Model Compatibility List $338.35 / Each

11
503254 1003388-0001 RR-004 NUT: M8 X 1.25-6H, DIN, UNF, HEX, LOCKNUT No Model Compatibility List $0.44 / Each

2
503255 1003401-0001 BP-001 GENERATOR: W/BRAKE, W/O CLUTCH, 10 RIB PULLEY No Model Compatibility List $431.57 / Each

8
503269 1003521-0003 C BL-013 CABLE: POWER, RCB TO PANEL, 5A, CROSSTRAINER No Model Compatibility List $33.48 / Each

4,5,6,7
503297 1003838-0002 CBL-004 CABLE: LIFEPULSE TO ELECTRODE, CROSSTRAINER No Model Compatibility List $8.88 / Each

3,4,5,6,12,13,14
503304 1003871-0002 CBL-003 CABLE: LIFEPULSE ELECTRODES, CROSSTRAINER No Model Compatibility List $14.71 / Each

3,4,5,6,12,13,14
503305 1003902-0001 TL-001 ASSEMBLY: TIE ROD, W/SELF-ALIGN BRG No Model Compatibility List $76.69 / Each

2,3
503306 1003903-0001 TL-002 BUSHING: BEARING, TIMING LINK No Model Compatibility List $7.93 / Each

8
503344 1004559-0001 CBL-002 CABLE: KEYPAD EXTENSION No Model Compatibility List $5.95 / Each

4,5,6,9,12,13,14
503350 1004601-0001 PL-004 PLUG: RJ45 RECEPTACLE No Model Compatibility List $1.63 / Each

4,5,6
503361 1004789-0001 TL-006 BUSHING: BEARING, TIMING LINK No Model Compatibility List $8.08 / Each

8
503366 1004808-0001 BE-019 POWER SUPPLY: 100-240VAC TO 24VDC, 5A, 2.5MM No Model Compatibility List $304.24 / Each

4,5,6
503489 1005393-0700 CP-006 PLUG: HDMI, BLACK No Model Compatibility List $1.63 / Each

4,5,6
503494 1005455-0001 PM-006 DECAL: REAR SHROUD VENT, CROSSTRAINER No Model Compatibility List $23.09 / Each

3,7,12,13,14
503500 1005470-0700 CP-008 PLUG: IR PORT, BLACK No Model Compatibility List $1.63 / Each

4,5,6
503690 1006633-0001 CA-007 LABEL: PF, CROSS-TRAINER, PIZZA PAN No Model Compatibility List $33.83 / Each

1
503720 1006811-0001 WDD-005 CABLE: DISCOVER TO HERCULES ADAPTOR, CROSSTRAINER No Model Compatibility List $41.03 / Each

4,5,6,9
503732 1006912-0001 CBL-001 CABLE: CONSOLE TO BASE KEYPAD, CROSSTRAINER No Model Compatibility List $11.04 / Each

3,4,5,6,7,9,12,13,14
503756 1007087-0001 5 DECAL: JFZ TAGLINE, LARGE SIZE No Model Compatibility List $12.85 / Each

3,7
503757 1007096-0001 WDB-011 FERRITE: ROUND CABLE SNAP, 240 OHM @ 250MHZ No Model Compatibility List $5.95 / Each

4,5,6
503864 1008296-0001 P M-003 ASSEMBLY: PEDAL W/LABEL; LEFT No Model Compatibility List $71.42 / Each

8,9
503865 1008297-0001 P M-004 ASSEMBLY: PEDAL W/LABEL; RIGHT No Model Compatibility List $71.42 / Each

8,9
504188 118E-00001-0304 CBL-006 KEYPAD: HANDLE GRIP No Model Compatibility List $34.32 / Each

9,11,12,13,14
504450 121E-00001-0023 WT-003 FERRITE: SUPPRESSION, CORE-CASE No Model Compatibility List $11.27 / Each

1
Cable: Coax RG6 Base 514134 AK65-00062-0000 BE-033 Cable: Coax RG6 Base Yes Model Compatibility List $21.65 / Each

1
514286 AK66-00165-0000 BE-026 NC: PULLEY ASSY: W/CLUTCH, UNIPLATE, ISO/DIN No Model Compatibility List $69.26 / Each

8
Battery cable 514427 AK69-00106-0000 BE-030 Battery cable Yes Model Compatibility List $11.76 / Each

1
CABLE ASSY: CAT5E, V2, 84 INCH 514477 AK70-00092-0000 BE-034 CABLE ASSY: CAT5E, V2, 84 INCH Yes Model Compatibility List $40.01 / Each

1
View Drawing
