Replacement Parts for Life Fitness Lifescape (LSB) LSB Cardio TV & Theater Attachable TV

Life Fitness - Lifescape (LSB)

Repair Parts for Life Fitness Lifescape (LSB) LSTV-0201-01BR

Brand: Life Fitness

Category: Cardio TV & Theater Attachable TV

Type: Miscellaneous Cardio

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

LSTV-0201-01BR

Model Name: Lifescape (LSB)

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

LSTV-0201-01BR.PDF

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
500051	0017-00003-1053	13	LINE-CORD: BRAZIL, IEC-C13	No	Model Compatibility List	$15.46 / Each	4,5,6
514189	AK65-00119-0000	AB-014	Assembly: Fastener Dual Lock; Make	No	Model Compatibility List	$44.59 / Each	1
502858	0K94-01012-0000	MS-010	LIFESCAPE REAR COVER	No	Model Compatibility List	$15.77 / Each	9
514667	AK94-00006-0000	MS-001	USB MEMORY STICK: 32GB; TREAD	No	Model Compatibility List	$212.60 / Each	1
500620	0017-00101-1935	MS-011	Phillips Pan Screw	No	Model Compatibility List	$1.70 / Each	2
514668	AK94-00007-0000	MS-002	USB MEMORY STICK: 32GB; BIKES	No	Model Compatibility List	$212.60 / Each	1
514669	AK94-00008-0000	MS-003	USB MEMORY STICK: 32GB; CT	No	Model Compatibility List	$212.60 / Each	1
500910	0017-00104-0519	MS-013	WSH: M6-5.5-15.2-1.6 IN-D NY NO	No	Model Compatibility List	$1.82 / Each	1
514665	AK94-00004-0000	MS-005	CABLE ASSY: CSAFE; INTEGRITY; NON-TREAD	No	Model Compatibility List	$36.70 / Each	4,5,6
516116	GK94-00002-0003	MS-014	LIFESCAPE CPU COOLING FAN WITH HEATSINK	No	Model Compatibility List	$27.20 / Each	8,9
502854	0K94-01005-0000	MS-006	CABLE: USB EXTENSION	No	Model Compatibility List	$9.41 / Each	4,5,6
514664	AK94-00003-0000	MS-008	USB WIRELESS ADAPTER	No	Model Compatibility List	$160.84 / Each	4,5,6

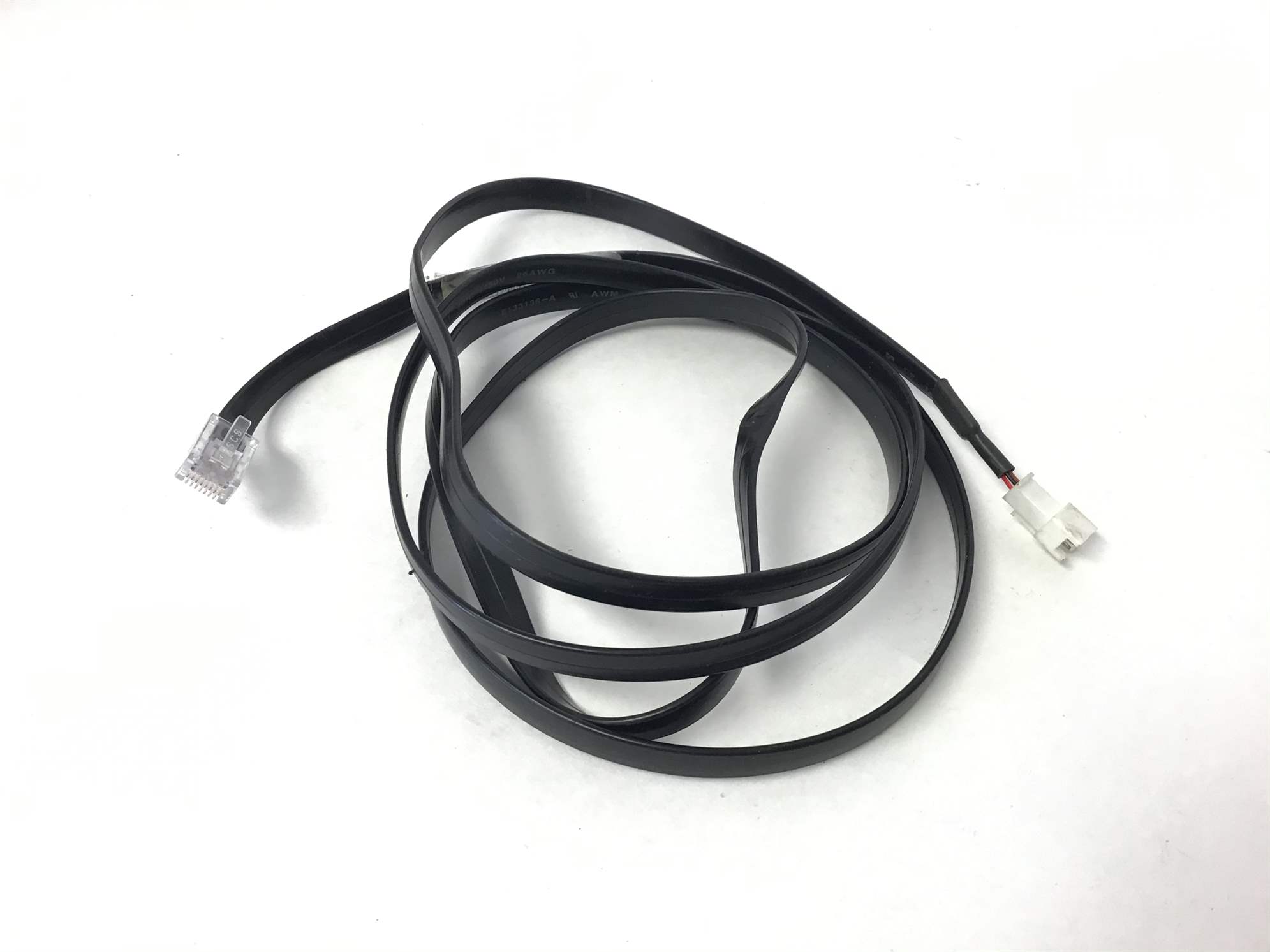

514666	AK94-00004-0001	MS-009	CABLE ASSY: CSAFE; INTEGRITY; TREAD	Yes	Model Compatibility List	$45.32 / Each	4,5,6
502855	0K94-01006-0000	TV-010	COUPLER: COAX; RIGHT ANGLE	No	Model Compatibility List	$12.18 / Each	1
517228	LSTV-0201-01BRR	TV-001	NC LIFESCAPE TV-NTSC/ATSC - BRAZIL	No	Model Compatibility List	$1.34 / Each	9,4,5,6
502853	0K94-01004-0000	TV-008	POWER SUPPLY: 12VDC; 6.25A	No	Model Compatibility List	$186.82 / Each	4,5,6

View Drawing
