Life Fitness - R3

Repair Parts for Life Fitness R3 R3-XX0X-0203

Brand: Life Fitness

Category: Consumer Recumbent Lifecycle Bike

Type: Stationary Bikes

Model Name: R3

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
- 506310 3225301 CR-006 Bearing, 12MM Ball No Model Compatibility List $11.84 / Each

1
- 518019 REX015D UH-001 Grommet, Upright Oval No Model Compatibility List $1.88 / Each

2,3
- 518020 REX019S FC-014 Spacer, Tensioner Yes Model Compatibility List $4.57 / Each

2,3,4,5,6
- 518021 REX019U - Idier Wheel Bracket Assembly No Model Compatibility List $13.74 / Each

2,8,3,4,5,6
- 518022 REX01A8 SP-007 Plastic Cap. Crank Yes Model Compatibility List $8.60 / Each

8,9
- 518023 REX01AK - Wheel, Assembly No Model Compatibility List $11.99 / Each

8
- 518026 REX01CZ SH-013 Cap, End No Model Compatibility List $1.88 / Each

9
- 518034 REX01QU DC-018 Spring, Belt Tension No Model Compatibility List $3.84 / Each

2,15
- 518036 REX01VL SS-015 Bumper, Seat Front Yes Model Compatibility List $8.60 / Each

12,13,14
- 518037 REX01VM SS-016 Spacer, Tube SM No Model Compatibility List $1.88 / Each

2,3,4,5,6
- 518039 REX0HVP ID-011 Bearing Ball 6004ZZ No Model Compatibility List $13.74 / Each

1
- 518045 REX0J4U - Hardware: Washer, Flat 6MM Id X 18MM Od No Model Compatibility List $1.88 / Each

2
- 518046 REX0J53 SS-005 Hardware: Washer, Flat .8.4*24-2 Yes Model Compatibility List $1.88 / Each

2
- 518047 REX0J5G SH-009 Hardware: Washer, 8MM ID X 18MM OD X 1.5MM Yes Model Compatibility List $3.23 / Each

2
- 518048 REX0J5H UH-012 Hardware: Washer, 6MM ID X 12MM OD Yes Model Compatibility List $1.88 / Each

2
- 518055 REX0J93 BR-008 Hardware: Washer, Lock Spring 1.0 Yes Model Compatibility List $3.23 / Each

2
- 518056 REX0J95 SH-002 Hardware: Washer, Spring Yes Model Compatibility List $3.23 / Each

2
- 518060 REX0JAG UH-017 Hardware: Washer, Lock Ext. Tooth BZ Yes Model Compatibility List $3.23 / Each

2
- 518068 REX0JEG BR-005 Ring: C-Ring, A-20 No Model Compatibility List $1.88 / Each

1
- 518069 REX0JEJ CR-002 Ring, Retaining, 63/64, Snap Ring Yes Model Compatibility List $5.92 / Each

1
- 518073 REX0JGM FC-010 Key, Crank Feather Type No Model Compatibility List $4.57 / Each

8,9
- 518076 REX0JPT FC-006 Hardware: Bolt, 8MM X 60MM Yes Model Compatibility List $4.57 / Each

2
- 518081 REX0JZM SP-004 Hardware: 8-18 Screw, HEX Washer Type 25 Yes Model Compatibility List $4.57 / Each

2
- 518082 REX0JZU FC-015 Hardware: Screw, SHCS Brake MTG Yes Model Compatibility List $4.57 / Each

2
- 518083 REX0K01 - Hardware: Screw, SHCS 5MM X 15MM Yes Model Compatibility List $3.23 / Each

2
- 518084 REX0K03 - Hardware: Screw, BSH Yes Model Compatibility List $3.23 / Each

2
- 518100 REX0K4R FC-003 Hardware: Screw, PHl 5MM X 12MM Yes Model Compatibility List $3.23 / Each

2
- 518101 REX0K4S SP-002 Hardware: Screw, PHl 5MM X 12MM Yes Model Compatibility List $3.23 / Each

2
- 518103 REX0K56 SH-014 Hardware: Screw, M5*.8-12MM CR RE Count HD Yes Model Compatibility List $4.04 / Each

2
- 518105 REX0K5E SS-001 Hardware: Screw, Seat Adj Yes Model Compatibility List $4.57 / Each

2,12,13,14
- 518108 REX0K77 - Hardware: CR.-RE. TRUSS HD. Screw No Model Compatibility List $2.92 / Each

2
- 518113 REX0KAA - CR.RE. PAN HD. Tapping Screw No Model Compatibility List $1.88 / Each

2,12,13,14
- 518117 REX0KC5 - Hardware: Screw, HR Sensor MTG No Model Compatibility List $2.30 / Each

2,12,13,14
- 518125 REX0KDH - Hardware: Screw, 5MM Diameter X 8MM PHl HD Yes Model Compatibility List $3.23 / Each

2
- 518126 REX0KDJ UH-013 Hardware: Screw, PHl 5MM*.8 X 12MM Yes Model Compatibility List $2.90 / Each

2
- 518129 REX0KDV 16 Hardware: Screw, M6 1.0-16 Yes Model Compatibility List $3.50 / Each

2
- 518133 REX0KFE UH-016 Hardware: Screw, GND Yes Model Compatibility List $5.58 / Each

2
- 518137 REX0KN5 FC-013 Hardware: Nut, M19 Low Prof No Model Compatibility List $6.53 / Each

2
- 518141 REX0KQW - NUT, LOCKING M5* .8-5MM No Model Compatibility List $1.88 / Each

2

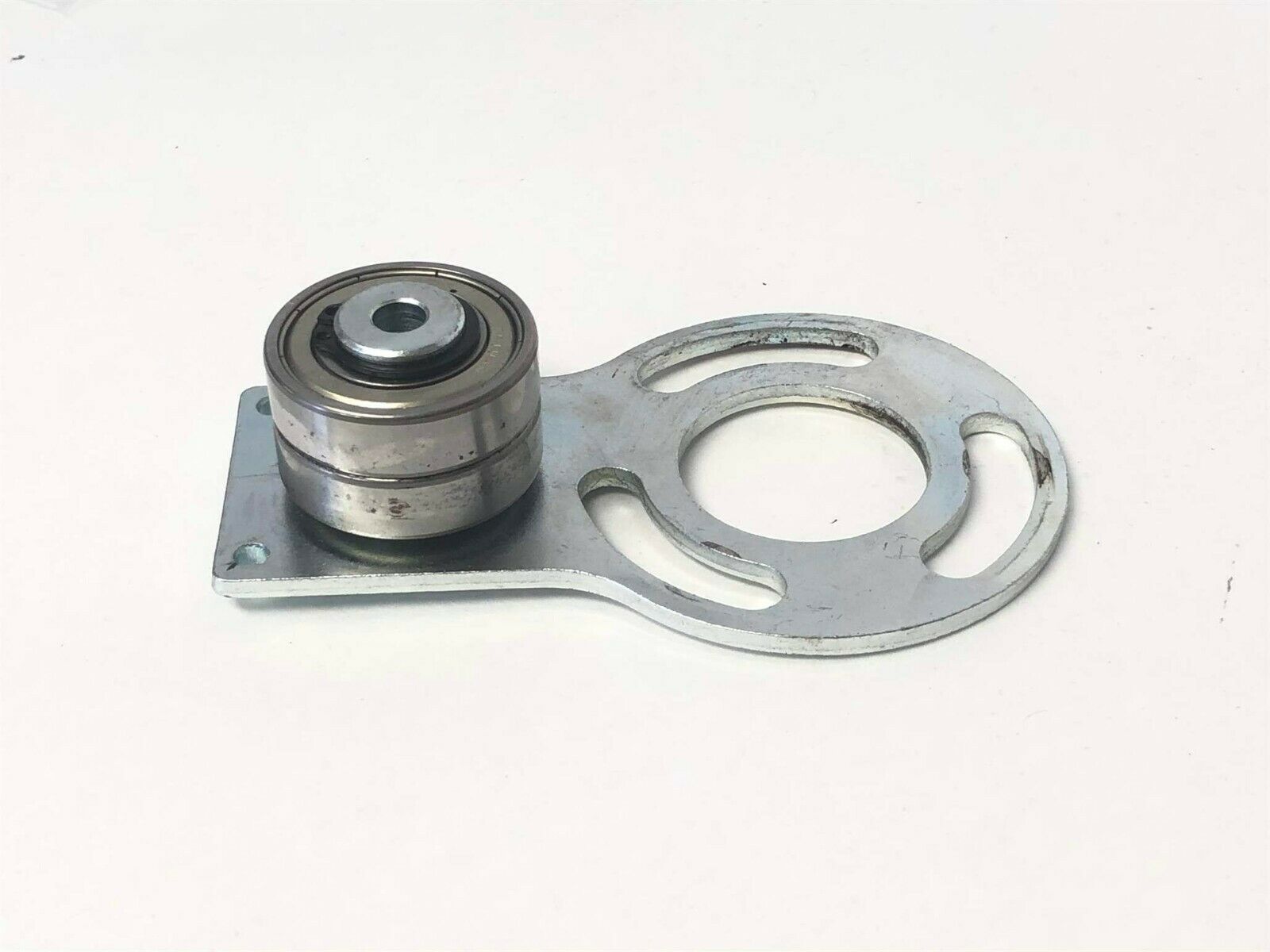

- 518149 REX0RXQ - Adjust: Tensioner, Belt Yes Model Compatibility List $53.52 / Each

15
- 518151 REX0WRG FC-008 Hardware: Bolt, 8MM X 100MM Yes Model Compatibility List $5.92 / Each

2
- 518152 REX118N SH-001 Hardware: Screw, CR. RE. PAN HD, M6-1.0 X 55MM No Model Compatibility List $5.92 / Each

2
- 518167 REX20L2 DC-010 Flywheel - Pulley No Model Compatibility List $74.64 / Each

1
- 518169 REX20LB DC-008 Crank Shaft No Model Compatibility List $56.83 / Each

8
- 518172 REX20MD SS-017 Stop, Seat Yes Model Compatibility List $11.90 / Each

12,13,14
- 518173 REX20ME SS-014 Extrusion, Seat Yes Model Compatibility List $239.90 / Each

12,13,14
- 518174 REX20MJ - Plunger Handle No Model Compatibility List $7.81 / Each

11
- 518175 REX20MK - Location Pin No Model Compatibility List $1.88 / Each

12,13,14
- 518176 REX20ML - Rubber Washer No Model Compatibility List $1.88 / Each

2
- 518177 REX20MN - Anchor Block No Model Compatibility List $1.88 / Each

1
- 518178 REX20MP - Compression Spring No Model Compatibility List $1.88 / Each

2
- 518179 REX20MQ - Pin-Pivot No Model Compatibility List $1.88 / Each

8,12,13,14
- 518180 REX20MR - Plunger Housing No Model Compatibility List $7.81 / Each

1
- 518181 REX20MS - Handle Shaft No Model Compatibility List $3.84 / Each

11
- 518193 REX20PY SS-021 Axle, Tension Yes Model Compatibility List $15.16 / Each

8
- 518194 REX20PZ SS-019 Wheel, Adjust Yes Model Compatibility List $4.57 / Each

8
- 518195 REX20Q0 SS-026 Spacer Yes Model Compatibility List $4.57 / Each

2,3,4,5,6
- 518196 REX20Q1 SS-027 Wheel, Rolling Yes Model Compatibility List $21.17 / Each

8
- 518197 REX20Q2 SS-028 Spacer Rexon Yes Model Compatibility List $8.22 / Each

2,3,4,5,6
- 518207 REX20ST - Clamp, Power Cord No Model Compatibility List $1.88 / Each

4,5,6
- 518220 REX20UZ SS-011 Cord Clamp Yes Model Compatibility List $15.32 / Each

4,5,6
- 518221 REX20V0 SS-013 Tension Plate Yes Model Compatibility List $4.57 / Each

1
- 518226 REX20VZ - Hardware: Bolt, M5* .8-16MM Cap HD SQ. Neck No Model Compatibility List $1.88 / Each

2,9
- 518227 REX20W0 SS-023 Hardware: Nut, M10*1.5 HEX SERRATED Flange Yes Model Compatibility List $3.23 / Each

2
- 518228 REX20W1 SS-029 Hardware: Bolt, HEX M10*1.5-160 Yes Model Compatibility List $7.87 / Each

2
- 518229 REX20W2 - Belt, Poly-V Yes Model Compatibility List $53.44 / Each

15
- 518231 REX20Y2 UH-009 Grommet, Upright Yes Model Compatibility List $6.53 / Each

2,3
- 518239 REX20Z6 - E-Ring No Model Compatibility List $1.88 / Each

1
- 518240 REX20ZA SS-018 Ring, Retaining Yes Model Compatibility List $3.23 / Each

1
- 518253 REX213C SS-020 Hardware: Washer, Flat Yes Model Compatibility List $3.23 / Each

2
- 518254 REX213D - Flat Washer No Model Compatibility List $1.88 / Each

2
- 518255 REX213E SS-022 Hardware: Washer, Flat Yes Model Compatibility List $1.88 / Each

2
- 518309 REX21NY SS-004 1 Inch Rubber Bumper Rear Yes Model Compatibility List $8.60 / Each

1
- 518314 REX21RA SS-003 Spacer, Tube Yes Model Compatibility List $8.60 / Each

2,3,4,5,6
- 518315 REX21RE - Hardware: Screw, SHCS 8MM X 50MM Yes Model Compatibility List $4.57 / Each

2
- 518340 REX229E SP-013 Assembly; Left And Right Pedal - R1-5 No Model Compatibility List $80.63 / Each

1
- 518344 REX22B7 - Hardware: Cap Screw, M8 X 1.25-40 No Model Compatibility List $4.57 / Each

2,9
- 518366 REX22P4 FC-007 Hardware: Washer, 8MM ID X 18MM OD Yes Model Compatibility List $4.57 / Each

2
- 518399 REX2ARH - Decal: Label, LifeFitness Logo No Model Compatibility List $11.76 / Each

7,3
- 518402 REX2AS2 - Shroud, Main Left No Model Compatibility List $94.82 / Each

12,13,14
- 518403 REX2AS3 - Shroud, Main Right Yes Model Compatibility List $120.36 / Each

12,13,14
- 518421 REX2ATV - Handle, Bar Right Yes Model Compatibility List $44.99 / Each

11
- 518422 REX2ATW - Grip No Model Compatibility List $7.87 / Each

11
- 518425 REX2AUG - Weldment, Seat Handlebar Yes Model Compatibility List $84.92 / Each

3,11
- 518426 REX2AUJ - Accessory: Holder, Cup Yes Model Compatibility List $21.49 / Each

4,5,6
- 518429 REX2AV3 - Cap, Seat Extrusion Yes Model Compatibility List $5.18 / Each

9,12,13,14
- 518465 REX2B02 - Cap, Grip Yes Model Compatibility List $7.26 / Each

9,11
- 518467 REX2B09 - Hardware: M4 X .7 HXS NO CUP ST BO Yes Model Compatibility List $1.88 / Each

1
- 518471 REX2B19 - Assembly, Rear Foot Stabilizer Yes Model Compatibility List $87.77 / Each

9
- 518472 REX2B1J - GRIP No Model Compatibility List $9.77 / Each

11
- 518478 REX2B81 - Handle, Bar Left Yes Model Compatibility List $44.99 / Each

11
- 518480 REX2B8B SS-008 Decal: Label, Seat Position No Model Compatibility List $12.55 / Each

3,7,12,13,14
- 518481 REX2B8C - Cover, Crank Yes Model Compatibility List $9.22 / Each

8,9
- 518483 REX2B8G - Seat, Assembly Yes Model Compatibility List $127.44 / Each

12,13,14
- 518489 REX2B92 SH-010 Sensor, Heart Rate No Model Compatibility List $7.81 / Each

12,13,14
- 518492 REX2B96 UH-015 Accessory: Water Bottle No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
- 518493 REX2B9X - Weldment, Seat Frame No Model Compatibility List $191.72 / Each

3,12,13,14
- 518499 REX2BF3 - Cover, Extra Crank Hole Yes Model Compatibility List $6.53 / Each

8,9
- 518538 REX2GEL CBL-002 E-Cable: Lead Wire Assembly (Upper Console) No Model Compatibility List $17.70 / Each

7,4,5,6
- 518540 REX2GH9 CBL-003 Cable Assembly, Hand Pulse Harness To Console Yes Model Compatibility List $13.19 / Each

4,5,6,7,12,13,14
- 518542 REX2GHB SS-009 Hand Pulse Harness, Seat Yes Model Compatibility List $18.48 / Each

4,5,6,12,13,14
- 518543 REX2GHC SH-004 Hand Pulse Harness, Handlebar No Model Compatibility List $7.81 / Each

4,5,6,12,13,14,11
- 518544 REX2GHD DC-005 E-Cable: Lead HR Wire Assembly with RJ11 Phone Jac Yes Model Compatibility List $19.27 / Each

4,5,6,12,13,14
- 518545 REX2GHQ - Decal: Badge, R3 Yes Model Compatibility List $12.47 / Each

3,7
- 518547 REX2GHS UH-008 Shroud, Access Cover Yes Model Compatibility List $23.95 / Each

4,5,6,9,12,13,14

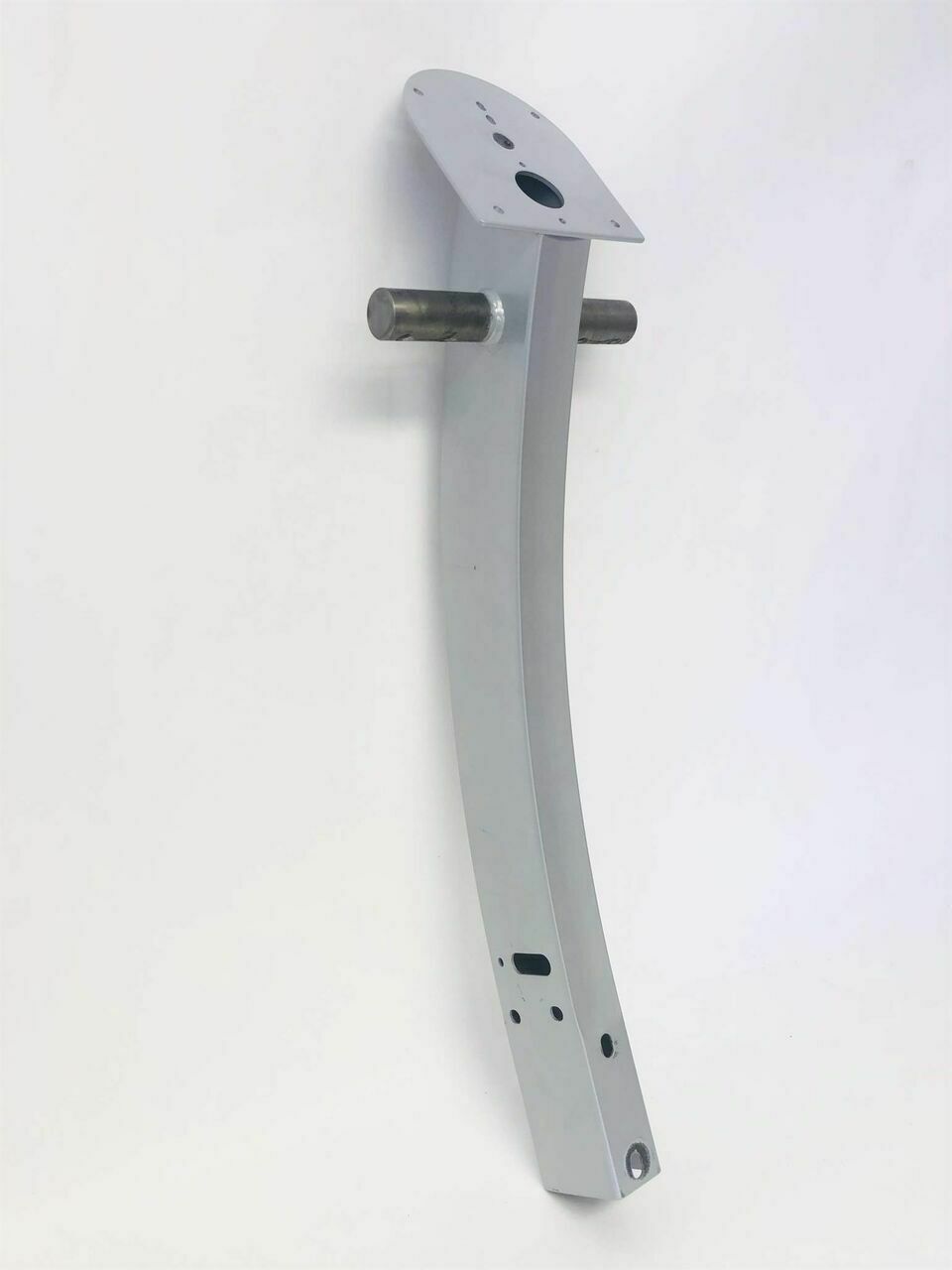

- 518551 REX2GVT - Weldment, Upright Yes Model Compatibility List $151.78 / Each

3
- 518552 REX2GVU - Seat Back Cover No Model Compatibility List $25.62 / Each

9,4,5,6,12,13,14
- 518554 REX2HGM - Seat Back with Lumbar Support No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
- 518564 REX2KHL SP-006 Pedal Strap, Left Yes Model Compatibility List $10.56 / Each

1
- 518565 REX2KHM SP-011 Pedal Strap, Right Yes Model Compatibility List $10.56 / Each

1
- 518633 REX2M02 - Electrical:Board, Circuit Yes Model Compatibility List $235.91 / Each

4,5,6
- 518634 REX2M0F - Cable, Splicer Lower Board Wire Yes Model Compatibility List $26.87 / Each
4
- 518814 REX3EUR - MAGNETIC BRAKE ASSY (Generator/Brake) Yes Model Compatibility List $658.24 / Each

8
- 518818 REX3GJ3 SP-008 CRANK, LEFT Yes Model Compatibility List $37.58 / Each

8
- 518819 REX3GJ4 SP-010 CRANK, R No Model Compatibility List $42.96 / Each

1
12mm Ball Bearing 000006 REX0HVQ 12mm Ball Bearing Yes Model Compatibility List $11.99 / Each
8
New Elliptical - Bike Basic Console English 000370 BAS-000X-0303 # 1 New Elliptical - Bike Basic Console English Yes Model Compatibility List $805.06 / Each

7
- 1022059 REX20L2 FR-013 1 Pulley Flywheel with Spindle Included (Used) No Model Compatibility List $67.19 / Each

1
Generator Wire only (Used) 1022061 REX21S8b 0 1 Generator Wire only (Used) No Model Compatibility List $17.46 / Each

1
Life Fitness Recumbent Bike Screw REX0KDH 1011364 R3-BS 0 6 Life Fitness Recumbent Bike Screw REX0KDH No Model Compatibility List $15.59 / Each

1
Life Fitness Recumbent Bike Screw REX0K03 1011354 R3-Screw 0 6 Life Fitness Recumbent Bike Screw REX0K03 No Model Compatibility List $15.59 / Each

1
Life Fitness Recumbent Bike Washer REX0JAG 1011327 R3-Washer 0 6 Life Fitness Recumbent Bike Washer REX0JAG No Model Compatibility List $15.59 / Each

1
Life Fitness Lifecycle Recumbent Bike Spacer REX2RVA 1011488 R3-Spacer 0 6 Life Fitness Lifecycle Recumbent Bike Spacer REX2RVA No Model Compatibility List $15.59 / Each

1
Life Fitness Lifecycle Recumbent Bike Nut REX2B09 1011421 R3-N 0 6 Life Fitness Lifecycle Recumbent Bike Nut REX2B09 No Model Compatibility List $15.59 / Each

1
Life Fitness Multimedia Remote TV Control Module Pad (Used) 1009099 R3-RTVCMP 0 1 Life Fitness Multimedia Remote TV Control Module Pad (Used) No Model Compatibility List $125.27 / Each

1
Life Fitness Lifecycle Recumbent Bike Shoulder Bolt REX2RVC 1011486 R3-SB 0 6 Life Fitness Lifecycle Recumbent Bike Shoulder Bolt REX2RVC No Model Compatibility List $22.79 / Each

1
Life Fitness Recumbent Bike Flat Washer rex0j53 1011321 R3-FW 0 6 Life Fitness Recumbent Bike Flat Washer rex0j53 No Model Compatibility List $15.59 / Each

1
Life Fitness Recumbent Bike Cup Holder Accessory Tray REX2AUJ 1011388 R3-CHAT 0 1 Life Fitness Recumbent Bike Cup Holder Accessory Tray REX2AUJ No Model Compatibility List $26.39 / Each
Out Of Stock 		1
Life Fitness Recumbent Bike Bottom Seat Cushion Pad REX2B8G 1011396 R3-BSCP 0 3 Life Fitness Recumbent Bike Bottom Seat Cushion Pad REX2B8G No Model Compatibility List $167.99 / Each

1
Life Fitness Lifecycle Recumbent Bike Back Seat Bearing REX2RV9 1011490 R3-BSB 0 6 Life Fitness Lifecycle Recumbent Bike Back Seat Bearing REX2RV9 No Model Compatibility List $19.19 / Each

1
Life Fitness Recumbent Bike Right Handle Bar REX2ATV 1011386 R3-RHB 0 4 Life Fitness Recumbent Bike Right Handle Bar REX2ATV No Model Compatibility List $35.99 / Each

1
Life Fitness Lifecycle Recumbent Bike Spacer REX019S 1011468 R3-Spacer 0 6 Life Fitness Lifecycle Recumbent Bike Spacer REX019S No Model Compatibility List $15.59 / Each

1
Life Fitness Recumbent Bike 1 1011415 R3-1"RB 0 7 Life Fitness Recumbent Bike 1" Rubber Bumper REX21NY No Model Compatibility List $15.59 / Each

1
Life Fitness Lifecycle Recumbent Bike Tension Axle REX20PY 1011450 R3-TA 0 7 Life Fitness Lifecycle Recumbent Bike Tension Axle REX20PY No Model Compatibility List $23.99 / Each

1
Life Fitness Lifecycle Recumbent Bike Seat Rail REX20ME 1011454 R3-SR 0 1 Life Fitness Lifecycle Recumbent Bike Seat Rail REX20ME No Model Compatibility List $189.59 / Each

1
Life Fitness Lifecycle Recumbent Bike Transport Wheel REX20Q1 1011444 R3-TW 0 6 Life Fitness Lifecycle Recumbent Bike Transport Wheel REX20Q1 No Model Compatibility List $26.39 / Each

1
Life Fitness Lifecycle Recumbent Bike Adjust Wheel REX20PZ 1011448 R3-AW 0 12 Life Fitness Lifecycle Recumbent Bike Adjust Wheel REX20PZ No Model Compatibility List $15.59 / Each

1
Life Fitness Lifecycle Recumbent Bike Flat Washer REX213C 1011348 R3-FW 0 6 Life Fitness Lifecycle Recumbent Bike Flat Washer REX213C No Model Compatibility List $15.59 / Each

1
- 000129 REX2KHM 0 1 Right Pedal Strap Yes Model Compatibility List $23.99 / Each

1
Left Pedal Strap 000130 REX2KHL 0 1 Left Pedal Strap Yes Model Compatibility List $23.99 / Each

1
- 1011323 REX0J93 0 1 Washer Yes Model Compatibility List $15.59 / Each

2
- 1011325 REX0J95 0 1 Spring Washer Yes Model Compatibility List $15.59 / Each

2
- 1011329 REX0JPT 0 1 Bolt Yes Model Compatibility List $15.59 / Each

2
- 1011331 REX0JZU 0 1 Screw Yes Model Compatibility List $15.59 / Each

2
Screw 1011333 REX0K0B 0 1 Screw Yes Model Compatibility List $15.59 / Each

2
- 1011346 REX213E 0 1 Flat Washer Yes Model Compatibility List $15.59 / Each

2
- 1011352 REX0K01 0 1 Screw Yes Model Compatibility List $15.59 / Each

2
- 1011356 REX0K4R 0 1 Screw Yes Model Compatibility List $15.59 / Each

2
- 1011358 REX0K4S 0 1 Screw Yes Model Compatibility List $15.59 / Each

2
- 1011360 REX0K5E 0 1 Screw Yes Model Compatibility List $15.59 / Each

2,12,13,14
- 1011362 REX0K56 0 1 Screw Yes Model Compatibility List $15.59 / Each

2
- 1011366 REX0KDJ 0 1 Screw Yes Model Compatibility List $16.79 / Each

2
- 1011368 REX0KDV 0 1 Screw Yes Model Compatibility List $16.79 / Each

2
- 1011376 REX0KFE 0 1 Screw Yes Model Compatibility List $19.19 / Each

2
- 1011378 REX0RXQ 0 1 Idler Wheel Pulley Belt Tensioner Yes Model Compatibility List $50.39 / Each

15
- 1011382 REX01VL 0 1 Seat Front Bumper Yes Model Compatibility List $15.59 / Each

12,13,14
- 1011384 REX2AS3 0 1 Right Main Shroud Cover Yes Model Compatibility List $89.99 / Each

12,13,14
- 1011390 REX2AV3 0 1 Seat Rail Endcap Yes Model Compatibility List $17.99 / Each

9,12,13,14
- 1011394 REX2B02 0 1 Grip Cap Yes Model Compatibility List $15.59 / Each

9,11
- 1011399 REX20W1 0 1 Bolt Hex - M10 x 1/5" Yes Model Compatibility List $17.99 / Each

2
- 1011401 REX20W0 0 1 Hex Serr Flange Nut M101.5 Yes Model Compatibility List $15.59 / Each

2
- 1011405 REX22P4 0 1 Washer Yes Model Compatibility List $15.59 / Each

2
- 1011407 REX22B7 0 1 Screw No Model Compatibility List $15.59 / Each

2,9
Magnetic Resistance Brake Assembly 1011409 REX21S8 0 1 Magnetic Resistance Brake Assembly Yes Model Compatibility List $958.80 / Each

8
- 1011411 REX21RE 0 1 Screw Yes Model Compatibility List $15.59 / Each

2
- 1011413 REX21RA 0 1 Tube Spacer Yes Model Compatibility List $15.59 / Each

2,3,4,5,6
- 1011417 REX20ZA 0 1 Ring Retaining Yes Model Compatibility List $15.59 / Each

1
- 1011423 REX2B19 0 1 Rear Stabilizer Yes Model Compatibility List $76.79 / Each

9
- 1011425 REX20V0 0 1 Tension Plate Yes Model Compatibility List $15.59 / Each

1
- 1011427 REX20UZ 0 1 Cord Clamp Yes Model Compatibility List $15.59 / Each

4,5,6
- 1011429 REX2B81 0 1 Handle Bar Yes Model Compatibility List $35.99 / Each

11
- 1011431 REX2GH9 0 1 Hand Pulse Harness to Console Cable Assembly Yes Model Compatibility List $21.59 / Each

4,5,6,7,12,13,14
- 1011433 REX2GHB 0 1 Seat Heart Rate Wire Harness Yes Model Compatibility List $32.39 / Each

4,5,6,12,13,14
- 1011435 REX2GHD 0 1 Lead Heart Rate Wire w/Phone Jack Connector Yes Model Compatibility List $29.99 / Each

4,5,6,12,13,14
- 1011437 REX2GHS 0 1 Shroud Access Cover Yes Model Compatibility List $28.79 / Each

4,5,6,9,12,13,14
- 1011439 REX2GVT 0 1 Upright Weldment Yes Model Compatibility List $122.39 / Each

3
- 1011442 REX20Q2 0 1 Spacer Yes Model Compatibility List $19.19 / Each

2,3,4,5,6
- 1011446 REX20Q0 0 1 Spacer Yes Model Compatibility List $15.59 / Each

2,3,4,5,6
End Cap 1011452 REX20N7 0 1 End Cap Yes Model Compatibility List $15.59 / Each

3,9
- 1011456 REX20MD 0 1 Seat Stop Rail Yes Model Compatibility List $17.99 / Each

12,13,14
- 1011462 REX2M02 0 1 Electronic Circuit Board Yes Model Compatibility List $185.99 / Each

4,5,6
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
