Life Fitness - R3

Repair Parts for Life Fitness R3 R3-XX0X-0303

Brand: Life Fitness

Category: Consumer Recumbent Lifecycle Bike

Type: Stationary Bikes

Model Name: R3

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
- 500485 0017-00101-1621 FS-021 Hardware: Phillips Screw 0.5" Yes Model Compatibility List $3.23 / Each

2
- 506310 3225301 CR-006 Bearing, 12MM Ball No Model Compatibility List $11.84 / Each

1
- 518019 REX015D UH-001 Grommet, Upright Oval No Model Compatibility List $1.88 / Each

2,3
- 518020 REX019S FC-014 Spacer, Tensioner Yes Model Compatibility List $4.57 / Each

2,3,4,5,6
- 518022 REX01A8 SP-007 Plastic Cap. Crank Yes Model Compatibility List $8.60 / Each

8,9
- 518023 REX01AK - Wheel, Assembly No Model Compatibility List $11.99 / Each

8
- 518034 REX01QU DC-018 Spring, Belt Tension No Model Compatibility List $3.84 / Each

2,15
- 518036 REX01VL SS-015 Bumper, Seat Front Yes Model Compatibility List $8.60 / Each

12,13,14
- 518037 REX01VM SS-016 Spacer, Tube SM No Model Compatibility List $1.88 / Each

2,3,4,5,6
- 518046 REX0J53 SS-005 Hardware: Washer, Flat .8.4*24-2 Yes Model Compatibility List $1.88 / Each

2
- 518047 REX0J5G SH-009 Hardware: Washer, 8MM ID X 18MM OD X 1.5MM Yes Model Compatibility List $3.23 / Each

2
- 518048 REX0J5H UH-012 Hardware: Washer, 6MM ID X 12MM OD Yes Model Compatibility List $1.88 / Each

2
5 518055 REX0J93 BR-008 Hardware: Washer, Lock Spring 1.0 Yes Model Compatibility List $3.23 / Each

2
1 518056 REX0J95 SH-002 Hardware: Washer, Spring Yes Model Compatibility List $3.23 / Each

2
- 518060 REX0JAG UH-017 Hardware: Washer, Lock Ext. Tooth BZ Yes Model Compatibility List $3.23 / Each

2
- 518063 REX0JDS - Hardware: Pin, Cotter No Model Compatibility List $1.81 / Each

12,13,14
- 518069 REX0JEJ CR-002 Ring, Retaining, 63/64, Snap Ring Yes Model Compatibility List $5.92 / Each

1
- 518073 REX0JGM FC-010 Key, Crank Feather Type No Model Compatibility List $4.57 / Each

8,9
- 518076 REX0JPT FC-006 Hardware: Bolt, 8MM X 60MM Yes Model Compatibility List $4.57 / Each

2
- 518081 REX0JZM SP-004 Hardware: 8-18 Screw, HEX Washer Type 25 Yes Model Compatibility List $4.57 / Each

2
- 518082 REX0JZU FC-015 Hardware: Screw, SHCS Brake MTG Yes Model Compatibility List $4.57 / Each

2
- 518083 REX0K01 - Hardware: Screw, SHCS 5MM X 15MM Yes Model Compatibility List $3.23 / Each

2
- 518084 REX0K03 - Hardware: Screw, BSH Yes Model Compatibility List $3.23 / Each

2
- 518088 REX0K0C - Hardware: Screw, M8*1.25-35 HEX SOC TRUSS No Model Compatibility List $4.03 / Each

2
- 518100 REX0K4R FC-003 Hardware: Screw, PHl 5MM X 12MM Yes Model Compatibility List $3.23 / Each

2
- 518101 REX0K4S SP-002 Hardware: Screw, PHl 5MM X 12MM Yes Model Compatibility List $3.23 / Each

2
- 518103 REX0K56 SH-014 Hardware: Screw, M5*.8-12MM CR RE Count HD Yes Model Compatibility List $4.04 / Each

2
- 518105 REX0K5E SS-001 Hardware: Screw, Seat Adj Yes Model Compatibility List $4.57 / Each

2,12,13,14
- 518125 REX0KDH - Hardware: Screw, 5MM Diameter X 8MM PHl HD Yes Model Compatibility List $3.23 / Each

2
- 518126 REX0KDJ UH-013 Hardware: Screw, PHl 5MM*.8 X 12MM Yes Model Compatibility List $2.90 / Each

2
- 518129 REX0KDV 16 Hardware: Screw, M6 1.0-16 Yes Model Compatibility List $3.50 / Each

2
- 518133 REX0KFE UH-016 Hardware: Screw, GND Yes Model Compatibility List $5.58 / Each

2
- 518137 REX0KN5 FC-013 Hardware: Nut, M19 Low Prof No Model Compatibility List $6.53 / Each

2
- 518140 REX0KQJ - Hardware: Nut, Acorn No Model Compatibility List $1.81 / Each

2,4,5,6
- 518149 REX0RXQ - Adjust: Tensioner, Belt Yes Model Compatibility List $53.52 / Each

15
- 518151 REX0WRG FC-008 Hardware: Bolt, 8MM X 100MM Yes Model Compatibility List $5.92 / Each

2
- 518167 REX20L2 DC-010 Flywheel - Pulley No Model Compatibility List $74.64 / Each

1
- 518169 REX20LB DC-008 Crank Shaft No Model Compatibility List $56.83 / Each

8
- 518172 REX20MD SS-017 Stop, Seat Yes Model Compatibility List $11.90 / Each

12,13,14
- 518173 REX20ME SS-014 Extrusion, Seat Yes Model Compatibility List $239.90 / Each

12,13,14
- 518184 REX20N7 FC-025 Cap, 1.5 X 4.0 Tube Yes Model Compatibility List $5.92 / Each

3,9
1 518193 REX20PY SS-021 Axle, Tension Yes Model Compatibility List $15.16 / Each

8
1 518194 REX20PZ SS-019 Wheel, Adjust Yes Model Compatibility List $4.57 / Each

8
7 518195 REX20Q0 SS-026 Spacer Yes Model Compatibility List $4.57 / Each

2,3,4,5,6
8 518196 REX20Q1 SS-027 Wheel, Rolling Yes Model Compatibility List $21.17 / Each

8
- 518197 REX20Q2 SS-028 Spacer Rexon Yes Model Compatibility List $8.22 / Each

2,3,4,5,6
- 518220 REX20UZ SS-011 Cord Clamp Yes Model Compatibility List $15.32 / Each

4,5,6
- 518221 REX20V0 SS-013 Tension Plate Yes Model Compatibility List $4.57 / Each

1
1 518227 REX20W0 SS-023 Hardware: Nut, M10*1.5 HEX SERRATED Flange Yes Model Compatibility List $3.23 / Each

2
- 518228 REX20W1 SS-029 Hardware: Bolt, HEX M10*1.5-160 Yes Model Compatibility List $7.87 / Each

2
- 518229 REX20W2 - Belt, Poly-V Yes Model Compatibility List $53.44 / Each

15
- 518231 REX20Y2 UH-009 Grommet, Upright Yes Model Compatibility List $6.53 / Each

2,3
4 518240 REX20ZA SS-018 Ring, Retaining Yes Model Compatibility List $3.23 / Each

1
6 518253 REX213C SS-020 Hardware: Washer, Flat Yes Model Compatibility List $3.23 / Each

2
1 518255 REX213E SS-022 Hardware: Washer, Flat Yes Model Compatibility List $1.88 / Each

2
- 518309 REX21NY SS-004 1 Inch Rubber Bumper Rear Yes Model Compatibility List $8.60 / Each

1
- 518314 REX21RA SS-003 Spacer, Tube Yes Model Compatibility List $8.60 / Each

2,3,4,5,6
- 518315 REX21RE - Hardware: Screw, SHCS 8MM X 50MM Yes Model Compatibility List $4.57 / Each

2
D 518321 REX21S8 DC-001 Magnetic Brake Assembly (Generator/Brake) Yes Model Compatibility List $723.66 / Each

8
- 518340 REX229E SP-013 Assembly; Left And Right Pedal - R1-5 No Model Compatibility List $80.63 / Each

1
- 518344 REX22B7 - Hardware: Cap Screw, M8 X 1.25-40 No Model Compatibility List $4.57 / Each

2,9
- 518366 REX22P4 FC-007 Hardware: Washer, 8MM ID X 18MM OD Yes Model Compatibility List $4.57 / Each

2
- 518368 REX22RP CC-002 Hardware: Nut, Nylock M8 X 1.25 X 6MM Thick Yes Model Compatibility List $4.57 / Each

2
- 518399 REX2ARH - Decal: Label, LifeFitness Logo No Model Compatibility List $11.76 / Each

7,3
- 518403 REX2AS3 - Shroud, Main Right Yes Model Compatibility List $120.36 / Each

12,13,14
- 518421 REX2ATV - Handle, Bar Right Yes Model Compatibility List $44.99 / Each

11
- 518422 REX2ATW - Grip No Model Compatibility List $7.87 / Each

11
- 518426 REX2AUJ - Accessory: Holder, Cup Yes Model Compatibility List $21.49 / Each

4,5,6
- 518429 REX2AV3 - Cap, Seat Extrusion Yes Model Compatibility List $5.18 / Each

9,12,13,14
- 518448 REX2AXA - Shroud, Main Left Yes Model Compatibility List $120.36 / Each

12,13,14
- 518465 REX2B02 - Cap, Grip Yes Model Compatibility List $7.26 / Each

9,11
- 518467 REX2B09 - Hardware: M4 X .7 HXS NO CUP ST BO Yes Model Compatibility List $1.88 / Each

1

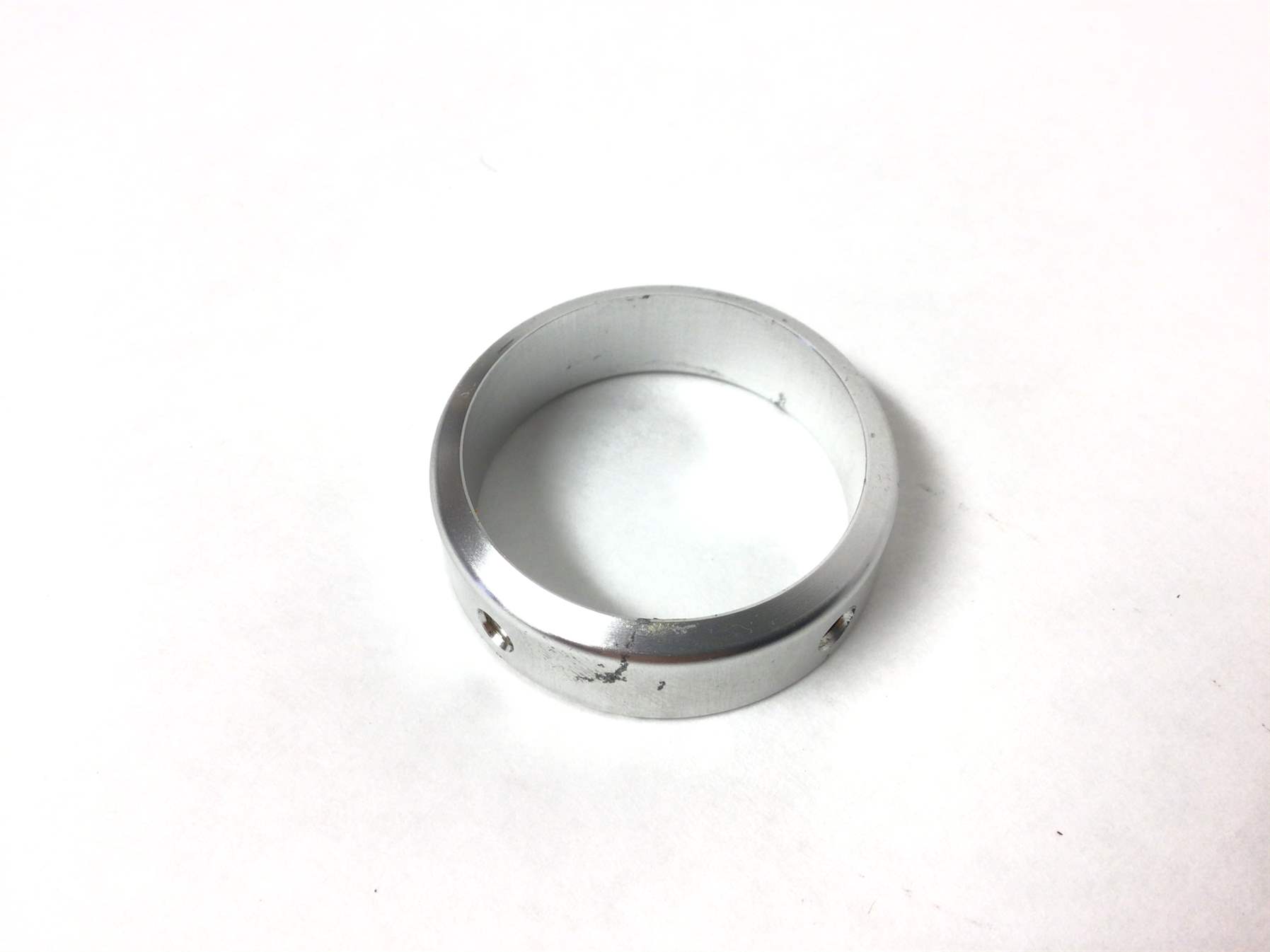

- 518468 REX2B0P - Ring, Grip Yes Model Compatibility List $8.20 / Each

11
- 518471 REX2B19 - Assembly, Rear Foot Stabilizer Yes Model Compatibility List $87.77 / Each

9
- 518478 REX2B81 - Handle, Bar Left Yes Model Compatibility List $44.99 / Each

11
- 518480 REX2B8B SS-008 Decal: Label, Seat Position No Model Compatibility List $12.55 / Each

3,7,12,13,14
- 518481 REX2B8C - Cover, Crank Yes Model Compatibility List $9.22 / Each

8,9
- 518483 REX2B8G - Seat, Assembly Yes Model Compatibility List $127.44 / Each

12,13,14
- 518484 REX2B8K - Left Pedal, Self Balancing Yes Model Compatibility List $40.31 / Each

8,9
- 518485 REX2B8L - Right Pedal, Self Balancing Yes Model Compatibility List $44.34 / Each

8,9
- 518492 REX2B96 UH-015 Accessory: Water Bottle No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
- 518499 REX2BF3 - Cover, Extra Crank Hole Yes Model Compatibility List $6.53 / Each

8,9
- 518512 REX2BRX - KIT, ASSY REAR FOOT No Model Compatibility List $0.00 / Each
Out Of Stock 		9
- 518513 REX2BS3 - KIT, ASSY MONOCOLUMN/HANDLES No Model Compatibility List $0.00 / Each
Out Of Stock 		11
- 518540 REX2GH9 CBL-003 Cable Assembly, Hand Pulse Harness To Console Yes Model Compatibility List $13.19 / Each

4,5,6,7,12,13,14
- 518542 REX2GHB SS-009 Hand Pulse Harness, Seat Yes Model Compatibility List $18.48 / Each

4,5,6,12,13,14
- 518544 REX2GHD DC-005 E-Cable: Lead HR Wire Assembly with RJ11 Phone Jac Yes Model Compatibility List $19.27 / Each

4,5,6,12,13,14
- 518545 REX2GHQ - Decal: Badge, R3 Yes Model Compatibility List $12.47 / Each

3,7
- 518547 REX2GHS UH-008 Shroud, Access Cover Yes Model Compatibility List $23.95 / Each

4,5,6,9,12,13,14
- 518551 REX2GVT - Weldment, Upright Yes Model Compatibility List $151.78 / Each

3
- 518553 REX2H89 - Cable, Ground Yes Model Compatibility List $4.57 / Each

4,5,6
- 518557 REX2HP9 - Hardware: Kit, Assembly, Step 5 No Model Compatibility List $1.88 / Each

1

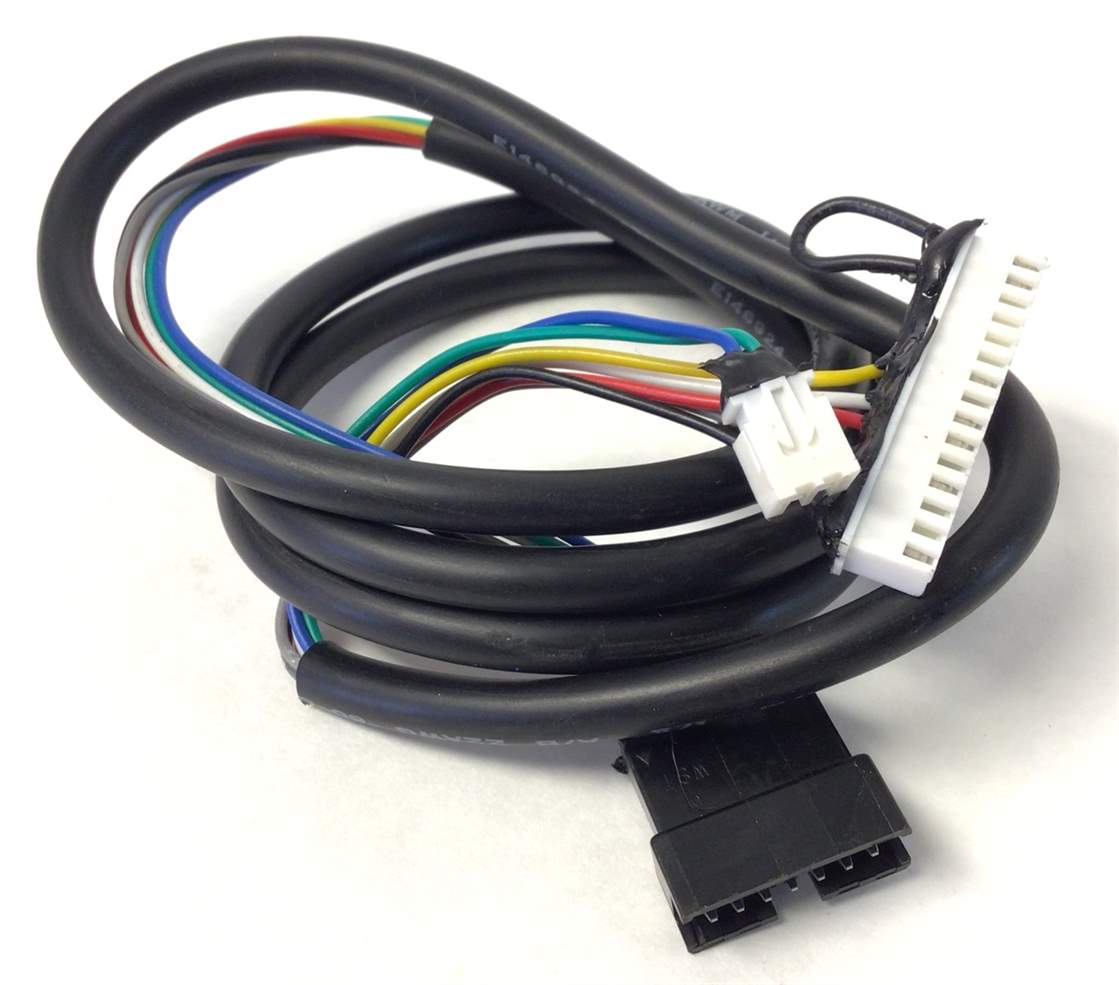

- 518562 REX2K87 - Upper Console Cable, R3 Yes Model Compatibility List $25.76 / Each

1,5
- 518564 REX2KHL SP-006 Pedal Strap, Left Yes Model Compatibility List $10.56 / Each

1
- 518565 REX2KHM SP-011 Pedal Strap, Right Yes Model Compatibility List $10.56 / Each

1
- 518633 REX2M02 - Electrical:Board, Circuit Yes Model Compatibility List $235.91 / Each

4,5,6
- 518634 REX2M0F - Cable, Splicer Lower Board Wire Yes Model Compatibility List $26.87 / Each
4
- 518665 REX2NFK ST-008 Leveler, Leg Yes Model Compatibility List $11.90 / Each

1
- 518693 REX2RNF - Sensor, Heart Rate Yes Model Compatibility List $12.72 / Each

12,13,14
- 518703 REX2RTC - Weldment, Seat Frame No Model Compatibility List $151.94 / Each

3,12,13,14
1 518704 REX2RTJ 1 Weldment, Seat Back Support No Model Compatibility List $74.11 / Each

3,4,5,6,12,13,14
- 518705 REX2RTQ - Weldment, Seat Handlebar No Model Compatibility List $62.83 / Each

3,12,13,14,11
- 518706 REX2RTU - Seat Back Yes Model Compatibility List $342.65 / Each

4,5,6,12,13,14
3 518707 REX2RV9 3 Bearing, Seat Back Yes Model Compatibility List $12.42 / Each

4,5,6,12,13,14
- 518708 REX2RVA - Spacer Yes Model Compatibility List $8.81 / Each

2,3
- 518709 REX2RVB - Hardware: Pin, Shock Mount No Model Compatibility List $1.81 / Each

2,12,13,14
2 518710 REX2RVC 2 Hardware: Bolt, Shoulder Yes Model Compatibility List $12.56 / Each

2
- 518711 REX2RY2 - Grip Rexon Yes Model Compatibility List $15.35 / Each

11

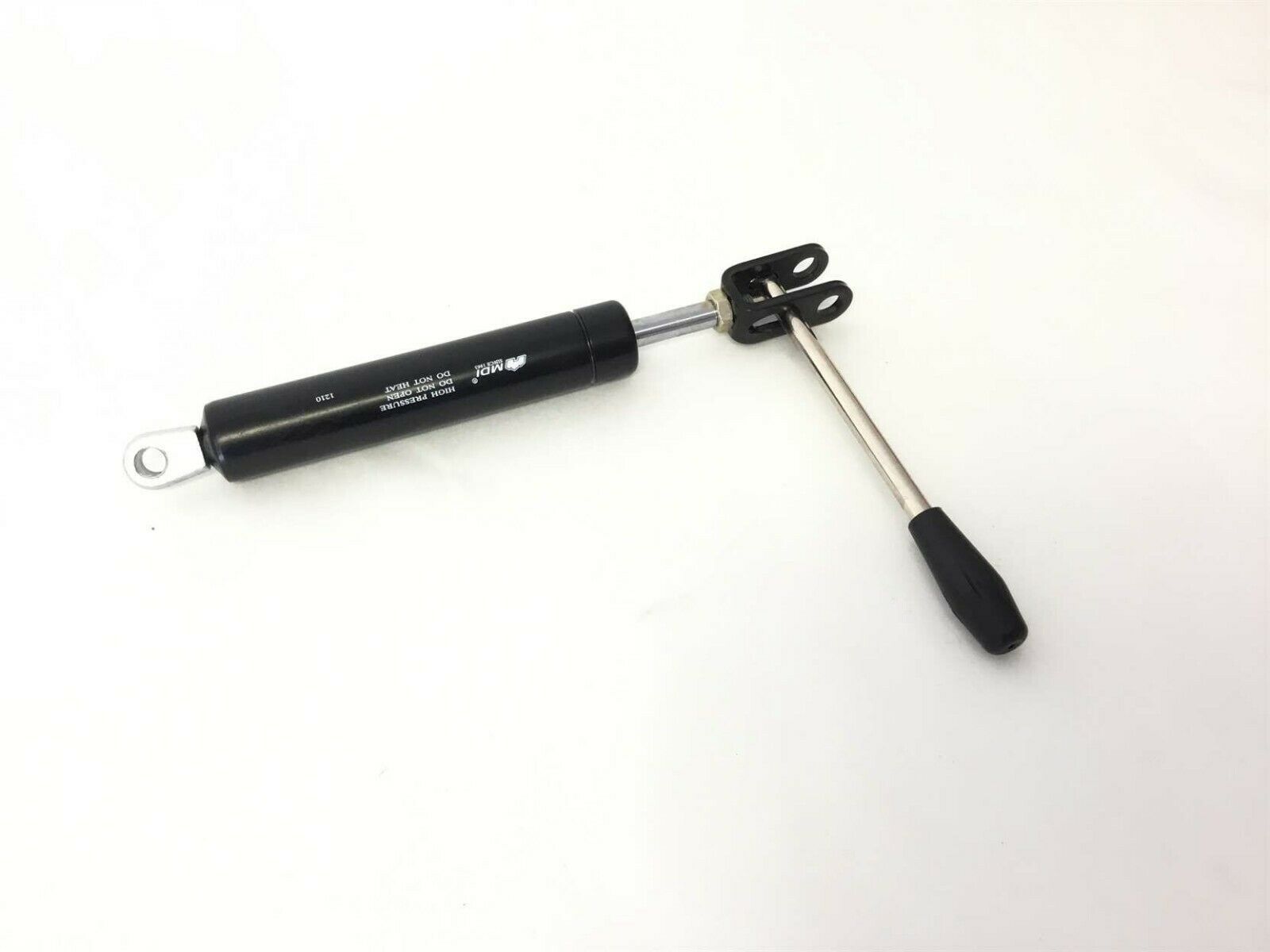

- 518712 REX2RYQ - Shock Rexon Yes Model Compatibility List $60.71 / Each

1
- 518713 REX2RYR - Seat Cover, Mesh Yes Model Compatibility List $185.12 / Each

9,12,13,14
- 518714 REX2RYT - KIT, ASSY, STEP 2 No Model Compatibility List $5.92 / Each

1
- 518715 REX2RYU - Kit, R3, All Cust Assembly Hardware No Model Compatibility List $55.88 / Each

1
- 518716 REX2RZ7 - Contact HR Harness, Handlebar No Model Compatibility List $9.04 / Each

4,5,6,12,13,14,11
- 518733 REX2SWT - Hardware: Screw, HR Sensor MTG Yes Model Compatibility List $8.06 / Each

2,12,13,14
- 518734 REX2SWX - KIT, ASSY, TOOL BAG No Model Compatibility List $28.18 / Each

1
- 518735 REX2SYB - Seat Back Cover, Left Yes Model Compatibility List $39.62 / Each

9,12

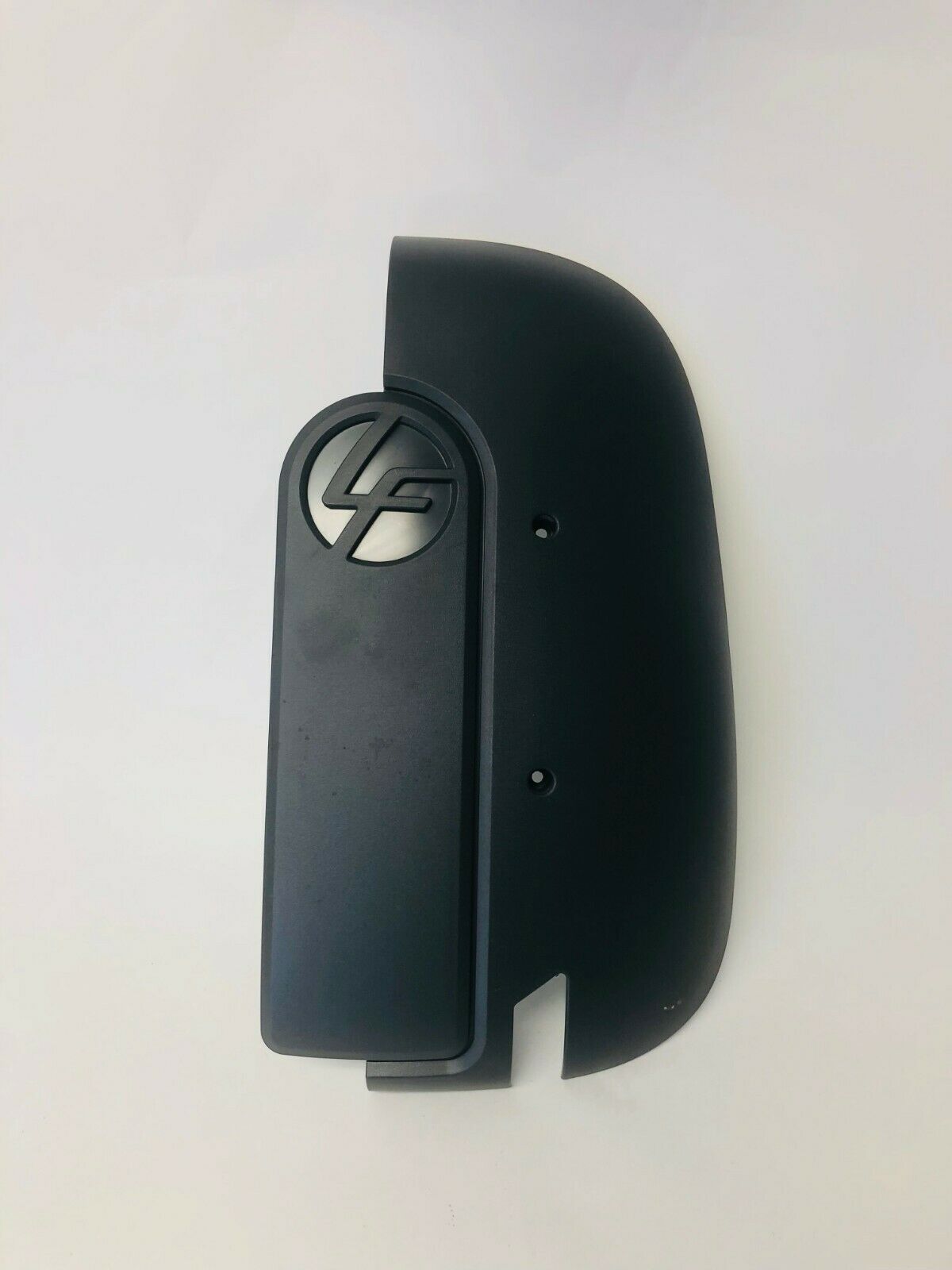

- 518736 REX2SYC - Seat Back, Cover, Right Yes Model Compatibility List $39.10 / Each

9,12
- 518747 REX2TUV - KIT, ASSY, STEP 3 No Model Compatibility List $7.04 / Each

1
- 518818 REX3GJ3 SP-008 CRANK, LEFT Yes Model Compatibility List $37.58 / Each

8
- 518819 REX3GJ4 SP-010 CRANK, R No Model Compatibility List $42.96 / Each

1
- 518821 REX3GYD SH-015 RS1 SEAT LOCKING HANDLE Yes Model Compatibility List $70.84 / Each

11,12,13,14
M8-1.25 Shoulder Screw - Bolt (Used) 1016741 M8-125-Shoulder-Screw # 1 M8-1.25 Shoulder Screw - Bolt (Used) Yes Model Compatibility List $20.15 / Each

2
M12-1.75 Shoulder Screw 1016748 M12-1.75 Shoulder Screw # 1 M12-1.75 Shoulder Screw Yes Model Compatibility List $25.54 / Each

2
Stepped Hex Bolt (Used) 1016747 REX34EQ # 1 Stepped Hex Bolt (Used) Yes Model Compatibility List $25.54 / Each

2
Flat Side Seat Stop Washer 1016737 flat-edge-r3-wash # 1 Flat Side Seat Stop Washer Yes Model Compatibility List $13.43 / Each

2
Wire Tie Anchor 1016743 WTA-R3 # 1 Wire Tie Anchor Yes Model Compatibility List $13.43 / Each

2

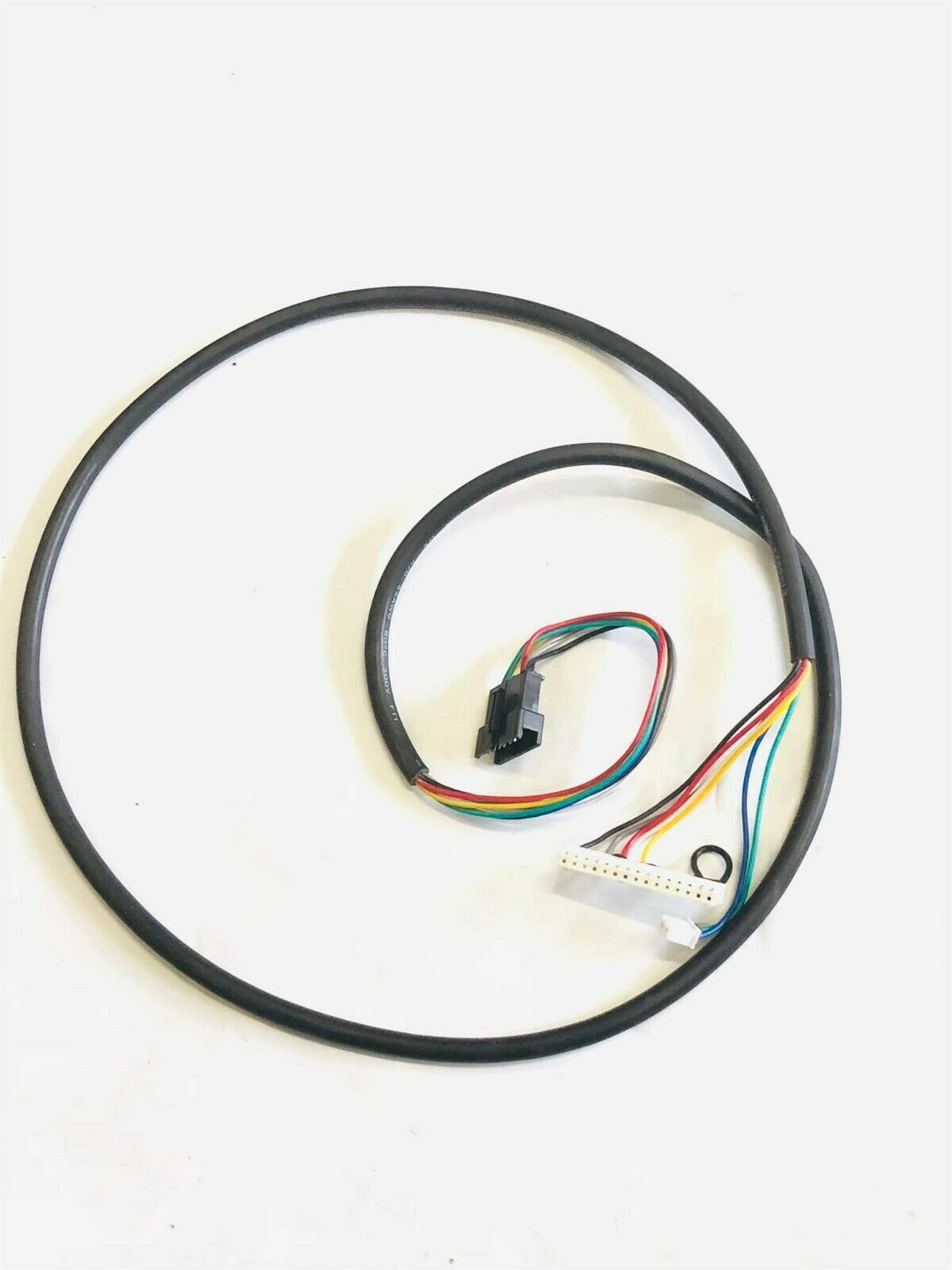

- 1022101 REX2K87 0 1 UPPER CONSOLE CABLE R3 (Used) Yes Model Compatibility List $18.66 / Each

1,5
- 1022059 REX20L2 FR-013 1 Pulley Flywheel with Spindle Included (Used) No Model Compatibility List $67.19 / Each

1
Generator Wire only (Used) 1022061 REX21S8b 0 1 Generator Wire only (Used) No Model Compatibility List $17.46 / Each

1
Life Fitness Recumbent Bike Screw REX0KDH 1011364 R3-BS 0 6 Life Fitness Recumbent Bike Screw REX0KDH No Model Compatibility List $15.59 / Each

1
Life Fitness Recumbent Bike Screw REX0K03 1011354 R3-Screw 0 6 Life Fitness Recumbent Bike Screw REX0K03 No Model Compatibility List $15.59 / Each

1
Life Fitness Recumbent Bike Washer REX0JAG 1011327 R3-Washer 0 6 Life Fitness Recumbent Bike Washer REX0JAG No Model Compatibility List $15.59 / Each

1
Life Fitness Lifecycle Recumbent Bike Spacer REX2RVA 1011488 R3-Spacer 0 6 Life Fitness Lifecycle Recumbent Bike Spacer REX2RVA No Model Compatibility List $15.59 / Each

1
Life Fitness Lifecycle Recumbent Bike Nut REX2B09 1011421 R3-N 0 6 Life Fitness Lifecycle Recumbent Bike Nut REX2B09 No Model Compatibility List $15.59 / Each

1
Life Fitness Multimedia Remote TV Control Module Pad (Used) 1009099 R3-RTVCMP 0 1 Life Fitness Multimedia Remote TV Control Module Pad (Used) No Model Compatibility List $125.27 / Each

1
Life Fitness Lifecycle Recumbent Bike Shoulder Bolt REX2RVC 1011486 R3-SB 0 6 Life Fitness Lifecycle Recumbent Bike Shoulder Bolt REX2RVC No Model Compatibility List $22.79 / Each

1
Life Fitness Recumbent Bike Flat Washer rex0j53 1011321 R3-FW 0 6 Life Fitness Recumbent Bike Flat Washer rex0j53 No Model Compatibility List $15.59 / Each

1
Life Fitness Recumbent Bike Cup Holder Accessory Tray REX2AUJ 1011388 R3-CHAT 0 1 Life Fitness Recumbent Bike Cup Holder Accessory Tray REX2AUJ No Model Compatibility List $26.39 / Each
Out Of Stock 		1
Life Fitness Recumbent Bike Bottom Seat Cushion Pad REX2B8G 1011396 R3-BSCP 0 3 Life Fitness Recumbent Bike Bottom Seat Cushion Pad REX2B8G No Model Compatibility List $167.99 / Each

1
Life Fitness Lifecycle Recumbent Bike Back Seat Bearing REX2RV9 1011490 R3-BSB 0 6 Life Fitness Lifecycle Recumbent Bike Back Seat Bearing REX2RV9 No Model Compatibility List $19.19 / Each

1
Life Fitness Recumbent Bike Right Handle Bar REX2ATV 1011386 R3-RHB 0 4 Life Fitness Recumbent Bike Right Handle Bar REX2ATV No Model Compatibility List $35.99 / Each

1
Life Fitness Lifecycle Recumbent Bike Spacer REX019S 1011468 R3-Spacer 0 6 Life Fitness Lifecycle Recumbent Bike Spacer REX019S No Model Compatibility List $15.59 / Each

1
Life Fitness Recumbent Bike 1 1011415 R3-1"RB 0 7 Life Fitness Recumbent Bike 1" Rubber Bumper REX21NY No Model Compatibility List $15.59 / Each

1
Life Fitness Lifecycle Recumbent Bike Tension Axle REX20PY 1011450 R3-TA 0 7 Life Fitness Lifecycle Recumbent Bike Tension Axle REX20PY No Model Compatibility List $23.99 / Each

1
Life Fitness Lifecycle Recumbent Bike Seat Rail REX20ME 1011454 R3-SR 0 1 Life Fitness Lifecycle Recumbent Bike Seat Rail REX20ME No Model Compatibility List $189.59 / Each

1
Life Fitness Lifecycle Recumbent Bike Transport Wheel REX20Q1 1011444 R3-TW 0 6 Life Fitness Lifecycle Recumbent Bike Transport Wheel REX20Q1 No Model Compatibility List $26.39 / Each

1
Life Fitness Lifecycle Recumbent Bike Adjust Wheel REX20PZ 1011448 R3-AW 0 12 Life Fitness Lifecycle Recumbent Bike Adjust Wheel REX20PZ No Model Compatibility List $15.59 / Each

1
Life Fitness Lifecycle Recumbent Bike Flat Washer REX213C 1011348 R3-FW 0 6 Life Fitness Lifecycle Recumbent Bike Flat Washer REX213C No Model Compatibility List $15.59 / Each

1
- 000129 REX2KHM 0 1 Right Pedal Strap Yes Model Compatibility List $23.99 / Each

1
Left Pedal Strap 000130 REX2KHL 0 1 Left Pedal Strap Yes Model Compatibility List $23.99 / Each

1
- 1028003 3225301 37 1 Bearing 1 3/4" (Used) No Model Compatibility List $9.60 / Each
Out Of Stock 		1
- 1011299 0017-00101-1621 0 1 Shroud Screw Yes Model Compatibility List $15.59 / Each

2
1 1011325 REX0J95 0 1 Spring Washer Yes Model Compatibility List $15.59 / Each

2
- 1011329 REX0JPT 0 1 Bolt Yes Model Compatibility List $15.59 / Each

2
- 1011331 REX0JZU 0 1 Screw Yes Model Compatibility List $15.59 / Each

2
Screw 1011333 REX0K0B 0 1 Screw Yes Model Compatibility List $15.59 / Each

2
1 1011346 REX213E 0 1 Flat Washer Yes Model Compatibility List $15.59 / Each

2
- 1011350 REX22RP 0 1 Lock Nut M8 X 1/25" X 6MM Yes Model Compatibility List $15.59 / Each

2
- 1011352 REX0K01 0 1 Screw Yes Model Compatibility List $15.59 / Each

2
- 1011356 REX0K4R 0 1 Screw Yes Model Compatibility List $15.59 / Each

2
- 1011358 REX0K4S 0 1 Screw Yes Model Compatibility List $15.59 / Each

2
- 1011360 REX0K5E 0 1 Screw Yes Model Compatibility List $15.59 / Each

2,12,13,14
- 1011362 REX0K56 0 1 Screw Yes Model Compatibility List $15.59 / Each

2
- 1011366 REX0KDJ 0 1 Screw Yes Model Compatibility List $16.79 / Each

2
- 1011368 REX0KDV 0 1 Screw Yes Model Compatibility List $16.79 / Each

2
- 1011376 REX0KFE 0 1 Screw Yes Model Compatibility List $19.19 / Each

2
- 1011378 REX0RXQ 0 1 Idler Wheel Pulley Belt Tensioner Yes Model Compatibility List $50.39 / Each

15
- 1011382 REX01VL 0 1 Seat Front Bumper Yes Model Compatibility List $15.59 / Each

12,13,14
- 1011384 REX2AS3 0 1 Right Main Shroud Cover Yes Model Compatibility List $89.99 / Each

12,13,14
- 1011390 REX2AV3 0 1 Seat Rail Endcap Yes Model Compatibility List $17.99 / Each

9,12,13,14
- 1011392 REX2AXA 0 1 Left Main Shroud Cover Yes Model Compatibility List $89.99 / Each

12,13,14
- 1011394 REX2B02 0 1 Grip Cap Yes Model Compatibility List $15.59 / Each

9,11
- 1011399 REX20W1 0 1 Bolt Hex - M10 x 1/5" Yes Model Compatibility List $17.99 / Each

2
1 1011401 REX20W0 0 1 Hex Serr Flange Nut M101.5 Yes Model Compatibility List $15.59 / Each

2
- 1011403 REX22RP 0 1 Lock Nut Yes Model Compatibility List $15.59 / Each

2
- 1011405 REX22P4 0 1 Washer Yes Model Compatibility List $15.59 / Each

2
- 1011407 REX22B7 0 1 Screw No Model Compatibility List $15.59 / Each

2,9
D 1011409 REX21S8 0 1 Magnetic Resistance Brake Assembly Yes Model Compatibility List $958.80 / Each

8
- 1011411 REX21RE 0 1 Screw Yes Model Compatibility List $15.59 / Each

2
- 1011413 REX21RA 0 1 Tube Spacer Yes Model Compatibility List $15.59 / Each

2,3,4,5,6
4 1011417 REX20ZA 0 1 Ring Retaining Yes Model Compatibility List $15.59 / Each

1
- 1011423 REX2B19 0 1 Rear Stabilizer Yes Model Compatibility List $76.79 / Each

9
- 1011425 REX20V0 0 1 Tension Plate Yes Model Compatibility List $15.59 / Each

1
- 1011427 REX20UZ 0 1 Cord Clamp Yes Model Compatibility List $15.59 / Each

4,5,6
- 1011429 REX2B81 0 1 Handle Bar Yes Model Compatibility List $35.99 / Each

11
- 1011431 REX2GH9 0 1 Hand Pulse Harness to Console Cable Assembly Yes Model Compatibility List $21.59 / Each

4,5,6,7,12,13,14
- 1011433 REX2GHB 0 1 Seat Heart Rate Wire Harness Yes Model Compatibility List $32.39 / Each

4,5,6,12,13,14
- 1011435 REX2GHD 0 1 Lead Heart Rate Wire w/Phone Jack Connector Yes Model Compatibility List $29.99 / Each

4,5,6,12,13,14
- 1011437 REX2GHS 0 1 Shroud Access Cover Yes Model Compatibility List $28.79 / Each

4,5,6,9,12,13,14
- 1011439 REX2GVT 0 1 Upright Weldment Yes Model Compatibility List $122.39 / Each

3
- 1011441 REX2H89 0 1 Ground Cable Yes Model Compatibility List $15.59 / Each

4,5,6
- 1011442 REX20Q2 0 1 Spacer Yes Model Compatibility List $19.19 / Each

2,3,4,5,6
7 1011446 REX20Q0 0 1 Spacer Yes Model Compatibility List $15.59 / Each

2,3,4,5,6
- 1011452 REX20N7 0 1 End Cap Yes Model Compatibility List $15.59 / Each

3,9
- 1011456 REX20MD 0 1 Seat Stop Rail Yes Model Compatibility List $17.99 / Each

12,13,14
- 1011460 REX2K87 0 1 Upper Console Cable Wire Harness Yes Model Compatibility List $28.79 / Each

1,5
- 1011462 REX2M02 0 1 Electronic Circuit Board Yes Model Compatibility List $185.99 / Each

4,5,6
- 1011466 REX2RNF 0 1 Heart Rate Grip Yes Model Compatibility List $26.39 / Each

12,13,14
- 1011472 REX2SYC 0 1 Right Seat Back Cover Yes Model Compatibility List $38.39 / Each

9,12
- 1011474 REX2SYB 0 1 Left Back Seat Cover Yes Model Compatibility List $38.39 / Each

9,12
- 1011476 REX2SWT 0 1 Heart Rate Sensor MTG Screw Yes Model Compatibility List $15.59 / Each

2,12,13,14
- 1011478 REX2RYR 0 1 Mesh Seat Cover Yes Model Compatibility List $147.59 / Each

9,12,13,14
- 1011480 REX2RYQ 0 1 Rexon Shock Yes Model Compatibility List $53.99 / Each

1
- 1011484 REX2RY2 0 1 Hand Sensor Hand Grip Yes Model Compatibility List $23.99 / Each

11
- 1011492 REX2RTU 0 1 Seat Back Frame Yes Model Compatibility List $263.99 / Each

4,5,6,12,13,14
- 1003977 REX3GYD - Lock Assembly Yes Model Compatibility List $22.79 / Each
Out Of Stock 		11,12,13,14
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
