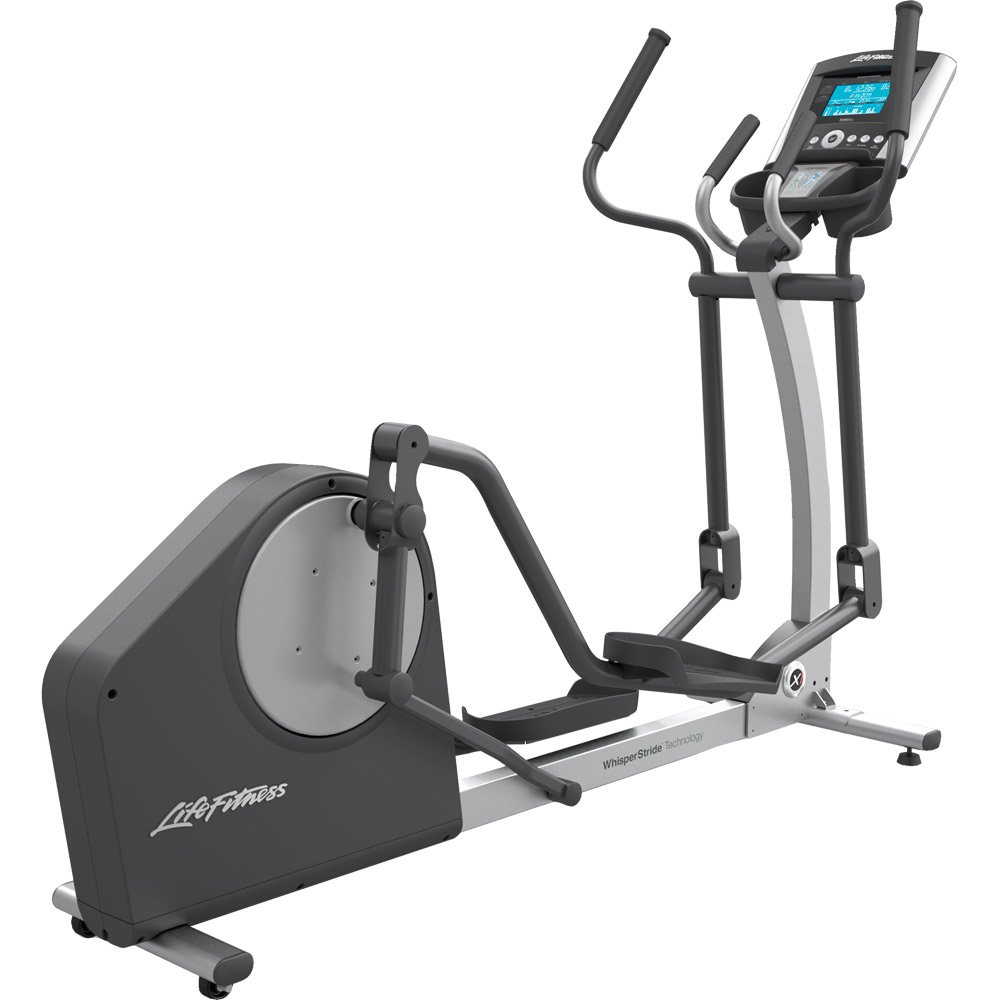

Life Fitness - X1

Repair Parts for Life Fitness X1 X1-XX00-0203

Brand: Life Fitness

Category: Consumer Equipment

Type: Elliptical

Model Name: X1

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
- 506310 3225301 CR-006 Bearing, 12MM Ball No Model Compatibility List $11.84 / Each

1
- 510050 8586501 - Service Assembly, Rocker Left X3 No Model Compatibility List $190.84 / Each

1
- 510051 8586601 - Service Assembly, Rocker Right X3 No Model Compatibility List $190.84 / Each

1
- 510052 8586701 - Service Assembly, Pedal Assembly Left X1 X3 No Model Compatibility List $281.78 / Each

8,9
- 510053 8586801 - Service Assembly, Pedal Assembly Right X1 X3 No Model Compatibility List $281.78 / Each

8,9
- 510054 8586901 - Service Assembly, Coupler Left X1 Right X3 No Model Compatibility List $155.20 / Each

1
- 510055 8587001 - Service Assembly, Coupler Right X1 Left X3 No Model Compatibility List $155.20 / Each

1
- 510056 8587101 - Service Assembly, Idler X1 X3 No Model Compatibility List $71.20 / Each

8
- 510061 8593401 - Service Assembly, Stabilizer X1 No Model Compatibility List $97.88 / Each

1
- 510459 8819801 - Transformer, 100-240V, 9V, 1.5A, Domestic, W-Switc Yes Model Compatibility List $47.03 / Each

4,5,6
- 518027 REX01H5 CR-010 Magnet Rexon No Model Compatibility List $4.57 / Each

8
- 518028 REX01HL MR-005 Drive Motor, Pesistande DC Yes Model Compatibility List $84.92 / Each

4,5,6,10
- 518030 REX01J8 MR-002 Switch, Reed, RPM Sensor Yes Model Compatibility List $8.11 / Each

4,5,6
- 518032 REX01QH MR-010 Cable, Brake Harness No Model Compatibility List $20.46 / Each

5
- 518039 REX0HVP ID-011 Bearing Ball 6004ZZ No Model Compatibility List $13.74 / Each

1
- 518040 REX0HVY BT-011 Bearing, Ball 6204ZZ Yes Model Compatibility List $16.43 / Each

1
- 518044 REX0J4R IA-003 Hardware: Washer, 20MM OD X 10MM ID X 3MM Thick No Model Compatibility List $1.88 / Each

2
- 518050 REX0J69 CD-002 Hardware: Washer, Flat .6 X 13-1 No Model Compatibility List $1.88 / Each

2
- 518055 REX0J93 BR-008 Hardware: Washer, Lock Spring 1.0 Yes Model Compatibility List $3.23 / Each

2
- 518059 REX0JAF CS-011 Hardware: Star Washer No Model Compatibility List $1.88 / Each

2
- 518061 REX0JB7 ID-002 Hardware: Wave Washer; 20.5MM X 26.7MM T = 0.25MM Yes Model Compatibility List $11.56 / Each

2,4,5,6
- 518062 REX0JBD UA-004 Hardware: Wave Washer; 25MM X 35MM No Model Compatibility List $4.57 / Each

2
- 518064 REX0JDZ IA-002 Ring, Retaining B-35 No Model Compatibility List $1.81 / Each

1
- 518065 REX0JE0 PL-005 Ring, Retaining B-40 Yes Model Compatibility List $7.58 / Each

1
- 518067 REX0JEE PL-015 Ring, Retaining A-17 Yes Model Compatibility List $4.57 / Each

1
- 518068 REX0JEG BR-005 Ring: C-Ring, A-20 No Model Compatibility List $1.88 / Each

1
- 518069 REX0JEJ CR-002 Ring, Retaining, 63/64, Snap Ring Yes Model Compatibility List $5.92 / Each

1
- 518074 REX0JGQ CC-003 Crank Key No Model Compatibility List $1.88 / Each

8,9
- 518089 REX0K28 MR-003 Hardware: Cap Screw, M5 X 0.8-16 No Model Compatibility List $1.88 / Each

2,9
- 518092 REX0K2W BR-001 Hardware: Screw, SHCS Brake Mounting No Model Compatibility List $4.57 / Each

2
- 518106 REX0K5T CC-008 Hardware: Screw, PHl M5 X 0.8-10 No Model Compatibility List $1.88 / Each

2
- 518123 REX0KD7 - Hardware: Screw, PHl PAN M4 X .7-10 No Model Compatibility List $1.81 / Each

2
- 518126 REX0KDJ UH-013 Hardware: Screw, PHl 5MM*.8 X 12MM Yes Model Compatibility List $2.90 / Each

2
- 518130 REX0KEH MR-006 Hardware: Screw, Pan HD with Patch M5 X .8-16 No Model Compatibility List $1.88 / Each

2
- 518134 REX0KMR MR-011 Hardware: Nut, M5 X 0.8, 4MM Thick No Model Compatibility List $1.88 / Each

2
- 518142 REX0KR0 BT-017 Hardware: Nut, Lock M12 X 1.75-12 No Model Compatibility List $1.88 / Each

2
- 518143 REX0KR3 CR-005 Hardware: Nut, Lock M6 X 1, 6MM Thick No Model Compatibility List $1.88 / Each

2
- 518145 REX0KR5 BR-016 Hardware: Nut, Nylock M10 X 1.5, 10M Thick No Model Compatibility List $4.57 / Each

2
- 518150 REX0U7V - Hardware: Screw, PHl M4 X 16-16 No Model Compatibility List $1.88 / Each

2
- 518230 REX20W4 BR-006 Hardware: Nut, HEX M10 X 1.5-6 No Model Compatibility List $1.88 / Each

2
- 518270 REX218N CR-003 Pulley, Crank Yes Model Compatibility List $93.12 / Each

8
- 518283 REX21A6 BR-014 Hardware: Bolt, Hook Clamp Yes Model Compatibility List $9.86 / Each

2
- 518284 REX21A7 BR-015 Hardware: Stud, Swivel No Model Compatibility List $3.84 / Each

1
518285 REX21AA - Bracket, Belt Tensioner Yes Model Compatibility List $21.65 / Each

2,15,3,4,5,6
- 518291 REX21BJ BR-009 Brake, Assembly Eddy Current Yes Model Compatibility List $478.80 / Each

8
- 518295 REX21LF BT-018 Bracket, Brake MTG Yes Model Compatibility List $50.64 / Each

3
- 518296 REX21LG BT-002 Spacer, Collar Yes Model Compatibility List $11.21 / Each

2
- 518302 REX21NN UP-002 Hardware: Nut, Insert M10 X 1.5 No Model Compatibility List $1.88 / Each

2
- 518303 REX21NP BT-003 Hardware: Bolt, HEX HD M12 X 1.75-110mm Yes Model Compatibility List $9.25 / Each

2
- 518306 REX21NS CR-001 Hardware: Bolt, HEX HD. M8 X 1.25-60MM Yes Model Compatibility List $5.92 / Each

2
- 518307 REX21NT CR-012 Hardware: Bolt, HEX HD M6 X 1-20 No Model Compatibility List $1.88 / Each

2
- 518337 REX21X8 BR-002 Spacer, Tensioner No Model Compatibility List $1.88 / Each

2,3,4,5,6
- 518342 REX22B3 UA-003 Hardware: Washer, .26 X 35-.8 No Model Compatibility List $4.57 / Each

2
- 518363 REX22LR BR-017 Ring: C-Ring, A-16 No Model Compatibility List $3.84 / Each

1
- 518368 REX22RP CC-002 Hardware: Nut, Nylock M8 X 1.25 X 6MM Thick Yes Model Compatibility List $4.57 / Each

2
- 518369 REX22RR PL-007 Hardware: Nut, Nylock M10 X 1.5-8 Yes Model Compatibility List $4.57 / Each

2
- 518377 REX25ZJ BT-014 Hardware: Cap Screw, M8 X 1.25-20 No Model Compatibility List $2.17 / Each

2,9
- 518381 REX294S - Washer, 25MM OD X 10MM ID X 3MM Thick No Model Compatibility List $1.82 / Each

2
- 518399 REX2ARH - Decal: Label, LifeFitness Logo No Model Compatibility List $11.76 / Each

7,3
- 518496 REX2BAD PL-002 Shaft, Coupler Pedal Conn Yes Model Compatibility List $21.25 / Each

8,9
- 518502 REX2BKA IA-003 Bearing, Self-Align, 2202 No Model Compatibility List $17.70 / Each

1
- 518503 REX2BKB PL-003 Bearing, Self-Align, 2203 Yes Model Compatibility List $24.42 / Each

1
- 518520 REX2D1X CS-010 Hardware: Screw, PHl PAN M5 X 0.8-6 No Model Compatibility List $1.88 / Each

2
- 518522 REX2DVG ID-007 Hardware: Bolt, HEX M10 X 1.5-20 No Model Compatibility List $1.88 / Each

2
- 518529 REX2G72 - Tray, Accessory Yes Model Compatibility List $29.63 / Each

4,5,6
- 518549 REX2GHY CBL-002 Cable, Cross-Trainer Base Yes Model Compatibility List $33.60 / Each

4,5
- 518553 REX2H89 - Cable, Ground Yes Model Compatibility List $4.57 / Each

4,5,6
- 518555 REX2HLQ - Cap, End Hand Grip Yes Model Compatibility List $5.92 / Each

9,11
- 518559 REX2JTW - E-Cable: Lead Wire Assembly No Model Compatibility List $23.77 / Each

4,5,6
- 518561 REX2K86 CBL-001 Power Entry Inlet Cable, Cross-Trainer Motor-Transformer Yes Model Compatibility List $25.56 / Each

4,5,6
- 518595 REX2LJZ PL-014 Axle, Adj Link No Model Compatibility List $5.83 / Each

8
- 518599 REX2LL1 CD-003 Weldment, Axle Crank No Model Compatibility List $56.83 / Each

3,8
- 518600 REX2LL2 CC-001 Weldment, Crank Arm Yes Model Compatibility List $78.94 / Each

8
- 518608 REX2LNW - Bushing, IGUS No Model Compatibility List $3.84 / Each

8
- 518627 REX2LRB ST010 Stabilizer Endcap Yes Model Compatibility List $7.14 / Each

4,5,6,9
- 518628 REX2LRT CC-005 Plate; Crank Yes Model Compatibility List $23.99 / Each

8
- 518630 REX2LUH SC-004 Grommet, 38MM X 25MM No Model Compatibility List $1.88 / Each

2
- 518640 REX2MJK CO-004 Bolt, HEX Head M10 X 1.5-85 Yes Model Compatibility List $8.64 / Each

2
- 518648 REX2MPQ UA-005 Hardware: Washer, 35MM OD X 10MM OD X 3MM Thick No Model Compatibility List $1.88 / Each

2
- 518651 REX2MX0 - Decal: Label, X1 Accessory Tray No Model Compatibility List $6.46 / Each

7,3,4,5,6
- 518661 REX2NDD PL-011 Hardware: Washer, Spacer No Model Compatibility List $1.88 / Each

2,3,4,5,6
- 518665 REX2NFK ST-008 Leveler, Leg Yes Model Compatibility List $11.90 / Each

1
- 518673 REX2P4Q UP-015 Hardware: Bolt, HEX M10 X 1.5-16 No Model Compatibility List $1.81 / Each

2
- 518674 REX2PHV - Hardware: Screw, PHl PAN M5X16-12 No Model Compatibility List $1.81 / Each

2
- 518675 REX2PJ0 UP-019 Hardware: Bolt HEX M10 X 1.5-70 No Model Compatibility List $5.53 / Each

2
- 518690 REX2RKZ - Weldment, Upright X1 No Model Compatibility List $263.71 / Each

3
- 518691 REX2RL3 - Grip Moving Handlebar No Model Compatibility List $30.71 / Each

11
- 518692 REX2RL4 - Grip Stationary Handlebar No Model Compatibility List $9.04 / Each

11
- 518694 REX2RNP - Cap End Coupler Yes Model Compatibility List $7.81 / Each

9
- 518695 REX2RNQ - Deadshaft Cap End Rocker Pivot Yes Model Compatibility List $8.96 / Each

9
- 518696 REX2RNR - Cap End, Idler No Model Compatibility List $1.16 / Each

8,9
- 518698 REX2RP4 - Shroud Rear Right X1 X3 No Model Compatibility List $54.12 / Each

12,13,14
- 518699 REX2RP5 - Shroud Rear Left X1 X3 No Model Compatibility List $54.12 / Each

12,13,14
- 518702 REX2RSA - Cover Crank Yes Model Compatibility List $33.46 / Each

8,9
- 518717 REX2S1K - Shroud: Cover Console Mast Yes Model Compatibility List $17.36 / Each

7,9,12,13,14
- 518718 REX2S1L - Cover Upright Junction Lower No Model Compatibility List $6.61 / Each

3,9
- 518719 REX2S1N - Pedal Right X1 No Model Compatibility List $35.02 / Each

8,9
- 518720 REX2S1P - Pedal Left X1 Yes Model Compatibility List $35.02 / Each

8,9
- 518721 REX2S4K US-004 Grommet Upright X1 No Model Compatibility List $1.81 / Each

2,3
- 518722 REX2S4Q SC-009 Axle Wheel Transport No Model Compatibility List $3.28 / Each

8
- 518723 REX2S4R SC-010 Wheel Transport No Model Compatibility List $2.87 / Each

8
- 518737 REX2T6K SC-002 Grommet 30MM X 70MM No Model Compatibility List $1.81 / Each

2
- 518739 REX2T9D ST-009 Hardware: Nut HEX M10X1.5 Black Zinc No Model Compatibility List $1.81 / Each

2,4,5,6
- 518740 REX2T9E UA-011 Hardware: Bolt HEX M10X1.5-74 Black Zinc No Model Compatibility List $2.26 / Each

2,4,5,6
- 518741 REX2T9F MR-001 Belt Poly V J510 51" or 1294J Yes Model Compatibility List $47.12 / Each

15
- 518742 REX2T9G - Hardware: Screw, PHl PAN M5X.8-8 Clear Zinc No Model Compatibility List $0.82 / Each

2
- 518743 REX2T9W PL-007 Hardware: Screw, PHl TRUSS M5X.8-8 No Model Compatibility List $1.81 / Each

2
- 518744 REX2T9X MS-001 Hardware: Screw, PHl PAN M5X.8-12 Clear Zinc No Model Compatibility List $0.82 / Each

2
- 518745 REX2TA3 - Hardware: Bolt, HEX M10X1.5-16 Clear Zinc No Model Compatibility List $1.39 / Each

2
- 518746 REX2TCE - Weldment, Console Bracket No Model Compatibility List $58.36 / Each

7,2,3,4,5,6
Life Fitness Elliptical Straight Idler Assembly REX2AWK 1012024 X1-SIA 0 2 Life Fitness Elliptical Straight Idler Assembly REX2AWK No Model Compatibility List $124.79 / Each

1
- 1000300 REX2T9F 0 1 Main Drive Belt x1 x3 Yes Model Compatibility List $47.99 / Each

15
- 1028003 3225301 37 1 Bearing 1 3/4" (Used) No Model Compatibility List $9.60 / Each
Out Of Stock 		1
M8-1.25x80mm Black Socket Head Screw (Used) 1028026 X1-M8-1.25x80mmBSHS 0 1 M8-1.25x80mm Black Socket Head Screw (Used) No Model Compatibility List $8.39 / Each

1
M10-1.5 x 115mm Socket Head Screw Bolt (Used) 1028029 X1-M8-1.5x115mmSHSB 0 1 M10-1.5 x 115mm Socket Head Screw Bolt (Used) No Model Compatibility List $10.79 / Each

1
- 1011323 REX0J93 0 1 Washer Yes Model Compatibility List $15.59 / Each

2
Screw 1011333 REX0K0B 0 1 Screw Yes Model Compatibility List $15.59 / Each

2
- 1011350 REX22RP 0 1 Lock Nut M8 X 1/25" X 6MM Yes Model Compatibility List $15.59 / Each

2
- 1011366 REX0KDJ 0 1 Screw Yes Model Compatibility List $16.79 / Each

2
- 1011403 REX22RP 0 1 Lock Nut Yes Model Compatibility List $15.59 / Each

2
- 1011441 REX2H89 0 1 Ground Cable Yes Model Compatibility List $15.59 / Each

4,5,6
- 1011458 REX2K86 0 1 Input Jack Power Inlet Wire Harness Yes Model Compatibility List $38.39 / Each

4,5,6
- 1011483 REX2NFK 0 1 Leveling Foot Leveler Yes Model Compatibility List $22.79 / Each

1
- 1032449 REX21NS 0 1 Bolt, Hex Head (Used) Yes Model Compatibility List $5.99 / Each

2
Belt Tension Idler Wheel Assembly 1000701 X5-XX0X-0102 Belt Tension Idler Wheel Assembly Yes Model Compatibility List $34.79 / Each

Eddy ECB Magnetic Brake Chi Hua 1000702 7459501 Eddy ECB Magnetic Brake Chi Hua Yes Model Compatibility List $130.80 / Each
Out Of Stock
- 1001130 REX01HL - Resistance Gear Servo Motor Brake Yes Model Compatibility List $94.80 / Each

4,5,6,10
Lower Leg Idler 1001658 REX2AWK Lower Leg Idler Yes Model Compatibility List $127.19 / Each
Out Of Stock 		8
- 1011998 REX22RR - Nylock Nut (New) Yes Model Compatibility List $13.99 / Each

1
RPM Speed Sensor Reed Switch 2 Terminal Wire (Used) 1011641 rmp-sensr-41 RPM Speed Sensor Reed Switch 2 Terminal Wire (Used) Yes Model Compatibility List $17.99 / Each

4,24,47
View Drawing
