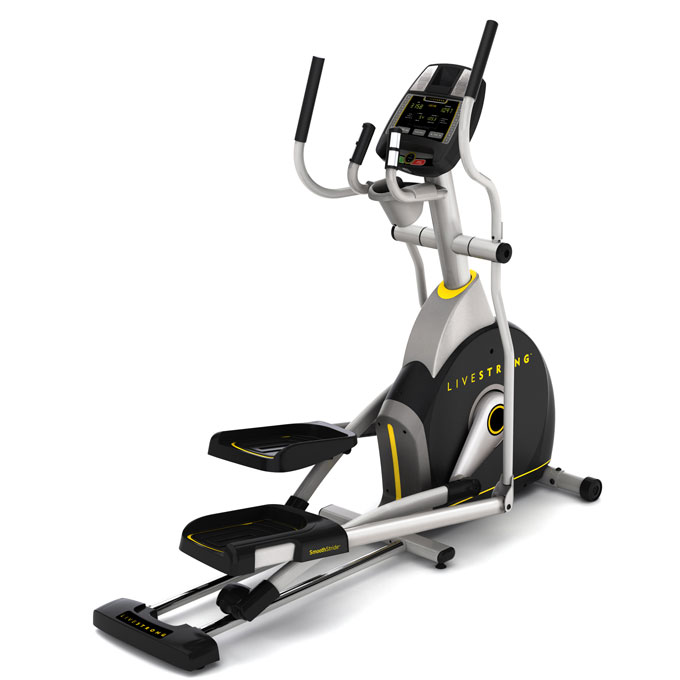

Livestrong - LS7.9E - 2010

Repair Parts for Livestrong LS7.9E EP525

Brand: Livestrong

Category: Traditional

Type: Elliptical

Model Name: LS7.9E

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700318 000940-A C07 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

G 700323 000960-AA G09 End Cap;Upper Vertical Handlebar Yes Model Compatibility List $3.89 / Each

9,11
700570 001679-00 P04 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

R 701042 003413-00 R02 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
R 701209 004165-00 R06 Drive Belt;Poly-V;490-J8 Yes Model Compatibility List $54.73 / Each

701300 004364-00 H06 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

Z 701316 004372-00 Z27 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

N 701327 004380-00 N25 Screw;Phillip;BH;M5x0.8Px5L;;Zn-BL No Model Compatibility List $1.85 / Each

2
Z 701446 004488-AC Z04 Screw;Hex Socket;Round;M8x1.25Px55L No Model Compatibility List $1.79 / Each

E 701506 004541-AC E13 Screw;Hex Socket;Round;M8x1.25Px45L;Chromed No Model Compatibility List $3.64 / Each

701577 004612-00 N23 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

701597 004621-00 Q19 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
L 701617 004636-AC L06 Screw;Umbrella Cross Tapped;4x15L No Model Compatibility List $1.66 / Each

R 701650 004691-A R07 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
D 701681 004714-AB D10 Screw;Hex Socket;BH;M6x1.0Px15L;Zinc No Model Compatibility List $1.59 / Each

2
L 701698 004723-00 L05 Screw;Oval;Hex Socket;M8x1.25Px3/4L No Model Compatibility List $2.00 / Each

2
Z 701706 004727-00 Z01 Screw;Hex Socket;BH;M8x1.25Px30L No Model Compatibility List $1.59 / Each

2
Z 701743 004767-00 Z18 Screw;Hex Socket;BH;M8x1.25Px70L(Tooth12) No Model Compatibility List $1.79 / Each

2
701847 004864-00 D08 Screw;4x12L No Model Compatibility List $2.00 / Each

701848 004865-00 J03 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

R 701874 004901-00 R08 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

701897 004926-00 Z21 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

R 701904 004931-00 R09 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

701964 005005-00 Z19 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

Z 702005 005043-00 Z25 Washer;Flat;8.2x20x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

702076 005109-00 L04 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Z 702086 005118-00 Z20 Washer;Flat;8.4x17.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

702107 005136-A Z15 Washer;Flat;8.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
702135 005163-00 Z03 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
702161 005198-00 Z22 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
702217 005330-00 Q20 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

C 702237 005362-00 C10 C-Clip;External;S-16 No Model Compatibility List $1.59 / Each

702241 005366-00 R13 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

702829 011173-00 R15 Nut;Hex;M25x1.5P;Black No Model Compatibility List $4.00 / Each

2,4,5,6
M 702857 012847-00 M01 Resistance Motor Yes Model Compatibility List $206.67 / Each

1
703950 019906-CX R04 Generator Set;10.5Kg No Model Compatibility List $259.56 / Each

8
Z 703965 020014-00 Z26 Screw;Phillip;BH;M4x0.7Px15L;Ni;Gap No Model Compatibility List $2.00 / Each

2
B 704016 020105-AC B16 Screw;Hex Socket;Round;M10x1.5Px15L;Adhe No Model Compatibility List $2.57 / Each

704073 020185-00 M05 Screw;Phillip;BH;Tapped;4x10L No Model Compatibility List $1.59 / Each

E 704076 020190-A E11 Screw;Phillip;BH;Tapped;4x0.7Px10L No Model Compatibility List $1.85 / Each

2
704079 020196-A N24 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

Z 704210 020482-00 Z16 Washer;Flat;16.0X25.0X1.5T No Model Compatibility List $1.59 / Each

2
Q 704273 022177-A Q18 Bracket;Side Cover;2 Hole Plate No Model Compatibility List $2.47 / Each

705485 049287-00 R17 Washer;Flat;12.5x20.0x2.0t; No Model Compatibility List $2.00 / Each

706235 060369-A R10 Nut;Hex;M14X1.5PX8L No Model Compatibility List $0.96 / Each

2
706236 060370-A R12 Washer;Spring;14.2x24x1.0T No Model Compatibility List $2.00 / Each

2
D 706705 064736-AA D09 End-Cap;Guide Rail;PP;BL;EP136-B26B Yes Model Compatibility List $8.97 / Each

9
P 707734 1000094716 P01 Power Adapter;100-240V 12V/1A;2M No Model Compatibility List $76.65 / Each

4,5,6
D 707760 1000094876 D11 Leveler Foot;Base;PVC;3/8-16UNC;BLACK;TM616 Yes Model Compatibility List $6.42 / Each

A 708155 1000100815 AC1 Console Mast Set;Semi-Assy;EP525-1US No Model Compatibility List $277.45 / Each

7
A 708157 1000100824 AD1 Guide Rail Set;Semi-Assy;EP525-1US No Model Compatibility List $233.25 / Each

9
A 708158 1000100832 AE1 Pedal Arm Set;Left;EP525-1US No Model Compatibility List $252.49 / Each

8,9,3
Q 708159 1000100845 Q07 Roller Wheel Cover;Left Yes Model Compatibility List $12.99 / Each

8,9
Q 708160 1000100846 Q09 End Cap;Pedal Arm No Model Compatibility List $2.47 / Each

8,9,3
Q 708161 1000100847 Q05 Cover;Pedal Arm Yes Model Compatibility List $9.09 / Each

3,8,9
A 708162 1000100848 AE2 Pedal Arm Set;Right;Semi-Assy;EP525-1US No Model Compatibility List $252.49 / Each

8,9,3
Q 708163 1000100851 Q08 Roller Wheel Cover;Right Yes Model Compatibility List $12.93 / Each

8,9
A 708164 1000100853 AG3 Upper Handlebar Set;Left No Model Compatibility List $23.63 / Each

11
A 708165 1000100860 AG1 Lower Handlebar Set;Left No Model Compatibility List $63.54 / Each

11
A 708166 1000100868 AG2 Lower Handlebar Set;Right No Model Compatibility List $63.54 / Each

11
L 708167 1000100884 L01 Stabilizer Set;Semi-Assy;EP525-1US No Model Compatibility List $58.03 / Each

1
Q 708168 1000100887 Q03 Cover;Upper Console Mast Yes Model Compatibility List $7.82 / Each

7,9
A 708182 1000100946 AJ1 Crank Set Yes Model Compatibility List $191.62 / Each

8
Q 708207 1000101190 Q21 Cover;Rear Stabilizer;Queen;Black No Model Compatibility List $22.44 / Each

9,4,5,6
C 708251 1000101531 C08 Pulse Sensor Set Yes Model Compatibility List $33.93 / Each

11
708330 1000102101 AN1 Console Set;Semi-Assy;EP525-1US No Model Compatibility List $709.77 / Each

7
P 708416 1000102738 P02 Console Cable Connection Wire;50,50,600;1000L No Model Compatibility List $53.22 / Each

7,4,5,6
V 708418 1000102772 V06 DecorateSticker;Cover;Stabilizer;EP525 No Model Compatibility List $3.54 / Each

9
G 708419 1000102774 G11 Screw;Settle;M4x0.7Px8L No Model Compatibility List $2.00 / Each

2
Q 708421 1000102778 Q13 Crank Cover;Large;MM330;EP525-1US No Model Compatibility List $14.56 / Each

8,9
Q 708422 1000102779 Q14 Crank Cover;Small;mold;MM330;EP525-1 No Model Compatibility List $1.77 / Each

8,9
V 708423 1000102780 V03 DecorateSticker;Crank Cover;EP525 No Model Compatibility List $3.54 / Each

8,9
Q 708424 1000102781 Q04 Rear Stabilizer Cover No Model Compatibility List $22.78 / Each

9
Q 708425 1000102782 Q01 Side Cover;Left No Model Compatibility List $78.94 / Each

9
Q 708426 1000102784 Q02 Side Cover;Right No Model Compatibility List $78.94 / Each

9
Q 708427 1000102786 Q16 Upper Side Cover;ABS;;MM330;EP52 Yes Model Compatibility List $20.62 / Each

9
Q 708428 1000102787 Q17 Upper Side Cover;Rear No Model Compatibility List $9.57 / Each

9
V 708429 1000102789 V05 DecorateSticker;Cover;Stabilizer;Middle; No Model Compatibility List $1.77 / Each

9
V 708430 1000102790 V02 DecorateSticker;Side Cover;Round;EP525 No Model Compatibility List $3.64 / Each

9
V 708431 1000102791 V04 DecorateSticker;Side Cover;Long;EP525 No Model Compatibility List $3.82 / Each

9
V 708432 1000102801 V15 Manual;Assembly;ENG;EP525-1US No Model Compatibility List $9.57 / Each

3
H 708433 1000102806 H05 Swivel Axle;Link Arm No Model Compatibility List $8.01 / Each

8,3
Q 708508 1000103023 Q15 End Cap;Pedal Arm Yes Model Compatibility List $6.49 / Each

3,8,9
V 708535 1000103212 V07 Decoration Sticker;Pedal;EP525 No Model Compatibility List $3.54 / Each

8,9
A 708570 1000103569 AG4 Upper Vertical Handlebar Set; Right;EP525-1US No Model Compatibility List $23.63 / Each

11
708696 1000104894 R05 Bearing;Ball;6005ZZ;25X47X12T;;SL;;; No Model Compatibility List $11.49 / Each

8
Z 708772 1000105761 Z06 Washer;Outside Sawtooth;Lock;8.4x15.0 No Model Compatibility List $2.00 / Each

2
E 708785 1000106037 E08 Crank Pin Sleeve Set No Model Compatibility List $57.49 / Each

8,3,12,13,14
V 708947 1000107516 V24 Elliptical Guide No Model Compatibility List $6.68 / Each

1
P 708982 1000107891 P03 Speed Sensor;300mm(OKI+CWB SM-3Y) No Model Compatibility List $8.87 / Each

1
R 708995 1000108119 R03 Pedal Axle Set No Model Compatibility List $142.84 / Each

8,9
709055 1000108777 E15 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $2.00 / Each

V 709098 1000109521 V19 Round Sticker;Side Cover No Model Compatibility List $1.90 / Each

9
R 709201 1000110978 R18 Nut;HXF;levogyrate;M14x1.5Px10L;G10;NKL;Reverse Threaded No Model Compatibility List $2.00 / Each

7,2,12,13,14
Q 709913 1000204497 Q12 Pedal;Right;PP;-;EP544-1US; Yes Model Compatibility List $45.29 / Each

8,9
Q 709942 1000204918 Q11 Pedal;Left No Model Compatibility List $45.42 / Each
Out Of Stock 		8,9
R 710011 1000205914 R18 Nut;HXF;M14X1.5P;G4.8;BZN;; No Model Compatibility List $1.85 / Each

2
R 710012 1000205915 R10 Nut;HXF;M14X1.5P;G4.8;WZN;; No Model Compatibility List $2.00 / Each

2
A 710375 1000209800 AJ1 Crank Set No Model Compatibility List $208.29 / Each

8
Q 710722 1000212646 Q06 MOVING WHEEL SET;-;S-EP534;-; Yes Model Compatibility List $189.00 / Each

8
H 713201 1000300189 H07 Bearing;Dry;-;-;Sheng Ge Ban No Model Compatibility List $6.68 / Each

A 713854 1000308924 AH1 Link Arm Set;Semi-Assy;left;;;S-EP543;; No Model Compatibility List $344.94 / Each

3
A 713855 1000308926 AH2 Link Arm Set;Semi-Assy;right;;;S-EP543;; No Model Compatibility List $344.94 / Each
Out Of Stock 		3
D 720052 1000368347 D05 Accent Plate Set;Semi-Assy;;;;EP595-1US; Yes Model Compatibility List $70.25 / Each

3,4,5,6
M 725184 102450 M02 Steel Cable;ECB;160L No Model Compatibility List $9.75 / Each

4,5,6
Screw; Hex Socket; BH; M8x1.25Px15L 725507 072210 E10 Screw; Hex Socket; BH; M8x1.25Px15L No Model Compatibility List $1.59 / Each

Screw;Hex Socket;BH;M8x1.25Px20L 725508 072211 E14 Screw;Hex Socket;BH;M8x1.25Px20L No Model Compatibility List $1.59 / Each

Crank Puller;30mm 725742 075513 KIT Crank Puller;30mm No Model Compatibility List $57.49 / Each

725754 075972 L02 Bushing;Move Wheel;BLACK;EP188 Yes Model Compatibility List $6.68 / Each

Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

726975 086331 Z15 Washer;Wavy;17.2X22.5X0.3T No Model Compatibility List $1.59 / Each

Cover;Lower Vertical Handlebar Rotating Axle 728346 094112 B35 Cover;Lower Vertical Handlebar Rotating Axle Yes Model Compatibility List $7.99 / Each

Bottle Holder;ABS;MM330;EP209 728905 098782 C11 Bottle Holder;ABS;MM330;EP209 Yes Model Compatibility List $34.16 / Each

729078 Part of AE1 E19 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729081 Part of AG1 G13 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729082 Part of AG1 or AG2 Q10 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729084 Part of AG3 or AG4 G10 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729103 Part of E08 or Q06 E12 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729245 Part of R03 R11 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
D 000089 1000094876 D11 1 Leveling Foot Leveler Yes Model Compatibility List $19.99 / Each

R 1003253 004165-00 R06 1 Belt Drive 8 Ribbed Yes Model Compatibility List $32.99 / Each

Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

M 1003402 012847-00 M01 Resistance Servo Motor Yes Model Compatibility List $56.99 / Each
Out Of Stock 		1
Q 1037610 1000100845 Q07 Left pulley cover Yes Model Compatibility List $12.04 / Each

8,9
Q 1038035 1000102787 Q17 Upper Side Rear Cover (Used) Yes Model Compatibility List $12.99 / Each

9
Z 976932 004926-00 Z21 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q20 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Q 957090 004621-00 Q19 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
