Life Fitness - LS-5500C

Repair Parts for Life Fitness LS-5500C

Brand: Life Fitness

Category: Residential Upright Steppers

Type: Stepper

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

Model Name: LS-5500C

Serial Number Prefix: (SN 229931-238861)

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
1028848	0K24-01515-0000	0	1	BOOT - LS-5500 D (Used)	No	Model Compatibility List	$17.99 / Each	1
1028838	0K24-01516-0000	0	1	Assembly w Sprocket Pulley (Used)	No	Model Compatibility List	$106.80 / Each	1
1028847	0K24-01519-0001	0	1	28 1/2 Belt Drive (Used)	No	Model Compatibility List	$28.80 / Each	23

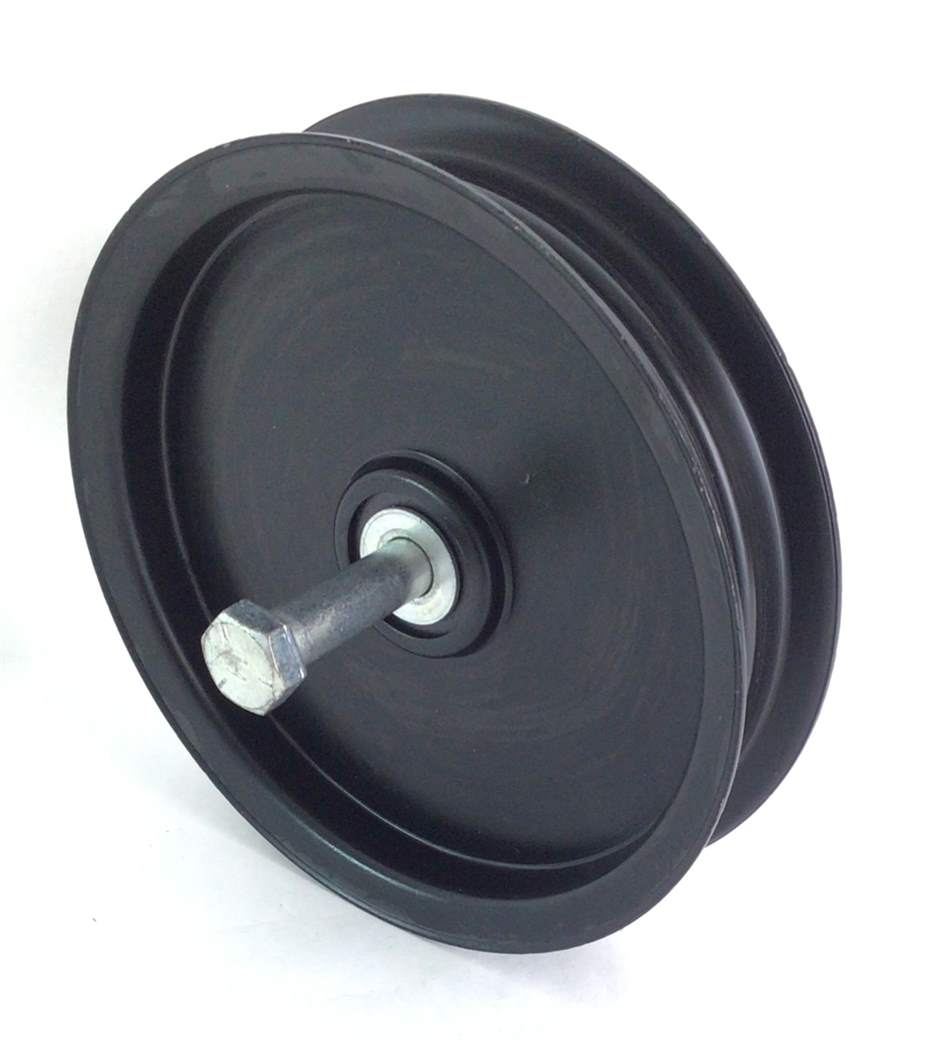

1028837	0K24-01522-0001	0	1	Pulley Idler (Used)	No	Model Compatibility List	$36.00 / Each	37
1028825	0K24-01523-0001	0	1	IDLER - BELT B (Used)	No	Model Compatibility List	$24.00 / Each	15
1028840	0K24-01595-0000	0	1	Belt Crossover (Used)	No	Model Compatibility List	$142.80 / Each Out Of Stock	15
1028845	0K24-01715-0000	0	1	Step spring lower (Used)	Yes	Model Compatibility List	$42.00 / Each	2
1028846	0017-00009-0796	0	1	Foot Leveler (Used)	Yes	Model Compatibility List	$11.99 / Each	1
1028844	AK24-00402-0000	0	1	CLUTCH-SPROCKET ASSY B (Used)	No	Model Compatibility List	$58.80 / Each Out Of Stock	1
1028430	AK24-00403-0000	0	1	INTERMEDIATE SHAFT ASY (Used)	No	Model Compatibility List	$118.80 / Each	1

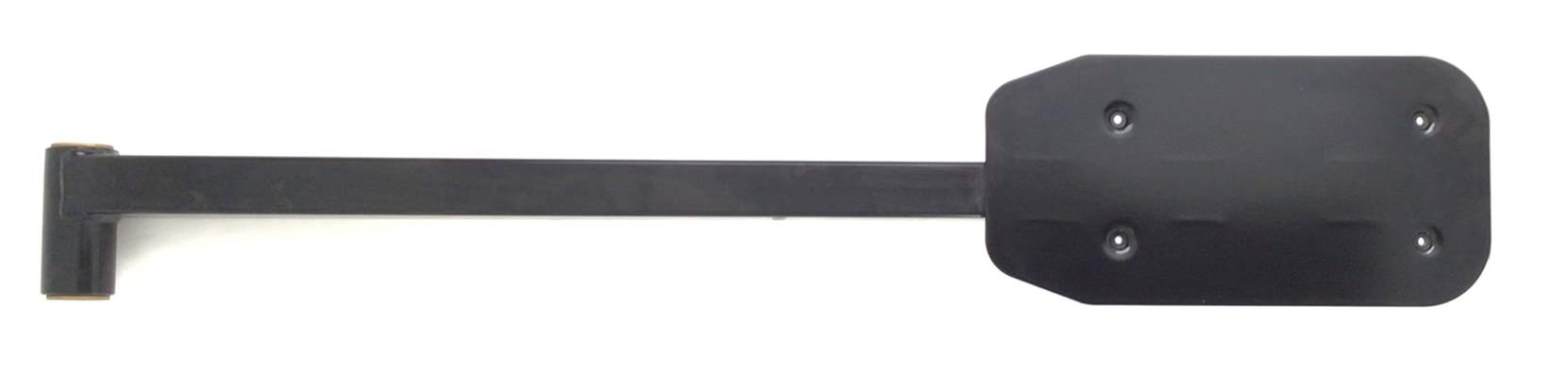

1028861	AK24-00405-0001	0	1	PEDAL LEVER ASY RT (Used)	No	Model Compatibility List	$106.80 / Each	31
1028860	AK24-00405-0002	0	1	PEDAL LEVER ASY LT (Used)	No	Model Compatibility List	$106.80 / Each	31
1027323	AK24-00413-0000	0	1	Wire Harness with Resistor (Used)	No	Model Compatibility List	$70.80 / Each	49
1028839	AK24-00421-0000	0	1	Controller (Used)	No	Model Compatibility List	$142.80 / Each	48
1028842	AK24-00426-0000	0	1	Wire Harness Display Console (Used)	No	Model Compatibility List	$30.00 / Each	19
1028862	AK24-00434-0000	0	1	Alternator (Used)	No	Model Compatibility List	$178.80 / Each	1
1028826	AK24-00436-0001	0	1	USE/ SK24-00436-0001 - CONS-ASSY - MFG W/CL/ENG/ENG/F-P D (Used)	No	Model Compatibility List	$214.80 / Each Out Of Stock	30
1028824	LS-5500C-LC-HR	0	1	Locking Collar - Hex Retainer (Used)	No	Model Compatibility List	$11.99 / Each	1
1028843	MT00-00186-A000	0	1	15VAC Output Power Adapter Model 14804 (Used)	No	Model Compatibility List	$90.00 / Each Out Of Stock	6

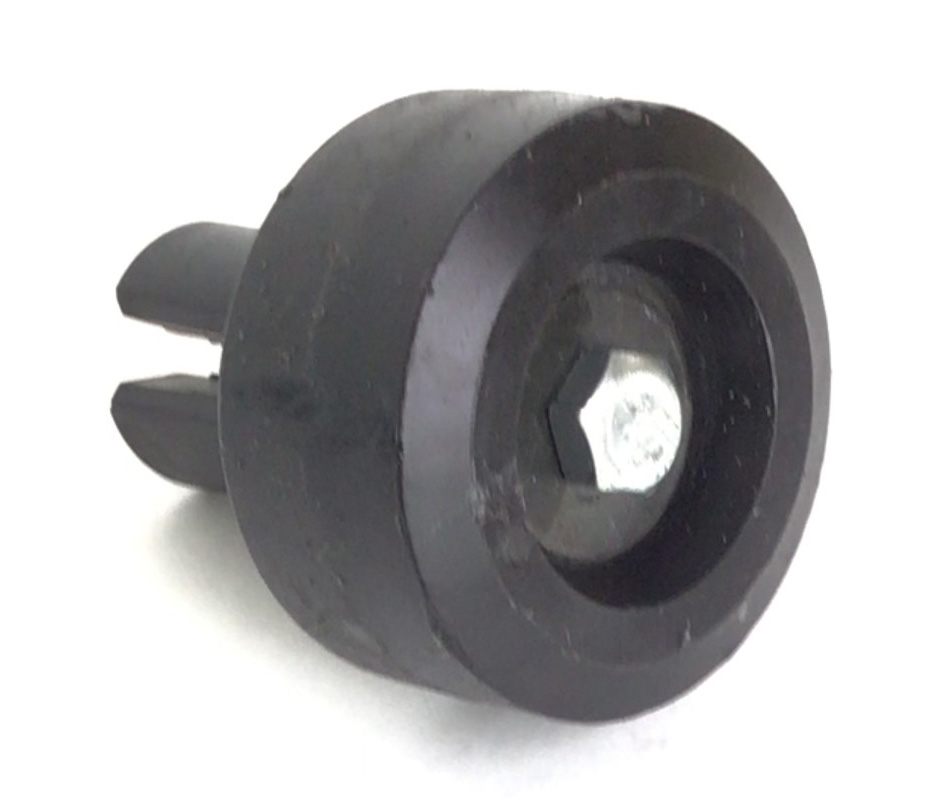

1028849	OK24-01589-0000	0	1	WHEEL - PLASTIC BLACK C (Used)	No	Model Compatibility List	$11.99 / Each	8
1010140	OK24-01715-0000			Upright Stepper Lower Shock Spring (Used)	Yes	Model Compatibility List	$51.59 / Each Out Of Stock

View Drawing
