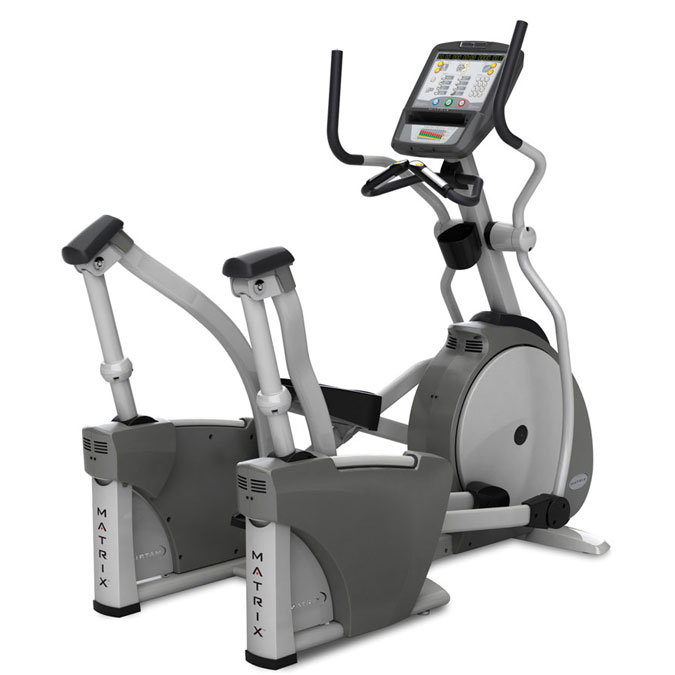

Matrix Commercial - A5x-02-G4 - 2009

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700016 000028-D B36 Transport Wheel;Nylon;100;BL;;EP23 Yes Model Compatibility List $25.14 / Each

8
700032 000102-GA Q01 COVER;FRAME;L;ABS PA-746;CN/GY96374+UV; No Model Compatibility List $0.00 / Each
Out Of Stock
9,3
700037 000153-HA Q02 COVER;FRAME;R;ABS PA-746;CN/GY96374+UV; No Model Compatibility List $0.00 / Each
Out Of Stock
9,3
Q 700056 000220-CA Q03 Boot;Console Mast Yes Model Compatibility List $17.99 / Each

7
Q 700069 000249-DA Q13 Boot;Arm Rest;Left Yes Model Compatibility List $3.64 / Each

3
Q 700070 000250-DA Q14 Boot;Arm Rest;Right Yes Model Compatibility List $3.64 / Each

3
Q 700071 000251-DA Q15 Boot;Swivel Axle Yes Model Compatibility List $3.35 / Each

8
Q 700072 000252-CA Q16 Cover;Handlebar Yes Model Compatibility List $3.64 / Each

9,11
Q 700087 000330-CA Q11 Boot;Link Arm;Right No Model Compatibility List $1.79 / Each

3
Q 700088 000331-CA Q12 Boot;Link Arm;Left Yes Model Compatibility List $1.79 / Each

3
B 700134 000490-BA B38 Leveler;Foot Pad Yes Model Compatibility List $9.10 / Each

B 700143 000512-DB B38 Leveler;Foot Pad;No Swivel;CB32 Yes Model Compatibility List $12.99 / Each

3,9,12,13,14
G 700206 000661-B G52 Foam Grip;Arm Rest;31x3tx483L;BL;JHT No Model Compatibility List $22.33 / Each

3,11
G 700281 000856-00 G54 Hole plug;KSS HP-10;BL;Market No Model Compatibility List $1.79 / Each

P 700282 000859-00 P53 Hole Plug;Nylon66;HP-8;Black No Model Compatibility List $1.66 / Each

700373 001150-CA Q10 Boot;Crank Yes Model Compatibility List $13.00 / Each

8
Q 700571 001681-A Q26 Fix Pillar;PP;TM81 No Model Compatibility List $1.90 / Each

N 700924 002782-C Not Shown Power Cord;External(USA);3000,14AWG;110V(non-nema) Yes Model Compatibility List $72.98 / Each

N 700925 002787-C Not Shown Power Cord;External(USA);3000,14AWG;110V(nema) No Model Compatibility List $72.98 / Each

4,5,6
P 701035 003393-A P19 Ferrite Core;FH1500B;TM87 K1 RH12.5x12.5x8 No Model Compatibility List $3.64 / Each

G 701093 003716-00 G58 Washer;WW;30.2X39.2X0.3T;;; No Model Compatibility List $0.88 / Each

B 701104 003836-C B35 Roller Axle;F;SS41;EP23 No Model Compatibility List $8.42 / Each

8
E 701160 004078-A2 E52 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

G 701162 004079-A3 G53 Ball Bearing;6006ZZ;30X55X13T;;TPI;;; No Model Compatibility List $27.04 / Each

E 701164 004080-A2 E50 BEARING;BALL;6203ZZ;#17X#40X12T;;TPI;;; No Model Compatibility List $6.73 / Each

E 701177 004103-00 E47 Needle Bearing;HK2020 No Model Compatibility List $19.50 / Each

701300 004364-00 P41 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

Z 701312 004370-00 Z03 Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL No Model Compatibility List $2.00 / Each

P 701314 004371-00 P46 Screw;Phillip;BH;M5x0.8Px25L;;Zn-BL No Model Compatibility List $1.66 / Each

701320 004375-00 B55 Screw;Phillip;BH;M5x0.8Px15L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

2
S 701351 004400-00 S58 Screw;Phillip;BH;M5x0.8Px6L;Black;;Zn-BL No Model Compatibility List $1.79 / Each

2,4,5,6
S 701395 004450-00 S60 Screw;Hex Socket;Round;M5x0.8Px6L;;Zn-BL No Model Compatibility List $0.23 / Each

Q 701397 004451-AD Q56 Screw;Round Hex Socket;M5x0.8Px20L No Model Compatibility List $1.66 / Each

2
S 701408 004462-00 S51 Screw;Round;Hex Socket;M6x1.0Px15L;Chromed No Model Compatibility List $2.00 / Each

S 701414 004464-00 S52 Screw;Round;Hex;M6X10;Zn-BL No Model Compatibility List $1.79 / Each

H 701428 004477-00 H50 Screw;Hex Socket;Round;M8x1.25Px10L No Model Compatibility List $1.66 / Each

2
701430 004479-00 Z01 Screw;Round;Hex Socket;M8X1.25PX15L No Model Compatibility List $2.00 / Each

Z 701446 004488-AC Z05 Screw;Hex Socket;Round;M8x1.25Px55L No Model Compatibility List $1.79 / Each

J 701449 004493-00 J36 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

H 701474 004522-AC H71 Screw;SH;M10X1.5PX25L;;HS;;;;BP No Model Compatibility List $1.33 / Each

2
Z 701490 004533-AB Z04 Screw;Hex Socket;Round;M8x1.25Px65L Yes Model Compatibility List $1.79 / Each

2
Z 701504 004539-AC Z34 Screw;Round;Hex Socket;M8X1.25PX25L Yes Model Compatibility List $3.64 / Each

701561 004592-00 S55 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

Q 701583 004615-00 Q52 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

701605 004627-00 P47 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

P 701624 004645-00 P56 Screw;Phillip;Round;3x6L;;Zn-BL No Model Compatibility List $1.66 / Each

2
G 701626 004647-00 G12 Screw;Phillip;Round;3x12L No Model Compatibility List $1.79 / Each

S 701647 004685-A S02 Bolt;Eye Hook;1/4"-20UNCx105L;;Zn-BL No Model Compatibility List $3.64 / Each

2
J 701673 004706-A J33 Screw;TH;M6X1.0PX16L;;HS;;BZN;; No Model Compatibility List $1.66 / Each

701699 004724-00 E63 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

E 701863 004885-00 E54 Nut;Hex;M10x1.5P No Model Compatibility List $2.00 / Each

2
701866 004889-00 P44 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

H 701885 004911-00 H51 Nut;Hex;M16x2.0Px7.0L;Zn Pl Yes Model Compatibility List $5.99 / Each

701897 004926-00 Z07 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

S 701904 004931-00 S59 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

701908 004934-00 S56 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

E 701924 004957-00 E62 Nut;Lock;M25X1.5P;SS41;BAN Yes Model Compatibility List $3.64 / Each

J 701930 004967-AB J30 Nut;Hex;Flange;M16x1.5P;Carburizing Yes Model Compatibility List $1.79 / Each

2
B 701943 004978-00 B86 Insert Nut;Hex;NHS-1015-4.0(M10x1.5P) No Model Compatibility List $1.66 / Each

C 701944 004979-00 C08 Insert Nut;Hex;NHS-8125-3.0(M8x1.25P) No Model Compatibility List $1.79 / Each

H 701945 004980-A H53 Insert Nut;Hex;NHS-580-3.0(M5X0.8P) Yes Model Compatibility List $1.79 / Each

701964 005005-00 G56 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

S 701975 005013-00 S50 Washer;Spring;6.0x10.0x1.5t No Model Compatibility List $2.00 / Each

2
701987 005025-00 E61 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $2.00 / Each

B 701990 005028-00 B94 Washer;Flat;20.2x35.0x2.0T;Black Zinc No Model Compatibility List $1.66 / Each

2,4,5,6
E 701993 005032-00 E45 Washer;Flat;20.2x35.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
S 702046 005075-00 S53 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

Q 702113 005140-A Q51 Washer;Flat;5.5x10.0x1.2T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
702145 005177-00 P45 Washer;Tooth;5.3X10.0X0.6T;BAN No Model Compatibility List $2.00 / Each

702178 005220-00 E58 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

702186 005229-00 E46 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

J 702196 005245-A J31 Washer;Lock;16.2x31.5x1.5T No Model Compatibility List $1.79 / Each

G 702230 005355-00 G50 C-Clip;Internal;R-55 Yes Model Compatibility List $3.64 / Each

C 702242 005367-00 C14 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

J 702289 005487-D J07 Spring;Compress Yes Model Compatibility List $9.10 / Each

702364 006540-A V19 Decal;Arm Rest;20MM;Red Word/White Base; No Model Compatibility List $0.00 / Each
Out Of Stock
V 702365 006541-A V18 DECAL;HANDLEBAR;RIGHT;RED WORD/WHITE BAS No Model Compatibility List $1.66 / Each

702449 007489-00 P17 Fix Plate;Speed Sensor Yes Model Compatibility List $7.72 / Each

3
702484 007970-B Q29 Connecting Plate;Side Cover;2 Hole No Model Compatibility List $1.79 / Each

9,3
702491 008042-F C06 Connecting Plate;Console Mast Yes Model Compatibility List $20.88 / Each

7,3
N 702589 008864-A N151 Screw;Special;Round;2.9x1.06Px7L(Hi-Lo) No Model Compatibility List $1.79 / Each

J 702591 008866-A J29b Screw;Special;Round;4.0x1.34Px12L(Hi-Lo No Model Compatibility List $1.66 / Each

G 702767 009589-A G51 End Cap;Handlebar;Steel No Model Compatibility List $1.79 / Each

9,11
703580 015555-AA E42 Connecting Plate;Pedal Arm;3 Hole Yes Model Compatibility List $35.80 / Each

8,9,3
703592 015608-AB G07 PAINTING;SWIVEL BASE;SL/GY;TWO COAT&PAIN No Model Compatibility List $0.00 / Each
Out Of Stock
3
G 703593 015609-AB G08 End Cap;Swivel Base Yes Model Compatibility List $111.33 / Each

9,3
B 703603 015642-AA B12 Connecting Tube Cover; Black No Model Compatibility List $66.61 / Each

9,3,4,5,6
B 703853 018653-A B84 Screw;SH;M8X1.25PX22.5L-8L;CRMO;BAN; No Model Compatibility List $1.79 / Each

H 704016 020105-AC H71 Screw;Hex Socket;Round;M10x1.5Px15L;Adhe No Model Compatibility List $2.57 / Each

704147 020332-00 J29a SCREW;TRHW;F4X12L;TC;PH;;BAN;;POT No Model Compatibility List $0.00 / Each
Out Of Stock
2
B 704175 020425-00 B91 Washer;Flat;8.4x15.5x1.6T No Model Compatibility List $2.00 / Each

H 704222 020641-00 H74 Clip;Internal;C-Shaped;R-52; No Model Compatibility List $1.79 / Each

V 704977 027982-B V07 Decal;Side Cover;EP68-US;EP68 No Model Compatibility List $25.30 / Each

7,9,3
A 705110 036368-BA AG4 Middle Handlebar No Model Compatibility List $174.20 / Each

11
Q 705163 038449-A Q45 Clip;Tapped Hole;FE;M5;YZN No Model Compatibility List $9.10 / Each

P 705777 056225-A P65 Ferrite;PART OF #79 CABLE;NOT ORDERABLE; No Model Compatibility List $8.42 / Each

706131 059368-00 JM01 Generator;242;200W 600rpm/2A;JM07 Yes Model Compatibility List $807.77 / Each

1
P 706251 060608-AB P43 Screw;Umbrella Cross;M5x0.8Px55L;nickel No Model Compatibility List $1.66 / Each

2
Q 706366 061489-AA Q44 Pedal Pad;Rubber(Black);EP76 Yes Model Compatibility List $36.79 / Each

8,9,4,5,6,12,13,14
Q 706368 061494-AA Q19 E-PORT Fix Plate;ABS PA-746(BL) No Model Compatibility List $3.64 / Each

3
706414 062185-00 AE1 R PEDAL ARM WELDING PICTURE;;EP72-US; No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
706415 062191-00 AE2 L PEDAL ARM WELDING PICTURE;;EP72-US; No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
706416 062205-00 AH1 R LINK ARM SET WELDING(PAINTING);EP72-US No Model Compatibility List $0.00 / Each
Out Of Stock
3
706417 062212-00 AH2 L LINK ARM SET WELDING(PAINTING);EP72-US No Model Compatibility List $0.00 / Each
Out Of Stock
3
706418 062216-00 AH7 R SWING ARM SET WELDING(PAINTING); No Model Compatibility List $0.00 / Each
Out Of Stock
3
706419 062226-00 AH8 L SWING ARM SET WELDING(PAINTING); No Model Compatibility List $0.00 / Each
Out Of Stock
3
H 706420 062233-00 H61 Bearing;Needle;8505LLU;Huei Yuan No Model Compatibility List $17.52 / Each

8
706422 062244-00 AH10 L D ADJ ARM WELDING(PAINTING);EP72-US; No Model Compatibility List $0.00 / Each
Out Of Stock
3
A 706424 062251-00 AH11 UPPER ADJUSTING ARM;EP72-US; No Model Compatibility List $160.73 / Each

3
H 706425 062256-B H37 Ring 1;STK41(Zn Plate);EP72-H37 No Model Compatibility List $8.42 / Each

3
H 706426 062257-A H38 Screw;;M10X1.5PX14L;;HS;CRMO;;;SP No Model Compatibility List $3.64 / Each

2
H 706427 062258-B H39 Ring 2;STK41(Zn Plate);EP72-H39 No Model Compatibility List $9.10 / Each

H 706428 062259-A H40 Adjusting Arm Axle 1;S45C;EP72-H40 Yes Model Compatibility List $12.69 / Each

8,3
H 706429 062260-A H41 Adjusting Arm Axle 2;S45C;EP72-H41 Yes Model Compatibility List $11.60 / Each

8,3
H 706430 062261-C H62 Axle Fix Ring 1;SS41;EP72-H62 No Model Compatibility List $9.10 / Each

8
Q 706431 062264-AA Q04 Pedal;Left;PA-746 Black;EP72 Yes Model Compatibility List $39.65 / Each

8,9,4,5,6
Q 706432 062265-AA Q05 Pedal;Right;PA-746 Black;EP72 Yes Model Compatibility List $39.65 / Each

8,9,4,5,6
706433 062266-AA Q31 R R R COVER;ABS PA-746;CN/GY96374+UV;EP7 No Model Compatibility List $54.05 / Each

9
Q 706438 062271-AA Q36 Pivot Arm Lower Cover;Outside;PA-746(BL);EP72-Q36A; Yes Model Compatibility List $8.42 / Each

8,9,3
Q 706439 062272-AA Q37 Pivot Arm Lower Cover;Inside;PA-746(BL);EP72-Q37A; No Model Compatibility List $9.93 / Each

8,9,3
Q 706440 062274-AA Q39 Foot Pad;Black;EP72 No Model Compatibility List $16.74 / Each

9,3,4,5,6,12,13,14
A 706487 062709-CA AH4 Protected Pad;Swivel Rack;PU;Black;PU-Se Yes Model Compatibility List $56.84 / Each

4,5,6,12,13,14
H 706488 062710-00 H64 Pin;Spring;SSPR5-12L; No Model Compatibility List $3.35 / Each

P 706525 063033-A P07 Speed Sensor Wire;350L;(Hall+JST 2.5-3PIN);EP7 Yes Model Compatibility List $19.97 / Each

4
P 706526 063035-A P02 Elevation Motor Wire;1760;MOLEX(050-84-2062);EP Yes Model Compatibility List $81.43 / Each

4,5,6,10
P 706527 063037-A P10 ECB Load Wire;400L;(3.96-4P+HL20P-02);EP Yes Model Compatibility List $8.42 / Each

4,5,6
P 706530 063045-AA P09 AC Power Socket Wire;EP72; No Model Compatibility List $119.81 / Each

4,5,6
706754 065248-A P05 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

Q 706755 065383-AA Q28a Pedal Cap;NY(BL);EP76-Q28 Yes Model Compatibility List $4.26 / Each

Q 706756 065384-BA Q43 Link Arm Cap;PP(Black);EP72 Yes Model Compatibility List $3.64 / Each

9,3,4,5,6
B 706805 065746-AA B56 Front Right Decorative Cover;EP72-US Yes Model Compatibility List $107.38 / Each

9
Q 706828 065956-AC Q54 Screw;Oval;M5X0.8PX15L;;PH;SSTSUS304;BAN No Model Compatibility List $1.79 / Each

2
Q 706847 066181-BA Q41 Rear Cover Trim;Right;Rubber;NBR(BL);EP72-Q41B; Yes Model Compatibility List $14.61 / Each

9
Q 706848 066182-BA Q42 Rear Cover Trim;Left;Rubber;NBR(BL);EP72-Q41B; No Model Compatibility List $14.61 / Each

9
P 706861 066346-A P34 Cable Clamp;PC-0914 KSS No Model Compatibility List $3.35 / Each

4,5,6
S 706865 066413-B S03 Anti-Sweat Cover;ECB No Model Compatibility List $12.27 / Each

9
Q 706869 066457-AA Q35 Anti-Sweat Cover;EP72-US No Model Compatibility List $40.98 / Each

9
H 706948 067369-BA H66 End Cover;EP72-H66B; No Model Compatibility List $3.35 / Each

9
P 707043 068878-A P11 UCB Ground Wire;70L;5+250Feet;TM97; No Model Compatibility List $3.35 / Each

9,3,4,5,6
709055 1000108777 Z06 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $2.00 / Each

710795 1000213710 H52 BEARING;SRE;2201-2RS;M16X2.0PX91L;EP84-H No Model Compatibility List $111.70 / Each

8
J 710938 1000215492 JM16 Elevation Motor Set;400LB,1/9HP DC12V Yes Model Compatibility List $730.05 / Each

4,5,6,10
712004 1000224907 AJ4 Extrawork;CRANK SET;BED;A5X-03;US;EP79 No Model Compatibility List $0.00 / Each
Out Of Stock
8
S 712182 1000227226 S54 Washer;Flat;?X10.5x?X25.0x1.0T;Nylon+S2M No Model Compatibility List $1.79 / Each

713429 1000302968 E15 Crank Sleeve;-;MX-A5x-F;-;BAN;AISI 1018; No Model Compatibility List $0.00 / Each
Out Of Stock
8,3
A 718315 1000350493 AT4 Idler Set;;;Integrated;EP304; Yes Model Compatibility List $54.73 / Each

T 719182 1000356740 TP05 Quickly Key Wire;;;;;;;200+250(TKP,H254M No Model Compatibility List $18.56 / Each

9,4,5,6
T 719870 1000366515 TP04 Earphone board set;;;;EP620; No Model Compatibility List $42.22 / Each

720373 1000372129 Q53 Screw;Button Head;M5x0.8Px15L;;Phillip;S No Model Compatibility List $0.00 / Each
Out Of Stock
5 722243 1000389784 56 Hand Pulse Set;Quickly Key;right;;EP81;; No Model Compatibility List $91.23 / Each

9,12,13,14
722244 1000389789 61 Hand Pulse Set;Quickly Key;right;;EP81;; No Model Compatibility List $0.00 / Each
Out Of Stock
9,12,13,14
722245 1000389792 AD9 Overlay Set;Quick Key;right;;EP81;; No Model Compatibility List $0.00 / Each
Out Of Stock
9
5 722246 1000389832 57 Hand Pulse Set;Quickly Key;left;;EP81;; No Model Compatibility List $91.23 / Each

9,12,13,14
722247 1000389835 61 Hand Pulse Set;Quickly Key;left;;EP81;; No Model Compatibility List $0.00 / Each
Out Of Stock
9,12,13,14
722248 1000389838 AD8 Overlay Set;Quick Key;left;;EP81;; No Model Compatibility List $0.00 / Each
Out Of Stock
9
722290 1000390684 7 Arm Rest set;;front;;EP81;; No Model Compatibility List $0.00 / Each
Out Of Stock
3
Filter Board 725319 069859 AP1 Filter Board Yes Model Compatibility List $55.95 / Each

Power Wire; Filter Board; 700L;(JST FDFNYD1-250-1)x4;EP 725323 069905 P24 Power Wire; Filter Board; 700L;(JST FDFNYD1-250-1)x4;EP No Model Compatibility List $11.67 / Each

Washer;Flat; M10.5X25.0PX1.5T;;BZN 725337 070073 E55 Washer;Flat; M10.5X25.0PX1.5T;;BZN No Model Compatibility List $0.55 / Each

Ring;SS41;EP72-H29B 725428 071105 H29 Ring;SS41;EP72-H29B No Model Compatibility List $3.64 / Each

Bearing;Tapered Roller;2205-JVH(NSK.IJK) 725438 071236 H75 Bearing;Tapered Roller;2205-JVH(NSK.IJK) No Model Compatibility List $182.44 / Each

O Type Ring;30.0x35.0x2.5t; 725439 071237 E64 O Type Ring;30.0x35.0x2.5t; No Model Compatibility List $1.79 / Each

TV Cable Wire;1600L;(FM-0086-NBG7)x2;EP7 726178 0000080626 P06 TV Cable Wire;1600L;(FM-0086-NBG7)x2;EP7 No Model Compatibility List $12.27 / Each

726211 080717 Not Shown Daisy Chain / TV Power Wire Set;EP72-US - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $51.22 / Each

726245 080941 Q40 Swing Arm Cover No Model Compatibility List $3.35 / Each

Rear frame logo plate LH 726325 0000081322 B57 Rear frame logo plate LH No Model Compatibility List $109.72 / Each

726410 081698 AB2 Stabilizer Set;Right No Model Compatibility List $393.22 / Each

726411 081700 AB3 Stabilizer Ser;Left No Model Compatibility List $393.22 / Each

726417 081718 E14 Crank Sleeve Axle;S45C;EP72-E14C; No Model Compatibility List $11.67 / Each

726418 081719 H47 Snug Bushing;S45C(Zn Plate);EP72-H47A; No Model Compatibility List $10.84 / Each

726419 081720 H48 Snug Bushing Fix Plate;S45C(BED); No Model Compatibility List $3.35 / Each

726420 081721 H49 Screw;Hex Socket;Round;M8x1.25Px110L;Adh No Model Compatibility List $3.35 / Each

726562 082875 D60 Screw;BH;M3X0.5PX20L;;PH;;BZN;; No Model Compatibility List $1.79 / Each

726679 084092 Q32 Rear Cover;Right;Inside No Model Compatibility List $121.91 / Each

726680 084093 Q33 Rear Cover;Left Inside No Model Compatibility List $120.43 / Each

726681 084094 Q34 Rear Cover;Left Outside No Model Compatibility List $137.18 / Each

Screw;Phillip;Round;M3x0.5Px30L;;Zn-BL 726738 084533 G21 Screw;Phillip;Round;M3x0.5Px30L;;Zn-BL No Model Compatibility List $1.79 / Each

726811 085166 P42 Screw;Phillip;BH;M5x0.8Px10L;Ni;Gap; No Model Compatibility List $1.66 / Each

Belt;POLY-V;Generator;330-J8-FG;;Carlisle 726958 0000086230 R09 Belt;POLY-V;Generator;330-J8-FG;;Carlisle Yes Model Compatibility List $54.73 / Each

726959 086231 J51 Screw;Phillip;BH;M5x0.8Px10L;Zn-BL No Model Compatibility List $1.79 / Each

Ground Wire;Console;Pulse Extended;220(5.0 OT+KST M 726965 0000086264 P04 Ground Wire;Console;Pulse Extended;220(5.0 OT+KST M No Model Compatibility List $3.64 / Each

726986 086513 B58 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $0.44 / Each

726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

Drive Belt;POLY-V;430-J14;Carlisle;;Rubber;Net 727081 0000087105 R11 Drive Belt;POLY-V;430-J14;Carlisle;;Rubber;Net No Model Compatibility List $54.73 / Each

727192 087640 AC1 PAINTING;CONSOLE MAST SET;;MX-E5XC-F No Model Compatibility List $0.00 / Each
Out Of Stock
727193 087664 P01 Console Cable;Digital Comm Wire;1350L;22AWG;bR No Model Compatibility List $54.86 / Each

727195 087676 Not Shown Assembly Manual;;MX-E5XC-F No Model Compatibility List $15.42 / Each

727204 087732 Not Shown Handlebar Set No Model Compatibility List $487.45 / Each

727207 087749 51 Rotational Housing Assembly;MX-E5XC-F;US;E No Model Compatibility List $259.69 / Each

727211 0000087828 17 Side Cover Set;Left;MX-E5XC-F;US;EP81 Yes Model Compatibility List $150.00 / Each

727212 0000087829 19 Side Cover Set;Right;MX-E5XC-F;US;EP81 Yes Model Compatibility List $150.00 / Each

727241 088060 Not Shown Dual Action Handlebar Set;Right;MX-A5X-F;US;EP84 No Model Compatibility List $493.32 / Each

727242 088061 Not Shown Dual Action Handlebar Set;Left;MX-A5X-F;US;EP84 No Model Compatibility List $493.32 / Each

727243 088065 8 Link Arm Set;Right;MX-A5X-F;US;EP84 No Model Compatibility List $880.46 / Each

727244 088066 9 Link Arm Set;Left;MX-A5X-F;US;EP No Model Compatibility List $888.06 / Each

727245 088068 10 Swing Arm Set;Right;MX-A5X-F;US;EP8 No Model Compatibility List $1080.01 / Each

727246 0000088071 12 Lower Pivot Arm Set;Right;MX-A5X-F;US;EP84 Yes Model Compatibility List $199.00 / Each

727247 088072 13 Lower Pivot Arm Set;Left;MX-A5X-F;US;EP84 No Model Compatibility List $676.86 / Each

Drive Axle Set 727249 0000088082 24 Drive Axle Set No Model Compatibility List $579.98 / Each

Pulley Axle Set;MX-A5X-F;EP84 727250 0000088083 25 Pulley Axle Set;MX-A5X-F;EP84 No Model Compatibility List $489.19 / Each

727251 088086 18 Side Cover Set;Left;;MX-A5X-F;;US;EP84 No Model Compatibility List $226.43 / Each

Pedal Arm Set;Right;MX-A5X-F;US;EP84 727252 0000088090 2 Pedal Arm Set;Right;MX-A5X-F;US;EP84 No Model Compatibility List $647.11 / Each

Pedal Arm Set;Left;MX-A5X-F;US;EP84 727253 0000088091 3 Pedal Arm Set;Left;MX-A5X-F;US;EP84 No Model Compatibility List $647.11 / Each

727279 088293 Not Shown Lower Control Board Set;;MX-A5X-F;;US;EP84 No Model Compatibility List $912.57 / Each

727288 088382 P04 Pulse Sensor Wire;800L(TKP H66030R1-06); No Model Compatibility List $46.20 / Each

Bottle Holder Set;Console Mast;ABS/PA746;BL 727375 0000088923 C11 Bottle Holder Set;Console Mast;ABS/PA746;BL Yes Model Compatibility List $15.52 / Each

727461 089455 B93 Leveler;Foot pad;Rubber;EP72-B93; No Model Compatibility List $10.19 / Each

727464 089475 E16 Ring;;;;SS41;25.1x44.65;EP72 No Model Compatibility List $12.58 / Each

727474 089506 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
Crank Set 727530 0000089815 40 Crank Set No Model Compatibility List $365.01 / Each

727532 089822 E53 Screw;Hex Socket;Round;M10x1.5Px100L No Model Compatibility List $1.79 / Each

727534 089835 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
727712 090548 N201 GRIP;SENSOR;U;ABS/PA746;BL;I5X; No Model Compatibility List $0.00 / Each
Out Of Stock
727713 090549 N202 GRIP;Sensor;down;ABS/PA746;;BL;EP76; No Model Compatibility List $0.00 / Each
Out Of Stock
727733 0000090655 1 Console Mast Set;MX-A5X-F;US;EP84 Yes Model Compatibility List $599.00 / Each

727734 090656 4 Upper Pivot Arm Set;MX-A5X-F;US;EP84 Yes Model Compatibility List $498.50 / Each

E-Port Fix Plate Set;MX-A5X-F;US;EP84 727735 0000090658 15 E-Port Fix Plate Set;MX-A5X-F;US;EP84 No Model Compatibility List $123.11 / Each

727736 090660 21 Rear Side Cover Set;Right;MX-A5X-F;US;EP No Model Compatibility List $418.44 / Each

727737 090661 22 Rear Side Cover Set;Left;MX-A5X-F;US;EP8 No Model Compatibility List $412.96 / Each

727738 090665 Not Shown Hardware Package Set(1);MX-A5X-F;US No Model Compatibility List $48.07 / Each

727739 090668 31 Stabilizer Set;Right;MX-A5X-F;US;EP84 No Model Compatibility List $379.13 / Each

727740 090669 32 Stabilizer Set;Left ;MX-A5X-F;US;EP84 No Model Compatibility List $379.13 / Each

Control Board;Quick Key 727748 0000090779 N24 Control Board;Quick Key Yes Model Compatibility List $9.99 / Each

727952 092174 Q29 Disc Cap;ABS PA746;BL;A5X-03;US;EP79 No Model Compatibility List $6.16 / Each

727964 092267 AG1 PINTING;R ARM REST;MATRIX SL+TRANS;A5X-0 No Model Compatibility List $0.00 / Each
Out Of Stock
727966 092269 AG2 PINTING;L ARM REST;MATRIX SL+TRANS;A5X-0 No Model Compatibility List $0.00 / Each
Out Of Stock
727967 092271 40 Crank Set;A5X-03;US;EP79 No Model Compatibility List $365.01 / Each

727968 092273 Q25 PAINTING;DISC;SL/GY;A5X-03;US;EP79 No Model Compatibility List $0.00 / Each
Out Of Stock
Crank Sleeve Set 727969 0000092274 42 Crank Sleeve Set Yes Model Compatibility List $193.70 / Each

727970 0000092280 41 Round Disk;A5X-03;US;EP79 Yes Model Compatibility List $229.00 / Each

728083 093092 20 Crank Cover Set;PP;BL;MX-E5XC-F;US;EP81 No Model Compatibility List $12.71 / Each

728101 093136 Not Shown Leveler Set;Foot Pad No Model Compatibility List $16.64 / Each

728102 093137 23 Anti Sweat Cover Set;MX-A5X-F;US;EP84 No Model Compatibility List $71.19 / Each

728132 093219 AB1 RIGHT MAIN FRAME SET No Model Compatibility List $589.11 / Each

728167 093376 B60 Screw;Hex Socket;M8X15;Zn-BL No Model Compatibility List $1.66 / Each

Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad 728172 093382 Z21 Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad No Model Compatibility List $1.66 / Each

728203 093607 AJ5 Velcro Location;A5X-03;US;EP79 No Model Compatibility List $13.65 / Each

728204 093608 AJ6 Velcro Location;A5X-03;US;EP79 No Model Compatibility List $6.53 / Each

728263 0000093892 11 Swing Arm Set;Left;A5X-03;US;EP79 Yes Model Compatibility List $299.00 / Each

728349 094143 Q30 Crank Cover;Right;Round Disk No Model Compatibility List $12.35 / Each

728369 094396 J10 Fix Plate;Disc;BL;A5X-03;US;EP7 No Model Compatibility List $107.41 / Each

728378 0000094443 5 RIGHT HANDLEBAR SET;A5X-03;US;EP79 Yes Model Compatibility List $169.00 / Each

728379 0000094444 6 LEFT HANDLEBAR SET;A5X-03;US;EP79 Yes Model Compatibility List $189.00 / Each

Front Swing Arm Rest Cover (Used) 1007210 0000080941 0 1 Front Swing Arm Rest Cover (Used) No Model Compatibility List $11.99 / Each

Lower Motor Control Board Controller 1009196-R 0000090779 0 1 Lower Motor Control Board Controller Yes Model Compatibility List $399.00 / Each

J 1003984 059368-00 JM01 Magnetic Brake Generator Yes Model Compatibility List $144.99 / Each

1
Filter Board Set 1003980 069859 Filter Board Set Yes Model Compatibility List $27.99 / Each

Holder, Cup without Bracket (Used) 1035694 0000088923 C11 1 Holder, Cup without Bracket (Used) Yes Model Compatibility List $14.99 / Each

Q 1036645 007970-B Q29 PLATE CONNECTING COVER FRONT Yes Model Compatibility List $5.00 / Each

9,3
H 1036667 062260-A H41 Swing Arm Axle Yes Model Compatibility List $5.00 / Each

8,3
Rear frame logo plate LH 1036646 065747-AA Rear frame logo plate LH Yes Model Compatibility List $29.00 / Each

UPPER ADJ ARM SET 1036658 0000088073 UPPER ADJ ARM SET Yes Model Compatibility List $69.00 / Each

Pulse Sensor Wire 800L 1036670 0000088382 Pulse Sensor Wire 800L Yes Model Compatibility List $15.00 / Each

Console Back Rear Cover Plastic with circuit boards 1036641 0000088793 Console Back Rear Cover Plastic with circuit boards Yes Model Compatibility List $39.00 / Each

Wire;C-safe;300L(JST,XAP-08V-1);MX-E5X-C 1036671 0000088803 Wire;C-safe;300L(JST,XAP-08V-1);MX-E5X-C Yes Model Compatibility List $9.99 / Each

Adjustable leveling foot 1036654 0000089455 Adjustable leveling foot Yes Model Compatibility List $5.99 / Each
Out Of Stock
Wire;Hand Pluse Sensor;350L(2510A-06,TKP 1036673 0000089849 Wire;Hand Pluse Sensor;350L(2510A-06,TKP Yes Model Compatibility List $6.99 / Each

DISC CAP, ABS PA746, BL, A5X-03, US, EP79 1036657 0000092174 DISC CAP, ABS PA746, BL, A5X-03, US, EP79 Yes Model Compatibility List $5.00 / Each

Crank arm set 1036656 0000092271 & 0000092274 Crank arm set Yes Model Compatibility List $59.00 / Each
Out Of Stock
POWER WIRE, 900L(JST FDFNYD1-250-1)X4, A5 1036677 0000093217 POWER WIRE, 900L(JST FDFNYD1-250-1)X4, A5 Yes Model Compatibility List $6.99 / Each
Out Of Stock
POWER SWITCH SET, 200(KST FDFNYD1-250-1)X 1036672 0000093619 POWER SWITCH SET, 200(KST FDFNYD1-250-1)X Yes Model Compatibility List $19.00 / Each

Rod end bearing. 1036653 1000213710 & 004911-00 Rod end bearing. Yes Model Compatibility List $19.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

Z 976932 004926-00 Z07 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Z 941989 004370-00 Z03 Screw (New) No Model Compatibility List $12.00 / Each

Sealed lead acid 12V battery (Used) 1038484 0000084267 Sealed lead acid 12V battery (Used) Yes Model Compatibility List $19.00 / Each
Stationary Handlebar (Used) 1038487 0000087732 Stationary Handlebar (Used) Yes Model Compatibility List $99.00 / Each
Out Of Stock
LOCATION, VELCRO, A5X-03, US, EP79 (Used) 1038497 0000093607 LOCATION, VELCRO, A5X-03, US, EP79 (Used) Yes Model Compatibility List $15.26 / Each

View Drawing
