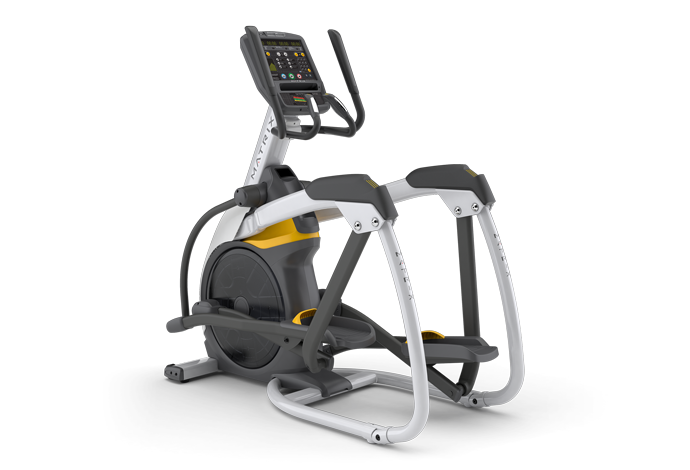

Matrix Commercial - ALB5x Ascent Lower Body - 2016

Repair Parts for Matrix Commercial ALB5x Ascent Lower Body EP623B,EP623D,EP617_1,EP617_2,EP617_3

Brand: Matrix Commercial

Category: Ascent

Type: Elliptical

Model Name: ALB5x Ascent Lower Body

Version: 2016

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
Generator Brake Set 1002227 0000089783 Generator Brake Set Yes Model Compatibility List $92.19 / Each

Wire;Hand Pluse Sensor;350L(2510A-06,TKP 1036673 0000089849 Wire;Hand Pluse Sensor;350L(2510A-06,TKP Yes Model Compatibility List $4.19 / Each

Fan Air Duct Set (Used) 1032355 0000086064 & 0000086065 Fan Air Duct Set (Used) Yes Model Compatibility List $7.79 / Each
Out Of Stock 		1
console mast set;;;MATRIX Purple;EP304D; 716642 1000338327 1 console mast set;;;MATRIX Purple;EP304D; No Model Compatibility List $719.91 / Each

7
728456 094938 1 Console Mast Set;EP304; No Model Compatibility List $1.30 / Each

2 721756 1000385415 2 Control Board;;;HF-A11-0;V2.050;;; No Model Compatibility List $517.11 / Each

728465 094984 2 Pedal Arm Set;Right;EP304; No Model Compatibility List $417.90 / Each

3 719868 1000366472 3 WIFI Wireness module Set;;;;EP619/EP623; No Model Compatibility List $532.32 / Each

728468 094991 3 Pedal Arm Set;Left;EP304; No Model Compatibility List $386.93 / Each

728460 094964 5 Dual Action Handlebar Set;Right;EP304; No Model Compatibility List $309.24 / Each

728464 094977 6 Dual Action Handlebar Set;Left;EP304; No Model Compatibility List $309.24 / Each

728555 095306 7 Stationary Handlebar Set;EP308; No Model Compatibility List $1142.31 / Each

9 719870 1000366515 9 Earphone board set;;;;EP620; No Model Compatibility List $42.22 / Each

728556 095309 9 Link Arm Set;Right;EP308; No Model Compatibility List $784.42 / Each

728515 095164 10 Link Arm Set;Left;EP308; No Model Compatibility List $784.42 / Each

716646 1000338352 11 Connection Tube;;right;MATRIX Purple;EP3 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
728485 095060 12 LEFT CONNECTION ARM SET;;left;;;EP308; No Model Compatibility List $0.00 / Each
Out Of Stock
Swing Arm Set;EP304; 728476 0000095028 13 Swing Arm Set;EP304; Yes Model Compatibility List $220.01 / Each

Adjustment Arm Set;;;MATRIX Purple;EP304 716643 1000338338 15 Adjustment Arm Set;;;MATRIX Purple;EP304 No Model Compatibility List $329.52 / Each

3
728479 0000095043 15 Vertical Stabilizer Arm Set;EP304; Yes Model Compatibility List $389.48 / Each

Disc Set;-;EP308;-; 711016 1000215874 17 Disc Set;-;EP308;-; Yes Model Compatibility List $129.00 / Each

721084 1000380490 21 Console Set;;;ES/H001/V1.002;EP623D; No Model Compatibility List $0.00 / Each
Out Of Stock 		7
728487 095068 26 Side Cover Set;Left;EP304; No Model Compatibility List $121.47 / Each

728489 095071 27 Side Cover Set;Right;EP304; No Model Compatibility List $114.37 / Each

Idler Set;;;Integrated;EP304; 718315 1000350493 28 Idler Set;;;Integrated;EP304; Yes Model Compatibility List $54.73 / Each

Transmission set+Tools;;;E-3X/5X/7X-03-F 716790 1000339505 29 Transmission set+Tools;;;E-3X/5X/7X-03-F No Model Compatibility List $246.38 / Each

727501 089635 30 Pulley Axle Set;S70;US;EP78 No Model Compatibility List $182.42 / Each

728451 094930 31 Elevation Roller Frame Set;EP306 No Model Compatibility List $344.06 / Each

Crank Set;EP304; 728504 0000095121 32 Crank Set;EP304; Yes Model Compatibility List $273.75 / Each

Crank Sleeve Set;;;;EP304B;; 717761 1000347355 33 Crank Sleeve Set;;;;EP304B;; No Model Compatibility List $140.24 / Each

Elevation Roller Set;-;EP306;-; 710677 1000212320 34 Elevation Roller Set;-;EP306;-; No Model Compatibility List $62.87 / Each

728535 095210 35 Quick Key Cover Set;EP308; No Model Compatibility List $98.57 / Each

Crank Sleeve Set 727969 0000092274 42 Crank Sleeve Set Yes Model Compatibility List $193.70 / Each

728458 094951 52 Swivel Axle Set;DA Arm;EP304; No Model Compatibility List $236.00 / Each

Cable Fix Button;KSS/UC-3 700569 001677-A 55 Cable Fix Button;KSS/UC-3 No Model Compatibility List $1.66 / Each

Clip;Tapped Hole;FE;M5;YZN 705163 038449-A 84 Clip;Tapped Hole;FE;M5;YZN No Model Compatibility List $9.10 / Each

729052 Order Parts Separately A01 Frame Assembly No Model Compatibility List $0.00 / Each
Out Of Stock
A 712097 1000226648 AB1 CONSOLE Reinforce Tube;PAINTING;BLACK;EP No Model Compatibility List $164.24 / Each

7,3,4,5,6
728132 093219 AB1 RIGHT MAIN FRAME SET No Model Compatibility List $589.11 / Each

728447 094907 AB1 Main Frame Set;MATRIX SL/GY/BP-920S; No Model Compatibility List $3.90 / Each

729118 Part of Kit 1 AB2 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock
729172 Part of Kit 5 AD1 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729152 Part of Kit 3 AE2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729191 Part of Kit 6 AF1 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729194 Part of Kit 7 AF2 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729201 Part of Kit 9 AG1 Upper Handlebar Set;Right;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729120 Part of Kit 10 AG3 Lower Handlebar Set;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729181 Part of Kit 52 AG6 Swivel Set;DA ARM;PAINTING;BL;EP304; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729125 Part of Kit 13 AH1 Link Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729016 Order Kit 12 AH2 pedal arm set;;R;painting;DM515 matte;;E No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729129 Part of Kit 15 AH2 Link Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
728473 095011 AH4 CON TUBE SET;;R;painting;BP-920S;MATRIX/ No Model Compatibility List $761.51 / Each

A 719179 1000356725 AN4 cover-Extrawork;Overlay;;Print;;EP624; No Model Compatibility List $84.47 / Each

9

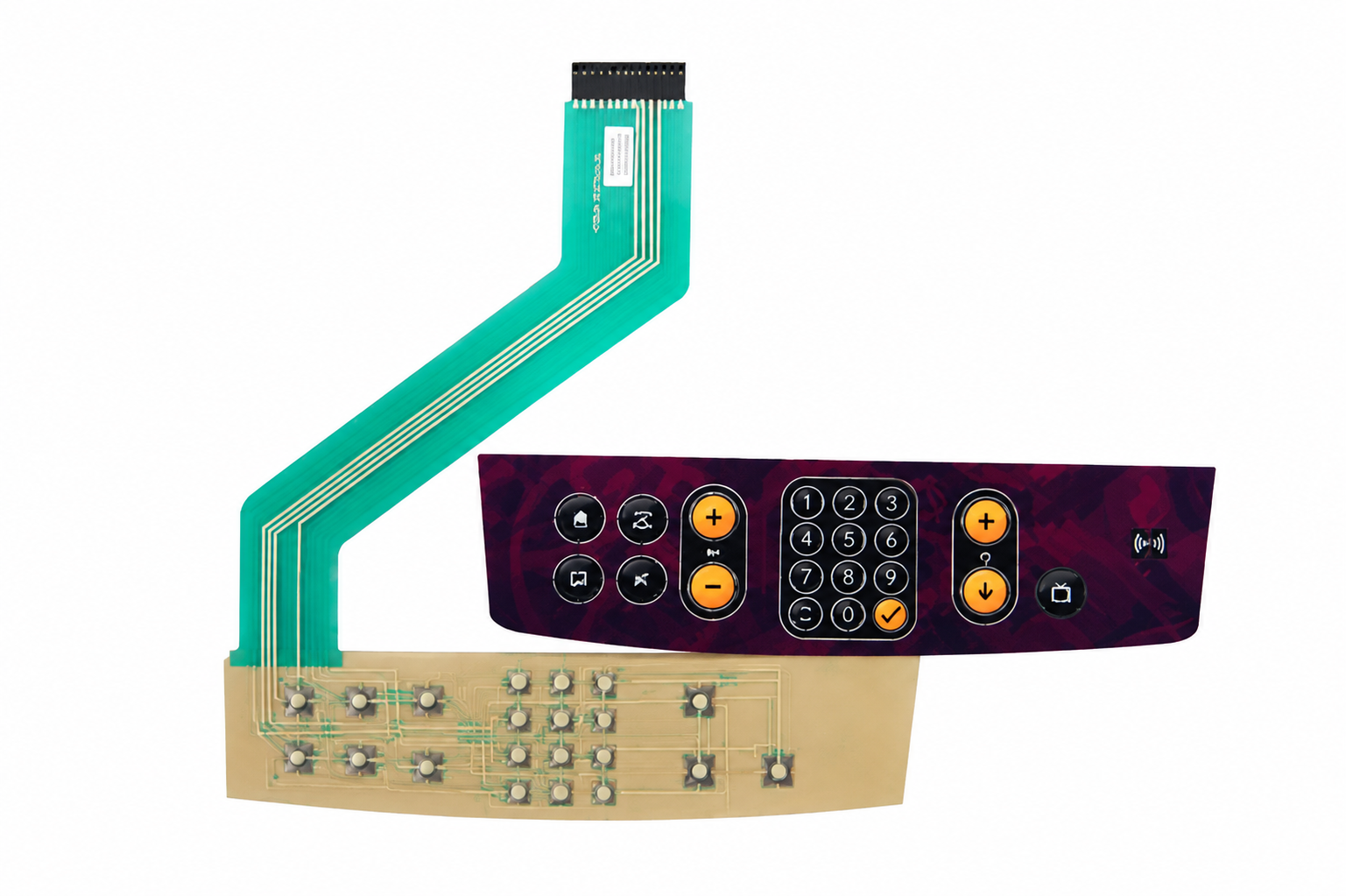

721085 1000380491 AN8 Overlay Set;Program;;English;EP623D;;key No Model Compatibility List $0.00 / Each
Out Of Stock 		9
A 710289 1000208535 AN51 Heart Rate Board Set;SALUTRON 8600;EP93C; No Model Compatibility List $300.61 / Each

728510 095148 AQ19 Arm Cover;BIG;PU;426C/80393;EP308; No Model Compatibility List $208.05 / Each

B 701944 004979-00 B11 Insert Nut;Hex;NHS-8125-3.0(M8x1.25P) No Model Compatibility List $1.79 / Each

Insert Nut;Hex;NHS-580-3.0(M5X0.8P) 701945 004980-A B21 Insert Nut;Hex;NHS-580-3.0(M5X0.8P) Yes Model Compatibility List $1.79 / Each

728529 095195 B24 Screw;Shoulder;SCM435;M12;BZN;EP306 No Model Compatibility List $8.42 / Each

728552 095299 B25 Block;Roller Guide;SS41;EP306; No Model Compatibility List $3.35 / Each

728538 095216 B26 Wheel;Adjustable;32;EP306; No Model Compatibility List $13.78 / Each

728525 095183 B29 ADJ. Block;Roller;SS41;EP306; No Model Compatibility List $29.41 / Each

728526 095184 B35 Spacer;SS41;8.2X14X4.0;SS41;EP306 No Model Compatibility List $3.35 / Each

728527 095185 B46 Screw;SH;M6X1.0PX80L;;BED; No Model Compatibility List $3.35 / Each

Leveler;Foot Pad;50X18 726427 0000081761 B56 Leveler;Foot Pad;50X18 Yes Model Compatibility List $11.70 / Each

726986 086513 B58 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $0.44 / Each

Screw;Hex Socket;Round;M6x1.0Px16L;Adher 701423 004472-00 B71 Screw;Hex Socket;Round;M6x1.0Px16L;Adher No Model Compatibility List $1.66 / Each

728602 095596 B75 FIXING PLATE;E-PORT;SPHC 1.6T;EP304; No Model Compatibility List $3.35 / Each

Hole Plug;Nylon66;HP-8;Black 700282 000859-00 B77 Hole Plug;Nylon66;HP-8;Black No Model Compatibility List $1.66 / Each

Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P) 701947 004983-A C07 Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P) No Model Compatibility List $1.79 / Each

729157 Part of Kit 31 C11 Logo Plate No Model Compatibility List $0.00 / Each
Out Of Stock 		3
726825 085361 C34 Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad No Model Compatibility List $1.79 / Each

728604 095600 C35 End Protect Cap;EP-1216; No Model Compatibility List $1.66 / Each

726610 083463 C38 Screw;TH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $1.66 / Each

702231 005356-00 D12 C-Clip;Internal;R-47 No Model Compatibility List $2.00 / Each

Screw;Round;Hex Socket;M5X0.8PX15L 701401 004454-00 D23 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

729158 Part of Kit 32 D29 Cup Holder No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Fix Buckle Base;Nylon;GM01 702306 005845-B D40 Fix Buckle Base;Nylon;GM01 No Model Compatibility List $1.79 / Each

Fix Buckle Base;PVC;GM01 702304 005844-B D41 Fix Buckle Base;PVC;GM01 No Model Compatibility List $1.79 / Each

728449 094927 E09 Axle;Link Arm;B;SS41;EP304; No Model Compatibility List $17.52 / Each

727464 089475 E16 Ring;;;;SS41;25.1x44.65;EP72 No Model Compatibility List $12.58 / Each

701159 004077-A2 E17 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

727532 089822 E53 Screw;Hex Socket;Round;M10x1.5Px100L No Model Compatibility List $1.79 / Each

701328 004381-00 E60 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

Screw;BH;M5X0.8PX12L;;PH;;BAN;; 701332 004385-00 E60 Screw;BH;M5X0.8PX12L;;PH;;BAN;; Yes Model Compatibility List $1.79 / Each

701393 004448-Z F11 Screw;Round;Hex Socket;M5x0.8Px10L No Model Compatibility List $1.79 / Each

2
726955 086225 G15 Screw;BH;M3X0.5PX15L;;PH;;BAN;; No Model Compatibility List $1.66 / Each

727439 089223 G22 Ring;SS41;4.5x3.2x3.05;Cr Plate;TM502; No Model Compatibility List $1.66 / Each

728459 094958 G29 Bearing;Needle;HK2518-RS No Model Compatibility List $44.82 / Each

728497 095097 G33 Tube Cap;FK01004(38.1) No Model Compatibility List $1.66 / Each

End Cap;Tube;60;EP304 728496 0000095095 G34 End Cap;Tube;60;EP304 Yes Model Compatibility List $5.95 / Each

Foam;Arm REST;PU;426C/80393; 710149 1000206952 G35 Foam;Arm REST;PU;426C/80393; No Model Compatibility List $78.29 / Each

Screw;BH;FLG;M3X0.5PX4L;-;PH;-;BZN; 711009 1000215790 G36 Screw;BH;FLG;M3X0.5PX4L;-;PH;-;BZN; No Model Compatibility List $1.66 / Each

701964 005005-00 H04 Washer;Spring;Lock;8.2x15.4x2.0t Yes Model Compatibility List $1.59 / Each

729149 Part of Kit 27 H04 Seat Stopper Wheel Axle No Model Compatibility List $0.00 / Each
Out Of Stock 		8,12,13,14
Washer;Flat;8.2X30.0X2.0T;Black Zinc 702004 005042-00 H06 Washer;Flat;8.2X30.0X2.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

728478 095036 H07 Shaft;Swing Arm;SS41;EP304; No Model Compatibility List $15.21 / Each

702153 005189-00 H08 Washer;Teflon;10.5x25x1.0T No Model Compatibility List $2.00 / Each

2
Axle;SS41;EP304; 710988 1000215716 H08 Axle;SS41;EP304; Yes Model Compatibility List $14.09 / Each

Pedal;PP;Black;EP217 728359 094297 H10 Pedal;PP;Black;EP217 Yes Model Compatibility List $44.28 / Each

Washer;Flat;10.5x18x2.5T 704215 020487-ZA H21 Washer;Flat;10.5x18x2.5T No Model Compatibility List $2.00 / Each

728482 095050 H23 Swivel Shaft A;SCM440;EP304; No Model Compatibility List $12.27 / Each

728483 095051 H24 Swivel Shaft B;SCM440;EP304; No Model Compatibility List $13.49 / Each

728475 095026 H34 Connection Plate;Incline Arm;SPHC 4.0T;EP304; No Model Compatibility List $3.35 / Each

Rod End Bearing;2201-2RS;12X32X14;-; 709473 1000200519 H35 Rod End Bearing;2201-2RS;12X32X14;-; Yes Model Compatibility List $122.77 / Each

726939 086127 H38 Nut;HEX;M10X1.5P;10 No Model Compatibility List $3.64 / Each

Bearing;Tapered Roller;(PEER 2204-2RS) 728039 0000092805 H41 Bearing;Tapered Roller;(PEER 2204-2RS) No Model Compatibility List $49.24 / Each

Nut;Hex;M16x2.0Px7.0L;Zn Pl 701885 004911-00 H51 Nut;Hex;M16x2.0Px7.0L;Zn Pl Yes Model Compatibility List $5.99 / Each

728481 095048 H51 Bearing;Needle;HK2016 No Model Compatibility List $23.01 / Each

Screw;Hex Socket;Round;M10x1.5Px90L-35L; 708412 1000102724 H57 Screw;Hex Socket;Round;M10x1.5Px90L-35L; No Model Compatibility List $3.64 / Each

Screw;Hex Socket;Round;M10x1.5Px110L;Adh 701508 004542-AC H62 Screw;Hex Socket;Round;M10x1.5Px110L;Adh No Model Compatibility List $8.42 / Each

2
727383 088934 H63 Screw;SH;M10X1.5PX45L-25L;;HS;;;;BP;P-T No Model Compatibility List $1.66 / Each

Pin;Spring;SSPR5-12L; 706488 062710-00 H64 Pin;Spring;SSPR5-12L; No Model Compatibility List $3.35 / Each

Washer;Flat;;PTFE;20.2x40.0x2.0T;;;; 710152 1000206967 H64 Washer;Flat;;PTFE;20.2x40.0x2.0T;;;; No Model Compatibility List $8.42 / Each

2
Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A 701522 004555-AB H65 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A Yes Model Compatibility List $4.00 / Each

Nut;CUSTOM;M10X1.5P;S45C;CHM; 710385 1000209856 H65 Nut;CUSTOM;M10X1.5P;S45C;CHM; Yes Model Compatibility List $9.10 / Each

Cap;Nut;S45C;EP304; 710998 1000215738 H66 Cap;Nut;S45C;EP304; Yes Model Compatibility List $9.10 / Each

702050 005078-00 I23 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

Nut;Hex;M10x1.5P 701863 004885-00 J03 Nut;Hex;M10x1.5P No Model Compatibility List $2.00 / Each

2
Washer;Flat;10.2X15.0X1.5T;Black Zinc 702037 005067-00 J04 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

Location Plate;Disk;SPCC 1.0T;BED;EP304; 710472 1000210482 J05 Location Plate;Disk;SPCC 1.0T;BED;EP304; No Model Compatibility List $3.35 / Each

Foam;;Single Side;25x25x1.0T;EP304; 710473 1000210483 J06 Foam;;Single Side;25x25x1.0T;EP304; No Model Compatibility List $1.66 / Each

Spring;Compress 702289 005487-D J07 Spring;Compress Yes Model Compatibility List $9.10 / Each

728450 0000094929 J11 Cap;Stabilizer;Left-Front;ABS/PA757;P804 Yes Model Compatibility List $12.04 / Each

Cap;Stabilizer;Right-Front;ABS/PA757;P80 728498 0000095100 J12 Cap;Stabilizer;Right-Front;ABS/PA757;P80 Yes Model Compatibility List $9.44 / Each

Foot Pad;Adjustable;M12X58H;12.9;EP304; 728614 0000095638 J15 Foot Pad;Adjustable;M12X58H;12.9;EP304; Yes Model Compatibility List $33.85 / Each

Screw;SH;M8X1.25PX12L;HS;BP;G12.9; 703990 020069-00 J16 Screw;SH;M8X1.25PX12L;HS;BP;G12.9; Yes Model Compatibility List $1.79 / Each

Transport Wheel 700024 000041-AA J19 Transport Wheel Yes Model Compatibility List $9.10 / Each

Screw;Hex Socket;Round;M10X1.5PX75L;(35L);HS;;;; 701467 004518-AD J53 Screw;Hex Socket;Round;M10X1.5PX75L;(35L);HS;;;; No Model Compatibility List $8.71 / Each

2
Fix Plate;Disc;PAINTING;BL;EP304; 728500 0000095106 J56 Fix Plate;Disc;PAINTING;BL;EP304; Yes Model Compatibility List $154.54 / Each

Service tool kit 709557 1000201331 Kit Service tool kit No Model Compatibility List $645.48 / Each

1
Washer;Flat;10.2x20.0x2.0T;Black Zinc 704203 020478-00 L09 Washer;Flat;10.2x20.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

Washer;Flat;8.2x20.0x3.0T 702036 005066-A M26 Washer;Flat;8.2x20.0x3.0T No Model Compatibility List $1.85 / Each

701343 004389-00 N08 Screw;Phillip;BH;M5x0.8Px16L;BED; No Model Compatibility List $2.00 / Each

2
Vent;Fan;ABS/PA-746;Pantone:877C;TM501; 727076 0000087056 N13 Vent;Fan;ABS/PA-746;Pantone:877C;TM501; No Model Compatibility List $45.24 / Each

N 710483 1000210553 N16 USB;EP90B No Model Compatibility List $14.40 / Each

1
727437 089190 N18 Cover;IPOD Fixing;ABS/PA746;80435;MX-E5X No Model Compatibility List $3.35 / Each

Grip;Sensor;U;ABS/PA746;80393;EP304; 710470 1000210480 N20 Grip;Sensor;U;ABS/PA746;80393;EP304; Yes Model Compatibility List $23.32 / Each

Grip;Sensor;D;ABS/PA746;80393;EP304; 710471 1000210481 N21 Grip;Sensor;D;ABS/PA746;80393;EP304; Yes Model Compatibility List $9.54 / Each

728532 095203 N24 Gauge;Pulse;RU;ABS/PA746+SUS304;80393 No Model Compatibility List $29.56 / Each

N 710678 1000212322 N25 Shim;Rubber;D;NBR;BLACK;TM507C; No Model Compatibility List $1.66 / Each

4,5,6
728512 095161 N25 Gauge;Pulse;LU;ABS/PA746+SUS304;80393; No Model Compatibility List $29.56 / Each

728554 095304 N26 Gauge;Pulse;RL;ABS/PA746+SUS304;80393 No Model Compatibility List $21.03 / Each

728513 095162 N27 Gauge;Pulse;LL;ABS/PA746+SUS304;80393; No Model Compatibility List $21.03 / Each

728533 095207 N30 Quick Key;Left;ABS/PA746;137C/80395;EP308 No Model Compatibility List $3.35 / Each

729161 Part of Kit 35 N30 Plastic Cover;Quick Key;ABS/PA746;137C/ No Model Compatibility List $0.00 / Each
Out Of Stock
728528 095194 N31 Quick Key;Right,ABS/PA746;137C/80395;EP308 No Model Compatibility List $3.35 / Each

Screw;BH;M4X0.7PX30L;;PH;;BAN;; 705077 035695-AB N33 Screw;BH;M4X0.7PX30L;;PH;;BAN;; No Model Compatibility List $1.79 / Each

Cover;Console;Right;ABS/PA-746;BL;TM501; 726928 0000086064 N33 Cover;Console;Right;ABS/PA-746;BL;TM501; No Model Compatibility List $3.35 / Each

726929 0000086065 N34 Cover;Console;Left;ABS/PA-746;BL;TM501; Yes Model Compatibility List $3.35 / Each

Cover;Console Display;TV Rack;Printing;T 727025 0000086724 N35 Cover;Console Display;TV Rack;Printing;T No Model Compatibility List $47.63 / Each

Anti-Slippery Pad;TPR+30%PP;BL;MX-E5XC-F 727358 0000088790 N52 Anti-Slippery Pad;TPR+30%PP;BL;MX-E5XC-F No Model Compatibility List $9.10 / Each

N 712107 1000226718 N54 COVER;CONSOLE;RE;ABS/PA746;DG/80435;EP61 No Model Compatibility List $33.77 / Each

7,9
N 712102 1000226667 N55 COVER;CONSOLE;U;ABS/PA746;DG/80435;EP612 No Model Compatibility List $67.57 / Each

7,9
N 721086 1000380493 N66 Overlay Set;TV;;key pad;EP623D;; No Model Compatibility List $219.67 / Each

9,4,5,6,12,13,14
729151 Part of Kit 29 N71 Pulse Sensor Plastic No Model Compatibility List $0.00 / Each
Out Of Stock 		9,12,13,14
Screw;TRH;M3x.5Px6L;MT;PH;CST;ZNC;F-T 727351 0000088743 N81 Screw;TRH;M3x.5Px6L;MT;PH;CST;ZNC;F-T No Model Compatibility List $1.79 / Each

N 712391 1000228688 N82 SCREW;BH;M5X0.8PX12L;PH;BAN; No Model Compatibility List $1.66 / Each

N 712940 1000231589 N83 SCREW;BH;M3X0.5PX6L;CT;PH;SST;BAN; No Model Compatibility List $1.66 / Each

2
N 712866 1000231078 N85 SCREW;BH;?X5X1.6PX12L(HI-LO);PH;BZN; No Model Compatibility List $1.66 / Each

N 712869 1000231121 N86 SCREW;BH;(##10.5);M5X0.8PX15L;-;PH;-;BAN No Model Compatibility List $1.66 / Each

2
N 710607 1000211294 N98 Screw;FH;M3X0.5PX30L;-;PH;BZN; No Model Compatibility List $1.66 / Each

2
727024 086721 N151 SCREW;RND;M2X0.5PX6L;;PH;;BZN;; No Model Compatibility List $1.33 / Each

N 702589 008864-A N151b Screw;Special;Round;2.9x1.06Px7L(Hi-Lo) No Model Compatibility List $1.79 / Each

N 702591 008866-A N152 Screw;Special;Round;4.0x1.34Px12L(Hi-Lo No Model Compatibility List $1.66 / Each

713910 1000309516 N152b Tape;;;40x10x0.2;;EP614 No Model Compatibility List $0.00 / Each
Out Of Stock
N 702131 005157-A N153 Washer;Flat;4.3x12.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

Fixing Plate;Fan;0.8t;T5x-02; 728026 0000092696 N202 Fixing Plate;Fan;0.8t;T5x-02; No Model Compatibility List $9.10 / Each

Tape;Foam;One-Sided;50x15x1.5T; 728600 0000095575 N203 Tape;Foam;One-Sided;50x15x1.5T; No Model Compatibility List $1.66 / Each

Power Cord;External(USA);3000,14AWG;110V(non-nema) 700924 002782-C Not Shown Power Cord;External(USA);3000,14AWG;110V(non-nema) Yes Model Compatibility List $72.98 / Each

Power Cord;External(USA);3000,14AWG;110V(nema) 700925 002787-C Not Shown Power Cord;External(USA);3000,14AWG;110V(nema) No Model Compatibility List $72.98 / Each

4,5,6
711115 1000216774 Not Shown Assembly Tool;Flexonic Belt No Model Compatibility List $0.00 / Each
Out Of Stock 		15,3
TV POWER;2600(SCD-554DCS103BB1G H6630P1- 712268 1000228041 Not Shown TV POWER;2600(SCD-554DCS103BB1G H6630P1- No Model Compatibility List $16.87 / Each

4,5,6
713486 1000304310 Not Shown Documentation;Manual;Assembly;;English;E No Model Compatibility List $10.11 / Each

3
Carton Set;;;;;EP304;; 714445 1000314760 Not Shown Carton Set;;;;;EP304;; No Model Compatibility List $152.07 / Each

Service Hardware Kit;;;;E1x; 720122 1000368807 Not Shown Service Hardware Kit;;;;E1x; No Model Compatibility List $133.48 / Each

1
N 722281 1000390571 Not Shown Manual;Manipulate;;English;;EP619; No Model Compatibility List $18.23 / Each

727474 089506 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
727534 089835 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
728251 093786 Not Shown TOOL; BELT INSTALLATION8-RIB;SPHC 2.0t; No Model Compatibility List $18.23 / Each

728560 095322 Not Shown Bracket;Console;ABS/PA746;DG/80435;EP603 No Model Compatibility List $26.34 / Each

729809 ZMS4006025 Not Shown Incline Motor Replacement Instructions No Model Compatibility List $1.66 / Each

4,5,6,10
Ground Wire;100(99470BS42+KST FLDNY2-250- 710101 1000206778 P02 Ground Wire;100(99470BS42+KST FLDNY2-250- No Model Compatibility List $3.35 / Each

P 710454 1000210330 P03 Wire;Connect;USB;250(JST,XAP-06V-1)x2; No Model Compatibility List $19.16 / Each

Filter Board Set;;;L178A1 H001;;;EP304B; 723729 1000412379 P05 Filter Board Set;;;L178A1 H001;;;EP304B; Yes Model Compatibility List $57.43 / Each

Lower Console Wire Harness; 1000L 700888 002664-B P06 Lower Console Wire Harness; 1000L Yes Model Compatibility List $9.10 / Each

Battery Power CONNECT Wire;200(KST FLDNY 710387 1000209858 P07 Battery Power CONNECT Wire;200(KST FLDNY No Model Compatibility List $24.23 / Each

Grip Pulse Extension Wire;1000(5.0 OWzP) 705750 056006-A P08 Grip Pulse Extension Wire;1000(5.0 OWzP) No Model Compatibility List $9.10 / Each

Console Wire;1200(MOLEX,50-57-9408x2);EP 710386 1000209857 P09 Console Wire;1200(MOLEX,50-57-9408x2);EP Yes Model Compatibility List $91.23 / Each

7,4,5,6
Motor Connect Wire;950(MOLEX050841060+MO 710105 1000206785 P12 Motor Connect Wire;950(MOLEX050841060+MO No Model Compatibility List $35.39 / Each

710312 1000209243 P16 Net Connect Wire;2600(3205645600+TKP H66 Yes Model Compatibility List $27.99 / Each

4,5,6
706754 065248-A P17 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

726716 084267 P19 Battery;Sealed;Lead Acid;WP12-12;S7700;U No Model Compatibility List $248.46 / Each

TV Signal Connect Wire;2600(FM-0086-NBG7 710106 1000206786 P25 TV Signal Connect Wire;2600(FM-0086-NBG7 Yes Model Compatibility List $28.70 / Each

4,5,6
Pulse Connection Wire;900(TKP H6630R1-06+TKP H2 710097 1000206772 P26 Pulse Connection Wire;900(TKP H6630R1-06+TKP H2 No Model Compatibility List $68.35 / Each

4,5,6,12,13,14
Power Electric Resistance;Contain Wire;4 400W10,650(3.96-4P WH 701064 003553-D P32 Power Electric Resistance;Contain Wire;4 400W10,650(3.96-4P WH Yes Model Compatibility List $148.64 / Each

P 710100 1000206777 P32 C Safe+TV Connect Wire;200(TKP H20J2-15x No Model Compatibility List $40.51 / Each

P 719182 1000356740 P33 Quickly Key Wire;;;;;;;200+250(TKP,H254M No Model Compatibility List $18.56 / Each

9,4,5,6
Nut;Wing;1/4 706478 062621-A P36 Nut;Wing;1/4"-20UNC;SS41;BZN;; No Model Compatibility List $1.66 / Each

Fixing Plate;Battery;MATRIX SL/G 711548 1000221213 P40 Fixing Plate;Battery;MATRIX SL/G No Model Compatibility List $30.42 / Each

3
728059 092949 P42 Screw;SS41;BED;A5X-03;US;EP79 No Model Compatibility List $3.35 / Each

Power Switch Set;600+600(KST FLFNYD1-250 710104 1000206784 P45 Power Switch Set;600+600(KST FLFNYD1-250 Yes Model Compatibility List $27.35 / Each

4,5,6
Rubber Pad;Motor;Anti-Shake 700292 000880-B P46 Rubber Pad;Motor;Anti-Shake No Model Compatibility List $1.79 / Each

728545 095254 P48 Power Wire;450(KST FLDNY1-250-1x2+KST FD No Model Compatibility List $17.76 / Each

728278 093983 P61 Screw;BH;M5X0.8PX65L;;PH;;NKL; No Model Compatibility List $3.35 / Each

Ferrite; Cord;FH0650B;CB32-P16A 725322 069904 P63 Ferrite; Cord;FH0650B;CB32-P16A No Model Compatibility List $3.35 / Each

726627 083692 P63 Washer;TOOTH;M5.3X10X0.6;Nickel No Model Compatibility List $1.66 / Each

728557 095314 Q04 Cover;F;Painting;MATRIX SL/GY/BP-920S;EP No Model Compatibility List $264.06 / Each

Console Mast Boot;Rear;PA746;80393;EP304; 710479 1000210494 Q05 Console Mast Boot;Rear;PA746;80393;EP304; No Model Compatibility List $49.58 / Each

728493 095075 Q06 Cover;Handlebar;Right;ABS/PA746;DG/80435; No Model Compatibility List $26.57 / Each

729148 Part of Kit 26 Q06 Roller;PU;Black;EP525 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
728494 095076 Q07 Cover;Handlebar;Left;ABS/PA746;DG/80435; No Model Compatibility List $26.57 / Each

729159 Part of Kit 33 Q07 Entertainment Port No Model Compatibility List $0.00 / Each
Out Of Stock 		1
728495 095077 Q08 Water Bottle Holder;ABS/PA746;DG/80435; No Model Compatibility List $29.72 / Each

728499 0000095103 Q09 End Cap,ROUND Plate;ABS/PA746;SL/GY/8054 Yes Model Compatibility List $15.00 / Each

728486 095066 Q10 Boot;Crank;ABS/PA746;DG/80435; No Model Compatibility List $8.42 / Each

728477 095035 Q12 COVER;SWING ARM;ABS/PA746;DG/80435; No Model Compatibility List $3.35 / Each

710931 1000215396 Q13 Plastic Cover;LARGE;ABS PA746;mpp/80435; Yes Model Compatibility List $6.00 / Each

Pedal Plastic;Right;PP-3015;DG/80435;EP308; 728518 0000095171 Q16 Pedal Plastic;Right;PP-3015;DG/80435;EP308; Yes Model Compatibility List $34.06 / Each

728511 095152 Q17 Pedal Plastic;Left;PP-3015;DG/80435;EP308; No Model Compatibility List $34.06 / Each

728531 095201 Q18 Cover;Console Mast;EP304; No Model Compatibility List $25.56 / Each

Bracket;Water Bottle Holder;TPR;426C;80393;EP30 710474 1000210484 Q19 Bracket;Water Bottle Holder;TPR;426C;80393;EP30 No Model Compatibility List $1.66 / Each

728514 095163 Q20 Adorn Cover;Pedal;R;PP;137C/80395;EP308; No Model Compatibility List $8.42 / Each

728516 095165 Q21 Adorn Cover;Pedal;L;PP;137C/80395;EP308; No Model Compatibility List $8.42 / Each

728519 0000095174 Q22 Outside Cover;Handlebar;ABS/PA746;DG/804 Yes Model Compatibility List $20.00 / Each

728520 095175 Q23 Inside Cover;Handlebar;ABS/PA746;DG/8043 No Model Compatibility List $8.42 / Each

728521 095178 Q24 Outside Cover;Swing Arm;ABS/PA746;DG/804 No Model Compatibility List $12.69 / Each

728522 095179 Q25 Inside Cover;Swing Arm;ABS//PA746;DG/804 No Model Compatibility List $17.94 / Each

728524 095182 Q27 Stabilizer Cover;Middle;ABS/PA746;DG/80435;EP No Model Compatibility List $27.04 / Each

Pedal Cap;NY(BL);EP76-Q28 706755 065383-AA Q28 Pedal Cap;NY(BL);EP76-Q28 Yes Model Compatibility List $4.26 / Each

728551 095297 Q32 End Cap;Link Arm;ABS/PA746;SL/GY/80547;EP No Model Compatibility List $3.35 / Each

728523 095180 Q33 Spacer;ABS/PA746;BLACK;EP304; No Model Compatibility List $3.35 / Each

Hook;Incline Arm Cover;ABS/PA746;SL/GY/80547; 710384 1000209855 Q36 Hook;Incline Arm Cover;ABS/PA746;SL/GY/80547; Yes Model Compatibility List $3.64 / Each

728558 095315 Q37 Pad;Water Bottle Holder;TPR;426C;80393;EP308 No Model Compatibility List $8.71 / Each

728530 095200 Q38 Cushion;Pedal;Right;NBR;426C;80393; No Model Compatibility List $54.86 / Each

728534 095209 Q39 Cushion;Pedal;Left;NBR;426C;80393; No Model Compatibility List $54.86 / Each

Screw;Round Head;M5x0.8Px12L;;Phillip;St 721627 1000384823 Q49 Screw;Round Head;M5x0.8Px12L;;Phillip;St No Model Compatibility List $1.79 / Each

Cover;Filter;;PC 510;BL/Black C;;EP304B; 724048 1000414494 Q55 Cover;Filter;;PC 510;BL/Black C;;EP304B; Yes Model Compatibility List $6.73 / Each

Screw;BH;M5X0.8PX12L;;PH;;BAN;;BP 704991 028555-00 Q61 Screw;BH;M5X0.8PX12L;;PH;;BAN;;BP No Model Compatibility List $1.79 / Each

729135 Part of Kit 17 R01 Transmission Axle;42CrMo;EP217 No Model Compatibility List $0.00 / Each
Out Of Stock
701869 004891-00 R06 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

701433 004481-00 R08 Screw;Hex Socket;Round;M8x1.25Px45L No Model Compatibility List $2.00 / Each

Nut;Lock;M25X1.5P;SS41;BAN 701924 004957-00 R09 Nut;Lock;M25X1.5P;SS41;BAN Yes Model Compatibility List $3.64 / Each

C-Clip;External;S-30 702242 005367-00 R11 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

Belt;POLY-V;-;1206 J8;FLEXONIC; 710162 1000207054 R17 Belt;POLY-V;-;1206 J8;FLEXONIC; Yes Model Compatibility List $91.23 / Each

728045 092813 R21 Bearing;Ball;6306LUZ(C3);;;TPI;;; No Model Compatibility List $48.72 / Each

Nut;Hex;M30x1.5Px8T 701926 004961-A R48 Nut;Hex;M30x1.5Px8T No Model Compatibility List $6.73 / Each

Washer;Flat;30.3X45.0X1.2T;SPGC 702089 005121-00 R50 Washer;Flat;30.3X45.0X1.2T;SPGC No Model Compatibility List $3.64 / Each

Generator Set JM07-004 727526 0000089783 S01 Generator Set JM07-004 Yes Model Compatibility List $381.29 / Each

729156 Part of Kit 30 S01 AC Generator;480RPM;350W;50.6VA; No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
Elevation Motor;DC;12V;400LBS; 711340 1000220174 S02 Elevation Motor;DC;12V;400LBS; Yes Model Compatibility List $730.05 / Each

711179 1000217256 S03 Lower Control Board;Generator;-;H001;S001;EP30 Yes Model Compatibility List $899.00 / Each

701909 004935-00 S13 Nut;Nylon;M6X1.0P No Model Compatibility List $2.00 / Each

Pin;Motor;SS41;10x48L;EP306; 711312 1000219678 S50 Pin;Motor;SS41;10x48L;EP306; No Model Compatibility List $8.42 / Each

Pin;Hairpin;Cotter 711067 1000216245 S54 Pin;Hairpin;Cotter No Model Compatibility List $1.79 / Each

728236 093717 S62 Washer;Ribbed;Lock;10.5X16X1TX1.6H;BED No Model Compatibility List $1.66 / Each

701987 005025-00 T04 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $2.00 / Each

702241 005366-00 T11 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

Ball Bearing; 6202ZZ(BR6202ZZ) 701158 004075-A3 U03 Ball Bearing; 6202ZZ(BR6202ZZ) No Model Compatibility List $9.57 / Each

8
Ball Bearing;6204ZZ;20x47x14t;TPI 701165 004081-A2 U03 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

C-Clip;Internal;R-35 702227 005352-00 U04 C-Clip;Internal;R-35 No Model Compatibility List $2.00 / Each

Bearing;Ball;6206LUZ(CN);30X62X16T;;TP 727694 0000090466 U05 Bearing;Ball;6206LUZ(CN);30X62X16T;;TP Yes Model Compatibility List $34.01 / Each

C-Clip;Internal;R-62 702232 005357-00 U06 C-Clip;Internal;R-62 No Model Compatibility List $3.35 / Each

Ball Bearing;6203ZZ;17X40X12T;;TPI;;; 701163 004080-00 U07 Ball Bearing;6203ZZ;17X40X12T;;TPI;;; Yes Model Compatibility List $11.18 / Each

8
C-Clip;Internal;R-42 702229 005354-00 U09 C-Clip;Internal;R-42 No Model Compatibility List $1.79 / Each

Screw;Hex Socket;Round;M8x1.25Px16L 701449 004493-00 U21 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

702325 006078-00 V18 Decal;Grounding;TM08 No Model Compatibility List $1.90 / Each

W 719180 1000356730 W01 Control Board;Console;;H001;V2.3;;EP623; No Model Compatibility List $895.67 / Each

7
Control Board;USB;H001;U105A5;EP603; 728542 0000095231 W04 Control Board;USB;H001;U105A5;EP603; No Model Compatibility List $28.29 / Each

Speaker Set;AK-402808BC-3T+280+XAP-02;TM 727017 0000086684 W13 Speaker Set;AK-402808BC-3T+280+XAP-02;TM No Model Compatibility List $17.65 / Each

Wire;Hand Pulse Sensor;350L(2510A-06,TKP 727543 0000089849 W45 Wire;Hand Pulse Sensor;350L(2510A-06,TKP No Model Compatibility List $20.90 / Each

712398 1000228705 W52 CONTROL BOARD;C-SAFE;U11AA2;H001;COATING No Model Compatibility List $33.77 / Each

7
W 712551 1000229467 W53 CONSOLE CONTROL BOARD;H001;COATING;EP611 No Model Compatibility List $32.84 / Each

7
W 706354 061339-B W56 Fan;DC12V/0.3A PMB1297PYB3-AY;EP70 Yes Model Compatibility List $117.29 / Each

W 701032 003383-A W65 Ferrite Choke;FH0900B-2;Lian Ci;TM38 No Model Compatibility List $9.10 / Each

W 710102 1000206779 W66 Console Cable;250(MOLEX,50-57-9408+MOLEX, No Model Compatibility List $56.58 / Each

W 705777 056225-A W69 Ferrite;PART OF #79 CABLE;NOT ORDERABLE; No Model Compatibility List $8.42 / Each

727362 088806 W70 Grip Pulse Ground Wire;200L(KST FDFNYD2- No Model Compatibility List $8.42 / Each

Heart Rate Power Wire;250L(2510A-03+XAP- 727961 0000092217 W75 Heart Rate Power Wire;250L(2510A-03+XAP- No Model Compatibility List $9.13 / Each

Screw;Hex Socket;Round;M8x1.25Px15L;Adhe 706696 064626-00 Z03 Screw;Hex Socket;Round;M8x1.25Px15L;Adhe No Model Compatibility List $2.00 / Each

2
Screw;Round;Hex Socket;M8X1.25PX25L 701504 004539-AC Z11 Screw;Round;Hex Socket;M8X1.25PX25L Yes Model Compatibility List $3.64 / Each

Screw;Round;Hex Socket;M8X1.25PX25L;Chromed 701505 004539-AD Z11 Screw;Round;Hex Socket;M8X1.25PX25L;Chromed No Model Compatibility List $2.00 / Each

702178 005220-00 Z20 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

726594 0000083278 Z22 USB Cover;USB-03 Yes Model Compatibility List $1.90 / Each

Screw;SH;M5X0.8PX12L;-;HS;SSTSUS304;BED; 710585 1000211111 Z41 Screw;SH;M5X0.8PX12L;-;HS;SSTSUS304;BED; No Model Compatibility List $1.66 / Each

Z 719883 1000366596 Z41 Screw;Socket Head;M5x0.8Px12L;;Hex Socke No Model Compatibility List $1.43 / Each

726554 082795 Z61 Spacing Ring;Bearing;SS41; No Model Compatibility List $3.64 / Each

726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

726550 082736 Z82 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.66 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
