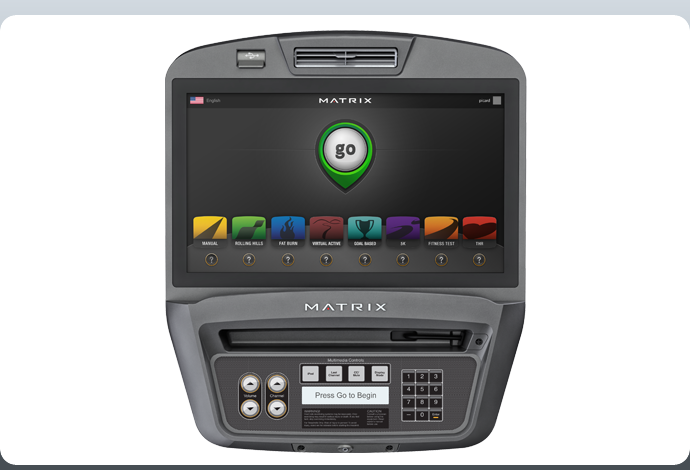

Matrix Commercial - C7xi-01 - 2013

Repair Parts for Matrix Commercial C7xi-01 CS23,EP614_1,EP614_2,EP614_3

Brand: Matrix Commercial

Category: ClimbMill

Type: Stepper

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

CS23,EP614_1,EP614_2,EP614_3

Model Name: C7xi-01

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
700024	000041-AA	B75		Transport Wheel	Yes	Model Compatibility List	$9.10 / Each
700924	002782-C	Not Shown		Power Cord;External(USA);3000,14AWG;110V(non-nema)	Yes	Model Compatibility List	$72.98 / Each
700925	002787-C	Not Shown		Power Cord;External(USA);3000,14AWG;110V(nema)	No	Model Compatibility List	$72.98 / Each	4,5,6
701032	003383-A	P20		Ferrite Choke;FH0900B-2;Lian Ci;TM38	No	Model Compatibility List	$9.10 / Each
701095	003722-00	R52		Screw;BH;M3X0.5PX6L;;PH;;WZN;ROHS;SP	No	Model Compatibility List	$1.66 / Each	2
701153	004071-00	E07		Bearing;Ball;608ZZ;TPI	No	Model Compatibility List	$9.10 / Each
701159	004077-A2	R21		Ball Bearing;6004ZZ;20X42X12T;;SKF;;;	No	Model Compatibility List	$20.05 / Each
701259	004319-00	P26		Screw;Phillip;Round;M3x0.5Px6L;	No	Model Compatibility List	$1.66 / Each	2
701271	004334-00	P53		ROUND PHILLIP SCREW M3X12L	No	Model Compatibility List	$1.66 / Each
701281	004350-00	Not Shown		Screw;Phillip;BH;M3x0.5Px6L	No	Model Compatibility List	$2.00 / Each
701286	004355-00	H09		Screw;Oval;PH; M4X0.7PX10L	No	Model Compatibility List	$2.00 / Each
701294	004359-00	Q52		Screw;Phillip;BH;M4x0.7Px10L;Gap;	No	Model Compatibility List	$1.79 / Each
701309	004369-AD	R61		Screw;BH;M5X0.8PX15L;;PH;;BZN;;	No	Model Compatibility List	$2.00 / Each	2
701332	004385-00	B91		Screw;BH;M5X0.8PX12L;;PH;;BAN;;	Yes	Model Compatibility List	$1.79 / Each
701354	004404-00	P54		Screw;Phillip;BH;M4x0.7Px8L;;Zn-BL	No	Model Compatibility List	$2.00 / Each
701391	004447-AC	Q72		SCREW;SH;M5X0.8PX12L;CT;HS;;BAN;;	No	Model Compatibility List	$1.66 / Each
701392	004448-00	P35		Screw;SH;M5X0.8PX10L;;HS;;BZN;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
701404	004458-00	R58		Screw;Hex Socket;Round;M5x0.8Px12L;BED;	No	Model Compatibility List	$1.66 / Each
701415	004465-00	R30		Screw;Hex Socket;Round;M6x1.0Px12L;;Zn-B	Yes	Model Compatibility List	$1.79 / Each
701426	004475-00	R31		SCREW;SH;M8X1.25PX15L;;HS;;BZN;;	No	Model Compatibility List	$0.52 / Each
701440	004483-00	Z21		Screw;Round Hex Socket;M8x1.25Px25L	No	Model Compatibility List	$1.79 / Each
701517	004550-A	B38		Screw;SH;M8X1.25PX95L;;HS;;;;	No	Model Compatibility List	$1.79 / Each
701605	004627-00	P29		Screw;Phillip;BH;Tapped;5x12L	No	Model Compatibility List	$2.00 / Each
701643	004677-00	R65		Bolt;Eye Hook;1/4"-20UNCX50L(25L);ZN-BL	No	Model Compatibility List	$10.01 / Each	2
701737	004762-00	Z05		Screw;Hex Socket;BH;M8x1.25Px70L	No	Model Compatibility List	$2.00 / Each	2
701823	004844-00	B86		Set Screw;M6X1.0PX16.0L	No	Model Compatibility List	$1.66 / Each
701860	004882-00	R34		Nut;Hex;M5X0.8P	No	Model Compatibility List	$2.00 / Each
701862	004884-00	B39		Nut;Hex;M8X1.25P	No	Model Compatibility List	$1.79 / Each
701866	004889-00	P45		Nut;Hex;M5x0.8P;Nickel	No	Model Compatibility List	$2.00 / Each
701891	004924-00	R62		Nut;Nylon;M5x0.8P;Black Zinc	No	Model Compatibility List	$2.00 / Each
701897	004926-00	D34		Nut;Nylon;M8x1.25P	No	Model Compatibility List	$2.00 / Each
701907	004933-00	B88		Nut;Nylon;1/4"--20UNC;BED	No	Model Compatibility List	$1.79 / Each
701944	004979-00	C11		Insert Nut;Hex;NHS-8125-3.0(M8x1.25P)	No	Model Compatibility List	$1.79 / Each
701947	004983-A	B43		Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P)	No	Model Compatibility List	$1.79 / Each
701948	004984-A	B45		Insert Nut;Hex;NKHS-580-2.5(M5x0.8P)	No	Model Compatibility List	$1.66 / Each
701954	004990-00	R18		Key;Round;Dual End;6X6X16L	No	Model Compatibility List	$1.66 / Each
701964	005005-00	H04		Washer;Spring;Lock;8.2x15.4x2.0t	No	Model Compatibility List	$1.59 / Each
701986	005024-A	P37		Washer;Flat;5.2X16.0X1.0T;;BZN;	No	Model Compatibility List	$1.66 / Each
702004	005042-00	R33		Washer;Flat;8.2X30.0X2.0T;Black Zinc	Yes	Model Compatibility List	$2.00 / Each
702008	005045-00	R32		Washer;Flat;8.2x22x3.0T	No	Model Compatibility List	$2.00 / Each
702036	005066-A	B51		Washer;Flat;8.2x20.0x3.0T	No	Model Compatibility List	$1.85 / Each
702066	005094-00	Q62		Washer;Flat;3.2x8.0x1.0T;Black Zinc	No	Model Compatibility List	$2.00 / Each
702070	005102-00	B89		Washer;Flat;1/4"x15.0x1.0T;Black Zinc	No	Model Compatibility List	$1.79 / Each	2,4,5,6
702118	005145-A	B85		Washer;Flat;8.2x19.0x2.0T;Black Zinc	No	Model Compatibility List	$2.00 / Each
702128	005155-A	R66		Washer;Flat;6.2x12.0x2.0T;Black Zinc	No	Model Compatibility List	$1.79 / Each
702131	005157-A	N153		Washer;Flat;4.3x12.0x1.0T;Black Zinc	No	Model Compatibility List	$1.79 / Each
702178	005220-00	B78		Washer;Wavy;20.7x29.1x.3T	No	Model Compatibility List	$2.00 / Each
702247	005373-00	E08		Clamp;E-Shaped;E-6;	No	Model Compatibility List	$1.79 / Each
702299	005811-00	R57		Cable Tie;Nylon;Black;160L	No	Model Compatibility List	$1.51 / Each
702589	008864-A	N50		Screw;Special;Round;2.9x1.06Px7L(Hi-Lo)	No	Model Compatibility List	$1.79 / Each
702590	008865-B	Q61		Screw;Special;Round;2.9x1.06Px12L(Hi-Lo	No	Model Compatibility List	$1.79 / Each
702591	008866-A	N152		Screw;Special;Round;4.0x1.34Px12L(Hi-Lo	No	Model Compatibility List	$1.66 / Each
702795	010515-00	W19		Copper Pillar;M3x12L	No	Model Compatibility List	$1.66 / Each	1
703550	015267-AE	Not Shown		Fixing Plate;Right TV	No	Model Compatibility List	$17.86 / Each	3,4,5,6
703823	018141-AE	Not Shown		Fixing Plate;TV;Left	No	Model Compatibility List	$16.74 / Each	3,4,5,6
703906	019208-A	P21		Cable Clamps	No	Model Compatibility List	$1.66 / Each
703962	020005-00	P02		Screw;Phillip;Round;M3x6L;;Zn-BL	No	Model Compatibility List	$1.79 / Each
703984	020060-00	R50		Screw;SH;M5X0.8PX45L-20L ;;HS;;;;P-T	No	Model Compatibility List	$1.79 / Each	2
703990	020069-00	B76		Screw;SH;M8X1.25PX12L;HS;BP;G12.9;	Yes	Model Compatibility List	$1.79 / Each
704011	020101-00	B65		Screw;Hex Socket;Round;M8x1.25Px55L;Black Zinc	No	Model Compatibility List	$2.00 / Each
704203	020478-00	R47		Washer;Flat;10.2x20.0x2.0T;Black Zinc	No	Model Compatibility List	$2.00 / Each
704295	022311-A	Not Shown		Pin;Spring;M3X10L	No	Model Compatibility List	$1.66 / Each	2,12,13,14
705077	035695-AB	R40		Screw;BH;M4X0.7PX30L;;PH;;BAN;;	No	Model Compatibility List	$1.79 / Each
705163	038449-A	Q24		Clip;Tapped Hole;FE;M5;YZN	No	Model Compatibility List	$9.10 / Each
705313	040816-A	Q27		Screw;Phillip;BH;Tapped;3x8L;	No	Model Compatibility List	$2.00 / Each
705777	056225-A	53		Ferrite;PART OF #79 CABLE;NOT ORDERABLE;	No	Model Compatibility List	$8.42 / Each
706354	061339-B	W56		Fan;DC12V/0.3A PMB1297PYB3-AY;EP70	Yes	Model Compatibility List	$117.29 / Each
706521	063002-A	P06		TV Cable Wire;Down;1750L;(FM-0086-NBG7)x	No	Model Compatibility List	$29.35 / Each
706754	065248-A	P17		TV Coax Adaptor;Female;F-A028-NBX7-C	Yes	Model Compatibility List	$7.00 / Each
706965	067629-00	R29		Inner axis ferrule;12.0;12x5.5x15.75L	No	Model Compatibility List	$1.66 / Each
706978	067774-A	P18		Power Cord;FH33.3x8.25x16.4(FH0900B);TM95	No	Model Compatibility List	$8.42 / Each	4,5,6
708154	1000100780	B87		Screw;Hex Socket;BH;M6x1.0Px16L;Cr Plate	No	Model Compatibility List	$1.66 / Each
708858	1000106666	B84		Nut;HX;M8X1.25P;SS41;BAN;;	No	Model Compatibility List	$1.79 / Each	2
709046	1000108690	B58		Wheel Lock	No	Model Compatibility List	$12.71 / Each
709055	1000108777	E09		Washer;Flat;M8.2x16Px1.0T	No	Model Compatibility List	$2.00 / Each
709540	1000201167	P01		Console Cable Communication Wire;2000(MOLEX,50-70-9408x	Yes	Model Compatibility List	$91.23 / Each
709609	1000201693	W102		Exchange connectorl; KST DWTSFSOLR;	No	Model Compatibility List	$1.01 / Each	1
709816	1000203482	B12		Guide Rail;Transmission;-;SS41;ANTIRUST	No	Model Compatibility List	$64.22 / Each
709818	1000203521	R04		Sprocket;Transmission;-;16T;	No	Model Compatibility List	$31.36 / Each
709819	1000203524	R12		Flywheel Set;;214;;;FC25	No	Model Compatibility List	$101.37 / Each	8
709820	1000203525	R08		PULLEY;POLY-V;FC25;J10Diam.200;ROHS;	No	Model Compatibility List	$62.50 / Each
709824	1000203645	5		E-Port Fix Plate Set;US;CS17	No	Model Compatibility List	$112.22 / Each
709826	1000203648	P18		Wire;SENSOR CON;1250(JST PAP-03V-S+HL 3T	No	Model Compatibility List	$34.14 / Each
709827	1000203688	R25		Sealed Chain;Transmission;192L	No	Model Compatibility List	$459.08 / Each
709829	1000203697	E04		Axle, Central;S45C;CHM;PEDAL;Short;	No	Model Compatibility List	$11.60 / Each
709832	1000203748	Q09		Pedal;;back;PP-3015;P426C;;CS17;	No	Model Compatibility List	$67.57 / Each
709833	1000203749	C20		Plastic Sleeve;Console MAST;PVC;80393	No	Model Compatibility List	$10.97 / Each
709834	1000203752	Q25		Pin Set;	No	Model Compatibility List	$13.23 / Each
709835	1000203753	E20		Pedal Step;Upper	No	Model Compatibility List	$41.76 / Each
709836	1000203754	E21		Pedal Step;Lower	No	Model Compatibility List	$70.43 / Each
709838	1000203758	Q26		Nylon Washer;U-7 White;PINGOOD;CS17	No	Model Compatibility List	$1.66 / Each
709844	1000203794	AR2		Sprocket Set;Bottom;PAINTING;-;BL	No	Model Compatibility List	$357.86 / Each
709845	1000203797	B07		Ring;Guide Rail	No	Model Compatibility List	$3.35 / Each
709846	1000203799	B22		Guide Rail;Transmission;-;SS41;ANTIRUST	No	Model Compatibility List	$73.03 / Each
709847	1000203803	B62		Safety plate;left;CS17	No	Model Compatibility List	$3.35 / Each
709848	1000203804	B61		Safety plate;right;CS17	No	Model Compatibility List	$3.35 / Each
709850	1000203821	Q23		Pin;CS17;SR-07C-N2B BL;PINGOOD;CS17	No	Model Compatibility List	$1.79 / Each
710100	1000206777	P32		C Safe+TV Connect Wire;200(TKP H20J2-15x	No	Model Compatibility List	$40.51 / Each
710102	1000206779	P33		Console Cable;250(MOLEX,50-57-9408+MOLEX,	No	Model Compatibility List	$56.58 / Each
710109	1000206793	R39		Fan;DC FAN;12V;0.1A;FAAN;	No	Model Compatibility List	$35.00 / Each
710110	1000206794	P04		Wire;ECB LOAD;1650(JST,VHR-4N+TKP HL20P-	No	Model Compatibility List	$37.54 / Each
710164	1000207104	P38		LI Battery;2200MA/H;EP606;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
710166	1000207108	P36		Battery Con Wire;200(TKP H110-03S+TKP H6	No	Model Compatibility List	$14.14 / Each	4,5,6
710186	1000207235	P27		Wire;PULSE CON;OTHER;BLACK;750L;TKP H66	No	Model Compatibility List	$55.41 / Each
710187	1000207236	G18		Wire;HR Sensor;Left;950(TKP H6630R1-06+TKP	No	Model Compatibility List	$36.89 / Each	7,4,5,6,12,13,14
710251	1000207951	P10		Fixing Plate;Fan;LCB;SPHC;WZN;CS17;	No	Model Compatibility List	$8.42 / Each
710252	1000207952	R54		Screw;SH;M5X0.8PX60L(TREAD 23L);MT;HS;G1	No	Model Compatibility List	$3.35 / Each
710268	1000208207	W18		Inverter Board Set;TM503;T7xe;	No	Model Compatibility List	$220.27 / Each	1
710276	1000208238	AN15		Cover;Console;Back;Printing;EP	Yes	Model Compatibility List	$88.63 / Each	7,9,4,5,6
710277	1000208248	AN4		Cover;Overlay;15 INCH;PR;OV;EP92F;	No	Model Compatibility List	$138.66 / Each	9
710289	1000208535	AN51		Heart Rate Board Set;SALUTRON 8600;EP93C;	No	Model Compatibility List	$300.61 / Each
710291	1000208539	W58		Wire;QUICK CONNECT;200(HRS HIF3BA-20D-2.	No	Model Compatibility List	$65.10 / Each	7,4,5,6,12,13,14
710292	1000208547	W57		Power Wire;200(JST VHR-3NX2);EP93C;	No	Model Compatibility List	$10.14 / Each	7,4,5,6,12,13,14
710307	1000208781	N15		Plastic BASE;U;ABS/PA746;PA:60461;T7x-03	No	Model Compatibility List	$3.35 / Each	9,3
710314	1000209251	AB6		Wheel Set;PAINTING;Black;CS17;	No	Model Compatibility List	$28.70 / Each
710316	1000209259	12		Drive Axle Set;SA;;CS17;;;	No	Model Compatibility List	$2.60 / Each	8,10
710378	1000209821	Q14		Side Rail;R;CS17;	No	Model Compatibility List	$54.81 / Each
710388	1000209863	P13		Speed Feedback Set Extended Wire;1350L(JST	No	Model Compatibility List	$40.56 / Each
710390	1000209865	P24		Power Wire;190L;(KST FDFNYD1-250-1)x4;CS	No	Model Compatibility List	$20.31 / Each
710454	1000210330	P03		Wire;Connect;USB;250(JST,XAP-06V-1)x2;	No	Model Compatibility List	$19.16 / Each
710476	1000210489	Not Shown		NETWORK SIGNAL EXTEND WIRE;900(TKP H6630	No	Model Compatibility List	$103.97 / Each	9,4,5,6
710477	1000210490	P19		Power Extend Wire;DC BRAKE,COOLING	No	Model Compatibility List	$41.05 / Each
710478	1000210491	P31		Wire;Proximity Sensor Set;OTHER;BLACK;OT	No	Model Compatibility List	$72.18 / Each
710483	1000210553	N16		USB;EP90B	No	Model Compatibility List	$14.40 / Each	1
710569	1000211037	Not Shown		WIRE;NETWORK SIGNAL;1000(TKP H6630R1-08+	No	Model Compatibility List	$53.77 / Each	4,5,6
710607	1000211294	N98		Screw;FH;M3X0.5PX30L;-;PH;BZN;	No	Model Compatibility List	$1.66 / Each	2
710620	1000211323	W70		Wire;GND;-;-;-;EP93C;	No	Model Compatibility List	$8.42 / Each	4,5,6
710624	1000211384	22		Flywheel Set;CS17	No	Model Compatibility List	$294.92 / Each	8
710625	1000211385	Q12		Plastic Cover;U;MARIX Cover;80435	No	Model Compatibility List	$19.63 / Each
710626	1000211386	Q13		Side Rail;L;;CS17;	No	Model Compatibility List	$54.81 / Each
710627	1000211387	Q15		Fairing;L;ABS;;;;CS17;Dark Gray80435	No	Model Compatibility List	$3.35 / Each
710628	1000211388	Q16		Fairing;R;ABS;-;;;CS17;Dark Gray80435	No	Model Compatibility List	$3.35 / Each
710661	1000211919	P38		Battery;AAA;1.5V;ALKALINE;#4	No	Model Compatibility List	$9.44 / Each
710664	1000212092	Z22		Screw;SH;M8X1.25PX35L;MT;HS;SST;-;	No	Model Compatibility List	$1.66 / Each
710678	1000212322	N25		Shim;Rubber;D;NBR;BLACK;TM507C;	No	Model Compatibility List	$1.66 / Each	4,5,6
710682	1000212335	G19		Wire;HR Sensor;Right;950(TKP H6630R1-06 TK	No	Model Compatibility List	$36.89 / Each	7,4,5,6,12,13,14
710733	1000212922	10		SPROKET SET;FRONT;CS17;	No	Model Compatibility List	$485.47 / Each
710734	1000212923	11		SPROKET SET;REAR;CS17;	No	Model Compatibility List	$286.55 / Each
710741	1000213059	1		Transport Wheel Set;SA;-;CS17;;;	No	Model Compatibility List	$110.89 / Each
710762	1000213364	6		LED Maintainance Light Set;CS17;SA	No	Model Compatibility List	$48.41 / Each
710913	1000215173	P14		BRACKET;E-PORT;SPHC 1.6T;BAN;CS17;	No	Model Compatibility List	$6.73 / Each
711020	1000215997	P39		LED MAINTAIN LIGHT;PROCESS;Diam.5.2x3mm;	No	Model Compatibility List	$18.56 / Each
711124	1000216903	Q32		Control Zone Decal	No	Model Compatibility List	$10.11 / Each
711129	1000216927	W12		WIFI Antenna;250(WPB105 MINI 1.13 2.4GHz	No	Model Compatibility List	$18.67 / Each	1
711146	1000217094	W16		Wire;NET;550(TKP,H6630R1-08AMP 569532)	Yes	Model Compatibility List	$3.35 / Each	4,5,6
711193	1000217419	R22		Electro Magnet;20VDC/1.2A;CS17;	No	Model Compatibility List	$174.04 / Each
711201	1000217580	R43		Belt;Poly-V;FIBERGLASS;390PJ10-FG;	No	Model Compatibility List	$72.98 / Each
711202	1000217581	R14		AXLE;IDLER;S45C;WZN;CS17;	No	Model Compatibility List	$16.93 / Each
711254	1000218549	W20		CONTROL BOARD SET;LMM REPLACE;EP92;NON V	No	Model Compatibility List	$999.00 / Each Out Of Stock	4,5,6,7
711260	1000218699	R23		Belt;Poly-V;FLEXONIC BELT;948J8;	No	Model Compatibility List	$91.23 / Each
711551	1000221249	Z24		Washer;FLT;8.0X16.0X1.0T;SST;-;;	No	Model Compatibility List	$1.66 / Each
711552	1000221250	R24		CHAIN;SEALED;DRIVE;40-82L 1 C/L;	No	Model Compatibility List	$164.24 / Each	35
711554	1000221258	Z32		Washer;ARC;8.2X19.0X1.5T;SST;	No	Model Compatibility List	$1.79 / Each
711580	1000221753	AR3		TRANSMISSION SET;-;MI;CS17;	No	Model Compatibility List	$185.87 / Each	1
711996	1000224836	W69		CONSOLE GND WIRE;130+220(KST,FDFNYD2-250	No	Model Compatibility List	$9.10 / Each	7,4,5,6
712063	1000226252	Z25		Screw;SH;M8X1.25PX16L;MT;HS;SST;-;	No	Model Compatibility List	$1.79 / Each
712082	1000226528	N27		Fixing Plate;TUNER;SECC;1.0t;TM521;	No	Model Compatibility List	$8.42 / Each	3
712098	1000226659	AN4		Extrawork;COVER;OVERLAY;PR;EP612;	No	Model Compatibility List	$101.37 / Each	9
712101	1000226665	N62		OVERLAY;HEART RATE ZONE;ENG;EP612;	No	Model Compatibility List	$50.67 / Each	12,13,14
712103	1000226686	21		Console Set;-;-;EKS;H001-0H;GUI1.6;OS3.2	Yes	Model Compatibility List	$0.00 / Each	7
712104	1000226689	AN31		Overlay Set;TV;-;English;EP613	No	Model Compatibility List	$182.49 / Each	4,5,6
712105	1000226707	N61		Documentation;Overlay;Program;-;English;	No	Model Compatibility List	$91.23 / Each	1
712106	1000226708	W51		Control Board;Console;-;H001;S001;CS19	No	Model Compatibility List	$1101.85 / Each	7
712136	1000226844	B90		Rubber Pad;PIB;NBR(BL);CS17;	No	Model Compatibility List	$1.66 / Each
712144	1000226890	R48		SCREW;SH;M5X0.8PX8L;MT;HS;G12.9;BZN;	No	Model Compatibility List	$1.66 / Each
712189	1000227270	Not Shown		E-PORT Wire;-;-;1000;(AMP,569532);CS20	No	Model Compatibility List	$51.97 / Each	4,5,6
712267	1000228040	P48		TV Power;1700;(SCD-554DCS103BB1G+TKP H66	No	Model Compatibility List	$27.35 / Each
712269	1000228042	Not Shown		TV PWR EXT;900(H6630R1-04+DC 2.5x5.5	No	Model Compatibility List	$21.94 / Each	4,5,6
712300	1000228299	W10		MO;WIFI WIRE;EP90B/EP93C/CS14B;-	No	Model Compatibility List	$346.76 / Each	4,5,6
712391	1000228688	N82		SCREW;BH;M5X0.8PX12L;PH;BAN;	No	Model Compatibility List	$1.66 / Each
712398	1000228705	W52		CONTROL BOARD;C-SAFE;U11AA2;H001;COATING	No	Model Compatibility List	$33.77 / Each	7
712470	1000229018	E05		Axle, Central;SCM440;CHM;PEDAL;Long;	No	Model Compatibility List	$54.73 / Each
712479	1000229060	E10		Snap Ring;X STYLE;CS17;	No	Model Compatibility List	$1.79 / Each
712551	1000229467	W53		CONSOLE CONTROL BOARD;H001;COATING;EP611	No	Model Compatibility List	$32.84 / Each	7
712576	1000229558	W53		Exchanged Board;Console;-;H001;COATING;-	No	Model Compatibility List	$33.77 / Each	7
712608	1000229835	W63		Membrane Keypad;Programm;-;CS19	No	Model Compatibility List	$109.82 / Each	9,12,13,14
712611	1000229865	AG15		Arm Rest set;-;L;painting;CS21;F75A2-DH0	No	Model Compatibility List	$236.57 / Each
712613	1000229880	AG14		HANDLEBAR;LU;DI;-;CS21;	No	Model Compatibility List	$327.83 / Each	11
712614	1000229894	G10		Connect Plate,Kettle Rack,ABS 746,BL/Bla	No	Model Compatibility List	$5.46 / Each
712660	1000230083	N62		OVERLAY SET;TV;EP612;-;	No	Model Compatibility List	$182.49 / Each	4,5,6
712719	1000230371	R27		BEARING;PLB;LCP204-LLU;20(NKB);	No	Model Compatibility List	$49.56 / Each
712778	1000230607	R35		SCREW;SH;M10X1.5PX35L;;HS;;BZN;;	No	Model Compatibility List	$1.66 / Each
712866	1000231078	Q51		SCREW;BH;?X5X1.6PX12L(HI-LO);PH;BZN;	No	Model Compatibility List	$1.66 / Each
712867	1000231080	W27		Wire;Ipod;550(JST XADR-16+PAP-06/-10);T7	No	Model Compatibility List	$32.84 / Each	4,5,6
712870	1000231122	Not Shown		E-PORT EXTENDED WIRE;350(##,3205615600 A	No	Model Compatibility List	$16.87 / Each	9,4,5,6
712940	1000231589	Not Shown		SCREW;BH;M3X0.5PX6L;CT;PH;SST;BAN;	No	Model Compatibility List	$1.66 / Each	2
713008	1000232274	W47		GND;-;-;Yellow/Green1;I-POD;18AWG;200mm;	No	Model Compatibility List	$8.42 / Each	1
713051	1000232817	P03		USB Wire;-;-;500+550;(JST XAP-06V-1X2+KS	No	Model Compatibility List	$13.49 / Each	4,5,6
713135	1000233231	N46		FIXING PLATE;15 INCH;SPCC;0.8t;T-7xe-04-	No	Model Compatibility List	$33.77 / Each	3
713147	1000233262	1		Panel Board Set;15 inch;-;-;TFT LCD;EP61	No	Model Compatibility List	$1688.70 / Each Out Of Stock	7
713334	1000301732	Q10		shield set;ASH TRAY;-;C-5X/7X-01-F;-	No	Model Compatibility List	$51.09 / Each
713455	1000303525	P51		Sensor Set;;;;;;;1350L(KFPS,XE-SP50NE1T	No	Model Compatibility List	$182.49 / Each Out Of Stock
713519	1000304478	Q73		Screw;Button Head;M5x0.8Px12L;-;Phillip;	No	Model Compatibility List	$1.79 / Each
713915	1000309599	P52		Fixing Plate;Sensor;;Zinc Plate;1.5T;;CS	No	Model Compatibility List	$1.66 / Each
713917	1000309603	Q41		Fixing Bracket;U Shape;;POM+GF;BL/Black	No	Model Compatibility List	$3.35 / Each
713918	1000309606	Q43		Fixing Plate;LOW ROW;;painting;;Black4;C	No	Model Compatibility List	$8.42 / Each
713928	1000309660	Q11		Fixing Plate;TRANSMISSION;;painting;;Fla	No	Model Compatibility List	$40.53 / Each
714287	1000313163	Not Shown		Hardware Set;;;S-BOM;CS23;;	No	Model Compatibility List	$27.01 / Each
714843	1000318715	Not Shown		Manual;Assembly;;English;;CS21;	No	Model Compatibility List	$16.87 / Each	3
715314	1000323618	W20		Control Board Set;LMM;;;EP613;;	No	Model Compatibility List	$1558.70 / Each	7
715806	1000328462	AG16		Arm Rest set;;R;painting;F75 D2 DH042;Rh	No	Model Compatibility List	$206.15 / Each	3
715807	1000328463	AB2		Frame Set;;R;painting;F75 D2 DH042;Rhino	No	Model Compatibility List	$290.65 / Each
715808	1000328464	AB3		Frame Set;;L;painting;F75 D2 DH042;Rhino	No	Model Compatibility List	$288.96 / Each
716452	1000336787	2		console mast set;;;MATRIX Purple;CS23B;	No	Model Compatibility List	$265.30 / Each	7
716473	1000336874	7		Side Cover Set;;left;Purple;CS23B;;	No	Model Compatibility List	$341.35 / Each	9
716474	1000336875	8		Side Cover Set;;right;Purple;CS23B;;	No	Model Compatibility List	$344.73 / Each	9
716475	1000336876	Q01		Side Cover;;left;ABS-756S;Purple;;CS23B;	No	Model Compatibility List	$121.65 / Each	9
716476	1000336877	Q02		Side Cover;;right;ABS-756S;Purple;;CS23B	No	Model Compatibility List	$121.65 / Each	9
716477	1000336879	V21		Decal;Side Cover;;;;;;CS23B;	No	Model Compatibility List	$8.42 / Each	7,9,3
716478	1000336880	V22		LOGO Label;;;;;;;CS23B;	No	Model Compatibility List	$8.42 / Each	1
716479	1000336881	Q20		Service Set;Side Cover;left;;CS23B;	No	Model Compatibility List	$103.06 / Each	9
716480	1000336882	Q21		Service Set;Side Cover;right;;CS23B;	No	Model Compatibility List	$103.06 / Each	9
716481	1000336884	Q05		Cover;Frame;up;ABS-756S;Purple;;;	No	Model Compatibility List	$55.74 / Each	9,3
716482	1000336885	Q06		Decorate Cover;;front;ABS/PA756;Purple;;	No	Model Compatibility List	$60.81 / Each	9
716483	1000336886	Q07		Cover;;front;ABS/PA756;Purple;;CS23B;	No	Model Compatibility List	$50.67 / Each	9
716484	1000336889	AC1		Console Mast Set;;;painting;;MATRIX Purp	No	Model Compatibility List	$245.02 / Each	7
716485	1000336890	C07		Accent Plate;TV-MOUNT;;painting;;MATRIX	No	Model Compatibility List	$13.49 / Each	2,3,4,5,6
716486	1000336891	C12		Handlebar Connect Block;;;painting;;MATR	No	Model Compatibility List	$109.82 / Each	11
716487	1000336896	N61		Overlay;Program;;English;;CS19B	No	Model Compatibility List	$135.17 / Each	1
716488	1000336897	N62		Overlay;ENTAERTAINMENT;;English;;EP612B	No	Model Compatibility List	$101.37 / Each	1
716489	1000336898	N62		Overlay Set;TV;;English;EP612B;;	No	Model Compatibility List	$127.74 / Each	4,5,6
716491	1000336916	P02		Controller Set;Sensor;;ECB/H001;IO/H002;	No	Model Compatibility List	$599.00 / Each	7,8
716492	1000336920	Not Shown		Connect Board;I/O;DC;H002;;;CS24;	No	Model Compatibility List	$36.48 / Each	4,5,6
716493	1000336923	Q38		Bousing;Transmission;;ABS/PA757;BL/Black	No	Model Compatibility List	$3.35 / Each
716494	1000336924	Q39		Bousing;Receiver;;ABS/PA757;BL/Black C;;	No	Model Compatibility List	$3.35 / Each
716495	1000336925	Q36		Connect Board;;left;ABS PA-758;Limpid Bl	No	Model Compatibility List	$8.42 / Each
716496	1000336926	Q37		Connect Board;;right;ABS PA-758;Limpid B	No	Model Compatibility List	$8.42 / Each
716497	1000336928	9		TREAD SET;;back;;CS24;;	No	Model Compatibility List	$273.75 / Each
716498	1000336930	P08		Control Board;Transmit sensor;;H001;;;CS	No	Model Compatibility List	$32.08 / Each
716499	1000336933	P12		Control Board;Receive sensor;;H001;;;CS2	No	Model Compatibility List	$55.74 / Each
716635	1000337953	62		Connect Board Set;Transmission;right;;CS	No	Model Compatibility List	$72.98 / Each
718277	1000350050	Q08		Cover Plate;;;PP;BL/Black C;;CS24;	No	Model Compatibility List	$59.12 / Each
718392	1000350726	R36		Supt Base;TRANSMISSION;;painting;;Flat B	No	Model Compatibility List	$11.80 / Each
718571	1000351694	B56		Spacer;Rail;;;A;	No	Model Compatibility List	$3.02 / Each
718645	1000352533	E06		Space Ring;Pedal;;POM;BL/Black C;;CS23;	No	Model Compatibility List	$1.43 / Each
718757	1000353342	W28		Ipod Extend Wire;;;;;;300(MF1512S0017+JA	No	Model Compatibility List	$72.98 / Each	9,4,5,6
718983	1000354903	R45		Brake Set;;;;CS17;	No	Model Compatibility List	$456.27 / Each	8
719182	1000356740	Not Shown		Quickly Key Wire;;;;;;;200+250(TKP,H254M	No	Model Compatibility List	$18.56 / Each	9,4,5,6
719183	1000356740*	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock	1
719260	1000359148	3		Arm Rest set;;left up;;CS24;	No	Model Compatibility List	$538.41 / Each	3
719261	1000359150	13		Hand Grip Set;Quickly Key;left;;CS24;	No	Model Compatibility List	$109.49 / Each	9,11
719262	1000359159	G31		Overlay;Quick Key;Left;;;CS24; (Overlay ONLY; NO membrane)	No	Model Compatibility List	$18.23 / Each	9
719263	1000359163	4		Arm Rest set;;right up;;CS24;	No	Model Compatibility List	$536.59 / Each	3
719264	1000359164	14		Hand Grip Set;Quickly Key;right;;CS24;	No	Model Compatibility List	$109.49 / Each	9,11
719265	1000359165	G32		Overlay;Quick Key;Right;;;CS24; (Overlay ONLY; NO membrane)	No	Model Compatibility List	$18.23 / Each	9
719822	1000366087	13/14		Hand Grip Set;Quickly Key;Right/Left;;CS	No	Model Compatibility List	$200.75 / Each	9,11
719870	1000366515	9		Earphone board set;;;;EP620;	No	Model Compatibility List	$42.22 / Each
719883	1000366596	Z41		Screw;Socket Head;M5x0.8Px12L;;Hex Socke	No	Model Compatibility List	$1.43 / Each
721487	1000383493	T10		Terminal;100;JMT,J1730BS-2(With a plasti	No	Model Compatibility List	$7.25 / Each	1
723041	1000402662	P25		Photo Interrupter Set;;;;CS29;	No	Model Compatibility List	$25.35 / Each
723181	1000404540	W24/W58		Earphone board set;;;;Earphone board set	No	Model Compatibility List	$67.57 / Each	1
724734	1000425274	AW31		Tuner Module;;;REV 2.0;S20170417;;US for	No	Model Compatibility List	$588.09 / Each	1
725263	103403	B81		Rear Carriage Roller; Nylon+30%G;TM369	Yes	Model Compatibility List	$15.29 / Each
725318	069851	W33		Console TV Cable Extended Wire;250L(FM-0086-N	Yes	Model Compatibility List	$10.14 / Each
725319	069859	AP1		Filter Board	Yes	Model Compatibility List	$55.95 / Each
725322	069904	P63		Ferrite; Cord;FH0650B;CB32-P16A	No	Model Compatibility List	$3.35 / Each
725395	070817	Z31		Screw;SH;M8X1.25PX20L;;HS;;CHM;;	No	Model Compatibility List	$0.99 / Each
726204	080701	P54		Cable Clamp;KSS UC-04	No	Model Compatibility List	$41.37 / Each
726227	080808	B79		Screw;BH;M4X0.7PX45L;;PH;;BZN;;	No	Model Compatibility List	$1.66 / Each
726397	0000081594	W101		Pulse Wire;150(FDFNYD2-250-1+546BS-2);TM	No	Model Compatibility List	$3.64 / Each
726549	082734	P59		Washer;Senated;M5.3X10X0.6;Zinc Plate	No	Model Compatibility List	$1.79 / Each
726562	082875	D60		Screw;BH;M3X0.5PX20L;;PH;;BZN;;	No	Model Compatibility List	$1.79 / Each
726594	0000083278	Z22		USB Cover;USB-03	No	Model Compatibility List	$1.90 / Each
726627	083692	P63		Washer;TOOTH;M5.3X10X0.6;Nickel	No	Model Compatibility List	$1.66 / Each
726826	085362	E44		Screw;SH;M8X1.25PX20L;;HS;;BAN;;	Yes	Model Compatibility List	$6.99 / Each
726832	085415	W33		LVDS Wire;15 Inch TFT LCD;410(HRS DF14H-20P+D	No	Model Compatibility List	$27.59 / Each
726885	085779	AM1		Elevator Motor;AC;110V/123mm;JM03;only	Yes	Model Compatibility List	$354.87 / Each
726928	0000086064	N33		Cover;Console;Right;ABS/PA-746;BL;TM501;	No	Model Compatibility List	$3.35 / Each
726929	0000086065	N34		Cover;Console;Left;ABS/PA-746;BL;TM501;	Yes	Model Compatibility List	$3.35 / Each
726939	086127	H38		Nut;HEX;M10X1.5P;10	No	Model Compatibility List	$3.64 / Each
726959	086231	J51		Screw;Phillip;BH;M5x0.8Px10L;Zn-BL	No	Model Compatibility List	$1.79 / Each
726965	0000086264	P04		Ground Wire;Console;Pulse Extended;220(5.0 OT+KST M	No	Model Compatibility List	$3.64 / Each
726974	086310	P44		Screw;BH;M5X0.8PX75L;CT;PH;;NKL;;	No	Model Compatibility List	$3.35 / Each
726993	086533	N47		Bracket;Isolation Board Cover;0.6t;TM503	No	Model Compatibility List	$8.42 / Each
727017	0000086684	W13		Speaker Set;AK-402808BC-3T+280+XAP-02;TM	No	Model Compatibility List	$17.65 / Each
727041	086852	W38		Rubber Ring;GM-5	No	Model Compatibility List	$1.01 / Each
727076	0000087056	N13		Vent;Fan;ABS/PA-746;Pantone:877C;TM501;	No	Model Compatibility List	$45.24 / Each
727194	087672	Z41		Screw;Hex Socket;Round;M5x0.8Px8L	No	Model Compatibility List	$1.79 / Each
727213	087846	N49		Foam;Overlay;1;315.5x4.0x1.0t;Rubber/BL;	No	Model Compatibility List	$1.66 / Each
727214	087847	V01			No	Model Compatibility List	$0.00 / Each Out Of Stock
727215	087848	V09			No	Model Compatibility List	$0.00 / Each Out Of Stock
727351	0000088743	N81		Screw;TRH;M3x.5Px6L;MT;PH;CST;ZNC;F-T	No	Model Compatibility List	$1.79 / Each
727358	0000088790	N52		Anti-Slippery Pad;TPR+30%PP;BL;MX-E5XC-F	No	Model Compatibility List	$9.10 / Each
727359	0000088791	N53		TV Earphone Wire Cover;ABS/PA746;80435	No	Model Compatibility List	$3.64 / Each
727371	088888	N42		insulation Plate;INVETER;PC;8B35;3M-467;	No	Model Compatibility List	$1.82 / Each
727375	0000088923	C11		Bottle Holder Set;Console Mast;ABS/PA746;BL	Yes	Model Compatibility List	$15.52 / Each
727421	089108	W34		Wire;Tuner Signal;JST PAP-12;T7x-01;	No	Model Compatibility List	$31.10 / Each
727423	089111	P47		Tape;Dual Sided;20x30x3t;TM501;	No	Model Compatibility List	$0.10 / Each
727442	0000089261	N18		Cover;IPOD Fixing;ABS/PA746;Deep Grey 80	No	Model Compatibility List	$3.64 / Each
727469	089486	N12		Bushing;KSS Moveable;KG-008;10M/Reel;	No	Model Compatibility List	$23.63 / Each
727474	089506	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock
727514	089691	W02		TV Control Board Set;TM503;T7xe;	No	Model Compatibility List	$400.17 / Each
727534	089835	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock
727543	0000089849	W45		Wire;Hand Pulse Sensor;350L(2510A-06,TKP	No	Model Compatibility List	$20.90 / Each
727716	090570	B37		SCREW;SET;M8X1.25PX20L;;;;BZN;;	No	Model Compatibility List	$1.66 / Each
727795	0000091027	W25		LCM Wire;130L(H6630R1-18)x2	No	Model Compatibility List	$26.05 / Each
727796	091028	W30		TV Key Wire;160L(H6630R1-14)x2	No	Model Compatibility List	$8.42 / Each
727858	091621	N41		Fix Plate;Tuner;MX-E7X-C;US;EP91	No	Model Compatibility List	$16.64 / Each
727961	0000092217	W75		Heart Rate Power Wire;250L(2510A-03+XAP-	No	Model Compatibility List	$9.13 / Each
728026	0000092696	N202		Fixing Plate;Fan;0.8t;T5x-02;	No	Model Compatibility List	$9.10 / Each
728043	092811	B80		Screw;Round;Hex Socket;M8X1.25PX50L(Yrw29	No	Model Compatibility List	$3.64 / Each
728132	093219	AB1		RIGHT MAIN FRAME SET	No	Model Compatibility List	$589.11 / Each
728166	093369	B69		Screw;SH;M8x1.0Px35L;;HS;;BZN;	No	Model Compatibility List	$1.66 / Each
728188	093508	P03		GND Wire;Filter;200(KST FLDNY2-250kz+GE	No	Model Compatibility List	$3.35 / Each
728374	094431	P56		Fan;Cooling;FD128025LB;DC 12V/0.1A;T7000	No	Model Compatibility List	$91.23 / Each
728450	0000094929	J11		Cap;Stabilizer;Left-Front;ABS/PA757;P804	Yes	Model Compatibility List	$12.04 / Each
728498	0000095100	J12		Cap;Stabilizer;Right-Front;ABS/PA757;P80	Yes	Model Compatibility List	$9.44 / Each
728542	0000095231	W04		Control Board;USB;H001;U105A5;EP603;	No	Model Compatibility List	$28.29 / Each
728544	095247	W52		C-Safe;E LEAD;3P00DMJE001-0A;EP92F;	No	Model Compatibility List	$104.83 / Each
728600	0000095575	N203		Tape;Foam;One-Sided;50x15x1.5T;	No	Model Compatibility List	$1.66 / Each
728616	095641	N157		SCREW;RND;#X4.0X1.34PX8L(HI-LO);PH;BZN;	No	Model Compatibility List	$1.66 / Each
729012	Order Kit 1	B83		Console Base Set;Semi-Assy;;;;TM701-1US;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729016	Order Kit 12	R60		pedal arm set;;R;painting;DM515 matte;;E	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,9,3
729034	Order Kit 9	P08		Arm Rest set;;LU;painting;DM515 matte;;E	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
729046	Order left hand grip set (13)	G33		Membrane	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
729060	Order right hand grip set (14)	G35		Membrane	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
729118	Part of Kit 1	AB2		Stabilizer Frame;Rear;B;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
020069-00	020069-00	B76	1	SCREW, SH, M8X1.25PX12L, HS, BP, G12.9	Yes	Model Compatibility List	$6.99 / Each
1003980	069859			Filter Board Set	Yes	Model Compatibility List	$27.99 / Each
1035694	0000088923	C11	1	Holder, Cup without Bracket (Used)	Yes	Model Compatibility List	$14.99 / Each
711260	1000218699			Drive Belt Flexonic	No	Model Compatibility List	$32.97 / Each
701972	005010-00	R37		Spring Lock Washer 10.75x17.2x2.16T (New)	No	Model Compatibility List	$12.99 / Each
701260	004321-00			Round Head Screw M4x0.7Px10L (New)	No	Model Compatibility List	$12.99 / Each
1020604	004483-00	Z21		Front Roller Screw M8-1.25"x25mm	No	Model Compatibility List	$11.99 / Each
976932	004926-00			Nylon Lock Nut M8x1.25P (New)	No	Model Compatibility List	$12.99 / Each

View Drawing

Chat with us

Matrix Commercial - C7xi-01 - 2013

Exploded Diagrams

general Info

Customer Service

About us

Address
