Matrix Commercial - Connexus - N/A

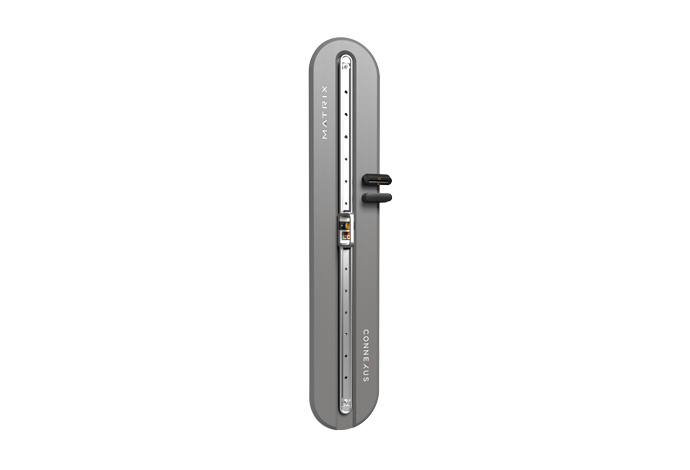

Repair Parts for Matrix Commercial Connexus GFTSLR

Brand: Matrix Commercial

Category: Functional

Type: Strength Systems

Model Name: Connexus

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Z 701484 004529-AD Z04 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $3.69 / Each

2
702030 005062-00 Z05 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

Z 705465 049256-AB Z03 Screw;Hex Socket;Round;M10x1.5Px20L;Cr; No Model Compatibility List $1.79 / Each

H 705476 049274-00 H11 Screw;Hex Socket;Button Head;M8x1.25Px10 No Model Compatibility List $1.33 / Each

2
Z 708082 1000099212 Z01 Screw;SH;M6x1.0Px15L;-;HS;-;CHM;-;-; No Model Compatibility List $0.86 / Each

Z 708481 1000102905 Z14 Washer;Flat;8.4x24x2.0t;Cr Plate No Model Compatibility List $1.66 / Each

J 711198 1000217438 J23 Handle Pull Pin;;;TPP;Black Orange;;GM59 No Model Compatibility List $13.49 / Each

Z 712457 1000228977 Z13 Screw;HH;M8x12L;-;HE;-;CHM;-;G12.9; No Model Compatibility List $1.66 / Each

2
Z 713893 1000309326 Z12 Screw;Hex Socket;Flat Head;M10X1.5PX40L; No Model Compatibility List $5.04 / Each

2
H 718889 1000354056 H03 Cap;;130g;;Anodizing/Sanding; No Model Compatibility List $21.94 / Each

9
H 718890 1000354058 H04 Grip;Grip;;;Anodizing/Sanding; No Model Compatibility List $74.33 / Each

11
H 718891 1000354059 H07 Pull Pin;Adjustable;; No Model Compatibility List $20.25 / Each

12,13,14
H 718892 1000354060 H08 Rubber Plate;Stopper;;NBR;Q520-7-3 MATTE No Model Compatibility List $6.73 / Each

H 718915 1000354200 H05 DryLin;;;;;;GT01;JUMO-01-16;IGUS No Model Compatibility List $28.70 / Each

1
H 718916 1000354201 H06 Nut Cap;;;ABS/PA757;Q520-7-3;;GT01; No Model Compatibility List $3.35 / Each

2,9
Z 719240 1000358289 Z02 Screw;Socket Head;M4x0.7Px8L;;Hex Socket No Model Compatibility List $1.66 / Each

V 720734 1000375665 V07 Warning Label;PULL PIN;;;PC;;;GM106; No Model Compatibility List $5.04 / Each

B 722509 1000393222 B39 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.66 / Each

722965 1000401805 C01 Raw decking material;MDF;1950x150x20t;NA No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722966 1000401819 Q05 Hanging Hook;Fixing;;TPU;;;GT07-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722967 1000401822 Q08 Torsional Spring;Torsion;F4.5xF1.2x6.2L; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
722968 1000401823 Q06 Support Base;IPOD;;ABS;;;GT07-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722969 1000401824 Q09 Strut bracing;Torsion;F3.0x60L;SWPB;Blac No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
723257 1000405813 Q10 Halyard fastener;IPOD;;SBR;;;GT07-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
723585 1000409378 V02 Warning Label;;;;;;;GT10-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
723630 1000410889 Z10 Screw;Hex Head;3/8x114L;Wood Screw Threa No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,12,13,14
723631 1000410890 Q01 running deck-Extrawork;;;Screen print;;G No Model Compatibility List $0.00 / Each
Out Of Stock 		3
723634 1000411035 V01 EN LABEL;;;;;;;GT07-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		1
723704 1000412159 H01 Elliptical Track;;;1863L;AL 6063;Anodizi No Model Compatibility List $0.00 / Each
Out Of Stock 		15,3,4,5,6
723706 1000412163 H10 Foam;singleside;;1826x3x1.0T;;GT10-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		1
723707 1000412167 AH1 Adjustable Set-Exreawork;Pin;;Laser lett No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
724128 1000415423 Q07 fixing base-Extrawork;IPOD;;Screen print No Model Compatibility List $0.00 / Each
Out Of Stock 		3
View Drawing
