Matrix Commercial - DOPT12-02 - 2013

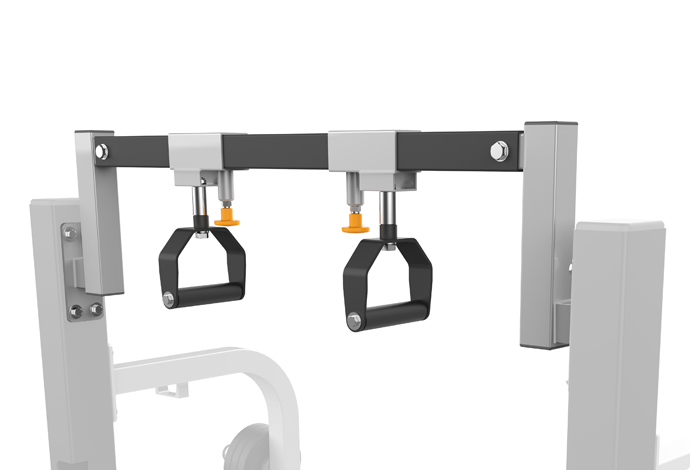

Repair Parts for Matrix Commercial DOPT12-02 MGAS1042

Brand: Matrix Commercial

Category: Rack Options & Components

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

MGAS1042

Model Name: DOPT12-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16556.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713806	1000308417	B17	2" x 2" END CAP	No	Model Compatibility List	$5.46 / Each
713811	1000308424	B4	SPRING PIN ASSEMBLY	No	Model Compatibility List	$45.60 / Each
713819	1000308437	Z12	SCREW;HH;.375-16 x 1.50;ZN;	No	Model Compatibility List	$2.37 / Each
713826	1000308444	Z11	WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06	No	Model Compatibility List	$1.43 / Each
713935	1000309773	Z1	Screw Set;M6x1.0Px5L;BP;POT	No	Model Compatibility List	$3.28 / Each
713939	1000309846	Z15	1/2" JAM NUT	No	Model Compatibility List	$1.43 / Each
713940	1000309847	Z5	WASHER, .50 OD X .38 ID X .05	No	Model Compatibility List	$1.43 / Each
713941	1000309848	Z13	SCREW;HH;.500-13 x 3.50;ZN;	No	Model Compatibility List	$5.04 / Each	2
713976	1000310009	K2	CAP, END TUBE, 31.8MM	No	Model Compatibility List	$7.28 / Each
713977	1000310010	K1	COLLAR, TUBE, 31.8MM	No	Model Compatibility List	$15.18 / Each
714048	1000310445	AB7	Rubber Coated Swivel Handle Outer Frame	No	Model Compatibility List	$147.00 / Each	3,11
714060	1000310661	B9	1" CRR - 5 1/2"	No	Model Compatibility List	$62.50 / Each	1
714127	1000312161	Z16	NUT;NLK;.500-13;ZN;TALL;	No	Model Compatibility List	$1.43 / Each
714152	1000312231	B23	1 1/2" Round End Cap	No	Model Compatibility List	$2.18 / Each	9
714175	1000312296	B8	Flange Bushing - 3/4"OD x 1/2"ID	No	Model Compatibility List	$10.92 / Each	8
714399	1000314390	B3	UPPER PULL UP BAR	No	Model Compatibility List	$231.50 / Each	1
714400	1000314391	B6	1" O.D. X 1/2" I.D. PIPE - 1 3/4"	No	Model Compatibility List	$62.50 / Each	1
714538	1000315894	V24	DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Model Compatibility List	$6.73 / Each
714766	1000318109	K3	HAND GRIP 1.25 DIA 0-12"LONG	No	Model Compatibility List	$48.98 / Each
714951	1000319993	AB2	UPPER HANDLE SLIDE BRACKET;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,3,4,5,6,11
715751	1000327934	AB1	Chrome Mount OPT12;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,2,4,5,6,12,13,14
716043	1000331358	B10	1.25 Grip;6" Long;Closed End	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,11
717377	1000344562	V24	Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame	No	Model Compatibility List	$15.18 / Each
719231	1000358078	AB18	Weldment;Chin Up Bar;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
