Matrix Commercial - E1xe - 2017-2020

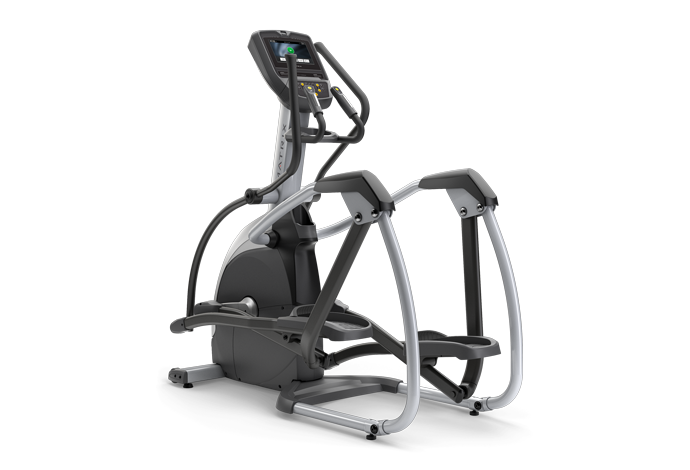

Repair Parts for Matrix Commercial E1xe EP599,EP591

Brand: Matrix Commercial

Category: Suspension

Type: Elliptical

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

EP599,EP591

Model Name: E1xe

Version: 2017-2020

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
700024	000041-AA	L01		Transport Wheel	Yes	Model Compatibility List	$9.10 / Each
700359	001129-B	E23		End Cap;Front Stabilizer	No	Model Compatibility List	$1.90 / Each
700571	001681-A	Q12		Fix Pillar;PP;TM81	No	Model Compatibility List	$1.90 / Each
700750	002137-E	P26		Power Cord;3000;3000;16AWG	No	Model Compatibility List	$54.73 / Each
701064	003553-D	P32		Power Electric Resistance;Contain Wire;4 400W10,650(3.96-4P WH	Yes	Model Compatibility List	$148.64 / Each
701159	004077-A2	E17		Ball Bearing;6004ZZ;20X42X12T;;SKF;;;	No	Model Compatibility List	$20.05 / Each
701272	004336-00	C21		Screw;RND;M3X0.5PX10L;;PH;;BZN;;	No	Model Compatibility List	$1.66 / Each
701304	004366-00	D18		Screw;Phillip;BH;M5x0.8Px8L;	No	Model Compatibility List	$2.00 / Each
701310	004369-AF	Q10		Screw;Phillip;BH;Stainess;M5x0.8Px15L;	No	Model Compatibility List	$0.39 / Each	2
701312	004370-00	N93		Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL	No	Model Compatibility List	$2.00 / Each
701314	004371-00	S10		Screw;Phillip;BH;M5x0.8Px25L;;Zn-BL	No	Model Compatibility List	$1.66 / Each
701332	004385-00	P70		Screw;BH;M5X0.8PX12L;;PH;;BAN;;	Yes	Model Compatibility List	$1.79 / Each
701335	004385-AD	J13		Screw;Button Head;M5x0.8Px12L;Cutting;Ph	No	Model Compatibility List	$1.66 / Each
701340	004387-AE	Z33		SCREW;BH;M5X0.8PX10L;;PH;SSTSUS304;BAN;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
701365	004416-00	H31		Screw;FH;M5x0.8Px20L	No	Model Compatibility List	$0.49 / Each
701392	004448-00	Q60		Screw;SH;M5X0.8PX10L;;HS;;BZN;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
701400	004453-00	P54		Screw;SH;M5X0.8PX25L;;HS;;BZN;;	No	Model Compatibility List	$1.66 / Each
701401	004454-00	S61		Screw;Round;Hex Socket;M5X0.8PX15L	No	Model Compatibility List	$1.79 / Each
701437	004482-AC	Z21		Screw;Hex Socket;Round;M8x1.25Px20L;BED;	No	Model Compatibility List	$2.00 / Each
701446	004488-AC	Z04		Screw;Hex Socket;Round;M8x1.25Px55L	No	Model Compatibility List	$1.79 / Each
701449	004493-00	Z03		Screw;Hex Socket;Round;M8x1.25Px16L	No	Model Compatibility List	$1.79 / Each
701465	004518-00	Z04		Screw;SH;M10X1.5PX75L;;HS;;CHM;;	No	Model Compatibility List	$3.64 / Each
701477	004524-AC	J03		Screw;SH;M10X1.5PX70L;;HS;;BZN;;	Yes	Model Compatibility List	$1.79 / Each
701502	004538-AC	Z10		Screw;Socket Head;M8x1.25Px20L;;Hex Sock	No	Model Compatibility List	$3.35 / Each
701524	004556-AB	Z35		Screw;Hex Socket;Round;M12x1.75Px25L;Cr;	No	Model Compatibility List	$1.79 / Each
701599	004623-00	Q41		Screw;Phillip;BH;Tapped;4x12L;BED;Gap;	No	Model Compatibility List	$2.00 / Each
701602	004626-00	B42		Screw;Phillip;BH;Tapped;4x10L;BED;	No	Model Compatibility List	$2.00 / Each
701631	004653-00	Q40		Screw;Round;PH;Tapped;4X12L	No	Model Compatibility List	$2.00 / Each
701658	004695-AB	Z08		Screw;Hex Socket;Flat;M8x1.25Px12L	No	Model Compatibility List	$2.00 / Each
701713	004730-00	Z03		Screw;Oval Hex Socket;M8X1.25PX50L	Yes	Model Compatibility List	$2.00 / Each
701869	004891-00	S57		Nut;Hex;3/8-26UNCX9H	No	Model Compatibility List	$2.00 / Each
701885	004911-00	H14		Nut;Hex;M16x2.0Px7.0L;Zn Pl	Yes	Model Compatibility List	$5.99 / Each
701924	004957-00	E18		Nut;Lock;M25X1.5P;SS41;BAN	Yes	Model Compatibility List	$3.64 / Each
701926	004961-A	R24		Nut;Hex;M30x1.5Px8T	No	Model Compatibility List	$6.73 / Each
701954	004990-00	R23		Key;Round;Dual End;6X6X16L	No	Model Compatibility List	$1.66 / Each
701971	005009-AC	Z72		WASHER;SPL;Diam.8.2XDiam.15.4X2.0T;SSTSU	No	Model Compatibility List	$1.66 / Each
701987	005025-00	E17		Washer;Flat;25.5x38.0x1.5t;Black Zinc	No	Model Compatibility List	$2.00 / Each
702004	005042-00	H06		Washer;Flat;8.2X30.0X2.0T;Black Zinc	Yes	Model Compatibility List	$2.00 / Each
702006	005043-7	Z28		Washer;Flat;Diam.X10xDiam.X30x2.0T;;Chro	No	Model Compatibility List	$1.66 / Each
702030	005062-00	B21		Washer;Flat;10.2x19x2.0T;Chromed	No	Model Compatibility List	$1.59 / Each
702037	005067-00	S56		Washer;Flat;10.2X15.0X1.5T;Black Zinc	No	Model Compatibility List	$1.59 / Each
702046	005075-00	E18		Washer;Flat;6.2X16X2.0T;Black Zinc	No	Model Compatibility List	$2.00 / Each
702050	005078-00	S63		Washer;Flat;5.3x10x1.0T;Black Zinc	No	Model Compatibility List	$2.00 / Each
702074	005106-00	Z03		Washer;Flat;10.2x20.0x1.5T;Black Zinc	No	Model Compatibility List	$1.59 / Each
702089	005121-00	R22		Washer;Flat;30.3X45.0X1.2T;SPGC	No	Model Compatibility List	$3.64 / Each
702178	005220-00	L52		Washer;Wavy;20.7x29.1x.3T	No	Model Compatibility List	$2.00 / Each
702193	005239-00	R18		Washer;Lock;10.0x20.0x1.0T	No	Model Compatibility List	$2.00 / Each
702229	005354-00	U09		C-Clip;Internal;R-42	No	Model Compatibility List	$1.79 / Each
702232	005357-00	R05		C-Clip;Internal;R-62	No	Model Compatibility List	$3.35 / Each
702241	005366-00	R07		C-Clip;External;S-25	No	Model Compatibility List	$1.59 / Each
702242	005367-00	R13		C-Clip;External;S-30	No	Model Compatibility List	$4.00 / Each
702299	005811-00	P71		Cable Tie;Nylon;Black;160L	No	Model Compatibility List	$1.51 / Each
702304	005844-B	Q33		Fix Buckle Base;PVC;GM01	No	Model Compatibility List	$1.79 / Each
702306	005845-B	Q32		Fix Buckle Base;Nylon;GM01	No	Model Compatibility List	$1.79 / Each
703809	017657-00	U05		Spacer;Generator Shoulder;Right	Yes	Model Compatibility List	$1.90 / Each
703852	018652-B	31		Screw;SH;M6X1.0PX16.5L-8L;;HS;CRMO;BAN;;	No	Model Compatibility List	$3.64 / Each
703990	020069-00	J16		Screw;SH;M8X1.25PX12L;HS;BP;G12.9;	Yes	Model Compatibility List	$1.79 / Each
704192	020465-A	M24		Washer;Flat;10.2x25x2.0T	No	Model Compatibility List	$2.00 / Each
704215	020487-ZA	S65		Washer;Flat;10.5x18x2.5T	No	Model Compatibility List	$2.00 / Each
704220	020634-00	B29		Tinnerman Nut;M5	No	Model Compatibility List	$2.00 / Each
704979	028275-AA	B56		Adjustable Leveler	Yes	Model Compatibility List	$1.90 / Each
705750	056006-A	P08		Grip Pulse Extension Wire;1000(5.0 OWzP)	No	Model Compatibility List	$9.10 / Each
706754	065248-A	P17		TV Coax Adaptor;Female;F-A028-NBX7-C	Yes	Model Compatibility List	$7.00 / Each
706800	065712-A	P18		Screw;;Umbrella Cross;M5x0.8Px25L;	No	Model Compatibility List	$1.85 / Each
707842	1000096289	H32		Screw;SH;M10x110L-15L;-;HS;-;CHM;BP;G12.	No	Model Compatibility List	$5.90 / Each	2
708450	1000102866	H56		Screw;Hex Socket;Round;M10x1.5Px80L;Cr P	No	Model Compatibility List	$0.86 / Each	2
708662	1000104691	H26		Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP	No	Model Compatibility List	$3.64 / Each
708666	1000104695	H60		Screw;RND;M10x1.5Px85L;HS;G8.8;CHM;BP	No	Model Compatibility List	$2.57 / Each
708862	1000106765	Q42		Screw;BH;#p3x10L;TC;PH;-;BZN;POT;-;	No	Model Compatibility List	$0.00 / Each Out Of Stock
709834	1000203752	Q25		Pin Set;	No	Model Compatibility List	$13.23 / Each
709849	1000203816	Q39		Buckle;;;D1-004-915-010;;;CS17	No	Model Compatibility List	$0.00 / Each Out Of Stock
709912	1000204420	U01		Fixing Plate;Idler;;SPHC;176x130x15.3x4;	No	Model Compatibility List	$0.00 / Each Out Of Stock
710068	1000206625	Z05		NUT;-;M10X1.5P;G10;BAN;;	Yes	Model Compatibility List	$1.59 / Each
710162	1000207054	R17		Belt;POLY-V;-;1206 J8;FLEXONIC;	Yes	Model Compatibility List	$91.23 / Each
710385	1000209856	H65		Nut;CUSTOM;M10X1.5P;S45C;CHM;	Yes	Model Compatibility List	$9.10 / Each
710386	1000209857	P09		Console Wire;1200(MOLEX,50-57-9408x2);EP	Yes	Model Compatibility List	$91.23 / Each	7,4,5,6
710664	1000212092	H11		Screw;SH;M8X1.25PX35L;MT;HS;SST;-;	No	Model Compatibility List	$1.66 / Each
710758	1000213278	P20		Screw;TRHW;FX5x10L;SM;PS;-;WZN;;G8.8;Gre	No	Model Compatibility List	$0.00 / Each Out Of Stock	2
710769	1000213447	D19		ENDCAP;TUBE;31.8;FK01003;EP609	No	Model Compatibility List	$1.66 / Each
710934	1000215465	Z71		SCREW;SH;M8X1.25PX15L;;MT;HS;SST;-;	No	Model Compatibility List	$1.66 / Each
710998	1000215738	H66		Cap;Nut;S45C;EP304;	Yes	Model Compatibility List	$9.10 / Each
711554	1000221258	Z42		Washer;ARC;8.2X19.0X1.5T;SST;	No	Model Compatibility List	$1.79 / Each
712197	1000227460	H64		WASHER;FLT;Diam.21.2XDiam.40.0X2.0T;NYL+	No	Model Compatibility List	$3.35 / Each
712643	1000230018	Z81		Screw;SH;M8x1.25Px25L;HS;SST;BP;	No	Model Compatibility List	$2.18 / Each
712644	1000230019	Z82		Washer;FLT;8.2x16.0x2.0t;SST;	No	Model Compatibility List	$1.33 / Each
712715	1000230349	T04		Screw;;;;;;;;;	No	Model Compatibility List	$9.10 / Each
712717	1000230354	22		Fixed chipset;Idler;;;U-3x/5x/7x-05-F;;	Yes	Model Compatibility List	$59.12 / Each
712718	1000230356	U04		Axle;Idler;;SS41;Anti-rust oil coating;C	No	Model Compatibility List	$0.00 / Each Out Of Stock
712866	1000231078	N85		SCREW;BH;?X5X1.6PX12L(HI-LO);PH;BZN;	No	Model Compatibility List	$1.66 / Each
712934	1000231572	Z23		SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM;	No	Model Compatibility List	$2.00 / Each
713021	1000232354	B37		SCREW;SH;M8X1.25PX12L;-;HS;SST;-;	No	Model Compatibility List	$0.00 / Each Out Of Stock
713082	1000232960	S02		Control Board;Generator;;H001;ErP-S100;;	Yes	Model Compatibility List	$547.53 / Each
713167	1000233513	P18		Wire Tie;Releasible;KSS HV-250SBK;250L;N	No	Model Compatibility List	$0.00 / Each Out Of Stock
713201	1000300189	H37		Bearing;Dry;-;-;Sheng Ge Ban	No	Model Compatibility List	$6.68 / Each
713342	1000301795	P27		Battery Set;;;;;;350mm;KST,FDFNYD2-187x	No	Model Compatibility List	$23.63 / Each
713368	1000301942	S06		Screw;-;Hex Head;M6x1.0Px16L;-;-;Black Z	No	Model Compatibility List	$1.66 / Each
713374	1000301966	Q13		Cover;Back;;ABS/PA757;Gray/80435;;RB307;	No	Model Compatibility List	$8.42 / Each
713375	1000301967	H05		Fixing Plate;AL Rail;;SS41;9.0t;BED;RB30	No	Model Compatibility List	$21.94 / Each
713376	1000301968	H06		ADJ plate;;;SPHC;4.0t;BED;RB307;	No	Model Compatibility List	$3.35 / Each
713379	1000301971	B19		Spacing Sleeve;Guide Rail;;SS41;White Zi	No	Model Compatibility List	$3.35 / Each
713449	1000303372	P49		Protect Bushing;-;-;-;BL/Black C;GEQ-262	No	Model Compatibility List	$1.66 / Each
713491	1000304372	Z13		Washer;Sawtooth;Diam.8.5XDiam.18.0X2.0T;	No	Model Compatibility List	$1.66 / Each
713498	1000304387	U10		Spring Extension 15.8x2.5x83.0Lx23.75N	Yes	Model Compatibility List	$16.87 / Each
713506	1000304422	H16		Screw;Oval Head;M6x1.0Px16L;;Hex Socket;	No	Model Compatibility List	$1.79 / Each
713509	1000304430	H08		ADJ plate;stopper;;SPHC;31x22.3x6;BAN;RB	No	Model Compatibility List	$9.10 / Each
713519	1000304478	Z07		Screw;Button Head;M5x0.8Px12L;-;Phillip;	No	Model Compatibility List	$1.79 / Each
713743	1000307358	38		Idler Set;;;;CB92;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
713881	1000309219	P20		Battery WP1.2-12;12V 1.2Ah;	Yes	Model Compatibility List	$72.98 / Each
714293	1000313185	H63		Screw;Socket Head;M10X1.5PX45L(25L);;Hex	No	Model Compatibility List	$3.64 / Each
714410	1000314452	Z41		Screw;Socket Head;M8x1.25Px50L-30L;P-T;H	No	Model Compatibility List	$3.35 / Each
714412	1000314460	Z43		Washer;Spring Lock;Diam.8.5xDiam.13.5x1.	No	Model Compatibility List	$1.66 / Each
714874	1000319375	J21		Cap;;;PVC;BL/Black C;;;	No	Model Compatibility List	$1.66 / Each
715558	1000326130	Z23		Screw;TRUSS Head;M5x0.8Px13L;;Phillip;St	No	Model Compatibility List	$1.33 / Each
717405	1000344817	AD01		Seat Slide Set;Semi-Assy;;;;RB162;	No	Model Compatibility List	$326.14 / Each	12,13,14
717418	1000344914	H02		Adjustable Plate;Slippery Base;;POM+20%F	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
717421	1000344983	B09		Fixing Plate;E-PORT;;SPHC;67x81.2x35.36x	No	Model Compatibility List	$5.90 / Each	3
717433	1000345136	AD2		Seat Set;;;painting;;Flat Black;RB162;	No	Model Compatibility List	$60.81 / Each	4,5,6,12,13,14
717437	1000345160	D24		Back Pad;;PU,Self-Skin,Vesicant;Black;;R	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
717438	1000345162	D42		Kettle Rack;Consoel Mast;;ABS/PA757;Q520	No	Model Compatibility List	$18.56 / Each	4,5,6
717439	1000345163	D07		Seat Pad;;PU,Self-Skin,Vesicant;Black;;R	No	Model Compatibility List	$99.68 / Each	4,5,6,12,13,14
717440	1000345166	H01		Elliptical Track;;;610L;AL 6063;Anodizin	No	Model Compatibility List	$0.00 / Each Out Of Stock	15,3,4,5,6
717448	1000345247	Q03		Cover;Frame;Front-Up;ABS/PA757;Q520-7-3;	No	Model Compatibility List	$23.63 / Each	9,3
717449	1000345248	Q04		Repair Cover;Frame;back;ABS/PA757;Q520-7	No	Model Compatibility List	$15.18 / Each	9,3,4,5,6
717450	1000345249	Q05		Rubber Cushion;Frame;;SBR;Q520-7-3;;RB16	No	Model Compatibility List	$47.29 / Each	3
717451	1000345250	Q06		End Cap;Guide Rail;front;ABS/PA757;Q520-	No	Model Compatibility List	$3.35 / Each	9
717452	1000345251	Q07		Fixing Bracket;Label;;ABS/PA757;Q520-7-3	No	Model Compatibility List	$3.35 / Each	2,3,4,5,6
717453	1000345252	Q12		End Cap;Guide Rail;back;ABS/PA757;Q520-7	No	Model Compatibility List	$5.90 / Each	9,4,5,6
717454	1000345253	Q11		Cover;Handle;back;TPR;Q520-7-3;;RB162;	No	Model Compatibility List	$13.49 / Each	9,4,5,6,11
717457	1000345278	2		Crank set;;left;;;RB162;;	No	Model Compatibility List	$84.47 / Each
717458	1000345280	3		Crank set;;right;;;RB162;;	No	Model Compatibility List	$84.47 / Each
717459	1000345282	Not Shown		Manual;Assembly/Manipulate;;English;;RB1	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
717497	1000345583	B31		Screw;Special;D15.88X32.5L;;;;;;G12.9;	No	Model Compatibility List	$16.41 / Each
717498	1000345584	B30		Bushing;;;Diam.16x44x3.0T;EP589	No	Model Compatibility List	$7.28 / Each
717503	1000345612	E19		Decorate Cover;Pedal;left;PP;137C;;EP589	No	Model Compatibility List	$5.90 / Each
717504	1000345613	E15		Decorate Cover;Pedal;right;PP;137C;;EP58	No	Model Compatibility List	$6.37 / Each
717607	1000346210	P01		Fixing Plate;E-PORT;;SPHC;78.6x40x70x1.6	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
717608	1000346212	D05		PLASTIC LINER;Seat Tube Sleeve;;PA66;BL/	No	Model Compatibility List	$6.73 / Each	9,3,12,13,14
717609	1000346214	AC1		Console mast set;;;;;CB171;;	No	Model Compatibility List	$84.47 / Each	7
717610	1000346226	C04		Kettle Rack;;;PP;Q520-7-3;;CB171;	No	Model Compatibility List	$13.49 / Each
717612	1000346235	AD1		Seat Tube-Extrawork;;;Cr Plate;;CB171;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,12,13,14
717615	1000346247	Q05		Boot;Base Tube;;TPE;Q520-7-3;;;	No	Model Compatibility List	$11.80 / Each	3
717616	1000346252	AG2		Handlebar Set-Exreawork;grip;;Dipping pl	No	Model Compatibility List	$45.60 / Each	12,13,14,11
717632	1000346358	B40		Decal;Rail;0.25mm;PVC;;;Left;;RB162	No	Model Compatibility List	$3.35 / Each	7,9,3
717633	1000346367	B17		grip-Extrawork;;;Dipping PVC;orange;RB16	No	Model Compatibility List	$33.77 / Each
717673	1000346714	Q03		Cover;;Front-Up;ABS/PA757;Q520-7-3;;;	No	Model Compatibility List	$10.11 / Each
717674	1000346715	Q04		Cover;;Rear-Up;ABS/PA757;Q520-7-3;;CB171	No	Model Compatibility List	$27.01 / Each
717675	1000346716	Q07		Cover;Handlebar;Rear-Down;TPE;Q520-7-3;;	No	Model Compatibility List	$10.11 / Each
717701	1000346917	Not Shown		Hardware Set;;;;CB171;;	No	Model Compatibility List	$18.56 / Each	1
717725	1000347104	AC1		Console Mast-Extrawork;;;Screen print;;E	No	Model Compatibility List	$145.31 / Each
717731	1000347213	Q22		Kettle Rack;;;ABS/PA757;GRAY;;EP591;	No	Model Compatibility List	$11.80 / Each
717732	1000347261	E11		Cover;Pedal Arm;Inner;ABS/PA757;GRAY;;EP	No	Model Compatibility List	$5.90 / Each
717733	1000347262	E12		Cover;Pedal Arm;Outer;ABS/PA757;GRAY;;EP	No	Model Compatibility List	$5.90 / Each
717734	1000347279	AH5		link arm set;;L;painting;T75#100909NVP;;	No	Model Compatibility List	$101.37 / Each
717735	1000347280	AH6		link arm set;;R;painting;T75#100909NVP;;	No	Model Compatibility List	$101.37 / Each
717736	1000347281	AH81		BEARING SET;;;??;;EP591;;	No	Model Compatibility List	$78.47 / Each
717737	1000347284	Q15		Cover;Link Arm;Inner;ABS/PA757;GRAY;;EP5	No	Model Compatibility List	$3.35 / Each
717738	1000347285	Q16		Cover;Link Arm;Outer;ABS/PA757;GRAY;;EP5	No	Model Compatibility List	$5.90 / Each
717739	1000347286	Q18		Foot Pad;Pedal;right;SBR;GRAY;;EP591;	No	Model Compatibility List	$95.81 / Each
717740	1000347289	AH3		CON TUBE SET;;R;painting;BP-920S;MATRIX/	No	Model Compatibility List	$79.40 / Each
717741	1000347296	Q21		Cover;Arm Rest;back;ABS/PA757;Q520-7-3;;	No	Model Compatibility List	$23.63 / Each
717742	1000347297	AH31		Swing Arm Set;;;;EP591;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
717743	1000347304	AH41		Adjustment Arm Set;;;;EP591;;	No	Model Compatibility List	$135.17 / Each
717745	1000347316	AJ1		Crank Set;;;painting;BP-920S;MATRIX/SL/G	No	Model Compatibility List	$168.97 / Each
717746	1000347324	Q02		Side Cover;;right;ABS/PA757;GRAY;;EP591;	No	Model Compatibility List	$0.00 / Each Out Of Stock
717747	1000347325	Q01		Side Cover;;left;ABS/PA757;GRAY;;EP591;	No	Model Compatibility List	$0.00 / Each Out Of Stock
717748	1000347326	Q03		Cover;Accent;front;ABS/PA757;;;EP591;604	No	Model Compatibility List	$43.91 / Each
717749	1000347327	Q04		Cover;Accent;back;ABS/PA757;Q520-7-3;;EP	No	Model Compatibility List	$33.77 / Each
717750	1000347328	Q08		Cover Plate;Fixing;back;ABS/PA757;GRAY;;	No	Model Compatibility List	$3.35 / Each
717751	1000347329	Q34		Boot;Connect Tube;right;TPE;Q520-7-3;;EP	No	Model Compatibility List	$5.90 / Each
717752	1000347331	Q35		Boot;Connect Tube;right;TPE;Q520-7-3;2;E	No	Model Compatibility List	$3.35 / Each
717753	1000347332	Q07		Decorte Cover;Frame;down;ABS/PA757;GRAY;	No	Model Compatibility List	$30.39 / Each
717754	1000347333	Q06		Side Cover;Side Cover;right;ABS/PA757;GR	No	Model Compatibility List	$0.00 / Each Out Of Stock
717755	1000347334	Q05		Side Cover;Side Cover;left;ABS/PA757;GRA	No	Model Compatibility List	$0.00 / Each Out Of Stock
717756	1000347337	AR5		transmission set;;;;EP591;;	No	Model Compatibility List	$182.75 / Each
717757	1000347338	R08		Axle,Transimission;Main Axle;;42CrMo;Ant	No	Model Compatibility List	$0.00 / Each Out Of Stock
717766	1000347413	AE3		Connect Base Set;Semi-Assy;;;;EP591;;	No	Model Compatibility List	$108.13 / Each
717770	1000347422	P07		Connect;;;;;;1050L;TKP-10P+(TKP-3P)X2+11	No	Model Compatibility List	$27.01 / Each
717785	1000347577	S01		Generator;;350W;480rpm;;50.6VA;(Steel ri	No	Model Compatibility List	$591.47 / Each
717790	1000347631	P04		DC Power Wire;;;;;20AWG;750mm;DC025M+H66	No	Model Compatibility List	$18.56 / Each	4,5,6
717791	1000347632	S02		LCB;Generator;;L13CA1_H001;;;;MATRIX R-1	No	Model Compatibility List	$305.86 / Each
717799	1000347715	D32		Foam;;BLACK;28.4x3.0tx228L;Grip;RB162;	No	Model Compatibility List	$13.49 / Each	4,5,6,11
717800	1000347722	Not Shown		Hardware Set;;;;RB162;	No	Model Compatibility List	$50.67 / Each	1
717879	1000348228	Q36		Boot;Connect Tube;left;TPE;Q520-7-3;;EP5	No	Model Compatibility List	$5.90 / Each
717881	1000348230	Q37		Boot;Connect Tube;left;TPE;Q520-7-3;2;EP	No	Model Compatibility List	$3.35 / Each
717889	1000348335	R03		Bearing;Ball;6206LUZ(C3);Diam.30XDiam.62	No	Model Compatibility List	$27.01 / Each
717901	1000348524	AR11		Pulley Axle Set;;;;;EP591;;	No	Model Compatibility List	$135.17 / Each
718315	1000350493	AT4		Idler Set;;;Integrated;EP304;	Yes	Model Compatibility List	$54.73 / Each
718660	1000352777	P11		Quick Key Extended Wire;;;Black;;22AWG*8	No	Model Compatibility List	$84.47 / Each	9,4,5,6
718665	1000352796	P07		Connect;;;;;;750L;TKP-8P+(TKP-3P)X2+110?	No	Model Compatibility List	$25.32 / Each	1
718666	1000352800	J08		Cover;Crank;Outer;ABS/PA757;SL/GY;;EP591	No	Model Compatibility List	$13.49 / Each
718692	1000352869	AH4		CON TUBE SET;;L;painting;BP-920S;MATRIX/	No	Model Compatibility List	$79.40 / Each
719115	1000356012	P09		Console Wire Set;;;;;22AWG;1600L;MOLEX,5	No	Model Compatibility List	$30.39 / Each
719118	1000356031	P10		Generator connected wire;;;;;;880mm;TKP,	No	Model Compatibility List	$28.70 / Each
719119	1000356032	P04		DC Power Wire;;;;;;360mm;DC025M+H6630R1-	No	Model Compatibility List	$15.18 / Each	4,5,6
719239	1000358248	R02		Bearing;Ball;6005ZZ;?25x?47x12T;TPI;C3	No	Model Compatibility List	$17.24 / Each
719257	1000359128	P48		TV Power;;;;;;2100mm;DC025M+H6630R1-06;	No	Model Compatibility List	$23.63 / Each
719258	1000359129	P16		Network Signal;;;;;;1900mm;QS3205615600+	No	Model Compatibility List	$27.01 / Each
719259	1000359130	P15		TV Signal Wire;;;;;;1900mm;FM-0086-NBG7x	No	Model Compatibility List	$16.87 / Each
719321	1000359601	B41		Decal;Rail;;;;Right;;RB162	No	Model Compatibility List	$3.35 / Each	7,9,3
719364	1000360687	P46		Filter GND;;;;;14AWG;360mm;KST250+Diam.5	No	Model Compatibility List	$5.90 / Each
719365	1000360688	P45		PWR Switch Set;;;;;;600+120mm;KST 250x2+	No	Model Compatibility List	$33.77 / Each
719366	1000360701	P13		GND;;;Yellow/Green1;;14AWG 1015;1200;Dia	No	Model Compatibility List	$7.25 / Each
719399	1000361025	P05		TV Signal Wire;;;;;;1700mm;FM-0086-NBG7x	No	Model Compatibility List	$13.49 / Each
719415	1000361140	Q01		Side Cover-Exreawork;cover;left;Screen p	No	Model Compatibility List	$104.75 / Each
719416	1000361141	Q02		Side Cover-Exreawork;cover;right;Screen	No	Model Compatibility List	$104.75 / Each
719433	1000361276	Z14		Screw;Special;Diam.8.0/M6.0;Machine Thre	No	Model Compatibility List	$8.42 / Each
719501	1000362102	Q27		Decorate Sleeve;Hand Pulse;;PVC;BL/Black	No	Model Compatibility List	$2.18 / Each
719628	1000363341	Q01		cover-Extrawork;frame;left;Screen print;	No	Model Compatibility List	$59.12 / Each	9,3
719629	1000363342	Q02		cover-Extrawork;frame;right;Screen print	No	Model Compatibility List	$59.12 / Each	9,3
719657	1000363478	P03		Network Signal;;;;;;1700mm;QS 3205615600	No	Model Compatibility List	$23.63 / Each	1
719659	1000363496	A21		Hand Pulse Grip Set;Semi-Assy;left;;;CB1	No	Model Compatibility List	$48.98 / Each	12,13,14,11
719660	1000363497	A22		Hand Pulse Grip Set;Semi-Assy;right;;;CB	No	Model Compatibility List	$48.98 / Each	12,13,14,11
719793	1000365683	H33		Washer;Flat;Diam.10.5XDiam.20.0X2.0T;Sta	No	Model Compatibility List	$1.66 / Each
719956	1000367382	P17		Battery;Rechargeable;12V;;;1.2Ah;NP1.2	No	Model Compatibility List	$0.00 / Each Out Of Stock
720436	1000372827	Not Shown		Hardware Set;;;;EP591;	No	Model Compatibility List	$0.00 / Each Out Of Stock
720644	1000374445	Q15		Cover;Arm Rest;front;ABS/PA757;Q520-7-3;	No	Model Compatibility List	$5.90 / Each
720665	1000374546	G04		Pulley Cover;Base;;;Q520-7-3;;EP591;	No	Model Compatibility List	$6.73 / Each
721089	1000380525	AG1		grip-Extrawork;grip;front;Dipping plasti	No	Model Compatibility List	$96.30 / Each	12,13,14,11
721131	1000380814	P28		Filter PWR;;;;;;250mm;;KST-FLDNY1-250x2+	No	Model Compatibility List	$10.11 / Each
721132	1000380815	P02		Network Signal;;;;;;1150mm;;QS3205615600	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
721133	1000380816	P05		TV Signal Wire;;;;;;1150mm;;FM-0086-NBG7	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6
721249	1000381368	Q17		Foot Pad;Pedal;left;SBR;BL/Black C;	No	Model Compatibility List	$74.33 / Each
721250	1000381369	Q18		Foot Pad;Pedal;right;SBR;BL/Black C;	No	Model Compatibility List	$57.43 / Each	8,9,3,4,5,6,12,13,14
721307	1000381729	AJ3		Stabilizer set;Semi-Assy;front;;;RB162;;	No	Model Compatibility List	$111.51 / Each	1
721308	1000381730	AJ4		Stabilizer set;Semi-Assy;back;;;RB162;;S	No	Model Compatibility List	$147.00 / Each	4,5,6
721309	1000381731	1		Drive set;Semi-Assy;;;;RB162;;SBOM	No	Model Compatibility List	$118.27 / Each
721320	1000381823	R01		Main Axle;Pully;;S45C;Anti-rust oil coat	No	Model Compatibility List	$0.00 / Each Out Of Stock
721321	1000381837	AC01		Console mast set;Semi-Assy;;;;RB162;;SBO	No	Model Compatibility List	$99.68 / Each	7
721497	1000383518	H32		Screw;Socket Head;M10x110L-15L;;Hex Sock	No	Model Compatibility List	$0.00 / Each Out Of Stock
721502	1000383525	H34		Nut;Nylon;M10x1.5P;Stainless Steel;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
721503	1000383533	H66		Nut;Cap;M10;Stainless Steel;;EP591	No	Model Compatibility List	$0.00 / Each Out Of Stock
721504	1000383535	H60		Screw;Round Head;M10x85L-32L;;Hex Socket	No	Model Compatibility List	$0.00 / Each Out Of Stock
721505	1000383537	J05		Screw;Button Head;M10X1.5PX15L;;Hex Sock	No	Model Compatibility List	$0.00 / Each Out Of Stock
721506	1000383538	Z30		Screw;Button Head;M4X0.7PX8L;;Phillip;St	No	Model Compatibility List	$0.00 / Each Out Of Stock
721620	1000384763	Not Shown		Manual;Assembly/Manipulate;;English;;EP5	No	Model Compatibility List	$0.00 / Each Out Of Stock
721720	1000385236	P13		GND;;;Yellow/Green1;;14AWG 1015;800;Diam	No	Model Compatibility List	$6.73 / Each	1
721902	1000386228	D03		Decal;Seat Tube;;;PVC;Left;;CB171	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3,12,13,14
721903	1000386229	D04		Decal;Seat Tube;;;PVC;Right;;CB171	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3,12,13,14
721922	1000386600	2		Side Cover Set;Semi-Assy;right up;;;EP59	No	Model Compatibility List	$92.92 / Each
721923	1000386601	1		Side Cover Set;Semi-Assy;left up;;;EP591	No	Model Compatibility List	$92.92 / Each
721924	1000386602	3		Side Cover Set;Semi-Assy;left down;;;EP5	No	Model Compatibility List	$72.64 / Each
721925	1000386603	4		Side Cover Set;Semi-Assy;right down;;;EP	No	Model Compatibility List	$74.33 / Each
721926	1000386604	AG11		Arm Rest Set;Semi-Assy;left;;;EP591;;	No	Model Compatibility List	$106.44 / Each
721927	1000386605	AG21		Arm Rest Set;Semi-Assy;right;;;EP591;;	No	Model Compatibility List	$106.44 / Each
721928	1000386606	AE11		Pedal Arm set;Semi-Assy;left;;;EP591;;	No	Model Compatibility List	$101.37 / Each
721929	1000386607	AE21		Pedal Arm set;Semi-Assy;right;;;EP591;;	No	Model Compatibility List	$101.37 / Each
721930	1000386657	R10		Belt;POLY-V;FIBERGLASS;430-J10;;Wu De Fu	No	Model Compatibility List	$50.67 / Each
721937	1000386696	P15		Signal cable set Wire;;;;;;;;	No	Model Compatibility List	$13.49 / Each	4,5,6
721938	1000386697	P01		Console Wire Set;;;;;;1300mm;MOLEX,50-57	No	Model Compatibility List	$27.01 / Each
721995	1000387042	T01		Crank;;L;painting;BP-920S;MATRIX/SL/GY;R	No	Model Compatibility List	$0.00 / Each Out Of Stock
721996	1000387045	T02		Crank;;R;painting;BP-920S;MATRIX/SL/GY;R	No	Model Compatibility List	$0.00 / Each Out Of Stock
721998	1000387049	H56		Screw;Round Head;M10x80L-32L;;Hex Socket	No	Model Compatibility List	$0.00 / Each Out Of Stock
722183	1000388691	C20		Screw;Button Head;F4x12L;Sheet Metal Thr	No	Model Compatibility List	$0.00 / Each Out Of Stock
722306	1000390875	G12		Screw;Round Head;M3x0.5Px30L;;Phillip;St	No	Model Compatibility List	$0.00 / Each Out Of Stock	2
722312	1000390956	AD12		Seat Tube Set;Semi-Assy;;;;CB171;;SBOM	No	Model Compatibility List	$140.24 / Each	3,12,13,14
722338	1000391118	G11		Screw;Round Head;M3x0.5Px12L;Machine Thr	No	Model Compatibility List	$1.66 / Each	7,2,4,5,6,12,13,14
722366	1000391521	Z51		Screw;Socket Head;M8x1.25Px60L-30L;;Hex	No	Model Compatibility List	$0.00 / Each Out Of Stock	2
722389	1000391682	P15		Battery Set;;;;;1015 16AWG;350;;E1-F	No	Model Compatibility List	$0.00 / Each Out Of Stock
722441	1000392033	P08		Connect;;;;;;1150L;TKP-10P+(TKP-3P)X2+11	No	Model Compatibility List	$32.08 / Each	1
722594	1000395015	AQ7		Hand Pulse Grip Set;;left;;;;EP591;	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14,11
722595	1000395040	AQ8		Hand Pulse Grip Set;;right;;;;EP591;SBOM	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14,11
722604	1000395435	AQ7		Hand Pulse Grip Set;;left;;;;RB162;	No	Model Compatibility List	$36.48 / Each	12,13,14,11
722605	1000395437	AQ8		Hand Pulse Grip Set;;right;;;;RB162;	No	Model Compatibility List	$36.48 / Each	12,13,14,11
722613	1000395799	AR11		Transmission set+Tools;;;;;;RB162;SBOM	No	Model Compatibility List	$0.00 / Each Out Of Stock
722617	1000395972	AR5		Transmission set+Tools;;;;;;EP591;SBOM	No	Model Compatibility List	$136.86 / Each
722631	1000396391	P30		Adapter;;100-240V;;;12V/5A;FY1205000	No	Model Compatibility List	$101.37 / Each	1
722865	1000399165	5		Hand Pulse Grip Set;Semi-Assy;left;;;;RB	No	Model Compatibility List	$50.67 / Each	12,13,14,11
722866	1000399167	6		Hand Pulse Grip Set;Semi-Assy;right;;;;R	No	Model Compatibility List	$50.67 / Each	12,13,14,11
722867	1000399195	5		Hand Pulse Grip Set;Semi-Assy;left;;;;EP	No	Model Compatibility List	$50.67 / Each Out Of Stock
722868	1000399197	6		Hand Pulse Grip Set;Semi-Assy;right;;;;E	No	Model Compatibility List	$50.67 / Each
722869	1000399216	7		Link Arm Set;Semi-Assy;left;;;;EP591;Ser	No	Model Compatibility List	$219.67 / Each
722870	1000399217	8		Link Arm Set;Semi-Assy;right;;;;EP591;Se	No	Model Compatibility List	$204.46 / Each
723004	1000402407	AH41		Adjustable Arm Set;;;;;;EP710;	No	Model Compatibility List	$148.69 / Each	3
723498	1000407124	J03		Screw;Socket Head;M10x1.5Px70L-35L;Machi	No	Model Compatibility List	$5.04 / Each	2,4,5,6
723632	1000410967	Q13		Pedal;;left;PP;80435 (injected);;EP710;	No	Model Compatibility List	$18.56 / Each
723633	1000410970	Q14		Pedal;;right;PP;80435 (injected);;EP710;	No	Model Compatibility List	$18.56 / Each
723653	1000411443	A23		Handlebar Set;Semi-Assy;;;;;CB171;SBOM	No	Model Compatibility List	$233.19 / Each	11
723729	1000412379	P05		Filter Board Set;;;L178A1 H001;;;EP304B;	Yes	Model Compatibility List	$57.43 / Each
725395	070817	Z31		Screw;SH;M8X1.25PX20L;;HS;;CHM;;	No	Model Compatibility List	$0.99 / Each
726115	080058	Q28		Rubber;1.0t;CB66;	No	Model Compatibility List	$8.42 / Each
726116	080059	97		Rear Cover 2 Hole Fixing Plate;CST;RB85;	No	Model Compatibility List	$1.66 / Each
726198	080692	44		Generator Wire;550L;JST VHR-5+MOLEX 4202	No	Model Compatibility List	$13.18 / Each
726523	082604	Z13		Screw;Button Head;M6X1.0PX12L;-;Phillip;	No	Model Compatibility List	$1.33 / Each
726566	083006	B38		WASHER;FLT;F8.2XF27.0X2.0T;;CHM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
726738	084533	G21		Screw;Phillip;Round;M3x0.5Px30L;;Zn-BL	No	Model Compatibility List	$1.79 / Each
726986	086513	B58		Screw;Hex Socket;Round;M10x1.5Px40L	No	Model Compatibility List	$0.44 / Each
727057	086948	F33		WASHER;FLT;Diam.10.5XDiam.28.0X2.0T;SPHC	No	Model Compatibility List	$2.00 / Each
727194	087672	Z41		Screw;Hex Socket;Round;M5x0.8Px8L	No	Model Compatibility List	$1.79 / Each
727503	089637	R02		Pulley;Poly-V;;;FC25;J8198;;S70	No	Model Compatibility List	$78.94 / Each
727526	0000089783	S01		Generator Set JM07-004	Yes	Model Compatibility List	$381.29 / Each
727637	0000090274	D06		Seat Pad;Black;LS-A26;Triple;CB66	No	Model Compatibility List	$155.84 / Each
727638	090275	AD3		Seat Pad Pull Pin set;M16;orange;U1x	No	Model Compatibility List	$48.41 / Each
727707	0000090518	66		Pedal Set	Yes	Model Compatibility List	$72.98 / Each
727788	090959	S20		Nut;Hex;M10x1.5P;Cr Plate;	No	Model Compatibility List	$1.66 / Each
727938	092113	R03		Pulley;Flat;;FC25;F282;S70;	No	Model Compatibility List	$0.00 / Each Out Of Stock
728178	093400	H31		Screw;FH;M5x0.8Px15L;;PH;;BAN;CT	No	Model Compatibility List	$1.46 / Each
728236	093717	S62		Washer;Ribbed;Lock;10.5X16X1TX1.6H;BED	No	Model Compatibility List	$1.66 / Each
728337	094065	U08		SCREW;TRH;M5X0.8PX13L;	No	Model Compatibility List	$1.66 / Each
728359	094297	H10		Pedal;PP;Black;EP217	Yes	Model Compatibility List	$44.28 / Each
728448	094924	P13		KSS HC-0R	No	Model Compatibility List	$1.90 / Each
728450	0000094929	J11		Cap;Stabilizer;Left-Front;ABS/PA757;P804	Yes	Model Compatibility List	$12.04 / Each
728477	095035	Q12		COVER;SWING ARM;ABS/PA746;DG/80435;	No	Model Compatibility List	$3.35 / Each
728482	095050	H23		Swivel Shaft A;SCM440;EP304;	No	Model Compatibility List	$12.27 / Each
728483	095051	H24		Swivel Shaft B;SCM440;EP304;	No	Model Compatibility List	$13.49 / Each
728497	095097	G33		Tube Cap;FK01004(38.1)	No	Model Compatibility List	$1.66 / Each
728498	0000095100	J12		Cap;Stabilizer;Right-Front;ABS/PA757;P80	Yes	Model Compatibility List	$9.44 / Each
728560	095322	Not Shown		Bracket;Console;ABS/PA746;DG/80435;EP603	No	Model Compatibility List	$26.34 / Each
728614	0000095638	J15		Foot Pad;Adjustable;M12X58H;12.9;EP304;	Yes	Model Compatibility List	$33.85 / Each
729899	ZMS4008362	P17		Battery, Rechargeable; 12V 1.2AH NP1.2-1	No	Model Compatibility List	$0.00 / Each Out Of Stock
1001194	0000089783	0	1	Generator	Yes	Model Compatibility List	$299.00 / Each	1
1002227	0000089783			Generator Brake Set	Yes	Model Compatibility List	$92.19 / Each
941989	004370-00			Screw (New)	No	Model Compatibility List	$12.00 / Each

View Drawing

Chat with us

Matrix Commercial - E1xe - 2017-2020

Exploded Diagrams

general Info

Customer Service

About us

Address
