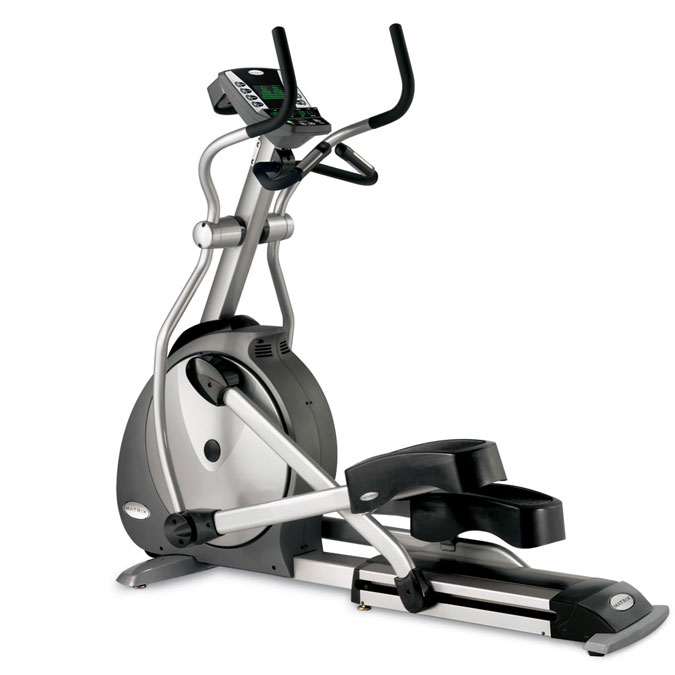

Matrix Commercial - E5xc-06-G3 - 2006-2008

Repair Parts for Matrix Commercial E5xc-06-G3 MEP001,EP74_1,EP74_2,EP74_3

Brand: Matrix Commercial

Category: Traditional

Type: Elliptical

Model Name: E5xc-06-G3

Version: 2006-2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
700231 000749-A Foam;Safety;50x31.8 No Model Compatibility List $0.00 / Each
Out Of Stock 		9
705212 039127-AA TV Rack Set+Wire;CB65(MX 15"TV) No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
727341 088663 Control Box;TV Back Cover;MX-15 Inch TV; No Model Compatibility List $0.00 / Each
Out Of Stock
Generator 1001194 0000089783 0 1 Generator Yes Model Compatibility List $299.00 / Each

1
Console Display (Used) 1002071 028271-AB 0 1 Console Display (Used) No Model Compatibility List $149.00 / Each

30
Belt Drive 1002191 004159-00 0 1 Belt Drive Yes Model Compatibility List $42.99 / Each

23
Holder Bottle (Used) 1003986 0000080783 0 1 Holder Bottle (Used) No Model Compatibility List $11.39 / Each
Out Of Stock
Lower Motor Control Board Controller 1009196-R 0000090779 0 1 Lower Motor Control Board Controller Yes Model Compatibility List $399.00 / Each

Pedal Arm Pivot Assembly 1003987 0000090522 Pedal Arm Pivot Assembly Yes Model Compatibility List $153.99 / Each

Console Cup Holder Accessory Tray 1003982 0000083902 Console Cup Holder Accessory Tray Yes Model Compatibility List $32.99 / Each
Generator Brake Set 1002227 0000089783 Generator Brake Set Yes Model Compatibility List $92.19 / Each

Heart Rate HR Receiver Board 1001738 0000083655 Heart Rate HR Receiver Board Yes Model Compatibility List $88.99 / Each

Adjustable leveling foot 1036654 0000089455 Adjustable leveling foot Yes Model Compatibility List $5.99 / Each
Out Of Stock

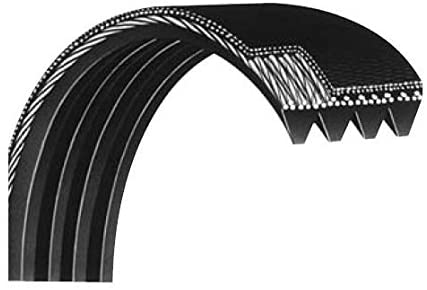

Drive Belt (New) matr420J14 0000087101 Drive Belt (New) Yes Model Compatibility List $69.00 / Each

Guide Rail (Used) 1038579 0000085977 Guide Rail (Used) Yes Model Compatibility List $49.00 / Each

1

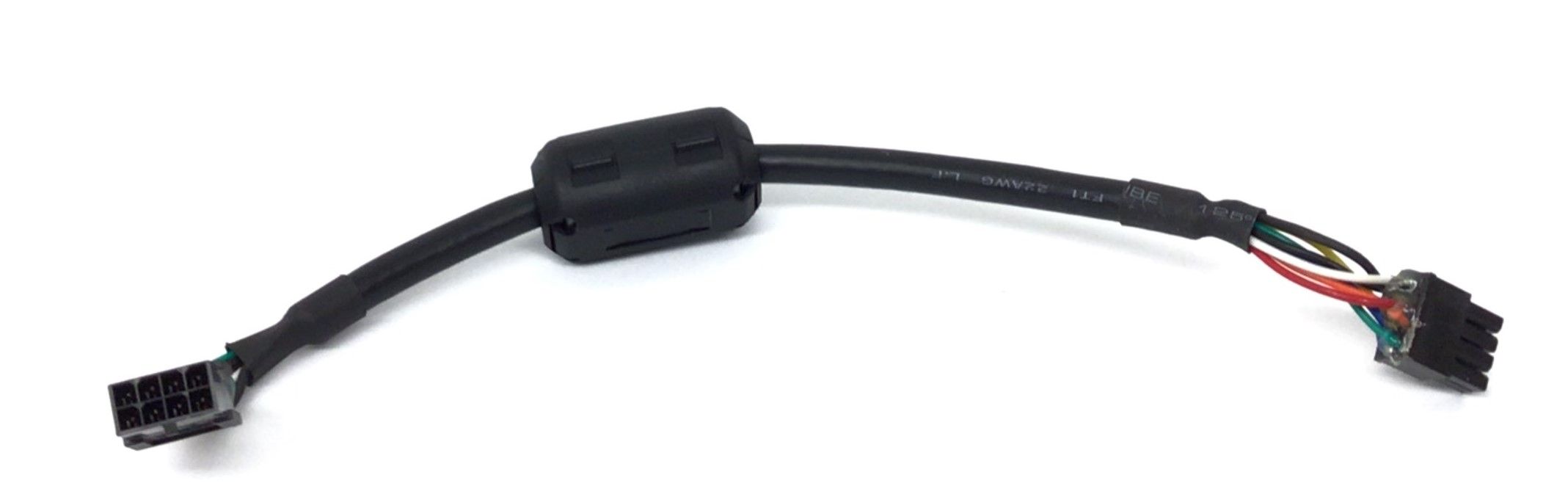

Six Pin Connector Filter Wire for Display Console (Used) 1039311 filtr-wir-11 Six Pin Connector Filter Wire for Display Console (Used) Yes Model Compatibility List $5.00 / Each

4
Coaxial TV Video Cable Extension (Used) 1009959 6953928 Coaxial TV Video Cable Extension (Used) Yes Model Compatibility List $9.71 / Each

5

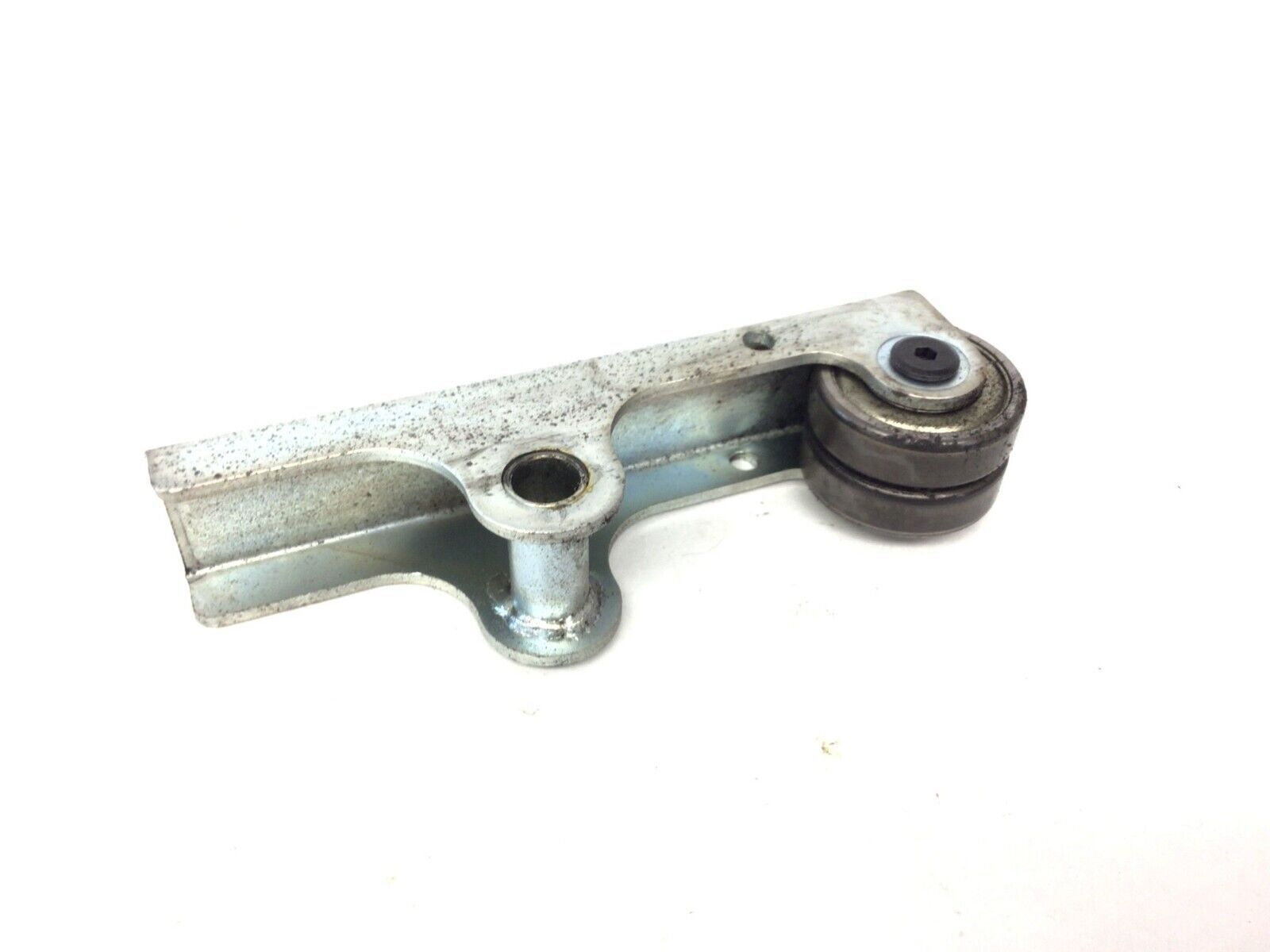

Idle Pulley Set (Used) 1032895 552938 Idle Pulley Set (Used) Yes Model Compatibility List $15.59 / Each
Out Of Stock 		37

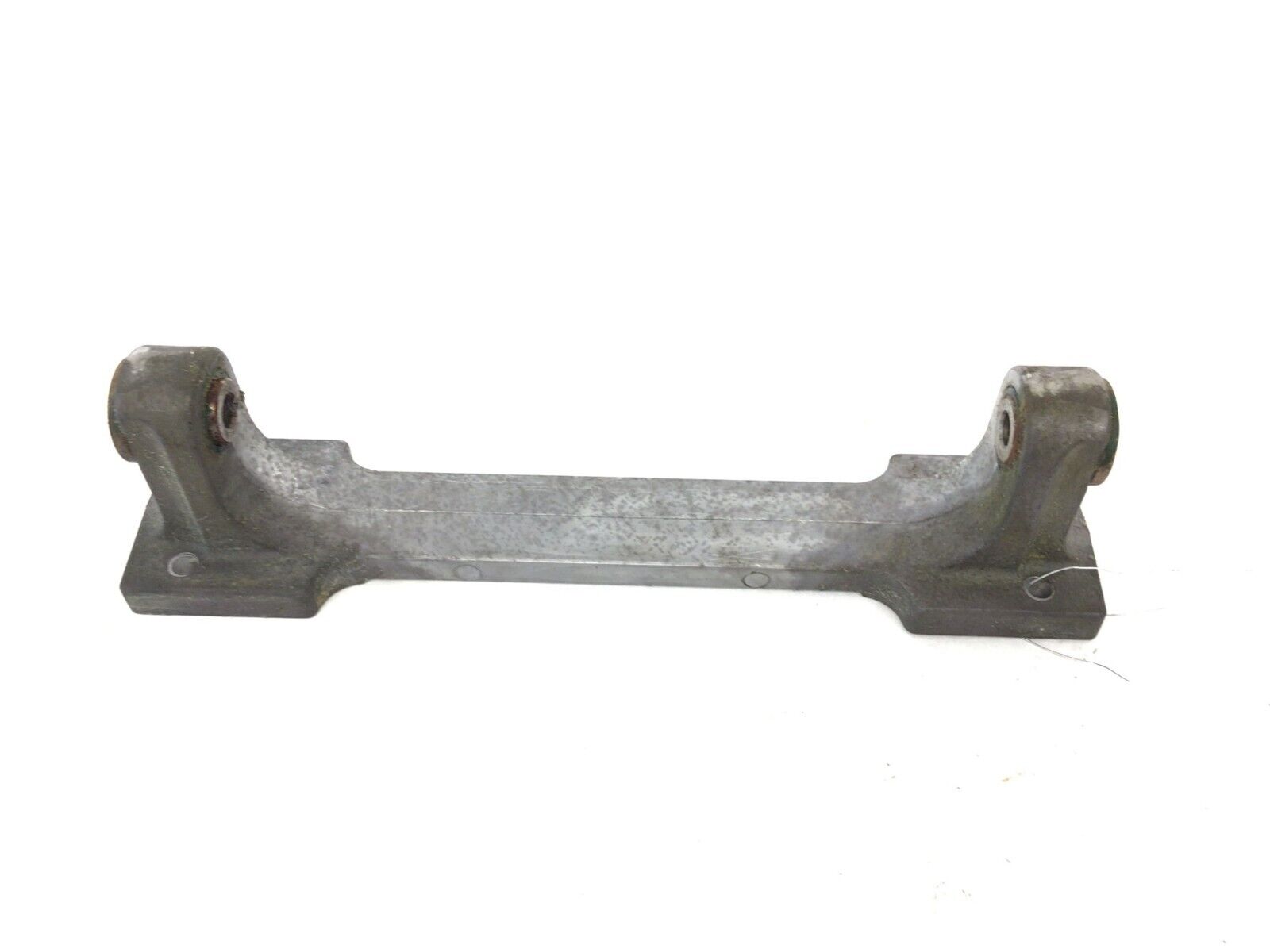

Ramp Pivot Bracket Assembly (Used) 1032893 28-101-32 Ramp Pivot Bracket Assembly (Used) Yes Model Compatibility List $51.59 / Each
Out Of Stock 		1

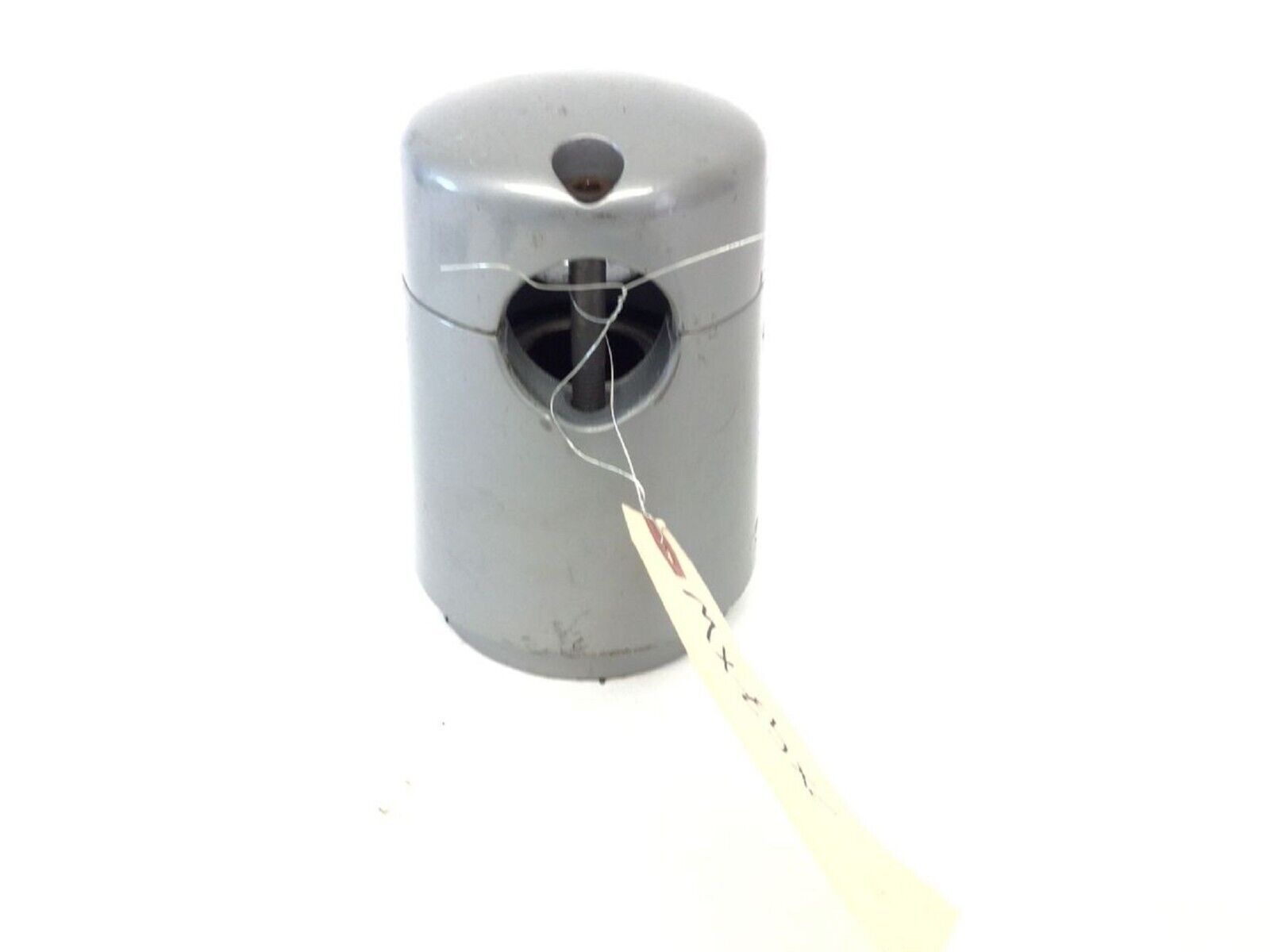

Left Arm Silencer Box (Used) 1032892 92-1001-83 Left Arm Silencer Box (Used) Yes Model Compatibility List $17.99 / Each
Out Of Stock 		1

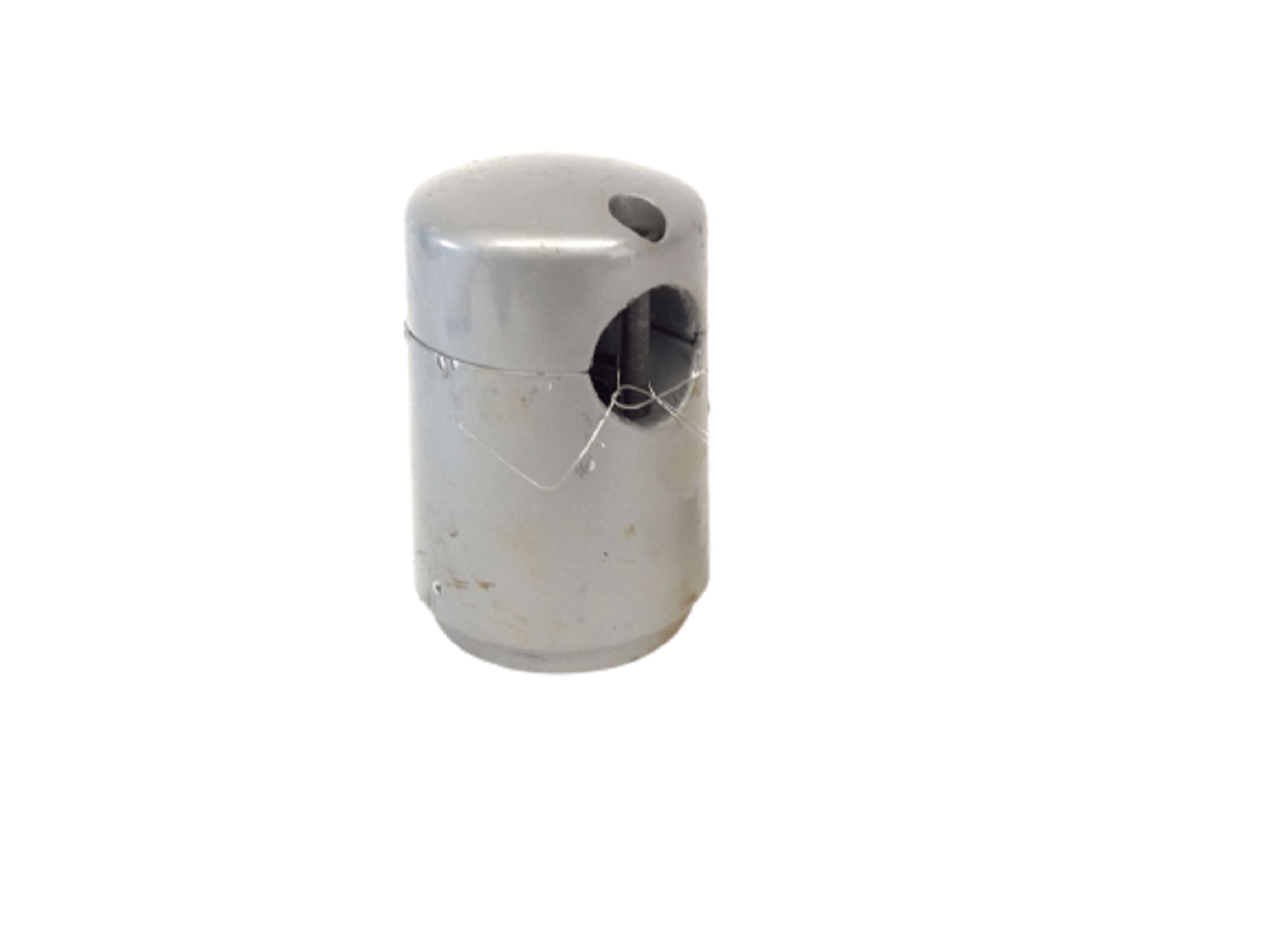

Right Arm Silencer Box (Used) 1032891 32-1010-91 Right Arm Silencer Box (Used) Yes Model Compatibility List $17.99 / Each
Out Of Stock 		1
728484 095054 1 TV Rack+MYE TV cable module;Semi-Assy;EP No Model Compatibility List $590.28 / Each

727254 0000088119 2 Pedal Arm Set;Right;MX-E5XC-F;;EP81 Yes Model Compatibility List $169.00 / Each

727255 0000088120 3 Pedal Arm Set;Left;;MX-E5XC-F;;EP81 Yes Model Compatibility List $199.00 / Each

727256 088124 22 Pulley Axle Set;MX-E5XC-F;EP81 No Model Compatibility List $485.03 / Each

Drive Axle Set 727249 0000088082 24 Drive Axle Set Yes Model Compatibility List $579.98 / Each

727708 0000090522 39 Crank Pin Sleeve Set Yes Model Compatibility List $273.75 / Each

Crank Set 727530 0000089815 40 Crank Set Yes Model Compatibility List $365.01 / Each

Tension WHEEL SET;EP72-US;SBOM;NEW 726964 0000086256 41 Tension WHEEL SET;EP72-US;SBOM;NEW No Model Compatibility List $112.68 / Each

Crank Sleeve Set 727969 0000092274 42 Crank Sleeve Set Yes Model Compatibility List $193.70 / Each

Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 726625 0000083655 167 Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 Yes Model Compatibility List $425.88 / Each

700313 000932-E 181 Cap;C-Safe;Black;CB32 D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $1.66 / Each

726668 0000083902 182 Bottle Holder;Console Back Yes Model Compatibility List $137.88 / Each

726410 081698 AB2 Stabilizer Set;Right No Model Compatibility List $393.22 / Each

726411 081700 AB3 Stabilizer Ser;Left No Model Compatibility List $393.22 / Each

Console Mast Set 725351 070326 AC4 Console Mast Set No Model Compatibility List $578.19 / Each

726215 080755 AC4 Console Mast Set No Model Compatibility List $539.55 / Each

A 705671 053430-ZR AG1 Handlebar Set;Right No Model Compatibility List $298.74 / Each

11
A 705669 053430-ZL AG2 Handlebar Set;Left No Model Compatibility List $276.61 / Each

11
A 705670 053430-ZM AG3 Handlebar Set;Middle Yes Model Compatibility List $395.98 / Each
Out Of Stock 		11
A 705674 053432-ZR AH1 Lower Link Arm Set;Right No Model Compatibility List $381.37 / Each

3
A 705673 053432-ZL AH2 Lower Link Arm Set;Left No Model Compatibility List $381.37 / Each

3
727709 090523 AJ1 Crank Assembly - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $675.97 / Each

A 710776 1000213547 AN1 CONSOLE SET;H001S004;EP301;ES;EN;EP301; Yes Model Compatibility List $1300.00 / Each

7
726421 081723 AR6 Semi-Assy;Center Axle Sleeve Set;A;EP76 No Model Compatibility List $0.00 / Each
Out Of Stock
727728 090634 AT1 Tension Wheel Set No Model Compatibility List $191.54 / Each

B 703568 015514-AA B11 Guide Rail Fix Tube;BL;;;;EP68 No Model Compatibility List $92.38 / Each

9,3
B 703603 015642-AA B12 Connecting Tube Cover; Black No Model Compatibility List $66.61 / Each

9,3,4,5,6
B 703602 015641-AA B25 Anti-Sweat Cover;SL;;;;EP68 No Model Compatibility List $99.37 / Each

9
B 701104 003836-C B35 Roller Axle;F;SS41;EP23 No Model Compatibility List $8.42 / Each

8
B 700016 000028-D B36 Transport Wheel;Nylon;100;BL;;EP23 Yes Model Compatibility List $25.14 / Each

8
B 700134 000490-BA B38 Leveler;Foot Pad Yes Model Compatibility List $9.10 / Each

B 701317 004373-00 B56 Screw;Phillip;BH;M5x0.8Px25L;Gap; No Model Compatibility List $1.66 / Each

2
701612 004631-00 B58 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

726986 086513 B58 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $0.44 / Each

701930 004967-AB B61 Nut;Hex;Flange;M16x1.5P;Carburizing Yes Model Compatibility List $1.79 / Each

2
B 702196 005245-A B62 Washer;Lock;16.2x31.5x1.5T No Model Compatibility List $1.79 / Each

B 701904 004931-00 B63 Nut;Locking;Nylon;1/4"--20UNC Yes Model Compatibility List $1.59 / Each

B 702079 005112-00 B64 Washer;Flat;8.2X13.0X1.4T;BAN No Model Compatibility List $1.66 / Each

B 702037 005067-00 B65 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

B 701872 004899-00 B66 Nut;Hex;3/8-26UNCX9T No Model Compatibility List $1.66 / Each

B 703853 018653-A B67 Screw;SH;M8X1.25PX22.5L-8L;CRMO;BAN; No Model Compatibility List $1.79 / Each

702491 008042-F C06 Connecting Plate;Console Mast Yes Model Compatibility List $20.88 / Each

7,3
726223 080783 C08 Water Bottle Holder No Model Compatibility List $22.57 / Each

705000 028660-D C11 Fix Plate;Cover;;SPHC;2.0t ;;;CB62 No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
726224 0000080784 C25 Cover;Screw;PVC;BL;CB62; No Model Compatibility List $1.66 / Each

701320 004375-00 C54 Screw;Phillip;BH;M5x0.8Px15L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

2
C 702242 005367-00 C55 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

C 701449 004493-00 C56 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

C 701661 004697-AD C57 Screw;Flat Hex Socket;M8x1.25Px25L No Model Compatibility List $3.64 / Each

2
C 701947 004983-A C58 Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P) No Model Compatibility List $1.79 / Each

701964 005005-00 C60 Washer;Spring;Lock;8.2x15.4x2.0t Yes Model Compatibility List $1.59 / Each

C 701944 004979-00 C61 Insert Nut;Hex;NHS-8125-3.0(M8x1.25P) No Model Compatibility List $1.79 / Each

C 701974 005012-00 C62 Washer;Lock; M8.0X13X2T No Model Compatibility List $2.00 / Each

2
730202 0000080832 CP05 CRANK PULLER 40MM Yes Model Compatibility List $54.06 / Each

D 703836 018589-DR D13 Console Cable;Upper;200L;KP H6630P1-08;EP71; No Model Compatibility List $33.77 / Each

7,4,5,6
D 702471 007806-D D62 Contact Plate;Pulse Sensor No Model Compatibility List $3.82 / Each

3,4,5,6,12,13,14
727746 090758 D64 Overlay Set;Quick Key;Left;EP74-US;EP74 No Model Compatibility List $13.13 / Each

727747 090759 D65 Overlay Set;Quick Key;Right;EP74-US;EP74 No Model Compatibility List $13.13 / Each

701626 004647-00 D70 Screw;Phillip;Round;3x12L No Model Compatibility List $1.79 / Each

E 705675 053435-Z E11 Roller Set Yes Model Compatibility List $127.74 / Each
8
E 1002228 053435-Z E11 Matrix Roller Wheel Set Yes Model Compatibility List $39.99 / Each

8
E 702596 008880-B E13 Axle Ring;Main;SS41;EP68-E13B-01 No Model Compatibility List $3.35 / Each

8
726417 081718 E14 Crank Sleeve Axle;S45C;EP72-E14C; No Model Compatibility List $11.67 / Each

701159 004077-A2 E17 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

702046 005075-00 E18 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

E 725257 103297 E23 Bushing;Copper No Model Compatibility List $28.42 / Each

8
E 700469 001447-C E28 Pedal Pad;Right;Rubber;BL;EP23 Yes Model Compatibility List $91.23 / Each

8,9,12,13,14
E 700470 001448-C E29 Pedal Pad;Left;Rubber;FL;EP23 No Model Compatibility List $91.23 / Each

8,9,12,13,14
703580 015555-AA E42 Connecting Plate;Pedal Arm;3 Hole Yes Model Compatibility List $35.80 / Each

8,9,3
E 701164 004080-A2 E49 BEARING;BALL;6203ZZ;#17X#40X12T;;TPI;;; No Model Compatibility List $6.73 / Each

Bearing Sealed 1028452 004080-00 E49 Bearing Sealed Yes Model Compatibility List $24.99 / Each

8
E 701160 004078-A2 E52 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

727532 089822 E53 Screw;Hex Socket;Round;M10x1.5Px100L No Model Compatibility List $1.79 / Each

E 701919 004950-A E54 Nut;Nylon;M10x1.5P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
E 702031 005063-00 E55 Washer;Flat;10.2x24.5x1.0T;Black Zinc No Model Compatibility List $3.64 / Each

2,4,5,6
701154 004072-A2 E56 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
E 705129 037985-00 E57 Washer;Flat;8.2x22.0x1.5t;;Zn-BL No Model Compatibility List $1.79 / Each

2
E 701658 004695-AB E58 Screw;Hex Socket;Flat;M8x1.25Px12L No Model Compatibility List $2.00 / Each

E 701321 004375-AC E59 Screw;Phillip;BH;Stainess;M5x0.8Px15L;BE No Model Compatibility List $1.79 / Each

702231 005356-00 E62 C-Clip;Internal;R-47 No Model Compatibility List $2.00 / Each

E 702095 005127-00 E65 Washer;Flat;M25.5x38x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
E 702177 005219-00 E66 Washer;Wavy;26.0x35.0x0.3T No Model Compatibility List $1.79 / Each

F 714714 1000317580 F01 Guide Raid&Roller Set;;;E5xc/E5X/E7X/E7X No Model Compatibility List $182.49 / Each

8
F 702781 009670-E F05 Rail;Upper;Anodizing;AL 6063;EP68 No Model Compatibility List $209.61 / Each

9
F 702630 009073-B F09 Ring;Guid Rail;;SS41;;;;;EP68 No Model Compatibility List $1.66 / Each

9
F 700445 001398-CA F10 Rubber Pad;Guide Rail;Rubber;EP68 No Model Compatibility List $13.26 / Each

9,12,13,14
705668 053429-Z G10 ROTATION HOUSING ASSEMBLY SET;EP74;SBOM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
G 703593 015609-AB G11 End Cap;Swivel Base Yes Model Compatibility List $111.33 / Each

9,3
702767 009589-A G51 End Cap;Handlebar;Steel No Model Compatibility List $1.79 / Each

9,11
G 719329 1000359769 G52 Foam;Handlebar;;PVC;BL/Black C;Diam.32x3 No Model Compatibility List $33.77 / Each

4,5,6,11
G 701162 004079-A3 G53 Ball Bearing;6006ZZ;30X55X13T;;TPI;;; No Model Compatibility List $27.04 / Each

700027 0000856-00 G54 Hole Plug; KSS HP-10;PL;Market No Model Compatibility List $0.00 / Each
Out Of Stock 		1
701408 004462-00 H07 Screw;Round;Hex Socket;M6x1.0Px15L;Chromed Yes Model Compatibility List $2.00 / Each

H 701885 004911-00 H50 Nut;Hex;M16x2.0Px7.0L;Zn Pl Yes Model Compatibility List $5.99 / Each

H 701191 004134-00 H51 Bearing;Lower Link Arm End;PHS 16(M16x2) PHS 16(M16X2) Yes Model Compatibility List $63.73 / Each

8,9,3
H 701945 004980-A H53 Insert Nut;Hex;NHS-580-3.0(M5X0.8P) Yes Model Compatibility List $1.79 / Each

H 701323 004375-AE H54 Screw;Phillip;BH;Stainess;M5x0.8Px15L;BE No Model Compatibility List $1.66 / Each

2
HR Board Receiver (Used) 1029469 0000083655 HR Board Receiver 1 HR Board Receiver (Used) Yes Model Compatibility List $40.00 / Each

702050 005078-00 I23 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

J 702289 005487-D J07 Spring;Compress Yes Model Compatibility List $9.10 / Each

702241 005366-00 J50 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

726959 086231 J51 Screw;Phillip;BH;M5x0.8Px10L;Zn-BL No Model Compatibility List $1.79 / Each

726821 085279 L04 Painting;Decorate Plate;Cover;B; No Model Compatibility List $109.95 / Each

Nut;Nylon;M10x1.5P 701912 004941-00 L08 Nut;Nylon;M10x1.5P Yes Model Compatibility List $2.00 / Each

N 703838 018605-D N07 Overlay;Upper No Model Compatibility List $35.36 / Each

1
N 706889 066648-A N12 Overlay;Middle No Model Compatibility List $9.41 / Each

1
N 703839 018607-B N13 Overlay;Lower No Model Compatibility List $9.10 / Each

1
701576 004610-00 N22 Screw;Phillip;BH;Tapped;3x25L No Model Compatibility List $1.79 / Each

2
Control Board;Quick Key 727748 0000090779 N24 Control Board;Quick Key Yes Model Compatibility List $9.99 / Each

N 707034 068631-A N53 Screw;Phillip;BH;Big;M3x0.5Px4L;; No Model Compatibility List $1.66 / Each

2
N 706799 065640-A N58 Screw;Round Cross Tapped;M3X30L Yes Model Compatibility List $2.00 / Each

n 702441 006928-B not shown Manual;Assembly Guide;EP68-US;English;E No Model Compatibility List $14.61 / Each

3
703430 014531-C not shown hardware Part Package Set(1);EP68-US; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
703431 014532-H not shown Hardware Set(N);EP68-US;EP68-AZ2L; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
726602 083331 not shown Assembly Manual Insert;CB64-US; No Model Compatibility List $0.00 / Each
Out Of Stock
P 700744 002122-FR P01 Console Cable;1350L;XAP-08V-1;EP68; Yes Model Compatibility List $84.47 / Each

7,4,5,6
P 700896 002682-CR P02 Generator Wire;100L;(3.96-5P WH VH+HL20P-03);E Yes Model Compatibility List $8.42 / Each

8,4,5,6
705068 034585-CR P03 Pulse SensorWire;820L;(TKP H66031P-06); Yes Model Compatibility List $29.02 / Each

4,5,6,12,13,14
P 701029 003374-ER P04 Connect Wire;Power Switch;1600L;(SCD-026 Yes Model Compatibility List $14.61 / Each

4,5,6
P 704985 028506-BR P05 Resistance;Power;Wire;400W 10 750mm;EP6 Yes Model Compatibility List $144.22 / Each

4,5,6,10
700916 002753-DR P06 TV Signal Wire;Coax;1600L;5CF Yes Model Compatibility List $16.64 / Each

4,5,6
P 703367 013782-AB P09 Lower Control Board;Generator;H002 Yes Model Compatibility List $638.79 / Each

1
705751 056007-A P11 Ground Wire;Extension;Pulse Grip;1300mm Yes Model Compatibility List $8.42 / Each

4,5,6,12,13,14,11
P 705778 056226-A P13 Resistor Cord;FH0900W;Lian Ci;EP68 No Model Compatibility List $8.42 / Each

4,5,6
701275 004339-00 P19 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
701858 004880-00 P20 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
706754 065248-A P54 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

701300 004364-00 P55 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701920 004951-A P56 Nut;M5;Chromed No Model Compatibility List $1.66 / Each

7,2,12,13,14
P 701035 003393-A P59 Ferrite Core;FH1500B;TM87 K1 RH12.5x12.5x8 No Model Compatibility List $3.64 / Each

SIDE COVER SET;LEFT;EP76-KM;SBOM 725468 071692 Q01 SIDE COVER SET;LEFT;EP76-KM;SBOM No Model Compatibility List $153.32 / Each

SIDE COVER SET;RIGHT;EP76-KM;SBOM 725469 071693 Q02 SIDE COVER SET;RIGHT;EP76-KM;SBOM No Model Compatibility List $162.53 / Each

Q 700056 000220-CA Q03 Boot;Console Mast Yes Model Compatibility List $17.99 / Each

7
Q 700041 000174-DA Q04 Pedal;Left Yes Model Compatibility List $72.98 / Each

8,9
Q 1002224 000174-DA Q04 Left Foot Pedal and Insert Yes Model Compatibility List $49.99 / Each

8,9
Q 700042 000175-DA Q05 Pedal;Right Yes Model Compatibility List $72.98 / Each

8,9
Q 700026 000049-BA Q06 Cover;Frame;ABS PA-746;BL;EP68 No Model Compatibility List $10.30 / Each
Out Of Stock 		9,3
Q 700082 000313-BA Q07 Cover;Frame;;ABS PA-746;;BL;;EP68 D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $10.30 / Each

9,3
Q 705160 038428-AA Q08 Cover;Upper Yes Model Compatibility List $104.57 / Each

9
700389 001192-CA Q09 Cover;Roller Wheel Yes Model Compatibility List $3.64 / Each

8,9
700373 001150-CA Q10 Boot;Crank Yes Model Compatibility List $13.00 / Each

8
700087 000330-CA Q11 Boot;Link Arm;Right No Model Compatibility List $1.79 / Each

3
Q 700088 000331-CA Q12 Boot;Link Arm;Left Yes Model Compatibility List $9.99 / Each

3
Q 700069 000249-DA Q13 Boot;Arm Rest;Left Yes Model Compatibility List $3.64 / Each

3
700070 000250-DA Q14 Boot;Arm Rest;Right Yes Model Compatibility List $3.64 / Each

3
700071 000251-DA Q15 Boot;Swivel Axle Yes Model Compatibility List $3.35 / Each

8
Q 700072 000252-CA Q16 Cover;Handlebar Yes Model Compatibility List $3.64 / Each

9,11
700453 001408-E Q18 End Cap;Crank Disc;Round Yes Model Compatibility List $6.24 / Each

8,9
Q 706892 066655-AA Q19 E-PORT Fix Plate;ABS PA-746(BL);EP68-Q19 No Model Compatibility List $3.35 / Each

3
Q 705672 053431-Z Q23 Pulse Sensor Set No Model Compatibility List $91.23 / Each

12,13,14
Q 704992 028563-CA Q24 Grip;Sensor;D;PA-746;BL;EP71; No Model Compatibility List $9.10 / Each

11
Q 700089 000332-BA Q26 Link Arm Pillar No Model Compatibility List $1.79 / Each

3
702484 007970-B Q27 Connecting Plate;Side Cover;2 Hole No Model Compatibility List $1.79 / Each

9,3
Q 1036645 007970-B Q27 PLATE CONNECTING COVER FRONT Yes Model Compatibility List $5.00 / Each

9,3
Q 702113 005140-A Q51 Washer;Flat;5.5x10.0x1.2T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
Q 701583 004615-00 Q52 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

726422 081745 Q53 Screw;Umbrella Cross;M5x0.8Px8L;Stainless No Model Compatibility List $1.66 / Each

Nut;Lock;M25X1.5P;SS41;BAN 701924 004957-00 R09 Nut;Lock;M25X1.5P;SS41;BAN Yes Model Compatibility List $3.64 / Each

R 704976 027963-A R09 Drive Belt;Poly-V;350-J8 Yes Model Compatibility List $63.83 / Each

10,15
727080 0000087101 R11 Drive Belt;Poly-V;420-J14;Carlisle;;Rubber;Net Yes Model Compatibility List $54.73 / Each

Belt, Drive (Used) 1035614 0000087101 R11 1 Belt, Drive (Used) Yes Model Compatibility List $20.00 / Each

R 702226 005351-00 R15 Clamp;Internal C-Shaped;R-32; No Model Compatibility List $1.79 / Each

R 701955 004991-00 R16 Key;Round;Dual-End;6X6X20L No Model Compatibility List $2.37 / Each

701952 004988-00 R40 Key;Round;Dual-End;6x6x14L No Model Compatibility List $1.90 / Each

9
R 701926 004961-A R48 Nut;Hex;M30x1.5Px8T No Model Compatibility List $6.73 / Each

726412 081707 R51 Washer;Star;1.5 Zinc No Model Compatibility List $3.35 / Each

Generator Set JM07-004 727526 0000089783 S01 Generator Set JM07-004 Yes Model Compatibility List $381.29 / Each

S 701651 004692-A S02 Bolt;Eye Hook;1/4"-20UNCx40L Yes Model Compatibility List $1.66 / Each

2
705700 055204-A S10 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

701390 004447-AB S52 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

T 702616 009003-A T05 Axle;Idler;;SS41;M20x32.4L;Anti-Rust;;;E SS41 No Model Compatibility List $3.35 / Each

8
700002 - T11 Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock 		2
726962 086250 T21 TENSION WHEEL SET;Rework;EP72;SBOM No Model Compatibility List $95.11 / Each

701169 004084-A4 T49 Bearing;Ball;6304ZZ(20x52x15t);TPI No Model Compatibility List $0.00 / Each
Out Of Stock 		8
702108 005137-A T50 Washer;Flat;20.2x30.5x2.0t;Black Zinc; No Model Compatibility List $0.00 / Each
Out Of Stock 		2,4,5,6
701664 004699-00 T51 Screw;Hex Socket;M8X1.25PX15L Yes Model Compatibility List $1.79 / Each

Ball Bearing;6203ZZ;17X40X12T;;TPI;;; 701163 004080-00 U07 Ball Bearing;6203ZZ;17X40X12T;;TPI;;; Yes Model Compatibility List $11.18 / Each

8
728256 093798 U08 Screw;BH;M5X0.8PX13L;;PH;Zn Plate No Model Compatibility List $1.66 / Each

U 702230 005355-00 U09 C-Clip;Internal;R-55 Yes Model Compatibility List $3.64 / Each

V 704977 027982-B V04 Decal;Side Cover;EP68-US;EP68 No Model Compatibility List $25.30 / Each

7,9,3
V 702416 006675-C V05 Decal;Aperture;TV Rack Yes Model Compatibility List $21.48 / Each

7,3,4,5,6
726579 083066 V100 Decal;Side Cover;SNAP;EP74 No Model Compatibility List $23.43 / Each

704978 028272-CR W25 Membrane Keypad;Left;Plane 4Key;CB64 No Model Compatibility List $9.10 / Each

9,12,13,14
705038 032524-CR W26 Membrane Keypad;Right;Plane 4Key;CB64 No Model Compatibility List $9.10 / Each

9,12,13,14
W 705070 034598-BR W27 Membrane Keypad;Down;Plane 4Key;CB64 No Model Compatibility List $17.42 / Each
Out Of Stock 		9,12,13,14
705112 037756-AA W28 Display Board;Matrix;CB64; Yes Model Compatibility List $195.26 / Each

1
705113 037757-AAR W29 Display Board;*Type;CB64;Add Coating Yes Model Compatibility List $113.20 / Each

1
705114 037758-AAR W30 Load Board;Program;CB64; Yes Model Compatibility List $25.56 / Each

1
705748 056004-A W35 Pulse Sensor Wire;300L Yes Model Compatibility List $17.94 / Each

4,5,6,12,13,14
W 705753 056009-A W36 Power Wire;Heart Rate Board;220L;(TKP 2510A-3P Yes Model Compatibility List $16.54 / Each

4,5,6,12,13,14
W 705752 056008-A W37 Ground Wire;Pulse Grip;100L;(KST FDFNYD2-250-1 HSG No Model Compatibility List $3.35 / Each

4,5,6,12,13,14,11
W 701032 003383-A W38 Ferrite Choke;FH0900B-2;Lian Ci;TM38 No Model Compatibility List $9.10 / Each

705069 034586-BR Y25 Quickl Key Wire;200L;(TKP H6630P-06+TKP Yes Model Compatibility List $13.78 / Each

9,4,5,6
Y 705777 056225-A Y52 Ferrite;PART OF #79 CABLE;NOT ORDERABLE; No Model Compatibility List $8.42 / Each

701430 004479-00 Z01 Screw;Round;Hex Socket;M8X1.25PX15L No Model Compatibility List $2.00 / Each

702186 005229-00 Z02 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

Z 701312 004370-00 Z03 Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL No Model Compatibility List $2.00 / Each

Z 941989 004370-00 Z03 Screw (New) No Model Compatibility List $12.00 / Each

Z 701490 004533-AB Z04 Screw;Hex Socket;Round;M8x1.25Px65L Yes Model Compatibility List $1.79 / Each

2
Z 701446 004488-AC Z05 Screw;Hex Socket;Round;M8x1.25Px55L No Model Compatibility List $1.79 / Each

709055 1000108777 Z06 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $2.00 / Each

701897 004926-00 Z07 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

Z 976932 004926-00 Z07 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

702178 005220-00 Z08 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

Z 703978 020045-00 Z09 Screw;Phillip;Sink;M5x0.8Px12L;;Zn-BL No Model Compatibility List $2.00 / Each

701302 004364-AD Z10 Screw;Phillip;BH;M5x0.8Px12L;Black; No Model Compatibility List $2.00 / Each

2,4,5,6
Z 704016 020105-AC Z13 Screw;Hex Socket;Round;M10x1.5Px15L;Adhe No Model Compatibility List $2.57 / Each

Z 701504 004539-AC Z14 Screw;Round;Hex Socket;M8X1.25PX25L Yes Model Compatibility List $3.64 / Each

730344 0000089822 Z21 Screw;Hex Socket;Round;M10x1.5Px100L Yes Model Compatibility List $1.68 / Each

701436 004482-AB Z25 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $2.00 / Each

Z 702632 009081-C Z30 Rod End Bearing Sleeve;SS41;EP68-Z30C; No Model Compatibility List $3.64 / Each

8,9,3
Z 704175 020425-00 Z32 Washer;Flat;8.4x15.5x1.6T Yes Model Compatibility List $2.00 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
