Replacement Parts for Matrix Commercial G1-FW151LS Benches/Racks

Matrix Commercial - G1-FW151LS - 2010

Repair Parts for Matrix Commercial G1-FW151LS G1FW151E,FW151E

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G1FW151E,FW151E

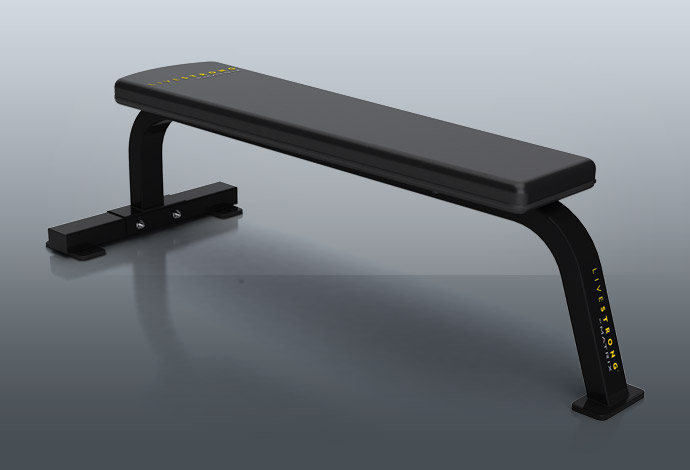

Model Name: G1-FW151LS

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16784.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
701522	004555-AB	Z03	Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A	No	Model Compatibility List	$4.00 / Each
701660	004696-AB	C05	Screw;Hex Socket;8X1.25X20L;Chromed	No	Model Compatibility List	$2.00 / Each
701914	004943-00	Z04	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each
704206	020479-A	Z02	Washer;Flat;10.2x22.0x2.0T;Chromed	No	Model Compatibility List	$2.00 / Each
705367	048970-BA	B05	Foot Pad;Rubber;GM151	No	Model Compatibility List	$8.42 / Each
705389	049043-AA	C03	Cap;S50.0x75.0;2.0t.3.0t tube	No	Model Compatibility List	$3.35 / Each	9,3
705467	049258-AB	Z01	Screw;SH;M10X1.5PX100L;;HS;;CHM;	No	Model Compatibility List	$3.35 / Each
706157	059631-B	V02	Warning Sticker;GM162-KM	No	Model Compatibility List	$9.10 / Each	1
706373	061531-AA	C04	Leveler;Foot Pad;FW151	No	Model Compatibility List	$14.56 / Each	9,3,12,13,14
706378	061633-A	Not Shown	Hardware;FW151	No	Model Compatibility List	$31.30 / Each	1

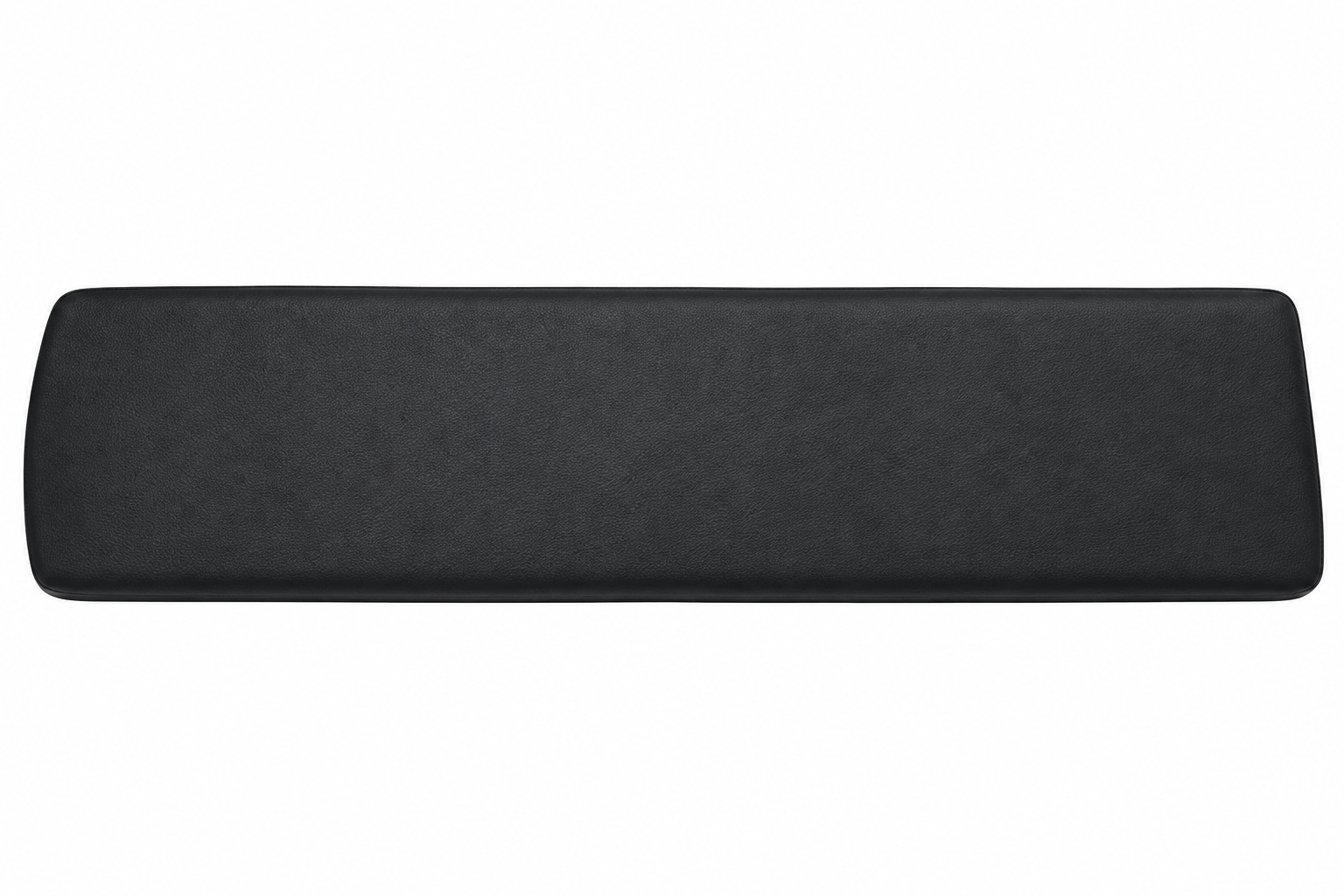

706843	066162-BA	J01	Back Pad;BlackFW151-J01B-00	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
706844	066162-BB	J01	Back Pad;redFW151-J01B-00	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
709163	1000110582	J01	Back Pad;Mist Blue;FW151D-KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
709183	1000110775	Not Shown	Manual;Assembly;FW151D-KM	No	Model Compatibility List	$15.47 / Each	3
709601	1000201597	J01	Back Pad;No Leather;-;HARDNESS:40 5	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
709765	1000202765	V01	Logo Label;;;PET;;;	No	Model Compatibility List	$24.65 / Each	1
710411	1000210164	AC1	BaseFrameSet;Painting;GY;FW151	No	Model Compatibility List	$187.62 / Each	3
710412	1000210165	AB1	Frame Set;Painting;GY;FW151	No	Model Compatibility List	$424.22 / Each	3
728977	N/A	4	Console Mast,Old version (4 holes on front)	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,,1,,1
