Matrix Commercial - G1-FW153LS - 2010

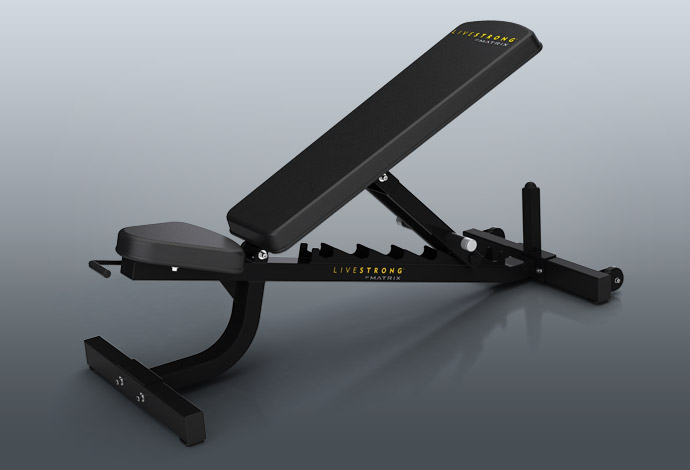

Repair Parts for Matrix Commercial G1-FW153LS FW153E

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW153E

Model Name: G1-FW153LS

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16787.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700017	000031-C	C23	Mobile Wheel	No	Model Compatibility List	$3.82 / Each	8
700520	001525-B	T07	Rubber Pad;Stopper	No	Model Compatibility List	$1.79 / Each	12,13,14
700528	001531-AA	C14	Stopper Bolt;Back Pad	No	Model Compatibility List	$3.64 / Each	2,4,5,6,12,13,14
701183	004118-00	T06	Bearing;Dry;Flange;LEF-2015 LFF-2015	No	Model Compatibility List	$3.64 / Each	8
701522	004555-AB	Z01	Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A	Yes	Model Compatibility List	$4.00 / Each
701660	004696-AB	C22	Screw;Hex Socket;8X1.25X20L;Chromed	No	Model Compatibility List	$2.00 / Each
701836	004855-AC	H10	Set Screw;M6X1.0PX4L	No	Model Compatibility List	$1.79 / Each
701898	004926-AC	C26	Nut;Self Locking;M8x1.25P;Cr;Nylon Insert	No	Model Compatibility List	$2.00 / Each
701914	004943-00	Z05	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each
701981	005017-00	Z09	Washer;Spring;SW10 10.2X18.4X2.5T;Chromed	No	Model Compatibility List	$1.33 / Each
702085	005117-AB	C25	Washer;Flat;8.2x16.0x2.0T;Chromed	No	Model Compatibility List	$1.33 / Each
702109	005138-A	Z04	Washer;Flat;10.2x25x1.5T;Chromed	No	Model Compatibility List	$2.00 / Each
702721	009371-E	H06	Cap;Grip;GM03	No	Model Compatibility List	$15.34 / Each
704007	020098-AD	Z03	Screw;Hex Socket;Round;M10x1.5Px70L;Cr;	No	Model Compatibility List	$9.10 / Each	2
704014	020104-AC	Z02	Screw;Hex Socket;Round;M10x1.5Px30L;Cr;	No	Model Compatibility List	$3.64 / Each	2
705369	048973-AA	C21	Pad Frame Stabilizer	No	Model Compatibility List	$3.35 / Each	3,12,13,14
705373	048987-AA	C13	Foam;10.5x5.0tx90L;GM153	No	Model Compatibility List	$1.66 / Each	1
705389	049043-AA	C28	Cap;S50.0x75.0;2.0t.3.0t tube	No	Model Compatibility List	$3.35 / Each	9,3
705390	049044-AA	T05	Cap;30x60x3.0t;GM154	No	Model Compatibility List	$1.79 / Each	9
705489	049293-B	Z06	Washer;FLT;20.0X30.0X1.0T;TFN;;	No	Model Compatibility List	$1.66 / Each	2
706157	059631-B	V04	Warning Sticker;GM162-KM	No	Model Compatibility List	$9.10 / Each	1
706168	059751-A	V06	Series no. Decal;GM162	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3
706443	062324-A	H05	ADJ Axle;FW152	No	Model Compatibility List	$33.41 / Each	8
706445	062326-A	H08	Axle;6MM;Q235;FW152	No	Model Compatibility List	$15.68 / Each	8
706472	062612-AA	H09	Foam;FW152	No	Model Compatibility List	$8.42 / Each	1
706498	062865-B	C20	Axle;Swivel;FW153	No	Model Compatibility List	$20.23 / Each	8
706499	062866-A	C19	Axle;Swivel;FW153	No	Model Compatibility List	$31.30 / Each	8
706986	067941-C	H12	Cap;25x50x3.0T;GM20	No	Model Compatibility List	$1.79 / Each	9
708710	1000105038	H11	Pin;Spring;5x30L;OXIDIZE	No	Model Compatibility List	$3.64 / Each	2,12,13,14
709005	1000108187	C24	Screw;RND;M8x1.25Px45L-20L;MT;HS;CHM	No	Model Compatibility List	$3.64 / Each
709155	1000110518	V01	Sticker;LOGO;PVC;FW151D-KM	No	Model Compatibility List	$8.42 / Each	1
709166	1000110601	Not Shown	Manual;Assembly;FW153D-KM	No	Model Compatibility List	$14.38 / Each	3
710413	1000210166	1	Base Frame Set;-;-;PAINTING;-;BLACK;FW153E;	No	Model Compatibility List	$660.32 / Each	3,4,5,6
710494	1000210681	2	Stabilizer Set;Front;SA;F;FW153E;;;	No	Model Compatibility List	$700.96 / Each	1
710495	1000210683	3	Stabilizer Set;Rear;SA;B;FW153E;;;	No	Model Compatibility List	$666.46 / Each	1
710712	1000212607	5	Pad Frame Set;SA;BACK PAD SET;FW153E;-;BK;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6,12,13,14
710714	1000212609	4	Adjustment Frame Set;SA;START;FW153E;-;BK;	No	Model Compatibility List	$235.72 / Each	3
728457	094942	H07	Stopper Tube;POM;FW153B	No	Model Compatibility List	$19.24 / Each
729118	Part of Kit 1	AC2	Stabilizer Frame;Rear;B;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729138	Part of Kit 2	AC3	Console Mast;Painting;MM330;6027-45-	No	Model Compatibility List	$0.00 / Each Out Of Stock
729152	Part of Kit 3	AC1	Pedal Arm;Right;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729165	Part of Kit 4	AH1	Pedal Arm;Left;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729172	Part of Kit 5	AT1	Swing Arm Set;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
729261	See Pad Matrix	J02	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
