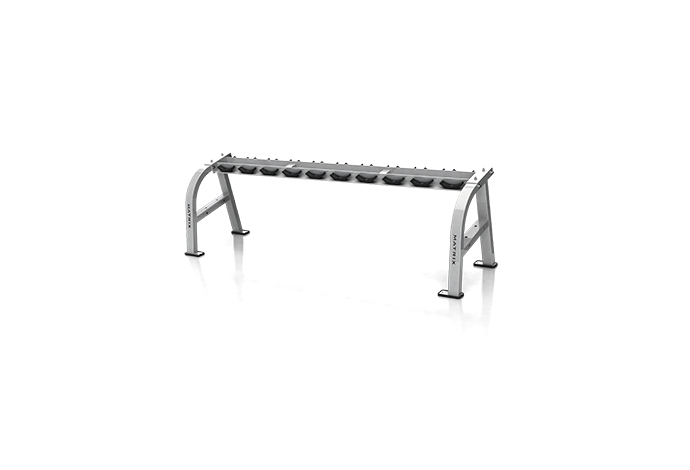

Matrix Commercial - G1-FW158 - 2010

Repair Parts for Matrix Commercial G1-FW158 FW158

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: G1-FW158

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
G 700249 000776-A G05 Elastomer;E5-09B;FW91 No Model Compatibility List $9.52 / Each

1
G 701545 004573-AE G04 Screw;Hex Socket;Sink;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
D 701660 004696-AB D06 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

Z 701914 004943-00 Z01 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

Z 704007 020098-AD Z03 Screw;Hex Socket;Round;M10x1.5Px70L;Cr; No Model Compatibility List $9.10 / Each

2
704025 020115-A Z04 Screw;SH;M10X1.5PX95;;HS;;CHM;; No Model Compatibility List $8.42 / Each

2
Z 704206 020479-A Z02 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

D 705367 048970-BA D05 Foot Pad;Rubber;GM151 No Model Compatibility List $8.42 / Each

D 705389 049043-AA D07 Cap;S50.0x75.0;2.0t.3.0t tube No Model Compatibility List $3.35 / Each

9,3
V 706157 059631-B V05 Warning Sticker;GM162-KM No Model Compatibility List $9.10 / Each

1
N 706412 062097-A Not Shown Hardware;FW158 No Model Compatibility List $104.36 / Each

1
D 706480 062626-AA D08 Cap;Hole Plug;FW158 No Model Compatibility List $1.66 / Each

9
V 709155 1000110518 V04 Sticker;LOGO;PVC;FW151D-KM No Model Compatibility List $8.42 / Each

1
709171 1000110651 Not Shown Manual;Assembly;FW158D-KM No Model Compatibility List $15.47 / Each

3
709533 1000201048 AD1 Frame;Leg;Right;FW159D-KM;SERVICE PARTS;;; No Model Compatibility List $469.59 / Each

3
709534 1000201049 AD2 Frame;Leg;Left;R;FW159D-KM;SERVICE PARTS;;; No Model Compatibility List $500.37 / Each

3
709535 1000201051 AG1 Main Connecting Frame Set;SA;;FW159D-KM;SE No Model Compatibility List $736.66 / Each

3
728977 N/A 2 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock 		8,,1,,1
View Drawing
